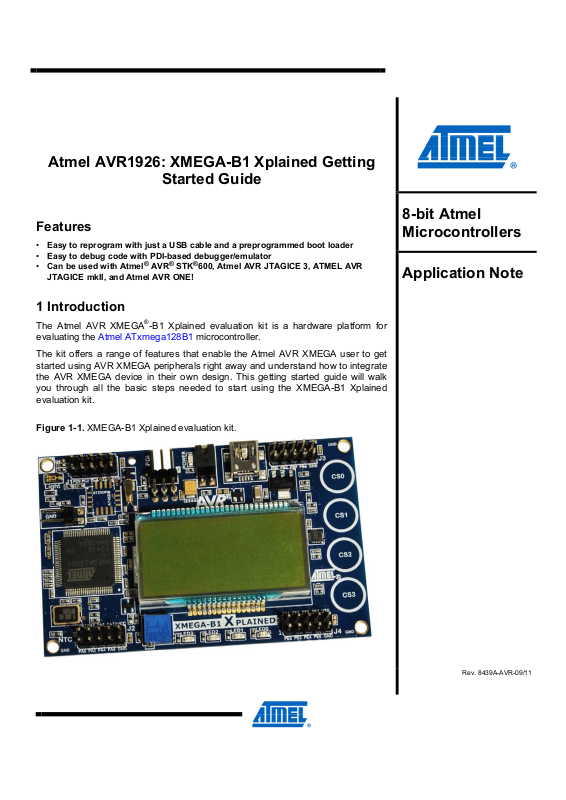

Atmel AVR1926 User guide

Atmel AVR1926: XMEGA-B1 Xplained Getting

Started Guide

Features

• Easy to reprogram with just a USB cable and a preprogrammed boot loader

• Easy to debug code with PDI-based debugger/emulator

• Can be used with Atmel

JTAGICE mkII, and Atmel AVR ONE!

1 Introduction

The Atmel AVR XMEGA®-B1 Xplained evaluation kit is a hardware platform for
evaluating the Atmel ATxmega128B1 microcontroll

The kit offers a range of features that enable the Atmel AVR XMEGA user to get
started using AVR XMEGA peripherals right away and understand how to integrate
the AVR XMEGA device in their own design. This getting started guide will walk
you through all the basic steps needed to start using the XMEGA-B1 Xplained
evaluation kit.

®

AVR® STK®600, Atmel AVR JTAGICE 3, ATMEL AVR

er.

8-bit Atmel
Microcontrollers

Application Note

Figure 1-1. XMEGA-B1 Xplained evaluation kit.

Rev. 8439A-AVR-09/11
