Atmel ATtiny261A, ATtiny461A, ATtiny861A Datasheet

Features

• High Performance, Low Power AVR

• Advanced RISC Architecture

– 123 Powe rful Instructions – Most Single Clock Cycle Execution – 32 x 8 General Purpose Working Registers – Fully Static Operation – Up to 20 MIPS Throughput at 20 MHz

• High Endurance Non-volatile Memory Segments

– 2/4/8K Bytes of In-System Self-Programmable Flash Program Memory

• Endurance: 10,000 Write/Erase Cycles

– 128/256/512 Bytes of In-System Programmable EEPROM

• Endurance: 100,000 Write/Erase Cycles – 128/256/512 Bytes of Internal SRAM – Data retention: 20 Years at 85°C / 100 Years at 25°C – In-System Programmab le via SPI Port – Programming Lock for Software Security

• Peripheral Features

– One 8/16-bit Timer/Counter with Prescaler – One 8/10-bit High Speed Timer/Counter with Prescaler

• 3 High Frequency PWM Outputs with Separate Output Compare Registers

• Programmable Dead Time Generator – 10-bit ADC

• 11 Single-Ended Channels

• 16 Differential ADC Channel Pairs

• 15 Differential ADC Channel Pairs with Programmab le Gain (1x, 8x, 20x, 32x) – On-Chip Analog Comparator – Programmable Watchdog Timer with Separate On-Chip Oscillator – Universal Serial Interface with Start Condition Detector – Interrupt and Wake-up on Pin Change

• Special Microcontroller Features

– debugWIRE On-Chip Debug System – Power-on Reset and Programmable Brown-out Detection – Internal Calibrated Oscillator – External and Internal Interrupt Sources – Four Sleep Modes: Low Power Idle, ADC Noise Reduction, Standby and Power-

Down

– On-Chip Temperat ure Sensor

• I/O and Pac kages

– 16 Programmable I/O Lines – 20-pin PDIP, 20-pin SOIC, 20-pin TSSOP and 32-pad MLF

• Operating Voltage

– 1.8 – 5.5V

• Speed Grades

– 0 – 4 MHz @ 1.8 – 5.5V – 0 – 10 MHz @ 2.7 – 5.5V – 0 – 20 MHz @ 4.5 – 5.5V

• Power Consumption at 1 MHz, 1.8V, 25°C

– Active: 200 µA – Power-Down Mode: 0.1 µA

8-Bit Microcontroller

8-bit Microcontroller with 2/4/8K Bytes In-System Programmable Flash

ATtiny261A ATtiny461A ATtiny861A

8197C–AVR–05/11

1. Pin Configurations

Figure 1-1. Pinout ATt iny261A/461A/861A

PDIP/SOIC/TSSOP

(MOSI/DI/SDA/OC1A/PCINT8) PB0

(MISO/DO/OC1A/PCINT9) PB1

(SCK/USCK/SCL/OC1B/PCINT10) PB2

(OC1B/PCINT11) PB3

VCC

GND

(ADC7/OC1D/CLKI/XTAL1/PCINT12) PB4

(ADC8/OC1D/CLKO/XTAL2/PCINT13) PB5

(ADC9/INT0/T0/PCINT14) PB6

(ADC10/RESET/PCINT15) PB7

PB2 (SCK/USCK/SCL/OC1B/PCINT10)

PB1 (MISO/DO/OC1A/PCINT9)

PB0 (MOSI/DI/SDA/OC1A/PCINT8)

32313029282726

NCNCNC

PA0 (ADC0/DI/SDA/PCINT0) PA1 (ADC1/DO/PCINT1) PA2 (ADC2/INT1/USCK/SCL/PCINT2) PA3 (AREF/PCINT3) AGND AVC C PA4 (ADC3/ICP0/PCINT4) PA5 (ADC4/AIN2/PCINT5) PA6 (ADC5/AIN0/PCINT6) PA7 (ADC6/AIN1/PCINT7)

PA0 (ADC0/DI/SDA/PCINT0)

PA1 (ADC1/DO/PCINT1)

(OC1B/PCINT11) PB3

VCC

GND

(ADC7/OC1D/CLKI/XTAL1/PCINT12) PB4

(ADC8/OC1D/CLKO/XTAL2/PCINT13) PB5

QFN/MLF

9101112131415

(ADC9/INT0/T0/PCINT14) PB6

(ADC6/AIN1/PCINT7) PA7

(ADC5/AIN0/PCINT6) PA6

(ADC10/RESET/PCINT15) PB7

(ADC4/AIN2/PCINT5) PA5

PA2 (ADC2/INT1/USCK/SCL/PCINT2)

PA3 (AREF/PCINT3)

AGND

AVC C

PA4 (ADC3/ICP0/PCINT4)

Note: To ensure mechanical stability the center pad unde rneath the QFN/MLF package should be soldered to ground on the board.

ATtiny261A/461A/861A

8197C–AVR–05/11

1.1 Pin Descriptions

1.1.1 VCC

Supply voltage.

1.1.2 GND

Ground.

1.1.3 AVCC

Analog supply voltage. This is the supply voltage pin for the Analog-to-digital Converter (ADC), the analog comparator, the Brown-Out Detector (BOD), the internal voltage reference and Port A. It should be externally connected to VCC, even if some peripherals such as the ADC are not used. If the ADC is used AVCC should be connected to VCC through a low-pass filter.

1.1.4 AGND

Analog ground.

1.1.5 Port A (PA7:PA0)

An 8-bit, bi-directional I/O port with internal pull-up resistors, individually selectable for each bit. Output buffers have symmetrical drive characteristics with both high sink and source capability. As inputs, port pins that are externally pulled low will source current if pull-up resistors have been activated. Port pins are tri-stated when a reset condition becomes active, even if the clock is not running.

ATtiny261A/461A/861A

Port A also serves the functions of various special features of the device, as listed on page 62.

1.1.6 Port B (PB7:PB0)

Port B also serves the functions of various special features of the device, as listed on page 65.

1.1.7

RESET

Reset input. A low level on this pin for longer than the minimum pulse length will generate a reset, even if the clock is not running and provided the reset pin ha s not been disabled. Th e minimum pulse length is given in Table 19-4 on page 188. Shorter pulses are not guaranteed to generate a reset.

The reset pin can also be used as a (weak) I/O pin.

8197C–AVR–05/11

2. Overview

2.1 Block Diagram

ATtiny261A/461A/861A are low-power CMOS 8-bit microcontrollers based on the AVR enhanced RISC architecture. By executing powerful instructions in a single clock cycle, the devices achieve throughputs approa ching 1 MIPS pe r MHz allowing the system designe r to optimize power consumption versus processing speed.

Figure 2-1. Block Diagram

DATABUS

GND

Watchdog

Timer

Watchdog

Oscillator

Circuits /

Clock

Generation

EEPROM

Timer/Counter0 A/D Conv.

USI

Power

Supervision

POR / BOD &

RESET

Timer/Counter1

Analog Comp.

VCC

debugWIRE

PROGRAM

LOGIC

SRAMFlash

CPU

Internal Bandgap

AVCC

AGND

AREF

PORT A (8)PORT B (8)

PA[0:7]PB[0:7]

RESET XTAL[1:2]

The AVR core combines a rich instruction set with 32 general purpose working registers. All 32 registers are directly connected to the Arithmetic Logic Unit (ALU), allowing two independent registers to be accessed in one single instruction executed in one clock cycle. The resulting architecture is more code efficient while achieving throughputs up to ten times faster than conventional CISC microcontrollers.

ATtiny261A/461A/861A

8197C–AVR–05/11

ATtiny261A/461A/861A

The ATtiny261A/461A/861A prov ides the follow ing featu res: 2/4/8K byte of In-Syste m Program mable Flash, 128/256/512 bytes EEPROM, 128/256/512 bytes SRAM, 16 general purpose I/O lines, 32 general purpose working registers, an 8-bit Timer/Counter with compare modes, an 8bit high speed Timer/Counter, a Universal Serial Interface, Internal and External Interrupts, an 11-channel, 10-bit ADC, a programmable Watchdog Timer with internal oscillator, and four software selectable power saving modes. Idle mode stops the CPU while allowing the SRAM, Timer/Counter, ADC, Analog Comparator, and Interrupt system to continue functioning. Powerdown mode saves the register contents, disabling all chip functions until the next Interrupt or Hardware Reset. ADC Noise Reduction mode stops the CPU and all I/O modules except ADC, to minimize switching noise during ADC conversions. In Standby mode, the crystal/resonator oscillator is running while the rest of the device is sleeping, allowing very fast start-up combined with low power consumption.

The device is manufactured using Atmel’s high density non-volatile memory technology. The On-chip ISP Flash allows the Program memory to be re-programmed In-System through an SPI serial interface, by a conventional non-volatile memory programmer or by an On-chip boot code running on the AVR core.

The ATtiny261A/461A/861A AVR is supported by a full suite of program and system development tools including: C Compilers, Macro Assemblers, Program Debugger/Simulators, and Evaluation kits.

8197C–AVR–05/11

3. General Information

3.1 Resources

A comprehensive set of drivers, application notes, data sheet s and descr iption s on development tools are available for download at http://www.atmel.com/avr.

3.2 Code Examples

This documentation contains simple code examples t hat brief ly show h ow to us e various parts of the device. These code examples assume that the part specific header file is included b efore compilation. Be aware that not all C compiler vendors include bit definitions in the header files and interrupt handling in C is compiler dependent . Please con firm wit h the C com piler d ocume ntation for more details.

For I/O Registers located in the extended I/O map, “IN”, “OUT”, “SBIS”, “SBIC”, “CBI”, and “SBI” instructions must be replaced with instructions that allow access to extended I/O. Typically, this means “LDS” and “STS” combined with “SBRS”, “SBRC”, “SBR”, and “CBR”. Note that not all AVR devices include an extended I/O map.

3.3 Capacitive Touch Sensing

Atmel QTouch Library provides a simple to use solution for touch sensitive interfaces on Atmel AVR microcontrollers. The QTouch Library includes support for QTouch tion methods.

and QMatrix® acquisi-

3.4 Data Retention

Touch sensing is easily added to any application by linking the QTouch Library and using the Application Programming Interface (API) of the library to define th e touch ch annels and senso rs. The application then calls the API to retrieve channel information and determine the state of the touch sensor.

The QTouch Library is free and can be downloaded from the Atmel website. For more information and details of implementation, refer to the QTouch Library User Guide – also available from the Atmel website.

Reliability Qualification results show that the projected data retention failure rate is much less than 1 PPM over 20 years at 85°C or 100 years at 25°C.

ATtiny261A/461A/861A

8197C–AVR–05/11

4. CPU Core

Flash

Program

Memory

Instruction

Decoder

Program

Counter

Control Lines

32 x 8

General

Purpose

Registrers

ALU

Status

and Control

I/O Lines

EEPROM

Data Bus 8-bit

Data

SRAM

Direct Addressing

Indirect Addressing

Interrupt

Unit

Watchdog

Timer

Analog

Comparator

I/O Module 2

I/O Module1

I/O Module n

This section discusses the AVR core architecture in general. The main function of the CPU core is to ensure correct program execution. The CPU must therefore be able to access memories, perform calculations, control peripherals, and handle interrupts.

4.1 Architectural Overview

Figure 4-1. Block Diagram of the AVR Architecture

ATtiny261A/461A/861A

In order to maximize performance and parallelism, the AVR uses a Harvard architecture – with separate memories and buses for program and data. Instructions in the Program memory are executed with a single level pipelining. While one instruction is being executed, the next instruction is pre-fetched from the Program memo ry. This concept enables instructions to be executed in every clock cycle. The Program memory is In-System Reprogrammable Flash memory.

8197C–AVR–05/11

The fast-access Register File contains 32 x 8-bit general purpose working registers with a single clock cycle access time. This allows single-cycle Arithmetic Logic Unit (ALU) operation. In a typical ALU operation, two operands are output from the Register File, the operation is executed, and the result is stored back in the Register File – in one clock cycle.

Six of the 32 registers can be used as three 16-bit indirect address register pointers for Data Space addressing – enabling efficient address calculations. One of the these address pointe rs can also be used as an address pointer for look up tables in Flash Program memory. These added function registers are the 16-bit X-, Y-, and Z-register, described later in this section.

The ALU supports arithmetic and logic operations between registers or between a constant and a register. Single register operations can also be executed in the AL U. After an arith metic operation, the Status Register is updated to reflect informat ion about the result of the operation.

Program flow is provided by conditional and unconditional jump and call instructions, able to directly address the whole address space. Most AVR instructions have a single 16-bit word format. Every Program memory address contains a 16- or 32-bit instruction.

During interrupts and subroutine calls, the return address Prog ram Counter (PC) is stored on the Stack. The Stack is effectively allocated in the general data SRAM, and consequently the Stack size is only limited by the total SRAM size and the usage of the SRAM. All user programs must initialize the SP in the Reset routine (before subroutines or interrupts are executed). The Stack Pointer (SP) is read/write accessible in the I/O space. The data SRAM can easily be accessed through the five different addressing modes supported in the AVR architecture.

The memory spaces in the AVR architecture are all linear and regular memory maps. A flexible interrupt module has its control registers in the I/O space with an additional Global

Interrupt Enable bit in the Status Register. All interrupts have a separate Interrupt Vector in the Interrupt Vector table. The interrupts have priority in accordance with their Interrupt Vector position. The lower the Interrupt Vector address, the higher the priority.

The I/O memory space contains 64 addresses for CPU peripheral functions as Control Registers, SPI, and other I/O functions. The I/O memory can be acces sed directly, or as the Data Space locations following those of the Register File, 0x20 - 0x5F.

4.2 ALU – Arithmetic Logic Unit

The high-performance AVR ALU operates in direct connection with all the 32 general purpose working registers. Within a single clock cycle, arithmetic operations between general purpose registers or between a register and an immediate are execut ed . The ALU ope ra tio ns are divided into three main categories – arithmetic, logical, and bit-functions. Some implementations of the architecture also provide a powerful multiplier supporting both signed/unsigned multiplication and fractional format. See the “Instruction Set” section for a detailed description.

4.3 Status Register

The Status Register contains information abou t th e result o f th e most r ecently exe cuted arith metic instruction. This information can be used for altering program flow in order to perform conditional operations. Note that the Status Register is updated after all ALU operations, as specified in the Instruction Set Refe rence. This wil l in many cases remove the n eed for using the dedicated compare instructions, resulting in faster and more compact code.

The Status Register is neither automatically stored when entering an interrupt routine, nor restored when returning from an interrupt. This must be handled by software.

ATtiny261A/461A/861A

8197C–AVR–05/11

4.3.1 SREG – AVR Status Register

Bit 76543210 0x3F (0x5F) I T H S V N Z C SREG Read/Write R/W R/W R/W R/W R/W R/W R/W R/W Initial Value00000000

• Bit 7 – I: Global Interrupt Enable

The Global Interrupt Enable bit must be set for the interrupts to be enabled. The individual interrupt enable control is then performed in separate control registers. If the Global Interrupt Enable Register is cleared, none of the interrupts are enabled independent of the individual interrupt enable settings. The I-bit is cleared by hardware after an interrupt has occurred, and is set by the RETI instruction to enable subsequent interrupts. The I-bit can also be set and cleared by the application with the SEI and CLI instructions, as described in the instruction set reference.

• Bit 6 – T: Bit Copy Storage

The Bit Copy instructions BLD (Bit LoaD) and BST (Bit STore) use the T-bit as source or destination for the operated bit. A bit from a register in the Register File can be copied into T by the BST instruction, and a bit in T can be copied into a bit in a register in the Register File by the BLD instruction.

ATtiny261A/461A/861A

• Bit 5 – H: Half Carry Flag

The Half Carry Flag H indicates a Half Carry in some arithmetic operations. Half Carry is useful in BCD arithmetic. See the “Instruction Set Description” for detailed information.

• Bit 4 – S: Sign Bit, S = N

⊕ V

The S-bit is always an exclusive or between the Negative Flag N and the Two’s Complement Overflow Flag V. See the “Instruction Set Description” for detailed information.

• Bit 3 – V: Two’s Complement Overflow Flag

The Two’s Complement Overflow Flag V supports two’s complement arithmetics. See the “Instruction Set Description” for detailed information.

• Bit 2 – N: Negative Flag

The Negative Flag N indicates a negative result in an arithmetic or logic operation. See the “Instruction Set Description” for detailed information.

• Bit 1 – Z: Zero Flag

The Zero Flag Z indicates a zero result in an arithmetic or logic operation. See the “Instruction Set Description” for detailed information.

• Bit 0 – C: Carry Flag

The Carry Flag C indicates a carry in an arithmetic or logic operation. See the “Instruction Set Description” for detailed information.

8197C–AVR–05/11

4.4 General Purpose Register File

The Register File is optimized for the AVR Enhanced RISC instruction set. In order t o achieve the required performance and flexibility, the following input/output schemes are supported by the Register File:

• One 8-bit output operand and one 8-bit result input

• Two 8-bit output operands and one 8-bit result input

• Two 8-bit output operands and one 16-bit result input

• One 16-bit output operand and one 16-bit result input

Figure 4-2 below shows the structure of the 32 general purpose working registe rs in the CPU.

Figure 4-2. AVR CPU General Purpose Working Registers

General R14 0x0E Purpose R15 0x0F Working R16 0x10

Registers R17 0x11

7 0 Addr.

R0 0x00 R1 0x01 R2 0x02 …

R13 0x0D

… R26 0x1A X-register Low Byte R27 0x1B X-register High Byte R28 0x1C Y-register Low Byte R29 0x1D Y-register High Byte R30 0x1E Z-register Low Byte R31 0x1F Z-register High Byte

Most of the instructions operating on the Register File have direct access to all registers, and most of them are single cycle instructions.

As shown in Figure 4-2, each register is also assigned a Data memory address, mapping them directly into the first 32 locations of the user Data Space. Although not being physically implemented as SRAM locations, this memory organization provides great flexibility in access of the registers, as the X-, Y- and Z-pointer registers can be set to index any register in the file.

4.4.1 The X-register, Y-register, and Z-register

The registers R26:R31 have some added functions to their gener al purpose usage. Th ese registers are 16-bit address pointers for indirect addressing of the data space. The three indirect address registers X, Y, and Z are defined as described in Figure 4-3.

Figure 4-3. The X-, Y-, and Z-registers

15 XH XL 0

X-register 707 0

R27 (0x1B) R26 (0x1A)

ATtiny261A/461A/861A

8197C–AVR–05/11

4.5 Stack Pointer

ATtiny261A/461A/861A

15 YH YL 0

Y-register 707 0

R29 (0x1D) R28 (0x1C)

15 ZH ZL 0

Z-register 7070

R31 (0x1F) R30 (0x1E)

In different addressing modes these address registers function as automatic increment and automatic decrement (see the instruction set reference for details).

The Stack is mainly used for storing temporary dat a, local variables and return add resses for interrupts and subroutine calls. The Stack Pointer Register alwa ys point s to th e top of th e Sta ck, in the data SRAM Stack area where the subroutine and interrupt stacks are located.

The Stack in the data SRAM must be defined by the program before any subroutine calls ar e executed or interrupts are enabled. The Stack Pointer must be set to point above start of the SRAM (see Figure 5-2 on page 16). The initial Stack Pointer value equals th e last address of the internal SRAM.

Note that the Stack is implemented as growing from higher to lower memory locations. This means a Stack PUSH command decreases the Stack Pointer. See Table 4-1.

Table 4-1. Stack Pointer instructions

Instruction Stack pointer Description

PUSH Decremented by 1 Data is pushed onto the stack ICALL

RCALL

Decremented by 2

POP Incremented by 1 Data is popped from the stack RET

RETI

Incremented by 2

The AVR Stack Pointer is implemented as two 8-bit registers in the I/O space. The number of bits actually used is implementation dependent.

Note that the data space in some implementations of the AVR architecture is so small that only SPL is needed. In this case, the SPH Register will not be present.

4.5.1 SPH and SPL – Stack Pointer Register

Bit 151413121110 9 8 0x3E (0x5E) SP15 SP14 SP13 SP12 SP11 SP10 SP9 SP8 SPH 0x3D (0x5D) SP7 SP6 SP5 SP4 SP3 SP2 SP1 SP0 SPL

76543210

Read/Write R/W R/W R/W R/W R/W R/W R/W R/W

R/W R/W R/W R/W R/W R/W R/W R/W

Initial Value RAMEND RAMEND RAMEND RAMEND RAMEND RAMEND RAMEND RAMEND

RAMEND RAMEND RAMEND RAMEND RAMEND RAMEND RAMEND RAMEND

Return address is pushed onto the stack with a subroutine call or interrupt

Return address is popped from the stack with return from subroutine or return from interrupt

8197C–AVR–05/11

4.6 Instruction Execution Timing

clk

1st Instruction Fetch

1st Instruction Execute

2nd Instruction Fetch

2nd Instruction Execute

3rd Instruction Fetch

3rd Instruction Execute

4th Instruction Fetch

T1 T2 T3 T4

CPU

Total Execution Time

ALU Operation Execute

Result Write Back

T1 T2 T3 T4

clk

CPU

This section describes the general access timing concepts for instruction execution. The AVR CPU is driven by the CPU clock clk chip. No internal clock division is used.

Figure 4-4 shows the parallel instruction fetches and instruction executions enabled by the Har-

vard architecture and the fast access Register File concept. This is the basic pipelining concept to obtain up to 1 MIPS per MHz with the corresponding unique results for functions per cost, functions per clocks, and functions per power-unit.

Figure 4-4. The Parallel Instruction Fetches and Instruction Executions

, directly generated from the selected clock source for the

CPU

4.7 Reset and Interrupt Handling

ATtiny261A/461A/861A

Figure 4-5 shows the internal timing concept for th e Regi ster File . In a single clock cycl e an ALU

operation using two register operands is executed, and the result is stored back to the destination register.

Figure 4-5. Single Cycle ALU Operation

The AVR provides several different interrupt sources. These interrupts and the separate Reset Vector each have a separate Program Vector in the Program memory space. All interrupts are assigned individual enable bits which must be written logic one toge ther with the Glo bal Interru pt Enable bit in the Status Register in order to enable the int errupt.

The lowest addresses in the Program memory space are by default defined as the Reset and Interrupt Vectors. The complete list of vectors is shown in “Interrupts” on page 49. The list also determines the priority levels of the different interrupts. The lower the address the higher is the

8197C–AVR–05/11

ATtiny261A/461A/861A

priority level. RESET has the highest priority, and next is INT0 – the External Interrupt Request 0.

When an interrupt occurs, the Global Interrupt Enable I-bit is cleared and all interrupts are disabled. The user software can write logic one to the I-bit to enable nested interrupts. All enabled interrupts can then interrupt the current interrupt routine. The I-bit is automatically set when a Return from Interrupt instruction – RETI – is executed.

There are basically two types of interrupts. The first type is triggered by an event that sets the Interrupt Flag. For these interrupts, the Program Counter is vectored to the actual Interrupt Vector in order to execute the interrupt handling routine, and hardware clears the corresponding Interrupt Flag. Interrupt Flags can also be cleared by writing a logic one to the fl ag bit position(s) to be cleared. If an interrupt condition occurs while the corresponding interrupt enable bit is cleared, the Interrupt Flag will be set and remembered until the interrupt is enabled, or the flag is cleared by software. Similarly, if one or more interrupt conditions occur while the Global Interrupt Enable bit is cleared, the corresponding Interrupt Flag(s) will be set and remembered until the Global Interrupt Enable bit is set, and will then be executed by order of priority.

The second type of interrupts will trigger as long as the interrupt condition is present. These interrupts do not necessarily have Int errupt Flags. If the interrup t condition disappears before t he interrupt is enabled, the interrupt will not be triggered.

When the AVR exits from an interrupt, it will always return to the main program and execute one more instruction before any pending interrupt is served.

Note that the Status Register is not automatically stored when entering an interrupt routine, nor restored when returning from an interrupt rou tine. This must be handled by software.

When using the CLI instruction to disable interrupts, the interrupts will be immediately disabled. No interrupt will be executed after the CLI instruction, even if it occurs simultaneously with the CLI instruction. The following example shows how this can be used to avoid interrupts during the timed EEPROM write sequence.

Assembly Code Example

in r16, SREG ; store SREG value

cli ; disable interrupts during timed sequence

sbi EECR, EEMPE ; start EEPROM write

sbi EECR, EEPE

out SREG, r16 ; restore SREG value (I-bit)

C Code Example

char cSREG;

cSREG = SREG; /* store SREG value */

/* disable interrupts during timed sequence */

_CLI();

EECR |= (1<<EEMPE); /* start EEPROM write */

EECR |= (1<<EEPE);

SREG = cSREG; /* restore SREG value (I-bit) */

8197C–AVR–05/11

Note: See “Code Examples” on page 6.

When using the SEI instruction to enable interrupts, the instruction following SEI will be executed before any pending interrupts, as shown in the following examples.

Assembly Code Example

sei ; set Global Interrupt Enable

sleep ; enter sleep, waiting for interrupt

C Code Example

_SEI(); /* set Global Interrupt Enable */

_SLEEP(); /* enter sleep, waiting for interrupt */

Note: See “Code Examples” on page 6.

4.7.1 Interrupt Response Time

The interrupt execution response for all the enabled AVR interrupts is four clock cycles minimum. After four clock cycles the Program Vector address for the a ctual interru pt handling routine is executed. During this four clock cycle period, the Program Counter is pushed onto the Stack. The vector is normally a jump to the interrupt routine, and this jump takes three clock cycles. If an interrupt occurs during execution of a multi-cycle instruction, this instruction is completed before the interrupt is served. If an interrupt occurs when the MCU is in sleep mode, the interrupt execution response time is increased by four clock cycles. This increase comes in ad dition to the start-up time from the selected sleep mode.

; note: will enter sleep before any pending interrupt(s)

/* note: will enter sleep before any pending interrupt(s) */

A return from an interrupt handling routine takes four clock cycles. During these four clock cycles, the Program Counter (two bytes) is popped back from the Stack, the Stack Pointer is incremented by two, and the I-bit in SREG is set.

ATtiny261A/461A/861A

8197C–AVR–05/11

5. Memories

0x0000

0x03FF/0x07FF/0x0FFF

Program Memory

This section describes the different memories of the ATtiny261A/461A/861A. The AVR architecture has two main memory spaces, the Data memory and the Program memory space. In addition, the ATtiny261A/461A/861A features an EEPROM Memory for data storage. All three memory spaces are linear and regular.

5.1 In-System Re-programmable Flash Program Memory

The ATtiny261A/461A/861A contains 2/4/8K byte On-chip In-System Reprogrammable Flash memory for program storage. Since all AVR instructions are 16 or 32 bits wide , the Flash is organized as 1024/2048/4096 x 16.

The Flash memory has an endurance of at least 10,000 write/erase cycles. The ATtiny261A/461A/861A Program Counter (PC) is 10/1 1/12 bits wide, thus capable of add ressing the 1024/2048/4096 Program memory locations. “Memory Programming” on page 168 contains a detailed description on Flash data serial downloading using the SPI pins.

Constant tables can be allocated within the entire address space of progra m memory (see the LPM – Load Program memory instruction description).

Timing diagrams for instruction fetch and execution are presented in “Instruction Execution Tim-

ing” on page 12.

ATtiny261A/461A/861A

Figure 5-1. Program Memory Map

5.2 SRAM Data Memory

Figure 5-2 on page 16 shows how the ATtiny261A/461A/861A SRAM Me mory is organized.

The lower data memory locations address both the Register File, the I/O memory and the internal data SRAM. The first 32 locations address the Register File, the next 64 locations the standard I/O memory, and the last 128/256/512 locations address the internal data SRAM.

The five different addressing modes for the Data memory cover: Dire ct, Indirect with Displacement, Indirect, Indirect with Pre-decrement, and Indirect with Post-increment. In the Register File, registers R26 to R31 feature the indirect addressing pointer registers.

8197C–AVR–05/11

The direct addressing reaches the entire data space. The Indirect with Displacement mode reaches 63 address locations f rom the base address given

by the Y- or Z-register.

When using register indirect addressing modes with automatic pre-decrement and post-incre-

32 Registers

64 I/O Registers

Internal SRAM

(128/256/512 x 8)

0x0000 - 0x001F 0x0020 - 0x005F

0x0DF/0x15F/0x25F

0x0060

Data Memory

clk

Data

Address

Address valid

T1 T2 T3

Compute Address

Read

Write

CPU

Memory Access Instruction

Next Instruction

ment, the address registers X, Y, and Z are decremented or incremented. The 32 general purpose working registers, 64 I/O Registers, and the 128/256/512 bytes of inter-

nal data SRAM in the ATtiny261A/461A/861A are all accessible through all these addressing modes. The Register File is described in “General Purpose Register File” on page 10.

Figure 5-2. Data Memory Map

5.2.1 Data Memory Access Times

This section describes the general access timing concepts for internal memory access. The internal data SRAM access is performed in two clk

Figure 5-3. On-chip Data SRAM Access Cycles

cycles as illustrated in Figure 5-3.

CPU

5.3 EEPROM Data Memory

The ATtiny261A/461A/861A contains 128/256/512 bytes of data EEPROM memory. It is organized as a separate data space, in which single bytes can be read and written. The EEPROM has an endurance of at least 100,000 writ e/erase cycles. Th e access between the EEPROM and the CPU is described in the following, specifying the EEPROM Address Registers, the EEPROM Data Register, and the EEPROM Control Register. For a detailed description of Serial data downloading to the EEPROM, see “Electrical Characteristics” on page 185.

ATtiny261A/461A/861A

8197C–AVR–05/11

5.3.1 EEPROM Read/Write Access

The EEPROM Access Registers are accessible in the I/O space. The write access times for the EEPROM are given in Table 5-1 on page 22. A self-timing func-

tion, however, lets the user software detect when the next byte can be written. If the user code contains instructions that write the EEPROM, some precautions must be taken. In heavily filtered power supplies, V device for some period of time to run at a voltage lower than specified as minimum for the clock frequency used. See “Preventing EEPROM Corruption” on page 19 for details on how to avoid problems in these situations.

In order to prevent unintentional EEPROM writes, a specific write procedure must be followed. Refer to “Atomic Byte Programming” on page 17 and “Split Byte Programming” on page 17 for details on this.

When the EEPROM is read, the CPU is halted for four clock cycles before the next instruction is executed. When the EEPROM is written, the CPU is halted for two clock cycles before the next instruction is executed.

5.3.2 Atomic Byte Programming

Using Atomic Byte Programming is the simplest mode. When writing a byte to the EEPROM, the user must write the address into the EEARL Register and data into EEDR Register. If the EEPMn bits are zero, writing EEPE (within four cycles after EEMPE is written) will trigger the erase/write operation. Both the erase and write cycle are done in one operation and the total programming time is given in Table 5-1 on page 22. The EEPE bit remains set until the erase and write operations are completed. While the device is busy with programming, it is not possible to do any other EEPROM operations.

ATtiny261A/461A/861A

is likely to rise or fall slowly on Power-up/down. This causes the

5.3.3 Split Byte Programming

It is possible to split the erase and write cycle in two different operations. This may be useful if the system requires short access time for some limited period of time (typically if the power supply voltage falls). In order to take advantage of this method, it is required that the locations to be written have been erased before the write operation. But since the erase and write operations are split, it is possible to do the erase operations whe n the system allows doing time-critical operations (typically after Power-up).

5.3.4 Erase

To erase a byte, the address must be written to EEAR. If the EEPMn bits are 0b01, writing the EEPE within four cycles after EEMPE is written will trigger the erase operation only (programming time is given in Table 5-1 on page 22). The EEPE bit remains set until the erase operation completes. While the device is busy programming, it is not possible to do any other EEPROM operations.

5.3.5 Write

To write a location, the user must write the address into EEAR and the data into EEDR. If the EEPMn bits are 0b10, writing the EEPE (within four cycles after EEMPE is written) will trigger the write operation only (programming time is given in Table 5-1 on page 22). The EEPE bit remains set until the write operation completes. If the location to be written has not been erased before write, the data that is stored must be considered as lost. While the device is busy with programming, it is not possible to do any other EEPROM operations.

8197C–AVR–05/11

The calibrated Oscillator is used to time the EEPROM accesses. Make sure the Oscillator frequency is within the requirements described in “OSCCAL – Oscillator Calibration Register” on

page 32.

5.3.6 Program Examples

The following code examples show one assembly and one C function for erase, write, or atomic write of the EEPROM. The examples assume that interrupts are controlled (e.g., by disabling interrupts globally) so that no interrupts will occur during execution of these functions.

Assembly Code Example

EEPROM_write:

; Wait for completion of previous write

sbic EECR,EEPE

rjmp EEPROM_write

; Set Programming mode

ldi r16, (0<<EEPM1)|(0<<EEPM0)

out EECR, r16

; Set up address (r18:r17) in address register

out EEARH, r18

out EEARL, r17

; Write data (r19) to data register

out EEDR, r19

; Write logical one to EEMPE

sbi EECR,EEMPE

; Start eeprom write by setting EEPE

sbi EECR,EEPE

ret

C Code Example

void EEPROM_write(unsigned char ucAddress, unsigned char ucData)

{

/* Wait for completion of previous write */

while(EECR & (1<<EEPE))

;

/* Set Programming mode */

EECR = (0<<EEPM1)|(0<<EEPM0);

/* Set up address and data registers */

EEAR = ucAddress;

EEDR = ucData;

/* Write logical one to EEMPE */

EECR |= (1<<EEMPE);

/* Start eeprom write by setting EEPE */

EECR |= (1<<EEPE);

}

Note: See “Code Examples” on page 6.

ATtiny261A/461A/861A

8197C–AVR–05/11

ATtiny261A/461A/861A

The next code examples show assembly and C functions for reading the EEPROM. The examples assume that interrupts are controlled so that no interrupts will occur during execution of these functions.

Assembly Code Example

EEPROM_read:

; Wait for completion of previous write

sbic EECR,EEPE

rjmp EEPROM_read

; Set up address (r18:r17) in address register

out EEARH, r18

out EEARL, r17

; Start eeprom read by writing EERE

sbi EECR,EERE

; Read data from data register

in r16,EEDR

ret

C Code Example

unsigned char EEPROM_read(unsigned char ucAddress)

{

/* Wait for completion of previous write */

while(EECR & (1<<EEPE))

;

/* Set up address register */

EEAR = ucAddress;

/* Start eeprom read by writing EERE */

EECR |= (1<<EERE);

/* Return data from data register */

return EEDR;

}

Note: See “Code Examples” on page 6.

5.3.7 Preventing EEPROM Corruption

During periods of low V too low for the CPU and the EEPROM to operate properly. These issues a re the same as for board level systems using EEPROM, and the same design solutions should be applied.

An EEPROM data corruption can be caused by two situations when the voltage is too low. First, a regular write sequence to the EEPROM requires a minimum voltage to operate correctly. Secondly, the CPU itself can execute instructions incorrectly, if the supply voltage is too low.

, the EEPROM data can be corrupted because the supply voltage is

8197C–AVR–05/11

EEPROM data corruption can easily be avoided by following this design recommendation: Keep the AVR RESET active (low) during periods of insufficient power supply voltage. This can

be done by enabling the internal Brown-out Detector (BOD). If the detection level of the internal BOD does not match the needed detection level, an external low V

reset protection circuit can

5.4 I/O Memory

be used. If a reset occurs while a write operation is in progress, the write operation will be completed provided that the power supply voltage is sufficient.

The I/O space definition of the ATtiny261A/461A/861A is shown in “Register Summary” on page

277.

All I/Os and peripherals are placed in the I/O space. All I/O locations may be accessed using the LD/LDS/LDD and ST/STS/STD instructions, enabling data transfer between the 32 general purpose working registers and the I/O space. I/O Registers within the address range 0x00 - 0x1F are directly bit-accessible using the SBI and CBI instructions. In these r egister s, the value o f single bits can be checked by using the SBIS and SBIC instructions. Refer to the instruction set section for more details. When using the I/O specific commands IN and OUT, the I/O addresses 0x00 - 0x3F must be used. When addressing I/O Registers as data space using LD and ST instructions, 0x20 must be added to these addresses.

For compatibility with future devices, reserved bits should be written to zero if accessed. Reserved I/O memory addresses should never be written.

Some of the Status Flags are cleared by writing a logical one to them. Note that, the CBI and SBI instructions will only operate on the specified bit, and can therefore be used on registers containing such Status Flags. The CBI and SBI instructions work on registers in the address range 0x00 to 0x1F, only.

The I/O and Peripherals Control Registers are explained in later sections.

5.4.1 General Purpose I/O Registers

The ATtiny261A/461A/861A contains three General Purpose I/O Registers. These registers can be used for storing any information, and they are particularly useful for storing global variables and Status Flags. General Purpose I/O Registers within the address range 0x00 - 0x1F are directly bit-accessible using the SBI, CBI, SBIS, and SBIC instructions.

5.5 Register Description

5.5.1 EEARH – EEPROM Address Register

Bit 76543210 0x1F (0x3F) –––––––EEAR8EEARH Read/Write RRRRRRRR/W Initial Value 0 0 0 0 0 0 0 X/0

• Bits 7:1 – Res: Reserved Bits

These bits are reserved and will always read as zero.

• Bit 0 – EEAR8: EEPROM Address

This is the most significant EEPROM address bit of ATtiny861A. In devices with less EEPROM, i.e. ATtiny261A/ATtiny461A, this bit is reserved and will always read zero. The initial value of the EEPROM Address Register (EEAR) is undefined and a proper value must therefore be written before the EEPROM is accessed.

ATtiny261A/461A/861A

8197C–AVR–05/11

5.5.2 EEARL – EEPROM Address Register

Bit 76543210 0x1E (0x3E) EEAR7 EEAR6 EEAR5 EEAR4 EEAR3 EEAR2 EEAR1 EEAR0 EEARL Read/Write R/W R/W R/W R/W R/W R/W R/W R/W Initial Value X/0 X X X X X X X

• Bit 7 – EEAR7: EEPROM Address

This is the most significant EEPROM address bit of ATtiny461A. In devices with less EEPROM, i.e. ATtiny261A, this bit is reserved and will always read zero. The initial value of the EEPROM Address Register (EEAR) is undefined and a proper value must therefore be written before the EEPROM is accessed.

• Bits 6:0 – EEAR[6:0]: EEPROM Address

These are the (low) bits of the EEPROM Address Register. The EEPROM data bytes are addressed linearly in the range 0 proper value must be therefore be written before the EEPROM may be accessed.

5.5.3 EEDR – EEPROM Data Register

Bit 76543210 0x1D (0x3D) EEDR7 EEDR6 EEDR5 EEDR4 EEDR3 EEDR2 EEDR1 EEDR0 EEDR Read/Write R/W R/W R/W R/W R/W R/W R/W R/W Initial Value00000000

ATtiny261A/461A/861A

...128/256/512. The initial value of EEAR is undefined and a

• Bits 7:0 – EEDR[7:0]: EEPROM Data

For the EEPROM write operation the EEDR Register contains the data to be written to the EEPROM in the address given by the EEAR Register. For the EEPROM read operation, the EEDR contains the data read out from the EEPROM at the address given by EEAR.

5.5.4 EECR – EEPROM Control Register

Bit 76543210 0x1C (0x3C) – – EEPM1 EEPM0 EERIE EEMPE EEPE EERE EECR Read/Write R R R/W R/W R/W R/W R/W R/W Initial Value 0 0 X X 0 0 X 0

• Bit 7 – Res: Reserved Bit

This bit is reserved for future use and will always read zero. For compatibility with future AVR devices, always write this bit to zero. After reading, mask out this bit.

• Bit 6 – Res: Reserved Bit

This bit is reserved and will always read as zero.

• Bits 5:4 – EEPM[1:0]: EEPROM Programming Mode Bits

The EEPROM Programming mode bits setting defines which programming action that will be triggered when writing EEPE. It is possible to program data in on e atomic operation (e rase the

8197C–AVR–05/11

old value and program the new value) or to split the Erase and Write operations in two different operations. The Programming times for the different modes are shown in Table 5-1.

Table 5-1. EEPROM Mode Bits

Programming

EEPM1 EEPM0

0 0 3.4 ms Erase and Write in one operation (Atomic Operation) 0 1 1.8 ms Erase Only 1 0 1.8 ms Write Only 1 1 – Reserved for future use

Time Operation

When EEPE is set, any write to EEPMn will be ignored. During reset, the EEPMn bits will be reset to 0b00 unless the EEPROM is busy programming.

• Bit 3 – EERIE: EEPROM Ready Interrupt Enable

Writing EERIE to one enables the EEPROM Ready Interrupt if the I-bit in SREG is set. Writing EERIE to zero disables the interrupt. The EEPROM Ready Interrupt generates a constant interrupt when Non-volatile memory is ready for programming.

• Bit 2 – EEMPE: EEPROM Master Program Enable

The EEMPE bit determines whether writing EEPE to one will have effect or not. When EEMPE is set, setting EEPE within four clock cycles will program the EEPROM at the

selected address. If EEMPE is zero, setting EEPE will have no effect. When EEMPE has been written to one by software, hardware clears the bit to zero after four clock cycles.

• Bit 1 – EEPE: EEPROM Program Enable

The EEPROM Program Enable Signal EEPE is the programming enable signal to the EEPROM. When EEPE is written, the EEPROM will be programmed according to the EEPMn bits setting. The EEMPE bit must be written to one before a logical one is written to EEPE, otherwise no EEPROM write takes place. When the write access time has elapsed, the EEPE bit is cleared by hardware. When EEPE has been set, the CPU is halted for two cycles before the next instruction is executed.

• Bit 0 – EERE: EEPROM Read Enable

The EEPROM Read Enable Signal – EERE – is the read strobe to the EEPROM. When the correct address is set up in the EEAR Register, the EERE bit must be written to one to trigger the EEPROM read. The EEPROM read access takes one instruction, and the requested data is available immediately. When the EEPROM is read, the CPU is halted for four cycles before the next instruction is executed. The user should poll the EEPE bit before starting the read operation. If a write operation is in progress, it is neither possible to read the EEPROM, nor to change the EEAR Register.

ATtiny261A/461A/861A

8197C–AVR–05/11

5.5.5 GPIOR2 – General Purpose I/O Register 2

Bit 76543210 0x0C (0x2C) MSB LSB GPIOR2 Read/Write R/W R/W R/W R/W R/W R/W R/W R/W Initial Value 0 0 0 0 0 0 0 0

5.5.6 GPIOR1 – General Purpose I/O Register 1

Bit 76543210 0x0B (0x2B) MSB LSB GPIOR1 Read/Write R/W R/W R/W R/W R/W R/W R/W R/W Initial Value 0 0 0 0 0 0 0 0

5.5.7 GPIOR0 – General Purpose I/O Register 0

Bit 76543210 0x0A (0x2A) MSB LSB GPIOR0 Read/Write R/W R/W R/W R/W R/W R/W R/W R/W Initial Value 0 0 0 0 0 0 0 0

ATtiny261A/461A/861A

8197C–AVR–05/11

6. Clock System

General I/O

Modules

CPU Core RAM

clk

I/O

AVR Clock

Control Unit

clk

CPU

Flash and EEPROM

clk

FLASH

Source clock

Watchdog Timer

Watchdog

Oscillator

Reset Logic

Clock

Multiplexer

Watchdog clock

Calibrated RC

Oscillator

Calibrated RC

Oscillator

ADC

clk

ADC

Crystal

Oscillator

Low-Frequency

Crystal Oscillator

System Clock

Prescaler

PLL

Oscillator

clk

PCK

General I/O

Modules

External Clock

clk

PLL

Figure 6-1 presents the principal clock systems and their distribution. All of the clocks need not

be active at a given time. In order to reduce power consumption, the clocks to modules not being used can be halted by using different sleep modes, as described in “Power Managem ent and

Sleep Modes” on page 35.

Figure 6-1. Clock Distribution

6.1 Clock Subsystems

6.1.1 CPU Clock – clk

6.1.2 I/O Clock – clk

ATtiny261A/461A/861A

The clock subsystems are detailed in the sections below.

CPU

The CPU clock is routed to parts of the system concerned with operation of the AVR core. Examples of such modules are the General Purpose Register File, the Status Register and the Data memory holding the Stack Pointer. Halting the CPU clock inhibits the core from performing general operations and calculations.

I/O

The I/O clock is used by the majority o f the I/O modules, like T imer/Counter. The I/O clock is also used by the External Interrupt module, but note that some external interrupts are detected by asynchronous logic, allowing such interrupts to be detected even if the I/O clock is halted.

8197C–AVR–05/11

ATtiny261A/461A/861A

6.1.3 Flash Clock – clk

FLASH

The Flash clock controls operation of the Flash inte rface. The Fla sh clock is usually active simultaneously with the CPU clock.

6.1.4 ADC Clock – clk

ADC

The ADC is provided with a dedicated clock domain. This allows halting the CPU and I/O clocks in order to reduce noise generated by digital cir cuit ry. Th is gives mo re accurat e ADC conversion results.

6.1.5 Fast Peripheral Clock – clk

Selected peripherals can be clocked at a frequency higher than the CPU core. The fast peripheral clock is generated by an on-chip PLL circuit.

6.1.6 PLL System Clock – clk

ADC

The PLL can also be used to generate a system clock. The clock signal can be prescaled to avoid overclocking the CPU.

6.2 Clock Sources

The device has the following clock source options, selec table by Flash Fuse bits as shown below. The clock from the selected so ur ce is i npu t to th e AVR clo c k gene ra to r, and r ou te d to t he appropriate modules.

Table 6-1. Device Clocking Options Select

PCK

(1)

vs. PB4 and PB5 Functionality

Device Clocking Option CKSEL[3:0] PB4 PB5

External Clock (see page 26) 0000 XTAL1 I/O High-Frequency PLL Clock (see page 26) 0001 I/O I/O Calibrated Internal 8 MHz Oscillator (see page 28) 0010 I/O I/O Internal 128 kHz Oscillator (see page 29) 0011 I/O I/O Low-Frequency Crystal Oscillator (see page 29) 01xx XTAL1 XTAL2 Crystal Oscillator / Ceramic Resonator

0.4...0.9 MHz (see page 30) Crystal Oscillator / Ceramic Resonator

0.9...3.0 MHz (see page 30) Crystal Oscillator / Ceramic Resonator

3...8 MHz (see page 30) Crystal Oscillator / Ceramic Resonator

8...20 MHz (see page 30)

Note: 1. For all fuses “1” means unprogrammed and “0” means programmed.

1000 1001

1010 1011

1100 1101

1110 1111

XTAL1 XTAL2

The various choices for each clocking option is given in the following sections. When the CPU wakes up from Power-down or Power-save, the selected clock source is used to time the startup, ensuring stable oscillator operation before instruction execution starts. When the CPU starts from reset, there is an additional delay allowing the power to reach a stable level before com-

8197C–AVR–05/11

6.2.1 External Clock

EXTERNAL

CLOCK

SIGNAL

CLKI

GND

mencing normal operation. The watchdog oscillator is used for timing this real-time part of the start-up time. The number of WD oscillator cycles used for each time-out is shown in Table 6-2.

Table 6-2. Number of Watchdog Oscillator Cycles

Typ Time-out Number of Cycles

4 ms 512

64 ms 8K (8,192)

To drive the device from an extern al cloc k source, CLKI should be driven as shown in Figure 6-

2. To run the device on an external clock, the CKSEL Fuses must be programmed to “0000”.

Figure 6-2. External Clock Drive Configuration

6.2.2 High-Frequency PLL Clock

When this clock source is selected, start-up times are determined by the SUT Fuses as shown in

Table 6-3.

Table 6-3. Start-up Times for the External Clock Selection

Start-up Time from Power-

SUT[1:0]

00 6 CK 14CK BOD enabled 01 6 CK 14CK + 4 ms Fast rising power 10 6 CK 14CK + 64 ms Slowly rising power 11 Reserved

When applying an external clock, it is required to avoid sudden changes in the applied clock frequency to ensure stable operation of the MCU. A variation in frequency of more than 2% from one clock cycle to the next can lead to unpredictable behavior. It is required to ensure that the MCU is kept in Reset during such changes in the clock frequency.

Note that the system clock prescale r can be us ed to implem ent run- time c hange s of th e inte rnal clock frequency. See “System Clock Prescaler” on page 31 for details.

The internal PLL generates a clock signal with a frequency eight times higher than the source input. The PLL uses the output of the internal 8 MHz oscillator as source and the default setting generates a fast peripheral clock signal of 64 MHz.

down and Power-save

Additional Delay from

Reset Recommended Usage

ATtiny261A/461A/861A

8197C–AVR–05/11

ATtiny261A/461A/861A

1/2

8 MHz

LSM

8 MHz

OSCILLATOR

PLL

CKSEL3:0PLLEOSCCAL

4 MHz

1/4

LOCK

DETECTOR

PRESCALER

CLKPS3:0

clk

PLL

PLOCK

clk

PCK

OSCILLATORS

XTAL1 XTAL2

64 / 32 MHz

8 MHz

16 MHz

The fast peripheral clock, clk prescaled version of the PLL output, clk

, can be selected as the clock source for Timer/Counter1 and a

PCK

, can be selected as system clock. See Figure 6-3 for

PLL

a detailed illustration on the PLL clock system.

Figure 6-3. PCK Clocking System

The internal PLL is enabled when CKSEL fuse bits are programmed t o ‘0001’an d the PLLE bit of PLLCSR is set. The internal oscillator and the PLL are switched off in power down and stand-by sleep modes.

When the LSM bit of PLLCSR is set, the PLL switches from using the output of the internal 8 MHz oscillator to using the output divided by two. The frequency of the fast peripheral clock is effectively divided by two, resulting in a clock freque ncy of 3 2 MHz. T he LSM bit can no t be set if PLL

is used as a system clock.

CLK

Since the PLL is locked to the output of the internal 8 MHz oscillator, adjusting the oscillator frequency via the OSCCAL register also changes the frequency of the fast peripheral clock. It is possible to adjust the frequency of the internal oscillator to well above 8 MHz but the fast peripheral clock will saturate and remain oscillating at about 85 MHz. In this case the PLL is no longer locked to the internal oscillator clock signal. Therefore, in order to keep the PLL in the correct operating range, it is recommended to program the OSCCAL registers such that the oscillator frequency does not exceed 8 MHz.

8197C–AVR–05/11

The PLOCK bit in PLLCSR is set when PLL is locked. Programming CKSEL fuse bits to ‘0001’, the PLL output divided by four will be used as a system

clock, as shown in Table 6-4.

Table 6-4. PLLCK Operating Modes

CKSEL[3:0] Nominal Frequency

0001 16 MHz

When the PLL output is selected as clock source, the start-up t imes are deter mined by SUT fuse bits as shown in Table 6-5.

Table 6-5. Start-up Times for the PLLCK

Start-up Time from

SUT[1:0]

00 14CK + 1K (1024) + 4 ms 4 ms BOD enabled 01 14CK + 16K (16384) + 4 ms 4 ms Fast rising power 10 14CK + 1K (1024) + 64 ms 4 ms Slowly rising power 11 14CK + 16K (16384) + 64 ms 4 ms Slowly rising power

Power Down

6.2.3 Calibrated Internal 8 MHz Oscillator

By default, the Internal Oscillator provides an approximately 8 MHz clock signal. Though voltage and temperature dependent, this clock can be very accurately calibrated by the user. See Table

19-2 on page 187 and “Internal Oscillators” on page 222 for more details. The device is shipped

with the CKDIV8 Fuse programmed. See “System Clock Prescaler” on page 31 for more details. This clock may be selected as the system cloc k by p rogr am m in g th e CKS E L Fus es a s sh own in

Table 6-6. If selected, it will operate with no external components. During reset, hardware loads

the pre-programmed calibration value into th e OSCCAL Re giste r a nd the reby aut omat ica lly calibrates the internal oscillator. The accuracy of this calibration is shown as Factory calibration in

Table 19-2 on page 187.

Table 6-6. Internal Calibrated Oscillator Operating Modes

CKSEL[3:0] Nominal Frequency

(1)

0010

Additional Delay from

Power-On-Reset (VCC = 5.0V)

8.0 MHz

Recommended usage

(2)

Notes: 1. The device is shipped with this option selected.

2. If the oscillator frequency exceeds the specification of the device (depends on V CKDIV8 Fuse can be programmed to divide the internal frequency by 8.

), the

When this oscillator is selected, start-up times are determined by SUT fuses as shown in Table

6-7.

Table 6-7. Start-up Times for the Internal Calibrated Oscillator Clock Selection

Start-up Time

SUT[1:0]

00 6 CK 14CK 01 6 CK 14CK + 4 ms Fast rising power

(2)

11 Reserved

Note: 1. If the RSTDISBL fuse is programmed, this start-up time will be increa sed to 14CK + 4 ms to

ensure programming mode can be entered.

2. The device is shipped with this option selected.

from Power-down

6 CK 14CK + 64 ms Slowly rising power

Additional Delay from

Reset (VCC = 5.0V)

(1)

Recommended Usage

BOD enabled

ATtiny261A/461A/861A

8197C–AVR–05/11

It is possible to reach a higher accuracy than factory calibration by changing the OSCCAL register from software. See “OSCCAL – Oscillator Calibration Register” on page 32. The accuracy of this calibration is shown as User calibration in Table 19-2 on page 187.

When this oscillator is used as device clock, the Watchdog Oscillator will still be used for the Watchdog Timer and for the Reset Time-out. For more information on the pre-programmed calibration value, see section “Calibration Byte” on page 170.

6.2.4 Internal 128 kHz Oscillator

The 128 kHz internal oscillator is a low power oscillator providing a clock of 128 kHz. The frequency depends on supply voltage, temperature and batch variations. This clock may be select as the system clock by programming the CKSEL Fuses to “0011”.

When this clock source is selected, start-up times are determined by the SUT Fuses as shown in

Table 6-8.

Table 6-8. Start-up Times for the 128 kHz Internal Oscillator

ATtiny261A/461A/861A

Start-up Time from Power-

SUT[1:0]

00 6 CK 14CK 01 6 CK 14CK + 4 ms Fast rising power 10 6 CK 14CK + 64 ms Slowly rising power 11 Reserved

Note: 1. If the RSTDISBL fuse is programmed, this start-up time will be increa sed to 14CK + 4 ms to

down and Power-save

ensure programming mode can be entered.

6.2.5 Low-Frequency Crystal Oscillator

To use a 32.768 kHz watch crystal as the clock source for the device, the low-frequency crystal oscillator must be selected by setting CKSEL fuses to ‘0100’. The crystal should be connected as shown in Figure 6-4. To find suitable capacitors please consult the manufacturer’s dat asheet.

When this oscillator is selected, start-up times are determined by the SUT fuses as shown in

Table 6-9.

Table 6-9. Start-up Times for the Low Frequency Crystal Oscillator Clock Selection

Start-up Time

SUT[1:0]

00 1K (1024) CK 01 1K (1024) CK 10 32K (32768) CK 64 ms Stable frequency at start-up

from Power Down

Additional Delay from

Reset Recommended Usage

(1)

Additional Delay

from Reset Recommended usage

(1)

4 ms Fast rising power or BOD enabled

64 ms Slowly rising power

BOD enabled

8197C–AVR–05/11

11 Reserved

Notes: 1. These options should be used only if frequency stability at start-up is not important.

The Low-frequency Crystal Oscillator provides an internal load capacitance, see Table 6-10 at each TOSC pin.

Table 6-10. Capacitance of Low-Frequency Crystal Oscillator

Device 32 kHz Osc. Type Cap (Xtal1/Tosc1) Cap (Xtal2/Tosc2)

ATtiny261A/461A/861A System Osc. 16 pF 6 pF

6.2.6 Crystal Oscillator / Ceramic Resonator

XTAL2

XTAL1

GND

XTAL1 and XTAL2 are input and output, respectively, of an inverting amplifier which can be configured for use as an On-chip Oscillator, as shown in Figure 6-4. Either a quartz crystal or a ceramic resonator may be used.

Figure 6-4. Crystal Oscillator Connections

C1 and C2 should always be equal for both crystals and resonators. The optimal value of the capacitors depends on the crystal or resonator in use, the amount of stray capacitance, and the electromagnetic noise of the environment. Some initial guidelines for choosing capacitors for use with crystals are given in Table 6-11. For ceramic resonators, the capacitor values given by the manufacturer should be used.

Table 6-11. Crystal Oscillator Operating Modes

CKSEL[3:1] Frequency Range (MHz) Re commended C1 and C2 Value (pF)

(1)

100

101 0.9 - 3.0 12 - 22 110 3.0 - 8.0 12 - 22 111 8.0 - 12 - 22

Notes: 1. This option should not be used with crystals, only with ceramic resonators.

0.4 - 0.9 –

The Oscillator can operate in three different modes, each optimized for a specific frequency range. The operating mode is selected by fuses CKSEL[3:1] as shown in Table 6-11.

The CKSEL0 Fuse together with the SUT[1:0] F uses select t he sta rt-u p t ime s as shown in Table

6-12.

Table 6-12. Start-up Times for the Crystal Oscillator Clock Selection

Start-up Time from

Power-down and

CKSEL0 SUT[1:0]

0 00 258 CK

0 01 258 CK

Power-save

(1)

Additional Delay

from Reset

(VCC = 5.0V) Recommended Usage

14CK + 4 ms

14CK + 64 ms

Ceramic resonator, fast rising power

Ceramic resonator, slowly rising power

0 10 1K (1024) CK

ATtiny261A/461A/861A

(2)

14CK

Ceramic resonator, BOD enabled

8197C–AVR–05/11

ATtiny261A/461A/861A

Table 6-12. Start-up Times for the Crystal Oscillator Clock Selection (Continued)

CKSEL0 SUT[1:0]

Notes: 1. These options should only be used when not operating close to the maximum frequency of the

6.2.7 Default Clock Source

The device is shipped with CKSEL = “0010”, SUT = “ 10”, and CKDIV8 programmed. The default clock source setting is therefore the Internal Oscillator running at 8 MHz with long est start-up time and an initial system clock prescaling of 8. This default setting ensure s that all u sers can make their desired clock source setting using an In-System or High-voltage Programmer.

Start-up Time from

Power-down and

Power-save

0 11 1K (1024)CK

1 00 1K (1024)CK

1 01 16K (16384) CK 14CK

1 10 16K (16384) CK 14CK + 4 ms

1 11 16K (16384) CK 14CK + 64 ms

device, and only if frequency stability at start-up is not important for the application. These options are not suitable for crystals.

2. These options are intended for use with cer amic resonators and will ensure frequency stability at start-up. They can also be used with crystals when not operating close to the maximum frequency of the device, and if frequency stability at start-up is not important for the application.

(2)

Additional Delay

from Reset

(VCC = 5.0V) Recommended Usage

14CK + 4 ms

14CK + 64 ms

Ceramic resonator, fast rising power

Ceramic resonator, slowly rising power

Crystal Oscillator, BOD enabled

Crystal Oscillator, fast rising power

Crystal Oscillator, slowly rising power

It should be noted that unprogramming the CKDIV8 fuse may result in overclocking. At low voltages the devices are rated for clock frequencies below that of the internal oscillator. See Section

19.3 on page 187 for maximum operating frequency versus supply voltage.

6.3 System Clock Prescaler

The system clock can be divided by setting the “CLKPR – Clock Prescale Register” on page 32. This feature can be used to decrease power consumption when the requirement for processing power is low. This can be used with all clock source options, and it will affect the clock frequency of the CPU and all synchronous peripherals. clk factor as shown in Table 6-13 on page 33.

6.3.1 Switching Time

When switching between prescaler settings, the System Clock Prescaler ensures that no glitches occur in the clock system and that no intermediate frequency is higher than neither the clock frequency corresponding to the previous setting, nor the clock frequency corresponding to the new setting.

The ripple counter that implements the prescaler runs at the frequency of the undivided clock, which may be faster than the CPU’s clock frequency. Hence, it is not possible to determine the state of the prescaler – even if it were readable, and the exact time it takes to switch from one clock division to another cannot be exactly predicted.

I/O

, clk

ADC

, clk

, and clk

CPU

are divided by a

FLASH

8197C–AVR–05/11

From the time the CLKPS values are written, it takes between T1 + T2 and T1 + 2*T2 before the new clock frequency is active. In this interval, two active clock edges are produced. Here, T1 is the previous clock period, and T2 is the period corresponding to the new prescaler setting.

6.4 Clock Output Buffer

The device can output the system clock on the CLKO pin (when not used as XTAL2 pin). To enable the output, the CKOUT Fuse has t o be progr ammed. This mode is su itable when the chip clock is used to drive other circuits on the system. Note that the clock will not be output during reset and the normal operation of I/O pin will be overridden when the fuse is programmed. Internal RC Oscillator, WDT Oscillator, PLL, and external clock (CLKI) can be selected when the clock is output on CLKO. Crystal oscillators (XTAL1, XTAL2) can not be used for clock output on CLKO. If the System Clock Prescaler is used, it is the divided system clock tha t is out put.

6.5 Register Description

6.5.1 OSCCAL – Oscillator Calibration Register

Bit 76543210 0x31 (0x51) CAL7 CAL6 CAL5 CAL4 CAL3 CAL2 CAL1 CAL0 OSCCAL Read/Write R/W R/W R/W R/W R/W R/W R/W R/W

Initial Value Device Specific Calibration Value

• Bits 7:0 – CAL[7:0]: Oscillator Calibration Value

The Oscillator Calibration Register is used to trim the Calibrated Internal Oscillator to remove process variations from the oscillator frequency. A pre-programmed calibration value is automatically written to this register during chip reset, giving the Factory calibrated frequency as specified in Table 19-2 on page 187. The application software can write this register to change the oscillator frequency. The oscillator can be calibrated to frequencies as specified in Table 19-

2 on page 187. Calibration outside that range is not guaranteed.

Note that this oscillator is used to time EEPROM and Flash write accesses, and these write times will be affected accordingly. If the EEPROM or Flash are written, do not calibrate to more than 8.8 MHz. Otherwise, the EEPROM or Flash write may fail.

The CAL[7:0] bits are used to tune the frequency of the oscillator. A setting of 0x00 gives the lowest frequency, and a setting of 0xFF gives the hig he st .

6.5.2 CLKPR – Clock Prescale Register

Bit 76543210 0x28 (0x48) CLKPCE – – – CLKPS3 CLKPS2 CLKPS1 CLKPS0 CLKPR Read/Write R/W R R R R/W R/W R/W R/W Initial Value 0 0 0 0 See Bit Description

• Bit 7 – CLKPCE: Clock Prescaler Change Enable

The CLKPCE bit must be written to logic one to enable change of the CLKPS bits. The CLKPCE bit is only updated when the other bits in CLKPR are simultaniosly written to zero. CLKPCE is cleared by hardware four cycles after it is written or when the CLKPS bits are written. Rewriting the CLKPCE bit within this time-out period does neither extend the time-out period, nor clear the CLKPCE bit.

ATtiny261A/461A/861A

8197C–AVR–05/11

ATtiny261A/461A/861A

• Bits 6:4 – Res: Reserved Bits

These bits are reserved and will always read as zero.

• Bits 3:0 – CLKPS[3:0]: Clock Prescaler Select Bits 3 - 0

These bits define the division factor between the selected clock source and the internal system clock. These bits can be written run-time to vary the clock frequency to suit the application requirements. As the divider divides the master clock input to t he MCU, the speed o f all synchronous peripherals is reduced when a division factor is used. The division factors are given in

Table 6-13.

To avoid unintentional changes of clock frequency, a special write procedure must be followed to change the CLKPS bits:

1. Write the Clock Prescaler Change Enable (CLKPCE) bit to one and all other bits in CLKPR to zero.

2. Within four cycles, write the desired value to CLKPS while writing a zero to CLKPCE.

Interrupts must be disabled when changing prescaler setting to make sure t he write procedur e is not interrupted.

The CKDIV8 Fuse determines the initial value of the CLKPS bits. If CKDIV8 is unprogrammed, the CLKPS bits will be reset to “0000”. If CKDIV8 is programmed, CLKPS bits are reset to “0011”, giving a division factor of eight at start up. This feature should be used if the sele cted clock source has a higher frequency than the maximum frequency of the device at the present operating conditions. Note that any value can be written to the CLKPS bits regardless of the CKDIV8 Fuse setting. The Application software must ensure that a sufficient d ivision factor is chosen if the selcted clock source has a higher frequency than the maximum frequency of the device at the present operating conditions. The device is shipped with the CKDIV8 Fuse programmed.

Table 6-13. Clock Prescaler Select

CLKPS3 CLKPS2 CLKPS1 CLKPS0 Clock Division Factor

0000 1 0001 2 0010 4 0011 8 0100 16 0101 32 0110 64 0111 128 1000 256 1001 Reserved 1010 Reserved 1011 Reserved 1100 Reserved

8197C–AVR–05/11

Table 6-13. Clock Prescaler Select (Continued)

CLKPS3 CLKPS2 CLKPS1 CLKPS0 Clock Division Factor

1101 Reserved 1110 Reserved 1111 Reserved

ATtiny261A/461A/861A

8197C–AVR–05/11

7. Power Management and Sleep Modes

The high performance and industry leading code efficiency makes the AVR microcontrollers an ideal choise for low power applications. In addition, sleep modes enable the application to shut down unused modules in the MCU, thereby saving power. The AVR provides various sleep modes allowing the user to tailor the power consumption to the application’s requirements.

7.1 Sleep Modes

Figure 6-1 on page 24 presents the different clock systems and their distribution. The figure is

helpful in selecting an appropriate sleep mode. Table 7-1 shows the different sleep modes and their wake up sources.

Table 7-1. Active Clock Domains and Wake-up Sources in Different Sleep Modes

Active Clock Domains Osc. Wake-up Sources

CPU

FLASH

clk

Sleep Mode

Idle XXXX ADC Noise Reduct. X X Power-down X Standby X

clk

ADC

clkIOclk

PCK

clk

ATtiny261A/461A/861A

PLL

clk

Main Clock

Source Enabled

INT0, INT1 and

Pin Change

SPM/EEPROM

Ready Interrupt

ADC

Interrupt

USI

Interrupt

Other

(2)

X XXXXXX

(2)

(1)

XXX X

(1)

XX XX

I/O

Watchdog

Interrupt

7.1.1 Idle Mode

Note: 1. For INT0 and INT1, only level interrupt.

2. When PLL selected as system clock.

To enter any of the sleep modes, the SE bit in MCUCR must be written to logic one and a SLEEP instruction must be executed. The SM[1:0] bits in the MCUCR Register select which sleep mode (Idle, ADC Noise Reduction, Power-down, or Standby) will be activated by the SLEEP instruction. See Table 7-2 for a summary.

If an enabled interrupt occurs while the MCU is in a sleep mode, the MCU wakes up. The MCU is then halted for four cycles in addition to the start-up time, executes the interrupt routine, and resumes execution from the instruction following SLEEP. The contents of the Register File and SRAM are unaltered when the device wakes up from slee p. I f a r eset occurs d uri ng sle ep mode, the MCU wakes up and executes from the Reset Vector.

Note that if a level triggered interrupt is used for wake-up the changed level must be held for some time to wake up the MCU (and for the MCU to enter the interrupt service routine). See

“External Interrupts” on page 50 for details.

When bits SM[1:0] are written to 00, the SLEEP instruction makes the MCU enter Idle mode, stopping the CPU but allowing Analog Comparator, ADC, Timer/Counter, Watchdog, and the interrupt system to continue operating. This sleep mode basically halts clk

CPU

and clk

FLASH

, while

allowing the other clocks to run.

8197C–AVR–05/11

Idle mode enables the MCU to wake up from external triggered interrupts as well a s internal ones like the Timer Overflow. If wake-up from the Analog Comparator interrupt is not required, the Analog Comparator can be powered down by setting the ACD bit in the Analog Comparator Control and Status Register – ACSR. This will reduce power consumption in Idle mode. If the ADC is enabled, a conversion starts automatically when this mode is entered.

7.1.2 ADC Noise Reduction Mode

When the SM[1:0] bits are written to 01, the SLEEP instruction makes the MCU ent er ADC Noise Reduction mode, stopping the CPU but allowing the ADC, the external interrupts, and the Watchdog to continue operating (if enabled). This sleep mode halts clk while allowing the other clocks to run.

This mode improves the noise environment for the ADC, enabling higher resolution measurements. If the ADC is enabled, a conversion starts automatically when this mode is entered. Apart form the ADC Conversion Complete interrupt, only an External Reset, a Watchdog Reset, a Brown-out Reset, an SPM/EEPROM ready interrupt, an external level interrupt on INT0 or a pin change interrupt can wake up the MCU from ADC Noise Reduction mode.

7.1.3 Power-Down Mode

When the SM[1:0] bits are written to 10, the SLEEP instruction makes the MCU enter Powerdown mode. In this mode, the Oscillator is stopped, while the external interrupts, and the Watchdog continue operating (if enabled). Only an External Reset, a Watchd og Reset, a Brown-out Reset, an external level interrupt on INT0, or a pin change interrupt can wake up the MCU. This sleep mode halts all generated clocks, allowing operation of asynchronous modules, only.

I/O

, clk

, and clk

CPU

FLASH

7.1.4 Standby Mode

When the SM[1:0] bits are written to 11 and an external crystal/resonator clock option is selected, the SLEEP instruction makes the MCU enter Standby mode. This mode is identical to Power-down with the exception that the Oscillator is kept running. From Standby mode, the device wakes up in six clock cycles.

7.2 Software BOD Disable

When the Brown-out Detector (BOD) is enabled by BODLEVEL fuses (see Table 18-4 on page

169), the BOD is actively monitoring the supply voltage during a sleep period. It is possible to

save power by disabling the BOD by software in Power-Down sleep mode. The sleep mode power consumption will then be at the same level as when BOD is globally disabled by fuses.

If BOD is disabled by software, the BOD function is turned off immediately after entering the sleep mode. Upon wake-up from sleep, BOD is automatically enabled again. This ensures safe operation in case the V

When the BOD has been disabled, the wake-up time from sleep mode will be approximately 60µs to ensure that the BOD is working correctly before the MCU continues executing code.

BOD disable is controlled by the BODS (BOD Sleep) bit of BOD Control Register, see “MCUCR

– MCU Control Register” on page 38. Writing this bit to one turns off BOD in Power-Down and

Stand-By, while writing a zero keeps the BOD active. The default setting is zero, i.e. BOD active. Writing to the BODS bit is controlled by a timed sequence and an enable bit, see “MCUCR –

MCU Control Register” on page 38.

level has dropped during the sleep period.

ATtiny261A/461A/861A

8197C–AVR–05/11

7.3 Po wer Reduction Register

The Power Reduction Register (PRR), see “PRR – Power Reduction Register” on page 39, pro- vides a method to stop the clock to individual peripherals to reduce power consumption. The current state of the peripheral is frozen and the I/O registers can not be read or written. Resources used by the peripheral when stopping the clock will remain occupied, hence the peripheral should in most cases be disabled before stopping the clock. Waking up a module, which is done by clearing the bit in PRR, puts the module in t he sa me stat e a s befor e shut down.

Module shutdown can be used in Idle mode and Active mode to significantly reduce the overall power consumption. In all other sleep modes, the clock is already stopped. See “Supply Current

of I/O modules” on page 197 for examples. In all other sleep modes, the clock is already

stopped.

7.4 Minimizing Power Consumption

There are several issues to consider when trying to minimize the power consumption in an AVR controlled system. In general, sleep modes should be used as much as possible, and the sleep mode should be selected so that as few as possible of the device’s functions are operating. All functions not needed should be disabled. In particular, the following modules may need special consideration when trying to achieve the lowest possible power consumption.

ATtiny261A/461A/861A

7.4.1 Analog Comparator

When entering Idle mode, the Analog Comparator should be disabled if not used. When entering ADC Noise Reduction mode, the Analog Comparator should be disabled. In the other sleep modes, the Analog Comparator is automatically disabled. However, if the Analog Comparator is set up to use the Internal Voltage Reference as input, the Analog Comparator should be disabled in all sleep modes. Otherwise, the Internal Voltage Reference will be enabled, independent of sleep mode. Refer to “AC – Analog Comparator” on page 136 for details on how to configure the Analog Comparator .

7.4.2 Analog to Digital Converter

If enabled, the ADC will be enabled in all sleep modes. To save power, the ADC should be disabled before entering any sleep mode. When the ADC is turned off and on again, the next conversion will be an extended conversion. Refer to “ADC – Analog to Digital Converter” on

page 141 for details on ADC operation.

7.4.3 Brown-out Detector

If the Brown-out Detector is not needed in the ap plication, this module should be turne d off. If the Brown-out Detector is enabled by the BODLEVEL Fuses, it will be enabled in all sleep modes, and hence, always consume power. In the deeper sleep modes, this will contribute significantly to the total current consumption. Refer to “Brown- out Detection” on page 42 for details on how to configure the Brown-out Detector.

7.4.4 Internal Voltage Reference

The Internal Voltage Reference will be enabled when needed by the Brown-out Detection, the Analog Comparator or the ADC. If these modules are disabled as described in the sections above, the internal voltage reference will be disabled and it will not be consuming power. When turned on again, the user must allow the reference to start up before the output is used. If the reference is kept on in sleep mode, the output can be used immediately. Refer to “Internal Volt-

age Reference” on page 43 for details on the start-up time.

8197C–AVR–05/11

7.4.5 Watchdog Timer

If the Watchdog Timer is not needed in the application, this module should be turned off. If the Watchdog Timer is enabled, it will be enabled in all sleep modes, and hence, always consume power. In the deeper sleep modes, this will contribute significantly to the total current consumption. Refer to “Watchdog Timer” on page 43 for details on how to configu re t he Wa tchd og Time r.

7.4.6 Port Pins

When entering a sleep mode, all port pins should be configured to use minimum power. The most important thing is then to ensure that no pins drive resistive loads. In sleep modes where both the I/O clock (clk will be disabled. This ensures that no power is consumed by the input logic when not needed. In some cases, the input logic is needed for detecting wake-up conditions, and it will then be enabled. Refer to the section “Digital Input Enable and Sleep Modes” on page 58 for details on which pins are enabled. If the input buffer is enab led and the in put sig nal is le ft fl oati ng or ha s an analog signal level close to V

For analog input pins, the digital input buffer should be disabled at all times. An analog signal level close to V input buffers can be disabled by writing to the Digital Input Disable Registers (DIDR0, DIDR1). Refer to “DIDR0 – Digital Input Disable Register 0” on page 160 or “DIDR1 – Digital Input Dis-

able Register 1” on page 160 for details.

7.5 Register Description

) and the ADC clock (clk

I/O

/2, the input buffer will use excessive power.

/2 on an input pin can cause significant current even in active mode. Digital

) are stopped, the input buffers of the device

ADC

7.5.1 MCUCR – MCU Control Register

The MCU Control Register contains control bits for power management .

Bit 76543210 0x35 (0x55) BODS Read/Write R/W R/W R/W R/W R/W R/W R/W R/W Initial Value00000000

• Bit 7 – BODS: BOD Sleep

In order to disable BOD during sleep the BODS bit must be writte n to logic one. This is contr olled by a timed sequence and the enable bit, BODSE. First, both BODS and BODSE must be set to one. Second, within four clock cycles, BODS must be set to one and BODSE must be set to zero. The BODS bit is active three clock cycles after it is set. A sleep instruction must be executed while BODS is active in order to turn off the BOD for the actual sleep mode. The BODS bit is automatically cleared after three clock cycles.

• Bit 5 – SE: Sleep Enable

The SE bit must be written to logic one to make the MCU enter the sleep mode when th e SLEEP instruction is executed. To avoid the MCU enteri ng th e sleep mode unless it is the programmer’s purpose, it is recommended to write the Sleep Enable (SE) b it to one just befor e the exe cution of the SLEEP instruction and to clear it immediately after waking up.

PUD SE SM1 SM0 BODSE ISC01 ISC00 MCUCR

ATtiny261A/461A/861A

8197C–AVR–05/11

• Bits 4:3 – SM[1:0]: Sleep Mode Select Bits 1 and 0

These bits select between the four available sleep modes as shown in Table 7-2.

Table 7-2. Sleep Mode Select

SM1 SM0 Sleep Mode

00Idle 0 1 ADC Noise Reduction 1 0 Power-down 1 1 Standby

• Bit 2 – BODSE: BOD Sleep Enable

The BODSE bit enables setting of BODS control bit, as explained on BODS bit description. BOD disable is controlled by a timed sequence.

7.5.2 PRR – Power Reduction Register

The Power Reduction Register provides a method to reduce power consumption by allowing peripheral clock signals to be disabled.

Bit 76543 210 0x36 (0x56) – – – – PRTIM1 PRTIM0 PRUSI PRADC PRR Read/Write R R R R R/W R/W R/W R/W Initial Value 0 0 0 0 0 0 0 0

ATtiny261A/461A/861A

• Bits 7:4 – Res: Reserved Bits

These bits are reserved and will always read zero.

• Bit 3 – PRTIM1: Power Reduction Timer/Counter1

Writing a logic one to this bit shuts down the Timer/Counter1 module. When the Timer/Counter1 is enabled, operation will continue like before the shutdown.

• Bit 2 – PRTIM0: Power Reduction Timer/Counter0

Writing a logic one to this bit shuts down the Timer/Counter0 module. When the Timer/Counter0 is enabled, operation will continue like before the shutdown.

• Bit 1 – PRUSI: Power Reduction USI

Writing a logic one to this bit shuts down the USI by stopping the clock to the module. When waking up the USI again, the USI should be re initialized to ensure proper operation.

• Bit 0 – PRADC: Power Reduction ADC

Writing a logic one to this bit shuts do wn the ADC. The ADC mu st be disabled b efore shut down. Also analog comparator needs this clock.

8197C–AVR–05/11

8. System Control and Reset

8.1 Resetting the AVR

During reset, all I/O Registers are set to their initial values, and the program starts execution from the Reset Vector. The instruction placed at the Reset Vector must be a RJMP – Relative Jump – instruction to the reset handling routine. If the program never enables an interrupt source, the Interrupt Vectors are not used, and regular program code can be placed at these locations. The circuit diagram in Figure 8-1 shows the reset logic. Electrical parameters of the reset circuitry are given in Table 19-4 on page 188.

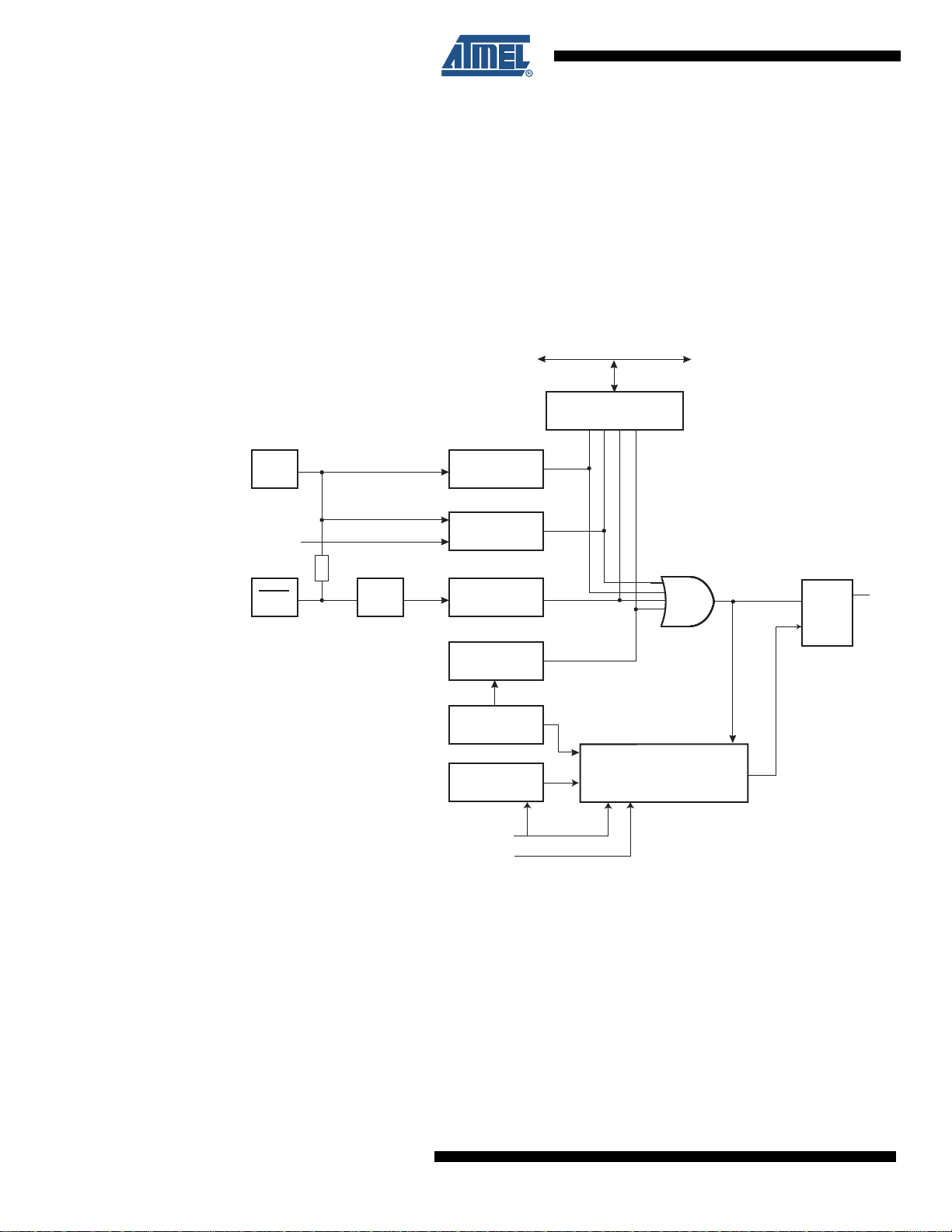

Figure 8-1. Reset Logic

VCC

Power-on Reset

Circuit

DATA BUS

MCU Status

PORF

BORF

WDRF

EXTRF

BODLEVEL [2:0]

RESET

Pull-up Resistor

SPIKE

FILTER

Brown-out

Reset Circuit

Watchdog

Timer

Watchdog

Oscillator

Clock

Generator

CKSEL[1:0]

SUT[1:0]

Delay Counters

COUNTER RESET

TIMEOUT

The I/O ports of the AVR are immediately reset to their initial state when a reset source goes active. This does not require any clock source to be running.

After all reset sources have gone inactive, a delay counter is invoked, stretching the internal reset. This allows the power to reach a stable level before normal operation starts. The time-out period of the delay counter is defined by the user through the SUT and CKSEL Fuses. The different selections for the delay period are presented in “Clock Sources” on page 25.

INTERNAL RESET

ATtiny261A/461A/861A

8197C–AVR–05/11

8.2 Reset Sources

RESET

TIME-OUT

INTERNAL

RESET

TOUT

POT

RST

RESET

TIME-OUT

INTERNAL

RESET

TOUT

POT

RST

8.2.1 Power-on Reset

ATtiny261A/461A/861A

The ATtiny261A/461A/861A has four sources of reset:

• Power-on Reset. The MCU is reset when the supply voltage is below the Power-on Reset

threshold (V

• External Reset. The MCU is reset when a low level is present on the RESET

than the minimum pulse length.

• W atchdog Reset. The MCU is reset when the Watchdog Timer period expires and the

Watchdog is enabled.

• Brown-out Reset. The MCU is reset when the supply voltage V

Reset threshold (V

A Power-on Reset (POR) pulse is generated by an On-chip detection circuit. The detection level is defined in “System and Reset Characteristics” on page 188. The POR is activated whenever

is below the detection level. The POR circuit can be used to trigger the Start-up Reset, as

well as to detect a failure in supply voltage. A Power-on Reset (POR) circuit ensures that the device is reset from Power-on. Reac hing the

Power-on Reset threshold voltage invokes the delay counter, which determines how long the device is kept in RESET after V when V

decreases below the detection level.

POT

) and the Brown-out Detector is enabled.

BOT

rise. The RESET signal is activated again, without any delay,

pin for longer

is below the Brown-out

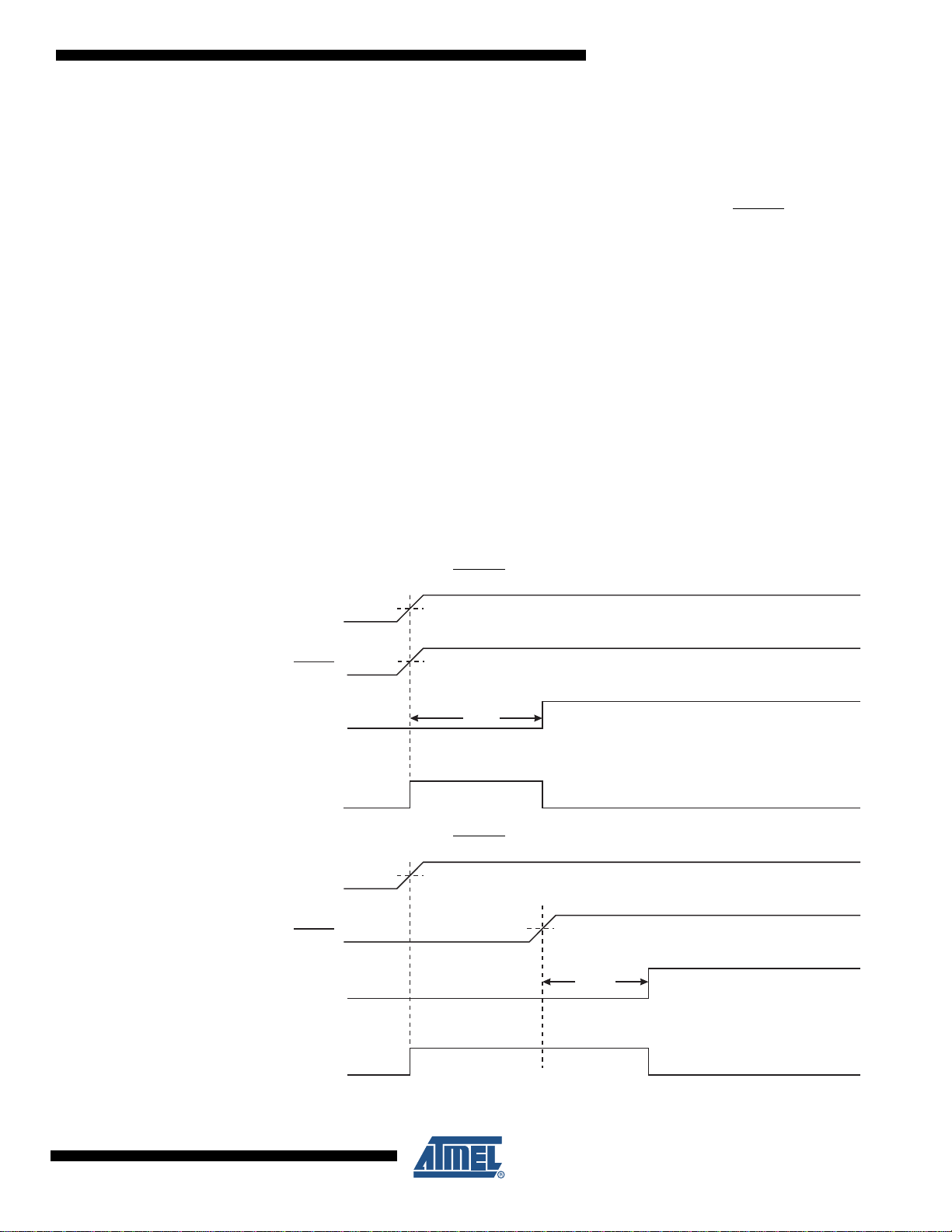

Figure 8-2. MCU Start-up, RESET

Tied to V

Figure 8-3. MCU Start-up, RESET Extended Externally

8197C–AVR–05/11

8.2.2 External Reset

RESET

TIME-OUT

INTERNAL

RESET

BOT-

BOT+

TOUT

An External Reset is generated by a low level on the RESET than the minimum pulse width (see “Syste m a nd Re se t Char act er ist ics” o n p age 18 8) will gener- ate a reset, even if the clock is not running. Shorter pulses are not guaranteed to generate a reset. When the applied signal reaches the Reset Threshold Voltage – V edge, the delay counter starts the MCU afte r the Time-out period – t

Figure 8-4. External Reset During Operation

8.2.3 Brown-out Detection

A Brown-out Detection (BOD) circuit monitors the V fixed trigger level. The trigger level for the BOD can be selected by the BODLEVEL Fuses. The trigger level has a hysteresis to ensure spike free Brown-out Detection. The hysteresis on the detection level should be interpreted as V

When the BOD is enabled, and V

8-5), the Brown-out Reset is immediately activated. When V

BOT+

expired.

pin if enabled. Reset pulses longer

– on its positive

RST

has expired.

TOUT –

level during operation by comparing it to a

= V

BOT+

decreases to a value below the trigger level (V

BOT

+ V

/2 and V

HYST

increases above the trigger level

BOT-

= V

BOT

- V

BOT-

HYST

in Figure 8-5), the delay counter starts the MCU after the Time-out period t

/2.

in Figure

has

TOUT

The BOD circuit will only detect a drop in V ger than t

given in “System and Reset Characteristics” on page 188.

BOD

Figure 8-5. Brown-out Reset During Operation

ATtiny261A/461A/861A

if the voltage stays below the trigger level for lon-

8197C–AVR–05/11

8.2.4 Watchdog Reset

ATtiny261A/461A/861A

When the Watchdog times out, it will generate a short reset pulse of one CK cycle duration. On the falling edge of this pulse, the delay timer starts counting the Time-out period t

“Watchdog Timer” on page 43 for details on operation of the Watchdog Timer.

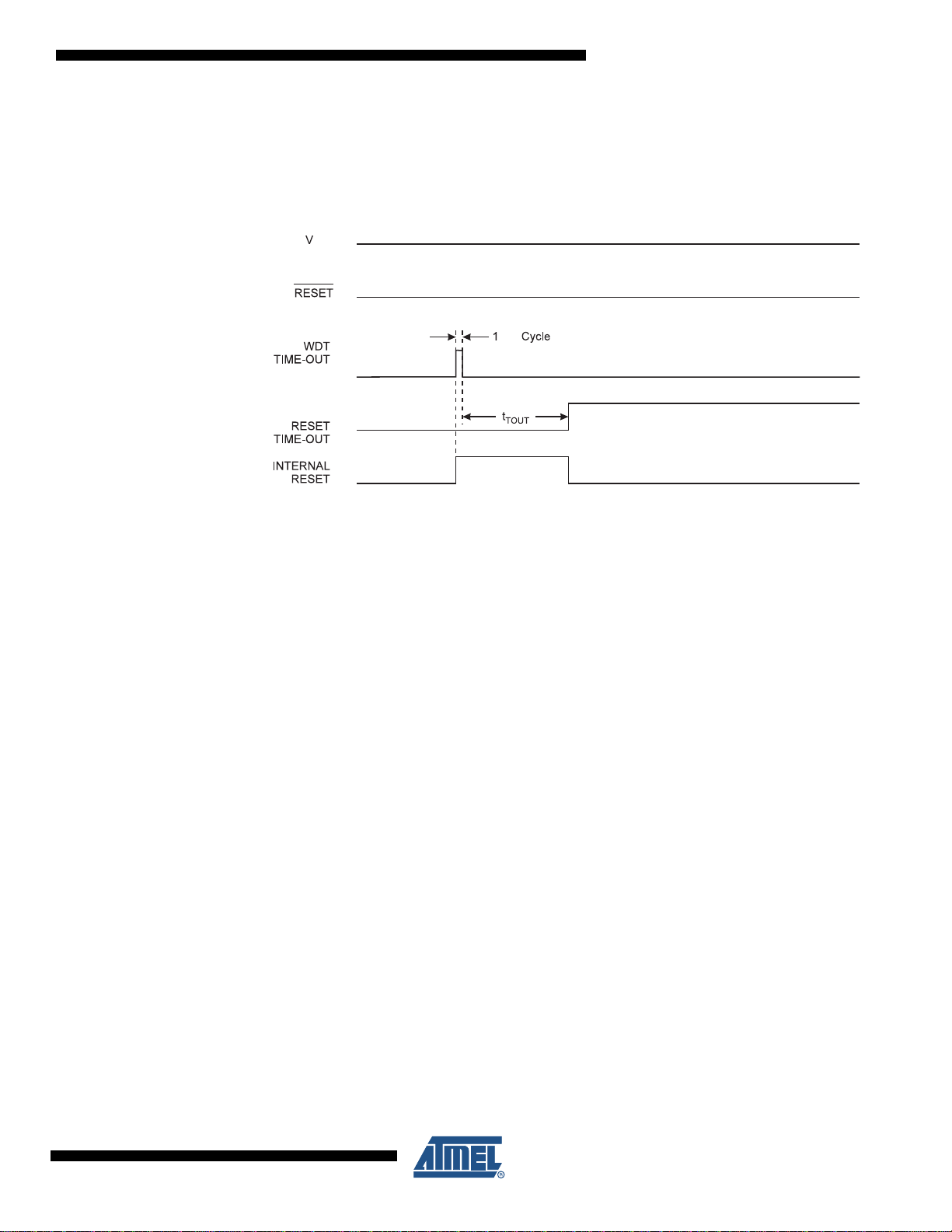

Figure 8-6. Watchdog Reset During Operation

TOUT

. Refer to

8.3 Internal Voltage Reference

ATtiny261A/461A/861A features an internal bandgap reference. This reference is used for Brown-out Detection, and it can be used as an input to the Analog Comparator or the ADC. The bandgap voltage varies with supply voltage and temperature, as ca n be seen in Figure 20-45 on

page 221.

8.3.1 Voltage Reference Enable Signals and Start-up Time

The voltage reference has a start-up time that may influence the way it should be used. T he start-up time is given in “System and Reset Characteristics” on page 188. To save power, the reference is not always turned on. The reference is on during the following situations:

1. When the BOD is enabled (by programming the BODLEVEL[2:0] Fuse bits).

2. When the bandgap reference is connected to the Analog Comparator (by setting the ACBG bit in ACSR) .

3. When the ADC is enabled.

Thus, when the BOD is not enabled, after setting the ACBG bit or enabling the ADC, the user must always allow the reference to start up before the output from the Analog Comparator or ADC is used. To reduce power consumption in Power-down mode, the user can avoid the three conditions above to ensure that the reference is turned off before entering Power-down mode.

8.4 Watchdog Timer

The Watchdog Timer is clocked from an on-chip oscillator, which runs at 128 kHz. By controlling the Watchdog Timer prescaler, the Watchdog Reset interval can be adjusted as shown in Table

8-3 on page 48. The WDR – Watchdog Reset – instruction resets the Watchdog Timer. The

Watchdog Timer is also reset when it is disabled and when a device reset occurs. Ten different clock cycle periods can be selected to determine the reset period. If the reset period expires without another Watchdog Reset, the device resets and executes from the Reset Vector. For timing details on the Watchdog Reset, refer to Table 8-3 on page 48.

8197C–AVR–05/11

The Wathdog Timer can also be configured to generate an interrupt instead of a reset. This can be very helpful when using the Watchdog to wake-up from Power-down.

To prevent unintentional disabling of the Watchd og or unintentional chan ge of time-out period, two different safety levels are selected by the fuse WDTON as shown in Table 8-1 Refer to

“Timed Sequences for Changing the Configuration of the Watchdog Timer” on page 44 for

details.

Table 8-1. WDT Configuration as a Function of the Fuse Settings of WDTON

WDTON

Safety

Level

WDT Initial State

How to Disable the WDT

Unprogrammed 1 Disabled Timed sequence No limitations Programmed 2 Enabled Always enabled Timed sequence

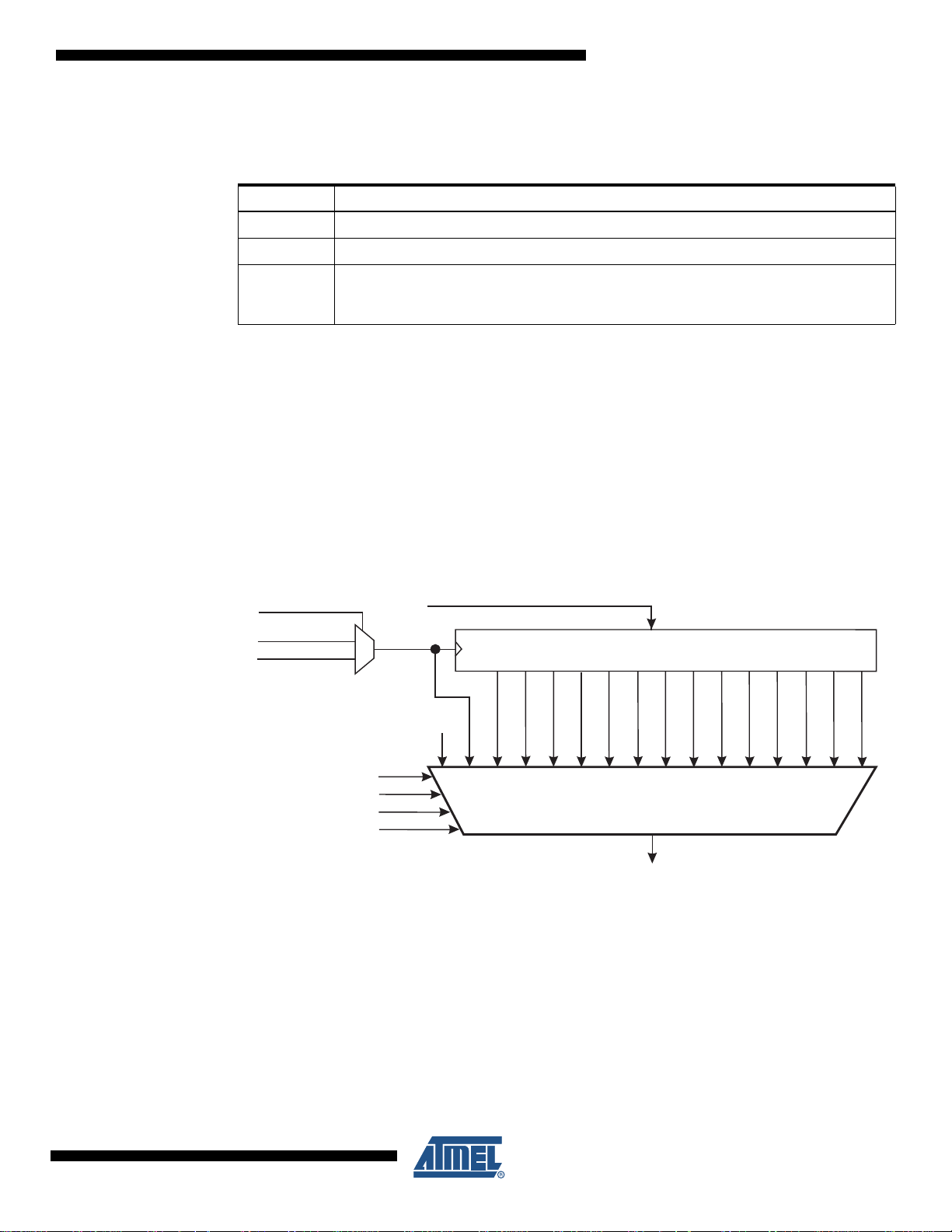

Figure 8-7. Watchdog Timer

128 kHz

OSCILLATOR

WATCHDOG

RESET

WDP0 WDP1 WDP2 WDP3

WDE

OSC/2K

WATCHDOG

PRESCALER

OSC/4K

OSC/8K

OSC/16K

MCU RESET

8.4.1 Timed Sequences for Changing the Configuration of the Watchdog Timer

The sequence for changing configuration differs slightly between the two safety levels. Separate procedures are described for each level.

OSC/32K

OSC/64K

How to Change Timeout

OSC/512K

OSC/128K

OSC/256K

OSC/1024K

8.4.1.1 Safety Level 1

8.4.1.2 Safety Level 2

ATtiny261A/461A/861A

In this mode, the Watchdog Timer is initially disabled, but can be enabled by writing the WDE bit to one without any restriction. A timed sequence is needed when disabling an enabled Watchdog Timer. To disable an enabled Watchdog Timer, the following procedure must be followed:

1. In the same operation, write a logic one to WDCE and WDE. A logic one must be written to WDE regardless of the previous value of the WDE bit.

2. Within the next four clock cycles, in the same operation, write the WDE and WDP bits as desired, but with the WDCE bit cleared.

In this mode, the Watchdog Timer is always enabled, and the WDE bit will always read as one. A timed sequence is needed when changing the Watchdog Time-out period. To change the Watchdog Time-out, the following procedure must be followed:

8197C–AVR–05/11

8.4.2 Code Examples

ATtiny261A/461A/861A

1. In the same operation, write a logical one to WDCE and WDE. Even though the WDE always is set, the WDE must be written to one to start the timed sequence.

2. Within the next four clock cycles, in the same operat ion, write the WDP bit s a s de sir ed, but with the WDCE bit cleared. The value written to the WDE bit is irrelev ant.

The following code example shows one assembly and one C function for turning off the WDT. The example assumes that interrupts are controlled (e.g. , by disabling interrupt s globally) so that no interrupts will occur during execution of these functions.

Assembly Code Example

WDT_off:

wdr

; Clear WDRF in MCUSR

ldi r16, (0<<WDRF)

out MCUSR, r16

; Write logical one to WDCE and WDE

; Keep old prescaler setting to prevent unintentional Watchdog Reset

in r16, WDTCSR

ori r16, (1<<WDCE)|(1<<WDE)

out WDTCSR, r16

; Turn off WDT

ldi r16, (0<<WDE)

out WDTCSR, r16

ret

C Code Example

void WDT_off(void)

{

_WDR();

/* Clear WDRF in MCUSR */

MCUSR = 0x00

/* Write logical one to WDCE and WDE */

WDTCSR |= (1<<WDCE) | (1<<WDE);

/* Turn off WDT */

WDTCSR = 0x00;

}

Note: See “Code Examples” on page 6.

8197C–AVR–05/11

8.5 Register Description

8.5.1 MCUSR – MCU Status Register

The MCU Status Register provides information on which reset source caused an MCU Reset.

Bit 76543210 0x34 (0x54) – – – – WDRF BORF EXTRF PORF MCUSR Read/Write R R R R R/W R/W R/W R/W Initial Value 0 0 0 0 See Bit Description

• Bits 7:4 – Res: Reserved Bits

These bits are reserved and will always read zero.

• Bit 3 – WDRF: Watchdog Reset Flag

This bit is set if a Watchdog Reset occurs. The bit is reset by a Power-on Reset, or by writing a logic zero to the flag.

• Bit 2 – BORF: Brown-out Reset Flag

This bit is set if a Brown-out Reset occurs. The bit is reset by a Power-on Reset, or by writing a logic zero to the flag.

• Bit 1 – EXTRF: External Reset Flag

This bit is set if an External Reset occurs. The bit is reset by a Power-on Reset, or by writing a logic zero to the flag.

• Bit 0 – PORF: Power-on Reset Flag

This bit is set if a Power-on Reset occurs. The bit is reset only by writing a logic zero to the flag. To make use of the Reset Flags to identify a r eset condition, t he user should r ead and t hen reset

the MCUSR as early as possible in the prog ram. If the register is cle ared before anot her reset occurs, the source of the reset can be found by examining the Reset Flags.

8.5.2 WDTCR – Watchdog Timer Control Register

Bit 76543210 0x21 (0x41) WDIF WDIE WDP3 WDCE WDE WDP2 WDP1 WDP0 WDTCR Read/Write R/W R/W R/W R/W R/W R/W R/W R/W Initial Value0000X000

• Bit 7 – WDIF: Watchdog Timeout Interrupt Flag

This bit is set when a time-out occurs in the Watchdog Timer and the Watchdog Timer is configured for interrupt. WDIF is cleared by hardware when executing the corresponding interrupt handling vector. Alternatively, WDIF is clear ed by writing a logic on e to the f lag. Whe n the I-bi t in SREG and WDIE are set, the Watchdog Time-out Interrupt is executed .

• Bit 6 – WDIE: Watchdog Timeout Interrupt Enable

When this bit is written to one, WDE is cleared, and the I-bit in the Status Register is set, th e Watchdog Time-out Interrupt is enabled. In this mode the corresponding interr upt is executed instead of a reset if a timeout in the Watchdog Timer occurs.

If WDE is set, WDIE is automatically cleared by hardware when a time-out occurs. This is useful for keeping the Watchdog Reset security while using the interrupt. After the WDIE bit is cleared,

ATtiny261A/461A/861A

8197C–AVR–05/11

ATtiny261A/461A/861A

the next time-out will generate a reset. To avoid the Watchdog Reset, WDIE must be set after each interrupt.

Table 8-2. Watchdog Timer Configuration

WDE WDIE Watchdog Timer State Action on Time-out

0 0 Stopped None 0 1 Running Interrupt 1 0 Running Reset 1 1 Running Interrupt

• Bit 4 – WDCE: Watchdog Change Enable

This bit must be set when the WDE bit is written to logic zero. Otherwise, the Watchdog will not be disabled. Once written to one, hardware will clear this bit after four clock cycles. Refer to the description of the WDE bit for a Watchdog disable procedure. This bit must also be set when changing the prescaler bits. See “Timed Sequences for Changing the Configuration of the

Watchdog Timer” on page 44.

• Bit 3 – WDE: Watc hdog Enable

When the WDE is written to logic one, the Watchdog Timer is enabled, and if the WDE is written to logic zero, the Watchdog Timer function is di sabled. WDE can on ly be clear ed if the WDCE bit has logic level one. To disable an enabled Watchdog Timer, the following procedure must be followed:

1. In the same operation, write a logic one to WDCE and WDE. A logic one must be written to WDE even though it is set to one before the disable operation starts.

2. Within the next four clock cycles, write a logic 0 to WDE. This disables the Watchdog.

In safety level 2, it is not possible to disable the Watchdog Timer, even with the algorithm described above. See “Timed Sequences for Changing the Configuration of the Watchdog

Timer” on page 44.

In safety level 1, WDE is overridden by WDRF in MCUSR. See “MCUSR – MCU Status Regis-

ter” on page 46 for description of WDRF. This means that WDE is always set when WDRF is set.

To clear WDE, WDRF must be cleared before disabling the Watchdog with the procedure described above. This feature ensures multiple resets during conditions causing failure, and a safe start-up after the failure.

Note: If the watchdog timer is not going to be used in the application, it is important to go through a

watchdog disable procedure in the initialization of the device. If the Watchdog is accidentally enabled, for example by a runaw ay pointer or brown-out condition, the device will be reset, which in turn will lead to a new watchdog reset. To avoid this situation, the application software should always clear the WDRF flag and the WDE control bit in the initialization routine.

8197C–AVR–05/11

• Bits 5, 2:0 – WDP[3:0]: Watchdog Timer Prescaler 3 - 0

The WDP[3:0] bits determine the Watchdog Timer prescaling when the Watchdog Timer is enabled. The different prescaling values and their corresponding Timeout Periods are shown in

Table 8-3.

Table 8-3. Watchdog Timer Prescale Select

Number of WDT Oscillator

WDP3 WDP2 WDP1 WDP0

0 0 0 0 2K (2048) cycles 16 ms 0 0 0 1 4K (4096) cycles 32 ms 0 0 1 0 8K (8192) cycles 64 ms 0 0 1 1 16K (16384) cycles 0.125 s 0 1 0 0 32K (32764) cycles 0.25 s 0 1 0 1 64K (65536) cycles 0.5 s 0 1 1 0 128K (131072) cycles 1.0 s 0 1 1 1 256K (262144) cycles 2.0 s 1 0 0 0 512K (524288) cycles 4.0 s 1 0 0 1 1024K (1048576) cycles 8.0 s 1010 1011 1100 1101 1110 1111

Cycles

Reserved

Typical Time-out at

VCC = 5.0V

(1)

Notes: 1. If selected, one of the valid settings below 0b1010 will be used.

ATtiny261A/461A/861A

8197C–AVR–05/11

9. Interrupts

This section describes the specifics of the interrupt handling as performed in ATtiny261A/461A/861A. For a general explanation of the AVR interrupt handling, refer to “Reset

and Interrupt Handling” on page 12.

9.1 Interrupt Vectors

Interrupt vectors of ATtiny261A/461A/861A are described in Table 9-1 below.

Table 9-1. Reset and Interrupt Vectors

ATtiny261A/461A/861A

Vector

No.

1 0x0000 RESET

2 0x0001 INT0 External Interrupt Request 0 3 0x0002 PCINT Pin Change Interrupt Request 4 0x0003 TIMER1_COMPA Timer/Counter1 Compare Match A 5 0x0004 TIMER1_COMPB Timer/Counter1 Compare Match B 6 0x0005 TIMER1_OVF Timer/Counter1 Overflow 7 0x0006 TIMER0_OVF Timer/Counter0 Overflow 8 0x0007 USI_START USI Start

9 0x0008 USI_OVF USI Overflow 10 0x0009 EE_RDY EEPROM Ready 11 0x000A ANA_COMP Analog Comparator 12 0x000B ADC ADC Conversion Complete 13 0 x 000C WDT Watchdog Time-out 14 0x000D INT1 External Interrupt Request 1 15 0x000E TIMER0_COMPA Timer/Counter0 Compare Match A 16 0x000F TIMER0 _COMPB Timer/Counter0 Compare Match B

Program

Address Source Interrupt Definition

External Pin, Power-on Reset, Brown-out Reset, Watchdog Reset

8197C–AVR–05/11

17 0x0010 TIMER0_CAPT Timer/Counter1 Capture Event 18 0x0011 TIMER1_COMPD Timer/Counter1 Compare Match D 19 0x0012 FAULT_PROTECTION Timer/Counter1 Fault Protection

If the program never enables an interr upt sou rce, the I nter rupt Vect ors ar e n ot used , and regu lar program code can be placed at these locations.

The most typical and general program setup for the Reset and Interrupt Vector Addresses in ATtiny261A/461A/861A is shown in the following program example.

Address Labels Code Comments

0x0000 rjmp RESET ; Reset Handler

0x0001 rjmp EXT_INT0 ; IRQ0 Handler

0x0002 rjmp PCINT ; PCINT Handler

0x0003 rjmp TIM1_COMPA ; Timer1 CompareA Handler

0x0004 rjmp TIM1_COMPB ; Timer1 CompareB Handler

0x0005 rjmp TIM1_OVF ; Timer1 Overflow Handler

0x0006 rjmp TIM0_OVF ; Timer0 Overflow Handler

0x0007 rjmp USI_START ; USI Start Handler

0x0008 rjmp USI_OVF ; USI Overflow Handler

0x0009 rjmp EE_RDY ; EEPROM Ready Handler

0x000A rjmp ANA_COMP ; Analog Comparator Handler

0x000B rjmp ADC_ISR ; ADC Conversion Handler

0x000C rjmp WDT ; WDT Interrupt Handler

0x000D rjmp EXT_INT1 ; IRQ1 Handler

0x000E rjmp TIM0_COMPA ; Timer0 CompareA Handler

0x000F rjmp TIM0_COMPB ; Timer0 CompareB Handler

0x0010 rjmp TIM0_CAPT ; Timer0 Capture Event Handler

0x0011 rjmp TIM1_COMPD ; Timer1 CompareD Handler

0x0012 rjmp FAULT_PROTECTION ; Timer1 Fault Protection

0x0013 RESET: ldi r16, low(RAMEND) ; Main program start

0x0014 ldi r17, high(RAMEND); Tiny861 have also SPH

0x0015 out SPL, r16 ; Set Stack Pointer to top of RAM

0x0016 out SPH, r17 ; Tiny861 have also SPH

0x0017 sei ; Enable interrupts

0x0018 <instr>

... ...

9.2 External Interrupts

The External Interrupts are triggered by the INT0 or INT1 pin or any of the PCINT[15:0] pins. Observe that, if enabled, the interrupts will trigger even if the INT0, INT1 or PCINT[15:0] pins are configured as outputs. This feature provides a way of generating a software interrupt. Pin change interrupts PCI will trigger if any enabled PCINT[15:0] pin toggles. The PCMSK Register control which pins contribute to the pin change interrupts. Pin change interrupts on PCINT[15:0] are detected asynchronously. This implies that these interrupts can be used for waking the part also from sleep modes other than Idle mode.

The INT0 and INT1 interrupts can be triggered by a falling or rising ed ge or a low level. This is set up as indicated in the specification for the MCU Control Register – MCUCR. When the INT0 interrupt is enabled and is configured as level triggered, the interrupt will trigger as long as the pin is held low. Note that recognition of falling or rising edge interrupts on INT0 or INT1 requires the presence of an I/O clock, described in “Clock Subsystems” on page 24.

ATtiny261A/461A/861A

8197C–AVR–05/11

9.2.1 Low Level Interrupt

A low level interrupt on INT0 is detected asynchronously. This means that the interrupt source can be used for waking the part also from sleep modes other than Idle (the I/O clock is halted in all sleep modes except Idle).

Note that if a level triggered interrupt is used for wake-up from Power -down, the required level must be held long enough for the MCU to complete the wake-up to trigger the level interrupt. If the level disappears before the end of the Start-up Time, the MCU will still wake up, but no interrupt will be generated. The start-up time is defined by the SUT and CKSEL Fuses as described in “Clock System” on page 24.

If the low level on the interrupt pin is removed before the device has woken up then program execution will not be diverted to the interrupt service routine but continue from the instruction following the SLEEP command.

9.3 Register Description

9.3.1 MCUCR – MCU Control Register

The MCU Register contains control bits for interrupt sense control.

Bit 76543210 0x35 (0x55) Read/Write R/W R/W R/W R/W R/W R/W R/W R/W Initial Value00000000

BODS PUD SE SM1 SM0 BODSE ISC01 ISC00 MCUCR

ATtiny261A/461A/861A

• Bits 1:0 – ISC0[1:0]: Interrupt Sense Control 0 Bit 1 and Bit 0

The External Interrupt 0 is activated by the external pin INT0 or INT1 if the SREG I-flag and the corresponding interrupt mask are set. The level and edges on the external INT0 or INT1 pin that activate the interrupt are defined in Table 9-2. The value on the INT0 or INT1 pin is sampled before detecting edges. If edge or toggle interrupt is selected, pulses that last longer than one clock period will generate an interrupt. Shorter pulses are not guaranteed to generate an interrupt. If low level interrupt is selected, the low level must be held until the completion of the currently executing instruction to generate an interrupt.

Table 9-2. Interrupt 0 Sense Control

ISC01 ISC00 Description

0 0 The low level of INT0 or INT1 generates an interrupt request. 0 1 Any logical change on INT0 or INT1 generate s an interrupt request. 1 0 The falling edge of INT0 or INT1 generates an interrupt request. 1 1 The r ising edge of INT0 or INT1 generates an interrupt request.

9.3.2 GIMSK – General Interrupt Mask Register

Bit 76543210 0x3B (0x5B) INT1INT0PCIE1PCIE0––––GIMSK Read/WriteR/WR/WR/WR/wRRRR Initial Value00000000

8197C–AVR–05/11

• Bit 7 – INT1: External Interrupt Request 1 Enable

When the INT1 bit is set (one) and the I-bit in the Status Register (SREG) is set (one), the external pin interrupt is enabled. The I nterrupt Sen se Control0 bits 1/ 0 (ISC0 1 and ISC0 0) in the MCU

Control Register (MCUCR) define whether the exter nal inter rupt is activate d on r ising and/ or falling edge of the INT1 pin or level sensed. Activity on the pin will cause an interrupt request even if INT1 is configured as an output. The corresponding interrupt of External Interrupt Request 1 is executed from the INT1 Interrupt Vector.

• Bit 6 – INT0: External Interrupt Request 0 Enable

When the INT0 bit is set (one) and the I-bit in the Status Register (SREG) is set (one), the external pin interrupt is enabled. The I nterrupt Sen se Control0 bits 1/ 0 (ISC0 1 and ISC0 0) in the MCU Control Register (MCUCR) define whether the exter nal inter rupt is activate d on r ising and/ or falling edge of the INT0 pin or level sensed. Activity on the pin will cause an interrupt request even if INT0 is configured as an output. The corresponding interrupt of External Interrupt Request 0 is executed from the INT0 Interrupt Vector.

• Bit 5 – PCIE1: Pin Change Interrupt Enable

When the PCIE1 bit is set (one) and the I-bit in the Status Register (SREG) is set (one), pin change interrupt is enabled. Any change on any enabled PCINT[7:0] or PCINT[15:12] pin will cause an interrupt. The corresponding interrupt of Pin Change Interrupt Request is executed from the PCI Interrupt Vector. PCINT[7:0] and PCINT[15:12] pins are enabled individually by the PCMSK0 and PCMSK1 Register.

• Bit 4 – PCIE0: Pin Change Interrupt Enable

When the PCIE0 bit is set (one) and the I-bit in the Status Register (SREG) is set (one), pin change interrupt is enabled. Any cha nge on an y enabled PCINT[11:8] pin will cause an interrupt. The corresponding interrupt of Pin Change Interrupt Request is executed from the PCI Interrupt Vector. PCINT[11:8] pins are enabled individually by the PCMSK1 Register.

• Bits 3:0 – Res: Reserved Bits

These bits are reserved and will always read as zero.

9.3.3 GIFR – General Interrupt Flag Register

Bit 76543210 0x3A (0x5A) I NT1 INTF0 PCIF – – – – – GIFR Read/WriteR/WR/WR/WRRRRR Initial Value00000000

• Bit 7 – INTF1: External Interrupt Flag 1

When an edge or logic change on the INT1 pin triggers an interrup t requ est, INTF1 be comes set (one). If the I-bit in SREG and the INT1 bit in GIMSK are set (one), the MCU will jump to the corresponding Interrupt Vector. The flag is cleared when the interrupt routine is executed. Alternatively, the flag can be cleared by writing a logical one to it. This flag is always cleared when INT1 is configured as a level interrupt.

• Bit 6 – INTF0: External Interrupt Flag 0

When an edge or logic change on the INT0 pin triggers an interrup t requ est, INTF0 be comes set (one). If the I-bit in SREG and the INT0 bit in GIMSK are set (one), the MCU will jump to the corresponding Interrupt Vector. The flag is cleared when the interrupt routine is executed. Alternatively, the flag can be cleared by writing a logical one to it. This flag is always cleared when INT0 is configured as a level interrupt.

ATtiny261A/461A/861A

8197C–AVR–05/11

• Bit 5 – PCIF: Pin Change Interrupt Flag

When a logic change on any PCINT15 pin triggers an interrupt request, PCIF becomes set (one). If the I-bit in SREG and the PCIE bit in GIMSK are set (one), the MCU will jump to the corresponding Interrupt Vector. The flag is cleared when the interrupt routine is executed. Alternatively, the flag can be cleared by writing a logical one to it.

• Bits 4:0 – Res: Reserved Bits

These bits are reserved and will always read as zero.

9.3.4 PCMSK0 – Pin Change Mask Register A

Bit 76543210 0x23 (0x43) PCINT7 PCINT6 PCINT5 PCINT4 PCINT3 PCINT2 PCINT1 PCINT0 PCMSK0 Read/Write R/W R/W R/W R/w R/W R/W R/W R/W Initial Value11001000

• Bits 7:0 – PCINT[7:0]: Pin Change Enable Mask 7:0

Each PCINT[7:0] bit selects whether pin change interrupt is enabled on the corresponding I/O pin. If PCINT[7:0] is set and the PCIE1 bit in GIMSK is set, pin change interrupt is enabled on the corresponding I/O pin. If PCINT[7:0] is cleared, pin change interrupt on the corresponding I/O pin is disabled.

ATtiny261A/461A/861A

9.3.5 PCMSK1 – Pin Change Mask Register B

Bit 76543210 0x22 (0x42) PCINT15 P CINT14 PCINT13 PCINT12 PCINT11 PCINT10 PCINT9 PCINT8 PCMSK1 Read/Write R/W R/W R/W R/w R/W R/W R/W R/W Initial Value11111111

• Bits 7:0 – PCINT[15:8]: Pin Change Enable Mask 15:8

Each PCINT[15:8] bit selects whether pin change interrupt is enabled on the corresponding I/O pin. If PCINT[11:8] is set and the PCIE0 bit in GIMSK is set, pin change interrupt is enabled on the corresponding I/O pin, and if PCINT[15:12] is set and the PCIE1 bit in GIMSK is set, pin change interrupt is enabled on the corresponding I/O pin. If PCINT[15:8] is cleared, pin change interrupt on the corresponding I/O pin is disabled.

8197C–AVR–05/11

10. I/O Ports

Logic

See Figure

"General Digital I/O" for

Details

Pxn

All AVR ports have true Read-Modify-Write functionality when used as general digital I/O ports. This means that the direction of one port pin can be changed without unintentionally changing the direction of any other pin with the SBI and CBI instructions. The same applies when changing drive value (if configured as output) or enabling/ disabling of p ull-up resist ors (if con figured as input). Each output buffer has symmetrical drive characteristics with both high sink and source capability. The pin driver is strong enough to drive LED displays directly. All port pins have individually selectable pull-up resistors with a supply-voltage invariant resistance. All I/O pins have protection diodes to both V

istics” on page 185 for a complete list of parameters.

Figure 10-1. I/O Pin Equivalent Schematic

and Ground as indicated in Figure 10-1. See “Electrical Character-

All registers and bit references in this section are written in general form. A lower case “x” r epresents the numbering letter for the port, and a lower case “n” rep resents the bit number. However, when using the register or bit defines in a program , the precise form must be used. For examp le, PORTB3 for bit no. 3 in Port B, here documented ge ner ally as PO RTxn . The physical I /O Registers and bit locations are listed in “Register Description” on page 68.

Three I/O memory address locations are allocated for each port, one each for the Data Register – PORTx, Data Direction Register – DDRx, and the Port Input Pins – PINx. The Port Input Pins I/O location is read only, while the Data Register and the Data Direction Register are read/write. However, writing a logic one to a bit in the PINx Register, will result in a toggle in the corresponding bit in the Data Register. In addition, the Pull-up Disable – PUD bit in MCUCR disables the pull-up function for all pins in all ports when set.

Using the I/O port as General Digital I/O is described in “Ports as General Digital I/O” on page

55. Most port pins are multiplexed with alternate func tions for the peripheral featur es on the

device. How each alternate function interferes with the port pin is described in “Alternate Port

Functions” on page 59. Refer to the individual module sections for a full description of the alter-

nate functions. Note that enabling the alternate function of some of the port pins does not affect the use of the

other pins in the port as general digital I/O.

ATtiny261A/461A/861A

8197C–AVR–05/11

10.1 Ports as General Digital I/O

The ports are bi-directional I/O ports with optional internal pull-ups. Figure 10-2 shows a functional description of one I/O-port pin, here generically called Pxn.

ATtiny261A/461A/861A

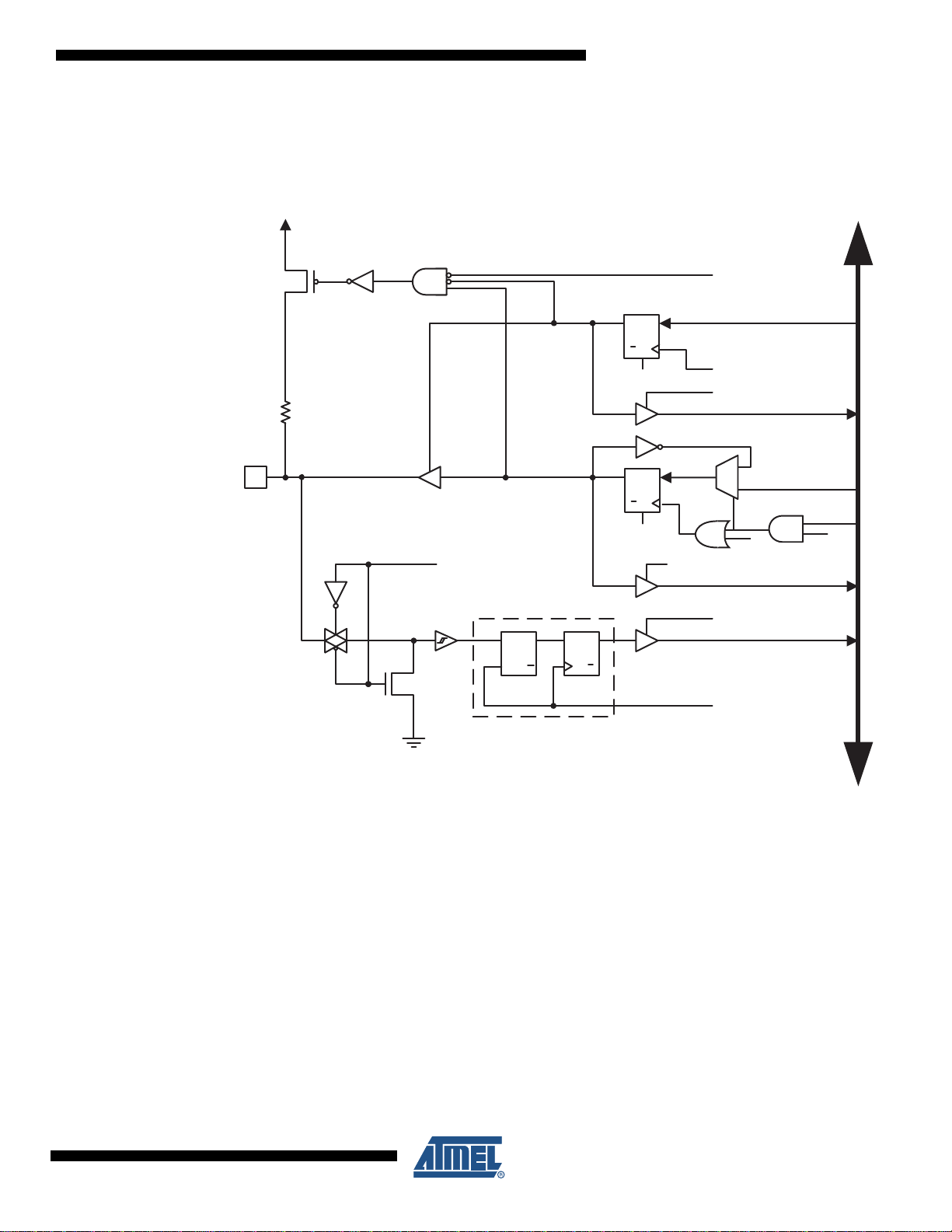

Figure 10-2. General Digital I/O

Pxn

SLEEP

(1)

SYNCHRONIZER

DLQ

PINxn

PUD

DDxn

CLR

RESET

WDx

RDx

PORTxn

CLR

DATA BU S

RESET

WRx

RRx

RPx

WPx

Note: 1. WRx, WPx, WDx, RRx, RPx, and RDx are common to all pins within the same port. clk

10.1.1 Configuring the Pin

Each port pin consists of three register bits: DDxn, PORTxn, and PINxn. As shown in “Register

Description” on page 68, the DDxn bits are accessed at the DDRx I/O address, the PORTxn bits

at the PORTx I/O address, and the PINxn bits at the PINx I/O address. The DDxn bit in the DDRx Register selects the direction of this pin. If DDxn is written logic one,

Pxn is configured as an output pin. If DDxn is written logic zero, Pxn is configured as an input pin.

If PORTxn is written logic one when the pin is configured as an input pin, the pull-up resistor is activated. To switch the pull-up resistor off, PORTxn has to be written logic zero or the pin h as to

PUD: PULLUP DISABLE SLEEP: SLEEP CONTROL

: I/O CLOCK

clk

I/O

SLEEP, and PUD are common to all ports.

clk

I/O

WDx: WRITE DDRx RDx: READ DDRx WRx: WRITE PORTx RRx: READ PORTx REGISTER RPx: READ PORTx PIN

WPx: WRITE PINx REGISTER

I/O

8197C–AVR–05/11

be configured as an output pin. The port pi ns are tri-stated when re set condition b ecomes active, even if no clocks are running.

If PORTxn is written logic one when the pin is configured as an output pin, the port pin is driven high (one). If PORTxn is written logic zero when the pin is configured as an output pin, the port pin is driven low (zero).

10.1.2 Toggling the Pin

Writing a logic one to PINxn toggles the value of PORTxn, independent on the value of DDRxn. Note that the SBI instruction can be used to toggle one single bit in a port.

10.1.3 Switching Between Input and Output

When switching between tri-state ({DDxn, PORTxn} = 0b00) and output high ({DDxn, PORTxn} = 0b11), an intermediate state with either pull-up enabled {DDxn, PORTxn} = 0b01) or output low ({DDxn, PORTxn} = 0b10) must occur. Normally, the pull-up enabled state is fully acceptable, as a high-impedant environment will not notice the difference between a strong high driver and a pull-up. If this is not the case, the PUD bit in the MCUCR Register can be set to disable all pull-ups in all ports.

Switching between input with pull-up and output low generates the same problem. The user must use either the tri-sta te ({DDxn, PORTxn} = 0b00) o r the o utput high state ({DDxn, PORTxn} = 0b10) as an intermediate step.

Table 10-1 summarizes the control signals for the pin value.

Table 10-1. Port Pin Configurations

DDxn PORTxn

0 0 X Input No Tri-state (Hi-Z) 0 1 0 Input Ye s Pxn will source current if ext. pulled low 0 1 1 Input No Tri-state (Hi-Z) 1 0 X Output No Output Low (Sink) 1 1 X Output No Output High (Source)

10.1.4 Reading the Pin Value

Independent of the setting of Data Direction b it DDxn, the port pin can be read through the PINxn Register bit. As shown in Figure 10-2, t he PINxn Regist er bit a nd th e prece ding latch constitute a synchronizer. This is needed to avoid metastability if the physical pin changes value near the edge of the internal clock, but it also intro duces a delay. Fi gure 10-3 shows a timing diagram of the synchronization when reading an externally applied pin value. The maximum and minimum propagation delays are deno te d t

PUD

(in MCUCR) I/O Pull-up Comment

pd,max

and t

respectively.

pd,min

ATtiny261A/461A/861A

8197C–AVR–05/11

ATtiny261A/461A/861A

XXX in r17, PINx

0x00 0xFF

INSTRUCTIONS

SYNC LATCH

PINxn

r17

XXX

SYSTEM CLK

pd, max

pd, min

out PORTx, r16 nop in r17, PINx

0xFF

0x00 0xFF

SYSTEM CLK

r16

INSTRUCTIONS

SYNC LATCH

PINxn

r17

Figure 10-3. Synchronization when Reading an Externally Applied Pin value

Consider the clock period starting shortly after the first falling edge of the system clock. The latch is closed when the clock is low, and goes transparent when the clock is high, as indicated by the shaded region of the “SYNC LATCH” signal. The signal value is latched when the system clock goes low. It is clocked into the PINxn Register at the succeeding positive clock edge. As indicated by the two arrows tpd,max and tpd,min, a single signal transition on the pin will be delayed between ½ and 1½ system clock period depending upon the time of assertion.

When reading back a software assigned pin value, a nop instruction must be inserted as indicated in Figure 10-4. The out instruction sets the “SYNC LATCH” signal at the positive edge of the clock. In this case, the delay tpd through the synchronizer is one system clock period.

Figure 10-4. Synchronization when Reading a Software Assigned Pin Value

8197C–AVR–05/11

10.1.5 Digital Input Enable and Sleep Modes

As shown in Figure 10-2, the digital input signal can be clamped to ground at the input of the schmitt-trigger. The signal denoted SLEEP in the figure, is set by the MCU Sleep Controller in Power-down mode, Power-save mode, and Standb y mode to avoid high power co nsumption if some input signals are left floating, or have an analog signal level close to V

SLEEP is overridden for port pins enabled as external interrupt pins. If the external interrupt request is not enabled, SLEEP is active also for these pins. SLEEP is also overridden by various other alternate functions as described in “Alternate Port Functions” on page 59.

If a logic high level (“one”) is present on an asynchronous external interrupt pin configured as “Interrupt on Rising Edge, Falling Edge, or Any Logic Change on Pin” while the extern al interrupt is not enabled, the corresponding External Interrupt Flag will be set when resuming from the above mentioned Sleep mode, as the clamping in these sleep mode produces the requested logic change.

10.1.6 Unconnected Pins

If some pins are unused, it is recommended to ensure t hat these pins have a defi ned level. Even though most of the digital inputs are disabled in th e deep sleep modes as de scribed above, floating inputs should be avoided to reduce current consumption in all other modes where the digital inputs are enabled (Reset, Active mode and Idle mode).

The simplest method to ensure a defined level of an unused pin, is to enable the internal pull-up. In this case, the pull-up will be disabled during reset. If low power consumption during reset is important, it is recommended to use an external pull-up or pulldown. Connecting unused pins directly to V

or GND is not recommended, since this may caus e excessiv e currents if t he pin is

accidentally configured as an output.

/2.

10.1.7 Program Examples

The following code examples show how to set port B pins 0 and 1 high, 2 and 3 low, and define the port pins from 4 to 5 as input with a pull-up assigned to port pin 4. T he resulting pin values are read back again, but as previously discussed, a nop instruction is in cluded to be able t o read back the value recently assigned to some of the pins.

Assembly Code Example

Note: Two temporar y registers are used to minimize the time from pull-ups are set on pins 0, 1 and 4,

...

; Define pull-ups and set outputs high

; Define directions for port pins

ldi r16,(1<<PB4)|(1<<PB1)|(1<<PB0)

ldi r17,(1<<DDB3)|(1<<DDB2)|(1<<DDB1)|(1<<DDB0)

out PORTB,r16

out DDRB,r17

; Insert nop for synchronization

nop

; Read port pins

in r16,PINB

...

until the direction bits are correctly set, defining bit 2 and 3 as low and redefining bits 0 and 1 as strong high drivers.

ATtiny261A/461A/861A

8197C–AVR–05/11

C Code Example

unsigned char i;

...

/* Define pull-ups and set outputs high */

/* Define directions for port pins */

PORTB = (1<<PB4)|(1<<PB1)|(1<<PB0);

DDRB = (1<<DDB3)|(1<<DDB2)|(1<<DDB1)|(1<<DDB0);

/* Insert nop for synchronization*/

_NOP();

/* Read port pins */

i = PINB;

...

Note: See “Code Examples” on page 6.

10.2 Alternate Port Functions

Most port pins have alternate functions in addition to being general digital I/Os. Figure 10-5 shows how the port pin control signals from th e simplified Figure 10-2 can be overridden by alternate functions. The overriding signals may not be present in all port pins, but the figure serves as a generic description applicable to all port pins in the AVR microcontroller family.

ATtiny261A/461A/861A

8197C–AVR–05/11

Figure 10-5. Alternate Port Functions

clk

RPx

RRx

WRx

RDx

WDx

PUD

SYNCHRONIZER

WDx: WRITE DDRx

WRx: WRITE PORTx

RRx: READ PORTx REGISTER

RPx: READ PORTx PIN

PUD: PULLUP DISABLE

clk

I/O

: I/O CLOCK

RDx: READ DDRx

DLQ

SET

CLR

DIxn

AIOxn

DIEOExn

PVOVxn

PVOExn

DDOVxn

DDOExn

PUOExn

PUOVxn

PUOExn: Pxn PULL-UP OVERRIDE ENABLE PUOVxn: Pxn PULL-UP OVERRIDE VALUE DDOExn: Pxn DATA DIRECTION OVERRIDE ENABLE DDOVxn: Pxn DATA DIRECTION OVERRIDE VALUE PVOExn: Pxn PORT VALUE OVERRIDE ENABLE PVOVxn: Pxn PORT VALUE OVERRIDE VALUE

DIxn: DIGITAL INPUT PIN n ON PORTx AIOxn: ANALOG INPUT/OUTPUT PIN n ON PORTx

RESET

Q D

CLR

PINxn

PORTxn

DDxn

DATA BUS

DIEOVxn

SLEEP

DIEOExn: Pxn DIGITAL INPUT-ENABLE OVERRIDE ENABLE DIEOVxn: Pxn DIGITAL INPUT-ENABLE OVERRIDE VALUE SLEEP: SLEEP CONTROL

Pxn

I/O

PTOExn

PTOExn: Pxn, PORT TOGGLE OVERRIDE ENABLE

WPx: WRITE PINx

WPx

(1)

Note: 1. WRx, WPx, WDx, RRx, RPx, and RDx are common to all pins within the same port. clk

SLEEP, and PUD are common to all ports. All other signals are unique for each pin.

I/O

ATtiny261A/461A/861A

8197C–AVR–05/11

ATtiny261A/461A/861A

Table 10-2 summarizes the function of the o verridin g signals. Th e pin and por t indexes f rom Fig- ure 10-5 are not shown in the succeeding tables. The overriding signals ar e gen erat ed intern ally

in the modules having the alternate function.

Table 10-2. Generic Description of Overriding Signals for Alternate Functions

Signal Name Full Name Description

If this signal is set, the pull-up enable is controlled by the PUOV signal. If this signal is cleared, the pull-up is enabled when {DDxn, PORTxn, PUD} = 0b010.

If PUOE is set, the pull-up is enabled/disabled when PUOV is set/cleared, regardless of the setting of the DDxn, PORTxn, and PUD Register bits.

If this signal is set, the Output Driver Enable is controlled by the DDOV signal. If this signal is cleared, the Output driver is enabled by the DDxn Register bit.

If DDOE is set, the Output Driver is enabled/disabled when DDOV is set/cleared, regardless of the setting of the DDxn Register bit.

If this signal is set and the Output Driver is enabled, the port value is controlled by the PVOV signal. If PVOE is cleared, and the Output Driver is enabled, the port Value is controlled by the PORTxn Register bit.

PUOE

PUOV

DDOE

DDOV

PVOE

Pull-up Override Enable

Pull-up Override Value

Data Direction Override Enable

Data Direction Override Value

Port Value Override Enable

PVOV

PTOE

DIEOE

DIEOV

DI Digital Input

AIO

Port Value Override Value

Port Toggle Override Enable

Digital Input Enable Override Enable

Digital Input Enable Override Value

Analog Input/Output

If PVOE is set, the port value is set to PVOV, regardless of the setting of the PORTxn Register bit.

If PTOE is set, the PORTxn Register bit is inverted.

If this bit is set, the Digital Input Enable is controlled by the DIEOV signal. If this signal is cleared, the Digital Input Enable is determined by MCU state (Normal mode, sleep mode).

If DIEOE is set, the Digital Input is enabled/disabled when DIEOV is set/cleared, regardless of the MCU state (Normal mode, sleep mode).

This is the Digital Input to alternate functions. In the figure, the signal is connected to the output of the schmitt-trigger but before the synchronizer. Unless the Digital Input is used as a clock source, the module with the alternate function will use its own synchronizer.

This is the Analog Input/Output to/from alternate functions. The signal is connected directly to the pad, and can be used bidirectionally.

The following subsections shortly describe the alternate functions for each port, and relate the overriding signals to the alternate function. Refer to the alternate function description for further details.

8197C–AVR–05/11

10.2.1 Alternate Functions of Port A

The Port A pins with alternate function are shown in Table 10-3.

Table 10-3. Port B Pins Alternate Functions

Port Pin Alternate Function

PA7

PA6

PA5

PA4

PA3

PA2

ADC6: ADC Input Channel 6 AIN0: Analog Comparator Input PCINT7:Pin Change Interrupt 0, Source 7

ADC5: ADC Input Channel 5 AIN1: Analog Comparator Input PCINT6:Pin Change Interrupt 0, Source 6

ADC4: ADC Input Channel 4 AIN2: Analog Comparator Input PCINT5:Pin Change Interrupt 0, Source 5

ADC3: ADC Input Channel 3 ICP0: Timer/Counter0 Input Capture Pin PCINT4:Pin Change Interrupt 0, Source 4

AREF: External Analog Reference PCINT3:Pin Change Interrupt 0, Source 3

ADC2: ADC Input Channel 2 INT1: External Interrupt 1 Input

USCK: USI Clock (Three Wire Mode) SCL : USI Clock (Two Wire Mode)

PCINT2:Pin Change Interrupt 0, Source 2 ADC1: ADC Input Channel 1

PA1

PA0

DO: USI Data Output (Three Wire Mode) PCINT1:Pin Change Interrupt 0, Source 1

ADC0: ADC Input Channel 0 DI: USI Data Input (Three Wire Mode) SDA: USI Data Input (Two Wire Mode) PCINT0:Pin Change Interrupt 0, Source 0

• Port A, Bit 7 – ADC6/AIN0/PCINT7

• ADC6: Analog to Digital Converter, Channel 6

• AIN0: Analog Comparator Input. Configure the port pin as input with the internal pull-up switched off to avoid the digital port function from interfering with the fu nction of the Analog Comparator.

• PCINT7: Pin Change Interrupt source 8.

• Port A, Bit 6 – ADC5/AIN1/PCINT6

• ADC5: Analog to Digital Converter, Channel 5.

• AIN1: Analog Comparator Input. Configure the port pin as input with the internal pull-up switched off to avoid the digital port function from interfering with the fu nction of the Analog Comparator.

• PCINT6: Pin Change Interrupt source 6.

ATtiny261A/461A/861A

8197C–AVR–05/11

ATtiny261A/461A/861A

• Port A, Bit 5 – ADC4/AIN2/PCINT5

• ADC4: Analog to Digital Converter, Channel 4.

• AIN2: Analog Comparator Input. Configure the port pin as input with the internal pull-up switched off to avoid the digital port function from interfering with the fu nction of the Analog Comparator.

• PCINT5: Pin Change Interrupt source 5.

• Port A, Bit 4 – ADC3/ICP0/PCINT4

• ADC3: Analog to Digital Converter, Channel 3.

• ICP0: Timer/Counter0 In put Capture Pin.

• PCINT4: Pin Change Interrupt source 4.

• Port A, Bit 3 – AREF/PCINT3

• AREF: External analog reference for ADC. Pullup and output driver are disabled on PA3 when the pin is used as an external reference or internal voltage reference with external capacitor at the AREF pin.

• PCINT3: Pin Change Interrupt source 3.

• Port A, Bit 2 – ADC2/INT1/USCK/SCL/PCINT2

• ADC2: Analog to Digital Converter, Channel 2.

• INT1: The PA2 pin can serve as an External Interrupt source 1.

• USCK: Three-wire mode Universal Serial Interface Clock.

• SCL: Two-wire mode Serial Clock for USI Two-wire mode.

• PCINT2: Pin Change Interrupt source 2.

• Port A, Bit 1 – ADC1/DO/PCINT1

• ADC1: Analog to Digital Converter, Channel 1.

• DO: Three-wire mode Universal Serial Interface Data output. Three-wire mode Data output overrides PORTA1 value and it is driven to the port when data direction bit DDA1 is set. PORTA1 still enables the pull-up, if the direction is input and PORTA1 is set.

• PCINT1: Pin Change Interrupt source 1.

• Port A, Bit 0 – ADC0/DI/SDA/PCINT0

• ADC0: Analog to Digital Converter, Channel 0.

• DI: Data Input in USI Three-wir e mode. USI Three-wire mode does not override normal port functions, so pin must be configure as an input for DI function.

• SDA: Two-wire mode Serial Interface Data.

• PCINT0: Pin Change Interrupt source 0.

8197C–AVR–05/11

Table 10-4 and Table 10-5 relate the alternate functions of Port A to the overriding signals

shown in Figure 10-5 on page 60.

Table 10-4. Overriding Signals for Alternate Functions in PA[7:4]

Signal Name

PUOE0000 PUOV0000 DDOE0000 DDOV0000 PVOE0000 PVOV0000 PTOE0000 DIEOE PCINT7 • PCIE +

DIEOV ADC6D DI PCINT7 PCINT6 PCINT5 ICP0/PCINT4 AIO ADC6, AIN0 ADC5, AIN1 ADC4, AIN2 ADC3

PA7/ADC6/AIN0/ PCINT7

ADC6D

PA6/ADC5/AIN1/ PCINT6

PCINT6 • PCIE + ADC5D

ADC5D ADC4D ADC3D

PA5/ADC4/AIN2/ PCINT5

PCINT5 • PCIE + ADC4D

PA4/ADC3/ICP0/ PCINT4

PCINT4 • PCIE + ADC3D

Table 10-5. Overriding Signals for Alternate Functions in PA[3:0]

Signal Name

PUOE 0 0 0 0 PUOV 0 0 0 0

PA3/AREF/ PCINT3

PA2/ADC2/INT1/ USCK/SCL/PCINT2

PA1/ADC1/DO/ PCINT1

PA0/ADC0/DI/SDA/ PCINT0

DDOE 0 USI_TWO_WIRE •

DDOV 0 (USI_SCL_HOLD +

PVOE 0 USI_TWO_WIRE •

PVOV 0 0 DO • USIPOS 0 PTOE 0 USI_PTOE • USIPOS 0 0 DIEOE PCINT3 •

PCIE

DIEOV 0 ADC2D DI PCINT3 USCK/SCL/INT1/ PCINT2 PCINT1 DI/SDA/PCINT0 AIO AREF ADC2 ADC1 ADC0

ATtiny261A/461A/861A

USIPOS

PORTB2 USIPOS

DDRB2

PCINT2 • PCIE + INT1 + ADC2D + USISIE • USIPOS

) • DDB2 •

USI_THREE_WI RE • USIPOS

PCINT1 • PCIE + ADC1D

ADC1D ADC0D

USI_TWO_WIRE • USIPOS

+ PORTB0) •

(SDA DDRB0 • USIPOS

USI_TWO_WIRE • DDRB0 • USIPOS

PCINT0 • PCIE + ADC0D + USISIE • USIPOS

8197C–AVR–05/11

10.2.2 Alternate Functions of Port B

The Port B pins with alternate function are shown in Table 10-6.

Table 10-6. Port B Pins Alternate Functions

Port Pin Alternate Function

PB7

PB6

PB5

PB4

PB3

ATtiny261A/461A/861A

RESET

: Reset pin dW: debugWire I/O ADC10: ADC Input Channel 10 PCINT15:Pin Change Interrupt 0, Source 15

ADC9: ADC Input Channel 9 T0: Timer/Counter0 Clock Source INT0: External Interrupt 0 Input PCINT14:Pin Change Interrupt 0, Source 14

XTAL2: Crystal Oscillator Output CLKO: System Clock Output OC1D: Ti mer/Counter1 Compare Match D Output ADC8: ADC Input Channel 8 PCINT13:Pin Change Interrupt 0, Source 13

XTAL1: Crystal Osci llator Input CLKI: External Clock Input

: Inverted Timer/Counter1 Compare Match D Output

OC1D ADC7: ADC Input Channel 7 PCINT12:Pin Change Interrupt 0, Source 12

OC1B: Timer/Counter1 Compare Match B Output PCINT11:Pin Change Interrupt 0, Source 11

USCK: USI Clock (Three Wire Mode)

PB2

PB1

PB0

• Port B, Bit 7 – RESET

SCL : USI Clock (Two Wire Mode)

: Inverted Timer/Counter1 Compare Match B Output

OC1B PCINT10:Pin Change Interrupt 0, Source 10

DO: USI Data Output (Three Wire Mode) OC1A: Timer/Counter1 Compare Match A Output PCINT9:Pin Change Interrupt 1, Source 9

DI: USI Data Input (Three Wire Mode) SDA: USI Data Input (Two Wire Mode) OC1A

: Inverted Timer/Counter1 Compare Match A Output

PCINT8:Pin Change Interrupt 1, Source 8

/dW/ADC10/PCINT15

• RESET, Reset pin: When the RSTDISBL Fuse is programmed, this pin functi ons as a normal I/O pin, and the part will have to rely on Power-on Reset and Brown-out Reset as its reset sources. When the RSTDISBL Fuse is unprogrammed, the reset circuitry is connected to the pin, and the pin can not be used as an I/O pin.

• If PB7 is used as a reset pin, DDB7, PORTB7 and PINB7 will all read 0.

• dW: When the debugWIRE Enable (DWEN) Fuse is programmed and Lock bits are unprogrammed, the RESET port pin is configured as a wire-AND (open-drain) bi-directional I/O pin with pull-up enabled and becomes the communication gateway between target and emulator.

8197C–AVR–05/11

• ADC10: ADC input Channel 10. Note that ADC input channel 10 uses analog power.

• PCINT15: Pin Change Interrupt source 15.

• Port B, Bit 6 – ADC9/T0/INT0/PCINT14

• ADC9: ADC input Channel 9. Note that ADC input channel 9 uses analog power.

• T0: Timer/Counter0 counter source.

• INT0: The PB6 pin can serve as an External Interrupt source 0.

• PCINT14: Pin Change Interrupt source 14.

• Port B, Bit 5 – XTAL2/CLKO/ADC8/PCINT13

• XTAL2: Chip clock Oscillator pin 2. Used as clock pin for crystal Oscillator or Low-frequency crystal Oscillator. When used as a clock pin, the pin can not be used as an I/O pin.

• CLKO: The divided system clock can be output on the PB5 pin, if the CKOUT Fuse is programmed, regardless of the PORTB5 and DDB5 settings. It will also be output during reset.

• OC1D Output Compare Match output: The PB5 pin can serve as an external output for the Timer/Counter1 Compare Match D when configured as an output (DDA1 set). The OC1D pin is also the output pin for the PWM mode timer function.

• ADC8: ADC input Channel 8. Note that ADC input channel 8 uses analog power.

• PCINT13: Pin Change Interrupt source 13.

• Port B, Bit 4 – XTAL1/CLKI/OC1B/ADC7/PCINT12

• XTAL1/CLKI: Chip clock Oscillator pin 1. Used for all chip clock sources except internal calibrated oscillator. When used as a clock pin, the pin can not be used as an I/O pin.

•OC1D

• ADC7: ADC input Channel 7. Note that ADC input channel 7 uses analog power.

• PCINT12: Pin Change Interrupt source 12.

• Port B, Bit 3 – OC1B/PCINT11

• OC1B, Output Compare Match output: The PB3 pin can serve as an external output for the

• PCINT11: Pin Change Interrupt source 11.

• Port B, Bit 2 – SCK/USCK/SCL/OC1B

• USCK: Three-wire mode Universal Serial Interface Clock.

• SCL: Two-wire mode Serial Clock for USI Two-wire mode.

•OC1B

• PCINT10: Pin Change Interrupt source 10.

: Inverted Output Compare Match output: The PB4 pin can serve as an external output for the Timer/Counter1 Compare Match D when configured as an output (DDA0 set). The OC1D

pin is also the inverted output pin for the PWM mode timer function.

Timer/Counter1 Compare Match B. The PB3 pin has to be configured as an output (DDB3 set (one)) to serve this function. The OC1B pin is also the output pin f or the PWM mode timer function.

/PCINT10

: Inverted Output Compare Match output: Th e PB2 pin can se rve as an external output for the Timer/Counter1 Compare Match B when configured as an output (DDB2 set). The OC1B

pin is also the inverted output pin for the PWM mode timer function.

ATtiny261A/461A/861A

8197C–AVR–05/11

ATtiny261A/461A/861A

• Port B, Bit 1 – MISO/DO/OC1A/PCINT9

• DO: Three-wire mode Universal Serial Interface Data output. Three-wire mode Data output overrides PORTB1 value and it is driven to the port when data direction bit DDB1 is set (one). PORTB1 still enables the pull-up, if the direction is input and PORTB1 is set (one).

• OC1A: Output Compare Match output: The PB1 pin can serve as an external output for the Timer/Counter1 Compare Match B when configured as an ou tput (DDB1 set). The OC1A pin is also the output pin for the PWM mode timer function.

• PCINT9: Pin Change Interrupt source 9.

• Port B, Bit 0 – MOSI/DI/SDA/OC1A

/PCINT8

• DI: Data Input in USI Three-wir e mode. USI Three-wire mode does not override normal port functions, so pin must be configure as an input for DI function.

• SDA: Two-wire mode Serial Interface Data.

•OC1A

: Inverted Output Compare Match output: Th e PB0 pin can se rve as an external output for the Timer/Counter1 Compare Match B when configured as an output (DDB0 set). The OC1A

pin is also the inverted output pin for the PWM mode timer function.

• PCINT8: Pin Change Interrupt source 8.

Table 10-7 and Table 10-8 relate the alternate functions of Port B to the overriding signals

shown in Figure 10-5 on page 60.

Table 10-7. Overriding Signals for Alternate Functions in PB[7:4]

Signal Name

PUOE

PUOV1000

DDOE

DDOV debugWire Transmit 0 0 0 PVOE 0 0 OC1D Enable OC1D Enable PVOV 0 0 OC1D OC1D PTOE0000

DIEOE 0

DIEOV ADC10D ADC9D

DI PCINT15 T0/INT0/PCINT14 PCINT13 PCINT12 AIO RESET / ADC10 ADC9 XTAL2, ADC8 XTAL1, ADC7

PB7/RESET/ dW/ADC10/ PCINT15

RSTDISBL

(1)

DWEN

RSTDISBL

(1)

DWEN

PB6/ADC9/T0/ INT0/PCINT14

(1)

•

(1)

•

0 INTRC • EXTCLK INTRC

RSTDISBL (PCINT14 • PCIE + ADC9D)

PB5/XTAL2/CLKO/ OC1D/ADC8/ PCINT13

INTRC • EXTCLK + PCINT13 • PCIE + ADC8D

(INTRC • EXTCLK) + ADC8D

(1)

PB4/XTAL1/ OC1D

/ADC7/

PCINT12

INTRC PCIE + ADC7D

INTRC • ADC7D

(1)

+ PCINT12 •

8197C–AVR–05/11

Note: 1. “1” when the Fuse is “0” (Programmed).

Table 10-8. Overriding Signals for Alternate Functions in PB[3:0]

Signal Name

PUOE 0 0 0 0 PUOV 0 0 0 0

DDOE 0

DDOV 0

PVOE OC1B Enable

PVOV OC1B OC1B

PTOE 0 USITC • USIPOS

DIEOE PCINT11 • PCIE

DIEOV 0 0 0 0 DI PCINT11 USCK/SCL/PCINT10 PCINT9 DI/SDA/PCINT8 AIO

PB3/OC1B/ PCINT11

PB2/SCK/USCK/SCL/O C1B/PCINT10

USI_TWO_WIRE • USIPOS

(USI_SCL_HOLD + PORTB2) • DDB2 • USIPOS

OC1B Enable

• USI_TWO_WIRE • DDB2

PCINT10 • PCIE + USISIE • USIPOS

+ USIPOS

PB1/MISO/DO/OC1A/ PCINT9

OC1A Enable + USIPOS USI_THREE_WIRE

OC1A + (DO • USIPOS

PCINT9 • PCIE

•

)

Note: 1. INTRC means that one of the internal oscillators is selected (by the CKSEL fuses), EXTCK

means that external clock is selected (by the CKSEL fuses).

PB0/MOSI/DI/SDA/ OC1A/PCINT8

USI_TWO_WIRE • USIPOS

(SDA

+ PORTB0) •

DDB0 • USIPOS

OC1A Enable (USI_TWO_WIRE •

DDB0 • USIPOS

OC1A

PCINT8 • PCIE + (USISIE • USIPOS

)

10.3 Register Description

10.3.1 MCUCR – MCU Control Register

Bit 7 6 5 4 3 2 1 0 0x35 (0x55) Read/Write R/W R/W R/W R/W R/W R/W R R Initial Value 0 0 0 0 0 0 0 0

• Bit 6 – PUD: Pull-up Disable

When this bit is written to one, the pull-ups in the I/O ports are disabled even if the DDxn and PORTxn Registers are configured to enable the pull-ups ({DDxn, PORTxn} = 0b01). See “Con-

figuring the Pin” on page 55 for more details about this feature.

10.3.2 PORTA – Port A Data Register

Bit 76543210 0x1B (0x3B) PORTA7 PORTA6 PORTA5 PORTA4 PORTA3 PORTA2 PORTA1 PORTA0 PORTA Read/Write R/W R/W R/W R/W R/W R/W R/W R/W Initial Value00000000

10.3.3 DDRA – Port A Data Direction Register

Bit 76543210 0x1A (0x3A) DDA7 DDA6 DDA5 DDA4 DDA3 DDA2 DDA1 DDA0 DDRA Read/Write R/W R/W R/W R/W R/W R/W R/W R/W Initial Value00000000

BODS PUD SE SM1 SM0 BODSE ISC01 ISC00 MCUCR

ATtiny261A/461A/861A

8197C–AVR–05/11

10.3.4 PINA – Port A Input Pins Address

Bit 76543210 0x19 (0x39) PINA7 PINA6 PINA5 PINA4 PINA3 PINA2 PINA1 PINA0 PINA Read/Write R/W R/W R/W R/W R/W R/W R/W R/W Initial Value N/A N/A N/A N/A N/A N/A N/A N/A

10.3.5 PORTB – Port B Data Register

Bit 76543210 0x18 (0x38) PORTB7 PORTB6 PORTB5 PORTB4 PORTB3 PORTB2 PORTB1 PORTB0 PORTB Read/Write R/W R/W R/W R/W R/W R/W R/W R/W Initial Value00000000

10.3.6 DDRB – Port B Data Direction Register

Bit 76543210 0x17 (0x37) DDB7 DDB6 DDB5 DDB4 DDB3 DDB2 DDB1 DDB0 DDRB Read/Write R/W R/W R/W R/W R/W R/W R/W R/W Initial Value00000000

10.3.7 PINB – Port B Input Pins Address

Bit 76543210 0x16 (0x36) PINB7 PINB6 PINB5 PINB4 PINB3 PINB2 PINB1 PINB0 PINB Read/Write R/W R/W R/W R/W R/W R/W R/W R/W Initial Value N/A N/A N/A N/A N/A N/A N/A N/A

ATtiny261A/461A/861A

8197C–AVR–05/11

11. Timer/Counter0

Clock Select

Timer/Counter

DATA BUS

OCRnB

TCNTnL

Noise

Canceler

ICPn

Edge

Detector

Control Logic

TOP

Count

Clear

Direction

TOVn (Int. Req.)

OCnA (Int. Req.) OCnB (Int. Req.)

ICFn (Int. Req.)

TCCRnA TCCRnB

( From Analog

Comparator Ouput )

Edge

Detector

( From Prescaler )

clk

OCRnA

TCNTnH

Fixed TOP value

11.1 Features

• Clear Timer on Compare Match (Auto Reload)

• One Input Capture unit

• Four Independent Interrupt Sources (TOV0, OCF0A, OCF0B, ICF0)

• 8-bit Mode with Two Independent Output Compare Units

• 16-bit Mode with One Independent Output Compare Unit

11.2 Overview

Timer/Counter0 is a general purpose 8/16-bit Timer/Counter module, with two/one Output Compare units and Input Capture feature.

The general operation of Timer/Counter0 is described in 8/16-bit mode. A simplified block diagram of the 8/16-bit Timer/Counter is shown in Figure 11-1. CPU accessible I/O Registers, including I/O bits and I/O pins, are shown in bold. For actual placement of I/O pins, refer to “Pin-

out ATtiny261A/461A/861A” on page 2. Device-specific I/O Register and bit locations are listed

in the “Register Description” on page 83.

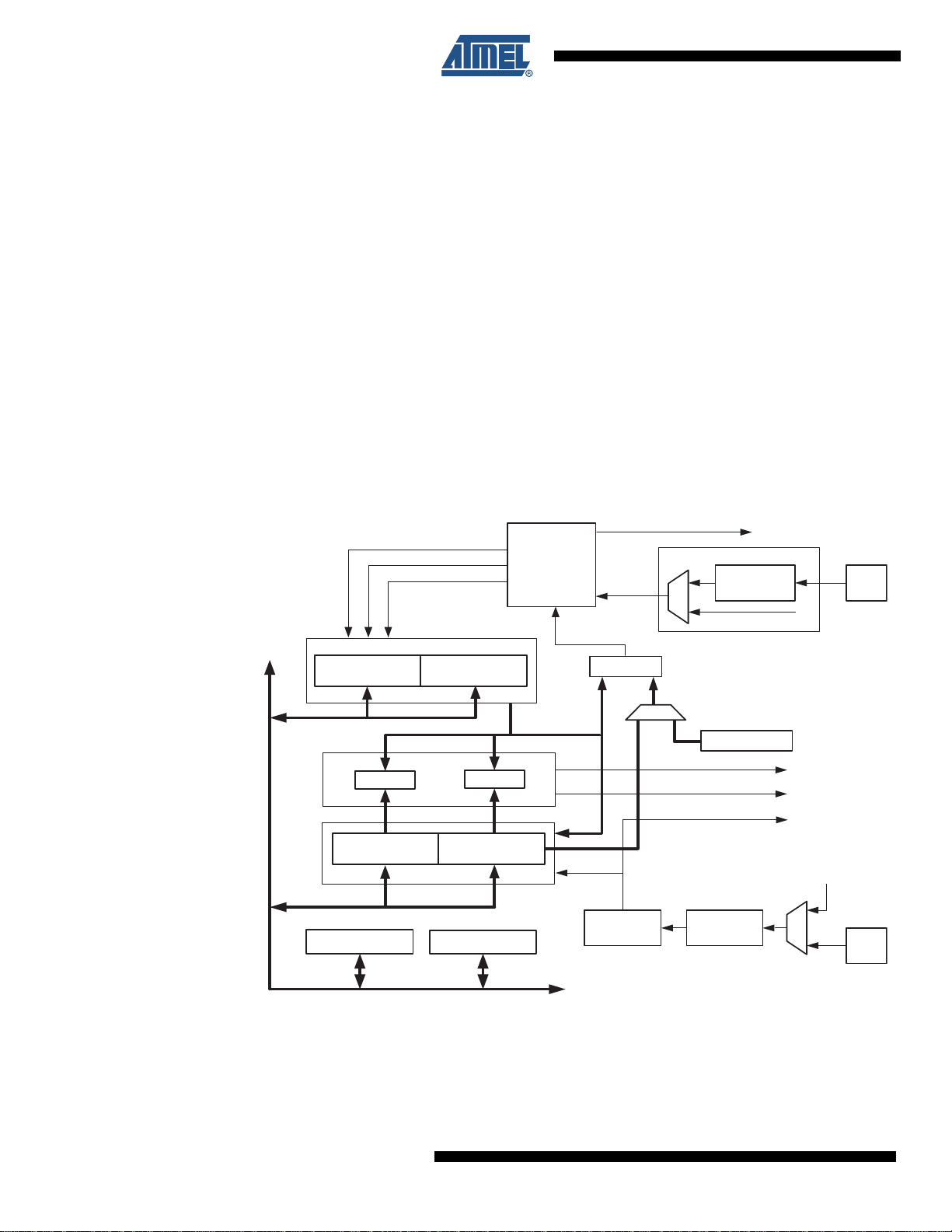

Figure 11-1. 8-/16-bit Timer/Counter Block Diagram

11.2.1 Registers

The Timer/Counter0 Low Byte Register (TCNT0L) and Output Compare Registers (OCR0A and

ATtiny261A/461A/861A

OCR0B) are 8-bit registers. Interr upt r equest ( abbre viated I nt. Req. in Figure 11-1) sign als are al l

8197C–AVR–05/11

11.2.2 Definitions

ATtiny261A/461A/861A

visible in the Timer Interrupt Flag Register (TIFR). All interrupts are individually masked with the Timer Interrupt Mask Register (TIMSK). TIFR and TIMSK are not shown in the figure.

In 16-bit mode one more 8-bit register is available, the Timer/Counter0 High Byte Register (TCNT0H). Also, in 16-bit mode, there is only one output compare unit as the two Output Compare Registers, OCR0A and OCR0B, are combined to one, 16-bit Output Compare Register, where OCR0A contains the low byte and OCR0B contains the high byte of the word. When accessing 16-bit registers, special procedures described in section “Accessing Registers in 16-

bit Mode” on page 79 must be followed.

Many register and bit references in this section are written in genera l form. A lower case “n” replaces the Timer/Counter number, in this case 0. A lower case “x” replaces the Output Compare Unit, in this case Compare Unit A or Compare Unit B. However, when using the register or bit defines in a program, the precise form must be used, i.e. TCNT0L for accessing Timer/Counter0 counter value, and so on.

The definitions in Table 11-1 are also used extensively throughout the document.

Table 11-1. Definitions

Constant Description

BOTTOM The counter reaches BOTTOM when it becomes 0x00

MAX The counter reaches its MAXimum when it becomes 0xFF (decimal 255)

11.3 Clock Sources

11.3.1 Prescaler

The counter reaches the TOP when it becomes equal to the highest value in the count

TOP

sequence. The TOP value can be assigned to be the fixed value 0xFF (MAX) or the value stored in the OCR0A Register. The assignment depends on the mode of operation

The Timer/Counter can be clocked internally, via th e prescaler, or b y an external clo ck source on the T0 pin. The Clock Select logic is controlled by the Clock Select (CS0[2:0]) bits located in the Timer/Counter Control Register 0 B (TCCR0B), and controls which clock source and edge the Timer/Counter uses to increm ent its value . The Tim er/Counter is inactive when no clock sourc e is selected. The output from the Clock Select logic is referred to as the timer clock (clk

The Timer/Counter can be clocked directly by the system clock (by setting the CSn[2:0] = 1). This provides the fastest operation, with a maximum Timer/Counter clock frequency equal to system clock frequency (f

). Alternatively, one of four taps from the prescaler can be used

CLK_I/O

as a clock source. See Figure 11-2 for an illustration of the prescaler unit.

8197C–AVR–05/11

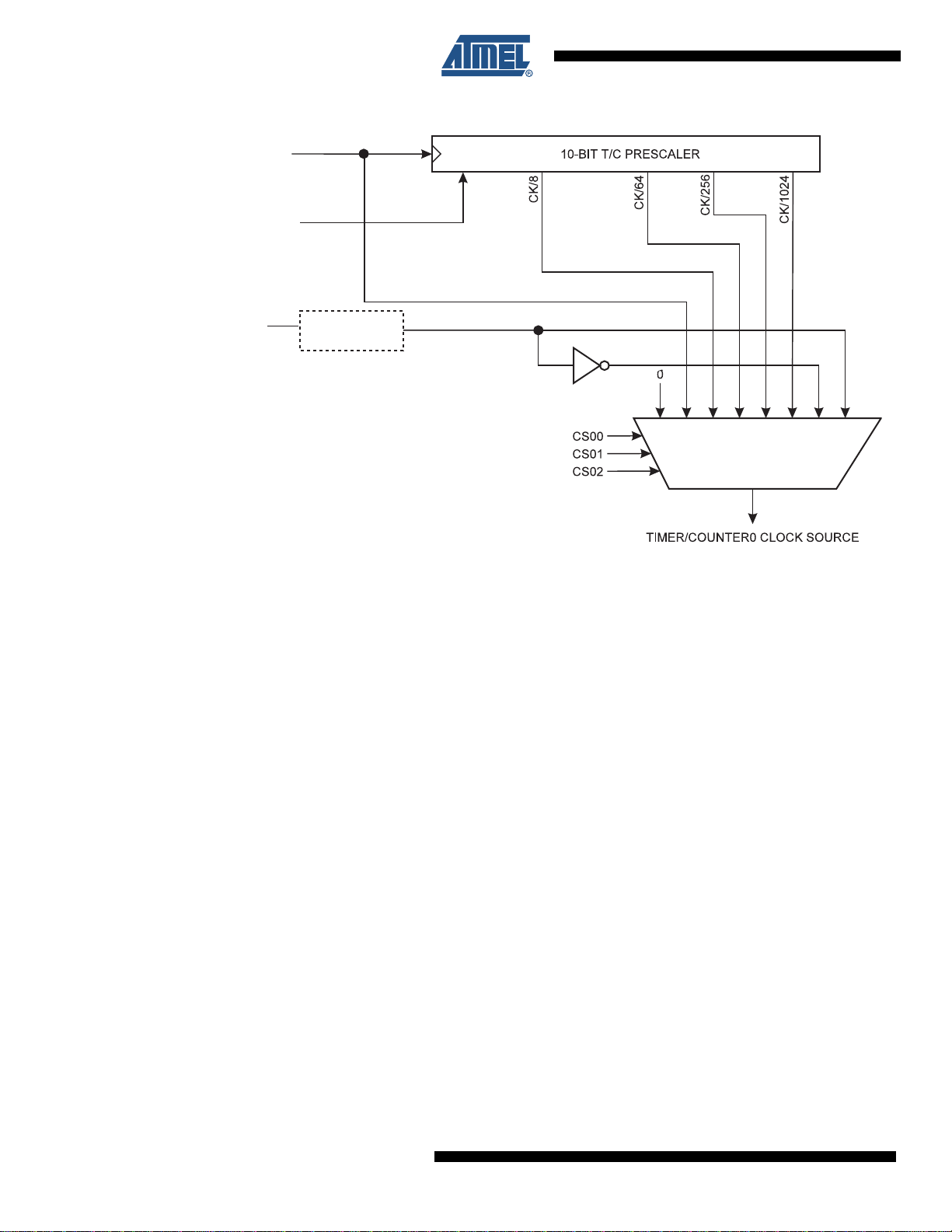

Figure 11-2. Prescaler for Timer/Counter0

clk

I/O

PSR0

Synchronization

Clear

clk

Note: 1. The synchronization logic on the input pins (T0) is shown in Figure 11-3.

The prescaled clock has a frequency of f

Table 11-4 on page 84 for details.

11.3.1.1 Prescaler Re se t

The prescaler is free running, i.e. it operates independe ntly of the Clock Select logic of the Timer/Counter. Since the prescaler is not affected by the Timer/Counter’s clock select, the state of the prescaler will have implications for situations where a prescaled clock is used. One example of prescaling artifacts occurs when the timer is enable d and clocked by the prescaler (6 > CSn[2:0] > 1). The number of system clock cycles from when the timer is enabled to the first count occurs can be from 1 to N+1 system clock cycles, where N equals the prescaler diviso r (8, 64, 256, or 1024). It is possible to us e the Prescaler Reset for sync hronizing the T imer/Counte r to program execution.

11.3.2 External Clock Source

An external clock source applied to the T0 pin can be used as Timer/Cou nter clo ck (clk T0 pin is sampled once every system clock cycle by the pin synchronization logic. The synchronized (sampled) signal is then passed through the edge detector. equivalent block diagram of the T0 synchronization and edge detector logic. The registers are clocked at the positive edge of the internal system clock ( high period of the internal system clock.

CLK_I/O

/8, f

CLK_I/O

/64, f

clk

I/O

/256, or f

CLK_I/O

Figure 11-3 shows a functional

CLK_I/O

). The latch is transparent in the

/1024. See

). The

The edge detector generates one clk (CSn[2:0] = 6) edge it detects. See Table 11-4 on page 84 for details.

ATtiny261A/461A/861A

pulse for each positive (CSn[2:0] = 7) or negative

8197C–AVR–05/11

Figure 11-3. T0 Pin Sampling

DATA BUS

TCNTn Control Logic

count

TOVn

(Int.Req.)

Clock Select

top

Edge

Detector

( From Prescaler )

clk

ATtiny261A/461A/861A

11.4 Counter Unit

clk

DQDQ

I/O

Edge DetectorSynchronization

Tn_sync

(To Clock Select Logic)

The synchronization and edge detector logic introduces a delay of 2.5 to 3.5 system clock cycles from an edge has been applied to the T0 pin to the counter is updated.

Enabling and disabling of the clock input must be done when T0 has been stable for at least one system clock cycle, otherwise it is a risk that a false Timer/Count er clock pulse is generated.

Each half period of the external clock applied must be longer than one system clock cycle to ensure correct sampling. The external clock must be guaranteed to have less than half the system clock frequency (f

ExtClk

< f

/2) given a 50/50% duty cycle. Since the edge detec tor uses

clk_I/O

sampling, the maximum frequency of an external clock it can detect is half the sampling frequency (Nyquist sampling theorem). However, due to variation of the system clock frequency and duty cycle caused by Oscillator source (crystal, resonator, and capacitors) tolerances, it is recommended that maximum frequency of an external clock source is less than f

clk_I/O

/2.5.

An external clock source can not be prescaled.

The main part of the 8-bit Timer/Counter is the programmable bi-directional counter unit. Figure

11-4 shows a block diagram of the counter and its surroundings.

Table 11-2. Counter Unit Block Diagram

Signal description (internal signals):

count Increment or decrement TCNT0 by 1. clk top Signalize that TCNT0 has reached maximum value.

The counter is incremented at each timer clock (clk restarts from BOTTOM. The counting sequence is determined by the setting of the CTC0 bit located in the Timer/Counter Control Register (TCCR0A). For more details about counting sequences, see “Modes of Operation” on page 76. clk

8197C–AVR–05/11

Timer/Counter clock, referred to as clkT0 in the following.

) until it passes its TOP value and then

can be generated from an external or

internal clock source, selected by the Clock Select bits (CS0[2:0]). When no clock source is

ICF0 (Int.Req.)

Analog

Comparator

WRITE

ICR0 (16-bit Register)

OCR0B (8-bit)

Noise

Canceler

ICP0

Edge

Detector

TEMP (8-bit)

DATA BUS (8-bit)

OCR0A (8-bit)

TCNT0 (16-bit Counter)

TCNT0H (8-bit) TCNT0L (8-bit)

ACIC0* ICNC0 ICES0

ACO*

selected (CS0[2:0] = 0) the timer is stopped. However , the TCNT0 value can be acce ssed by the CPU, regardless of whether clk counter clear or count operations. The Timer/Counter Overflow Flag (TOV0) is set when the counter reaches the maximum value and it can be used for generating a CPU interrupt.

11.5 Input Capture Unit

The Timer/Counter incorporates an Input Capture unit that can capture external events and give them a time-stamp indicating time of occurrence. The externa l signal indica ting an event , or multiple events, can be applied via the ICP0 pin or al ternat ively, via the analog-comp arator unit . The time-stamps can then be used to calculate frequency, duty-cycle, and other features of the signal applied. Alternatively the time-stamps can be used for creating a log of the events.

The Input Capture unit is illustrated by the block diagram shown in Figure 11-4. The elements of the block diagram that are not directly a part of the Input Capture unit are gray shaded.

Figure 11-4. Input Capture Unit Block Diagram

is present or not. A CPU write overrides (has priority over) all

ATtiny261A/461A/861A

The Output Compare Register OCR0A is a dual-purpose register that is also used as an 8-bit Input Capture Register ICR0. In 16-bit Input Capture mode the Output Compare Register OCR0B serves as the high byte of the Input Capture Regist er IC R0 . In 8- bit Input Captu re mode the Output Compare Register OCR0B is fr ee to be us ed as a nor mal O utput Co mpare Regis ter, but in 16-bit Input Capture mode the Output Compare Unit cannot be used as there are no free Output Compare Register(s). Even though the Input Capture register is called ICR0 in this section, it is refering to the Output Compare Register(s).

When a change of the logic level (an event) occurs on the I nput Ca ptur e pin (ICP0), a ltern atively on the Analog Comparator output (ACO), and this change confirms to the setting of the edge detector, a capture will be triggered. When a capture is triggered, the value of the counter (TCNT0) is written to the Input Capture Register (ICR0). The Input Capture Flag (ICF0) is set at

8197C–AVR–05/11

the same system clock as the TCNT0 value is copied into Input Capture Register. If enabled (TICIE0 = 1), the Input Capture Fla g genera tes a n Inp ut Captur e inte rrup t. The I CF0 fl ag is a utomatically cleared when the interrupt is executed. Alternatively the ICF0 flag can be cleared by software by writing a logical one to its I/O bit location.

11.5.1 Input Capture Trigger Source

The default trigger source for the Input Capture unit is the Input Capture pin (ICP0). Timer/Counter0 can alternatively use the Analog Comparator output as trigger source for the Input Capture unit. The Analog Comparator is selected as trigger source by setting the Ana log Comparator Input Capture Enable (ACIC0) bit in the Timer/Counter Control Register A (TCCR0A). Be aware that changing trigger source can trigger a captur e. The Inp ut Ca pt ure Flag must therefore be cleared after the change.

Both the Input Capture pin (ICP0) and the Analog Comparator output (ACO) inputs are sampled using the same technique as for the T0 pin (Figure 11-4 on page 84). The edge detector is also identical. However, when the noise canceler is enabled, additional logic is inserted before the edge detector, which increases the delay by four syst em clock cycles. An In put Capture can also be triggered by software by controlling the port of the ICP0 pin.

11.5.2 Noise Canceler

The noise canceler improves noise immunity by using a simple digital filtering scheme. The noise canceler input is monitored over four samples, and all four must be equal for changing the output that in turn is used by the edge detector.

ATtiny261A/461A/861A

The noise canceler is enabled by setting the Input Capture Noise Canceler (ICNC0) bit in Timer/Counter Control Register B (TCCR0B). When enabled t he noise canceler int roduces additional four system clock cycles of delay from a change applied to the input, to the update of the ICR0 Register. The noise canceler uses the system clock and is therefore not affected by the prescaler.

11.5.3 Using the Input Capture Unit

The main challenge when using the Input Cap ture unit is to assign enough p rocessor capacity for handling the incoming events. The time bet ween two events is critical . If the processor has not read the captured value in the ICR0 Register before the next event occurs, the ICR0 will be overwritten with a new value. In this case the result of the capture will be incorrect.

When using the Input Capture interrupt, the ICR0 Register should be read as early in the interrupt handler routine as possible. The maximum interrupt response time is dependent on the maximum number of clock cycles it takes to handle any of the other interrupt requests.

Measurement of an external signal’s duty cycle requires that the trigger edge is changed after each capture. Changing the edge sensin g must be done as early as possib le after the ICR0 Register has been read. After a change of the edge, the Input Capture Flag (ICF0) must be cleared by software (writing a logical one to the I/O bit location). For measuring frequency only, the trigger edge change is not required (if an inter rupt handler is used).

11.6 Output Compare Unit

The comparator continuously compares Timer/Counter (TCNT0) with the Output Compare Registers (OCR0A and OCR0B), and whenever the Timer/Counter equals to the Output Compare Regisers, the comparator signals a match. A match will set the Output Compare Flag at the next timer clock cycle. In 8-bit mode the match can set either the Output Compare Flag OCF0A or

8197C–AVR–05/11

OCF0B, but in 16-bit mode the match can set only the Output Compare Flag OCF0A as there is

OCFnx (Int.Req.)

= (8/16-bit Comparator )

OCRnx

DATA BUS

TCNTn

only one Output Compare Unit. If the corresponding interrupt is enabled, the Output Compare Flag generates an Output Compare interrupt. The Out put Co mpare Fla g is aut omatica lly cleared when the interrupt is executed. Alternatively, the f lag can be cleared by software by writing a logical one to its I/O bit location. Figure 11-5 shows a block diagram of the Output Compare unit.

Figure 11-5. Output Compare Unit, Block Diagram

11.6.1 Compare Match Blocking by TCNT0 Write

All CPU write operations to the TCNT0H/L Register will block any Compare Match that occur in the next timer clock cycle, even when the timer is stopped. This feature allows OCR0A/B to be initialized to the same value as TCNT0 without triggering an interrupt when the Timer/Counter clock is enabled.

11.6.2 Using the Output Compare Unit

Since writing TCNT0H/L will block all Compare Matches for one timer clock cycle, there are risks involved when changing TCNT0H/L when using the Output Compare Unit, independently of whether the Timer/Counter is running or not. If the value written to TCNT0H/L equals the OCR0A/B value, the Compare Match will be missed.

11.7 Modes of Operation

The mode of operation, i.e., the behavior of the Timer/Counter and the Output Compare pins, is defined by the Timer/Counter Width (TCW0), Input Capture Enable (ICEN0) and Wave Generation Mode (CTC0) bits. See “TCCR0A – Timer/Counter0 Control Register A” on page 83.

Table 11-3 summarises the different modes of operation.

Table 11-3. Modes of operation

Mode ICEN0 TCW0 CTC0 Mode of Operation TOP Update of OCRx at TOV Flag Set on

0000Normal, 8-bit Mode 0xFF ImmediateMAX (0xFF) 1001CTC Mode, 8-bit OCR0A ImmediateMAX (0xFF) 2 0 1 X Normal, 16-bit Mode 0xFFFF Immediate MAX (0xFFFF) 3 1 0 X Input Capture Mode, 8-bit 0xFF Immediate MAX (0xFF) 4 1 1 X Input Capture Mode, 16-bit 0xFFFF Immediate MAX (0xFFF F)

11.7.1 Normal, 8-bit Mode

In Normal 8-bit mode (see Table 11-3), the counter (TCNT0L) is incrementing until it overruns when it passes its maximum 8-bit value (MAX = 0xFF) and then restarts from the bottom (0x00).

ATtiny261A/461A/861A

8197C–AVR–05/11

The Overflow Flag (TOV0) is set in the same timer clock cycle as when TCNT0L becomes zero.

TCNTn

OCnx Interrupt Flag Set

1 4

Period

2 3

The TOV0 Flag in this case behaves like a ninth bit, except that it is only set, not cleared. However, combined with the timer overflow interrupt that automatically clears the TOV0 Flag, the timer resolution can be increased by software. There are no special cases to consider in the Normal 8-bit mode, a new counter value can be written anytime. The Output Compare Unit can be used to generate interrupts at some given time.

11.7.2 Clear Timer on Compare Match (CTC) 8-bit Mode

In Clear Timer on Compare or CTC mode, see Table 11-3 on page 76, the OCR0A Register is used to manipulate the counter resolution. In CTC mode the counter is cleared to zero when the counter value (TCNT0) matches the OCR0A. The OCR0A defines the top value for the counter, hence also its resolution. This mode allows greater control of the Compare Match output frequency. It also simplifies the operation of counting external events.

The timing diagram for the CTC mode is shown in Figure 11-6. The counter value (TCNT0) increases until a Compare Match occurs between TCNT0 and OCR0A, and then counter (TCNT0) is cleared.

Figure 11-6. CTC Mode, Timing Diagram

ATtiny261A/461A/861A

An interrupt can be generated each time the counter value reaches the TOP value by using the OCF0A Flag. If the interrupt is enabled, the interrupt handler routine can be used for updating the TOP value. However, changing TOP to a value close to BOTTOM when the counter is running with none or a low prescaler value must be done with care since the CTC mode does not have the double buffering feature. If the new value written to OCR0A is lower than the current value of TCNT0, the counter will miss the Compare Match. The counter will then have to count to its maximum value (0xFF) and wrap around starting at 0x00 before the Co mpare Match can occur. As for the Normal mode of operation, the TOV0 Flag is set in the same timer clock cycle that the counter counts from MAX to 0x00.

11.7.3 Normal, 16-bit Mode

In 16-bit mode, see Table 11-3 on page 76, the counter (TCNT0H/L) is a incrementin g until it overruns when it passes its maximum 16-bit value (MAX = 0xFFFF) and then restarts from the bottom (0x0000). The Overflow Flag (TOV0) will be set in the same timer clock cycle as the TCNT0H/L becomes zero. The TOV0 Flag in this case behaves like a 17th bit, except that it is only set, not cleared. However, combined with the timer overflow interrupt that automatically clears the TOV0 Flag, the timer resolution can be increased by softw are. There are no specia l cases to consider in the Normal mode, a new counter value can be written anytime. The Output Compare Unit can be used to generate interrupts at some given time.

8197C–AVR–05/11

11.7.4 8-bit Input Capture Mode

clk

(clk

I/O

/1)

TOVn

clk

I/O

TCNTn MAX - 1 MAX BOTTOM BOTTOM + 1

TOVn

TCNTn

MAX - 1 MAX BOTTOM BOTTOM + 1

clk

I/O

clk

(clk

I/O

/8)

The Timer/Counter0 can also be used in an 8-bit Input Capture mode, see Table 11-3 on page

76 for bit settings. For full description, see the section “Input Capture Unit” on page 74.

11.7.5 16-bit Input Capture Mode

The Timer/Counter0 can also be used in a 16-bit Input Capture mode, see Table 11-3 on page

76 for bit settings. For full description, see the section “Input Capture Unit” on page 74.

11.8 Timer/Counter Timing Diagrams

The Timer/Counter is a synchronous design and the timer clock (clkT0) is therefore shown as a clock enable signal in the following figures. Th e figures include information on whe n Interrupt Flags are set. Figure 11-7 contains timing data for basic Timer/Counter op eration. The figure shows the count sequence close to the MAX value.

Figure 11-7. Timer/Counter Timing Diagram, no Prescaling

Figure 11-8 shows the same timing data, but with the prescaler enabled.

Figure 11-8. Timer/Counter Timing Diagram, with Prescaler (f

clk_I/O

/8)

Figure 11-9 on page 79 shows the setting of OCF0A and OCF0B in Normal mode.

ATtiny261A/461A/861A

8197C–AVR–05/11

ATtiny261A/461A/861A

OCFnx

OCRnx

TCNTn

OCRnx Value

OCRnx - 1 OCRnx OCRnx + 1 OCRnx + 2

clk

I/O

clk

(clk

I/O

/8)

OCFnx

OCRnx

TCNTn

(CTC)

TOP

TOP - 1 TOP BOTTOM BOTTOM + 1

clk

PCK

clk

(clk

PCK

/8)

Figure 11-9. Timer/Counter Timing Diagram, Setting of OCF0x, with Prescaler (f

Figure 11-10 shows the setting of OCF0A and the clearing of TCNT0 in CTC mode.

Figure 11-10. Timer/Counter Timing Diagram, CTC mode, with Prescaler (f

clk_I/O

/8)

11.9 Accessing Registers in 16-bit Mode

In 16-bit mode (the TCW0 bit is set to one) the TCNT0H/L and OCR0A/B or TCNT0L/H and OCR0B/A are 16-bit registers that can be accessed by the AVR CPU via the 8-bit data bus. The 16-bit register must be byte accessed using two read or write operations. The 16-bit Timer/Counter has a single 8-bit register for temporary storing of the high byte of the 16-bit access. The same temporary register is shared between all 16-bit registers. Accessing the low byte triggers the 16-bit read or write operation. When the low byte of a 16-bit register is written by the CPU, the high byte stored in the t emporary reg ister, and the low byte writ ten are both copied into the 16-bit register in the same clock cycle. When the low byte of a 16-bit register is read by the CPU, the high byte of the 16-bit register is copied into the temporary register in the same clock cycle as the low byte is read.

There is one exception in the temporary register usage. In the Output Compare mode the 16-bit Output Compare Register OCR0A/B is read without the temporary register, because the Output Compare Register contains a fixed value that is only changed by CPU access. However, in 16bit Input Capture mode the ICR0 register formed by the OCR0A and OCR0B registers must be accessed with the temporary register.

To do a 16-bit write, the high byte must be written before the low byte. For a 16-bit read, the low byte must be read before the high byte.

8197C–AVR–05/11

The following code examples show how to access the 16-bit timer registers assuming that no interrupts updates the temporary register. The same principle can be used directly for accessing the OCR0A/B registers.

Assembly Code Example

...

; Set TCNT0 to 0x01FF

ldi r17,0x01

ldi r16,0xFF

out TCNT0H,r17 out TCNT0L,r16

; Read TCNT0 into r17:r16

in r16,TCNT0L in r17,TCNT0H

...

C Code Example

unsigned int i;

...

/* Set TCNT0 to 0x01FF */

TCNT0H = 0x01;

TCNT0L = 0xff;

/* Read TCNT0 into i */

i = TCNT0L;

i |= ((unsigned int)TCNT0H << 8);

...

Note: See “Code Examples” on page 6.

The assembly code example returns the TCNT0H/L value in the r17:r16 register pair. It is important to notice that accessing 16-bit registers are atomic operations. If an interrupt

occurs between the two instructions access ing the 16-bit register, and the interrup t code updates the temporary register by accessing the same or any other of the 16-bit timer registers, then the result of the access outside the interrupt will be corrupted. Therefore , when both the main code and the interrupt code update the temporary register, the main code must disable the interrupts during the 16-bit access.

ATtiny261A/461A/861A

8197C–AVR–05/11

ATtiny261A/461A/861A

The following code examples show how to do an atomic read of the TCNT0 register contents. Reading any of the OCR0 register can be done by using the sam e principle.

Assembly Code Example

TIM0_ReadTCNT0:

; Save global interrupt flag

in r18,SREG

; Disable interrupts

cli

; Read TCNT0 into r17:r16

in r16,TCNT0L in r17,TCNT0H

; Restore global interrupt flag

out SREG,r18

ret

C Code Example

unsigned int TIM0_ReadTCNT0( void )

{

unsigned char sreg;

unsigned int i;

/* Save global interrupt flag */

sreg = SREG;

/* Disable interrupts */

_CLI();

/* Read TCNT0 into i */

i = TCNT0L;

i |= ((unsigned int)TCNT0H << 8);

/* Restore global interrupt flag */

SREG = sreg;

return i;

}

8197C–AVR–05/11

Note: See “Code Examples” on page 6.

The assembly code example returns the TCNT0H/L value in the r17:r16 register pair.

The following code examples show how to do an atomic write of the TCNT0H/L register contents. Writing any of the OCR0A/B registers can be done by using the same principle.

Assembly Code Example

TIM0_WriteTCNT0:

; Save global interrupt flag

in r18,SREG

; Disable interrupts

cli

; Set TCNT0 to r17:r16

out TCNT0H,r17 out TCNT0L,r16

; Restore global interrupt flag

out SREG,r18

ret

C Code Example

void TIM0_WriteTCNT0( unsigned int i )

{

unsigned char sreg;

/* Save global interrupt flag */

sreg = SREG;

/* Disable interrupts */

_CLI();

/* Set TCNT0 to i */

TCNT0H = (i >> 8);

TCNT0L = (unsigned char)i;

/* Restore global interrupt flag */

SREG = sreg;

}

Note: See “Code Examples” on page 6.

The assembly code example requires that the r17:r16 register pair contains the value to be written to TCNT0H/L.

11.9.1 Reusing the temporary high byte register

If writing to more than one 16-bit register where the hig h byte is the same for all regist ers writte n, then the high byte only needs to be written once. However, note that the same rule of atomic operation described previously also applies in this case.

ATtiny261A/461A/861A

8197C–AVR–05/11

11.10 Register Description

11.10.1 TCCR0A – Timer/Counter0 Control Register A

Bit 76543210 0x15 (0x35) TCW0 ICEN0 ICNC0 ICES0 ACIC0 – – CTC0 TCCR0A Read/Write R/W R/W R/W R/W R/W R R R/W Initial Value00000000

• Bit 7 – TCW0: Timer/Counter0 Width

When this bit is written to one 16-bit mode is selected as described Figure 11-7 on page 78. Timer/Counter0 width is set to 16-bits and the Output Compare Registers OCR0A and OCR0B are combined to form one 16-bit Output Compare Register. Because the 16-bit registers TCNT0H/L and OCR0B/A are accessed by the AVR CPU via the 8-bit data bus, special procedures must be followed. These procedures are described in section “Accessing Registers in 16-

bit Mode” on page 79.

• Bit 6 – ICEN0: Input Capture Mode Enable

When this bit is written to onem, the Input Capture Mode is enabled.

• Bit 5 – ICNC0: Input Capture Noise Canceler

Setting this bit activates the Input Capture Noise Canceler. When the noise canceler is activated, the input from the Input Capture Pin (ICP0) is filtered. The filter function requires four successive equal valued samples of the ICP0 pin for changing its output. T he Input Capture is therefore delayed by four System Clock cycles when the noise canceler is enabled.

ATtiny261A/461A/861A

• Bit 4 – ICES0: Input Capture Edge Select

This bit selects which edge on the Input Capture Pin (ICP0) that is used to trigger a cap ture event. When the ICES0 bit is written to zero, a falling (negative) edge is used as trigger, and when the ICES0 bit is written to one, a rising (positive) edge will trigger the capture. When a capture is triggered according to the ICES0 setting, the coun ter value is copied into the Input Capture Register. The event will also set the Input Capture Flag (ICF0), and this can be used to cause an Input Capture Interrupt, if this interrupt is enabled.

• Bit 3 – ACIC0: Analog Compar ator Input Capture Enable

When written logic one, this bit enables the input capture function in Timer/Counter0 to be triggered by the Analog Comparator. The comparat or out put is in this case directly connected to t he input capture front-end logic, making the comparator utilize the noise canceler and edge select features of the Timer/Counter0 Input Capture interrupt. When written logic zero, no conn ection between the Analog Comparator and the input capture function exists. To make the comparator trigger the Timer/Counter0 Input Captur e interrupt, the TICIE0 bit in the Timer Inte rrupt Mask Register (TIMSK) must be set.

• Bits 2:1 – Res: Reserved Bits

These bits are reserved and will always read zero.

• Bit 0 – CTC0: Waveform Generation Mode

This bit controls the counting sequence of the counter, the source for maximum (TOP) counter value, see Figure 11-7 on page 78. M odes of operatio n supported by the Timer /Count er unit ar e: Normal mode (counter) and Clear Timer on Compare Match (CTC) mode (see “Modes of Oper-

ation” on page 76).

8197C–AVR–05/11

11.10.2 TCCR0B – Timer/Counter0 Control Register B

Bit 76543210 0x33 (0x53) Read/Write R R R R/W R/W R/W R/W R/W Initial Value00000000

– – – TSM PSR0 CS02 CS01 CS01 TCCR0B

• Bit 4 – TSM: Timer/Counter Synchronization Mode

Writing the TSM bit to one activates the Timer/Counter Synchronization mo d e. In th is m o de , th e value that is written to the PSR0 bit is kept, hence keeping the Prescaler Reset signal asserted. This ensures that the Timer/Counter is halted and can be configured without the risk of advancing during configuration. When the TSM bit is written to zero, the PSR0 bit is cleared by hardware, and the Timer/Counter start counting.

• Bit 3 – PSR0: Prescaler Reset Timer/Counter0

When this bit is one, the Timer/Counter0 prescaler will be Reset. This bit is normally cleared immediately by hardware, except if the TSM bit is set.

• Bits 2:0 – CS0[2:0]: Clock Select0, Bits 2 - 0

The Clock Select0 bits 2, 1, and 0 define the prescaling source of Timer0.

Table 11-4. Clock Select Bit Description

CS02 CS01 CS00 Description

0 0 0 No clock source (Timer/Counter stopped) 001clk 010clk 011clk 100clk 101clk 1 1 0 External clock source on T0 pin. Clock on falling edge. 1 1 1 External clock source on T0 pin. Clock on rising edge.

If external pin modes are used for the Timer/Counter0, transitions on the T0 pin will clock the counter even if the pin is configured as an output. This feature allows software control of the counting.

11.10.3 TCNT0L – Timer/Counter0 Register Low Byte

Bit 76543210 0x32 (0x52) TCNT0L[7:0] TCNT0L Read/Write R/W R/W R/W R/W R/W R/W R/W R/W Initial Value00000000

The Timer/Counter0 Register Low Byte, TCNT0L, gives direct access, both for read and write operations, to the Timer/Counter unit 8-bit counter. Writing to the TCNT0L Register blocks (disables) the Compare Match on the following timer clock. Modifying the counter (TCNT0L) while the counter is running, introduces a risk of missing a Compare Match between TCNT0L and the OCR0x Registers. In 16-bit mode the TCNT0L register contains the lower part of the 16-bit Timer/Counter0 Register.

/(No prescaling)

I/O

/8 (From prescaler)

I/O

/64 (From prescaler)

I/O

/256 (From prescaler)

I/O

/1024 (From prescaler)

I/O

ATtiny261A/461A/861A

8197C–AVR–05/11

11.10.4 TCNT0H – Timer/Counter0 Register High Byte

Bit 76543210 0x14 (0x34) TCNT0H[7:0] TCNT0H Read/Write R/W R/W R/W R/W R/W R/W R/W R/W Initial Value00000000

When 16-bit mode is selected (the TCW0 bit is set to one) the Timer/Counter Register TCNT0H combined to the Timer/Counter Register TCNT0L gives direct access, both for rea d and write operations, to the Timer/Counter un it 16-bit co unter. To ensure tha t both the high and low bytes are read and written simultaneously when the CPU accesses these registers, the access is performed using an 8-bit temporary high byte register (TEMP). This temporary register is shared by all the other 16-bit registers. See “Accessing Registers in 16-bit Mode” on page 79

11.10.5 OCR0A – Timer/Counter0 Output Compare Register A

Bit 76543210 0x13 (0x33) OCR0A[7:0] OCR0A Read/Write R/W R/W R/W R/W R/W R/W R/W R/W Initial Value00000000

The Output Compare Register A contains an 8-bit value that is continuously compared with the counter value (TCNT0L). A match can be used to generate an Output Compare interrupt.

ATtiny261A/461A/861A

In 16-bit mode the OCR0A register contains the low byte of the 1 6-bit Out put Compar e Regist er. To ensure that both the high and the low bytes are written simultaneously when the CPU writes to these registers, the access is performed using an 8-bit temporary high byte register (TEMP). This temporary register is shared by all the other 16-bit registers. See “Accessing Registers in

16-bit Mode” on page 79.

11.10.6 OCR0B – Timer/Counter0 Output Compare Register B

Bit 76543210 0x12 (0x32) OCR0B[7:0] OCR0B Read/Write R/W R/W R/W R/W R/W R/W R/W R/W Initial Value00000000

The Output Compare Register B contains an 8-bit value that is continuously compared with the counter value (TCNT0L in 8-bit mode and TCNTH in 16-bit mode). A match can be used to generate an Output Compare interrupt.

In 16-bit mode the OCR0B register contains the high byte of the 16-bit Output Compare Register. To ensure that both the high and the low bytes are written simultaneously when the CPU writes to these registers, the access is performed using an 8-bit temporary high byte register (TEMP). This temporary register is shared by a ll the ot he r 1 6- bit regist er s. Se e “Accessing Reg-

isters in 16-bit Mode” on page 79.

11.10.7 TIMSK – Timer/Counter0 Interrupt Ma sk Register

Bit 76543210 0x39 (0x59) Read/Write R/W R/W R/W R/W R/W R/W R/W R Initial Value00000000

OCIE1D OCIE1A OCIE1B OCIE0A OCIE0B TOIE1 TOIE0 TICIE0 TIMSK

8197C–AVR–05/11

• Bit 4 – OCIE0A: Timer/Counter0 Output Compare Match A Interrupt Enable

When the OCIE0A bit is written to one, and the I-bit in the Status Register is set, the Timer/Counter0 Compare Ma tch A interrupt is enabled. The co rr esponding interrupt is execute d

if a Compare Match in Timer/Counter0 occurs, i.e., when the OCF0A bit is set in the Timer/Counter 0 Interrupt Flag Register – TIFR0.

• Bit 3 – OCIE0B: Timer/Counter Output Compare Match B Interrupt Enable

When the OCIE0B bit is written to one, and the I-bit in the Status Register is set, the Timer/Counter Compare Match B interrupt is enabled. The correspondin g interrupt is ex ecuted if a Compare Match in Timer/Counter occurs, i.e., when the OCF0B bit is set in the Timer/Counter Interrupt Flag Register – TIFR0.

• Bit 1 – TOIE0: Timer /Counter0 Overflow Interrupt Enable

When the TOIE0 bit is written to one, and the I-bit in the Status Register is set, the Timer/Counter0 Overflow interrupt is enabled. The corresponding interrupt is executed if an overflow in Timer/Counter0 occurs, i.e., when the TO V0 bit is set in the Timer/Cou nter 0 Interrupt Flag Register – TIFR0.

• Bit 0 – TICIE0: Timer/Counter0, Input Capture Interrupt Enable

When this bit is written to one, and the I-flag in the Status Register is set (interrupts globally enabled), the Timer/Counter1 Inpu t Capture interrupt is enabled. The corre sponding Interrupt Vector (See “Interrupts” on page 49.) is executed when the ICF0 flag, located in TIFR, is set.

11.10.8 TIFR – Timer/Counter0 Interrupt Flag Register

Bit 76543210 0x38 (0x58) Read/Write R/W R/W R/W R/W R/W R/W R/W R Initial Value00000000

OCF1D OCF1A OCF1B OCF0A OCF0B TOV1 TOV0 ICF0 TIFR

• Bit 4 – OCF0A: Output Compare Flag 0 A

The OCF0A bit is set when a Compare Match occurs between the Timer/Counter0 and the data in OCR0A – Output Compare Register0. OCF0A is clear ed by hardware when e xecuting the co rresponding interrupt handling vector. Alternatively, OCF0A is cleared by writing a logic one to the flag. When the I-bit in SREG, OCIE0A (Timer/Counter0 Compare Match Interrupt Enable), and OCF0A are set, the Timer/Counter0 Compare Match Interrupt is executed.

The OCF0A is also set in 16-bit mode wh en a Compare Match occurs between the Timer/Counter and 16-bit data in OCR0B/A. The OCF0A is not set in Input Capture mode when the Output Compare Register OCR0A is used as an Input Capture Register.

• Bit 3 – OCF0B: Output Compare Flag 0 B

The OCF0B bit is set when a Compare Match occurs betwee n the Timer/Count er and the data in OCR0B – Output Compare Register0 B. OCF0B is cleared by hard ware when executing the corresponding interrupt handling vector. Alternatively, OCF0B is cleared by writing a logic one to the flag. When the I-bit in SREG, OCIE0B (Timer/Counter Compare B Match Interrupt Enable), and OCF0B are set, the Timer/Counter Compare Match Interrupt is executed.

The OCF0B is not set in 16-bit Output Compare mode when the Output Compare Register OCR0B is used as the high byte of the 16-bit Output Compare Register or in 16 -bit Input Capture mode when the Output Compare Register OCR0B is used as the high byte of the Input Capture Register.

ATtiny261A/461A/861A

8197C–AVR–05/11

ATtiny261A/461A/861A

• Bit 1 – TOV0: Timer/Counter0 Overflow Flag

The bit TOV0 is set when an overflow occurs in Timer/Counter0. TOV0 is cleared by hardware when executing the corresponding interrupt handling vector. Alternatively, TOV0 is cleared by writing a logic one to the flag. When the SREG I-bit, TOIE0 (Timer/Counter0 Overflow Interrupt Enable), and TOV0 are set, the Timer/Counter0 Overflow interrupt is executed.

• Bits 0 – ICF0: Timer/Counter0, Input Capture Flag

This flag is set when a capture event occurs on the ICP0 pin. When the Input Capture Register (ICR0) is set to be used as the TOP value, the ICF0 flag is set when the counter reaches the TOP value.

ICF0 is automatically cleared when the Input Capture Interrupt Vector is executed. Alternatively, ICF0 can be cleared by writing a logic one to its bit location.

8197C–AVR–05/11

12. Timer/Counter1

8-BIT DATABUS

T/C INT. FLAG REGISTER (TIFR)

10-BIT COMPARATOR

8-BIT OUTPUT COMPARE REGISTER A (OCR1A)

T/C INT. MASK

TIMER/COUNTER1 (TCNT1)

DIRECTION

TIMER/COUNTER1 CONTROL LOGIC

OCF1B

TOV1

TOIE1

OCIE1B

OCIE1A

OCF1A

TOV1 OCF1B OC1AOCF1A

T/C CONTROL

COM1B1

PWM1A

PWM1B

COM1B0

FOC1A

FOC1B

10-BIT COMPARATOR

8-BIT OUTPUT COMPARE REGISTER B (OCR1B)

COM1A1

COM1A0

T/C CONTROL

CS12

PSR1

CS11

CS10

CS13

OC1A

OC1B

DEAD TIME GENERATOR

10-BIT COMPARATOR

8-BIT OUTPUT COMPARE REGISTER C (OCR1C)

10-BIT COMPARATOR

8-BIT OUTPUT COMPARE REGISTER D (OCR1D)

COM1A1

PWM1D

COM1A0

FOC1D

T/C CONTROL REGISTER C (TCCR1C)

OCF1D

OCIE1D

OC1D

DEAD TIME GENERATOR

PSR1

OCW1A OCW1B OCW1D

2-BIT HIGH BYTE REGISTER (TC1H)

GM11

FPEN1

T/C CONTROL REGISTER D (TCCR1E)

COM1B1

COM1B0

COM1D1

COM1D0

FPNC1

FPES1

FPAC1

10-BIT OUTPUT COMPARE REGISTER B

10-BIT OUTPUT COMPARE REGISTER C

10-BIT OUTPUT COMPARE REGISTER D

10-BIT OUTPUT COMPARE REGISTER A

CLEAR

COUNT

CLK

T/C CONTROL

FAULT_PROTECTION

GM10

FPIE1

FPF1

OC1OE5

OC1OE4

OC1OE3

OC1OE2

OC1OE1

OC1OE0

FPIE1

FPF1

12.1 Features

• 8/10-Bit Accuracy

• Three Independent Output Compare Units

• Clear Timer on Compare Match (Auto Reload)

• Glitch Free, Phase and Frequency Correct Pulse Width Modulator (PWM)

• Variable PWM Period

• High Speed Asynchronous and Synchronous Clocking with Dedicated Prescaler

• Independent Dead Time Generators for Each PWM Channel

• Fault Protection Unit Can Disable PWM Output Pins

• Five Independent Interrupt Sources (TOV1, OCF1A, OCD1B, OCF1D, FPF1)

12.2 Overview

Timer/Counter1 is a general purpose high speed Timer/Counter module, with three independent Output Compare Units, and with PWM support.

The Timer/Counter1 features a high resolution and a high accu racy usage with the lo wer prescaling opportunities. It can also support three accurate and high speed Pulse Width Modulators using clock speeds up to 64 MHz. In PWM mode Timer/Counter1 and the output co mpa re registers serve as triple stand-alone PWMs with non-overlapping non-inverted and inverted outputs. Similarly, the high prescaling opportunities make this unit useful for lower speed functions or exact timing functions with infrequent actions. A simplified block diagram of the Timer/Counter1 is shown in Figure 12-1.

Figure 12-1. Timer/Counter1 Block Diagram

ATtiny261A/461A/861A

8197C–AVR–05/11

12.2.1 Speed

12.2.2 Accuracy

ATtiny261A/461A/861A

For actual placement of the I/O pins, refer to “Pin out ATtiny261A/461A/861A” on page 2. The device-specific I/O register and bit locations ar e liste d in the “Register Description” on page 111.

The maximum speed of the Timer/Counter1 is 64 MHz. However, if a supply voltage below 2.7 volts is used, it is recommended to use the Low Speed Mode (LSM), because the Timer/Counter1 is not running fast enough on low voltage levels. In the Low Speed Mode the fast peripheral clock is scaled down to 32 MHz. For more details about the Low Speed Mode, see “PLLCSR – PLL Control and Status Register” on page 119.

The Timer/Counter1 is a 10-bit Ti mer/Cou nter modu le that can alternatively be used as an 8-bit Timer/Counter. The Timer/Counter1 registers are basically 8-bit registers, but on top of that there is a 2-bit High Byte Register (TC1H) that can be used as a common temporary buffer to access the two MSBs of the 10-bit Timer/Counter1 registers by the AVR CPU via the 8-bit data bus, if the 10-bit accuracy is used. Whereas, if the two MSBs of the 10-bit registers are writ ten to zero the Timer/Counter1 is working as an 8-b it Time r/Coun ter. When readin g the low byte of any

8-bit register the two MSBs are written to the TC1H register, and when writing the low byte of any 8-bit register the two MSBs are written from the TC1H register. Special procedures must be followed when accessing the 10-bit Timer/Counter1 values via the 8-bit data bus. These procedures are described in the section “Accessing 10-Bit Registers” on page 107.

12.2.3 Registers

12.2.4 Synchronization

The Timer/Counter (TCNT1) and Output Compare Registers (OCR1A, OCR1B, OCR1C and OCR1D) are 8-bit registers that are used as a data source to be compared with the TCNT1 contents. The OCR1A, OCR1B and OCR1D registers deter mine the actio n on the O C1A, OC1B and OC1D pins and they can also generate the compare match interrupts. The OCR1C holds the Timer/Counter TOP value, i.e. the clear o n compare match value. The Timer/Counter1 High

Byte Register (TC1H) is a 2-bit register that is used as a comm on te mporary buffer to access the MSB bits of the Timer/Counter1 registers, if the 10-bit accuracy is used.

Interrupt request (overflow TOV1, and compare matches OCF1A, OCF1B, OCF1D and fault protection FPF1) signals are visible in the Timer Interrupt Flag Register (TIFR) and Timer/Counter1 Control Register D (TCCR1D). The interrupts are individually masked with the Timer Interrupt Mask Register (TIMSK) and the FPIE1 bit in the Timer/Co unter1 Control Register D (TCCR1D).

Control signals are found in the Timer/Counter Control Registers TCCR1A, TCCR1B, TCCR1C, TCCR1D and TCCR1E.

In asynchronous clocking mode the Timer/Counter1 and the prescaler allow running the CPU from any clock source while the pr es ca ler is o p er ating on the fast peripheral clock (PCK) having frequency of 64 MHz (or 32 M Hz in Low Sp eed Mode) . This is possib le becaus e there is a synchronization boundary between the CPU clock domain and the fast peripheral clock domain.

Figure 12-2 shows Timer/Counter 1 synchronization register block diagram and describes syn-

chronization delays in between registers. Note that all clock gating details are not shown in the figure.

8197C–AVR–05/11

The Timer/Counter1 register values go through the internal synchronization registers, which cause the input synchronization delay, before affecting the counter operation. The registers TCCR1A, TCCR1B, TCCR1C, TCCR1D, OCR1A, OCR1B, OCR1C and OCR1D can be read

back right after writing the register. The read back value s are delayed for the Time r/Counter1

8-BIT DATABUS

OCR1A OCR1A_SI

TCNT1_SO

OCR1B OCR1B_SI

OCR1C OCR1C_SI

TCCR1A TCCR1A_SI

TCCR1B TCCR1B_SI

TCNT1 TCNT1_SI

OCF1A OCF1A_SI

OCF1B OCF1B_SI

TOV1 TOV1_SI

TOV1_SO

OCF1B_SO

OCF1A_SO

TCNT1

S A

PCKE

PCK

IO-registers Input synchronization

registers

Timer/Counter1 Output synchronization

registers

SYNC MODE

ASYNC MODE

1 CK Delay 1/2 CK Delay

~1/2 CK Delay 1 PCK Delay 1 PCK Delay ~1 CK Delay

TCNT1

OCF1A

OCF1B

TOV1

1/2 CK Delay 1 CK Delay

OCR1D OCR1D_SI

TC1H TC1H_SI

TCCR1C TCCR1C_SI

TCCR1D

OCF1D OCF1D_SI

OCF1D_SO

OCF1D

TC1H_SO

TC1H

TCCR1D_SI

(TCNT1) register, Timer/Counter1 High Byte Register (TC1H) and flags (OCF1A, OCF1B, OCF1D and TOV1), because of the input and output synchronization.

The system clock frequency must be lower than half of the PCK frequency, because the synchronization mechanism of the asynchronous Timer/Counter1 needs at least two edges of the PCK when the system clock is high. If the frequency of the system clock is too high, it is a risk that data or control values are lost.

Figure 12-2. Timer/Counter1 Synchronization Register Block Diagram.

12.2.5 Definitions

ATtiny261A/461A/861A

Many register and bit references in this section are written in genera l form. A lower case “n” replaces the Timer/Counter number, in this case 0. A lower case “x” replaces the Output Compare Unit, in this case Compare Unit A, B, C or D. However, when using the register or bit defines in a program, the precise form must be used, i.e., TCNT1 for accessing Timer/Counter1

8197C–AVR–05/11

12.3 Clock Sources

TIMER/COUNTER1 COUNT ENABLE

PSR1

CS10 CS11 CS12

PCK

64/32 MHz

CS13

14-BIT

T/C PRESCALER

T1CK/2

T1CK

T1CK/4

T1CK/8

T1CK/16

T1CK/32

T1CK/64

T1CK/128

T1CK/256

T1CK/512

T1CK/1024

T1CK/2048

T1CK/4096

T1CK/8192

T1CK/16384

S A

PCKE

T1CK

12.3.1 Prescaler

ATtiny261A/461A/861A

counter value and so on. The definitions in Table 12-1 are used exten sively throughout the document.

Table 12-1. Definitions

Constant Description

BOTTOM The counter reaches BOTTOM when it becomes 0x00

MAX The counter reaches its MAXimum when it becomes 0xFF (decimal 255)

The counter reaches the TOP when it becomes equal to the highest value in the count

TOP

The Timer/Counter is clocked internally, either from CK or PCK. See bits CSxx in Table 12-17 on

page 115 and bit PCKE in “PLLCSR – PLL Control and Status Register” on page 119.

Figure 12-3 shows the Timer/Counter1 prescaler that supports two clocking modes, a synchro-

nous clocking mode and an asynchronous clocking mode. The synchronous clocki ng mode uses

the system clock (CK) as a clock timebase and asynchronous mode uses the fast peripheral clock (PCK) as a clock time base. The PCKE bit from the PLLCSR register enables the asynchronous mode when it is set (‘1’).

sequence. The TOP value can be assigned to be the fixed value 0xFF (MAX) or the value stored in the OCR0A Register. The assignment depends on the mode of operation

Figure 12-3. Timer/Counter1 Prescaler

In the asynchronous clocking mode the clock selections are from PCK to PCK/16384 and stop, and in the synchronous clocking mode the clock selections are from CK to CK/16384 and stop. The clock options are illustrated in Figure 12-3 and desribed in “TCCR1B – Timer/Counter1

Control Register B” on page 114.

The frequency of the fast peripheral clock is 64 MHz or 3 2 MHz in Low Speed mode (the LSM bit in PLLCSR register is set to one). The Low Speed Mode is recommended to use when the supply voltage below 2.7 volts are used.

8197C–AVR–05/11

12.3.1.1 Prescaler Re se t

DATA BUS

TCNT1 Control Logic

count

TOV1

top

Timer/Counter1 Count Enable ( From Prescaler )

bottom

direction

clear

PCK CK

PCKE

clk

Setting the PSR1 bit in TCCR1B registe r re se ts the prescaler. It is possible to use the Prescaler Reset for synchronizing the Timer/Counter to program execution.

12.3.1.2 Prescaler Initialization for Asynchronous Mode

To change Timer/Counter1 to the asynchronous mode follow the procedure below:

1. Enable PLL.

2. Wait 100 µs for PLL to stabilize.

3. Poll the PLOCK bit until it is set.

4. Set the PCKE bit in the PLLCSR register which enables the asynchronous mode.

12.4 Counter Unit

The main part of the Timer/Counter1 is the programmable bi-directional counter unit. Figure 12-

4 shows a block diagram of the counter and its surroundings.

Figure 12-4. Counter Unit Block Diagram

Signal description (internal signals):

count TCNT1 increment or decrement enable. direction Select between increment and decrement. clear Clear TCNT1 (set all bits to zero). clk

top Signalize that TCNT1 has reached maximum value. bottom Signalize that TCNT1 has reached minimum value (zero).

Depending on the mode of operation used, the cou nt er is cleared , in cr eme nted , o r decr em ent ed at each timer clock (clk asynchronous PLL clock using the Clock Select bits (CS1[3:0]) and the PCK Enable bit (PCKE). When no clock source is selected (CS1[3:0] = 0) the timer is stopped. However, the TCNT1 value can be accessed by the CPU, regardless of whether clk overrides (has priority over) all counter clear or count operations.

The counting sequence of the Timer/Counter1 is determined by bits WGM1[1:0], PWM1A and PWM1B, located in the Timer/ Counter1 Co ntrol Registers (TCCR1A, TCCR1C and TCCR1D). For more details about advanced counting sequences and waveform generation, see “Modes of

Operation” on page 98. The Timer/Counter Overflow Flag (TOV1) is set according to the mode

of operation and can be used for generating a CPU int errupt.

ATtiny261A/461A/861A

Timer/Counter clock, referred to as clkT1 in the following.

). The timer clock is generated from an synchronous system clock or an

is present or not. A CPU write

8197C–AVR–05/11

12.4.1 Counter Initialization for Asynchronous Mode

OCF n x (Int.Req.)

(10-bit Comparator )

8-BIT DATA BUS

TCNTn

WGM10

Waveform Generator

C O MnX [1:0]

PWMnx

TCnH

OCWnx

10-B IT T C N T n10-B IT O C Rnx

OCR nx

FOCn

TOP

BOTTOM

To set Timer/Counter1 to asynchronous mode follow the procedure below:

1. Enable PLL.

2. Wait 100 µs for PLL to stabilize.

3. Poll the PLOCK bit until it is set.

4. Set the PCKE bit in the PLLCSR register which enables the asynchronous mode.

12.5 Output Compare Unit

The comparator continuously compares TCNT1 with the Output Compare Registers (OCR1A, OCR1B, OCR1C and OCR1D). Whenever TCNT1 equals to the Output Compare Register, the comparator signals a match. A match will set the Output Compare Flag (OCF1A, OCF1B or OCF1D) at the next timer clock cycle. If the corresponding inter ru pt is enable d, the Outpu t Compare Flag generates an Output Compare interrupt. The Output Compare Flag is automatically cleared when the interrupt is executed. Alternatively, the flag can be cleared by software by writing a logical one to its I/O bit location. The Waveform Generator uses the match signal to generate an output according to operating mode set by bits PWM1A, PWM1B, WGM1[1:0] and COM1x[1:0]. The top and bottom signals are used by the Waveform Generator for handling the special cases of the extreme values in some modes of operation (See “Modes of Operation” on

page 98.). Figure 12-5 shows a bl ock diagram of the Output Compare unit.

ATtiny261A/461A/861A

Figure 12-5. Output Compare Unit, Block Diagram

8197C–AVR–05/11

The OCR1x Registers are double buffered when using any of the Pulse Width Modulation (PWM) modes. For the normal mode of operation, the double buffering is disabled. The double buffering synchronizes the update of the OCR1x Compare Registers to either top or bottom of the counting sequence. The synchronization prevents the occurrence of odd-length, non-sym-

metrical PWM pulses, thereby making the output glitch-free. See Figure 12-6 for an example.

Output Compare Waveform OCWnx

Output Compare Wafeform OCWnx

Unsynchronized WFnx Latch

Synchronized WFnx Latch

Counter Value Compare Value

Compare Value changes

Glitch

Compare Value changes

During the time between the write and the update operation, a read from OCR1A, OCR1B, OCR1C or OCR1D will read the contents of the temporary location. This means that the most recently written value always will read out of OCR1A, OCR1B, OCR1C or OCR1D.

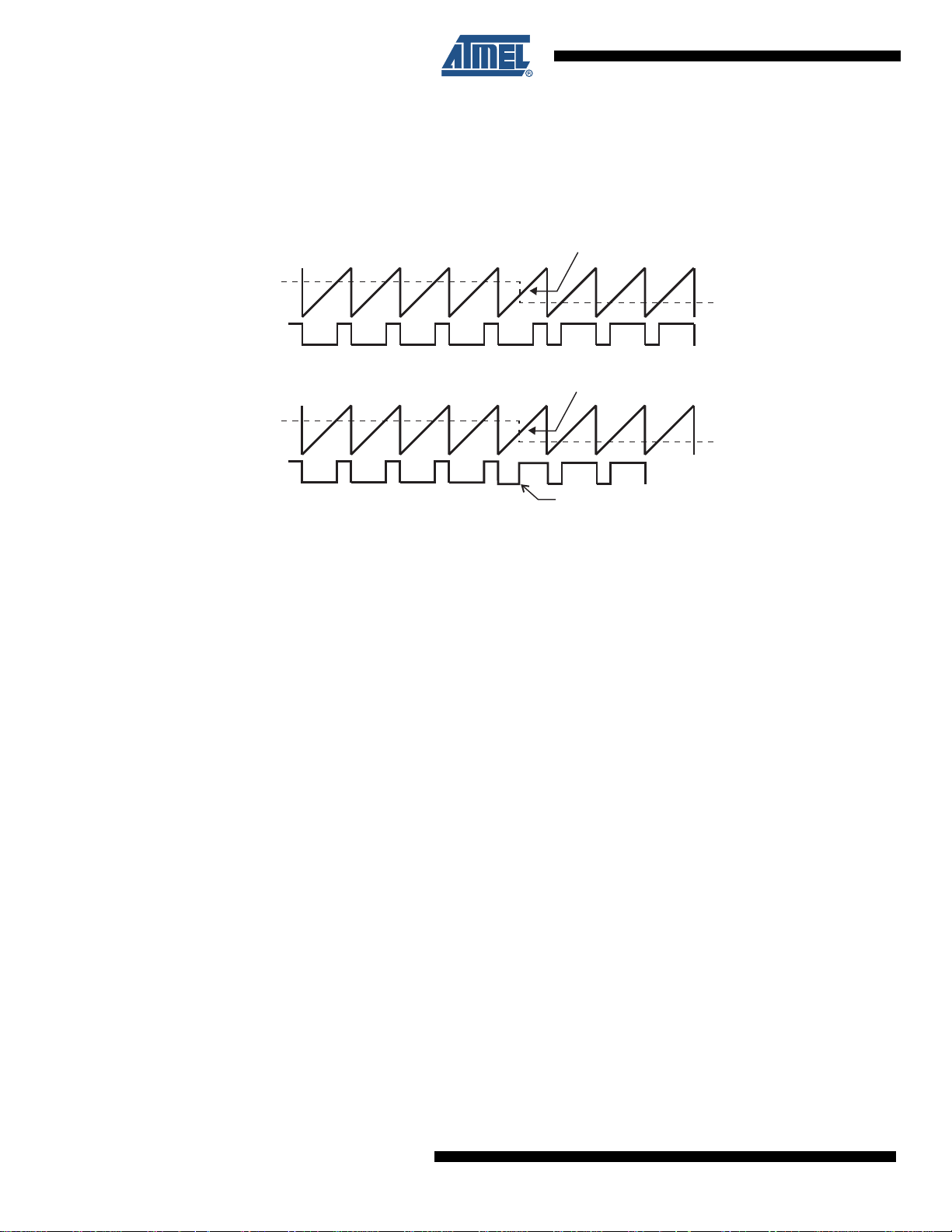

Figure 12-6. Effects of Unsynchronized OCR Latching

12.5.1 Force Output Compare

In non-PWM waveform generation modes, the match output of the comparator can be forced by writing a one to the Force Output Compare (FOC1x) bit. Forcing Compare Match will not set the OCF1x Flag or reload/clear the timer, but the Waveform Output (OCW1x) will be updated as if a real Compare Match had occurred (the COM1x[1:0] bits settings define whe ther the Waveform Output (OCW1x) is set, cleared or toggled).

12.5.2 Compare Match Blocking by TCNT1 Write

All CPU write operations to the TCNT1 Register will block any Compare Match that occur in the next timer clock cycle, even when the timer is stopped. This feature allows OCR1x to be initialized to the same value as TCNT1 without triggering an inte rrupt when the Timer/Counte r clock is enabled.

12.5.3 Using the Output Compare Unit

Since writing TCNT1 in any mode of operation will block all Compare Matches for one timer clock cycle, there are risks involved when changing TCNT1 when using the Output Compare Unit, independently of whether the Timer/Counter is running or not. If the va lue written to TCNT1 equals the OCR1x value, the Compare Match will be missed, resulting in incorrect waveform generation. Similarly, do not write the TCNT1 value equal to BOT TOM when the counter is down-counting.

The setup of the Waveform Output (OCW1x) sh ould be perf ormed befor e setting t he Data Direction Register for the port pin to output. The easiest way of setting the OCW1x value is to use the Force Output Compare (FOC1x) strobe bits in Normal mode. The O C1x keeps its value even when changing between Waveform Generation modes.

Be aware that the COM1x[1:0] bits are not double buffered together with the compare value. Changing the COM1x[1:0] bits will take effect immediately.

ATtiny261A/461A/861A

8197C–AVR–05/11

12.6 Dead Time Generator

OCnx pin

WGM10

Waveform Generator

top

FOCn

COMnx

bottom

PWMnx

OCWnx

Dead Time Generator

OCnx pin

DTnH DTnL

DTPSn

CK OR PCK CLOCK

OCnx

CLOCK CONTROL

OCnx

CK OR PCK CLOCK

OCWnx

4-BIT COUNTER

COMPARATOR

DTnL

DTnH

DEAD TIME PRE-SCALER

DTPSn

DTn I/O REGISTER

DATA BUS (8-bit)

TCCRnB REGISTER

PWM1X

The Dead Time Generator is provided for the Timer/Counter1 PWM output pairs to allow driving external power control switches safely. The Dead Time G enerator is a separate block that can be used to insert dead times (non-overlapping times) for the Timer/Counter1 complementary output pairs OC1x and OC1x to “01”. See Figure 12-7 below.

Figure 12-7. Block Diagram of Waveform Generator and Dead Time Generator.

The tasks are shared as follows: the Waveform Generator generates the output (OCW1x) and the Dead Time Generator generates the non-overlapping PWM output pair from the output. Three Dead Time Generators are provided, one for each PWM output. The non-overlap time is adjustable and the PWM output and it’s complem entary output are adjusted se parately, and independently for both PWM outputs.

ATtiny261A/461A/861A

when the PWM mode is enabled and the COM1x[1 :0] bits are set

8197C–AVR–05/11

The Dead Time Generation is based on 4-bit down counters that count the dead time, as shown in Figure 12-8.

Figure 12-8. Dead Time Generator

There is a dedicated prescaler in front of the Dead Time Generator that can divide the Timer/Counter1 clock (PCK or CK) by 1, 2, 4 or 8. This provides for large range of dead times that can be generated. The prescaler is controlled by two control bi ts DTPS1[1:0]. T he block has also a rising and falling edge detector that is used to start the dead time counting period. Depending on the edge, one of the tran sitions on the rising edges, O C1x or OC1x until the counter has counte d to zero . The com parato r is us ed to comp are the counte r with zer o and stop the dead time insertion when zero has been reached. The counter is loa ded with a 4- bit

is delayed

DT1H or DT1L value from DT1 I/O register, depending on the edge of the Waveform Output (OCW1x) when the dead time insertion is started. The Output Compare Output are delayed by one timer clock cycle at minimum from the Waveform Output when the De ad T ime is a djusted to

zero. The outputs OC1x and OC1x are inverted, if the PWM Inversion Mode bit PWM1X is set.

OCnx (COMnx = 1)

non-overlap / rising edgetnon-overlap / falling edge

OCnx

OCWnx

This will also cause both outputs to be high during the dead time. The length of the counting period is user adjustable by selecting the dead time prescaler setting

by using the DTPS1[1:0] control bits, and selecting then the dead time value in I/O register DT1. The DT1 register consists of two 4-bit fields, DT1H and DT1L that control the dead time periods of the PWM output and its' complementary output separately in terms of the number of prescaled dead time generator clock cycles. Thus the rising edge of OC1x and OC1x different dead time periods as the t t

non-overlap / falling edge

is adjusted by the 4-bit DT1L value.

non-overlap / rising edge

is adjusted by the 4-bit DT1H value and the

can have

Figure 12-9. The Complementary Output Pair, COM1x[1:0] = 1

12.7 Compare Match Output Unit

The Compare Output Mode (COM1x[1:0]) bits have two functions. The Waveform Generator uses the COM1x[1:0] bits for defining the inverted or non- inverted Waveform Out put (OCW1x) at the next Compare Match. Also, the COM1x[1:0] bits control the OC1x and OC1x source. Figure 12-10 on page 97 shows a simplified schematic of the logic affected by the COM1x[1:0] bit setting. The I/O R egisters, I/O bi ts, and I/O pins in the figure ar e shown in bold. Only the parts of the general I/O Port Control Registers (DDR and PORT) that are affected by the COM1x[1:0] bits are shown.

In Normal Mode (non-PWM) the Dead Time Generator is disabled and it is working like a synchronizer: the Output Compare (OC1x) is delayed from the Waveform Output (OCW1x) by one timer clock cycle. Whereas in Fast PWM Mode and in Phase and Frequency Correct PWM Mode when the COM1x[1:0] bits are set to “01” both the non-inverted and the inverted Output Compare output are generated, and an user programmable Dead Time delay is inserted for these complementary output pairs (OC1x and OC1x to Normal mode when any other COM1x[1:0] bit setup is used. When referring to the OC1x state, the reference is for the Output Compare output (OC1x) from the Dead Time Generator, not the OC1x pin. If a system reset occur, the OC1x is reset to “0”.

pin output

). The functionality in PWM modes is similar

ATtiny261A/461A/861A

8197C–AVR–05/11

ATtiny261A/461A/861A

DATA BUS

PORTB0

DDRB0

DDRB1

PORTB1

clk

I/O

PORTB2

DDRB2

DDRB3

PORTB3

PORTB4

DDRB4

DDRB5

PORTB5

OC1D PIN

2 1 0

Dead Time Generator D

OCW1D

clk

OC1D PIN

Output Compare Pin Conguration

COM1D[1:0]

WGM11

OC1OE[5:4]

OC1B PIN

2 1 0

Dead Time Generator B

OCW1B

clk

OC1B PIN

Output Compare Pin Conguration

COM1B[1:0]

WGM11

OC1OE[3:2]

OC1A PIN

Dead Time Generator A

OCW1A

clk

OC1A PIN

Output Compare Pin Conguration

COM1A[1:0]

WGM11

OC1OE[1:0]

OC1A

OC1B

OC1D

Figure 12-10. Compare Match Output Unit, Schematic

The general I/O port function is overridden by the Output Compare (OC1x / OC1x Dead Time Generator if either of the COM1x[1:0] bits are set. However, the OC1x pin direction (input or output) is still controlled by the Data Direction Register (DDR) for the port pin. The Data Direction Register bit for the OC1x and OC1x output before the OC1x and OC1x independent of the Output Compare mode.

) from the

pins (DDR_OC1x and DDR_OC1x) must be set as

values are visible on the pin. The port override function is

8197C–AVR–05/11

The design of the Output Compare Pin Configuration logic allows initialization of the OC1x state

TCNTn

OCWnx (COMnx=1)

OCnx Interrupt Flag Set

1 4

Period

2 3

TOVn Interrupt Flag Set

before the output is enabled. Note that some COM1x[1:0] bit settings are reserved for certain modes of operation. For Output Compare Pin Configurations refer to Table 12-2 on page 99,

Table 12-3 on page 101, Table 12-4 on page 103, Table 12-5 on page 104, Table 12-6 on page 104, and Table 12-7 on page 105.

12.7.1 Compare Output Mode and Waveform Ge neration

The Waveform Generator uses the COM1x[1:0] bits differently in Normal mode and PWM modes. For all modes, setting the COM1x[1:0] = 0 tells the Waveform Generator that no action on the OCW1x Output is to be performed on the next Compare Match. For compa re output actions in the non-PWM modes refer to Table 12-8 on page 111. For fast PWM mode, refer to

Table 12-9 on page 111, and for the Phase and Frequency Correct PWM refer to Table 12-10 on page 112. A change of the COM1x[1:0] bits state will have effect at the first Compare Match

after the bits are written. For non-PWM modes, the action can be forced to have immediate effect by using the FOC1x strobe bits.

12.8 Modes of Operation

The mode of operation, i.e., the behavior of the Timer/Counter and the Output Compare pins, is defined by the combination of waveform ge neration mode bits (PWM1A, PWM1B, and WGM1[1:0]) and compare output mode bits (COM1x[1:0]). The Compare Output mode bits do not affect the counting sequence, while the Waveform Generation mode b its do. The COM1x[1:0] bits control whether the PWM output generated should be inverted, non-inverted or complementary. For non-PWM modes the COM1x[1:0] bits contro l whether th e outpu t should be set, cleared, or toggled at a Compare Match.

12.8.1 Normal Mode

The simplest mode of operation is Normal mode (PWM1A/PWM1B = 0), wher e the counter counts from BOTTOM to TOP (defined as OCR1C) then restarts from BOTTOM. The OCR1C defines the TOP value for the counter, hence also its resolution, and allows control of the Compare Match output frequency. In toggle Compare Output Mode the Waveform Output (OCW1x) is toggled at Compare Match between TCNT1 and OCR1x. In non-inverting Compare Output Mode the Waveform Output is cleared on the Compare Match. In inverting Compare Output Mode the Waveform Output is set on Compare Match. The timing diagram for Normal mo de is shown in Figure 12-11.

Figure 12-11. Normal Mode, Timing Diagram

ATtiny261A/461A/861A

8197C–AVR–05/11

ATtiny261A/461A/861A

OC1x

clkT1

21OCR1C+()⋅

------------------------------------------ -=

PWM

log2OCR1C 1+()=

The counter value (TCNT1) that is shown as a histo gram in F igure 12-11 is incremented until the counter value matches the TOP value. The counter is then cleared at the following clock cycle The diagram includes the Waveform Output (OCW1x) in toggle Compare Mode. The small horizontal line marks on the TCNT1 slopes represent Compare Matches between OCR1x and TCNT1.

The Timer/Counter Overflow Flag (TOV1) is set in the same clock cycle as the TCNT1 becom es zero. The TOV1 Flag in this case behaves like a 11th bit, except that it is only set, not cleared. However, combined with the timer overflow interrupt, that automatically clears the TOV1 Flag, the timer resolution can be increased by software. There are no special cases to consider in the Normal mode, a new counter value can be written anytime.

The Output Compare Unit can be used to ge nerate int errupts at some given time . Using the Output Compare to generate waveforms in Normal mode is not recommended, since this will occupy too much of the CPU time. For gen erati ng a wave form , the O CW1x ou tput can be set to toggle its logical level on each Compare Match by setting the Compare Output mode bits to toggle mode (COM1x[1:0] = 1). The OC1x value will not be visible on the port pin unless th e data direction for the pin is set to output. The waveform generated will have a maximum frequency of f

= f

OC1x

equation:

/4 when OCR1C is set to zero. The waveform frequency is defined by the following

clkT1

12.8.2 Fast PWM Mode

Resolution, R

, shows how many bit is required to express the value in the OCR1C register

PWM

and it can be calculated using the following equation:

The Output Compare Pin configurations in Normal Mode are descr ibed in Table 12-2.

Table 12-2. Output Compare Pin Configurations in Normal Mode

COM1x1 COM1x0 OC1x Pin OC1x Pin

0 0 Disconnected Disconnected 0 1 Disconnected OC1x 1 0 Disconnected OC1x 1 1 Disconnected OC1x

The fast Pulse Width Modulation or fast PWM mode (PWM1A/PWM1B = 1 and WGM1[1: 0] = 00) provides a high frequency PWM waveform generation option. The fast PWM differs from the other PWM option by its single-slope operation. The counter counts from BOTT OM to TOP (defined as OCR1C) then restarts from BOTTOM. In non-inverting Compare Output mode the Waveform Output (OCW1x) is cleared on the Compare Match between TCNT1 and OCR1x and set at BOTTOM. In inverting Compare Output mode, the Waveform Output is set on Compare Match and cleared at BOTTOM. In complementary Com pare Output mo de the Waveform Ou tput is cleared on the Compare Match and set at BOTTO M.

8197C–AVR–05/11

Due to the single-slope operation, the operating frequency of the fast PWM mode can be twice as high as the Phase and Frequency Correct PWM m ode that use dual-slope op eration. This high frequency makes the fast PWM mode well suited for power regulation, rectification, and

DAC applications. High frequency allows physically small sized external components (coils,

TCNTn

OCR nx Updat e and TOVn Interru pt Flag Set

Period

2 3

OCWnx

(COMnx[1 : 0 ] = 2)

(COMnx[1 : 0 ] = 3)

OCR nx Interrupt Flag Set

4 5 6 7

OCnxPWM

clkT1

------------ -=

capacitors), and therefore reduces total system cost. The timing diagram for the fast PWM mode is shown in Figure 12-12. The counter is incre-

mented until the counter value matches the TOP value. The counter is then cleared at the following timer clock cycle. The TCNT1 value is in the timing diagram shown as a histogram for illustrating the single-slope operation. The diagram includes the Waveform Output in noninverted and inverted Compare Output modes. The small horizonta l line marks on the TCNT1 slopes represent Compare Matches between OCR1x and TCNT1.

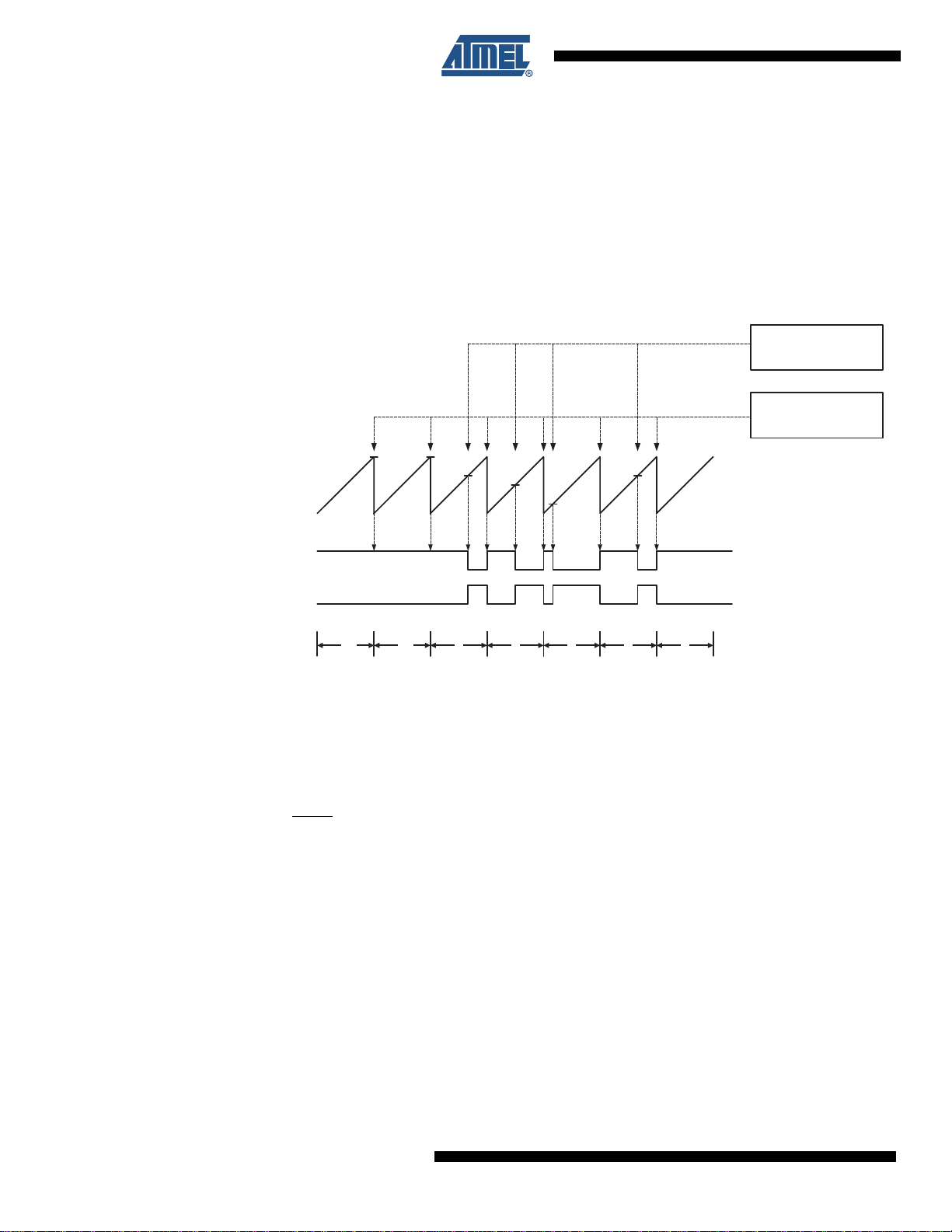

Figure 12-12. Fast PWM Mode, Timing Diagram

100

The Timer/Counter Overflow Flag (TOV1) is set each time the counter reaches TOP. If the interrupt is enabled, the interrupt handler routine can be used for updating the compare value.

In fast PWM mode, the compare unit allows generation of PWM waveforms on the OC1x pins. Setting the COM1x[1:0] bits to two will produce a non-inverted PWM and setting the COM1x[1:0] to three will produce an inverted PWM output. Setting the COM1x[1:0] bits to one will enable complementary Compare Output mode and produce both the non-inverted (OC1x) and inverted output (OC1x

). The actual value will only be visible on the port pin if the data direction for the port pin is set as output. The PWM waveform is generated by setting (or clearing) the Waveforn Output (OCW1x) at the Compare Match between OCR1x and TCNT1, and clearing (or setting) the Waveform Output at the timer clock cycle the counter is cleared (changes from TOP to BOTTOM).

The PWM frequency for the output can be calculated by the following equation:

The N variable represents the number of steps in single-slope operation. The value of N equals either to the TOP value.

The extreme values for the OCR1C Register represents special cases when generating a PWM waveform output in the fast PWM mode. If the OCR1C is set equal to BOTTOM, the output will be a narrow spike for each MAX+1 timer clock cycle. Setting the OCR1C equal to MAX will result

ATtiny261A/461A/861A

8197C–AVR–05/11

Atmel ATtiny261A, ATtiny461A, ATtiny861A Datasheet

Specifications and Main Features

Frequently Asked Questions

User Manual

Features

1. Pin Configurations

1.1 Pin Descriptions

1.1.1 VCC

1.1.2 GND

1.1.3 AVCC

1.1.4 AGND

1.1.5 Port A (PA7:PA0)

1.1.6 Port B (PB7:PB0)

RESET

2. Overview

2.1 Block Diagram

3. General Information

3.1 Resources

3.2 Code Examples

3.3 Capacitive Touch Sensing

3.4 Data Retention

4. CPU Core

4.1 Architectural Overview

4.2 ALU – Arithmetic Logic Unit

4.3 Status Register

4.3.1 SREG – AVR Status Register

4.4 General Purpose Register File

4.4.1 The X-register, Y-register, and Z-register

4.5 Stack Pointer

4.5.1 SPH and SPL – Stack Pointer Register

4.6 Instruction Execution Timing

4.7 Reset and Interrupt Handling

4.7.1 Interrupt Response Time

5. Memories

5.1 In-System Re-programmable Flash Program Memory

5.2 SRAM Data Memory

5.2.1 Data Memory Access Times

5.3 EEPROM Data Memory

5.3.1 EEPROM Read/Write Access

5.3.2 Atomic Byte Programming

5.3.3 Split Byte Programming

5.3.4 Erase

5.3.5 Write

5.3.6 Program Examples

5.3.7 Preventing EEPROM Corruption

5.4 I/O Memory

5.4.1 General Purpose I/O Registers

5.5 Register Description

5.5.1 EEARH – EEPROM Address Register

5.5.2 EEARL – EEPROM Address Register

5.5.3 EEDR – EEPROM Data Register

5.5.4 EECR – EEPROM Control Register

5.5.5 GPIOR2 – General Purpose I/O Register 2

5.5.6 GPIOR1 – General Purpose I/O Register 1

5.5.7 GPIOR0 – General Purpose I/O Register 0

6. Clock System

6.1 Clock Subsystems

6.2 Clock Sources

6.2.1 External Clock

6.2.2 High-Frequency PLL Clock

6.2.3 Calibrated Internal 8 MHz Oscillator

6.2.4 Internal 128 kHz Oscillator

6.2.5 Low-Frequency Crystal Oscillator

6.2.6 Crystal Oscillator / Ceramic Resonator

6.2.7 Default Clock Source

6.3 System Clock Prescaler

6.3.1 Switching Time

6.4 Clock Output Buffer

6.5 Register Description

6.5.1 OSCCAL – Oscillator Calibration Register

6.5.2 CLKPR – Clock Prescale Register

7. Power Management and Sleep Modes

7.1 Sleep Modes

7.1.1 Idle Mode

7.1.2 ADC Noise Reduction Mode

7.1.3 Power-Down Mode

7.1.4 Standby Mode

7.2 Software BOD Disable

7.3 Po wer Reduction Register

7.4 Minimizing Power Consumption
