Atmel ATtiny25-V, ATtiny45-V, ATtiny85-V User Manual

Atmel 8-bit AVR Microcontroller with 2/4/8K Bytes In-System Programmable Flash

ATtiny25/V / ATtiny45/V / ATtiny85/V

Features

• High Performance, Low Power AVR

• Advanced RISC Architecture

– 120 Powerful Instructions – Most Single Clock Cycle Execution – 32 x 8 General Purpose Working Registers – Fully Static Operation

• Non-volatile Program and Data Memories

– 2/4/8K Bytes of In-System Programmable Program Memory Flash

• Endurance: 10,000 Write/Erase Cycles

– 128/256/512 Bytes In-System Programmable EEPROM

• Endurance: 100,000 Write/Erase Cycles – 128/256/512 Bytes Internal SRAM – Programming Lock for Self-Programming Flash Program and EEPROM Data Security

• Peripheral Features

– 8-bit Timer/Counter with Prescaler and Two PWM Channels – 8-bit High Speed Timer/Counter with Separate Prescaler

• 2 High Frequency PWM Outputs with Separate Output Compare Registers

• Programmable Dead Time Generator – USI – Universal Serial Interface with Start Condition Detector – 10-bit ADC

• 4 Single Ended Channels

• 2 Differential ADC Channel Pairs with Programmable Gain (1x, 20x)

• Temperature Measurement – Programmable Watchdog Timer with Separate On-chip Oscillator – On-chip Analog Comparator

• Special Microcontroller Features

– debugWIRE On-chip Debug System – In-System Programmable via SPI Port – External and Internal Interrupt Sources – Low Power Idle, ADC Noise Reduction, and Power-down Modes – Enhanced Power-on Reset Circuit – Programmable Brown-out Detection Circuit – Internal Calibrated Oscillator

• I/O and Packages

– Six Programmable I/O Lines – 8-pin PDIP, 8-pin SOIC, 20-pad QFN/MLF, and 8-pin TSSOP (only ATtiny45/V)

• Operating Voltage

– 1.8 - 5.5V for ATtiny25V/45V/85V – 2.7 - 5.5V for ATtiny25/45/85

• Speed Grade

– ATtiny25V/45V/85V: 0 – 4 MHz @ 1.8 - 5.5V, 0 - 10 MHz @ 2.7 - 5.5V – ATtiny25/45/85: 0 – 10 MHz @ 2.7 - 5.5V, 0 - 20 MHz @ 4.5 - 5.5V

• Industrial Temperature Range

• Low Power Consumption

– Active Mode:

• 1 MHz, 1.8V: 300 µA – Power-down Mode:

• 0.1 µA at 1.8V

8-Bit Microcontroller

Rev. 2586Q–AVR–08/2013

2586Q–AVR–08/2013

1. Pin Configurations

1 2 3 4

8 7 6 5

(PCINT5/RESET/ADC0/dW) PB5

(PCINT3/XTAL1/CLKI/OC1B/ADC3) PB3

(PCINT4/XTAL2/CLKO/OC1B/ADC2) PB4

GND

VCC PB2 (SCK/USCK/SCL/ADC1/T0/INT0/PCINT2) PB1 (MISO/DO/AIN1/OC0B/OC1A/PCINT1) PB0 (MOSI/DI/SDA/AIN0/OC0A/OC1A/AREF/PCINT0)

PDIP/SOIC/TSSOP

1 2 3 4 5

QFN/MLF

15 14 13 12 11

2019181716

DNC

GND

DNC

NOTE: Bottom pad should be soldered to ground. DNC: Do Not Connect

NOTE: TSSOP only for ATtiny45/V

(PCINT5/RESET/ADC0/dW) PB5

(PCINT3/XTAL1/CLKI/OC1B/ADC3) PB3

DNC DNC

(PCINT4/XTAL2/CLKO/OC1B/ADC2) PB4

VCC PB2 (SCK/USCK/SCL/ADC1/T0/INT0/PCINT2) DNC PB1 (MISO/DO/AIN1/OC0B/OC1A/PCINT1) PB0 (MOSI/DI/SDA/AIN0/OC0A/OC1A/AREF/PCINT0)

Figure 1-1. Pinou t ATt iny25/45/85

1.1 Pin Descriptions

1.1.1 VCC

Supply voltage.

1.1.2 GND

Ground.

1.1.3 Port B (PB5:PB0)

Port B is a 6-bit bi-directional I/O port with internal pull-up resistors (selected for each bit). The Port B output buffers have symmetrical drive characteristics with both high sink and sour ce capability. As inputs, Port B pins that are externally pulled low will source current if the pull-up resistors are activated. The Port B pins are tri-stated when a reset condition becomes active, even if the clock is not running.

ATtiny25/45/85 [DATASHEET]

2586Q–AVR–08/2013

Port B also serves the functions of various special features of the ATtiny25/45/85 as listed in “Alternate Functions

of Port B” on page 60.

On ATtiny25, the programmable I/O ports PB3 and PB4 (pins 2 and 3) are exchanged in ATtiny15 Compatibility Mode for supporting the backward compatibility with ATtiny15.

1.1.4 RESET

Reset input. A low level on this pin for longer than the minimum pulse length will generate a reset, even if the clock is not running and provided the reset pin has not been disabled. The minimum pulse length is given in Table 21-4

on page 165. Shorter pulses are not guaranteed to generate a reset.

The reset pin can also be used as a (weak) I/O pin.

ATtiny25/45/85 [DATASHEET]

2586Q–AVR–08/2013

2. Overview

The ATtiny25/45/85 is a low-power CMOS 8-bit microcont roller based on the AVR enhanced RISC architecture. By executing powerful instructions in a single clock cycle, the ATtiny25/45/85 achieves throughputs approaching 1 MIPS per MHz allowing the system designer to optimize power consumption versus processing speed.

2.1 Block Diagram

Figure 2-1. Block Diagram

8-BIT DATABUS

CALIBRATED

INTERNAL

OSCILLATOR

VCC

GND

PROGRAM COUNTER

PROGRAM

FLASH

INSTRUCTION

DECODER

CONTROL

LINES

PROGRAMMING

LOGIC

STACK

POINTER

SRAM

GENERAL PURPOSE

REGISTERS

X Y Z

ALU

STATUS

DATA REGISTER

PORT B

WATCHDOG

TIMER

MCU CONTROL

MCU STATUS

TIMER/

COUNTER0

TIMER/

COUNTER1

UNIVERSAL

SERIAL

INTERFACE

INTERRUPT

UNIT

DATA

EEPROM

DATA DIR.

REG.PORT B

TIMING AND

CONTROL

OSCILLATORS

ADC /

ANALOG COMPARATOR

PORT B DRIVERS

RESET

PB[0:5]

The AVR core combines a rich instruction set with 32 general purpose working registers. All 32 registers are directly connected to the Arithmetic Logic Unit (ALU), allowing two independent registers to be accessed in one single instruction executed in one clock cycle. The resulting architecture is more code efficient while achieving throughputs up to ten times faster than conventional CISC microcontrollers.

ATtiny25/45/85 [DATASHEET]

2586Q–AVR–08/2013

The ATtiny25/45/85 provides the following features: 2/4/8K bytes of In-System Programmable Flash, 128/256/512 bytes EEPROM, 128/256/256 bytes SRAM, 6 general purpose I/O lines, 32 general purpose working registers, one 8-bit Timer/Counter with compare modes, one 8-bit high speed Timer/Counter, Universal Serial Interface, Internal and External Interrupts, a 4-channel, 10-bit ADC, a programmable Watchdog Timer with internal Oscillator, and three software selectable power saving modes. Idle mode stops the CPU while allowing the SRAM, Timer/Counter, ADC, Analog Comparator, and Interrupt system to continue functioning. Power-down mode saves the register contents, disabling all chip functions until the next Interrupt or Hardware Reset. ADC Noise Reduction mode stops the CPU and all I/O modules except ADC, to minimize switching noise during ADC conversions.

The device is manufactured using Atmel’s high density non-volatile memory technology. The On-chip ISP Flash allows the Program memory to be re-programmed In -System through an SPI ser ial interface, by a conventio nal non-volatile memory programmer or by an On-chip boot code running on the AVR core.

The ATtiny25/45/85 AVR is supported with a full suite of program and system development tools including: C Compilers, Macro Assemblers, Program Debugger/Simulators and Evaluation kits.

ATtiny25/45/85 [DATASHEET]

2586Q–AVR–08/2013

3. About

3.1 Resources

A comprehensive set of development tools, application notes and datasheets are available for download on http://www.atmel.com/avr.

3.2 Code Examples

This documentation contains simple code examples that briefly show how to use various parts of the device . These code examples assume that the part specific header file is included before compilation. Be aware that not all C compiler vendors include bit definitions in the header files and interrupt hand ling in C is compiler dependent. Please confirm with the C compiler documentation for more details.

For I/O Registers located in the extended I/O map, “IN”, “OUT”, “SBIS”, “SBIC”, “CBI”, and “SBI” instructions must be replaced with instructions that allow access to extended I/O. Typically, this means “LDS” and “STS” combined with “SBRS”, “SBRC”, “SBR”, and “CBR”. Note that not all AVR devices include an extended I/O map.

3.3 Capacitive Touch Sensing

Atmel QTouch Library provides a simple to use solution for touch sensitive interfaces on Atmel AVR microcontrollers. The QTouch Library includes support for QTouch

Touch sensing is easily added to any application by linking the QTouch Library and using the App lication Pro gramming Interface (API) of the library to define the touch channels and sensors. The application then calls the API to retrieve channel information and determine the state of the touch sensor.

and QMatrix® acquisition methods.

The QTouch Library is free and can be downloaded from the Atmel website. For more information and details of implementation, refer to the QTouch Library User Guide – also available from the Atmel website.

3.4 Data Retention

Reliability Qualification results show that the projected data retention failure rate is much less than 1 PPM over 20 years at 85°C or 100 years at 25°C.

ATtiny25/45/85 [DATASHEET]

2586Q–AVR–08/2013

4. AVR CPU Core

Flash

Program

Memory

Instruction

Decoder

Program

Counter

Control Lines

32 x 8

General

Purpose

Registrers

ALU

Status

and Control

I/O Lines

EEPROM

Data Bus 8-bit

Data

SRAM

Direct Addressing

Indirect Addressing

Interrupt

Unit

Watchdog

Timer

Analog

Comparator

I/O Module 2

I/O Module1

I/O Module n

4.1 Introduction

This section discusses the AVR core architecture in general. The main function of the CPU core is to ensure correct program execution. The CPU must therefore be able to access memories, perform calculations, control peripherals, and handle interrupts.

4.2 Architectural Overview

Figure 4-1. Block Diagram of the AVR Architecture

In order to maximize performance and parallelism, the AVR uses a Harvard architecture – with separate memories and buses for program and data. Instructions in the Program memory are executed with a single level pipelining. While one instruction is being executed, the next instruction is pre-fetched from the Program memory. This concept enables instructions to be executed in every clock cycle. The Program memory is In-System Reprogrammable Flash memory.

The fast-access Register File contains 32 x 8-bit general purpose working registers with a single clock cycle access time. This allows single-cycle Arithmetic Logic Unit (ALU) operation. In a typical ALU operation, two oper-

ATtiny25/45/85 [DATASHEET]

2586Q–AVR–08/2013

ands are output from the Register File, the operation is executed, and the result is stored back in the Register File – in one clock cycle.

Six of the 32 registers can be used as three 16-bit indirect address register pointers for Data Space addressing – enabling efficient address calculations. One of the these address pointers can also be used as an address pointer for look up tables in Flash Program memory. These added function registers are the 16-bit X-, Y-, and Z-register, described later in this section.

The ALU supports arithmetic and logic operations between registers or between a constant and a register. Single register operations can also be executed in the ALU. After an arithmetic operation, the Status Register is updated to reflect information about the result of the operation.

Program flow is provided by conditional and unconditional jump and call instructions, able to directly address the whole address space. Most AVR instructions have a single 16-bit word format, but there are also 32-bit instructions.

During interrupts and subroutine calls, the return address Program Counter (PC) is stored on the Stack. The Stack is effectively allocated in the general data SRAM, and consequently the Stack size is only limited by the total SRAM size and the usage of the SRAM. A ll user pro grams m ust initializ e the SP in the R eset ro utine ( before s ubroutines or interrupts are executed). The Stack Pointer (SP) is read/write accessible in the I/O space. The data SRAM can easily be accessed through the five different addressing modes supported in the AVR architecture.

The memory spaces in the AVR architecture are all linear and regular memory maps. A flexible interrupt module has its control registers in the I/O space with an additional Global Interrupt Enable bit in

the Status Register. All interrupts have a separate Interrupt Vector in the Interrupt Vector table. The interrupts have priority in accordance with their Interrupt Vector position. The lower the Interrupt Vector address, the higher the priority.

The I/O memory space contains 64 addresses for CPU peripheral fu nctions as Control Registers, SPI, and other I/O functions. The I/O memory can be accessed directly, or as the Data Space locations following those of the Register File, 0x20 - 0x5F.

4.3 ALU – Arithmetic Logic Unit

The high-performance AVR ALU operates in dire ct connection with all the 32 general pu rpose working registers. Within a single clock cycle, arithmetic operations between general purpose registers or between a register and an immediate are executed. The ALU operations are divided into three main categories – arithmetic, logical, and bitfunctions. Some implementations of the architecture also provide a powerful multiplier supporting both signed/unsigned multiplication and fractional format. See the “Instruction Set” section for a detailed description.

4.4 Status Register

The Status Register contains information about the result of the most recently executed arith metic instruction . This information can be used for altering program flow in order to perform conditional operations. Note that the Status Register is updated after all ALU operations, as specified in the Instruction Set Reference. This will in many cases remove the need for using the dedicated compare instructions, resulting in faster and more compact code.

The Status Register is not automatically stored when entering an interrupt routine and restored when returning from an interrupt. This must be handled by software.

ATtiny25/45/85 [DATASHEET]

2586Q–AVR–08/2013

4.4.1 SREG – AVR Status Register

The AVR Status Register – SREG – is defined as:

Bit 76543210 0x3F ITHSVNZCSREG Read/Write R/W R/W R/W R/W R/W R/W R/W R/W Initial Value00000000

• Bit 7 – I: Global Interrupt Enable

The Global Interrupt Enable bit must be set for the interrupts to be enabled. The individual interrupt enable control is then performed in separate control registers. If the Global Interrupt Enable Register is cleared, none of the interrupts are enabled independent of the individual interrupt enable settings. The I-bit is cleared by hardware after an interrupt has occurred, and is set by the RETI instruction to enable subsequent interrupts. The I-bit can also be set and cleared by the application with the SEI and CLI instructions, as described in the instruction set reference.

• Bit 6 – T: Bit Copy Storage

The Bit Copy instructions BLD (Bit LoaD) and BST (Bit STore) use the T-bit as source or destination for the operated bit. A bit from a register in the Register File can be copied into T by the BST instruction, and a bit in T can be copied into a bit in a register in the Register File by the BLD instruction.

• Bit 5 – H: Half Carry Flag

The Half Carry Flag H indicates a Half Carry in some arithmetic operations. Half Carry is useful in BCD arithmetic. See the “Instruction Set Description” for detailed information.

• Bit 4 – S: Sign Bit, S = N

 V

The S-bit is always an exclusive or between the Negative Flag N and the Two’s Complement Overflow Flag V. See the “Instruction Set Description” for detailed information.

• Bit 3 – V: Two’s Complement Overflow Flag

The Two’s Complement Overflow Flag V supports two’s complement arithmetics. See the “Instruction Set Description” for detailed information.

• Bit 2 – N: Negative Flag

The Negative Flag N indicates a negative result in an arithmetic or logic operation. See the “Instructio n Set Description” for detailed information.

• Bit 1 – Z: Zero Flag

The Zero Flag Z indicates a zero result in an arithmetic or logic operation. See the “Instruction Set Description” for detailed information.

• Bit 0 – C: Carry Flag

The Carry Flag C indicates a carry in an arithmetic or logic operation. See the “Instruction Set Description” for detailed information.

ATtiny25/45/85 [DATASHEET]

2586Q–AVR–08/2013

4.5 General Purpose Register File

The Register File is optimized for the AVR Enhanced RISC instruction set. In order to achieve the required performance and flexibility, the following input/output schemes are supported by the Register File:

• One 8-bit output operand and one 8-bit result input

• Two 8-bit output operands and one 8-bit result input

• Two 8-bit output operands and one 16-bit result input

• One 16-bit output operand and one 16-bit result input

Figure 4-2 shows the structure of the 32 general purpose working registers in the CPU.

Figure 4-2. AVR CPU General Purpose Working Registers

7 0 Addr.

General R14 0x0E Purpose R15 0x0F Working R16 0x10

Registers R17 0x11

R0 0x00 R1 0x01 R2 0x02

…

R13 0x0D

… R26 0x1A X-register Low Byte R27 0x1B X-register High Byte R28 0x1C Y-register Low Byte R29 0x1D Y-register High Byte R30 0x1E Z-register Low Byte R31 0x1F Z-register High Byte

Most of the instructions operating on the Register File have direct access to all registers, and most of them are single cycle instructions.

As shown in Figure 4-2, each register is also assigned a Data memory addr ess, mappi ng them directly in to th e first 32 locations of the user Data Space. Although not being physically implemented as SRAM locations, this memory organization provides great flexibility in access of the registers, as the X-, Y- and Z-pointer registers can be set to index any register in the file.

4.5.1 The X-register, Y-register, and Z-register

The registers R26..R31 have some added functions to their general purpose usage. These registers are 16-bit address pointers for indirect addressing of the data space. The three indirect add ress registers X, Y, an d Z are defined as described in Figure 4-3.

ATtiny25/45/85 [DATASHEET]

2586Q–AVR–08/2013

Figure 4-3. The X-, Y-, and Z-registers

X-register 7 0 7 0

Y-register 7 0 7 0

Z-register 7 0 7 0

In the different addressing modes these address registers have functions as fixed displacement, automatic increment, and automatic decrement (see the instruction set reference for details).

4.6 Stack Pointer

The Stack is mainly used for storing temporary data, for storing local variables and for storing re turn addresses after interrupts and subroutine calls. The Stack Pointer Register always points to the top of the Stack. Note that the Stack is implemented as growing from higher memory locations to lower memory locations. This implies that a Stack PUSH command decreases the Stack Pointer.

15 XH XL 0

R27 (0x1B) R26 (0x1A)

15 YH YL 0

R29 (0x1D) R28 (0x1C)

15 ZH ZL 0

R31 (0x1F) R30 (0x1E)

The Stack Pointer points to the data SRAM Stack area where the Subroutine and Interrupt Stacks are located. This Stack space in the data SRAM must be defined by the program before any subroutine calls are executed or interrupts are enabled. The Stack Pointer must be set to point above 0x60. The Stack Pointer is decremented by one when data is pushed onto the Stack with the PUSH instruction, and it is decremented by two when the return address is pushed onto the Stack with subroutine call or interrupt. The Stack Pointer is incremented by one when data is popped from the Stack with the POP instru ction, and it is incremented by two when data is popped from the Stack with return from subroutine RET or return from interrupt RETI.

The AVR Stack Pointer is implemented as two 8-bit registers in the I/O space. The n umber of bits actually used is implementation dependent. Note that the data space in some implementations of the AVR architecture is so small that only SPL is needed. In this case, the SPH Register will not be present.

4.6.1 SPH and SPL — Stack Pointer Register

Bit 151413121110 9 8 0x3E SP15 SP14 SP13 SP12 SP11 SP10 SP9 SP8 SPH 0x3D SP7 SP6 SP5 SP4 SP3 SP2 SP1 SP0 SPL

76543210 Read/Write R/W R/W R/W R/W R/W R/W R/W R/W Read/Write R/W R/W R/W R/W R/W R/W R/W R/W Initial Value Initial Value

RAMEND RAMEND RAMEND RAMEND RAMEND RAMEND RAMEND RAMEND RAMEND RAMEND RAMEND RAMEND RAMEND RAMEND RAMEND RAMEND

4.7 Instruction Execution Timing

This section describes the general access timing concepts for instruction execution. The AVR CPU is driven by the CPU clock clk

Figure 4-4 shows the parallel instruction fetches and instruction executions enabled by the Harvard architecture

and the fast access Register File concept. This is the basic pipelining concept to obtain up to 1 MIPS per MHz with the corresponding unique results for functions per cost, functions per clocks, and functions per power-unit.

, directly generated from the selected clock source for the chip. No internal clock division is used.

CPU

ATtiny25/45/85 [DATASHEET]

2586Q–AVR–08/2013

Figure 4-4. The Par alle l Instru ctio n F etc he s an d Instr uc tio n Exe cut ion s

clk

1st Instruction Fetch

1st Instruction Execute

2nd Instruction Fetch

2nd Instruction Execute

3rd Instruction Fetch

3rd Instruction Execute

4th Instruction Fetch

T1 T2 T3 T4

CPU

Total Execution Time

ALU Operation Execute

Result Write Back

T1 T2 T3 T4

clk

CPU

Figure 4-5 shows the internal timing concept for the Register File. In a single clock cycle an ALU operation using

two register operands is executed, and the result is stored back to the destinatio n re gis te r.

Figure 4-5. Single Cycle ALU Operation

4.8 Reset and Interrupt Handling

The AVR provides several different interrupt sources. These interrupts and the separate Reset Vector each have a separate Program Vector in the Program memory space. All interrupts are assigned individual enable bits which must be written logic one together with the Global Interrupt Enable bit in the Status Register in order to enable the interrupt.

The lowest addresses in the Program memory space are by default defined as the Reset and Interrupt Vectors. The complete list of vectors is shown in “Interrupts” on page 48. The list also determines the priority levels of the different interrupts. The lower the address the higher is the priority level. RESET has the highest priority, and next is INT0 – the External Interrupt Request 0.

When an interrupt occurs, th e G lob a l In te rr u pt En able I- bit is cleared and all interrupts a re di sa bled. T h e user software can write logic one to the I-bit to enable nested interrupts. All enabled interrupts can then interrupt the current interrupt routine. The I-bit is automatically set when a Return from Interrupt instruction – RETI – is executed.

There are basically two types of interrupts. The first type is triggered by an event that sets the Interrupt Flag. F or these interrupts, the Program Counter is vectored to the actual Interrupt Vector in order to execute the interrupt handling routine, and hardware clears the corresponding Interrupt F lag. Interr upt Flags can also b e cle ared by wri ting a logic one to the flag bit position(s) to be cleared. If an interrupt condition occurs while the corresponding interrupt enable bit is cleared, the Interrupt Flag will be set and remembered until the interrupt is enabled, or the flag is cleared by software. Similarly, if one or more interrupt conditions occur while the Global Interrupt Enable bit is cleared, the corresponding Interrupt Flag(s) will be set and remembered until the Global Interrupt Enable bit is set, and will then be executed by order of priority.

ATtiny25/45/85 [DATASHEET]

2586Q–AVR–08/2013

The second type of interrupts will trigger as long as the interrupt condition is present. These interrupts do not necessarily have Interrupt Flags. If the interrupt condition disappears before the interrupt is enabled, the interrupt will not be triggered.

When the AVR exits from an interrupt, it will always return to the main program and execute one more instruction before any pending interrupt is served.

Note that the Status Register is not automatically stored when entering an interrupt routine, nor restored when returning from an interrupt routine. This must be ha nd le d by softw ar e.

When using the CLI instruction to disable interrupts, the interrupts will be immediately disabled. No interrupt will be executed after the CLI instruction, even if it occurs simultaneously with the CLI instruction. The following example shows how this can be used to avoid interrupts during the timed EEPROM write sequence.

Assembly Code Example

in r16, SREG ; store SREG value

cli ; disable interrupts during timed sequence

sbi EECR, EEMPE ; start EEPROM write

sbi EECR, EEPE

out SREG, r16 ; restore SREG value (I-bit)

C Code Example

char cSREG;

cSREG = SREG; /* store SREG value */

/* disable interrupts during timed sequence */

_CLI();

EECR |= (1<<EEMPE); /* start EEPROM write */

EECR |= (1<<EEPE);

SREG = cSREG; /* restore SREG value (I-bit) */

When using the SEI instruction to enable interrupts, the instruction following SEI will be executed before any pending interrupts, as shown in this example.

Assembly Code Example

sei ; set Global Interrupt Enable

sleep; enter sleep, waiting for interrupt

; note: will enter sleep before any pending

; interrupt(s)

C Code Example

_SEI(); /* set Global Interrupt Enable */

_SLEEP(); /* enter sleep, waiting for interrupt */

/* note: will enter sleep before any pending interrupt(s) */

4.8.1 Interrupt Response Time

The interrupt execution response for all the enabled AVR interrupts is four clock cycles minimum. After four clock cycles the Program Vector address for the actual interrupt handling ro utine is executed. During this four clock cycle period, the Program Counter is pushed onto the Stack. The vector is normally a jump to the interrupt routine, and this jump takes three clock cycles. If an interrupt occurs during execution of a multi-cycle instruction, this instruction is completed before the interrupt is served. If an interrupt occurs when the MCU is in sleep mo de, the interrupt execution response time is increased by four clock cycles. This in crease comes in a ddition to the start-up time from the selected sleep mode.

ATtiny25/45/85 [DATASHEET]

2586Q–AVR–08/2013

A return from an interrupt handling routine takes four clock cycles. During the se four clock cycles, the Program Counter (two bytes) is popped back from the Stack, the Stack Pointer is incremented by two, and the I-b it in SREG is set.

ATtiny25/45/85 [DATASHEET]

2586Q–AVR–08/2013

5. AVR Memories

0x0000

0x03FF/0x07FF/0x0FFF

Program Memory

This section describes the different memories in the ATtiny25/45/85. Th e AVR architectu re has two main m emory spaces, the Data memory and the Program memory space. In addition, the ATtiny25/45/85 features an EEPROM Memory for data storage. All three memory spaces are linear and regular.

5.1 In-System Re-programmable Flash Program Memory

The ATtiny25/45/85 contains 2/4/8K bytes On-chip In-System Reprogrammable Flash memory for program storage. Since all AVR instructions are 16 or 32 bits wide, the Flash is organized as 1024/2048/4096 x 16.

The Flash memory has an endur ance of at leas t 10,000 write/erase cycles. The ATtiny25/45/85 Program Counter (PC) is 10/11/12 bits wide, thus addressing the 1024/2048/4096 Program memory locations. “Memory Program-

ming” on page 147 contains a detailed description on Flash data serial downloading using the SPI pins.

Constant tables can be allocated within the entire Program memory address space (see the LPM – Load Program memory instruction description).

Timing diagrams for instruction fetch and execution are presented in “Instruction Execution Timing” on page 11.

Figure 5-1. Program Memory Map

5.2 SRAM Data Memory

Figure 5-2 shows how the ATtiny25/45/85 SRAM Memory is organi ze d.

The lower 224/352/607 Data memory locations address both the Register File, the I/O memory and the internal data SRAM. The first 32 locations address the Register File, the next 64 locations the standard I/O memory, and the last 128/256/512 locations address the internal data SRAM.

The five different addressing modes for the Data memory cover: Direct, Indirect with Displacement, Indirect, Indirect with Pre-decrement, and Indirect with Post-increment. In the Register File, registers R26 to R31 feature the indirect addressing pointer registers.

The direct addressing reaches the entire data space. The Indirect with Displacement mode reaches 63 address locations from the base address given by the Y- or Z-

registers X, Y, and Z are decremented or incremented. The 32 general purpose working registers, 64 I/O Registers, and the 128/256/512 bytes of internal data SRAM in

the ATtiny25/45/85 are all accessible through all these addressing modes. The Register File is described in “Gen-

eral Purpose Register File” on page 10.

ATtiny25/45/85 [DATASHEET]

2586Q–AVR–08/2013

Figure 5-2. Data Memory Map

32 Registers

64 I/O Registers

Internal SRAM

(128/256/512 x 8)

0x0000 - 0x001F 0x0020 - 0x005F

0x0DF/0x015F/0x025F

0x0060

Data Memory

clk

Data

Address

Address valid

T1 T2 T3

Compute Address

Read

Write

CPU

Memory Access Instruction

Next Instruction

5.2.1 Data Memory Access Times

This section describes the general access timing concepts for internal memory access. The internal data SRAM access is performed in two clk

CPU

Figure 5-3. On-chip Data SRAM Access Cycles

cycles as described in Figure 5-3.

5.3 EEPROM Data Memory

5.3.1 EEPROM Read/Write Access

The ATtiny25/45/85 contains 128/256/512 bytes of data EEPROM memory. It is organized as a separate data space, in which single bytes can be read and written. The EEPROM has an endurance of at least 100,000 write/erase cycles. The access between the EEPROM and the CPU is described in the following, specifying the EEPROM Address Registers, the EEPROM Data Register, and the EEPROM Control Register. For details see

“Serial Downloading” on page 151.

The EEPROM Access Registers are accessible in the I/O space. The write access times for the EEPROM are given in Table 5-1 on page 21. A self-timing function, however, lets

the user software detect when the next byte can b e written. If the user cod e contains instructions that wr ite the EEPROM, some precautions must be taken. In heavily filtered power supplies, V Power-up/down. This causes the device for some period of time to run at a voltage lower than sp ecified as mini-

is likely to rise or fall slowly on

mum for the clock frequency used. See “Preventing EEPROM Corruption” on page 19 for details on how to avoid problems in these situations.

In order to prevent unintentional EEPROM writes, a specific write procedure must be followed. Refer to “Atomic

Byte Programming” on page 17 and “Split Byte Programming” on page 17 for details on this.

ATtiny25/45/85 [DATASHEET]

2586Q–AVR–08/2013

When the EEPROM is read, the CPU is halted for four clock cycles before the next instruction is executed. When the EEPROM is written, the CPU is halted for two clock cycles before the next instruction is executed.

5.3.2 Atomic Byte Programming

Using Atomic Byte Programming is the simplest mode. When writing a byte to the EEPROM, the user must write the address into the EEAR Register and data into EEDR Register. If the EEPMn bits are zero, writing EEPE (within four cycles after EEMPE is written) will trigger the erase/write operation. Both the erase and write cycle are done in one operation and the total programming time is given in Table 5-1 on page 21. The EEPE bit remains set until the erase and write operations are completed. While the device is busy with programming, it is not possible to do any other EEPROM operations.

5.3.3 Split Byte Programming

It is possible to split the erase and write cycle in two different operations. This may be useful if the system requires short access time for some limited period of time (typically if the power supply vo ltage falls). In order to ta ke adva ntage of this method, it is required that the locations to be written have been erased before the write operation. But since the erase and write operations are split, it is possible to do the erase operations when the system allows doing time-critical operations (typically after Power-up).

5.3.4 Erase

To erase a byte, the address must be written to EEAR. If the EEPMn bits are 0b01, writing the EEPE (within four cycles after EEMPE is written) will trigger the erase operation only (programming time is given in Table 5-1 on

page 21). The EEPE bit remains set until the erase operation completes. While the device is busy programming, it

is not possible to do any other EEPROM operations.

5.3.5 Write

To write a location, the user must write the address into EEAR and the data into EEDR. If the EEPMn bits are 0b10, writing the EEPE (within four cycles after EEMPE is written) will trigger the write operation only (programming time is given in Table 5-1 on page 21). The EEPE bit remains set until the write operation completes. If the location to be written has not been erased before write, the data that is stored must be considered as lost. While the device is busy with programming, it is not po ssib le to do any oth e r E EPRO M op e ra tio ns .

The calibrated Oscillator is used to time the EEPROM accesses. Make sure the Oscillator frequency is within the requirements described in “OSCCAL – Oscillator Calibration Register” on page 31.

ATtiny25/45/85 [DATASHEET]

2586Q–AVR–08/2013

The following code examples show one assembly and one C function for erase, write, or atomic write of the EEPROM. The examples assume that interrupts are controlled (e.g., by disabling interrupts globally) so that no interrupts will occur during execution of these functions.

Assembly Code Example

EEPROM_write:

; Wait for completion of previous write

sbic EECR,EEPE

rjmp EEPROM_write

; Set Programming mode

ldi r16, (0<<EEPM1)|(0<<EEPM0)

out EECR, r16

; Set up address (r18:r17) in address register

out EEARH, r18

out EEARL, r17

; Write data (r19) to data register

out EEDR, r19

; Write logical one to EEMPE

sbi EECR,EEMPE

; Start eeprom write by setting EEPE

sbi EECR,EEPE

ret

C Code Example

void EEPROM_write(unsigned char ucAddress, unsigned char ucData)

{

/* Wait for completion of previous write */

while(EECR & (1<<EEPE))

;

/* Set Programming mode */

EECR = (0<<EEPM1)|(0<<EEPM0);

/* Set up address and data registers */

EEAR = ucAddress;

EEDR = ucData;

/* Write logical one to EEMPE */

EECR |= (1<<EEMPE);

/* Start eeprom write by setting EEPE */

EECR |= (1<<EEPE);

}

ATtiny25/45/85 [DATASHEET]

2586Q–AVR–08/2013

The next code examples show assembly and C functions for reading the EEPROM. The examples assume that interrupts are controlled so that no interrupts will occur during execution of these functions.

Assembly Code Example

EEPROM_read:

; Wait for completion of previous write

sbic EECR,EEPE

rjmp EEPROM_read

; Set up address (r18:r17) in address register

out EEARH, r18

out EEARL, r17

; Start eeprom read by writing EERE

sbi EECR,EERE

; Read data from data register

in r16,EEDR

ret

C Code Example

unsigned char EEPROM_read(unsigned char ucAddress)

{

/* Wait for completion of previous write */

while(EECR & (1<<EEPE))

;

/* Set up address register */

EEAR = ucAddress;

/* Start eeprom read by writing EERE */

EECR |= (1<<EERE);

/* Return data from data register */

return EEDR;

}

5.3.6 Preventing EEPROM Corruption

During periods of low V

, the EEPROM data can be corrupted becaus e the s upply voltag e is too low fo r the CPU

and the EEPROM to operate properly. These issues are the sam e as for bo ar d level syste ms using EEPROM, and the same design solutions should be applied.

An EEPROM data corruption can be caused by two situations when the voltage is too low. First, a regular write sequence to the EEPROM requires a minimum voltage to operate correctly. Secondly, the CPU itself can execute instructions incorrectly, if the supply voltage is too low.

EEPROM data corruption can easily be avoided by following this design recommendation: Keep the AVR RESET active (low) during periods of insufficient power supply voltage. This can be done by

enabling the internal Brown-out Detector (BOD). If the detection level of the internal BOD does not match the needed detection level, an external low V operation is in progress, the write operation will be completed provided that the power supply voltage is sufficient.

5.4 I/O Memory

The I/O space definition of the ATtiny25/45/ 85 is show n in “Register Summary” on page 200.

reset protection circuit can be used. If a reset occurs while a write

ATtiny25/45/85 [DATASHEET]

2586Q–AVR–08/2013

All ATtiny25/45/85 I/Os and peripherals are placed in the I/O space. All I/O locations may be accessed by the LD/LDS/LDD and ST/STS/STD instructions, transferring data between the 32 general purpose working registers and the I/O space. I/O Registers within the address range 0x00 - 0 x1F are d irectly bit-a ccessible using the SBI and CBI instructions. In these registers, the value of single bits can be checked by using the SBIS a nd SBIC instructions. Refer to the instruction set section for more details. When using the I/O specific commands IN and OUT, the I/O addresses 0x00 - 0x3F mu st b e used. When addressing I/O Registers as data space using LD and ST instructions, 0x20 must be added to these addresses.

For compatibility with future devices, reserved bits should be written to zero if accessed. Reserved I/O memory addresses should never be written.

Some of the Status Flags are cleared by writing a logical one to them. Note that the CBI and SBI instructions will only operate on the specified bit, and can therefore be used on registers containing such Status Flags. The CBI and SBI instructions work with registers 0x00 to 0x1F only.

The I/O and Peripherals Control Registers are explained in later sections.

5.5 Register Description

5.5.1 EEARH – EEPROM Address Register

Bit 76543210 0x1F – – – – – – –EEAR8EEARH Read/Write RRRRRRRR/W Initial Value0000000X/0

• Bits 7:1 – Res: Reserved Bits

These bits are reserved for future use and will always read as zero.

• Bits 0 – EEAR8: EEPROM Address

This is the most significant EEPROM address bit of ATtiny85. In devices with less EEPROM, i.e. ATtiny25/ATtiny45, this bit is reserved and will always read zero. The initial value of the EEPROM Address Register (EEAR) is undefined and a proper value must therefore be written before the EEPROM is accessed.

5.5.2 EEARL – EEPROM Address Register

Bit 0x1E EEAR7 EEAR6 EEAR5 EEAR4 EEAR3 EEAR2 EEAR1 EEAR0 EEARL Rear/Write R/W R/W R/W R/W R/W R/W R/W R/W Initial Value XXXXXXXX

• Bit 7 – EEAR7: EEPROM Address

This is the most significant EEPROM address bit of ATtiny45. In devices with less EEPROM, i.e. ATtiny25, this bit is reserved and will always read zero. The initial value of the EEPROM Address Register (EEAR) is undefined and a proper value must therefore be written before the EEPROM is accessed.

• Bits 6:0 – EEAR[6:0]: EEPROM Address

These are the (low) bits of the EEPROM Address Register. The EEPROM data bytes are addressed linearly in the range 0...(128/256/512-1). The initial value of EEAR is undefined and a proper value must be therefore be written before the EEPROM may be accessed.

ATtiny25/45/85 [DATASHEET]

2586Q–AVR–08/2013

5.5.3 EEDR – EEPROM Data Register

Bit 76543210 0x1D EEDR7 EEDR6 EEDR5 EEDR4 EEDR3 EEDR2 EEDR1 EEDR0 EEDR Read/Write R/W R/W R/W R/W R/W R/W R/W R/W Initial Value00000000

• Bits 7:0 – EEDR[7:0]: EEPROM Data

For the EEPROM write operation the EEDR Register contains the data to be written to the EEPROM in the address given by the EEAR Register. For the EEPROM read operation, the EEDR contains the data read out from the EEPROM at the address given by EEAR.

5.5.4 EECR – EEPROM Control Register

Bit 76543210 0x1C – – EEPM1 EEPM0 EERIE EEMPE EEPE EERE EECR Read/Write R R R/W R/W R/W R/W R/W R/W Initial Value 0 0 X X 0 0 X 0

• Bit 7 – Res: Reserved Bit

This bit is reserved for future use and will always read as 0 in ATtiny25/45/85. For compatibility with future AVR devices, always write this bit to zero. After reading, mask out this bit.

• Bit 6 – Res: Reserved Bit

This bit is reserved in the ATtiny25/45/85 and will always read as zero.

• Bits 5:4 – EEPM[1:0]: EEPROM Programming Mode Bits

The EEPROM Programming mode bits setting defines which programming action that will be triggered when writing EEPE. It is possible to program data in one atomic operation (erase the old value and program the new value) or to split the Erase and Write operations in two different op erations. The Programming times for the different modes are shown in Table 5-1. While EEPE is set, any write to EEPMn will be ignored. During reset, the EEPMn bits will be reset to 0b00 unless the EEPROM is busy programming.

Table 5-1. EEPROM Mode Bits

Programming

EEPM1 EEPM0

0 0 3.4 ms Erase and Write in one operation (Atomic Operation) 0 1 1.8 ms Erase Only 1 0 1.8 ms Write Only 1 1 – Reserved for future use

Time Operation

• Bit 3 – EERIE: EEPROM Ready Interrupt Enable

Writing EERIE to one enables the EEPROM Ready Interrupt if the I-bit in SREG is set. Writing EERIE to zero disables the interrupt. The EEPROM Ready Interrupt generates a constant interrupt when Non-volatile memory is ready for programming.

• Bit 2 – EEMPE: EEPROM Master Program Enable

The EEMPE bit determines whether writing EEPE to one will have effect or not. When EEMPE is set, setting EEPE within four clock cycles will program the EEPROM at the selected address. If

EEMPE is zero, setting EEPE will have no effect. When EEMPE has been written to one by software, hardware clears the bit to zero after four clock cycles.

ATtiny25/45/85 [DATASHEET]

2586Q–AVR–08/2013

• Bit 1 – EEPE: EEPROM Program Enable

The EEPROM Program Enable Signal EEPE is the programming enable signal to the EEPROM. When EEPE is written, the EEPROM will be programmed according to the EEPMn bits setting. The EEMPE bit must be written to one before a logical one is written to EEPE, otherwise no EEPROM write takes place. When the write access time has elapsed, the EEPE bit is cleared by hardware. When EEPE has been set, the CPU is halted for two cycles before the next instruction is executed.

• Bit 0 – EERE: EEPROM Read Enable

The EEPROM Read Enable Signal – EERE – is the read strobe to the EEPROM. When the correct address is set up in the EEAR Register, the EERE bit must be written to one to trigger the EEPROM read. The EEPROM read access takes one instruction, and the requested data is available immediately. When the EEPROM is read, the CPU is halted for four cycles before the next instruction is executed. The user should poll the EEPE bit before star ting the read operation. If a write operation is in progress, it is neither possible to read the EEPROM, nor to change the EEAR Register.

ATtiny25/45/85 [DATASHEET]

2586Q–AVR–08/2013

6. System Clock and Clock Options

General I/O

Modules

CPU Core RAM

clk

I/O

AVR Clock

Control Unit

clk

CPU

Flash and EEPROM

clk

FLASH

Source clock

Watchdog Timer

Watchdog

Oscillator

Reset Logic

Clock

Multiplexer

Watchdog clock

Calibrated RC

Oscillator

Calibrated RC

Oscillator

External Clock

ADC

clk

ADC

Crystal

Oscillator

Low-Frequency

Crystal Oscillator

System Clock

Prescaler

PLL

Oscillator

clk

PCK

clk

PCK

6.1 Clock Systems and their Distribution

Figure 6-1 presents the principal clock systems in the AVR and their distribution. All of the clocks need not be

active at a given time. In order to reduce power consumption, the clocks to modules not being used can be halted by using different sleep modes, as described in “Power Management and Sleep Modes” o n page 34. The clock systems are detailed below.

Figure 6-1. Clock Distribution

6.1.1 CPU Clock – clk

The CPU clock is routed to parts of the system concerned with operation of the AVR core. Examples of such modules are the General Purpose Register File, the Status Register and the Data memory holdin g the Stack Pointer. Halting the CPU clock inhibits the core from performing general operations and calculations.

6.1.2 I/O Clock – clk

The I/O clock is used by the majority of the I/O modules, like Timer/Counter. The I/O clock is also used by the External Interrupt module, but note that some external interrupts are detected by asynchronous logic, allowing such interrupts to be detected even if the I/O clock is halted.

6.1.3 Flash Clock – clk

The Flash clock controls operation of the Flash interface. The Flash clock is usually active simultaneously with the CPU clock.

CPU

I/O

FLASH

ATtiny25/45/85 [DATASHEET]

2586Q–AVR–08/2013

6.1.4 ADC Clock – clk

1/2

8 MHz

LSM

8.0 MHz

OSCILLATOR

PLL

CKSEL[3:0]PLLEOSCCAL

4 MHz

1/4

LOCK

DETECTOR

PRESCALER

CLKPS[3:0]

SYSTEM

CLOCK

PLOCK

PCK

OSCILLATORS

XTAL1

XTAL2

64 / 32 MHz

8 MHz

16 MHz

The ADC is provided with a dedicated c l oc k do m ain. T h is a llows halting the CPU and I/O clocks in order to reduce noise generated by digital circuitry. This gives more accurate ADC conversion results.

ADC

6.1.5 Internal PLL for Fast Peripheral Clock Generation - clk

The internal PLL in ATtiny25/45/85 gene rates a clock frequency that is 8x m ultiplied from a source input. By default, the PLL uses the output of the internal, 8.0 MHz RC oscillator as source. Alternatively, if bit LSM of PLLCSR is set the PLL will use the output of the RC oscillator divided by two. Thus the output of the PLL, the fast peripheral clock is 64 MHz. The fast peripheral clock, or a clock prescaled from that, can be selected as the clock source for Timer/Counter1 or as a system clock. See Figure 6-2. The frequency of the fast peripheral clock is divided by two when LSM of PLLCSR is set, resulting in a clock frequency of 32 MHz. Note, that LSM can not be set if PLL

is used as system clock.

CLK

Figure 6-2. PCK Clocking System.

The PLL is locked on the RC oscillator and adjusting the RC oscillator via OSCCAL register will adjust the fast peripheral clock at the same time. However, even if the RC oscillator is taken to a higher fre quency than 8 MHz, the fast peripheral clock frequency saturates at 85 MHz (worst case) and remains oscillating at the maximum frequency. It should be noted that the PLL in this case is not locked any longer with the RC oscillator clock. Therefore, it is recommended not to take the OSCCAL adjustments to a higher frequency tha n 8 MHz in orde r to keep the PLL in the correct operating range.

PCK

The internal PLL is enabled when:

• The PLLE bit in the register PLLCSR is set.

• The CKSEL fuse is programmed to ‘0001’.

• The CKSEL fuse is programmed to ‘0011’.

The PLLCSR bit PLOCK is set when PLL is locked. Both internal RC oscillator and PLL are switched off in power down and stand-by sleep modes.

6.1.6 Internal PLL in ATtiny15 Compatibility Mode

Since ATtiny25/45/85 is a migration device for ATtiny15 users there is an ATtiny15 compatibility mode for backward compatibility. The ATtiny15 compatibility mode is selected by programming the CKSEL fuses to ‘0011’.

In the ATtiny15 compatibility mode the frequency of the internal RC oscillator is calibrated down to 6.4 MHz and the multiplication factor of the PLL is set to 4x. See Figure 6-3. With these adjustments the clocking system is ATtiny15-compatible and the resulting fast peripheral clock has a frequency of 25.6 MHz (same as in ATtiny15).

ATtiny25/45/85 [DATASHEET]

2586Q–AVR–08/2013

Figure 6-3. PCK Clocking System in ATtiny15 Compatibility Mode.

1/2

1.6 MHz

6.4 MHz

OSCILLATOR

PLL

PLLEOSCCAL

3.2 MHz

LOCK

DETECTOR

SYSTEM

CLOCK

PLOCK

PCK

25.6 MHz

1/4

Note that low speed mode is not implemented in ATtiny15 compatibility mode.

6.2 Clock Sources

The device has the following clock source options, selectable by Flash Fuse bits as shown below. The clock from the selected source is input to the AVR clock generator, and routed to the appropriate modules.

Table 6-1. Device Clocking Options Select

Device Clocking Option CKSEL[3:0]

External Clock (see page 26) 0000

(1)

High Frequency PLL Clock (see page 26) 0001 Calibrated Internal Oscillator (see page 27) 0010 Calibrated Internal Oscillator (see page 27) 0011

(2)

(3)

Internal 128 kHz Oscillator (see page 28) 0100 Low-Frequency Crystal Oscillator (see page 29)0110 Crystal Oscillator / Ceramic Resonator (see page 29) 1000 – 1111 Reserved 0101, 0111

Note: 1. For all fuses “1” means unprogrammed while “0” means programmed.

2. The device is shipped with this option selected.

3. This will select ATtiny15 Compatibility Mode, where system clock is divided by four, resulting in a 1.6 MHz clock frequency. For more inormation, see “Calibrated Internal Oscillator” on page 27.

The various choices for each clocking option is given in the following sections. When the CPU wakes up from Power-down, the selected clock source is used to time the start-up, ensuring stable Oscillator operatio n before instruction execution starts. When the CPU starts from reset, there is an additional delay allowing the power to reach a stable level before commencing normal operation. The Watchdog Oscillator is used for timing this real-time part of the start-up time. The number of WDT Oscillator cycles used for each time-out is shown in Table 6-2.

Table 6-2. Number of Watchdog Oscillator Cycles

Typ Time-out Number of Cycles

4 ms 512

64 ms 8K (8,192)

ATtiny25/45/85 [DATASHEET]

2586Q–AVR–08/2013

6.2.1 External Clock

EXTERNAL

CLOCK

SIGNAL

CLKI

GND

To drive the device from an external clock source, CLKI should be driven a s shown in Figure 6-4 . To run the dev ice on an external clock, the CKSEL Fuses must be programmed to “00”.

Figure 6-4. External Clock Drive Configuration

When this clock source is selected, start-up times are determined by the SUT Fuses as shown in Table 6-3.

Table 6-3. Start-up Times for the External Clock Selection

Start-up Time from

SUT[1:0]

00 6 CK 14CK BOD enabled 01 6 CK 14CK + 4 ms Fast rising power 10 6 CK 14CK + 64 ms Slowly rising power 11 Reserved

Power-down

When applying an external clock, it is required to avoid sudden changes in the applied clock frequency to ensure stable operation of the MCU. A variation in frequency of more than 2% from one clock cycle to the next can lead to unpredictable behavior. It is required to ensure that the MCU is kept in Reset during such change s in the clock frequency.

Note that the System Clock Prescaler can be used to implement run-time changes of the internal clock frequency while still ensuring stable operation. Refer to “System Clock Prescaler” on page 31 for details.

6.2.2 High Frequency PLL Clock

There is an internal PLL that provides nominally 64 MHz clock rat e locked to the RC Oscillator for the use of th e Peripheral Timer/Counter1 and for the system clock sour ce. When selected as a system clock source, by p rogramming the CKSEL fuses to ‘0001’, it is divided by four like shown in Table 6-4.

Table 6-4. High Frequency PLL Clock Operating Modes

Additional Delay from

Reset Recommended Usage

CKSEL[3:0] Nominal Frequency

0001 16 MHz

When this clock source is selected, start-up times are determined by the SUT fuses as shown in Table 6-5.

Table 6-5. Start-up Times for the High Frequency PLL Clock

Start-up Time from

SUT[1:0]

00 14CK + 1K (1024) CK + 4 ms 4 ms BOD enabled

Power Down

Additional Delay from

Power-On Reset (VCC = 5.0V)

Recommended usage

ATtiny25/45/85 [DATASHEET]

2586Q–AVR–08/2013

Table 6-5. Start-up Times for the High Frequency PLL Clock

Start-up Time from

SUT[1:0]

01 14CK + 16K (16384) CK + 4 ms 4 ms Fast rising power 10 14CK + 1K (1024) CK + 64 ms 4 ms Slowly rising power 11 14CK + 16K (16384) CK + 64 ms 4 ms Slowly rising power

Power Down

6.2.3 Calibrated Internal Oscillator

By default, the Internal RC Oscillator provides an approximate 8.0 MHz clock. Though voltage and temperature dependent, this clock can be very accurately calibrated by the user. See “Calibrated Internal RC Oscillator Accu-

racy” on page 164 and “Internal Oscillator Speed” on page 192 for more details. The device is shipped with the

CKDIV8 Fuse programmed. See “System Clock Prescaler” on page 31 for more details. This clock may be selected as the system clock by programming the CKSEL Fuses as shown in Table 6-6 on page

27. If selected, it will operate with no external components. During reset, hardware loads the pre-programmed cali-

bration value into the OSCCAL Register and thereby automatically calibrates the RC Oscillator. The accuracy of this calibration is shown as Factory calibration in Table 21-2 on page 164.

By changing the OSCCAL register from SW, see “OSCCAL – Oscillator Calibration Register” on page 31, it is possible to get a higher calibration accuracy than by using the factory calibration. The accuracy of this calibration is shown as User calibration in Table 21-2 on page 164.

When this Oscillator is used as the chip clock, the Watchdog Oscillator will still be used for the Watchdog Timer and for the Reset Time-out. For more information on the pre-programmed calibration value, see the section “Cali-

bration Bytes” on page 150.

Additional Delay from

Power-On Reset (VCC = 5.0V)

Recommended usage

The internal oscillator can also be set to provide a 6.4 MHz clock by writing CKSEL fuses to “0011”, as shown in

Table 6-6 below. This setting is reffered to as ATtiny15 Compatibility Mode and is intended to provide a calibrated

clock source at 6.4 MHz, as in ATtiny15. In ATtiny15 Compatibility Mode the PLL uses the internal oscillator running at 6.4 MHz to generate a 25.6 MHz peripheral clock signal for Timer/Counter1 (see “8-bit Timer/Counter1 in

ATtiny15 Mode” on page 95). Note that in this mode of operation the 6.4 MHz clock signal is always divided by

four, providing a 1.6 MHz system clock.

Table 6-6. Internal Calibrated RC Oscillator Operating Modes

CKSEL[3:0] Nominal Frequency

(1)

0010

(2)

0011

Note: 1. The device is shipped with this option selected.

2. This setting will select ATtiny15 Compatibility Mode, where system clock is divided by four, resulting in a 1.6 MHz clock frequency.

8.0 MHz

6.4 MHz

ATtiny25/45/85 [DATASHEET]

2586Q–AVR–08/2013

When the calibrated 8 MHz internal oscillator is selected as clock source the start-up times are determined by the SUT Fuses as shown in Table 6-7 below.

Table 6-7. Start-up Times for Internal Calibrated RC Oscillator Clock

Start-up Time

SUT[1:0]

00 6 CK 14CK 01 6 CK 14CK + 4 ms Fast rising power

(2)

11 Reserved

Note: 1. If the RSTDISBL fuse is programmed, this start-up time will be increased to 14CK + 4 ms to ensure programming

mode can be entered.

2. The device is shipped with this option selected.

from Power-down

6 CK 14CK + 64 ms Slowly rising power

Additional Delay from

Reset (VCC = 5.0V) Recommended Usage

(1)

BOD enabled

In ATtiny15 Compatibility Mode start-up times are determined by SUT fuses as shown in Table 6-8 below.

Table 6-8. Start-up Times for Internal Calibrated RC Oscillator Clock (in ATtiny15 Mode)

Start-up Time

SUT[1:0]

00 6 CK 14CK + 64 ms 01 6 CK 14CK + 64 ms 10 6 CK 14CK + 4 ms 11 1 CK 14CK

from Power-down

Additional Delay from

Reset (VCC = 5.0V) Recommended Usage

(1)

Note: 1. If the RSTDISBL fuse is programmed, this start-up time will be increased to 14CK + 4 ms to ensure programming

mode can be entered.

In summary, more information on ATtiny15 Compatibility Mode can be found in sections “Port B (PB5:PB0)” on

page 2, “Internal PLL in ATtiny15 Compatibility Mo de” on page 24, “ 8-bit Timer/Counter1 in ATtiny15 Mode” on page 95, “Limitations of debugWIRE” on page 140, “Calibration Bytes” on page 150 and in table “Clock Prescaler Select” on page 33.

6.2.4 Internal 128 kHz Oscillator

The 128 kHz internal Oscillator is a low power Oscillator providing a clock of 128 kHz. The frequency is nominal at 3V and 25C. This clock may be select as the system clock by programming the CKSEL Fuses to “0100”.

When this clock source is selected, start-up times are determined by the SUT Fuses as shown in Table 6-9.

Table 6-9. Start-up Times for the 128 kHz Internal Oscillator

Start-up Time from

SUT[1:0]

00 6 CK 14CK 01 6 CK 14CK + 4 ms Fast rising power 10 6 CK 14CK + 64 ms Slowly rising power 11 Reserved

Power-down

Additional Delay from

Reset Recommended Usage

(1)

BOD enabled

ATtiny25/45/85 [DATASHEET]

2586Q–AVR–08/2013

Note: 1. If the RSTDISBL fuse is programmed, this start-up time will be increased to 14CK + 4 ms to ensure programming

XTAL2

XTAL1

GND

mode can be entered.

6.2.5 Low-Frequency Crystal Oscillator

To use a 32.768 kHz watch crystal as the clock source for the device, the Low-frequency Crystal Oscillator must be selected by setting CKSEL fuses to ‘0110’. The crystal should be connected as shown in Figure 6-5. To find suitable load capacitance for a 32.768 kHz crysal, please consult the manufacturer’s datasheet.

When this oscillator is selected, start-up times are determined by the SUT fuses as shown in Table 6-10.

Table 6-10. Start-up Times for the Low Frequency Crystal Oscillator Clock Selection

Start-up Time from

SUT[1:0]

00 1K (1024) CK 01 1K (1024) CK 10 32K (32768) CK 64 ms Stable frequency at start-up 11 Reserved

Note: 1. These options should be used only if frequency stability at start-up is not important.

Power Down

(1)

Additional Delay from

Reset (VCC = 5.0V) Recommende d us age

The Low-frequency Crystal Oscillator provides an internal load capacitance, see Table 6-11 at each TOSC pin.

Table 6-11. Capacitance of Low-Frequency Crystal Oscillator

Device 32 kHz Osc. Type Cap (Xtal1/Tosc1) Cap (Xtal2/Tosc2)

ATtiny25/45/85 System Osc. 16 pF 6 pF

6.2.6 Crystal Oscillator / Ceramic Resonator

XTAL1 and XTAL2 are input and output, respectively, of an inverting amplifier which can be configured for use as an On-chip Oscillator, as shown in Figure 6-5. Either a quartz crystal or a ceramic resonator may be used.

Figure 6-5. Crystal Oscillator Connections

4 ms Fast rising power or BOD enabled

64 ms Slowly rising power

C1 and C2 should always be equal for both crystals and resonators. The optimal value of the capacitors depends on the crystal or resonator in use, the amount of stray capacitance, and the electromagnetic noise of the environ-

ATtiny25/45/85 [DATASHEET]

2586Q–AVR–08/2013

ment. Some initial guidelines for choosing capacitors for use with crystals are given in Table 6-12 below. For ceramic resonators, the capacitor values given by the manufacturer should be used.

Table 6-12. Crystal Oscillator Operating Modes

Recommended Range for Capacitors C1 and

CKSEL[3:1] Frequency Range (MHz)

(1)

100

0.4 - 0.9 –

C2 for Use with Crystals (pF)

101 0.9 - 3.0 12 - 22 110 3.0 - 8.0 1 2 - 22

111 8.0 - 12 - 22

Notes: 1. This option should not be used with crystals, only with ceramic resonators.

The Oscillator can operate in three different modes, each optimized for a specific frequency range. The operating mode is selected by the fuses CKSEL[3:1] as shown in Table 6-12.

The CKSEL0 Fuse together with the SUT[1:0] Fuses select the start-up times as shown in Table 6-13.

Table 6-13. Start-up Times for the Crystal Oscillator Clock Selection

Start-up Time from

CKSEL0 SUT[1:0]

0 00 258 CK

0 01 258 CK

0 10 1K (1024) CK

0 11 1K (1024)CK

1 00 1K (1024)CK

Power-down

(1)

(2)

1 01 16K (16384) CK 14CK

1 10 16K (16384) CK 14CK + 4 ms

1 11 16K (16384) CK 14CK + 64 ms

Additional Delay

from Reset Recommended Usage

14CK + 4 ms

14CK + 64 ms

14CK

14CK + 4 ms

14CK + 64 ms

Ceramic resonator, fast rising power

Ceramic resonator, slowly rising power

Ceramic resonator, BOD enabled

Ceramic resonator, fast rising power

Ceramic resonator, slowly rising power

Crystal Oscillator, BOD enabled

Crystal Oscillator, fast rising power

Crystal Oscillator, slowly rising power

Notes: 1. These options should only be used when not operating close to the maximum frequency of the device, and only if

frequency stability at start-up is not important for the application. These options are not suitable for crystals.

2. These options are intended for use with ceramic resonators and will ensure frequency stability at start-up. They can also be used with crystals when not operating close to the maximum frequency of the device, and if frequency stability at start-up is not important for the application.

6.2.7 Default Clock Source

The device is shipped with CKSEL = “0010”, SUT = “10”, and CKDIV8 programmed. The default clock source setting is therefore the Internal RC Oscillator running at 8 MHz with longest start-up time and an initial system clock prescaling of 8, resulting in 1.0 MHz system clock. This default setting ensures that all users can make their desired clock source setting using an In-System or High-voltage Programmer.

ATtiny25/45/85 [DATASHEET]

2586Q–AVR–08/2013

6.3 System Clock Prescaler

The ATtiny25/45/85 system clock can be divided by setting the “CLKPR – Clock Prescale Register” on page 32. This feature can be used to decrease power consumption when the requirement for processing power is low. This can be used with all clock source options, and it will affect the clock frequency of the CPU and all synchronous peripherals. clk

I/O

, clk

ADC

, clk

CPU

6.3.1 Switching Time

When switching between prescaler settings, the System Clock Pr escaler ensures that no glitches o ccur in the clock system and that no intermediate frequency is high er than neith er the clock frequency co rresponding to th e previous setting, nor the clock frequency corresponding to the new setting.

The ripple counter that implements the prescaler runs at the frequency of the undivided clock, which may be faster than the CPU’s clock frequency. Hence, it is not possible to determine the state of the prescaler – even if it were readable, and the exact time it takes to switch from one clock division to another cannot be exactly predicted.

From the time the CLKPS values are written, it takes between T1 + T2 and T1 + 2*T2 before the new clock frequency is active. In this interval, 2 active clock edges are produced. Here, T1 is the previous clock period, and T2 is the period corresponding to the new prescaler setting.

6.4 Clock Output Buffer

The device can output the system clock on the CLKO pin (when not used as XTAL 2 pi n). To ena ble the outp ut, the CKOUT Fuse has to be programmed. This mode is suitable when the chip clock is used to drive other circuits on the system. Note that the clock will not be output during reset and that the normal operation of the I/O pin will be overridden when the fuse is programmed. Internal RC Oscillator, WDT Oscillator, PLL, and external clock (CLKI) can be selected when the clock is output on CLKO. Crystal oscillators (XTAL1, XTAL2) can not be used for clock output on CLKO. If the System Clock Prescaler is used, it is the divided system clock that is output.

, and clk

are divided by a factor as shown in Table 6- 15 on pa g e 33 .

FLASH

6.5 Register Description

6.5.1 OSCCAL – Oscillator Calibration Register

Bit 76543210 0x31 CAL7 CAL6 CAL5 CAL4 CAL3 CAL2 CAL1 CAL0 OSCCAL Read/Write R/W R/W R/W R/W R/W R/W R/W R/W Initial Value Device Specific Calibration Value

• Bits 7:0 – CAL[7:0]: Oscilla tor Calibration Value

The Oscillator Calibration Register is used to trim the Calibrated Internal RC Oscillator to remove process variations from the oscillator frequency. A pre-programmed calibration valu e is automatically written to this register during chip reset, giving the Factory calibrated frequency as specified in Table 21-2 on page 164. The application software can write this register to change the oscillator frequency. The oscillator can be calibrated to frequencies as specified in Table 21-2 on page 164. Calibration outside that range is not guaranteed.

Note that this oscillator is used to time EEPROM and Flash write accesses, and these write times will be affected accordingly. If the EEPROM or Flash are written, do not calibrate to more than 8.8 MHz. Otherwise, the EEPROM or Flash write may fail.

The CAL7 bit determines the range of operation for the oscillator. Setting this bit to 0 gives the lowest frequency range, setting this bit to 1 gives the highest frequency range. The two frequency ranges are overlapping, in other words a setting of OSCCAL = 0x7F gives a higher frequency than OSCCAL = 0x80.

The CAL[6:0] bits are used to tune the frequency within the selected range. A setting of 0x00 gives the lowest frequency in that range, and a setting of 0x7F gives the highest frequency in the range.

ATtiny25/45/85 [DATASHEET]

2586Q–AVR–08/2013

To ensure stable operation of the MCU the calibration value should be changed in small. A variation in frequency of more than 2% from one cycle to the next can lead to unpredicatble behavior. C hanges in OSCCAL should not exceed 0x20 for each calibration. It is required to ensure that the MCU is kept in Reset during such changes in the clock frequency

Table 6-14. Internal RC Oscillator Frequency Range

Typical Lowest Frequency

OSCCAL Value

0x00 50% 100% 0x3F 75% 150% 0x7F 100% 200%

with Respect to Nominal Frequency

6.5.2 CLKPR – Clock Prescale Register

Bit 76543210 0x26 CLKPCE – – – CLKPS3 CLKPS2 CLKPS1 CLKPS0 CLKPR Read/Write R/W R R R R/W R/W R/W R/W Initial Value 0 0 0 0 See Bit Description

• Bit 7 – CLKPCE: Clock Prescaler Change Enable

The CLKPCE bit must be written to logic one to enable change of the CLKPS bits. The CLKPCE bit is only updated when the other bits in CLKPR are simultaniosly written to zero. CLKPCE is cleared by hardware four cycles after it is written or when the CLKPS bits are written. Rewriting the CLKPCE bit within this time-out period does neither extend the time-out period, nor clear the CLKPCE bit.

• Bits 6:4 – Res: Reserved Bits

These bits are reserved bits in the ATtiny25/45/85 and will always read as zero.

• Bits 3:0 – CLKPS[3:0]: Clock Prescaler Select Bits 3 - 0

These bits define the division factor between the selected clock source and the internal system clock. These bits can be written run-time to vary the clock frequency to suit the application requirements. As the divider divides the master clock input to the MCU, the speed of all synchronous peripherals is reduced when a division factor is used. The division factors are given in Table 6-15.

Typical Highest Frequency

with Respect to Nominal Frequency

To avoid unintentional changes of clock frequency, a special write procedure must be followed to change the CLKPS bits:

1. Write the Clock Prescaler Change Enable (CLKPCE) bit to one and all other bits in CLKPR to zero.

2. Within four cycles, write the desired value to CLKPS while writing a zero to CLKPCE.

Interrupts must be disabled when changing prescaler setting to make sure the write procedure is not interrupted. The CKDIV8 Fuse determines the initial value of the CLKPS bits. If CKDIV8 is unprogrammed, the CLKPS bits will

be reset to “0000”. If CKDIV8 is programmed, CLKPS bits are reset to “0011”, giving a division factor of eight at start up. This feature should be used if the selected clock source has a higher frequency than the maximum frequency of the device at the present operating conditions. Note that any value can be written to the CLKPS bits regardless of the CKDIV8 Fuse setting. The Application software must ensure that a sufficient division factor is

ATtiny25/45/85 [DATASHEET]

2586Q–AVR–08/2013

chosen if the selcted clock source has a higher frequency than the maximum frequ ency of the device at the present operating conditions. The device is shipped with the CKDIV8 Fuse programmed.

Table 6-15. Clock Prescaler Select

CLKPS3 CLKPS2 CLKPS1 CLKPS0 Clock Division Factor

0000 1 0001 2 0010 4 0011 8 0100 16 0101 32 0110 64 0111 128 1000 256 1001 Reserved 1010 Reserved 1011 Reserved 1100 Reserved 1101 Reserved 1110 Reserved 1111 Reserved

Note: The prescaler is disabled in ATtiny15 compatibility mode and neither writing to CLKPR, nor programming the CKDIV8

fuse has any effect on the system clock (which will always be 1.6 MHz).

ATtiny25/45/85 [DATASHEET]

2586Q–AVR–08/2013

7. Power Management and Sleep Modes

The high performance and industry leading code efficiency makes the AVR microcontrollers an ideal choise for low power applications. In addition, sleep modes enable the application to shut down unused modules in the M CU, thereby saving power. The AVR provides various sleep modes allowing the user to tailor th e power co nsumption to the application’s requirements.

7.1 Sleep Modes

Figure 6-1 on page 23 presents the different clock systems and their distribu tion in ATtiny25/45/85. The figure is

helpful in selecting an appropriate sleep mode. Table 7-1 shows the different sleep modes and their wake up sources.

Table 7-1. Active Clock Domains and Wake-up Sources in the Different Sleep Modes

Active Clock Domains Oscillators Wake-up Sources

CPU

FLASH

clk

Sleep Mode

Idle XXX X XXXXXX ADC Noise

Reduction Power-down X

clk

ADC

PCK

clkIOclk

XXX

clk

Main Clock

Source Enabled

INT0 and

Pin Change

SPM/EEPROM

Ready

USI Start Condition

ADC

(1)

XXX X

(1)

Other I/O

Watchdog

Interrupt

Note: 1. For INT0, only level interrupt.

To enter any of the three sleep modes, the SE bit in MCUCR must be written to logic one and a SLEEP instruction must be executed. The SM[1:0] bits in the MCUCR Register select which sleep mode (Idle, ADC Noise Reduction or Power-down) will be activated by the SLEEP instruction. See Table 7-2 for a summary.

If an enabled interrupt occurs while the MCU is in a sleep mode, the MCU wakes up. The MCU is then halted for four cycles in addition to the start-up time, executes the interrupt routine, and resumes execution from the instruction following SLEEP. The contents of the Register File and SRAM are unaltered when the device wakes up from sleep. If a reset occurs during sleep mode, the MCU wakes up and executes from the Reset Vector.

Note that if a level triggered interrupt is used for wake-up the changed level must be held for some time to wake up the MCU (and for the MCU to enter the interrupt service routine). See “External Interrupts” on page 49 for details.

7.1.1 Idle Mode

When the SM[1:0] bits are written to 00, the SLEEP instruction makes the MCU enter Idle mode, stopping the CPU but allowing Analog Comparator, ADC, USI, Timer/Counter, Watchdog, and the interrupt system to continue operating. This sleep mode basically halts clk

Idle mode enables the MCU to wake up from external triggered interrupts as well as internal ones like the Timer Overflow. If wake-up from the Analog Comparator interrupt is not required, the Analog Comparator can be powered down by setting the ACD bit in “ACSR – Analog Comparator Control and Status Register” on page 120. This will reduce power consumption in Idle mode. If the ADC is enabled, a conversion star ts automatica lly when this mod e is entered.

CPU

and clk

, while allowing the other clocks to run.

FLASH

ATtiny25/45/85 [DATASHEET]

2586Q–AVR–08/2013

7.1.2 ADC Noise Reduction Mode

When the SM[1:0] bits are written to 01, the SLEEP instruction makes the MCU enter ADC Noise Reduction mode, stopping the CPU but allowing the ADC, the external interrupts, and the Watchdog to continue operating (if enabled). This sleep mode halts clk

This improves the noise environment for the ADC, enabling higher resolution measurements. If the ADC is enabled, a conversion starts automatically when this mode is entered. Apart form the ADC Conversion Complete interrupt, only an External Reset, a Watchdog Reset, a Brown-out Reset, an SPM/EEPROM ready interrupt, an external level interrupt on INT0 or a pin change interrupt can wake up the MCU from ADC Noise Reduction mode.

7.1.3 Power-down Mode

When the SM[1:0] bits are written to 10, the SLEEP instruction makes the MCU ent er Power-down mode. In this mode, the Oscillator is stopped, while the external interrupts, the USI start con dition detection and the Watchdo g continue operating (if enabled). Only an External Reset, a Watchdog Reset, a Brown-out Reset, USI start condition interupt, an external level interrupt on INT0 or a pin change interrupt can wake up the MCU. This sleep mode halts all generated clocks, allowing operation of asynchronous modules only.

7.2 Software BOD Disable

When the Brown-out Detector (BOD) is enabled by BODLEVEL fuses (see Table 20-4 on page 148), th e BOD is actively monitoring the supply voltage during a sleep period. In some devices it is possible to save power by disabling the BOD by software in Power-Down sleep mode. The sleep mod e power consumption will then be at the same level as when BOD is globally disabled by fuses.

If BOD is disabled by software, the BOD function is turned off immediately after entering the sleep mode. Upon wake-up from sleep, BOD is automatically enabled again. This ensures safe operation in case the V dropped during the sleep period.

I/O

, clk

CPU

, and clk

, while allowing the other clocks to run.

FLASH

level has

When the BOD has been disabled, the wake-up time from sleep mode will be the same as that for wakeing up from RESET. The user must manually configure the wake up times such that the bandgap reference has time to start and the BOD is working correctly before the MCU continues executing code. See SUT[1:0] and CKSEL[3:0] fuse bits in table “Fuse Low Byte” on page 149

BOD disable is controlled by the BODS (BOD Sleep) bit of MCU Control Register, see “MCUCR – MCU Control

active. The default setting is zero, i.e. BOD active. Writing to the BODS bit is controlled by a timed sequence and an enable bit, see “MCUCR – MCU Control Regis-

ter” on page 37.

ATtiny25/45/85 [DATASHEET]

2586Q–AVR–08/2013

7.2.1 Limitations

BOD disable functionality has been implemented in the following devices, only:

• ATtiny25, revision E, and newer

• ATtiny45, revision D, and newer

• ATtiny85, revision C, and newer

Revisions are marked on the device package and can be located as follows:

• Bottom side of packages 8P3 and 8S2

• Top side of package 20M1

7.3 Power Reduction Register

The Power Reduction Register (PRR), see “PRR – Power Reduction Register” on page 38, provides a method to reduce power consumption by stopping the clock to individual pe ripherals. The cu rrent state of the peripher al is frozen and the I/O registers can not be read or written. Resources used by the peripheral when stopping the clock will remain occupied, hence the peripheral should in most cases be disabled before stopping the clock. Waking up a module, which is done by clearing the bit in PRR, puts the module in the same state as before shutdown.

Module shutdown can be used in Idle mode and Active mode to significan tly reduce the overall power consu mption. In all other sleep modes, the clock is already stopped. See “Supply Current of I/O modules” on page 177 for examples.

7.4 Minimizing Power Consumption

There are several issues to consider when tr yi ng to mini mize the p ower consum ption in an AVR co ntro lled syste m. In general, sleep modes should be used as much as possible, and the sleep mode should be selected so that as few as possible of the device’s functions are operating. All functions not needed should be disabled. In particular, the following modules may need special consideration when trying to achieve the lowest possible power consumption.

7.4.1 Analog to Digital Converter

If enabled, the ADC will be enabled in all sleep modes. To save power, the ADC should be disabled before entering any sleep mode. When the ADC is turned off and on again, the next conversion will be an extended conversion. Refer to “Analog to Digital Converter” on page 122 for details on ADC operation.

7.4.2 Analog Comparator

When entering Idle mode, the Analog Comparator should be disabled if not used. When entering ADC Noise Reduction mode, the Analog Comparator should be disabled. In the other sleep modes, the Analog Comparator is automatically disabled. However, if the Analog Comparator is set up to use the Interna l Voltage Reference as input, the Analog Comparator should be disabled in all sleep modes. Otherwise, the Internal Voltage Reference will be enabled, independent of sleep mode. Refer to “Analo g Compara tor” on pa ge 119 for details on how to configure the Analog Comparator.

7.4.3 Brown-out Detector

If the Brown-out Detector is not needed in the application, this module should be turned off. If the Brown-out Detector is enabled by the BODLEVEL Fuses, it will be enabled in all sleep modes, and hence, always consume power. In the deeper sleep modes, this will contribute significantly to the total current consumption. See “Brown-out Detec-

tion” on page 41 and “Software BOD Disable” on page 35 for details on how to configure the Brown-out Detector.

ATtiny25/45/85 [DATASHEET]

2586Q–AVR–08/2013

7.4.4 Internal Voltage Reference

The Internal Voltage Reference will be enabled when needed by the Brown-out Detection, the Analog Comparator or the ADC. If these modules are disabled as described in the sections above, the internal voltage reference will be disabled and it will not be consuming power. When turned on again, the user must allow the reference to start up before the output is used. If the reference is kept on in sleep mode, the output can be used immediately. Refer to

“Internal Voltage Reference” on page 42 for details on the start-up tim e.

7.4.5 Watchdog Timer

If the Watchdog Timer is not needed in the application, this module should be turned off. If the Watchdog Timer is enabled, it will be enabled in all sleep modes, and hence, always consume power. In the deeper sleep modes, this will contribute significantly to the total current consumption. Refer to “Watchdog Timer” on page 42 for details on how to configure the Watchdog Timer.

7.4.6 Port Pins

When entering a sleep mode, all port pins should be configured to use minimum power. The most important thing is then to ensure that no pins drive resistive loads. In sleep m odes where both the I/O clock (clk clock (clk

) are stopped, the input buffers of the device will be disabled. This ensures that no power is consumed

ADC

by the input logic when not needed. In some cases, the input logic is needed for detecting wake-up conditions, and it will then be enabled. Refer to the section “Digital Input Enable and Sleep Modes” on page 5 7 for details on which pins are enabled. If the input buffer is ena bled and th e input signal is left floa ting or has an analog sign al level clo se to V

/2, the input buffer will use excessive power.

For analog input pins, the digital input buffer should be disabled at all times. An analog signal level close to V on an input pin can cause significant current even in active mode. Digital input buffers can be disabled by writing to the Digital Input Disable Register (DIDR0). Refer to “DIDR0 – Digital Input Disable Regis ter 0” on page 121 for details.

) and the ADC

I/O

7.5 Register Description

7.5.1 MCUCR – MCU Control Register

The MCU Control Register contains control bits for power management.

Bit 76543210 0x35 BODS Read/Write R R/W R/W R/W R/W R R/W R/W Initial Value00000000

• Bit 7 – BODS: BOD Sleep

BOD disable functionality is available in some devices, only. See “Limitations” on page 36. In order to disable BOD during sleep (see Table 7-1 on page 34) the BODS bit must be written to logic one. This is

controlled by a timed sequence and the enable bit, BODSE in MCUCR. First, both BODS and BODSE must be set to one. Second, within four clock cycles, BODS must be set to one and BODSE must be set to zero. The BODS bit is active three clock cycles after it is set. A sleep instruction must be executed while BODS is active in order to turn off the BOD for the actual sleep mode. The BODS bit is automatically cleared after three clock cycles.

In devices where Sleeping BOD has not been implemented this bit is unused and will always read zero.

• Bit 5 – SE: Sleep Enable

The SE bit must be written to logic one to make the MCU enter the sleep mode when the SLEEP instruction is executed. To avoid the MCU entering the sleep mode unless it is the programmer’s purpose, it is recommended to

PUD SE SM1 SM0 BODSE ISC01 ISC00 MCUCR

ATtiny25/45/85 [DATASHEET]

2586Q–AVR–08/2013

write the Sleep Enable (SE) bit to one just before the execution of the SLEEP instruction and to clear it immediately after waking up.

• Bits 4:3 – SM[1:0]: Sleep Mode Select Bits 1 and 0

These bits select between the three available sleep modes as shown in Table 7-2.

Table 7-2. Sleep Mode Select

SM1 SM0 Sleep Mode

00Idle 0 1 ADC Noise Reduction 1 0 Power-down 11Reserved

• Bit 2 – BODSE: BOD Sleep Enable

BOD disable functionality is available in some devices, only. See “Limitations” on page 36. The BODSE bit enables setting of BODS control bit, as explained on BODS bit description. BOD disable is con-

trolled by a timed sequence. This bit is unused in devices where software BOD disable has not been implemented and will read as zero in those

devices.

7.5.2 PRR – Power Reduction Register

The Power Reduction Register provides a method to reduce power consumption by allowing peripheral clock signals to be disabled.

Bit 76543 210 0x20 – – – – PRTIM1 PRTIM0 PRUSI PRADC PRR Read/Write R R R R R/W R/W R/W R/W Initial Value 0 0 0 0 0 0 0 0

• Bits 7:4 – Res: Reserved Bits

These bits are reserved bits in the ATtiny25/45/85 and will always read as zero.

• Bit 3 – PRTIM1: Power Reduction Timer/Counter1

Writing a logic one to this bit shuts down the Timer/Counter1 module. When the Timer/Counter 1 is enabled, o peration will continue like before the shutdown.

• Bit 2 – PRTIM0: Power Reduction Timer/Counter0

Writing a logic one to this bit shuts down the Timer/Counter0 module. When the Timer/Counter 0 is enabled, o peration will continue like before the shutdown.

• Bit 1 – PRUSI: Power Reduction USI

Writing a logic one to this bit shuts down the USI by stopping the clock to the module. When waking up the USI again, the USI should be re initialized to ensure proper operation.

• Bit 0 – PRADC: Power Reduction ADC

Writing a logic one to this bit shuts down the ADC. The ADC must be disabled be fore shut down. Note that th e ADC clock is also used by some parts of the analog comparator, which means that the analogue comparator can not be used when this bit is high.

ATtiny25/45/85 [DATASHEET]

2586Q–AVR–08/2013

8. System Control and Reset

8.1 Resetting the AVR

During reset, all I/O Registers are set to their initial values, and the program starts execution from the Reset Vector. The instruction placed at the Reset Vector must be a RJMP – Relative Jump – instruction to the reset handling routine. If the program never enables an interrupt source, the Interrupt Vectors are not used, and regular program code can be placed at these locations. The circuit diagram in Figure 8-1 shows the reset logic. Electrical parameters of the reset circuitry are given in “System and Reset Characteristics” on page 165.

Figure 8-1. Reset Logic

VCC

Power-on Reset

Circuit

DATA BUS

MCU Status

PORF

BORF

WDRF

EXTRF

The I/O ports of the AVR are immediately reset to their initial state when a reset source goes active. This does not require any clock source to be running.

After all reset sources have gone inactive, a delay counter is invoked, stretching the internal reset. This allows the power to reach a stable level before normal operation starts. The time-out period of the delay counter is defined by the user through the SUT and CKSEL Fuses. The different selections for the delay period are presented in “Clock

Sources” on page 25.

8.2 Reset Sources

The ATtiny25/45/85 has four sources of reset:

BODLEVEL[2:0]

RESET

Pull-up Resistor

SPIKE FILTER

Brown-out

Reset Circuit

Watchdog

Timer

Watchdog

Oscillator

Clock

Generator

CKSEL[3:0]

SUT[1:0]

COUNTER RESET

Delay Counters

TIMEOUT

INTERNAL RESET

• Power-on Reset. The MCU is reset when the supply voltage is below the Power-on Reset threshold (V

POT

• External Reset. The MCU is reset when a low level is present on the RESET pin for longer than the minimum pulse length.

• Watchdog Reset. The MCU is reset when the Watchdog Timer period expires and the Watchdog is enabled.

• Brown-out Reset. The MCU is reset when the supply voltage V

is below the Brown-out Reset threshold (V

BOT

and the Brown-out Detector is enabled.

ATtiny25/45/85 [DATASHEET]

2586Q–AVR–08/2013

)

8.2.1 Power-on Reset

RESET

TIME-OUT

INTERNAL

RESET

TOUT

POT

RST

RESET

TIME-OUT

INTERNAL

RESET

TOUT

POT

RST

A Power-on Reset (POR) pulse is generated by an On-chip detectio n circuit. The detection level is defined in “Sys-

tem and Reset Characteristics” on page 165. The POR is activated whenever V

POR circuit can be used to trigger the Start-up Reset, as well as to detect a failure in supply voltage. A Power-on Reset (POR) circuit ensures that the device is reset from Power-on. Reaching the Power-on Reset

threshold voltage invokes the delay counter, which determines how long the device is kept in RESET after V The RESET signal is activated again, without any delay, when V

is below the detection level. The

decreases below the detection level.

rise.

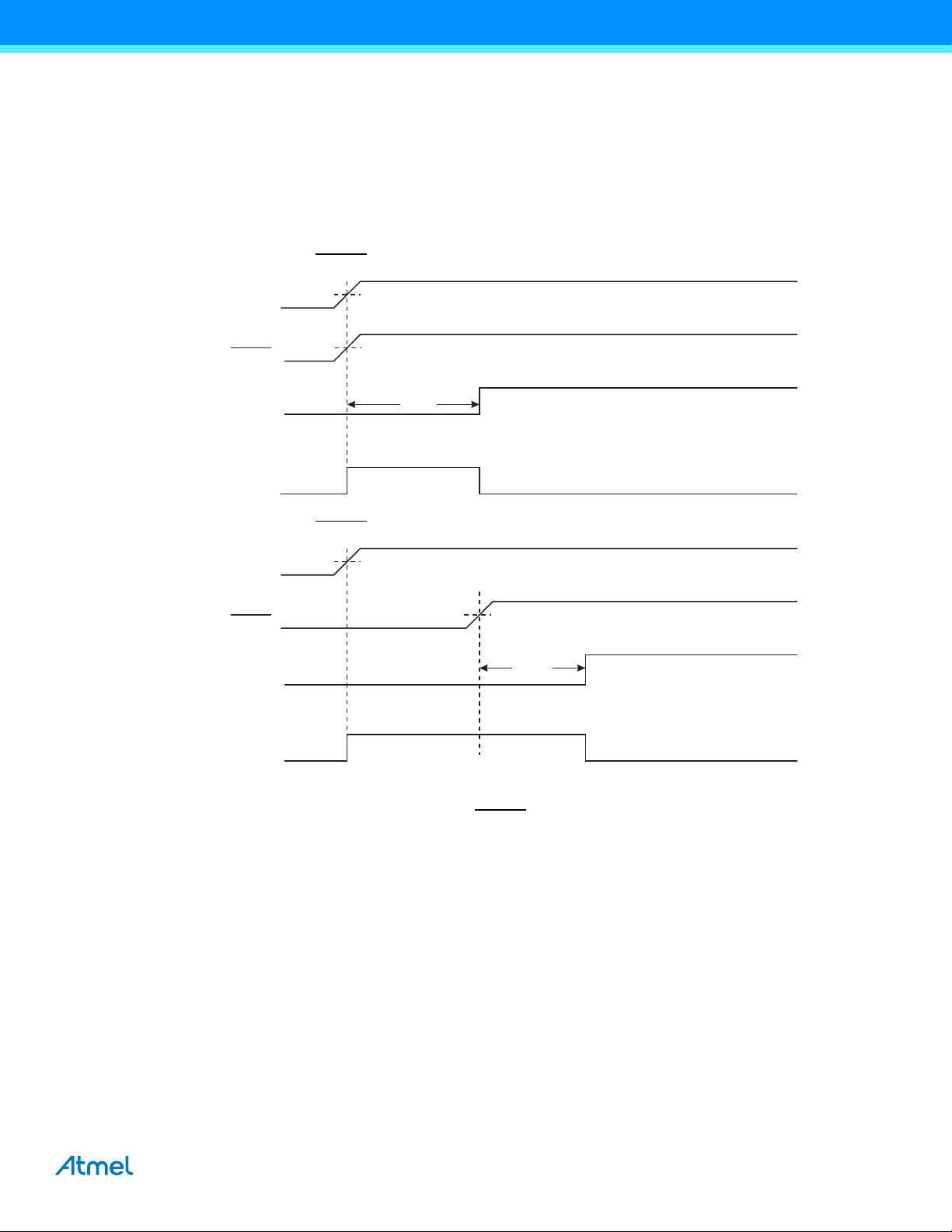

Figure 8-2. MCU Start-up, RESET

Tied to V

Figure 8-3. MCU Start-up, RESET Extended Externally

8.2.2 External Reset

An External Reset is generated by a low level on the RESET pulse width (see “System and Reset Characteristics” on page 165) will generate a reset, even if the clock is not running. Shorter pulses are not guaranteed to generate a reset. When the applied signal reaches the Reset Threshold Voltage – V – has expired.

pin if enabled. Reset pulses longer than the minimum

– on its positive edge, the delay counter starts the MCU after the Time-out per iod – t

RST

ATtiny25/45/85 [DATASHEET]

2586Q–AVR–08/2013

TOUT

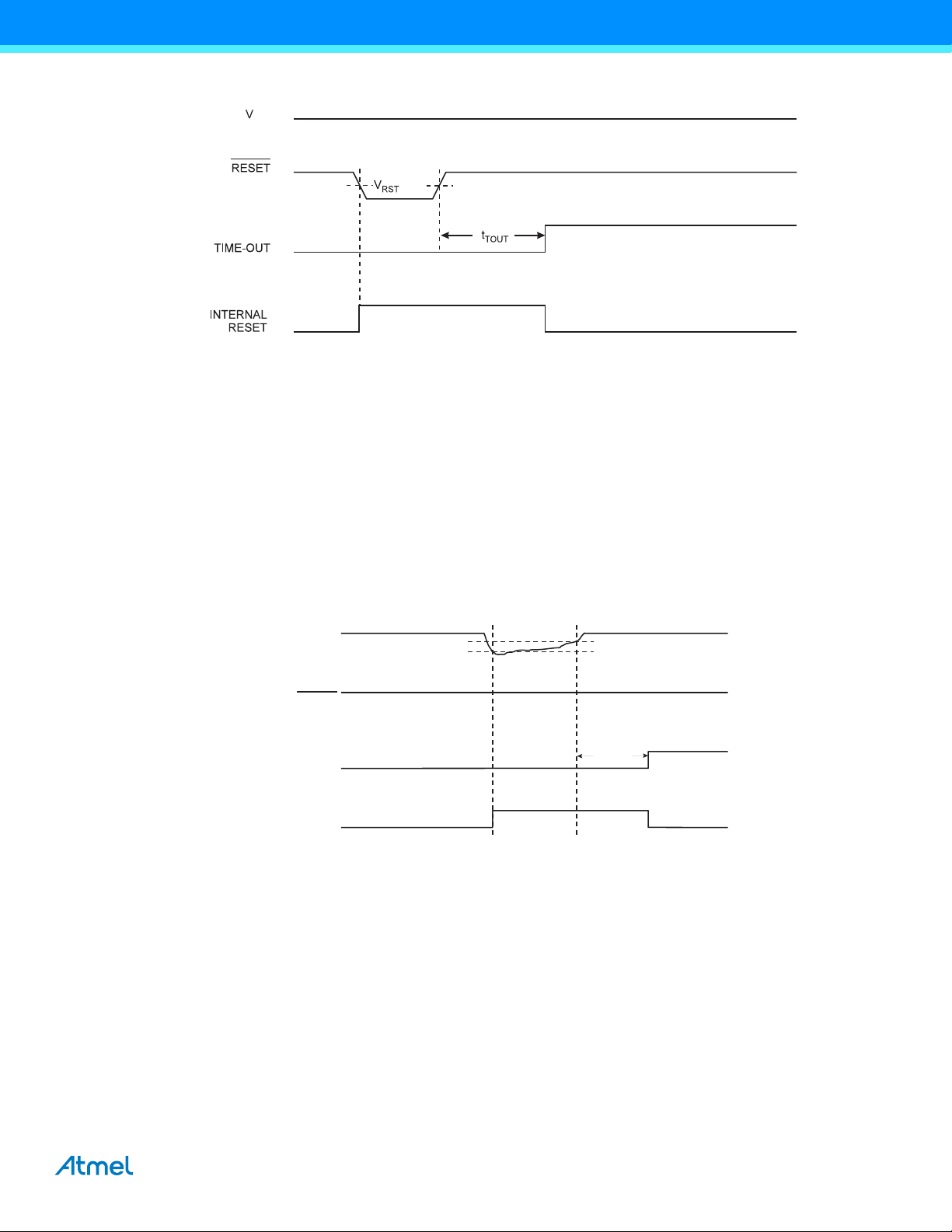

Figure 8-4. External Reset During Operation

RESET

TIME-OUT

INTERNAL

RESET

BOT-

BOT+

TOUT

8.2.3 Brown-out Detection

ATtiny25/45/85 has an On-chip Brown-out Detection (BOD) circuit for monitoring the V comparing it to a fixed trigger level. The trigger level for the BOD can be selected by the BODLEVEL Fuses. The trigger level has a hysteresis to ensure spike free Brown-out Detection. The hysteresis on the detection level should be interpreted as V

When the BOD is enabled, and V out Reset is immediately activated. When V counter starts the MCU after the Time-out period t

The BOD circuit will only detect a drop in V in “System and Reset Characteristics” on page 165.

BOT+

= V

+ V

BOT

decreases to a value below the trigger level (V

/2 and V

HYST

increases above the trigger level (V

TOUT

if the voltage stays below the trigger level for longer than t

= V

BOT-

BOT

has expired.

- V

HYST

/2.

level during operation by

in Figure 8-5), the Brown-

BOT-

in Figure 8-5), the delay

BOT+

BOD

given

Figure 8-5. Brown-out Reset During Operation

8.2.4 Watchdog Reset

When the Watchdog times out, it will generate a short reset pulse of one CK cycle duration. On the falling edge of this pulse, the delay timer starts counting the Time-out period t details on operation of the Watchdog Timer.

. Refer to “Watchdog Timer” on page 42 for

TOUT

ATtiny25/45/85 [DATASHEET]

2586Q–AVR–08/2013

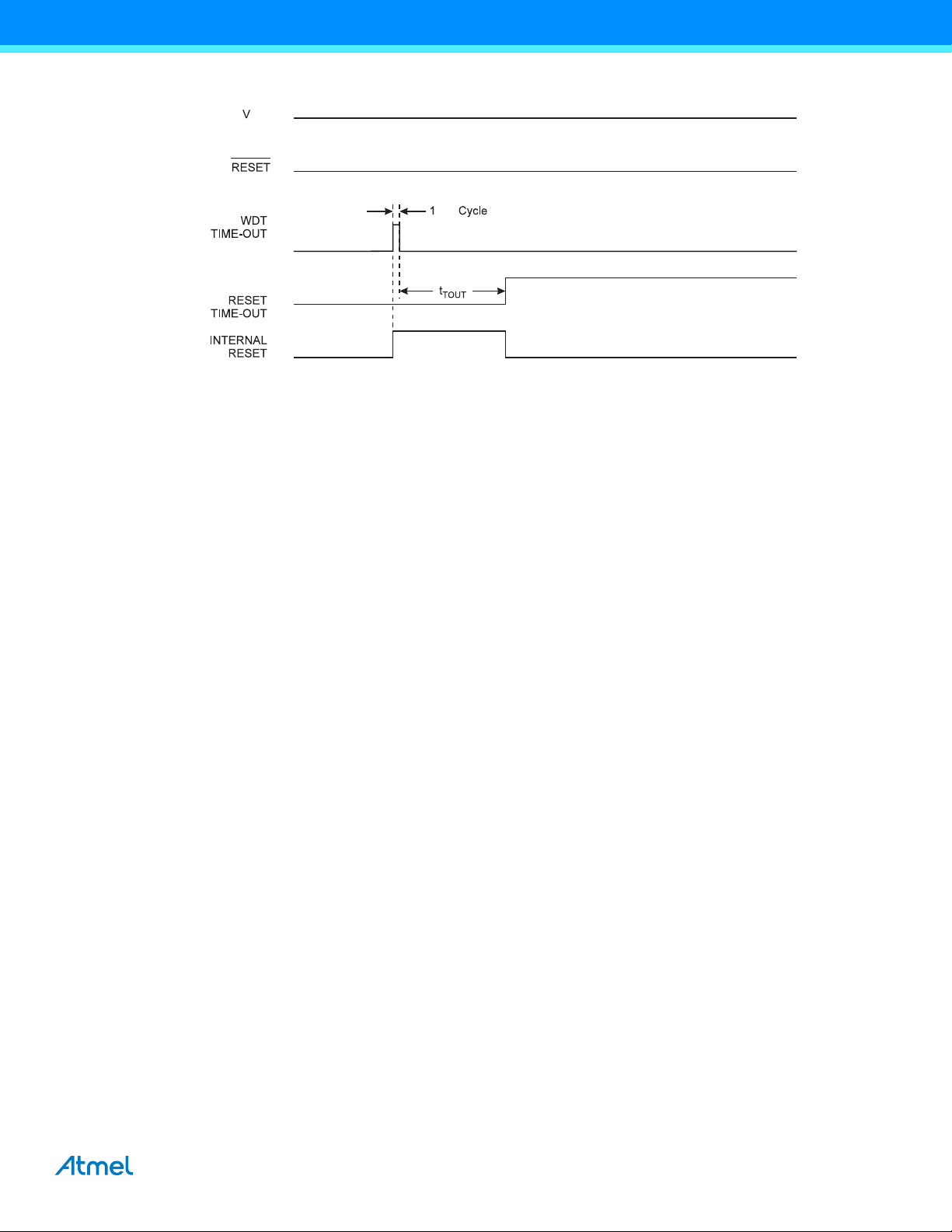

Figure 8-6. Watchdog Reset During Operation

8.3 Internal Voltage Reference

ATtiny25/45/85 features an internal bandgap reference. This reference is used for Brown-out Detection, and it can be used as an input to the Analog Comparator or the ADC.

8.3.1 Voltage Reference Enable Signals and Start-up Time

The voltage reference has a start-up time that may influence the way it should be used. The start-up time is given in “System and Reset Characteristics” on page 1 65. To save power, the refe rence is not always turned on. The re ference is on during the following situations:

1. When the BOD is enabled (by programming the BODLEVEL[2:0] Fuse Bits).

2. When the bandgap reference is connected to the Analog Comparator (by setting the ACBG bit in ACSR).

3. When the ADC is enabled.

Thus, when the BOD is not enabled, after setting the ACBG bit or enabling the ADC, the user must always allow the reference to start up befor e the output from t he Analog Comparat or or ADC is used. To r educe power consumption in Power-down mode, the user can avoid the three conditions above to ensure that the reference is turned off before entering Power-down mode.

8.4 Watchdog Timer

The Watchdog Timer is clocked from an On-chip Oscillator which runs at 128 kHz. By controlling the Watchdo g Timer prescaler, the Watchdog Reset interval can be adjusted as shown in Table 8-3 on page 46. The WDR – Watchdog Reset – instruction resets the Watchdog Timer. The Watchdog Timer is also reset when it is disabled and when a Chip Reset occurs. Ten different clock cycle periods can be selected to determine the reset period. If the reset period expires without another Watchdog Reset, the ATtiny25/45/85 resets and executes from the Reset Vector. For timing details on the Watchdog Reset, refer to Table 8-3 on page 46.

The Wathdog Timer can also be configured to generate an interrupt instead of a reset. This can be very helpful when using the Watchdog to wake-up from Power-down.

ATtiny25/45/85 [DATASHEET]

2586Q–AVR–08/2013

To prevent unintentional disabling of the Watchdog or unintentional change of time-out period, two different safety levels are selected by the fuse WDTON as shown in Table 8-1 Refer to “Timed Sequences for Changing the Con-

figuration of the Watchdog Timer” on page 43 for details.

Table 8-1. WDT Configuration as a Function of the Fuse Settings of WDTON

WDTON

Safety

Level

WDT Initial State

How to Disable the WDT

How to Change Timeout

Unprogrammed 1 Disabled Timed sequence No limitations Programmed 2 Enabled Always enabled Timed sequence

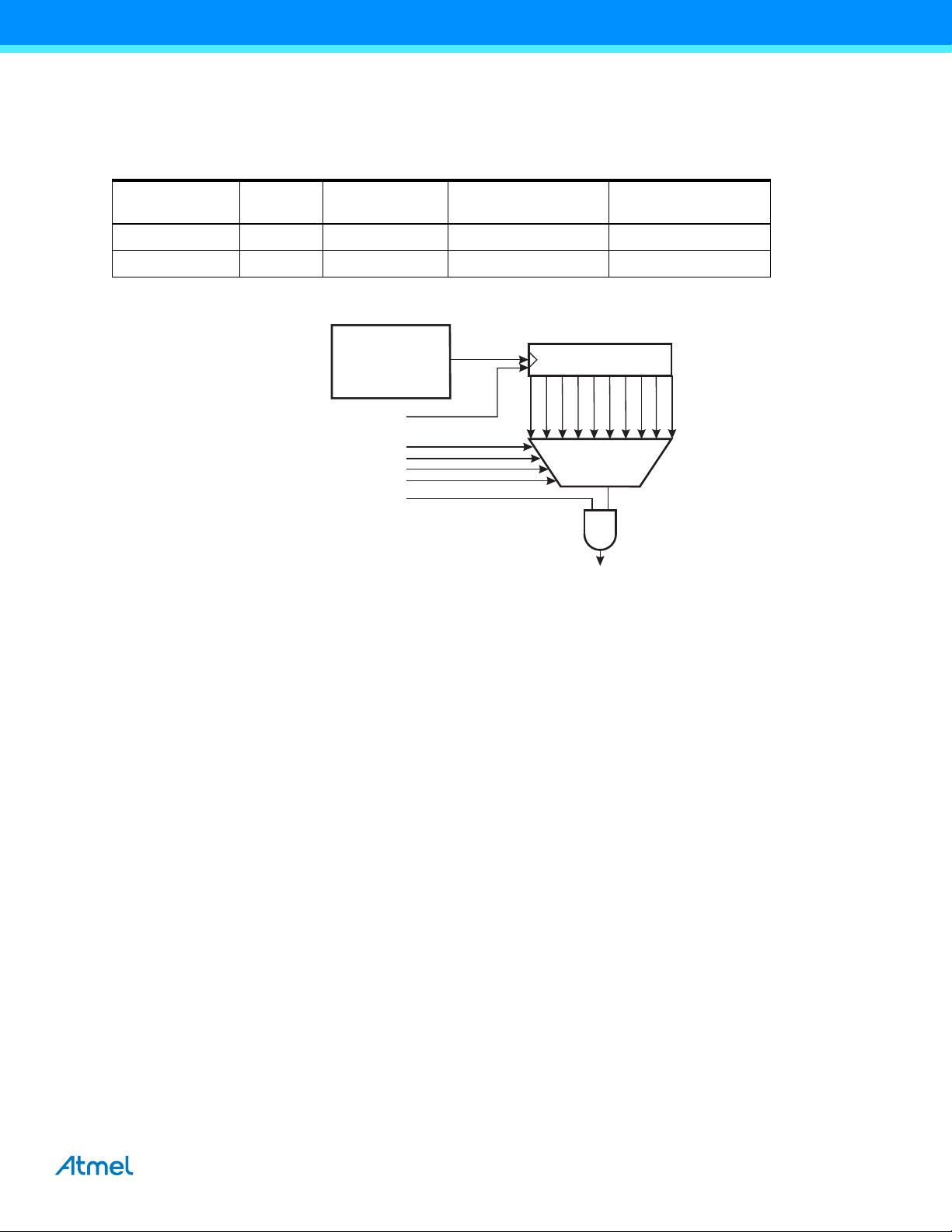

Figure 8-7. Watchdog Timer

OSC/2K

OSC/4K

WATCHDOG PRESCALER

OSC/8K

OSC/16K

OSC/32K

OSC/64K

MCU RESET

OSC/128K

OSC/256K

128 kHz

OSCILLATOR

WATCHDOG

RESET

WDP0 WDP1 WDP2 WDP3

WDE

8.4.1 Timed Sequences for Changing the Configuration of the Watchdog Timer

The sequence for changing configuration differs slightly between the two safety levels. Separate procedures are described for each level.

OSC/512K

OSC/1024K

8.4.1.1 Safety Level 1

In this mode, the Watchdog Timer is initially disabled, but can be enabled by writing the WDE b it to one without any restriction. A timed sequence is needed when disabling an enabled Watchdog Timer. To disable an enabled Watchdog Timer, the following procedure must be followed:

1. In the same operation, write a logic one to WDCE and WDE. A logic one must be written to WDE regard-

less of the previous value of the WDE bit.

2. Within the next fo ur clock cycles, in the sam e operat ion, write the WDE and WDP bits as desired, but with

the WDCE bit cleared.

8.4.1.2 Safety Level 2

In this mode, the Watchdog Timer is always enabled, and the WDE bit will always read as one. A timed sequence is needed when changing the Watchdog Time-out period. To change the Watchdog Time-out, the following procedure must be followed:

1. In the same operation, write a logical one to WDCE and WDE. Even though the WDE always is set, the

WDE must be written to one to start the timed sequence.

2. Within the next four clock cycles, in the same operation, write the WDP bits as desired, but with the

WDCE bit cleared. The value written to the WDE bit is irrelevant.

ATtiny25/45/85 [DATASHEET]

2586Q–AVR–08/2013

8.4.2 Code Example

The following code example shows one assembly and one C function for turning off the WDT. The example assumes that interrupts are controlled (e.g., by disabling interrupts globally) so that no interrupts will occur during execution of these functions.

Assembly Code Example

WDT_off:

wdr

; Clear WDRF in MCUSR

ldi r16, (0<<WDRF)

out MCUSR, r16

; Write logical one to WDCE and WDE

; Keep old prescaler setting to prevent unintentional Watchdog Reset

in r16, WDTCR

ori r16, (1<<WDCE)|(1<<WDE)

out WDTCR, r16

; Turn off WDT

ldi r16, (0<<WDE)

out WDTCR, r16

ret

C Code Example

(1)

void WDT_off(void)

{

_WDR();

/* Clear WDRF in MCUSR */

MCUSR = 0x00

/* Write logical one to WDCE and WDE */

WDTCR |= (1<<WDCE) | (1<<WDE);

/* Turn off WDT */

WDTCR = 0x00;

}

Note: 1. See “Code Examples” on page 6.

8.5 Register Description

8.5.1 MCUSR – MCU Status Register

The MCU Status Register provides information on which reset source ca used an MCU Reset.

Bit 76543210 0x34 – – – – WDRF BORF EXTRF PORF MCUSR Read/Write R R R R R/W R/W R/W R/W Initial Value 0 0 0 0 See Bit Description

• Bits 7:4 – Res: Reserved Bits

These bits are reserved bits in the ATtiny25/45/85 and will always read as zero.

• Bit 3 – WDRF: Watchdog Reset Flag

ATtiny25/45/85 [DATASHEET]

2586Q–AVR–08/2013

This bit is set if a Watchdog Reset occurs. The bit is reset by a Power-on Reset, or by writing a log ic zero to the flag.

• Bit 2 – BORF: Brown-out Reset Flag

This bit is set if a Brown-out Reset occurs. The bit is reset by a Power-on Reset, or by writing a logic zero to the flag.

• Bit 1 – EXTRF: External Reset Flag

This bit is set if an External Reset occurs. The bit is reset by a Power-on Reset, or by writing a logic zero to the flag.

• Bit 0 – PORF: Power-on Reset Flag

This bit is set if a Power-on Reset occurs. The bit is reset only by writing a logic zero to the flag. To make use of the Reset Flags to identify a reset condition, the user should read and then reset the MCUSR as

early as possible in the program. If the register is cleared before another reset occurs, the source of the reset can be found by examining the Reset Flags.

8.5.2 WDTCR – Watchdog Timer Control Register

Bit 76543210 0x21 WDIF WDIE WDP3 WDCE WDE WDP2 WDP1 WDP0 WDTCR Read/Write R/W R/W R/W R/W R/W R/W R/W R/W Initial Value0000X000

• Bit 7 – WDIF: Watchdog Timeout Interrupt Flag

This bit is set when a time-out occurs in the Watchdog Timer and the Watchdog Timer is configured for interrupt. WDIF is cleared by hardware when executing the corresponding interrupt han dling vector. Alternatively, WDIF is cleared by writing a logic one to the flag. When the I-bit in SREG and WDIE are set, the Watchdog Time-out Interrupt is executed.

• Bit 6 – WDIE: Watchdog Timeout Interrupt Enable

When this bit is written to one, WDE is cleared, and the I-bit in the Status Register is set, the Watchdog Time-out Interrupt is enabled. In this mode the correspon ding interrupt is executed instead o f a reset if a timeout in the Watchdog Timer occurs.

If WDE is set, WDIE is automatically cleared by hardware when a time-o ut occurs. This is useful fo r keeping the Watchdog Reset security while using the interrupt. After the WDIE bit is cleared, the next time-out will generate a reset. To avoid the Watchdog Reset, WDIE must be set after each interrupt.

Table 8-2. Watchdog Timer Configuration

WDE WDIE Watchdog Timer State Action on Time-out

0 0 Stopped None 0 1 Running Interrupt 1 0 Running Reset 1 1 Running Interrupt

ATtiny25/45/85 [DATASHEET]

2586Q–AVR–08/2013

• Bit 4 – WDCE: Watchdog Change Enable

This bit must be set when the WDE bit is written to logic zero. Otherwise, the Watchdog will not be disabled. Once written to one, hardware will clear this bit after four clock cycles. Refer to the description of the WDE bit for a Watchdog disable procedure. This bit must also be set when changing the prescaler bits. See “Timed Sequences

for Changing the Configuration of the Watchdog Timer” on page 43.

• Bit 3 – WDE: Watchdog Enable

When the WDE is written to logic one, the Watchdog Timer is enabled, and if the WDE is written to logic zero, the Watchdog Timer function is disabled. WDE can only be cleared if the WDCE bit has logic level one. To disable an enabled Watchdog Timer, the following procedure must be followed:

1. In the same operation, write a logic one to WDCE and WDE. A logi c one must be written to WDE even

though it is set to one before the disable operation starts.

2. Within the next four clock cycles, write a logic 0 to WDE. This disables the Watchdog.

In safety level 2, it is not possible to disable the Watchdog Timer, even with the algorithm described above. See

“Timed Sequences for Changing the Configuration of the Watchdog Timer” on page 43.

In safety level 1, WDE is overridden by WDRF in MCUSR. See “MCUSR – MCU Status Register” on page 44 for description of WDRF. This means that WDE is always set when WDRF is set. To clear WDE, WDRF must be cleared before disabling the Watchdog with the procedure described above. This feature ensures multiple resets during conditions causing failure, and a safe start-up after the failure.

Note: If the watchdog timer is not going to be used in the application, it is important to go through a watchdog disable proce-

dure in the initialization of the device. If the Watchdog is accidentally enabled, for example by a runaway pointer or brown-out condition, the device will be reset, which in turn will lead to a new watchdog reset. To avoid this situation, the application software should always clear the WDRF flag and the WDE control bit in the initialization routine.

• Bits 5, 2:0 – WDP[3:0]: Watchdog Timer Prescaler 3, 2, 1, and 0

The WDP[3:0] bits determine the Watchdog Timer prescaling when the Watchdog Timer is enabled. The different prescaling values and their corresponding Timeout Periods are shown in Table 8-3.

Table 8-3. Watchdog Timer Prescale Select

Number of WDT Oscillator

WDP3 WDP2 WDP1 WDP0

0 0 0 0 2K (2048) cycles 16 ms 0 0 0 1 4K (4096) cycles 32 ms 0 0 1 0 8K (8192) cycles 64 ms 0 0 1 1 16K (16384) cycles 0.125 s 0 1 0 0 32K (32764) cycles 0.25 s 0 1 0 1 64K (65536) cycles 0.5 s 0 1 1 0 128K (131072) cycles 1.0 s 0 1 1 1 256K (262144) cycles 2.0 s 1 0 0 0 512K (524288) cycles 4.0 s 1 0 0 1 1024K (1048576) cycles 8.0 s

Cycles

Typical Time-out at

VCC = 5.0V

ATtiny25/45/85 [DATASHEET]

2586Q–AVR–08/2013

Table 8-3. Watchdog Timer Prescale Select (Continued)

Number of WDT Oscillator

WDP3 WDP2 WDP1 WDP0

Cycles

1010 1011 1100

Reserved

1101 1110 1111

Note: 1. If selected, one of the valid settings below 0b1010 will be used.

Typical Time-out at

VCC = 5.0V

(1)

ATtiny25/45/85 [DATASHEET]

2586Q–AVR–08/2013

9. Interrupts

This section describes the specifics of the interrupt handling as performed in ATtiny25/45/85. For a general explanation of the AVR interrupt handling, refer to “Reset and Interrupt Handling” on page 12.

9.1 Interrupt Vectors in ATtiny25/45/85

The interrupt vectors of ATtiny25/45/85 are described in Table 9-1below.

Table 9-1. Reset and Interrupt Vectors

Vector No. Program Address Source Interrupt Definition

1 0x0000 RESET

2 0x0001 INT0 External Interrupt Request 0 3 0x0002 PCINT0 Pin Change Interrupt Request 0 4 0x0003 TIMER1_COMPA Timer/Counter1 Compare Match A 5 0x0004 TIMER1_OVF Timer/Counter1 Overflow 6 0x0005 TIMER0_OVF Timer/Counter0 Overflow 7 0x0006 EE_RDY EEPROM Ready 8 0x0007 ANA_COMP Analog Comparator 9 0x0008 ADC ADC Conversion Complete

10 0x0009 TIMER1_COMPB Timer/Counter1 Compare Match B

External Pin, Power-on Reset, Brown-out Reset, Watchdog Reset

1 1 0x000A TIMER0_COMPA Timer/Counter0 Compare Match A 12 0x000B TIMER0_COMPB Timer/Counter0 Compare Match B 13 0x000C WDT Watchdog Time-out 14 0x000D USI_START USI START 15 0x000E USI_OVF USI Overflow

If the program never enables an interrupt source , the Inter rupt Vectors are not used, and regular p rogram code can be placed at these locations.

ATtiny25/45/85 [DATASHEET]

2586Q–AVR–08/2013

A typical and general setup for interrupt vector addresses in ATtiny25/45/85 is shown in the program example below.

Assembly Code Example

.org 0x0000 ;Set address of next statement

rjmp RESET ; Address 0x0000

rjmp INT0_ISR ; Address 0x0001

rjmp PCINT0_ISR ; Address 0x0002

rjmp TIM1_COMPA_ISR ; Address 0x0003

rjmp TIM1_OVF_ISR ; Address 0x0004

rjmp TIM0_OVF_ISR ; Address 0x0005

rjmp EE_RDY_ISR ; Address 0x0006

rjmp ANA_COMP_ISR ; Address 0x0007

rjmp ADC_ISR ; Address 0x0008

rjmp TIM1_COMPB_ISR ; Address 0x0009

rjmp TIM0_COMPA_ISR ; Address 0x000A

rjmp TIM0_COMPB_ISR ; Address 0x000B

rjmp WDT_ISR ; Address 0x000C

rjmp USI_START_ISR ; Address 0x000D

rjmp USI_OVF_ISR ; Address 0x000E

RESET: ; Main program start

<instr> ; Address 0x000F

...

Note: See “Code Examples” on page 6.

9.2 External Interrupts

The External Interrupts are triggered by the INT0 pin or any of the PCINT[5:0] pins. Observe that, if enabled, the interrupts will trigger even if the INT0 or PCINT[5:0] pins are configured as outputs. This feature provides a way of generating a software interrupt. Pin change interrupts PCI will trigger if any enabled PCINT[5:0] pin toggles. The PCMSK Register control which pins contribute to the pin change interrupts. Pin change interrupts on PCINT[5:0] are detected asynchronously. This implies that these interrupts can be used for waking the part also from sleep modes other than Idle mode.

The INT0 interrupts can be triggered by a falling or rising edge or a low level. This is set up as indicated in the specification for the MCU Control Register – MCUCR. When the INT0 interrupt is enabled and is configured as level triggered, the interrupt will trigger as long as the pin is held low. Note that recognition of falling or rising edge interrupts on INT0 requires the presence of an I/O clock, described in “Clock Systems and their Distribution” on

page 23.

9.2.1 Low Level Interrupt

A low level interrupt on INT0 is detected asynchronously. This implies that this interrupt can be used for waking the part also from sleep modes other than Idle mode. The I/O clock is halted in all sleep modes except Idle mode.

Note that if a level triggered interrupt is used for wake-up from Power-down, the required level must be held long enough for the MCU to complete the wake-up to trigger the level interrupt. If the level disappears before the end of

ATtiny25/45/85 [DATASHEET]

2586Q–AVR–08/2013

the Start-up Time, the MCU will still wake up, but no interrupt will be generated. The start-up time is defined by the

SUT and CKSEL Fuses as described in “System Clock and Clock Options” on page 23. If the low level on the interrupt pin is removed before the device has woken up then program execution will not be

diverted to the interrupt service routine but continue from the instruction following the SLEEP command.

9.2.2 Pin Change Interrupt Timing

An example of timing of a pin change interrupt is shown in Figure 9-1.

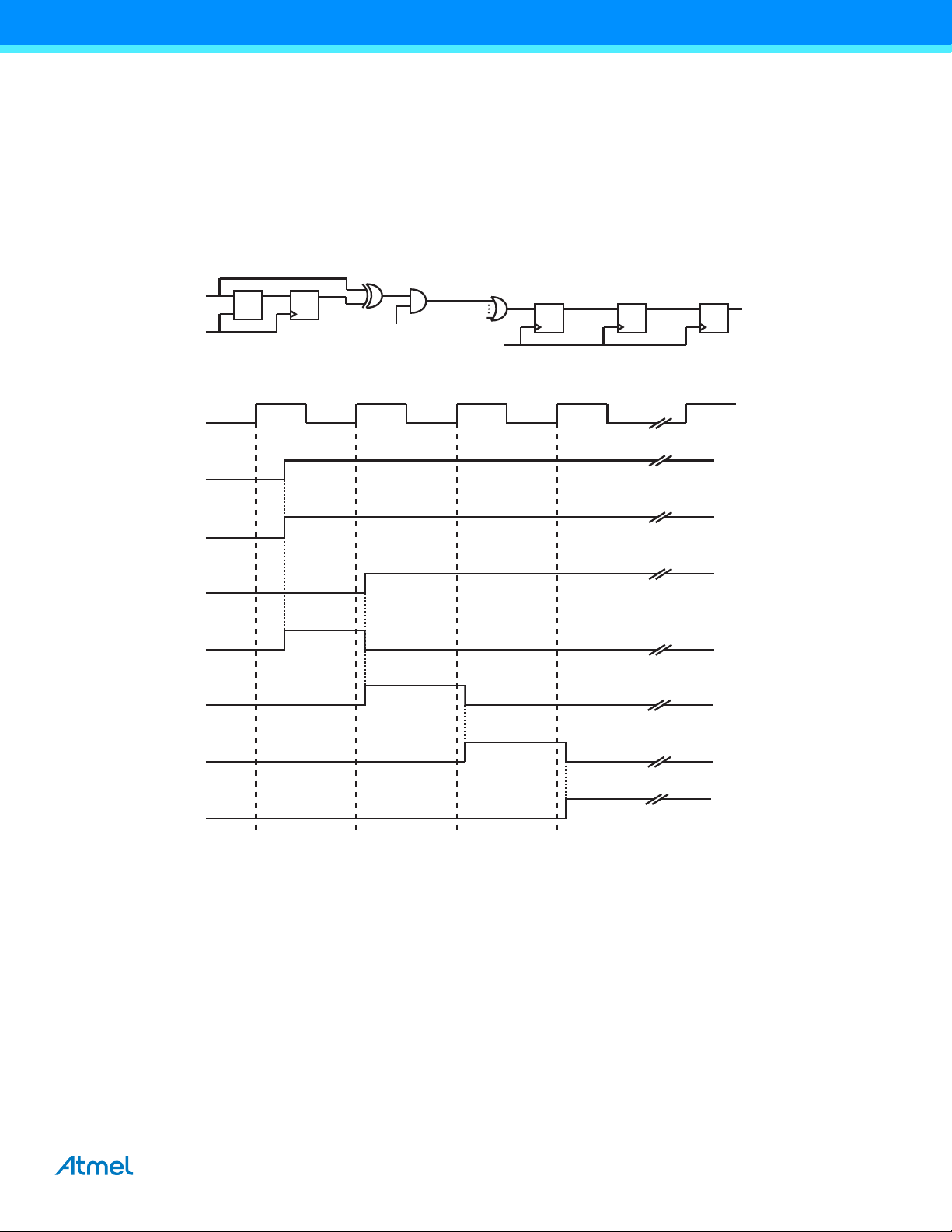

Figure 9-1. Timing of pin change interrupts

PCINT(0)

clk

PCINT(0)

pin_lat

D Q

pin_sync

pcint_in_(0)

PCINT(0) in PCMSK(x)

0 x

clk

pcint_syn

pcint_setflag

pin_sync

pcint_in_(0)

pcint_syn

cint_setflag

PCIF

ATtiny25/45/85 [DATASHEET]

2586Q–AVR–08/2013

9.3 Register Description

9.3.1 MCUCR – MCU Control Register

The External Interrupt Control Register A contains control bits for interrupt sense control.

Bit 76543210 0x35 Read/Write R R/W R/W R/W R/W R R/W R/W Initial Value00000000

• Bits 1:0 – ISC0[1:0]: Interrupt Sense Control 0 Bit 1 and Bit 0

The External Interrupt 0 is activated by the external pin INT0 if the SREG I-flag and the corresponding interrupt mask are set. The level and edges on the external INT0 pin that activate the interrupt are defined in Table 9-2. The value on the INT0 pin is sampled before detecting edges. If edge or toggle interrupt is selected, pulses that last longer than one clock period will generate an interrupt. Shorter pulses are not guaranteed to generate an interrupt. If low level interrupt is selected, the low level must be held until the completion of the currently executing instruction to generate an interrupt.

Table 9-2. Interrupt 0 Sense Control

ISC01 ISC00 Description

0 0 The low level of INT0 generates an interrupt request. 0 1 Any logical change on INT0 generates an interrupt request. 1 0 The falling edge of INT0 generates an interrupt request. 1 1 The rising edge of INT0 generates an interrupt request.

BODS PUD SE SM1 SM0 BODSE ISC01 ISC00 MCUCR

9.3.2 GIMSK – General Interrupt Mask Register

Bit 76543210 0x3B – INT0 PCIE – – – – – GIMSK Read/Write RR/WR/WRRRRR Initial Value00000000

• Bits 7, 4:0 – Res: Reserved Bits

These bits are reserved bits in the ATtiny25/45/85 and will always read as zero.

• Bit 6 – INT0: External Interrupt Request 0 Enable

When the INT0 bit is set (one) and the I-bit in the Status Register (SREG) is set (one), the external pin interrupt is enabled. The Interrupt Sense Control0 bits 1/0 (ISC01 and ISC00) in the MCU Control Register (MCUCR) define whether the external interrupt is activated on rising and/or falling edge of the INT0 pin or level sensed. Activity on the pin will cause an interrupt request even if INT0 is configured as an output. The corresponding interrupt of External Interrupt Request 0 is executed from the INT0 Interrupt Vector.

• Bit 5 – PCIE: Pin Change Interrupt Enable

When the PCIE bit is set (one) and the I-bit in the Status Register (SREG) is set (one), pin change interrupt is enabled. Any change on any enabled PCINT[5:0] pin will ca use an interrupt. The corresponding interrupt of Pin Change Interrupt Request is executed from the PCI Interrupt Vector. PCINT[5:0] pins are enabled individually by the PCMSK0 Register.

ATtiny25/45/85 [DATASHEET]

2586Q–AVR–08/2013

9.3.3 GIFR – General Interrupt Flag Register

Bit 76543210 0x3A –INTF0PCIF–––––GIFR Read/Write RR/WR/WRRRRR Initial Value00000000

• Bits 7, 4:0 – Res: Reserved Bits

These bits are reserved bits in the ATtiny25/45/85 and will always read as zero.

• Bit 6 – INTF0: External Interrupt Flag 0

When an edge or logic change on the INT0 pin triggers an interrupt request, INTF0 be comes set (one ). If the I-bit in SREG and the INT0 bit in GIMSK are set (one), the MCU will jump to the corresponding Interrupt Vector. The flag is cleared when the interrupt routine is executed. Alternatively, the flag can be cleared by writing a logical one to it. This flag is always cleared when INT0 is configured as a level interrupt.

• Bit 5 – PCIF: Pin Change Interrupt Flag

When a logic change on any PCINT[5:0] pin triggers an interrupt request, PCIF becomes set (one). If the I-bit in SREG and the PCIE bit in GIMSK are set (one), the MCU will jump to the corresponding Interrupt Vector. The flag is cleared when the interrupt routine is executed. Alternatively, the flag can be cleared by writing a logical one to it.

9.3.4 PCMSK – Pin Change Mask Register

Bit 76543210 0x15 – – PCINT5 PCINT4 PCINT3 PCINT2 PCINT1 PCINT0 PCMSK Read/Write R R R/W R/W R/W R/W R/W R/W Initial Value00000000

• Bits 7:6 – Res: Reserved Bits

These bits are reserved bits in the ATtiny25/45/85 and will always read as zero.

• Bits 5:0 – PCINT[5:0]: Pin Change Enable Mask 5:0

Each PCINT[5:0] bit selects whether pin change interrupt is enabled on the corresponding I/O pin. If PCINT[5:0] is set and the PCIE bit in GIMSK is set, pin change interrupt is enabled on the corresponding I/O pin. If PCINT[5:0] is cleared, pin change interrupt on the corresponding I/O pin is disabled.

ATtiny25/45/85 [DATASHEET]

2586Q–AVR–08/2013

10. I/O Ports

10.1 Introduction

All AVR ports have true Read-Modify-Write functionality when used as general digital I/O ports. This means that the direction of one port pin can be changed without un intentiona lly cha nging the dir ection of any o ther pin with the SBI and CBI instructions. The same applies when changing drive value (if configured as output) or enabling/disabling of pull-up resistors (if configured as inp ut). Each output buffer has symmetrical drive characteristics with both high sink and source capability. The pin driver is strong enough to drive LED displays directly. All port pins have individually selectable pull-up resistors with a supply-voltage invariant resistance. All I/O pins have protection diodes to both V complete list of parameters.

Figure 10-1. I/O Pin Equivalent Schematic

and Ground as indicated in Figure 10-1. Refer to “Electrical Characteristics” on page 161 for a

Pxn

Logic

See Figure

"General Digital I/O" for

Details

All registers and bit references in this section are written in general form. A lower case “x” represents the numbering letter for the port, and a lower case “n” represents the bit number. However, when using the register or bit defines in a program, the precise form must be used. For example, PORTB3 for bit no. 3 in Port B, here documented generally as PORTxn. The physical I/O Registers and bit locations are listed in “Register Description” on

page 64.

Three I/O memory address locations are allocated for each port, one each for the Data Register – PORTx, Data Direction Register – DDRx, and the Port Input P ins – PI Nx. The Port Input Pins I/O location is read only, while the Data Register and the Data Direction Register are read/write. However, writing a logic one to a bi t in th e PINx Register, will result in a toggle in the corresponding bit in the Data Register. In addition, the Pull-up Disable – PUD bit in MCUCR disables the pull-up function for all pins in all ports when set.

Using the I/O port as General Digital I/O is described in “Ports as General Digital I/O” on page 53. Most port pins are multiplexed with alternate functions for the peripheral fea tures on the de vice. How each alternate function inte rferes with the port pin is described in “Alternate Port Functions” on page 57 . Refer to the individual mo dule sections for a full description of the alternate functio ns .

Note that enabling the alternate function of some of the port pins does no t affect the use of the other pins in the port as general digital I/O.

10.2 Ports as General Digital I/O

The ports are bi-directional I/O ports with optional internal pull-ups. Figure 10-2 shows a functional description of one I/O-port pin, here generically called Pxn.

ATtiny25/45/85 [DATASHEET]

2586Q–AVR–08/2013

Figure 10-2. General Digital I/O

(1)

DDxn

CLR

RESET

PUD

WDx

RDx

Pxn

Note: 1. WRx, WPx, WDx, RRx, RPx, and RDx are common to all pins within the same port. clk

common to all ports.

10.2.1 Configuring the Pin

Each port pin consists of three register bits: DDxn, PORTxn, and PINxn. As shown in “Register Description” on

page 64, the DDxn bits are accessed at the DDRx I/O address, the PORTxn bits at the PORTx I/O address, and

the PINxn bits at the PINx I/O address.

SLEEP

SYNCHRONIZER

PUD: PULLUP DISABLE SLEEP: SLEEP CONTROL clk

: I/O CLOCK

I/O

DLQ

RPx

clk

DATA B US

WRx

I/O

WPx

, SLEEP, and PUD are

I/O

PORTxn

CLR

RESET

RRx

PINxn

WDx: WRITE DDRx RDx: READ DDRx WRx: WRITE PORTx RRx: READ PORTx REGISTER RPx: READ PORTx PIN

WPx: WRITE PINx REGISTER

The DDxn bit in the DDRx Register selects the direction of this pin. If DDxn is written logic one, Pxn is configured as an output pin. If DDxn is written logic zero, Pxn is configured as an input pin.

If PORTxn is written logic one when the pin is configured as an input pin, the pull-up resistor is activated. To switch the pull-up resistor off, PORTxn has to be written logic zero or the pin has to be configured as an output pin. The port pins are tri-stated when reset condition becomes active, even if no clocks are running.

If PORTxn is written logic one when the pin is configured as an output pin, the por t pin is driven high (one). If PORTxn is written logic zero when the pin is configured as an output pin, the port pin is driven low (zero).

10.2.2 Toggling the Pin

Writing a logic one to PINxn toggles th e value of PORTxn, independent on the value of DDRxn. Note that the SBI instruction can be used to toggle one single bit in a port.

10.2.3 Switching Between Input and Output

When switching between tri-state ({DDxn, PORTxn} = 0b00) and output high ({DDxn, PORTxn} = 0b11), an intermediate state with either pull-up enabled {DDxn, PORTxn} = 0b01) or output low ({DDxn, PORTxn} = 0b10) must occur. Normally, the pull-up enabled state is fully acceptable, as a high-impedant environm ent will not notice the

ATtiny25/45/85 [DATASHEET]

2586Q–AVR–08/2013

difference between a strong high driver and a pull-up. If this is not the case, the PUD bit in the MCUCR Register

XXX in r17, PINx

0x00 0xFF

INSTRUCTIONS

SYNC LATCH

PINxn

r17

XXX

SYSTEM CLK

pd, max

pd, min

can be set to disable all pull-ups in all ports. Switching between input with pull-up and output low generates the same problem. The user must use either the tri-

state ({DDxn, PORTxn} = 0b00) or the output high state ({DDxn, PORTxn} = 0b10) as an intermediate step.

Table 10-1 summarizes the control signals for the pin value.

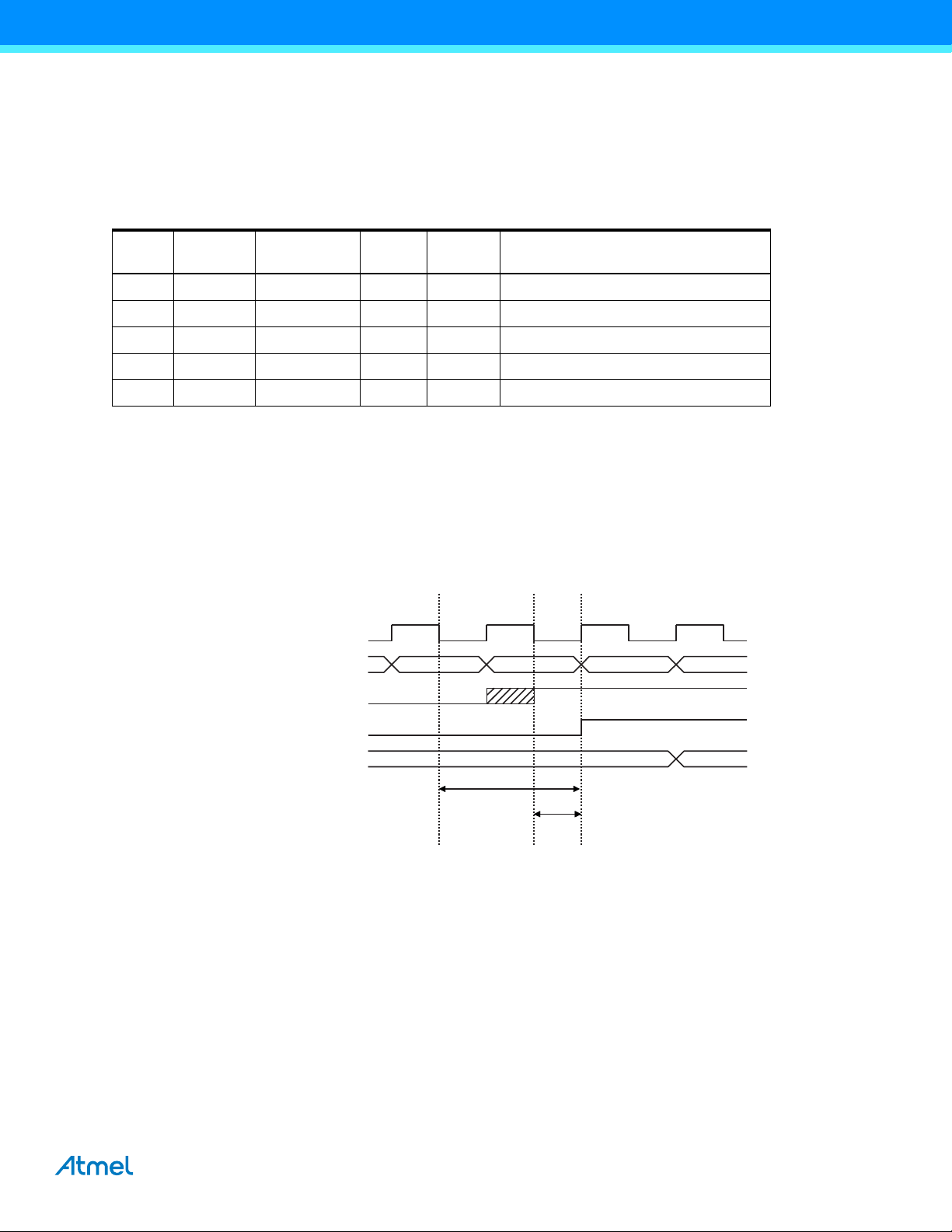

Table 10-1. Port Pin Configurations

DDxn PORTxn

0 0 X Input No Tri-state (Hi-Z) 0 1 0 Input Yes Pxn will source current if ext. pulled low. 0 1 1 Input No Tri-state (Hi-Z) 1 0 X Output No Output Low (Sink) 1 1 X Output No Output High (Source)

(in MCUCR) I/O Pull-up Comment

10.2.4 Reading the Pin Value

Independent of the setting of Data Direction bit DDxn, the port pin can be read through the PINxn Register bit. As shown in Figure 10-2, the PINxn Register bit and the preceding latch constitute a synchronizer. This is needed to avoid metastability if the physical pin changes value near the edge of the internal clock, but it also intro duces a delay. Figure 10-3 shows a timing diagram of the synchronization when reading an externally applied pin value. The maximum and minimum propagation delays are denoted t

PUD

pd,max

and t

respectively.

pd,min

Figure 10-3. Synchronization when Reading an Externally Applied Pin value

Consider the clock period starting shortly after the first falling edge of the system clock. The latch is closed when the clock is low, and goes transparent when the clock is high, as indicated by the shaded region of the “SYNC LATCH” signal. The signal value is latched when the system clock goes low. It is clocked into the PINxn Register at the succeeding positive clock edge. As indicated by the two arrows tpd,max and tpd,min, a single signal transition on the pin will be delayed between ½ and 1½ system clock period depending upon the time of assertion.

When reading back a softwa re assi gned pin v alue, a nop instruction must be inserted as indicated in Figure 10-4. The out instruction sets the “SYNC LATCH” signal at the positive edge of the clock. In this case, the delay tpd through the synchronizer is one system clock period.

ATtiny25/45/85 [DATASHEET]

2586Q–AVR–08/2013

Figure 10-4. Synchronization when Reading a Software Assigned Pin Value

out PORTx, r16 nop in r17, PINx

0xFF

0x00 0xFF

SYSTEM CLK

r16

INSTRUCTIONS

SYNC LATCH

PINxn

r17

The following code example shows how to set port B pins 0 and 1 high, 2 and 3 low, and define the port pins from 4 to 5 as input with a pull-up assigned to port pin 4. The resulting pin values are read back again, but as previously discussed, a nop instruction is included to be able to read back the value recently assigned to som e of th e pin s.

Assembly Code Example

...

; Define pull-ups and set outputs high

; Define directions for port pins

ldi r16,(1<<PB4)|(1<<PB1)|(1<<PB0)

ldi r17,(1<<DDB3)|(1<<DDB2)|(1<<DDB1)|(1<<DDB0)

out PORTB,r16

out DDRB,r17

; Insert nop for synchronization

nop

; Read port pins

in r16,PINB

...

(1)

Note: 1. For the assembly program, two temporary registers are used to minimize the time from pull-ups are set on pins 0, 1

and 4, until the direction bits are correctly set, defining bit 2 and 3 as low and redefining bits 0 and 1 as strong high drivers.

C Code Example

unsigned char i;

...

/* Define pull-ups and set outputs high */

/* Define directions for port pins */

PORTB = (1<<PB4)|(1<<PB1)|(1<<PB0);

DDRB = (1<<DDB3)|(1<<DDB2)|(1<<DDB1)|(1<<DDB0);

/* Insert nop for synchronization*/

_NOP();

/* Read port pins */

i = PINB;

...

ATtiny25/45/85 [DATASHEET]

2586Q–AVR–08/2013

10.2.5 Digital Input Enable and Sleep Modes

As shown in Figure 10-2, the digital input signal can be clamped to ground at the input of the schmitt-trigger. The signal denoted SLEEP in the figure, is set by the MCU Sleep Controller in Power-down mode to avoid high power consumption if some input signals are left floating, or have an analog signal level close to V

SLEEP is overridden for port pins enabled as external interrupt pins. If the external interrupt request is not enabled, SLEEP is active also for these pins. SLEEP is also overridden by various other alternate functions as described in

“Alternate Port Functions” on page 57.

If a logic high level (“one”) is present on an asynchronous external interrupt pin configured as “Interrupt on Rising Edge, Falling Edge, or Any Logic Change on Pin” while th e external interrupt is not enabled, the correspond ing External Interrupt Flag will be set when resuming from the above mentioned Sleep mode, as the clamping in these sleep mode produces the requested logic change.

10.2.6 Unconnected Pins

If some pins are unused, it is recommended to ensure that these pins have a defined level. Even though most of the digital inputs are disabled in the deep sleep modes as described above, floating inputs should be avoided to reduce current consumption in all other modes where the digital inputs are enabled (Reset, Active mode and Idle mode).

The simplest method to ensure a define d level of an unused pin, is to enable th e internal pull-up. In this case, the pull-up will be disabled during reset. If low power consumption during reset is important, it is recommended to use an external pull-up or pulldown. Connecting unused pins directly to V may cause excessive currents if the pin is accidentally configured as an output.

/2.

or GND is not recommended, since this

10.3 Alternate Port Functions

Most port pins have alternate functions in addition to being gen eral d igital I/Os. F igur e 10-5 shows how the port pin control signals from the simplified Figure 10-2 can be overridden by altern ate functions. The ove rriding signals m ay not be present in all port pins, but the figure serves as a generic description applicable to all port pins in the AVR microcontroller family.

ATtiny25/45/85 [DATASHEET]

2586Q–AVR–08/2013

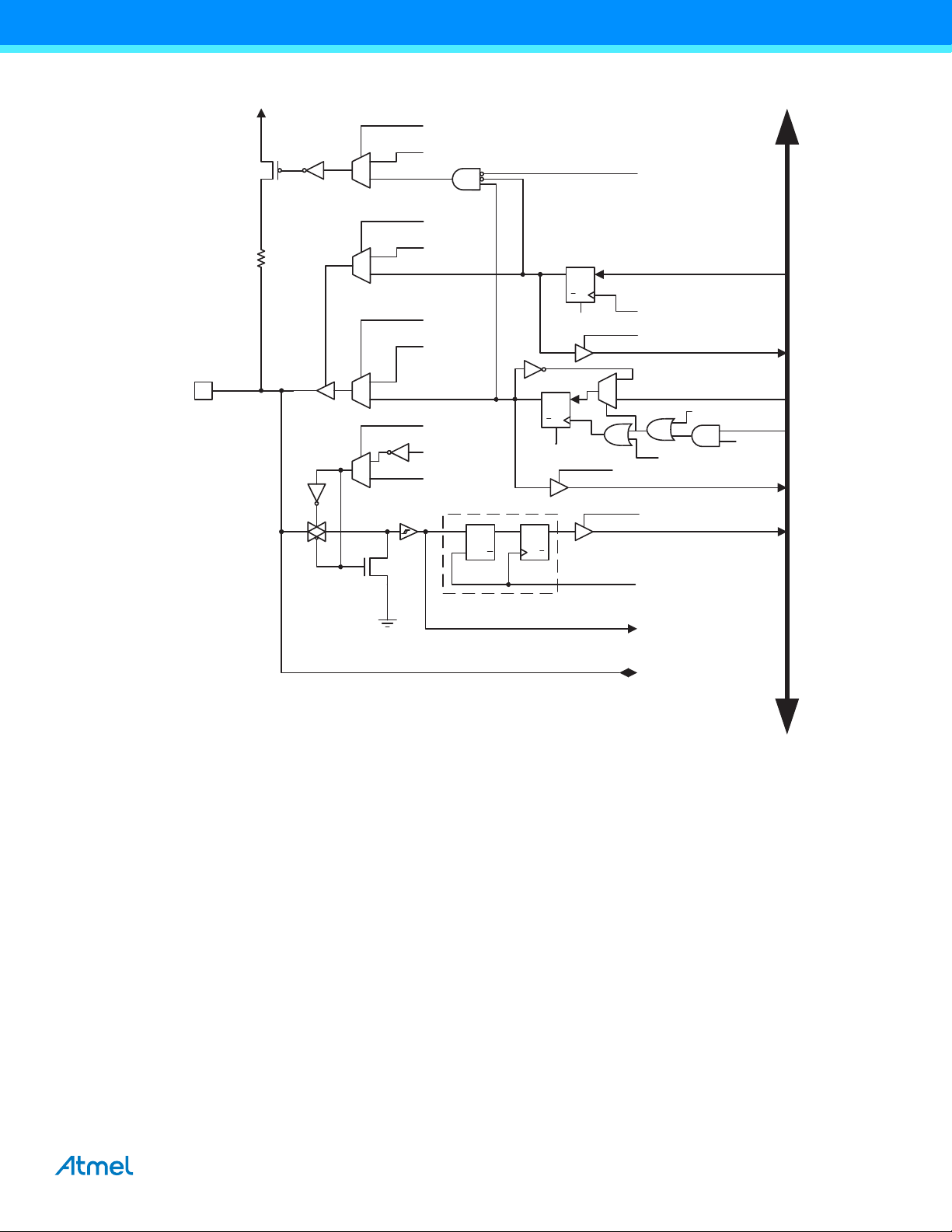

Figure 10-5. Alternate Port Functions

clk

RPx

RRx

WRx

RDx

WDx

PUD

SYNCHRONIZER

WDx: WRITE DDRx

WRx: WRITE PORTx

RRx: READ PORTx REGISTER

RPx: READ PORTx PIN

PUD: PULLUP DISABLE

clk

I/O

: I/O CLOCK

RDx: READ DDRx

DLQ

SET

CLR

DIxn

AIOxn

DIEOExn

PVOVxn

PVOExn

DDOVxn

DDOExn

PUOExn

PUOVxn

PUOExn: Pxn PULL-UP OVERRIDE ENABLE PUOVxn: Pxn PULL-UP OVERRIDE VALUE DDOExn: Pxn DATA DIRECTION OVERRIDE ENABLE DDOVxn: Pxn DATA DIRECTION OVERRIDE VALUE PVOExn: Pxn PORT VALUE OVERRIDE ENABLE PVOVxn: Pxn PORT VALUE OVERRIDE VALUE

DIxn: DIGITAL INPUT PIN n ON PORTx AIOxn: ANALOG INPUT/OUTPUT PIN n ON PORTx

RESET

CLR

PINxn

PORTxn

DDxn

DATA B US

DIEOVxn

SLEEP

DIEOExn: Pxn DIGITAL INPUT-ENABLE OVERRIDE ENABLE DIEOVxn: Pxn DIGITAL INPUT-ENABLE OVERRIDE VALUE SLEEP: SLEEP CONTROL

Pxn

I/O

PTOExn

PTOExn: Pxn, PORT TOGGLE OVERRIDE ENABLE

WPx: WRITE PINx

WPx

(1)

Note: 1. WRx, WPx, WDx, RRx, RPx, and RDx are common to all pins within the same port. clk

common to all ports. All other signals are unique for each pin.

, SLEEP, and PUD are

I/O

ATtiny25/45/85 [DATASHEET]

2586Q–AVR–08/2013

Table 10-2 summarizes the function of the overriding signals. The pin and port indexes from Figure 10-5 are not

shown in the succeeding tables. The overriding signals are genera ted intern ally in the modules ha ving the alternate function.

Table 10-2. Generic Description of Overriding Signals for Alternate Functions

Signal Name Full Name Description

If this signal is set, the pull-up enable is controlled by the PUOV signal. If this signal is cleared, the pull-up is enabled when {DDxn, PORTxn, PUD} = 0b010.

If PUOE is set, the pull-up is enabled/disabled when PUOV is set/cleared, regardless of the setting of the DDxn, PORTxn, and PUD Register bits.

If this signal is set, the Output Driver Enable is controlled by the DDOV signal. If this signal is cleared, the Output driver is enabled by the DDxn Register bit.

If DDOE is set, the Output Driver is enabled/disabled when DDOV is set/cleared, regardless of the setting of the DDxn Register bit.

If this signal is set and the Output Driver is enabled, the port value is controlled by the PVOV signal. If PVOE is cleared, and the Output Driver is enabled, the port Value is controlled by the PORTxn Register bit.

PUOE

PUOV

DDOE

DDOV

PVOE

Pull-up Override Enable

Pull-up Override Value

Data Direction Override Enable

Data Direction Override Value

Port Value Override Enable

PVOV

PTOE

DIEOE

DIEOV

DI Digital Input

AIO

Port Value Override Value

Port Toggle Override Enable

Digital Input Enable Override Enable

Digital Input Enable Override Value

Analog Input/Output

If PVOE is set, the port value is set to PVOV, regardless of the setting of the PORTxn Register bit.

If PTOE is set, the PORTxn Register bit is inverted.

If this bit is set, the Digital Input Enable is controlled by the DIEOV signal. If this signal is cleared, the Digital Input Enable is determined by MCU state (Normal mode, sleep mode).

If DIEOE is set, the Digital Input is enabled/disabled when DIEOV is set/cleared, regardless of the MCU state (Normal mode, sleep mode).

This is the Digital Input to alternate functions. In the figure, the signal is connected to the output of the schmitt-trigger but before the synchronizer. Unless the Digital Input is used as a clock source, the module with the alternate function will use its own synchronizer.

This is the Analog Input/Output to/from alternate functions. The signal is connected directly to the pad, and can be used bidirectionally.

The following subsections shortly describe the alternate functio ns for each p ort, an d rela te the over rid ing signa ls to the alternate function. Refer to the alternate function description for further details.

ATtiny25/45/85 [DATASHEET]

2586Q–AVR–08/2013

10.3.1 Alternate Functions of Port B

The Port B pins with alternate function are shown in Table 10-3.

Table 10-3. Port B Pins Alternate Functions

Port Pin Alternate Function

RESET

PB5

PB4

PB3

PB2

PB1

PB0

dW: debugWIRE I/O ADC0: ADC Input Channel 0 PCINT5:Pin Change Interrupt, Source 5

XTAL2: Crystal Oscillat or Ou tp u t CLKO: System Clock Output ADC2: ADC Input Channel 2 OC1B: Timer/Counter1 Compare Match B Output PCINT4:Pin Change Interrupt 0, Source 4

XTAL1: Crystal Oscillator Input CLKI: External Clock Input ADC3: ADC Input Channel 3 OC1B: Compl ementary Timer/Counter1 Compare Match B Output PCINT3:Pin Change Interrupt 0, Source 3

SCK: Serial Clock Input ADC1: ADC Input Channel 1 T0: Timer/Counter0 Clock Source USCK: USI Clock (Three Wire Mode) SCL : USI Clock (Two Wire Mode) INT0: External Interrupt 0 Input PCINT2:Pin Change Interrupt 0, Source 2

MISO: SPI Master Data Input / Slave Data Output AIN1: Analog Comparator, Negative Input OC0B: Timer/Counter0 Compare Match B Output OC1A: Timer /Counter1 Compare Match A Output DO: USI Data Output (Three Wire Mode) PCINT1:Pin Change Interrupt 0, Source 1

MOSI:: SPI Master Data Output / Slave Data Input AIN0: Analog Comparator, Positive Input OC0A: Timer/Counter0 Compare Match A output OC1A DI: USI Data Input (Three Wire Mode) SDA: USI Data Input (Tw o Wire Mode) AREF: External Analog Reference PCINT0:Pin Change Interrupt 0, Source 0

:Reset Pin

: Complementary Timer/Counter1 Compare Match A Output

• Port B, Bit 5 – RESET

• RESET

: External Reset input is active low and enabled by unprogramming (“1”) the RSTDISBL Fuse. Pullup is

activated and output driver and digital input are deactivated when the pin is used as the RESET

/dW/ADC0/PCINT5

pin.

• dW: When the debugWIRE Enable (DWEN) Fuse is programmed and Lock bits are unprogrammed, the debugWIRE system within the target device is activated. The RESET

port pin is configured as a wire-AND (open-drain) bi-directional I/O pin with pull-up enabled and becomes the communication gateway between target and emulator.

• ADC0: Analog to Digital Converter, Channel 0

• PCINT5: Pin Change Interrupt source 5.

ATtiny25/45/85 [DATASHEET]

2586Q–AVR–08/2013

• Port B, Bit 4 – XTAL2/CLKO/ADC2/OC1B/PCINT4

• XTAL2: Chip Clock Oscillator pin 2. Used as clock pin for all chip clock sources except internal calibrateble RC Oscillator and external clock. When used as a clock pin, the pin can not be used as an I/O pin. When using internal calibratable RC Oscillator or External clock as a Chip clock sources, PB4 serves as an ordinary I/O pin.

• CLKO: The devided system clock can be output on the pin PB4. The divided system clock will be output if the CKOUT Fuse is programmed, regardless of the PORTB4 and DDB4 settings. It will also be output during reset.

• ADC2: Analog to Digital Converter, Channel 2

• OC1B: Output Compare Match output: The PB4 pin can serve as an external output for the Timer/Counter1 Compare Match B when configured as an output (DDB4 set). The OC1B pin is also the output pin for the PWM mode timer function.

• PCINT4: Pin Change Interrupt source 4.

• Port B, Bit 3 – XTAL1/CLKI/ADC3/OC1B

/PCINT3

• XT AL1: Chip Clock Oscillator pin 1. Used for all chip clock sources except internal calibrateble RC oscillator. When used as a clock pin, the pin can not be used as an I/O pin.

• CLKI: Clock Input from an external clock source, see “External Clock” on page 26.

• ADC3: Analog to Digital Converter, Channel 3

•OC1B: Invert ed Ou tpu t Co mpare Ma tc h ou tp ut: The PB3 pin can serve as an external output for the Timer/Counter1 Comp are Match B when configured as an output (DDB3 set). The OC1B

pin is also the inverted

output pin for the PWM mode timer function.

• PCINT3: Pin Change Interrupt source 3.

• Port B, Bit 2 – SCK/ADC1/T0/USCK/SCL/INT0/PCINT2

• SCK: Master Clock output, Slave Clock input pin for SPI channel. When the SPI is enabled as a Slave, this pin is configured as an input regardless of the setting of DDB2. When the SPI is enabled as a Master, the data direction of this pin is controlled by DDPB2. When the pin is forced by the SPI to be an input, the pull-up can still be controlled by the PORTB2 bit.

• ADC1: Analog to Digital Converter, Channel 1

• T0: Timer/Counter0 counter source.

• USCK: Three-wire mode Universal Serial Interface Clock.

• SCL: Two-wire mode Serial Clock for USI Two-wire mode.

• INT0: External Interrupt source 0.

• PCINT2: Pin Change Interrupt source 2.

• Port B, Bit 1 – MISO/AIN1/OC0B/OC1A/DO/PCINT1

• MISO: Master Data input, Slave Data output pin for SPI channel. When the SPI is e nabled as a Master, this pin is configured as an input regardless of the setting of DDB1. When the SPI is enabled as a Slave, the data direction of this pin is controlled by DDB1. When the pin is forced by the SPI to be an input, the pull-up can still be controlled by the PORTB1 bit.

• AIN1: Analog Comparator Negative Input. Configure the port pin as input with the internal pull-up switched off to avoid the digital port function from interfering with the function of the Analog Comparator.

• OC0B: Output Compare Match output. The PB1 pin can serve as an external output for the Timer/Counter0 Compare Match B. The PB1 pin has to be configured as an output (DDB1 set (one)) to serve this function. The OC0B pin is also the output pin for the PWM mode timer function.

ATtiny25/45/85 [DATASHEET]

2586Q–AVR–08/2013

• OC1A: Output Compare Match output: The PB1 pin can serve as an external output for the Timer/Counter1 Compare Match B when configured as an output (DDB1 set). The OC1A pin is also the output pin for the PWM mode timer function.

• DO: Three-wire mode Universal Serial Interface Data output. Three-wire mode Data output overrides PORTB1 value and it is driven to the port when data direction bit DDB1 is set (one). PORTB1 still enables the pull-up, if the direction is input and PORTB1 is set (one).

• PCINT1: Pin Change Interrupt source 1.

• Port B, Bit 0 – MOSI/AIN0/OC0A/OC1A

/DI/SDA/AREF/PCINT0

• MOSI: SPI Master Data output, Slave Data input for SPI channel. When the SPI is enabled as a Slave, this pin is configured as an input regardless of the setting of DDB0. When the SPI is enabled as a Master, the data direction of this pin is controlled by DDB0. When the pin is forced by the SPI to be an input, the pull-up can still be controlled by the PORTB0 bit.

• AIN0: Analog Comparator Positive Input. Configure the port pin as input with the internal pull-up switched off to avoid the digital port function from interfering with the function of the Analog Comparator.

• OC0A: Output Compare Match output. The PB0 pin can serve as an external output for the Timer/Counter0 Compare Match A when configured as an output (DDB0 set (one)). The OC0A pin is also the output pin for the PWM mode timer function.

•OC1A

: Inverted Output Compare Match output: The PB0 pin can ser ve as an ext er na l ou tp ut fo r the

Timer/Counter1 Comp are Match B when configured as an output (DDB0 set). The OC1A

pin is also the inverted

output pin for the PWM mode timer function.

• SDA: Two-wire mode Serial Interface Data.

• AREF: External Analog Reference for ADC. Pullup and output driver are disable d on PB0 wh en the pin is used as an external reference or Internal Voltage Reference with external capacitor at the AREF pin.

• DI: Data Input in USI Three-wire mode. USI Three-wire mode does not override normal port functions, so pin must be configure as an input for DI function.

• PCINT0: Pin Change Interrupt source 0.

Table 10-4 and Table 10-5 relate the alternate function s of Port B to the overrid ing signals shown in Figu re 1 0-5 on page 58.

ATtiny25/45/85 [DATASHEET]

2586Q–AVR–08/2013

Table 10-4. Overriding Signals for Alternate Functions in PB[5:3]

Signal Name

PUOE RSTDISBL

PB5/RESET/ ADC0/PCINT5

(1)

• DWEN

PB4/ADC2/XTAL2/ OC1B/PCINT4

(1)

PB3/ADC3/XTAL1/ OC1B/PCINT3

PUOV100 DDOE RSTDISBL

(1)

• DWEN

(1)

00 DDOV debugWire Transmit 0 0 PVOE 0 OC1B Enable OC1B

Enable PVOV 0 OC1B OC1B PTOE000

(1)

DIEOE

RSTDISBL PCIE + ADC0D)

+ (PCINT5 •

PCINT4 • PCIE + ADC2D PCINT3 • PCIE + ADC3D

DIEOV ADC0D ADC2D ADC3D DI PCINT5 Input PCINT4 Input PCINT3 Input AIO RESET Input, ADC0 Input ADC2 Input ADC3 Input

Note: 1. 1 when the Fuse is “0” (Programmed).

Table 10-5. Overriding Signals for Alternate Functions in PB[2:0]

PB0/MOSI/DI/SDA/AIN0/AR Signal Name

PUOE USI_TWO_WIRE 0 USI_TWO_WIRE PUOV000

PB2/SCK/ADC1/T0/ USCK/SCL/INT0/PCINT2

PB1/MISO/DO/AIN1/ OC1A/OC0B/PCINT1

EF/OC1A/OC0A/

PCINT0

DDOE USI_TWO_WIRE 0 USI_TWO_WIRE

DDOV

(USI_SCL_HOLD + PORTB2

) • DDB2

PVOE USI_TWO_WIRE • DDB2

0(SDA

OC0B Enable + OC1A Enable + USI_THREE_WIRE

+ PORTB0) • DDB0

OC0A Enable + OC1A

Enable + (USI_TWO_WIRE

• DDB0) PVOV 0 OC0B + OC1A + DO OC0A + OC1A PTOE USITC 0 0

DIEOE

PCINT2 • PCIE + ADC1D + USISIE

PCINT1 • PCIE + AIN1D

PCINT0 • PCIE + AIN0D + USISIE

DIEOV ADC1D AIN1D AIN0D

AIO ADC1 Input

T0/USCK/SCL/INT0/ PCINT2 Input

PCINT1 Input DI/SDA/PCINT0 Input

Analog Comparator Negative Input

Analog Comparator Positive Input

ATtiny25/45/85 [DATASHEET]

2586Q–AVR–08/2013

10.4 Register Description

10.4.1 MCUCR – MCU Control Register

Bit 7 6 5 4 3 2 1 0 0x35 Read/Write R R/W R/W R/W R/W R R/W R/W Initial Value 0 0 0 0 0 0 0 0

• Bit 6 – PUD: Pull-up Disable

When this bit is written to one, the pull-ups in the I/O ports are disabled even if the DDxn and PORTxn Registers are configured to enable the pull-ups ({DDxn, PORTxn} = 0b01). See “Configuring the Pin” on page 54 for more details about this feature.

10.4.2 PORTB – Port B Data Register

Bit 76543210 0x18 – – PORTB5 PORTB4 PORTB3 PORTB2 PORTB1 PORTB0 PORTB Read/Write R R R/W R/W R/W R/W R/W R/W Initial Value00000000

10.4.3 DDRB – Port B Data Direction Register

Bit 76543210 0x17 – – DDB5 DDB4 DDB3 DDB2 DDB1 DDB0 DDRB Read/Write R R R/W R/W R/W R/W R/W R/W Initial Value00000000

BODS PUD SE SM1 SM0 BODSE ISC01 ISC00 MCUCR

10.4.4 PINB – Port B Input Pins Address

Bit 76543210 0x16 – – PINB5 PINB4 PINB3 PINB2 PINB1 PINB0 PINB Read/Write R R R/W R/W R/W R/W R/W R/W Initial Value 0 0 N/A N/A N/A N/A N/A N/A

ATtiny25/45/85 [DATASHEET]

2586Q–AVR–08/2013

11. 8-bit Timer/Counter0 with PWM

Clock Select

Timer/Counter

DATA BUS

OCRnA

OCRnB

TCNTn

Wavefo rm

Generation

Wavefo rm

Generation

OCnA

OCnB

Fixed

TOP

Value

Control Logic

= 0

TOP BOT TOM

Count

Clear

Direction

TOVn

(Int.Req.)

OCnA

(Int.Req.)

OCnB

(Int.Req.)

TCCRnA TCCRnB

Edge

Detector

( From Prescaler )

clk

11.1 Features

• Two Independent Output Compare Units

• Double Buffered Output Compare Registers

• Clear Timer on Compare Match (Auto Reload)

• Glitch Free, Phase Correct Pulse Width Modulator (PWM)

• Variable PWM Period

• Frequency Generator

• Three Independent Interrupt Sources (TOV0, OCF0A, and OCF0B)

11.2 Overview

Timer/Counter0 is a general purpose 8-bit Timer/Counter module, with two independent Output Compare Units, and with PWM support. It allows accurate program execution timing (event management) and wave generation.

A simplified block diagram of the 8-bit Timer/Counter is shown in Figure 11-1. For the actual placement of I/O pins, refer to “Pinout ATtiny25/45/85” on page 2. CPU accessible I/O Registers, including I/O bits and I/O pins, are shown in bold. The device-specific I/O Register and bit locations are listed in the “Reg ister Description” on page 77.

Figure 11-1. 8-bit Timer/Counter Block Diagra m

11.2.1 Registers

The Timer/Counter (TCNT0) and Output Compare Registers (OCR0A and OCR0B) are 8-bit registers. Interrupt request (abbreviated to Int.Req. in the figure) signals are all visible in the Timer Interrupt Flag Register (TIFR). All

ATtiny25/45/85 [DATASHEET]

2586Q–AVR–08/2013

interrupts are individually masked with the Timer Interrupt Mask Register (TIMSK). TIFR an d TIMSK are n ot shown in the figure.

The Timer/Counter can be clocked internally, via the prescaler, or by an external clock source on the T0 pin. The Clock Select logic block controls which clock source and edge the Timer/Counter uses to increment (or decrement) its value. The Timer/Counter is inactive when no clock source is selected. The output from the Clock Select logic is referred to as the timer clock (clk

The double buffered Output Compare Registers (OCR0A and OCR0B) is compared with the Timer/Counter value at all times. The result of the compare can be used by the Waveform Generator to genera te a PWM or variable frequency output on the Output Compare pins (OC0A an d OC0B). See “Output Compare Unit” on page 69. for details. The Compare Match event will also set the Compare Flag (OCF0A or OCF0B) which can be used to generate an Output Compare interrupt request.

11.2.2 Definitions

Many register and bit references in this section are written in general form. A lower case “n” replaces the Timer/Counter number, in this case 0. A lower case “x” replaces the Output Compare Unit, in this case Compare Unit A or Compare Unit B. However, when using the register or bit defines in a program, the precise form must be used, i.e., TCNT0 for accessing Timer/Counter0 counter value and so on.

The definitions in Table 11-1 are also used extensively throughout the document.

Table 11-1. Definitions

Constant Description

BOTTOM The counter reaches BOTTOM when it becomes 0x00

MAX The counter reaches its MAXimum when it becomes 0xFF (decimal 255)

The counter reaches the TOP when it becomes equal to the highest value in the count

TOP

sequence. The TOP value can be assigned to be the fixed value 0xFF (MAX) or the value stored in the OCR0A Register. The assignment depends on the mode of operation

1 1.3 Timer/Counter0 Prescaler and Clock Sources

The Timer/Counter can be clocked by an internal or an external clock source. The clock source is selected by the Clock Select logic which is controlled by the Clock Select (c) bits located in the Timer/Counter0 Control Register (TCCR0B).

11.3.1 Internal Clock Source with Prescaler

Timer/Counter0 can be clocked directly by the system clock (by setting the CS0[2:0] = 1). This provides the fastest operation, with a maximum timer/counter clock frequency equal to system clock frequency (f one of four taps from the prescaler can be used as a clock source. The prescaled clock has a frequency of either f

/8, f

CLK_I/O

11.3.2 Prescaler Reset

The prescaler is free running, i.e. it operates independently of the Clock Select logic of Timer/Counter0. Since the prescaler is not affected by the timer/counter’s clock select, the state of the prescaler will have implications for situations where a prescaled clock is used. One example of a prescaling artifact is when the timer/counter is enabled and clocked by the prescaler (6 > CS0[2:0] > 1). The number of system clock cycles from when the timer is enabled to the first count occurs can be from 1 to N+1 system clock cycles, where N equals the prescaler divisor (8, 64, 256, or 1024).

CLK_I/O

/64, f

CLK_I/O

/256, or f

CLK_I/O

/1024.

). Alternatively,

CLK_I/O

It is possible to use the Prescaler Reset for synchronizing the Timer/Counter to program execution.

ATtiny25/45/85 [DATASHEET]

2586Q–AVR–08/2013

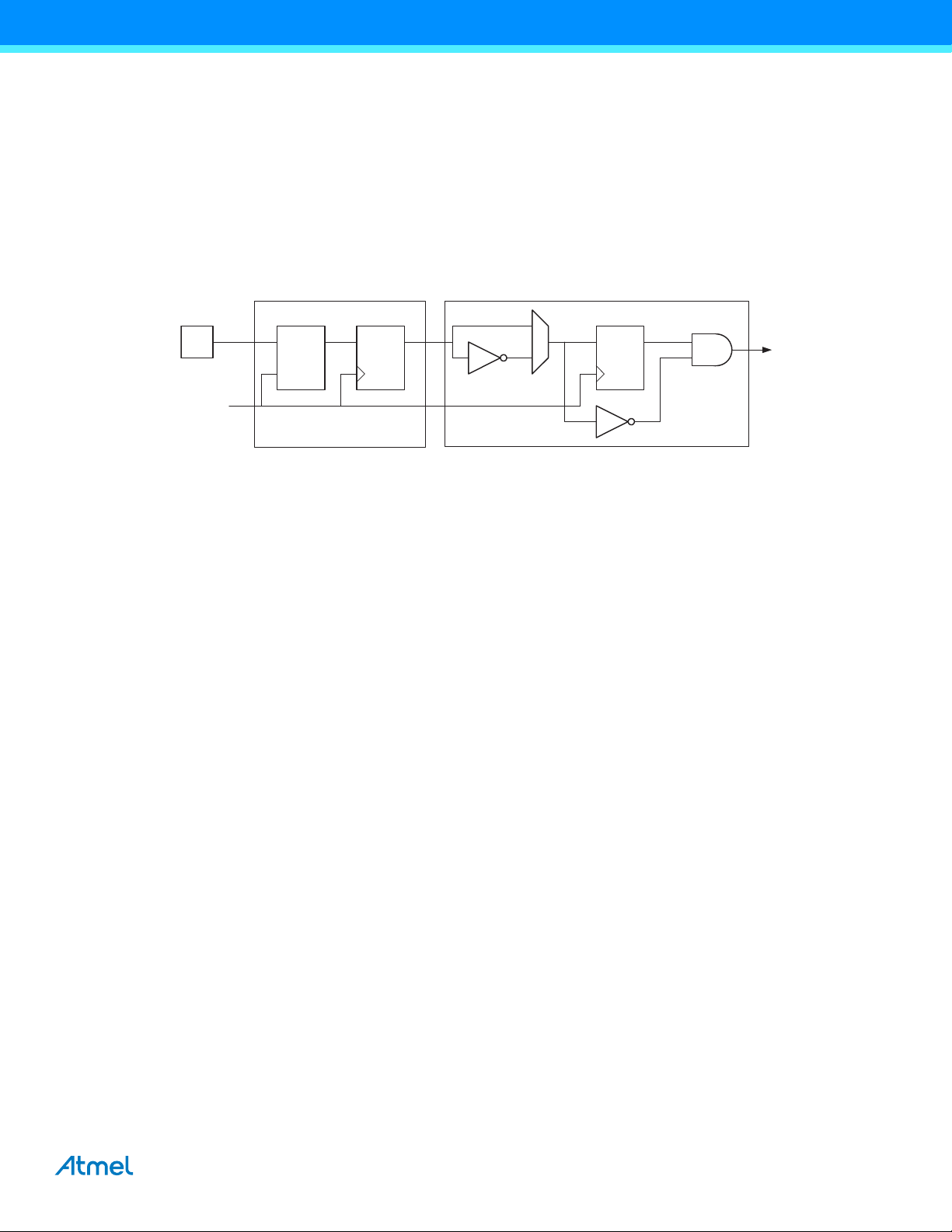

11.3.3 External Clock Source

Tn_sync

(To Clock Select Logic)

Edge DetectorSynchronization

DQDQ

clk

I/O

An external clock source applied to the T0 pin can be used as timer/counter clock (clk once every system clock cycle by the pin synchronization logic. The synchronized (sampled) signal is then passed through the edge detector. Figure 11-2 shows a functional equivalent block diagram of the T0 synchronization and edge detector logic. The registers are clocked at the positive edge of the internal system clock ( transparent in the high period of the internal system clock.

). The T0 pin is sampled

clk

). The latch is

I/O

The edge detector generates one clk

pulse for each positive (CS0[2:0] = 7) or negative (CS0[2:0] = 6) edge it

detects.

Figure 11-2. T0 Pin Sampling

The synchronization and edge detector logic introduces a delay of 2.5 to 3.5 system clock cycles from an ed ge has been applied to the T0 pin to the counter is updated.

Enabling and disabling of the clock input must be done when T0 has been stable for at least one system clock cycle, otherwise it is a risk that a false timer/counter clock pulse is generated.

Each half period of the external clock applied must be longer than one system clock cycle to ensure correct sampling. The external clock must be guaranteed to have less than half the system clock frequency (f

ExtClk

< f

clk_I/O

/2) given a 50/50% duty cycle. Since the edge detector uses sampling, the maximum frequency of an external clock it can detect is half the sampling frequency (following the Nyquist sampling theorem ). However, due to variation of the system clock frequency and duty cycle caused by oscillator source (crystal, resonator, and capacitors) tolerances, it is recommended that maximum frequency of an external clock source is less than f

clk_I/O

/2.5.

An external clock source can not be prescaled.

ATtiny25/45/85 [DATASHEET]

2586Q–AVR–08/2013

Figure 11-3. Timer/Counter0 Prescaler

PSR10

Clear

clk

I/O

Synchronization

DATA BUS

TCNTn Control Logic

count

TOVn

(Int.Req.)

Clock Select

top

Edge

Detector

( From Prescaler )

clk

bottom

direction

clear

The synchronization logic on the input pins (T0) in Figure 11-3 is shown in Figure 11-2 on page 67.

11.4 Counter Unit

The main part of the 8-bit Timer/Counter is the programmable bi-directional coun ter unit. Figure 11-4 shows a block diagram of the counter and its surroundings.

Figure 11-4. Counter Unit Block Diagram

Signal description (internal signals):

count Increment or decrement TCNT0 by 1. direction Select between increment and decrement. clear Clear TCNT0 (set all bits to zero). clk

Depending of the mode of operation used, the counter is clea red, incremente d, or decremente d at each time r clock (clk (CS0[2:0]). When no clock source is selected (CS0[2:0] = 0) the timer is stopped. However, the TCNT0 value can

top Signalize that TCNT0 has reached maximum value. bottom Signalize that TCNT0 has reached minimum value (zero).

). clkT0 can be generated from an external or internal clock source, selected by the Clock Select bits

Timer/Counter clock, referred to as clkT0 in the following.

ATtiny25/45/85 [DATASHEET]

2586Q–AVR–08/2013

be accessed by the CPU, regardless of whether clkT0 is present or not. A CPU write overrides (has priority over) all

DA T A B US

counter clear or count operations. The counting sequence is determined by the setting of the WGM01 and WGM00 bits located in the Timer/Counter

Control Register (TCCR0A) and the WGM02 bit located in the Timer/Coun te r Control Register B (TCCR0B). There are close connections between how the counter behaves (counts) and how waveforms are generated on the Output Compare output OC0A. For more details about advanced counting sequences and waveform generation, see

“Modes of Operation” on page 71.

The Timer/Counter Overflow Flag (TOV0) is set according to the mode of operation selected by the WGM0[1:0] bits. TOV0 can be used for generating a CPU interrupt.

11.5 Output Compare Unit

The 8-bit comparator continuously compares TCNT0 with the Output Compare Registers (OCR0A and OCR0B). Whenever TCNT0 equals OCR0A or OCR0B, the comparator signals a match. A match will set the Output Compare Flag (OCF0A or OCF0B) at the next timer clock cycle. If the corresponding interrupt is enabled, the Output Compare Flag generates an Output Compare interrupt. The Output Compare Flag is automatically cleared when the interrupt is executed. Alternatively, the flag can be cleared by software by writing a logical one to its I/O bit location. The Waveform Generator uses the match sig nal to generate an output acco rding to opera ting mode set by the WGM0[2:0] bits and Compare Output mode (COM0x[1:0]) bits. The max and bottom signals are used by th e Waveform Generator for handling the special cases of the extreme values in some modes of operation (See “Modes of

Operation” on page 71.). Figure 11-5 shows a block diagram of the Output Compare unit.

Figure 11-5. Output Compare Unit, Block Diagram

OCR nx

TCNTn

= (8-bit C omparator )

OC F nx (Int.Req.)

top

bottom

FOCn

The OCR0x Registers are double buffered when using any of the Pulse Width Modulation (PWM) modes. For the normal and Clear Timer on Compare (CTC) modes of operation, the double buffering is disabled. The double buffering synchronizes the update of the OCR0x Compare Registers to either top or bottom of the counting sequence. The synchronization prevents the occurrence of odd-length, non-symmetrical PWM pulses, thereby making the output glitch-free.

Waveform Generator

WGMn[1:0]

C O MnX [1:0]

OCnx

ATtiny25/45/85 [DATASHEET]

2586Q–AVR–08/2013

The OCR0x Register access may seem complex, but this is not case. When the double buffering is enabled, the CPU has access to the OCR0x Buffer Register, and if double buffering is disabled the CPU will access the OCR0x directly.

11.5.1 Force Output Compare

In non-PWM waveform generation modes, the match output of the comparator can be forced by writing a one to the Force Output Compare (FOC0x) bit. Forcing Compare Match will not set the OCF0x Flag or reload/clear the timer, but the OC0x pin will be updated as if a real Compare Match had occurred (the COM0x[1:0] bits settings define whether the OC0x pin is set, cleared or toggled).

11.5.2 Compare Match Blocking by TCNT0 Write

All CPU write operations to the TCNT0 Register will block any Compare Match that occur in the next timer clock cycle, even when the timer is stopped. This feature allows OCR0x to be initialized to the same value as TCNT0 without triggering an interrupt when the Timer/Counter clock is enabled.

11.5.3 Using the Output Compare Unit

Since writing TCNT0 in any mode of operation will block all Compare Matches for one timer clock cycle, there are risks involved when changing TCNT0 when using the Output Compare Unit, independently of whether the Timer/Counter is running or not. If the value written to TCNT0 equals the OCR0x value, the Compare Match will be missed, resulting in incorrect waveform generation. Similarly, do not write the TCNT0 value equal to BOTTOM when the counter is down-counting.

The setup of the OC0x should be performed b efore setting the Data Direction Register for th e port pin to output. The easiest way of setting the OC0x value is to use the Force Output Compare (FOC0x) strobe bits in Normal mode. The OC0x Registers keep their values even when changing between Waveform Generation modes.

Be aware that the COM0x[1:0] bits are not double buffered together with the compare value. Changing the COM0x[1:0] bits will take effect immediately.

1 1.6 Compare Match Output Unit

The Compare Output mode (COM0x[1:0]) bits have two functions. The Waveform Generator uses the COM0x[1:0] bits for defining the Output Compare (OC0x) state at the next Compare Match. Also, the COM0x[1:0] bits control the OC0x pin output source. Figure 11-6 shows a simplified schematic of the logic affected by the COM0x[1:0] bit setting. The I/O Registers, I/O bits, and I/O pins in the figure are shown in bold. Only the parts of the general I/O Port Control Registers (DDR and PORT) that are affected by the COM0x[1:0] bits are shown. When referring to the OC0x state, the reference is for the internal OC0x Register, not the OC0x pin. If a system reset occur, the OC0x Register is reset to “0”.

ATtiny25/45/85 [DATASHEET]

2586Q–AVR–08/2013

Figure 11-6. Compare Match Output Unit, Schematic

PORT

DDR

OCn

OCnx

Waveform Generator

COMnx1

COMnx0

DATA BU S

FOCn

clk

I/O

The general I/O port function is overridden by the Output Compare (OC0x) from the Waveform Generator if either of the COM0x[1:0] bits are set. However, the OC0x pin direction (input or output) is still controlled by the Data Direction Register (DDR) for the port pin. The Data Direction Register bit for the OC0x pin (DDR_OC0x) must be set as output before the OC0x value is visible on the pin. The port override function is independent of the Waveform Generation mode.

The design of the Output Compare pin logic allows initialization of the OC0x state before the output is enabled. Note that some COM0x[1:0] bit settings are reserved for ce rtain modes of o peratio n. See “Registe r Descrip tion” on

page 77.

11.6.1 Compare Output Mode and Waveform Generation

The Waveform Generator uses the COM0x[1:0] bits differently in Normal, CTC, and PWM modes. For all modes, setting the COM0x[1:0] = 0 tells the Waveform Generator that no action on the OC0x Register is to be performed on the next Compare Match. For compare output actions in the non-PWM modes refer to Table 11-2 on page 78. For fast PWM mode, refer to Table 11-3 on page 78, and for phase correct PWM refer to Table 11-4 on page 78.

A change of the COM0x[1:0] bits state will have effect at the first Compare Match after the bits are written. For nonPWM modes, the action can be forced to have immediate effect by using the FOC0x strobe bits.

11.7 Modes of Operation

The mode of operation, i.e., the behavior of the Timer/Counter and th e Output Compare pin s, is defined by the combination of the Waveform Generation mode (WGM0[2:0]) and Compare Output mode (COM0x[1:0]) bits. The Compare Output mode bits do not affect the counting sequence, while the Waveform Generation mode bits do. The COM0x[1:0] bits control whether the PWM output generated should be inverted or not (inverted or noninverted PWM). For non-PWM modes the COM0x[1:0] bits control whether the output should be set, cleared, or toggled at a Compare Match (See “Compare Match Output Unit” on page 70.).

ATtiny25/45/85 [DATASHEET]

2586Q–AVR–08/2013

For detailed timing information refer to Figure 11-10, Figure 11-11, Figure 11-12 and Figure 11-13 in “Timer/Coun-

TCNTn

OCn (Toggle)

OCnx Interrupt F lag Set

1 4

Period

2 3

(COMnx [1 : 0 ] = 1)

OCnx

clk_I/O

2 N 1 OCRnx+

--------------------------------------------------=

ter Timing Diagrams” on page 76.

11.7.1 Normal Mode

The simplest mode of operation is the Normal mode (WGM0[2:0] = 0). In this mode the counting direction is always up (incrementing), and no counter clear is performed. The counter simply overruns when it passes its maximum 8bit value (TOP = 0xFF) and then restarts from the bottom (0x00). In normal operation the Timer/Counter Overflow Flag (TOV0) will be set in the same timer clock cycle as the TCNT0 becomes zero. The TOV0 Flag in this case behaves like a ninth bit, except that it is only set, not cleared. However, combined with the timer overflow interrupt that automatically clears the TOV0 Flag, the timer resolution can be increased by software. There are no special cases to consider in the Normal mode, a new counter value can be written anytime.

The Output Compare Unit can be used to generate interrupts at some given time. Using the Output Compare to generate waveforms in Normal mode is not recommended, since this will occupy too much of the CPU time.

11.7.2 Clear Timer on Compare Match (CTC) Mode

In Clear Timer on Compare or CTC mode (WGM0[2:0] = 2), the OCR0A Register is used to manipulate the counter resolution. In CTC mode the counter is cleared to zero when the counter value (TCNT0) matches the OCR0A. The OCR0A defines the top value for the counter, hence also its resolution. This mode allows greater control of the Compare Match output frequency. It also simplifies the operation of counting external events.

The timing diagram for the CTC mode is shown in Figure 11-7. The counter value (TCNT0) increases until a Com- pare Match occurs between TCNT0 and OCR0A, and then counter (TCNT0) is cleared.

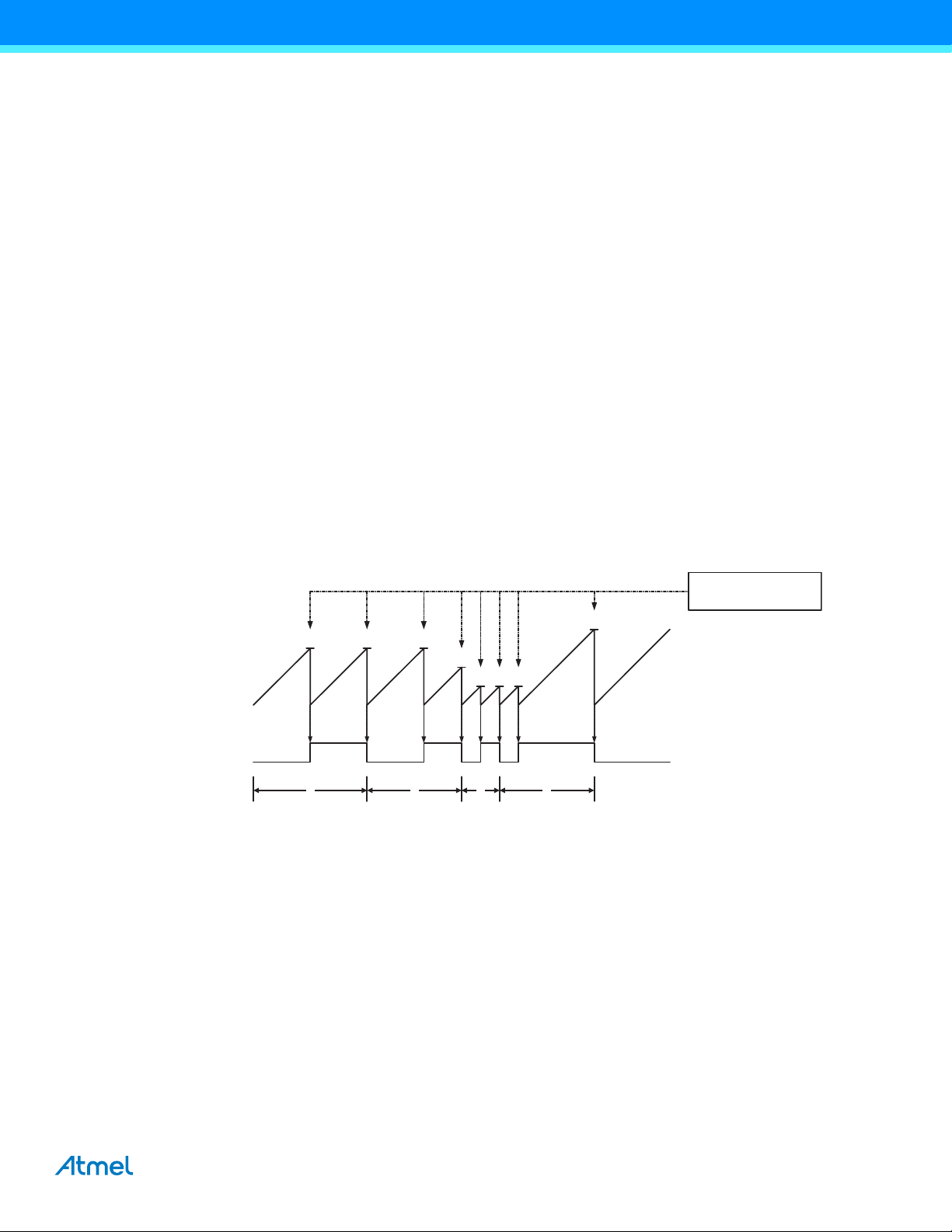

Figure 11-7. CTC Mode, Timing Diagram

An interrupt can be generated each time the counter value r eaches th e TOP value by u sing the OCF0A Fl ag. If the interrupt is enabled, the interrupt handler routine can be used for updating the TOP value. However, changing TOP to a value close to BOTTOM when the counter is running with none or a low prescaler value must be done with care since the CTC mode does not have the double buffering feature. If the new value written to OCR0A is lower than the current value of TCNT0, the counter will miss the Compare Match. The counter will then have to count to its maximum value (0xFF) and wrap around starting at 0x00 before the Compare Match can occur.

For generating a waveform output in CTC mode, the OC0A output can be set to toggle its logical level on each Compare Match by setting the Compare Output mode bits to toggle mode (COM0A[1:0] = 1). The OC0A value will not be visible on the port pin unless the data d irection for the pin is set to output. The waveform gener ated will have a maximum frequency of f

OC0

= f

/2 when OCR0A is set to zero (0x00). The waveform frequency is defined by

clk_I/O

the following equation:

ATtiny25/45/85 [DATASHEET]

2586Q–AVR–08/2013

The N variable represents the prescale factor (1, 8, 64, 256, or 1024).

TCNTn

OCR nx Updat e and TOVn Int er ru pt Flag Set

Period

2 3

OCn

(COMnx [1 : 0 ] = 2)

(COMnx [1 : 0 ] = 3)

OCR nx Interrupt Flag Set

4 5 6 7

As for the Normal mode of operation, the TOV0 Flag is set in the same timer clock cycle that the counter counts from MAX to 0x00.

11.7.3 Fast PWM Mode

The fast Pulse Width Modulation or fast PWM mode (WGM0[2:0] = 3 or 7) provides a high frequency PWM waveform generation option. The fast PWM differs from the other PWM option by its single-slope operation. The counter counts from BOTTOM to TOP then restarts from BOTTOM. TOP is defined as 0xFF when WGM0[2:0] = 3, and OCR0A when WGM0[2:0] = 7.

In non-inverting Compare Output mode, the Ou tput Compare (OC0x) is cleare d on the Compare Match between TCNT0 and OCR0x, and set at BOTTOM. In inverting Compare Output mode, the output is set on Compare Match and cleared at BOTTOM.

Due to the single-slope operation, the operating frequency of the fast PWM mode can be twice as high as the phase correct PWM mode that use dual-slope operation. Th is high frequency makes the fast PWM mode well suited for power regulation, rectification, and DAC applications. High frequency allows physically small sized external components (coils, capacitors ), an d th er ef or e re du ce s to tal system cost.

In fast PWM mode, the counter is incremented until the counter value matches the TOP value. The counter is then cleared at the following timer clock cycle. The timing diagram for the fas t PWM m ode is sh own in Figure 11-8. The TCNT0 value is in the timing diagram shown as a histogram for illustrating the single-slope operation. The diagram includes non-inverted and inverted PWM outputs. The small horizontal line marks on the TCNT0 slopes represent Compare Matches between OCR0x and TCNT0.

Figure 11-8. Fast PWM Mode, Timing Diagram

The Timer/Counter Overflow Flag (TOV0) is set each time the cou nter re aches TOP. If the inte rr upt is e nab led , the interrupt handler routine can be used for updating the compare value.

In fast PWM mode, the compare unit allows generation of PWM waveforms on the OC0x pins. Setting the COM0x[1:0] bits to two will produce a non-inverted PWM and an inverted PWM output can be generated by setting the COM0x[1:0] to three: Setting the COM0A[1 :0 ] bit s to on e allow es th e AC0 A pin to tog g le on Com p ar e M atc he s if the WGM02 bit is set. This option is not available for the OC0B pin (See Table 11-3 on page 78). The actual OC0x value will only be visible on the port pin if the data direction for the port pin is set as output. The PWM wave-

2586Q–AVR–08/2013

ATtiny25/45/85 [DATASHEET]

form is generated by setting (or clearing) the OC0x Register at the Compare Match between OCR0x and TCNT0,

OCnxPWM

clk_I/O

N 256

------------------=

and clearing (or setting) the OC0x Register at the timer clock cycle the counter is cleared (changes from TOP to BOTTOM).

The PWM frequency for the output can be calculated by the following equation:

The N variable represents the prescale factor (1, 8, 64, 256, or 1024). The extreme values for the OCR0A Register represents specia l cases when gener ating a PWM waveform output in

the fast PWM mode. If the OCR0A is set equal to BOTTOM, the output will be a narrow spike for each MAX+1 timer clock cycle. Setting the OCR0A equal to MAX will result in a constantly high or low output (depending on the polarity of the output set by the COM0A[1:0] bits.)

A frequency (with 50% duty cycle) waveform output in fast PWM mode can be achieved by setting OC0x to toggle its logical level on each Compare Match (COM0x[1:0] = 1). The waveform generated will have a maximum frequency of f

OC0

= f

/2 when OCR0A is set to zero. This feature is similar to the OC0A toggle in CTC mode,

clk_I/O

except the double buffer feature of the Output Compare unit is enabled in the fast PWM mode.

11.7.4 Phase Correct PWM Mode

The phase correct PWM mode (WGM0[2:0] = 1 or 5) provides a high resolution phase correct PWM waveform generation option. The phase correct PWM mode is based on a dual-slope operation. The counter counts repeatedly from BOTTOM to TOP and then from TOP to BOTTOM. TOP is defined as 0xFF when WGM0[2:0] = 1, and OCR0A when WGM0[2:0] = 5. In non-inverting Compare Output mode, the Output Compare (OC0x) is cleared on the Compare Match between TCNT0 and OCR0x while upcounting, and set on the Compare Match while downcounting. In inverting Output Compare mode, the operation is inverted. The dual-slope operation has lower maximum operation frequency than single slope operation. However, due to the symmetric feature of the dual-slope PWM modes, these modes are preferred for motor control applications.

In phase correct PWM mode the counter is incremented until the counter value matches TOP. When the counter reaches TOP, it changes the count direction. The TCNT0 value will be equal to TOP for one timer clock cycle. The timing diagram for the phase correct PWM mode is shown on Figure 11-9. The TCNT0 value is in the timing diagram shown as a histogram for illustrating the dual-slope operation. The diagram includes non-inverted and inverted PWM outputs. The small horizontal line marks on the TCNT0 slopes represent Compare Matches between OCR0x and TCNT0.

ATtiny25/45/85 [DATASHEET]

2586Q–AVR–08/2013

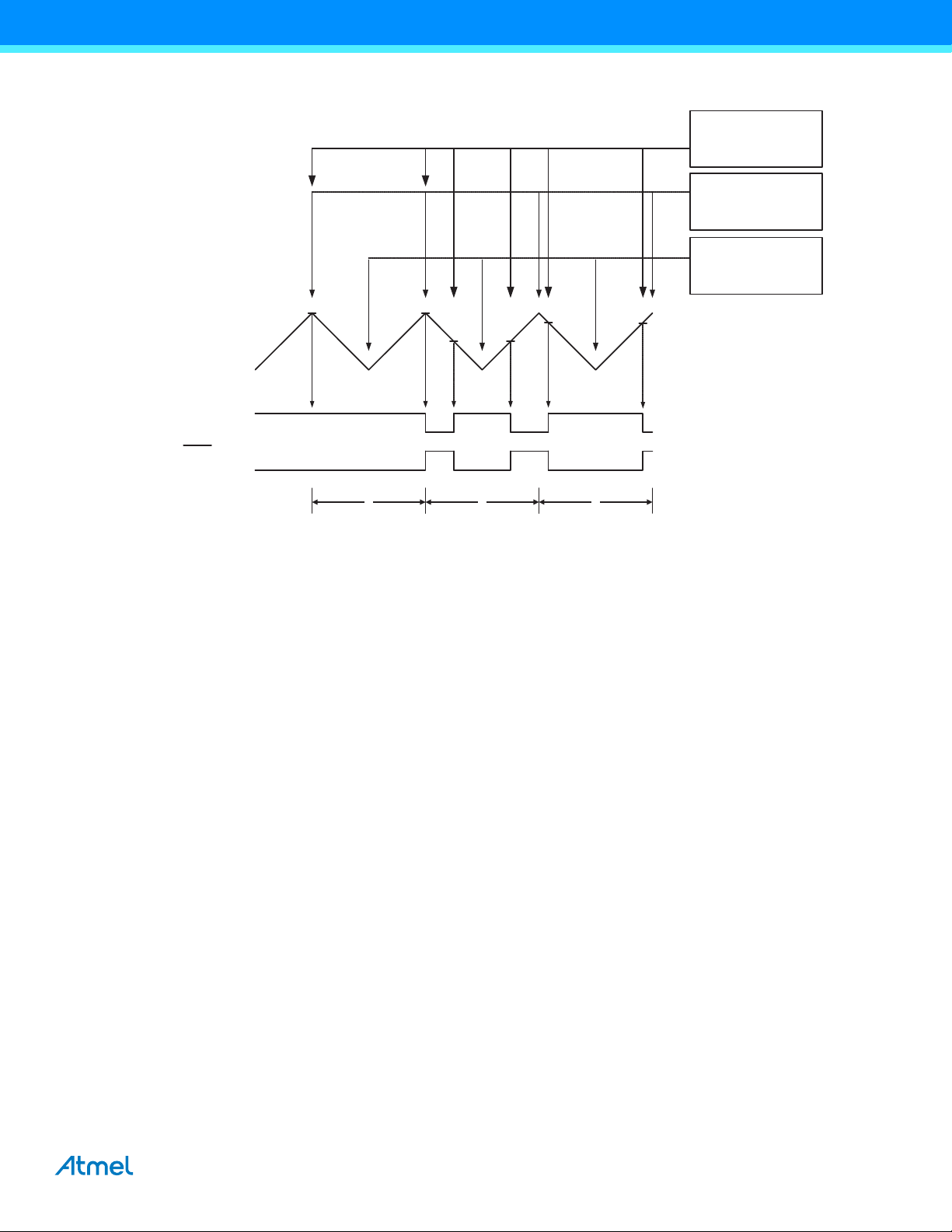

Figure 11-9. Phase Correct PWM Mode, Timing Diagram

OCnxPCPWM

clk_I/O

N510

------------------=

TCNTn

OCnx Interrupt Flag Set

OCRnx Update

TOVn Interrupt Flag Set

OCn

Period

1 2 3

(COMnx[1:0] = 2)

(COMnx[1:0] = 3)

The Timer/Counter Overflow Flag (TOV0) is set each time the counter reaches BOTTOM. The Interrupt Flag can be used to generate an interrupt each time the counter reaches the BOTTOM value.

In phase correct PWM mode, the compar e unit allows generatio n of PWM waveforms on the OC0x pins. Setting the COM0x[1:0] bits to two will produce a non-inverted PWM. An inverted PWM output can be generated by setting the COM0x[1:0] to three: Setting the COM0A0 bits to one allows the OC0A pin to toggle on Compare Matches if the WGM02 bit is set. This option is not available for the OC0B pin (See Table 11-4 on page 78). The actual OC0x value will only be visible on the port pin if the data direction for the port pin is set as output. The PWM waveform is generated by clearing (or setting) the OC0x Register at the Compare Match between OCR0x and TCNT0 when the counter increments, and setting (or clearing) the OC0x Register at Compare Match between OCR0x and TCNT0 when the counter decrements. The PWM frequency for the output when using phase correct PWM can be calculated by the following equation:

The N variable represents the prescale factor (1, 8, 64, 256, or 1024). The extreme values for the OCR0A Register represent special cases when generating a PWM waveform output in

the phase correct PWM mode. If the OCR0A is set equal to BOTTOM, the output will be continuously low and if set equal to MAX the output will be continuously high for non-inverted PWM mode. For inverted PWM the output will have the opposite logic values.

At the very start of period 2 in Figure 11-9 OCn has a transition from high to low even though there is no Compare Match. The point of this transition is to guaratee symmetry around BOTTOM. There are two cases that g ive a transition without Compare Match, as follows:

• OCR0A changes its value from MAX, like in Figure 11-9. When the OCR0A value is MAX the OCn pin value is the same as the result of a down-counting Compare Match. To ensure symmetry around BOTTOM the OCn value at MAX must correspond to the result of an up-counting Compare Match.

ATtiny25/45/85 [DATASHEET]

2586Q–AVR–08/2013

• The timer starts counting from a value higher than the one in OCR0A, and for that reason misses the Compare

clk

(clk

I/O

/1)

TOVn

clk

I/O

TCNTn MAX - 1 MAX BOTTOM BOTTOM + 1

TOVn

TCNTn

MAX - 1 MAX BOTTOM BOTTOM + 1

clk

I/O

clk

(clk

I/O

/8)

OCFnx

OCRnx

TCNTn

OCRnx Value

OCRnx - 1 OCRnx OCRnx + 1 OCRnx + 2

clk

I/O

clk

(clk

I/O

/8)

Match and hence the OCn change that would have happened on the way up.

11.8 Timer/Counter Timing Diagrams

The Timer/Counter is a synchronous design and the timer clock (clkT0) is therefore shown as a clock enable signal in the following figures. The figures include information on when Interrupt Flags are set. Figure 11-10 contains timing data for basic Timer/Counter operation. The figure shows th e count sequence close to the MAX valu e in all modes other than phase correct PWM mode.

Figure 11-10. Timer/Counter Timin g Diagr am , no Pre sca ling

Figure 11-11 shows the same timing data, but with the prescaler enabled.

Figure 11-11. Timer/Counter Timing Diagram, with Prescaler (f

clk_I/O

/8)

Figure 11-12 shows the setting of OCF0B in all modes and OCF 0A in all modes except CTC mode and PWM

mode, where OCR0A is TOP.

Figure 11-12. Timer/Counter Timin g Diagr am , Set tin g of OC F0x, with Pre sca le r (f

clk_I/O

/8)

ATtiny25/45/85 [DATASHEET]

2586Q–AVR–08/2013

Figure 11-13 shows the setting of OCF0A and the clearing of TCNT0 in CTC mode and fast PWM mode where

OCFnx

OCRnx

TCNTn

(CTC)

TOP

TOP - 1 TOP BOTTOM BOTTOM + 1

clk

I/O

clk

(clk

I/O

/8)

OCR0A is TOP.

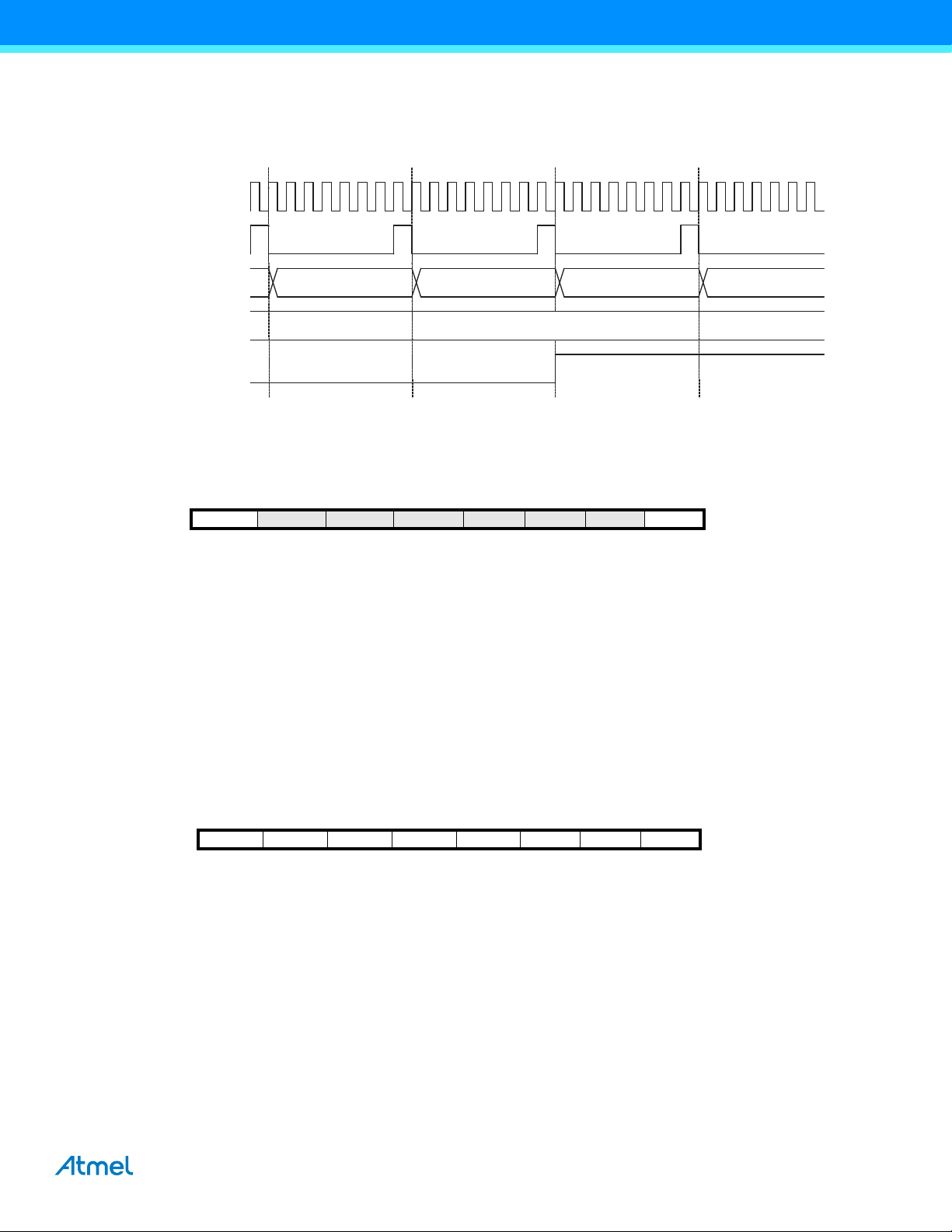

Figure 11-13. Timer/Counter Timin g Dia gr am , Cle ar Tim er on Com p ar e M atc h mo d e, with Pre sca ler (f

1 1.9 Register Description

11.9.1 GTCCR – General Timer/Counter Control Register

Bit 7 6 5 4 3 2 1 0 0x2C TSM Read/Write R/W R R R R R R R/W Initial Value 0 0 0 0 0 0 0 0

• Bit 7 – TSM: Timer/Counter Synchronization Mode

Writing the TSM bit to one activates the Timer/Counter Synchronization Mode. In this mode, the value written to PSR0 is kept, hence keeping the Prescaler Reset signal asserted. This ensures that the timer/counter is halted and can be configured without the risk of advancing during configuration. When the TSM bit is written to zero, the PSR0 bit is cleared by hardware, and the timer/counter start counting.

PWM1B COM1B1 COM1B0 FOC1B FOC1A PSR1 PSR0 GTCCR

clk_I/O

/8)

• Bit 0 – PSR0: Prescaler Reset Timer/Counter0

When this bit is one, the Timer/Counter0 prescaler will be Reset. This bit is normally cleared immediately by hardware, except if the TSM bit is set.

11.9.2 TCCR0A – Timer/Counter Control Register A

Bit 7 6 5 4 3210 0x2A COM0A1 COM0A0 COM0B1 COM0B0 ––WGM01 WGM00 TCCR0A Read/Write R/W R/W R/W R/W R R R/W R/W Initial Value 0 0 0 0 0 0 0 0

• Bits 7:6 – COM0A[1:0]: Compare Match Output A Mode

• Bits 5:4 – COM0B[1:0]: Compare Match Output B Mode

The COM0A[1:0] and COM0B[1:0] bits control the behaviour of Output Compare pins OC0A and OC0B, respectively. If any of the COM0A[1:0] bits are set, the OC0A output overrides the normal port functionality of the I/O pin it is connected to. Similarly, if any of the COM0B[1:0] bits are set, the OC0B output overrides the normal port functionality of the I/O pin it is connected to. However, note that the Data Direction Register (DDR) bit corresponding to the OC0A and OC0B pins must be set in order to enable the output driver.

ATtiny25/45/85 [DATASHEET]

2586Q–AVR–08/2013

When OC0A/OC0B is connected to the I/O pin, the function of the COM0A[1:0]/COM0B[1:0] bits depend on the WGM0[2:0] bit setting. Table 11-2 shows the COM0x[1:0] bit functionality when the WGM0[2:0] bits are set to a normal or CTC mode (non-PWM).

Table 11-2. Compare Output Mode, non-PWM Mode

COM0A1 COM0B1

0 0 Normal port operation, OC0A/OC0B disconnected. 0 1 Toggle OC0A/OC0B on Compare Match 1 0 Clear OC0A/OC0B on Compare Match 1 1 Set OC0A/OC0B on Compare Match

COM0A0 COM0B0 Description

Table 11-3 shows the COM0x[1:0] bit functionality when the WGM0[2:0] bits are set to fast PWM mode.

Table 11-3. Compare Output Mode, Fast PWM Mode

COM0A1 COM0B1

0 0 Normal port operation, OC0A/OC0B disconnected. 01Reserved

Note: 1. A special case occurs when OCR0A or OCR0B equals TOP and COM0A1/COM0B1 is set. In this case, the com-

COM0A0 COM0B0 Description

Clear OC0A/OC0B on Compare Match, set OC0A/OC0B at BOTTOM (non-inverting mode)

Set OC0A/OC0B on Compare Match, clear OC0A/OC0B at BOTTOM (inverting mode)

pare match is ignored, but the set or clear is done at BOTTOM. See “Fast PWM Mode” on page 73 for more details.

(1)

Table 11-4 shows the COM0x[1:0] bit functionality when the WGM0[2:0] bits are set to phase correct PWM mode.

Table 11-4. Compare Output Mode, Phase Correct PWM Mode

COM0A1 COM0B1

0 0 Normal port operation, OC0A/OC0B disconnected. 01Reserved

Note: 1. A special case occurs when OCR0A or OCR0B equals TOP and COM0A1/COM0B1 is set. In this case, the Com-

COM0A0 COM0B0 Description

Clear OC0A/OC0B on Compare Match when up-counting. Set OC0A/OC0B on Compare Match when down-counting.

Set OC0A/OC0B on Compare Match when up-counting. Clear OC0A/OC0B on Compare Match when down-counting.

pare Match is ignored, but the set or clear is done at TOP. See “Phase Correct PWM Mode” on page 74 for more details.

(1)

• Bits 3:2 – Res: Reserved Bits

These bits are reserved bits in the ATtiny25/45/85 and will always read as zero.

ATtiny25/45/85 [DATASHEET]

2586Q–AVR–08/2013

• Bits 1:0 – WGM0[1:0]: Waveform Generation Mode

Combined with the WGM02 bit found in the TCCR0B Register, these bits control the counting sequence of the counter, the source for maximum (TOP) counter value, and what type of waveform generation to be used, see

Table 11-5. Modes of operation supported by the Timer/Counter unit are: Normal mode (counter), Clear Timer on

Compare Match (CTC) mode, and two types of Pulse Width Modulation (PWM) modes (see “Modes of Operation”

on page 71).

Table 11-5. Waveform Generation Mode Bit Description

WGM02WGM01WGM00Timer/Counter Mode

Mode

0 0 0 0 Normal 0xFF Immediate MAX 1 0 0 1 PWM, Phase Correct 0xFF TOP BOTTOM 2 0 1 0 CTC OCRA Immediate MAX 3 0 1 1 Fast PWM 0xFF BOTTOM 4 1 0 0 Reserved – – – 5 1 0 1 PWM, Phase Correct OCRA TOP BOTTOM 6 1 1 0 Reserved – – – 7 1 1 1 Fast PWM OCRA BOTTOM

Notes: 1. MAX = 0xFF

2. BOTTOM = 0x00

of Operation TOP

11.9.3 TCCR0B – Timer/Counter Control Register B

Bit 7 6 5 4 3 2 1 0 0x33 FOC0A FOC0B – – WGM02 CS02 CS01 CS00 TCCR0B Read/Write W W R R R/W R/W R/W R/W Initial Value 0 0 0 0 0 0 0 0

• Bit 7 – FOC0A: Force Output Compare A

The FOC0A bit is only active when the WGM bits specify a non-PWM mode.

Update of

OCRx at

(2)

TOV Flag

Set on

(1)

(1) (1)

MAX

TOP

(2)

However, for ensuring compatibility with future devices, this bit must be set to zero when TCCR0B is written when operating in PWM mode. When writing a logical one to the FOC0A bit, an immediate Compare Match is forced on the Waveform Generation unit. The OC0A output is changed according to its COM0A[1:0] bits setting. Note that the FOC0A bit is implemented as a strobe. Therefore it is the value present in the COM0A[1:0] bits that determin es the effect of the forced compare.

A FOC0A strobe will not generate any interrupt, nor will it clear the timer in CTC mode using OCR0A as TOP. The FOC0A bit is always read as zero.

• Bit 6 – FOC0B: Force Output Compare B

The FOC0B bit is only active when the WGM bits specify a non-PWM mode. However, for ensuring compatibility with future devices, this bit must be set to zero when TCCR0B is written when

operating in PWM mode. When writing a logical one to the FOC0B bit, an immediate Compare Match is forced on the Waveform Generation unit. The OC0B output is changed according to its COM0B[1:0] bits setting. Note that the FOC0B bit is implemented as a strobe. Therefore it is the value present in the COM0B[1:0] bits that determin es the effect of the forced compare.

A FOC0B strobe will not generate any interrupt, nor will it clear the timer in CTC mode using OCR0B as TOP.

ATtiny25/45/85 [DATASHEET]

2586Q–AVR–08/2013

The FOC0B bit is always read as zero.

• Bits 5:4 – Res: Reserved Bits

These bits are reserved bits in the ATtiny25/45/85 and will always read as zero.

• Bit 3 – WGM02: Waveform Generation Mode

See the description in the “TCCR0A – Timer/Counter Control Register A” on page 77.

• Bits 2:0 – CS0[2:0]: Clock Select

The three Clock Select bits select the clock source to be used by the Timer/Counter.

Table 11-6. Clock Select Bit Description

CS02 CS01 CS00 Description

0 0 0 No clock source (Timer/Counter stopped) 001clk 010clk 011clk 100clk 101clk 1 1 0 External clock source on T0 pin. Clock on falling edge. 1 1 1 External clock source on T0 pin. Clock on rising edge .

/(No prescaling)

I/O

/8 (From prescaler)

I/O

/64 (From prescaler)

I/O

/256 (From prescaler)

I/O

/1024 (From prescaler)

I/O

If external pin modes are used for the Timer/Counter0, transitions on the T0 pin will clock the counter even if the pin is configured as an output. This feature allows software control of the counting.

11.9.4 TCNT0 – Timer/Counter Regi st er

Bit 76543210 0x32 TCNT0[7:0] TCNT0 Read/Write R/W R/W R/W R/W R/W R/W R/W R/W Initial Value00000000

The Timer/Counter Register gives direct access, both for read and write operations, to the Timer/Counter unit 8-bit counter. Writing to the TCNT0 Regis te r blocks (removes) the Compare Match on the following timer clock. Modifying the counter (TCNT0) while the counter is running , introduces a risk of missing a Compare M atch between TCNT0 and the OCR0x Registers.

11.9.5 OCR0A – Output Compare Register A

Bit 76543210 0x29 OCR0A[7:0] OCR0A Read/Write R/W R/W R/W R/W R/W R/W R/W R/W Initial Value00000000

The Output Compare Register A contains an 8- bit value that is continuously compared with the counter value (TCNT0). A match can be used to generate an Output Compare interrupt, or to generate a waveform output on the OC0A pin.

ATtiny25/45/85 [DATASHEET]

2586Q–AVR–08/2013

11.9.6 OCR0B – Output Compare Register B

Bit 76543210 0x28 OCR0B[7:0] OCR0B Read/Write R/W R/W R/W R/W R/W R/W R/W R/W Initial Value00000000

The Output Compare Register B contains an 8- bit value that is continuously compared with the counter value (TCNT0). A match can be used to generate an Output Compare interrupt, or to generate a waveform output on the OC0B pin.

11.9.7 TIMSK – Timer/Counter Interrupt Mask Register

Bit 76543210 0x39 – Read/Write R R/W R/W R/W R/W R/W R/W R Initial Value 0 0 0 0 0 0 0 0

OCIE1A OCIE1B OCIE0A OCIE0B TOIE1 TOIE0 – TIMSK

• Bits 7, 0 – Res: Reserved Bits

These bits are reserved bits and will always read as zero.

• Bit 4 – OCIE0A: Timer/Counter0 Output Compare Match A Interrupt Enable

When the OCIE0A bit is written to one, and the I-bit in the Status Register is set, the Timer/Coun ter0 Compare Match A interrupt is enabled. The corresponding interrupt is executed if a Compare Match in Timer/Counter0 occurs, i.e., when the OCF0A bit is set in the Timer/Counter 0 Interrupt Flag Register – TIFR0.

• Bit 3 – OCIE0B: Timer/Counter Output Compare Match B Interrupt Enable

When the OCIE0B bit is written to one, and the I-bit in the Status Register is set, the Timer/Counter Compare Match B interrupt is enabled. The correspond ing interrupt is executed if a Compare Match in Timer/Counter occurs, i.e., when the OCF0B bit is set in the Timer/Counter Interrupt Flag Register – TIFR0.

• Bit 1 – TOIE0: Timer/Counter0 Overflow Interrupt Enable

When the TOIE0 bit is written to one, and the I-bit in the Status Register is set, the Timer/Counter0 Overflow interrupt is enabled. The corresponding interrupt is executed if an overflow in Timer/Counter0 occurs, i.e., when the TOV0 bit is set in the Timer/Counter 0 Interrupt Flag Register – TIFR0.

11.9.8 TIFR – Timer/Counter Interrupt Flag Register

Bit 76543210 0x38 – Read/Write R R/W R/W R/W R/W R/W R/W R Initial Value00000000

OCF1A OCF1B OCF0A OCF0B TOV1 TOV0 –TIFR

• Bits 7, 0 – Res: Reserved Bits

These bits are reserved bits and will always read as zero.

• Bit 4 – OCF0A: Output Compare Flag 0 A

The OCF0A bit is set when a Compare Match occurs between the Timer/Counter0 and the data in OCR0A – Output Compare Register0. OCF0A is cleared by hardware when executing the corresponding interrupt handling vector. Alternatively, OCF0A is cleared by writing a logic one to the flag. When the I-bit in SREG, OCIE0A (Timer/Counter0 Compare Match Interrupt Enable), and OCF0A are set, the Timer/Counter 0 Compare Match Inte rrupt is executed.

ATtiny25/45/85 [DATASHEET]

2586Q–AVR–08/2013

• Bit 3 – OCF0B: Output Compare Flag 0 B

The OCF0B bit is set when a Compare Match occurs between the Timer/Counter and the data in OCR0B – Output Compare Register0 B. OCF0B is cleared by hardware when executing the co rrespondin g interr upt hand ling vecto r. Alternatively, OCF0B is cleared by writing a logic one to the flag. When the I-bit in SREG, OCIE0B (Timer/Counter Compare B Match Interrupt Enable), and OCF0B are set, the Timer/Counter Compare Match Interrupt is executed.

• Bit 1 – TOV0: Timer/Counter0 Overflow Flag

The bit TOV0 is set when an overflow occurs in Timer/Counter0. TOV0 is cleared by ha rdware when executing the corresponding interrupt handling vect or. Altern atively, T OV0 is cleared by writing a logic one to the fl ag. When th e SREG I-bit, TOIE0 (Timer/Counter0 Overflow Interrupt Enable), and TOV0 are set, the Timer/Counter0 Overflow interrupt is executed.

The setting of this flag is dependent of the WGM0[2:0] bit setting. Refer to Table 11-5, “Waveform Generation

Mode Bit Description” on page 79.

ATtiny25/45/85 [DATASHEET]

2586Q–AVR–08/2013

12. 8-bit Timer/Counter1

The Timer/Counter1 is a general purpose 8-bit Timer/Counter module that has a separate prescaling selection from the separate prescaler.

12.1 Timer/Counter1 Prescaler

Figure 12-1 shows the Timer/Counter1 prescaler that supports two clocking modes, a synchronous clocking mode

and an asynchronous clocking mode. The synchronous clocking mode uses the system clock (CK) as the clock timebase and asynchronous mode uses the fast peri pheral clock (PCK) as the clock time base. The PCKE bit from the PLLCSR register enables the asynchronous mode when it is set (‘1’).

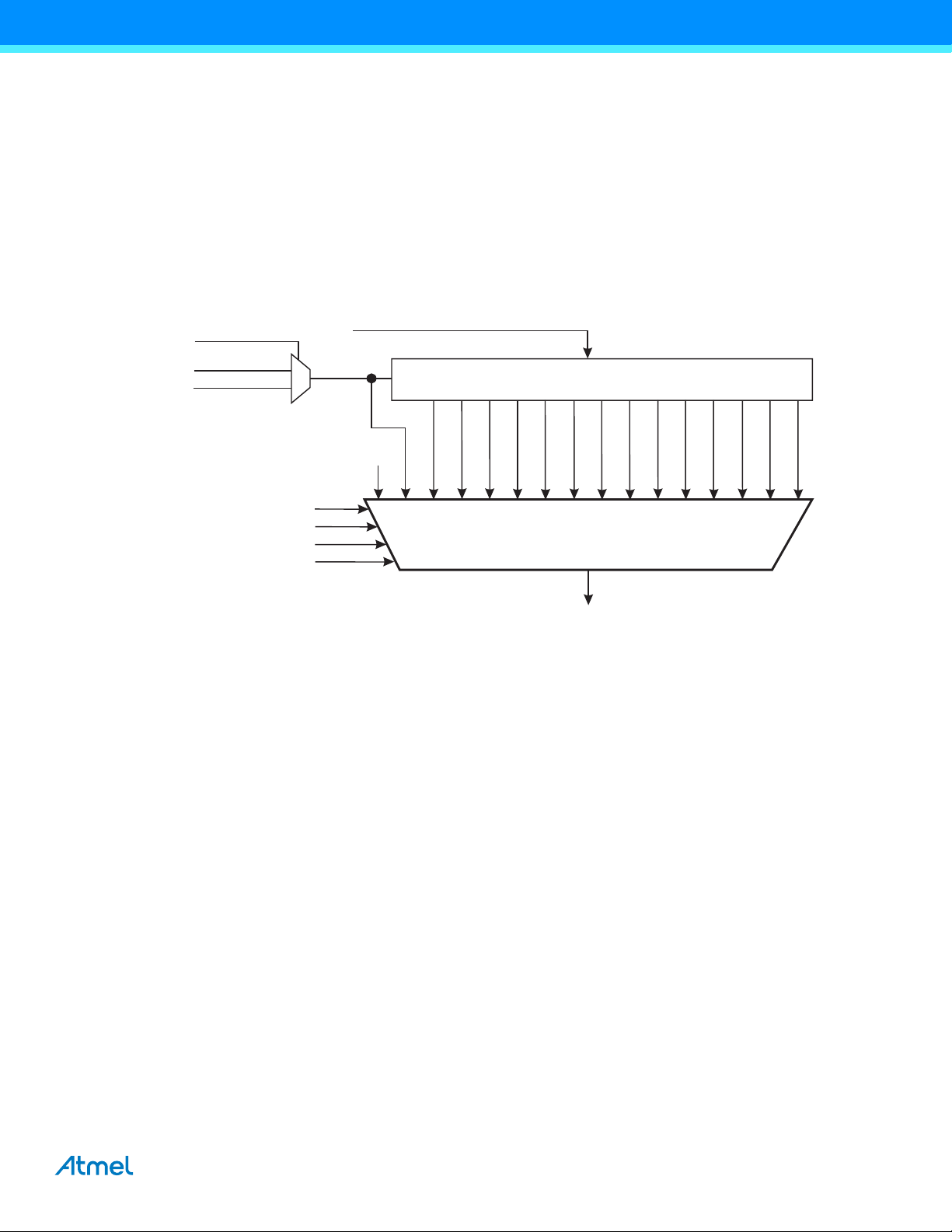

Figure 12-1. Timer/Counter1 Prescaler

PCKE

PSR1

PCK

64/32 MHz

CS10 CS11 CS12 CS13

T1CK

In the asynchronous clocking mode the clock selections are from PCK to PCK/16384 and stop, and in the synchronous clocking mode the clock selections are from CK to CK/16384 and stop. The clock options are described in

Table 12-5 on page 89 and the Timer/Counter1 Control Register, TCCR1. Setting the PSR1 bit in GTCCR register

resets the prescaler. The PCKE bit in the PLLCSR register enables the asynchronous mode. The frequency of the fast peripheral clock is 64 MHz (or 32 MHz in Low Speed Mode).

12.2 Counter and Compare Units

The Timer/Counter1 general operation is described in the asynchronous mode and the ope ration in the synchronous mode is mentioned only if there are differences between the se two mo des. Figure 12-2 shows Timer/Counter 1 synchronization register block diagram and synchronization delays in between registers. Note that all clock gating details are not shown in the figure. The Timer/Counter1 register values go through the internal synchronization registers, which cause the input synchronization delay, before affecting the counter operation. The registers TCCR1, GTCCR, OCR1A, OCR1B, and OCR1C can be read back right after writing the register. The read back values are delayed for the Timer/Counter1 (TCNT1) register and flags (OCF1A, OCF1B, and TOV1), because of the input and output synchronization.

14-BIT

T/C PRESCALER

T1CK

T1CK/2

T1CK/4

T1CK/8

T1CK/16

T1CK/32

T1CK/64

T1CK/128

T1CK/256

TIMER/COUNTER1 COUNT ENABLE

T1CK/512

T1CK/1024

T1CK/2048

T1CK/4096

T1CK/16384

T1CK/8192

The Timer/Counter1 features a high resolution and a high accuracy usage with the lower prescaling opportunities. It can also support two accurate, high speed, 8-bit Puls e Width Modula tors using clo ck speeds up to 64 MHz ( or 32 MHz in Low Speed Mode). In this mode, Timer/Counter1 and the output compare registers serve as dual standalone PWMs with non-overlapping non-inverted and inverte d outputs. Refer to page 86 for a detailed description on this function. Similarly, the high prescaling opportunities make this unit useful for lower speed functions or exact timing functions with infrequent actions.

ATtiny25/45/85 [DATASHEET]

2586Q–AVR–08/2013

Figure 12-2. Timer/Counter 1 Synchronization Register Block Diagram.

8-BIT DATABUS

OCR1A OCR1A_SI

TCNT_SO

OCR1B OCR1B_SI

OCR1C OCR1C_SI

TCCR1 TCCR1_SI

GTCCR GTCCR_SI

TCNT1 TCNT1_SI

OCF1A OCF1A_SI

OCF1B OCF1B_SI

TOV1 TOV1_SI

TOV1_SO

OCF1B_SO

OCF1A_SO

TCNT1

PCKE

PCK

IO-registers Input synchronization

registers

Timer/Counter1 Output synchronization

registers

SYNC MODE

ASYNC MODE

1 CK Delay

~1 CK Delay1 PCK Delay No Delay

TCNT1

OCF1A

OCF1B

TOV1

1/2 CK Delay 1 CK Delay 1/2 CK Delay

1..2 PCK Delay

Timer/Counter1 and the prescaler allow running the CPU from any clock source while the pr escaler is operating on the fast 64 MHz (or 32 MHz in Low Speed Mode) PCK clock in the asynchronous mode.

Note that the system clock frequency must be lower than one third of the PCK frequency. The synchronization mechanism of the asynchronous Timer/Counter1 needs at least two edges of the PCK when the system clock is high. If the frequency of the system clock is too high, it is a risk that data or control values are lost.

The following Figure 12-3 shows the block diagram for Timer/Counter1.

ATtiny25/45/85 [DATASHEET]

2586Q–AVR–08/2013

Figure 12-3. Timer/Counter1 Block Diagram

8-BIT DATABUS

TIMER INT. FLAG REGISTER (TIFR)

TIMER/COUNTER1

8-BIT COMPARATOR

T/C1 OUTPUT

COMPARE REGISTER

TIMER INT. MASK

TIMER/COUNTER1

(TCNT1)

T/C CLEAR

T/C1 CONTROL

LOGIC

TOV1

OCF1B

TOV1

TOIE0

TOIE1

OCIE1B

OCIE1A

OCF1A

PCK

T/C1 OVER-

FLOW IRQ

T/C1 COMPARE

MATCH B IRQ

OC1A (PB1)

T/C1 COMPARE

MATCH A IRQ

T/C CONTROL

COM1B1

PWM1A

PWM1B

COM1B0

FOC1A

FOC1B

(OCR1A) (OCR1B) (OCR1C)

8-BIT COMPARATOR

T/C1 OUTPUT

COMPARE REGISTER

TOV0

COM1A1

COM1A0

8-BIT COMPARATOR

T/C1 OUTPUT

COMPARE REGISTER

GLOBAL T/C CONTROL

CS12

PSR1

CS11

CS10

CS13

CTC1

OC1A (PB0)

OC1B (PB4)

OC1B (PB3)

DEAD TIME GENERATOR

Three status flags (overflow and compare matches) are found in the Timer/Counter Interrupt Flag Register - T IFR. Control signals are found in the Timer/Counter Control Registers TCCR1 and GTCCR. The interrupt enable/disable settings are found in the Timer/Counter Interrupt Mask Register - TIMSK.

The Timer/Counter1 contains three Output Compare Registers, OCR1A, OCR1B, and OCR1C as the data source to be compared with the Timer/Counter1 contents. In normal mode the Output Compare functions are operational with all three output compare registers. OCR1A determines action on the OC1A pin (PB1), and it can generate Timer1 OC1A interrupt in normal mode and in PWM mode. Likewise, OCR1B determines action on the OC1B pin (PB4) and it can generate Timer1 OC1B interrupt in normal mode and in PWM mode. OCR1C holds the Timer/Counter maximum value, i.e. the clear on compare match value. In the normal mode an overf low interrupt (TOV1) is generated when Timer/Counter1 counts from $FF to $00, while in the PWM mode the overflow interrupt is generated when Timer/Counter1 counts either from $FF to $00 or from OCR1C to $00. The inverted PWM outputs OC1A

and OC1B are not connected in normal mode.

In PWM mode, OCR1A and OCR1B provide the data values against which the Timer Counter value is compared. Upon compare match the PWM outputs (OC1A, OC1A Counter counts up to the value specified in the output compare register OCR1C and starts again from $00. This feature allows limiting the counter “full” value to a specified value, lower than $FF. Together with the many prescaler options, flexible PWM frequency selection is provided. Table 12-3 on page 88 lists clock selection and

, OC1B, OC1B) are generated. In PWM mode, the Timer

OCR1C values to obtain PWM frequencies from 20 kHz to 250 kHz in 10 kHz steps and from 250 kHz to 500 kHz in 50 kHz steps. Higher PWM frequencies can be obtained at the expense of resolution.

ATtiny25/45/85 [DATASHEET]

2586Q–AVR–08/2013

12.2.1 Timer/Counter1 Initialization for Asynchronous Mode

PWM1x

x = A or B

non-overlap

To set Timer/Counter1 in asynchronous mode first enable PLL and then wait 100 µs for PLL to stabilize. Next, poll the PLOCK bit until it is set and then set the PCKE bit.

12.2.2 Timer/Counter1 in PWM Mode

When the PWM mode is selected, Timer/Counter1 and the Output Compare Register C - OCR1C form a dual 8-bit, free-running and glitch-free PWM generator with outputs on the PB1( OC1A) and PB4(OC1B) pins and inverted outputs on pins PB0(OC1A

) and PB3(OC1B). As default non-overlapping times for complementary output pairs are

zero, but they can be inserted using a Dead Time Generator (see description on page 100).

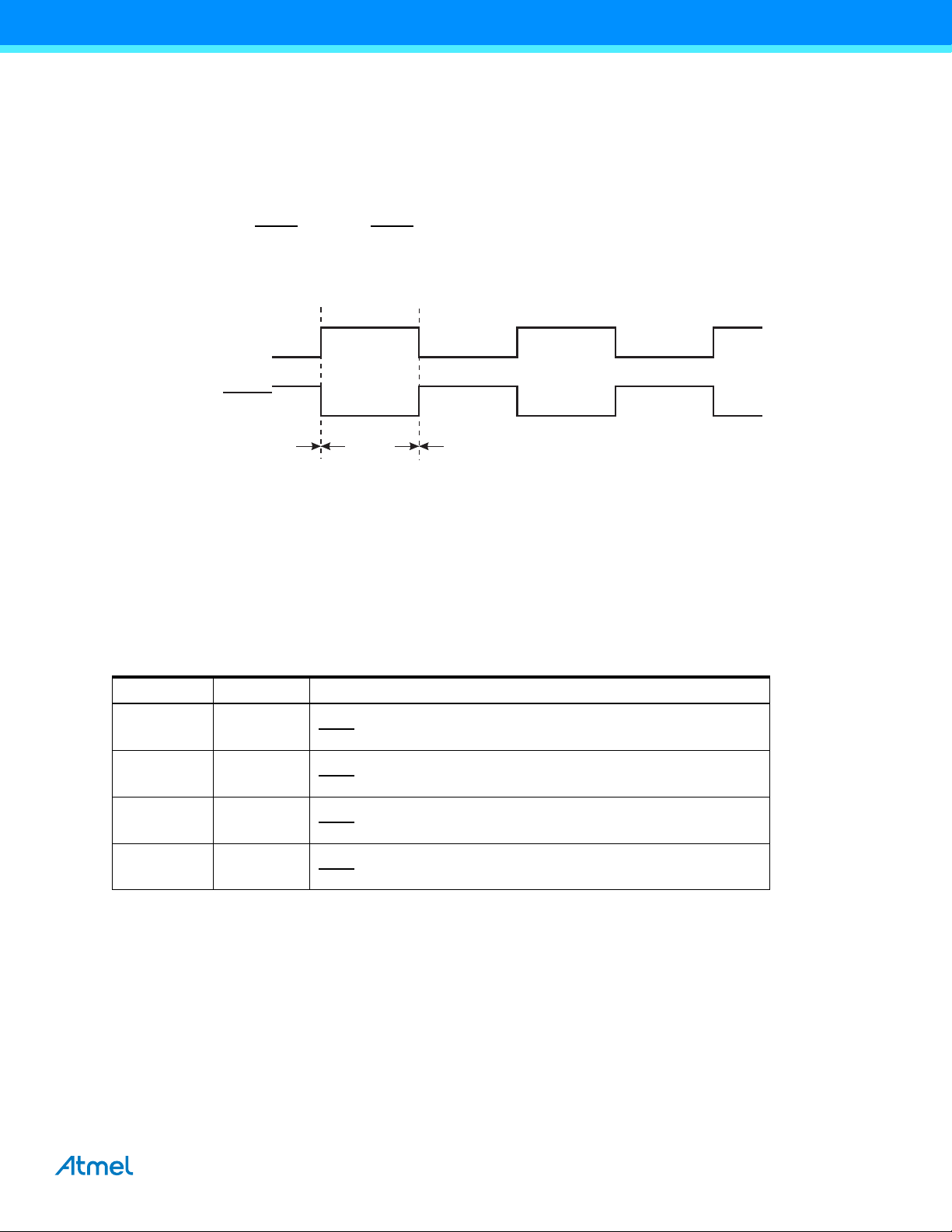

Figure 12-4. The PWM Output Pair

When the counter value match the contents of OCR1A or OCR1B, the OC1A and OC1B outputs are set or cleared according to the COM1A1/COM1A0 or COM1B1/COM1B0 bits in the Timer/Counter1 Control Register A - TCCR1, as shown in Table 12-1.

Timer/Counter1 acts as an up-counter, counting from $00 up to the value specified in the output compare register OCR1C, and starting from $00 up again. A compare match with OC1C will set an overflow interrupt flag (TOV1) after a synchronization delay following the compare event.

Table 12-1. Compare Mode Select in PWM Mode

COM1x1 COM1x0 Effect on Output Compare Pins

OC1x not connected.

not connected.

OC1x OC1x cleared on compare match. Set whenTCNT1 = $00.

set on compare match. Cleared when TCNT1 = $00.

OC1x OC1x cleared on compare match. Set when TCNT1 = $00.

not connected.

OC1x OC1x Set on compare match. Cleared when TCNT1= $00.

not connected.

OC1x

Note that in PWM mode, writing to the Output Compare Registers OCR1A or OCR1B, the data value is first transferred to a temporary location. The value is latched into OCR1A or OCR1B when the Timer/Counter reaches OCR1C. This prevents the occurrence of odd-length PWM pulses (glitches) in the event of an unsynchronized OCR1A or OCR1B. See Figure 12-5 for an example.

ATtiny25/45/85 [DATASHEET]

2586Q–AVR–08/2013

Figure 12-5. Effects of Unsynchronized OCR Latching

PWM Output OC1x

Unsynchronized OC1x Latch

Synchronized OC1x Latch

Counter Value Compare Value

Compare Value changes

Glitch

Compare Value changes

PWM

TCK1

OCR1C + 1

----------------------------------- -=

R 2OCR1C 1+()log=

During the time between the write and the latch operation, a read from OCR1A or OCR1B will read the contents of the temporary location. This means that the most recently written value always will read out of OCR1A or OCR1B.

When OCR1A or OCR1B contain $00 or the top value, as specified in OCR1C register, the output PB1(OC1A) or PB4(OC1B) is held low or high according to the settings of COM1A1/COM1A0. This is shown in Table 12-2.

Table 12-2. PWM Outputs OCR1x = $00 or OCR1C, x = A or B

COM1x1 COM1x0 OCR1x Output OC1x Output OC1x

0 1 $00 L H 0 1 OCR1C H L 1 0 $00 L Not connected. 1 0 OCR1C H Not connected. 1 1 $00 H N ot connected. 1 1 OCR1C L Not connected.

In PWM mode, the Timer Overflow Flag - TOV1 is set when the TCNT1 counts to the OCR1C value and the TCNT1 is reset to $00. The Timer Overflow Interrupt1 is executed when TOV1 is set provided that Timer Overflow Interrupt and global interrupts are enabled. This also applies to the Timer Output Compare flags and interrupts.

The frequency of the PWM will be Timer Clock 1 Frequency divided by (OCR1C value + 1). See the following equation:

Resolution shows how many bits are required to express the value in the OCR1C register and can be calculated using the following equation:

ATtiny25/45/85 [DATASHEET]

2586Q–AVR–08/2013

Table 12-3. Timer/Counter1 Clock Prescale Select in the Asynchronous Mode

PWM Frequency Clock Selection CS1[3:0] OCR1C RESOLUTION

20 kHz PCK/16 0101 199 7.6 30 kHz PCK/16 0101 132 7.1 40 kHz PCK/8 0100 199 7.6 50 kHz PCK/8 0100 159 7.3 60 kHz PCK/8 0100 132 7.1 70 kHz PCK/4 0011 228 7.8 80 kHz PCK/4 0011 199 7.6

90 kHz PCK/4 0011 177 7.5 100 kHz PCK/4 0011 159 7.3 110 kHz PCK/4 0011 144 7.2 120 kHz PCK/4 0011 132 7.1 130 kHz PCK/2 0010 245 7.9 140 kHz PCK/2 0010 228 7.8 150 kHz PCK/2 0010 212 7.7 160 kHz PCK/2 0010 199 7.6 170 kHz PCK/2 0010 187 7.6 180 kHz PCK/2 0010 177 7.5 190 kHz PCK/2 0010 167 7.4 200 kHz PCK/2 0010 159 7.3 250 kHz PCK 0001 255 8.0 300 kHz PCK 0001 212 7.7 350 kHz PCK 0001 182 7.5 400 kHz PCK 0001 159 7.3 450 kHz PCK 0001 141 7.1 500 kHz PCK 0001 127 7.0

ATtiny25/45/85 [DATASHEET]

2586Q–AVR–08/2013

12.3 Register Description

12.3.1 TCCR1 – Timer/Counter1 Control Register

Bit 7 6 5 4 3 2 1 0 0x30 CTC1 PWM1A COM1A1 COM1A0 CS13 CS12 CS11 CS10 TCCR1 Read/Write R/W R/W R/W R/W R/W R/W R/W R/W Initial value 0 0 0 0 0 0 0 0

• Bit 7 – CTC1 : Clear Timer/Counter on Compare Match

When the CTC1 control bit is set (one), Timer/Counter1 is reset to $00 in the CPU clock cycle after a compare match with OCR1C register value. If the control bit is clear ed, Timer/Counter1 contin ues counting and is unaffected by a compare match.

• Bit 6 – PWM1A: Pulse Width Modulator A Enable

When set (one) this bit enables PWM mode based o n comparator OCR1A in Timer/Coun ter1 and the counter value is reset to $00 in the CPU clock cycle after a compare match with OCR1C register value.

• Bits 5:4 – COM1A[1:0]: Comparator A Output Mode, Bits 1 and 0

The COM1A1 and COM1A0 control bit s determ ine any output pin action follow ing a com pare mat ch with c ompare register A in Timer/Counter1. Since the output pin action is an alternative functio n to an I/O port, the cor responding direction control bit must be set (one) in order to control an output pin.

In Normal mode, the COM1A1 and COM1A0 control bits determine the output pin actions that affect pin PB1 (OC1A) as described in Table 12-4. Note that OC1A

is not connected in normal mode.

Table 12-4. Comparator A Mode Select in Normal Mode

COM1A1 COM1A0 Description

0 0 Timer/Counter Comparator A disconnected from output pin OC1A. 0 1 Toggle the OC1A output line. 1 0 Clear the OC1A output line. 1 1 Set the OC 1A output line

In PWM mode, these bits have different functions. Refer to Table 12-1 on page 86 for a detailed description.

• Bits 3:0 - CS1[3:0]: Clock Select Bits 3, 2, 1, and 0

The Clock Select bits 3, 2, 1, and 0 define the prescaling source of Timer/Counter1.

Table 12-5. Timer/Counter1 Prescale Select

Asynchronous

CS13 CS12 CS11 CS10

0 0 0 0 T/C1 stopped T/C1 stopped 0001PCK CK 0 0 1 0 PCK/2 CK/2 0 0 1 1 PCK/4 CK/4 0 1 0 0 PCK/8 CK/8 0 1 0 1 PCK/16 CK/16 0 1 1 0 PCK/32 CK/32

Clocking Mode

Synchronous Clocking Mode

ATtiny25/45/85 [DATASHEET]

2586Q–AVR–08/2013

Table 12-5. Timer/Counter1 Prescale Select (Continued)

CS13 CS12 CS11 CS10

0 1 1 1 PCK/64 CK/64 1 0 0 0 PCK/128 CK/128 1 0 0 1 PCK/256 CK/256 1 0 1 0 PCK/512 CK/512 1 0 1 1 PCK/1024 CK/1024 1 1 0 0 PCK/2048 CK/2048 1 1 0 1 PCK/4096 CK/4096 1 1 1 0 PCK/8192 CK/8192 1 1 1 1 PCK/16384 CK/16384

The Stop condition provides a Timer Enable/Disable function.

12.3.2 GTCCR – General Timer/Counter1 Control Register

Bit 7 6 5 4 3 2 1 0 0x2C Read/Write R/W R/W R/W R/W W W R/W R/W Initial value 0 0 0 0 0 0 0 0

TSM PWM1B COM1B1 COM1B0 FOC1B FOC1A PSR1 PSR0 GTCCR

Asynchronous Clocking Mode

Synchronous Clocking Mode

• Bit 6 – PWM1B: Pulse Width Modulator B Enable

When set (one) this bit enables PWM mode based o n comparator OCR1B in Timer/Coun ter1 and the counter value is reset to $00 in the CPU clock cycle after a compare match with OCR1C register value.

• Bits 5:4 – COM1B[1:0]: Comparator B Output Mode, Bits 1 and 0

The COM1B1 and COM1B0 control bit s determ ine any output pin action follow ing a com pare mat ch with c ompare register B in Timer/Counter1. Since the output pin action is an alternative functio n to an I/O port, the cor responding direction control bit must be set (one) in order to control an output pin.

In Normal mode, the COM1B1 and COM1B0 control bits determine the output pin actions that affect pin PB4 (OC1B) as described in Table 12-6. Note that OC1B

is not connected in normal mode.

Table 12-6. Comparator B Mode Select in Normal Mode

COM1B1 COM1B0 Description

0 0 Timer/Counter Comparator B disconnected from output pin OC1B. 0 1 Toggle the OC1B output line. 1 0 Clear the OC1B output line. 1 1 Set the OC 1B output line

In PWM mode, these bits have different functions. Refer to Table 12-1 on page 86 for a detailed description.

• Bit 3 – FOC1B: Force Output Compare Mat ch 1B

Writing a logical one to this bit forces a change in the compare match output pin PB4 (OC1B) according to the values already set in COM1B1 and COM1B0. If COM1B1 and COM1B0 written in the same cycle as FOC1B, the new settings will be used. The Force Output Compare bit can be used to change the output pin value regardless of the timer value. The automatic action programmed in COM1B1 and COM1B0 takes place as if a compare match had

ATtiny25/45/85 [DATASHEET]

2586Q–AVR–08/2013

occurred, but no interrupt is generated. Th e FOC 1B bit always re ad s as zer o. F OC 1B is no t in use if PWM1 B bit is set.

• Bit 2 – FOC1A: Force Output Compare Mat ch 1A

Writing a logical one to this bit forces a change in the compare match output pin PB1 (OC1A) according to the values already set in COM1A1 and COM1A0. If COM1A1 and COM1A0 written in the same cycle as FOC1A, the new settings will be used. The Force Output Compare bit can be used to change the output pin value regardless of the timer value. The automatic action programmed in COM1A1 and COM1A0 takes place as if a compare match had occurred, but no interrupt is generated. Th e FOC 1A bit always re ad s as zer o. F OC 1A is no t in use if PWM1 A bit is set.

• Bit 1 – PSR1 : Prescaler Reset Timer/Counter1

When this bit is set (one), the Timer/Counter prescaler (TCNT1 is unaffected) will be reset. The bit will be cleared by hardware after the operation is performed. Writing a zero to this bit will have no effect. This bit will always read as zero.

12.3.3 TCNT1 – Timer/Counter1

Bit 76543210 0x2F MSB LSB TCNT1 Read/Write R/W R/W R/W R/W R/W R/W R/W R/W Initial value 0 0 0 0 0 0 0 0

This 8-bit register contains the value of Timer/Counter1. Timer/Counter1 is realized as an up counter with read and write access. Due to synchronization of the CPU,

Timer/Counter1 data written into Timer/Counter1 is delayed by on e and half CPU clock cycles in synchronous mode and at most one CPU clock cycles for asynchronous mode.

12.3.4 OCR1A –Timer/Counter1 Output Compare RegisterA

Bit 76543210 0x2E MSB LSB OCR1A Read/Write R/W R/W R/W R/W R/W R/W R/W R/W Initial value 0 0 0 0 0 0 0 0

The output compare register A is an 8-bit read/write register. The Timer/Counter Output Compare Register A contains data to be continuously compared with Timer/Counter1.

Actions on compare matches are specified in TCCR1. A compare match does only occur if Timer/Counter1 counts to the OCR1A value. A software write that sets TCNT1 and OCR1A to the same value does not generate a compare match.

A compare match will set the compare interrupt flag OCF1A after a synchronization delay following the compare event.

12.3.5 OCR1B – Timer/Counter1 Output Compare RegisterB

Bit 76543210 0x2B MSB LSB OCR1B Read/Write R/W R/W R/W R/W R/W R/W R/W R/W Initial value 0 0 0 0 0 0 0 0

The output compare register B is an 8-bit read/write register. The Timer/Counter Output Compare Register B contains data to be continuously compared with Timer/Counter1.

Actions on compare matches are specified in TCCR1. A compare match does only occur if Timer/Counter1 counts

ATtiny25/45/85 [DATASHEET]

2586Q–AVR–08/2013

to the OCR1B value. A software write that sets TCNT1 and OCR1B to the same value does not generate a compare match.

A compare match will set the compare interrupt flag OCF1B after a synchronization delay following the compare event.

12.3.6 OCR1C – Timer/Counter1 Output Compare RegisterC

Bit 76543210 0x2D MSB LSB OCR1C Read/Write R/W R/W R/W R/W R/W R/W R/W R/W Initial value 1 1 1 1 1 1 1 1

The output compare register C is an 8-bit read/write register. The Timer/Counter Output Compare Register C contains data to be continuously compared with Timer/Counter1.

A compare match does only occur if Timer/Counter1 counts to the OCR1C value. A software write that sets TCNT1 and OCR1C to the same value does not generate a compare match. If the CTC1 bit in TCCR1 is set, a compare match will clear TCNT1.

This register has the same function in normal mode and PWM mode.

12.3.7 TIMSK – Timer/Counter Interrupt Mask Register

Bit 7 6 5 4 3 2 1 0 0x39 – OCIE1A OCIE1B Read/Write R R/W R/W R/W R/W R/W R/W R Initial value 0 0 0 0 0 0 0 0

OCIE0A OCIE0B TOIE1 TOIE0 – TIMSK

• Bit 7 – Res: Reserved Bit

This bit is a reserved bit in the ATtiny25/45/85 and always reads as zero.

• Bit 6 – OCIE1A: Timer/Counter1 Output Compare Interrupt Enable

When the OCIE1A bit is set (one) and the I-bit in the Status Register is set (one), the Timer/Counter1 Compare MatchA, interrupt is enabled. The corresponding interrupt at vector $003 is executed if a com pare mat chA occ urs. The Compare Flag in Timer/Counter1 is set (one) in the Timer/Counter Interrupt Flag Register.

• Bit 5 – OCIE1B: Timer/Counter1 Output Compare Interrupt Enable

When the OCIE1B bit is set (one) and the I-bit in the Status Register is set (one), the Timer/Counter1 Compare MatchB, interrupt is enabled. The corresponding interrupt at vector $009 is executed if a com pare mat chB occ urs. The Compare Flag in Timer/Counter1 is set (one) in the Timer/Counter Interrupt Flag Register.

• Bit 2 – TOIE1: Timer/Counter1 Overflow Interrupt Enable

When the TOIE1 bit is set (one) and the I-bit in the Status Register is set (one), the Timer/Counter1 Overflow interrupt is enabled. The corresponding interrupt (at vector $004) is executed if an overflow in Timer/Counter1 occurs. The Overflow Flag (Timer1) is set (one) in the Timer/Counter Interrupt Flag Register - TIFR.

• Bit 0 – Res: Reserved Bit

This bit is a reserved bit in the ATtiny25/45/85 and always reads as zero.

ATtiny25/45/85 [DATASHEET]

2586Q–AVR–08/2013

12.3.8 TIFR – Timer/Counter Interrupt Flag Register

Bit 7 6 5 4 3 2 1 0 0x38 –OCF1AOCF1B Read/Write R R/W R/W R/W R/W R/W R/W R Initial value 0 0 0 0 0 0 0 0

OCF0A OCF0B TOV1 TOV0 – TIFR

• Bit 7 – Res: Reserved Bit

This bit is a reserved bit in the ATtiny25/45/85 and always reads as zero.

• Bit 6 – OCF1A: Output Compare Flag 1A

The OCF1A bit is set (one) when compare match occurs between Timer/Counter1 and the data value in OCR1A Output Compare Register 1A. OCF1A is cleared by hardware when executing the corr espondin g interr upt h andling vector. Alternatively, OCF1A is cleared, after synchronization clock cycle, by writing a logic one to the flag. When the I-bit in SREG, OCIE1A, and OCF1A are set (one), the Timer/Counter1 A compare match interrupt is executed.

• Bit 5 – OCF1B: Output Compare Flag 1B

The OCF1B bit is set (one) when compare match occurs between Timer/Counter1 and the data value in OCR1B Output Compare Register 1A. OCF1B is cleared by hardware when executing the corr espondin g interr upt h andling vector. Alternatively, OCF1B is cleared, after synchronization clock cycle, by writing a logic one to the flag. When the I-bit in SREG, OCIE1B, and OCF1B are set (one), the Timer/Counter1 B compare match interrupt is executed.

• Bit 2 – TOV1: Timer/Counter1 Overflow Flag

In normal mode (PWM1A=0 and PWM1B=0) the bit TOV1 is set (one) when an overflow occurs in Tim er/Counter1. The bit TOV1 is cleared by hardware when executing the corresponding interrupt handling vector. Alternatively, TOV1 is cleared, after synchronization clock cycle, by writing a logical one to the flag.

In PWM mode (either PWM1A=1 or PWM1B=1) the bit TOV1 is set (one) when compare match occurs between Timer/Counter1 and data value in OCR1C - Output Compare Register 1C.

When the SREG I-bit, and TOIE1 (Timer/Counter1 Overflow Interrupt Enable), and TOV1 are set (one), the Timer/Counter1 Overflow interrupt is executed.

• Bit 0 – Res: Reserved Bit

This bit is a reserved bit in the ATtiny25/45/85 and always reads as zero.

ATtiny25/45/85 [DATASHEET]

2586Q–AVR–08/2013

12.3.9 PLLCSR – PLL Control and Status Register

Bit 76543210 0x27 LSM - - - - PCKE PLLE PLOCK PLLCSR Read/Write R/W R R R R R/W R/W R Initial value 0 0 0 0 0 0 0/1 0

• Bit 7 – LSM: Low Speed Mode

The high speed mode is enabled as default and the fast peripheral clock is 64 MHz, but the low speed mode can be set by writing the LSM bit to one. Then the fast p eriphera l clock is scaled d own to 32 MHz. The low spee d mode must be set, if the supply voltage is below 2.7 volts, because the Timer/Counte r1 is not running fast enoug h on low voltage levels. It is highly recommended that Timer/Counter1 is stopped whenever the LSM bit is changed.

Note, that LSM can not be set if PLL

is used as system clock.

CLK

• Bit 6:3 – Res : Reserved Bits

These bits are reserved bits in the ATtiny25/45/85 and always read as zero.

• Bit 2 – PCKE: PCK Enable

The PCKE bit change the Timer/Counter1 clock source. When it is set, the asynchronous clock mode is enabled and fast 64 MHz (or 32 MHz in Low Speed Mode) PCK clock is used as Timer/Counter1 clock source. If this bit is cleared, the synchronous clock mode is enabled, and system clock CK is used as Timer/Counter1 clock source. This bit can be set only if PLLE bit is set. It is safe to set this bit only when the PLL is locked i.e the PLOCK bit is 1. The bit PCKE can only be set, if the PLL has been enabled earlier.

• Bit 1 – PLLE: PLL Enable

When the PLLE is set, the PLL is started and if needed internal RC-oscillator is started as a PLL reference clock. If PLL is selected as a system clock source the value for this bit is always 1.

• Bit 0 – PLOCK: PLL Lock Detector

When the PLOCK bit is set, the PLL is locked to the reference clock. The PLOCK bit should be ignored during initial PLL lock-in sequence when PLL frequency oversh oots and undershoots, befo re reaching steady state. Th e steady state is obtained within 100 µs. After PLL lock-in it is recommended to check the PLOCK bit before enabling PCK for Timer/Counter1.

ATtiny25/45/85 [DATASHEET]

2586Q–AVR–08/2013

13. 8-bit Timer/Counter1 in ATtiny15 Mode

TIMER/COUNTER1 COUNT ENABLE

PSR1

CS10 CS11 CS12

PCK (25.6 MHz)

CS13

3-BIT T/C PRESCALER

PCK/2

PCK

PCK/4

PCK/8

CK/2

CK/4

CK/8

CK/16

CK/32

CK/64

CK/128

CK/256

CK/512

CK/1024

10-BIT T/C PRESCALER

CK (1.6 MHz)

CLEAR

The ATtiny15 compatibility mode is selected by writing the code “0011” to the CKSEL fuses (if any other code is written, the Timer/Counter1 is working in normal mode). When selected the ATtiny15 compatibility mode provides an ATtiny15 backward compatible prescaler and Timer/Co unter . Fur thermor e, the clockin g system has sa me clock frequencies as in ATtiny15.

13.1 Timer/Counter1 Prescaler

Figure 13-1 shows an ATtiny15 compatible prescaler. It has two prescaler units, a 10-bit prescaler for the system

clock (CK) and a 3-bit prescaler for t he fast periph eral clock (PCK). T he clocking sy stem of the Tim er/Counter1 is always synchronous in the ATtiny15 compatibility mode, because the same RC Oscillator is used as a PLL clock source (generates the input clock for the prescaler) and the AVR core.

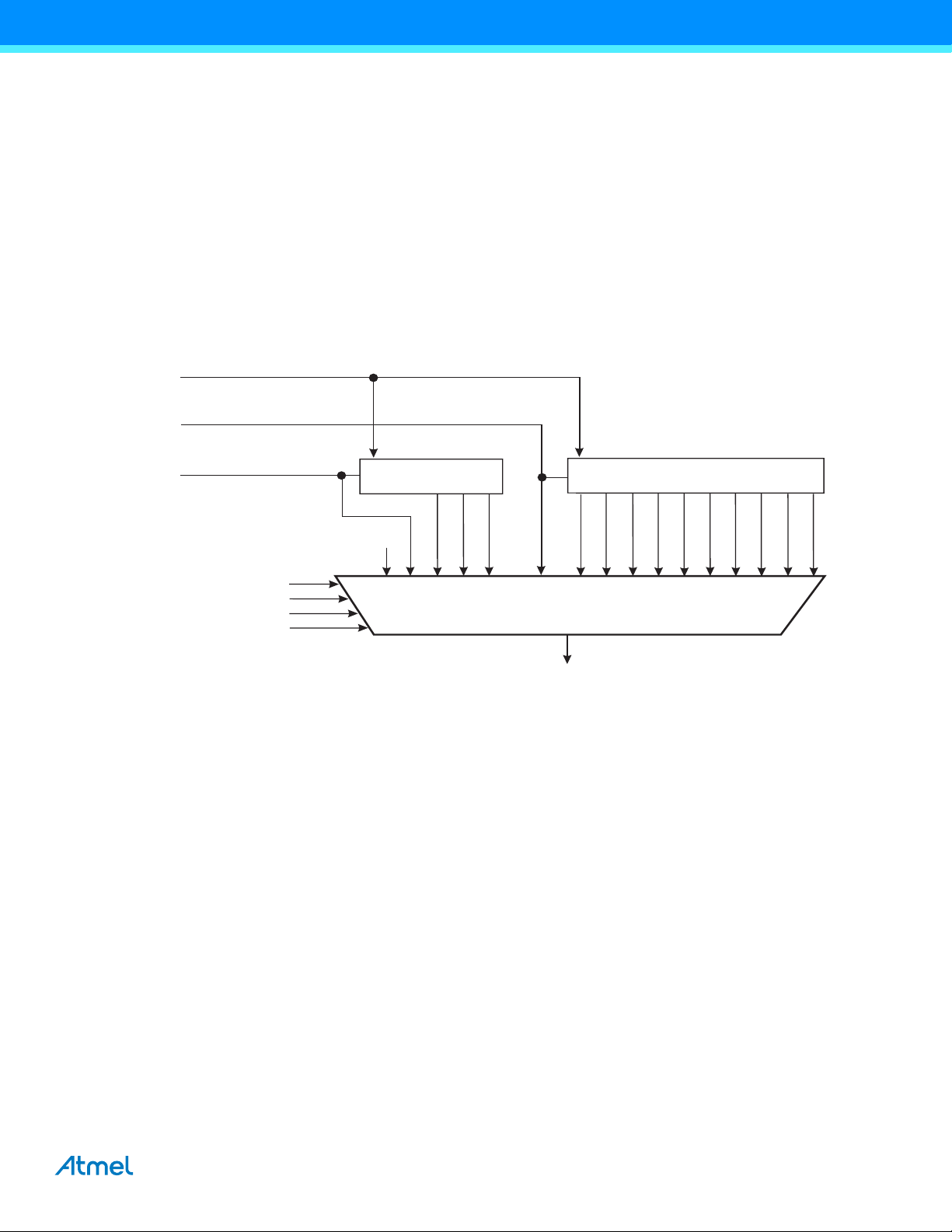

Figure 13-1. Timer/Counter1 Prescaler

13.2 Counter and Compare Units

The same clock selections as in ATtiny15 can be chosen for Timer/Counter1 from the output multiplexer, because the frequency of the fast peripheral clock is 25.6 MHz and the prescaler is similar in the ATtiny15 compatibility mode. The clock selections are PCK, PCK/2, PCK/4, PCK/8, CK, CK/2, CK/4, CK/8, CK/16, CK/32, CK/64, CK/128, CK/256, CK/512, CK/1024 and stop.

Figure 13-2 shows Timer/Counter 1 synchronization register block diagram and synchronization delays in between

registers. Note that all clock gating details are not shown in the figure. The Timer/Counter1 register values go through the internal synchronization registers, which cause the input synchronization delay, before affecting the counter operation. The registers TCCR1, GTCCR, OCR1A and OCR1C can be read back right after writing the register. The read back values are delayed for the Timer/Counter1 (TCNT1) register and flags (OCF1A and TOV1), because of the input and output synchronization.

The Timer/Counter1 features a high resolution and a high accuracy usage with the lower prescaling opportunities. It can also support an accurate, high speed, 8-bit Pulse Width Modulator (PWM) using clock speed s up to 25.6 MHz. In this mode, Timer/Counter1 and the Output Compare Registers serve as a stand-alone PWM. Refer to

“Timer/Counter1 in PWM Mode” on page 97 for a detailed description on this function. Similarly, the high prescal-

ing opportunities make this unit useful for lower speed functions or exact timing functions with infrequent actions.

ATtiny25/45/85 [DATASHEET]

2586Q–AVR–08/2013

Figure 13-2. Timer/Counter 1 Synchronization Register Block Diagram.

8-BIT DATABUS

OCR1A OCR1A_SI

TCNT_SO

OCR1C OCR1C_SI

TCCR1 TCCR1_SI

GTCCR GTCCR_SI

TCNT1 TCNT1_SI

OCF1A OCF1A_SI

TOV1 TOV1_SI

TOV1_SO

OCF1A_SO

TCNT1

PCKE

PCK

IO-registers Input synchronization

registers

Timer/Counter1 Output synchronization

registers

SYNC MODE

ASYNC MODE

1 PCK Delay No Delay~1 CK Delay

1PCK Delay No Delay

TCNT1

OCF1A

TOV1

1..2 PCK Delay

~1 CK Delay1..2 PCK Delay

Timer/Counter1 and the prescaler allow running the CPU from any clock source while the pr escaler is operating on the fast 25.6 MHz PCK clock in the asynchronous mode.

The following Figure 13-3 shows the block diagram for Timer/Counter1.

ATtiny25/45/85 [DATASHEET]

2586Q–AVR–08/2013

Figure 13-3. Timer/Counter1 Block Diagram

8-BIT DATABUS

TIMER INT. FLAG REGISTER (TIFR)

TIMER/COUNTER1

8-BIT COMPARATOR

T/C1 OUTPUT

COMPARE REGISTER

TIMER INT. MASK

TIMER/COUNTER1

(TCNT1)

T/C CLEAR

T/C1 CONTROL

LOGIC

TOV1

TOIE0

TOIE1

OCIE1A

OCF1A

PCK

T/C1 OVER-

FLOW IRQ

OC1A (PB1)

T/C1 COMPARE

MATCH A IRQ

GLOBAL T/C CONTROL

PWM1A

FOC1A

(OCR1A) (OCR1C)

8-BIT COMPARATOR

T/C1 OUTPUT

COMPARE REGISTER

TOV0

COM1A1

COM1A0

T/C CONTROL

CS12

PSR1

CS11

CS10

CS13

CTC1

Two status flags (overflow and compare match) are found in the Timer/Counter Interrupt Flag Register - TIFR. Control signals are found in the Timer/Counter Control Registers TCCR1 and GTCCR. The interrupt enable/disable settings are found in the Timer/Counter Interrupt Mask Register - TIMSK.

The Timer/Counter1 contains two Output Compare Registers, OCR1A and OCR1C as the data source to be compared with the Timer/Counter1 contents. In norma l mode the Output Compare functions are op erational with OCR1A only. OCR1A determines action on the OC1A pin (PB1), and it can g enerate Timer1 OC1A inte rrupt in normal mode and in PWM mode. OCR1C holds the Timer/Counter maximum value, i.e. the clear on compare match value. In the normal mode an overflow int errupt (TOV1) is generated when Timer/Counter1 counts from $FF to $00, while in the PWM mode the overflow interrupt is generated when the Timer/Counter1 counts either from $FF to $00 or from OCR1C to $00.

In PWM mode, OCR1A provides the data values against which the Timer Counter value is compared. Upon compare match the PWM outputs (OC1A) is generated. In PWM mode, the Timer Counter counts up to the value specified in the output compare register OCR1C and starts again from $00. This feature allows limiting the counter “full” value to a specified value, lower than $FF. Together with the many prescaler options, flexib le PWM fre quency selection is provided. Table 12-3 on page 88 lists clock selection and OCR1C valu es to obtain PWM frequencies from 20 kHz to 250 kHz in 10 kHz steps and from 250 kHz to 500 kHz in 50 kHz steps. Higher PWM frequencies can be obtained at the expense of resolution .

13.2.1 Timer/Counter1 in PWM Mode

When the PWM mode is selected, Timer/Counter1 and the Output Compare Register A - OCR1A form an 8-bit, free-running and glitch-free PWM generator with output on the PB1(OC1A).

ATtiny25/45/85 [DATASHEET]

2586Q–AVR–08/2013

When the counter value match the content of OCR1A, the OC1A and output is set or cleared according to the

PWM Output OC1A

Unsynchronized OC1A Latch

Synchronized OC1A Latch

Counter Value

Compare Value

Counter Value

Compare Value

Compare Value changes

Glitch

Compare Value changes

COM1A1/COM1A0 bits in the Timer/Counter1 Control Register A - TCCR1, as shown in Table 13-1. Timer/Counter1 acts as an up-counter, counting from $00 up to the value specified in the output compare register

OCR1C, and starting from $00 up again. A compare match with OCR1C will set an overflow interrupt flag (TOV1) after a synchronization delay following the compare event.

Table 13-1. Compare Mode Select in PWM Mode

COM1A1 COM1A0 Effect on Output Compare Pin

0 0 OC1A not connected. 0 1 OC1A not connected. 1 0 OC1A cleared on compare match. Set when TCNT1 = $00. 1 1 OC1A set on compare match. Cleared when TCNT1 = $00.

Note that in PWM mode, writing to the Output Compare Register OCR1A, the data value is first transferred to a temporary location. The value is latched into OCR1A when the Timer/Counter reaches OCR1C. This prevents the occurrence of odd-length PWM pulses (glitches) in the event of an unsynchron ized OCR1A. See Figure 13 -4 for an e xample.

Figure 13-4. Effects of Unsynchronized OCR Latching

During the time between the write and the latch operation, a read from OCR1A will read the contents of the temporary location. This means that the most recently written value always will read out of OCR1A.

When OCR1A contains $00 or the top value, as specified in OCR1C register, the output PB1(OC1A) is held low or high according to the settings of COM1A1/COM1A0. This is shown in Table 13-2.

Table 13-2. PWM Outputs OCR1A = $00 or OCR1C

COM1A1 COM1A0 OCR1A Output OC1A

01$00L 0 1 OCR1C H 10$00L

ATtiny25/45/85 [DATASHEET]

2586Q–AVR–08/2013

Table 13-2. PWM Outputs OCR1A = $00 or OCR1C

TCK1

OCR1C + 1

----------------------------------- -=

OCR1A 1+T

TCK1TPCK

–

OCR1C 1+T

TCK1



----------------------------------------------------------------------------=

R 2OCR1C 1+()log=

COM1A1 COM1A0 OCR1A Output OC1A

1 0 OCR1C H 11$00H 1 1 OCR1C L

The PWM frequency can be derived from the timer/counter clock frequency using the following equation:

The duty cycle of the PWM waveform can be calculated using the following equation:

...where T

is the period of the fast peripheral clock (1/25.6 MHz = 39.1 ns).

PCK

Resolution indicates how many bits are required to express the value in the OCR1C register. It can be calculated using the following equation:

Table 13-3. Timer/Counter1 Clock Prescale Select in the Asynchronous Mode

PWM Frequency Clock Selection CS1[3:0] OCR1C RESOLUTION

20 kHz PCK/16 0101 199 7.6 30 kHz PCK/16 0101 132 7.1 40 kHz PCK/8 0100 199 7.6 50 kHz PCK/8 0100 159 7.3 60 kHz PCK/8 0100 132 7.1 70 kHz PCK/4 0011 228 7.8 80 kHz PCK/4 0011 199 7.6

90 kHz PCK/4 0011 177 7.5 100 kHz PCK/4 0011 159 7.3 1 10 kHz PCK/4 0011 144 7.2 120 kHz PCK/4 0011 132 7.1 130 kHz PCK/2 0010 245 7.9 140 kHz PCK/2 0010 228 7.8 150 kHz PCK/2 0010 212 7.7

ATtiny25/45/85 [DATASHEET]

2586Q–AVR–08/2013

Table 13-3. Timer/Counter1 Clock Prescale Select in the Asynchronous Mode (Continued)

PWM Frequency Clock Selection CS1[3:0] OCR1C RESOLUTION

160 kHz PCK/2 0010 199 7.6 170 kHz PCK/2 0010 187 7.6 180 kHz PCK/2 0010 177 7.5 190 kHz PCK/2 0010 167 7.4 200 kHz PCK/2 0010 159 7.3 250 kHz PCK 0001 255 8.0 300 kHz PCK 0001 212 7.7 350 kHz PCK 0001 182 7.5 400 kHz PCK 0001 159 7.3 450 kHz PCK 0001 141 7.1 500 kHz PCK 0001 127 7.0

13.3 Register Description

13.3.1 TCCR1 – Timer/Counter1 Control Register

Bit 7 6 5 4 3 2 1 0 0x30 CTC1 PWM1A COM1A1 COM1A0 CS13 CS12 CS11 CS10 TCCR1A Read/Write R/W R/W R/W R/W R/W R/W R/W R/W Initial value 0 0 0 0 0 0 0 0

• Bit 7 – CTC1 : Clear Timer/Counter on Compare Match

When the CTC1 control bit is set (one), Timer/Counter1 is reset to $00 in the CPU clock cycle after a compare match with OCR1A register. If the control bit is cleared, Timer/Counter1 continues counting and is unaffected by a compare match.

• Bit 6 – PWM1A: Pulse Width Modulator A Enable

When set (one) this bit enables PWM mode based o n comparator OCR1A in Timer/Coun ter1 and the counter value is reset to $00 in the CPU clock cycle after a compare match with OCR1C register value.

• Bits 5:4 – COM1A[1:0]: Comparator A Output Mode, Bits 1 and 0

The COM1A1 and COM1A0 control bit s determ ine any output pin action follow ing a com pare mat ch with c ompare register A in Timer/Counter1. Output pin actions affect pin PB1 (OC1A). Since this is an alternative function to an I/O port, the corresponding direction control bit must be set (one) in order to control an output pin.

Table 13-4. Comparator A Mode Select

COM1A1 COM1A0 Description

0 0 Timer/Counter Comparator A disconnected from output pin OC1A. 0 1 Toggle the OC1A output line. 1 0 Clear the OC1A output line. 1 1 Set the OC 1A output line

In PWM mode, these bits have different functions. Refer to Table 13-1 on page 98 for a detailed description.

ATtiny25/45/85 [DATASHEET]

2586Q–AVR–08/2013

100

Atmel ATtiny25-V, ATtiny45-V, ATtiny85-V User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

Features

1. Pin Configurations

1.1 Pin Descriptions

1.1.1 VCC

1.1.2 GND

1.1.3 Port B (PB5:PB0)

1.1.4 RESET

2. Overview

2.1 Block Diagram

3. About

3.1 Resources

3.2 Code Examples

3.3 Capacitive Touch Sensing

3.4 Data Retention

4. AVR CPU Core

4.1 Introduction

4.2 Architectural Overview

4.3 ALU – Arithmetic Logic Unit

4.4 Status Register

4.4.1 SREG – AVR Status Register

4.5 General Purpose Register File

4.5.1 The X-register, Y-register, and Z-register

4.6 Stack Pointer

4.6.1 SPH and SPL — Stack Pointer Register

4.7 Instruction Execution Timing

4.8 Reset and Interrupt Handling

4.8.1 Interrupt Response Time

5. AVR Memories

5.1 In-System Re-programmable Flash Program Memory

5.2 SRAM Data Memory

5.2.1 Data Memory Access Times

5.3 EEPROM Data Memory

5.3.1 EEPROM Read/Write Access

5.3.2 Atomic Byte Programming

5.3.3 Split Byte Programming

5.3.4 Erase

5.3.5 Write

5.3.6 Preventing EEPROM Corruption

5.4 I/O Memory

5.5 Register Description

5.5.1 EEARH – EEPROM Address Register

5.5.2 EEARL – EEPROM Address Register

5.5.3 EEDR – EEPROM Data Register

5.5.4 EECR – EEPROM Control Register

6. System Clock and Clock Options

6.1 Clock Systems and their Distribution

6.1.6 Internal PLL in ATtiny15 Compatibility Mode

6.2 Clock Sources

6.2.1 External Clock

6.2.2 High Frequency PLL Clock

6.2.3 Calibrated Internal Oscillator

6.2.4 Internal 128 kHz Oscillator

6.2.5 Low-Frequency Crystal Oscillator

6.2.6 Crystal Oscillator / Ceramic Resonator

6.2.7 Default Clock Source

6.3 System Clock Prescaler

6.3.1 Switching Time

6.4 Clock Output Buffer

6.5 Register Description

6.5.1 OSCCAL – Oscillator Calibration Register

6.5.2 CLKPR – Clock Prescale Register

7. Power Management and Sleep Modes

7.1 Sleep Modes

7.1.1 Idle Mode

7.1.2 ADC Noise Reduction Mode

7.1.3 Power-down Mode

7.2 Software BOD Disable

7.2.1 Limitations

7.3 Power Reduction Register

7.4 Minimizing Power Consumption

7.4.1 Analog to Digital Converter

7.4.2 Analog Comparator

7.4.3 Brown-out Detector

7.4.4 Internal Voltage Reference

7.4.5 Watchdog Timer

7.4.6 Port Pins
