Features

• 80C51 Compatible

– Two I/O Ports – Two 16-bit Timer/Counters – 256 bytes RAM

• 4 Kbytes ROM or 4 Kbytes Flash Program Memory

• 256 bytes EEPROM (Stack Die Packaging Technology on SO20 Package)

• X2 Speed Improvement Capability (6 Clocks/Machine Cycle)

• 10-bit, 6 Channels A/D Converter

– One-channel with Progammable Gain and Rectifying Amplifier (Accuracy +/- 5%) – Voltage Reference for A/D & External Analog

• Hardware Watchdog Timer

• Programmable I/O Mode: Standard C51, Input Only, Push-pull, Open Drain

• Asynchronous Port Reset

• Triple System Clock

– Crystal or Ceramic Oscillator (24 MHz) – RC Oscillator (12 MHz), with Calibration Factor Using External R and C

(Accuracy +/- 3.5% with Ideal R and C) – RC Oscillator, Low Power Consumption (12 MHz Low Accuracy) – Programmable Prescaler

• One PWM Unit Block With:

– 16-bits Programmable Counter – 3 Independent Modules

• One PWM Unit Block with:

– 16 bits Programmable Counter – 1 Module

• Interrupt Structure With:

– 7 Interrupt Sources, – 4 interrupt Priority Levels

• Power Control Modes:

– Idle Mode – Power-down Mode – Power Fail Detect, Power On Reset – Quiet mode for A to D Conversion

• Power Supply: 3 to 3.6V

• Temperature Range: -40 to 85

• Package: SO20, SO24 (upon request)

Low-pin-count 8-bit microcontroller with A/D converter

AT83EB5114 AT89EB5114

Description

The AT8xEB5114 is a high performance version of the 80C51 8-bit microcontroller in a Low Pin Count package.

The AT8xEB5114 retains all the features of the standard 80C51 with 4 Kbytes program memory, 256 bytes of internal RAM, a 7-source, 4-level interrupt system, an onchip oscillator and two timers/counters. AT8xEB5114 may include a serial two wire interface EEPROM housed together with the microcontroller die in the same package.

The AT8xEB5114 is dedicated for analog interfacing applications. For this, it has a 10bit, 6 channels A/D converter and two PWM units; these PWM blocks provide PWM generation with variable frequency and pulse width.

In addition, the AT8xEB5114 has a Hardware Watchdog Timer and an X2 speed improvement mechanism. The X2 feature allows to keep the same CPU power at a divided by two oscillator frequency. The prescaler allows to decrease CPU and peripherals clock frequency. The fully static design of the AT8xEB5114 allows to reduce system power consumption by bringing the clock frequency down to any value, even DC, without loss of data.

Rev. 4311C–8051–02/08

Figure 1. Block Diagram

Timer 0

INT

RAM

256

XTAL2

XTAL1

CPU

Timer 1

INT1

Ctrl

INT0

(2) (2) (3)

Port 3

P4.0-3

IB-bus

Watch

Dog

Vss

Vcc

(2): Alternate function of Port 3

ROM

4 K *8

W0CI

W0M0-2

Xtal Osc

Osc

(2)(3)

(3): Alternate function of Port 4

Port 4

P3.0-5(SO20) or 7(SO24)

PWMU0

W1M0

(2)

PWMU1

RST

A/D

Converter

Vref

AIN0-2,4-5

(2,3)

Vref

Generator

W1CI

(3)

X1-20

AIN3

Vcca

Vssa

256 b

2 wires

interface

Osc

(12 MHz)

Flash/EE 4K*8

ALE

(2) (3) (3)

(SO20)

EEPROM

Parallel I/O Ports

The AT8xEB5114 has 3 software-selectable modes of reduced activity for further reduction in power consumption. In idle mode the CPU is frozen while the peripherals are still operating. In quiet mode, only the A/D converter is operating. In power-down mode the RAM is saved and all other functions are inoperative. Three oscillator sources, crystal, precision RC and low power RC, provide versatile power management.

The AT8xEB5114 is available in low pin count packages (ROM and flash versions).

AT89/83EB5114

4311C–8051–02/08

Pin Configuration

P3.0/W0M0

P4.3/AIN3/INT1

P3.5/W1M0

XTAL2

RST

XTAL1

Vss

P4.0/AIN0/W0CI

P4.2/AIN2/W1CI

P4.1/AIN1/T1

VRef Vcca Vssa

R C

3 4

6 7

8 9 10

19 18

17 16

15 14

Vcc

P3.3/W0M2/AIN4

P3.4/T0/AIN5

P3.2/INT0

P3.1/W0M1

SO20

P3.1/W0M1

P4.3/AIN3/INT1

P3.6

XTAL1

XTAL2

P4.0/AIN0/W0CI

P4.2/AIN2/W1CI

P4.1/AIN1/T1

VRef Vcca Vssa

NC R

3 4

6 7

23 22

21 20

19 18 17 16

RST

P3.3/W0M2/AIN4

P3.4/T0/AIN5

P3.5/

W1M0

P3.2/INT0

SO24

P3.7

P3.0/W0M0

Vss

Vcc

No EE

AT89/83EB5114

4311C–8051–02/08

Pin Description

SO20 SO24 Mnemonic Type Name and Function

12 14 V

18 22 Vssa Power Analog Ground: 0V reference for analog part

11 13 V

19 23 Vcca Power

20 24 VREF Analog VREF: A/D converter positive reference input, output of the internal voltage reference

14 17 XTAL1 I Input to the inverting oscillator amplifier and input to the internal clock generator circuit

15 18 XTAL2 O Output from the inverting oscillator amplifier. This pin can’t be connected to the ground.

17 20 R Analog Resistor Input for the precision RC oscillator

16 19 C Analog Capacitor Input for the precision RC oscillator

13 15 RST I/O

10 11 I/O W0M0 (P3.0): External I/O for PWMU 0 module 0

9 10 I/O W0M1 (P3.1): External I/O for PWMU 0 module 1

P3.0-P3.7 I/O Port 3: Port 3 is an 8-bit programmable I/O port with internal pull-ups. See “Port Types” on

Power Ground: 0V reference

Power Power Supply: This is the power supply voltage for normal, idle and power-down operation.

Analog Power Supply: This is the power supply voltage for analog part This pin must be connected to power supply.

Reset input with integrated pull-up A low level on this pin for two machine cycles while the oscillator is running, resets the device.

page 32. for a description of I/O ports.

Port 3 also serves the special features of the 80C51 family, as listed below.

8 9 I/O INT0 (P3.2): External interrupt 0

5 5 I/O

6 6 I/O T0 / AIN5(P3.4): Timer 0 external input. P3.4 is also an input of the analog to digital converter.

7 8 I/O

P4.0-P4.3 I/O

1 1 I/O

2 2 I/O

3 3 I/O

4 4 I/O

W0M2 / AIN4 (P3.3): External I/O for PWMU 0 module 2. P3.3 is also an input of the analog to digital converter.

W1M0 (P3.5): External I/O for PWMU 1 module 0, can also be used to output the external clocking signal

Port 4: Port 4 is an 4-bit programmable I/O port with internal pull-ups. See “Port Types” on page 32. for a description of I/O ports.

Port 4 is also the input port of the Analog to digital converter

AIN0 (P4.0): A/D converter input 0 W0CI: Count input of PWMU0

AIN1 (P4.1): A/D converter input 1 T1: Timer 1 external input

AIN2 (P4.2): A/D converter input 2 W1CI: Count input of PWMU1

AIN3 (P4.3): A/D converter input 3, programmable gain INT1: External interrupt 1

AT89/83EB5114

4311C–8051–02/08

SFR Mapping

AT89/83EB5114

The Special Function Registers (SFRs) of the AT8xEB5114 belong to the following categories:

• C51 core registers: ACC, AUXR, AUXR1, B, DPH, DPL, PSW, SP, FCON, HSB

• I/O port registers: P3, P4, P3M1, P3M2, P4M1

• Timer registers: TCON, TH0, TH1, TL0, TL1, TMOD

• Power and clock control registers: CKCON, CKRL, CKSEL, OSCBFA, OSCCON, PCON

• Interrupt system registers: IEN0, IPH0, IPL0, IOR

• WatchDog Timer: WDTRST, WDTPRG

• PWM0 registers: W0CH, W0CL, W0CON, W0FH, W0FL, W0IC, W0MOD, W0R0H, W0R0L, W0R1H, W0R1L,W0R2H, W0R2L

• PWM1registers: W1CH, W1CL, W1CON, W1FH, W1FL, W1IC, W1R0H, W1R0L

• ADC registers: ADCA, ADCF, ADCLK, ADCON, ADDH, ADDL

4311C–8051–02/08

Table 1. SFR Addresses and Reset Values

0/8 1/9 2/A 3/B 4/C 5/D 6/E 7/F

F8h

F0h

E8h

E0h

D8h

D0h

C8h

C0h

B8h

B0h

W1CON

XXX0 0000

0000 0000

W0CON

00XX 0000

ACC

0000 0000

PSW

0000 0000

XXXX 1111

IPL0

X000 0000

1111 1111

W0MOD

00XX X000

W0R0H

0000 0000

FCON

1111 1111

W1R0H

0000 0000

W1FH

0000 0000

ADCLK

0000 0000

W0FH

0000 0000

W0R0L

0000 0000

W1R0L

0000 0000

W1FL

0000 0000

ADCON

0000 0000

W0FL

0000 0000

W0R1H

0000 0000

W1CH

0000 0000

ADDL

XXXXXX00

W0CH

0000 0000

P3M2

0000 0000

W0R1L

0000 0000

W1CL

0000 0000

ADDH

0000 0000

W0CL

0000 0000

W0R2H

0000 0000

P3M1

0000 0000

W1IC

0000 0000

ADCF

0000 0000

W0IC

0000 0000

W0R2L

0000 0000

P4M1

0000 0000

ADCA

0000 0000

HSB

1111 XX11

IPH0

X000 0000

FFh

F7h

EFh

E7h

D7h

C7h

BFh

B7h

A8h

A0h

98h

90h

88h

80h

IEN0

0000 0000

AUXR1

XXXX 0XX0

TCON

0000 0000

0/8 1/9 2/A 3/B 4/C 5/D 6/E 7/F

TMOD

0000 0000

0000 0111

TL0

0000 0000

DPL

0000 0000

TL1

0000 0000

DPH

0000 0000

TH0

0000 0000

Note: 1. "C", value defined by the Hardware Security Byte, see Table 2 on page 15

IOR

XXXXXX00

TH1

0000 0000

CKSEL

XXXX XXCC

WDTRST

XXXXXXXX

AUXR

0XX0 XXX0

OSCCON

XXXX XXCC

WDTPRG

XXXX X000

OSCBFA

0111 0110

CKRL

XXXX 1000

CKCON

XXXX XXX0

PCON

00XX XX00

AFh

A7h

9Fh

97h

8Fh

87h

AT89/83EB5114

4311C–8051–02/08

AT89/83EB5114

Mnemonic Add Name 7 6 5 4 3 2 1 0

ACC E0h Accumulator

ADCA F7h ADC Amplifier Configuration - - - - - AC3E AC3G1 AC3G0

ADCF F6h ADCF Register - - CH5 CH4 CH3 CH2 CH1 CH0

ADCLK F2h ADC Clock Prescaler SELREF PRS6 PRS5 PRS4 PRS3 PRS2 PRS1 PRS0

ADCON F3h ADC Control Register QUIETM PSIDLE ADEN ADEOC ADSST SCH2 SCH1 SCH0

ADDH F5h ADC Data High Byte Register ADAT9 ADAT8 ADAT7 ADAT6 ADAT5 ADAT4 ADAT3 ADAT2

ADDL F4h ADC Data Low Byte Register - - - - - - ADAT1 ADAT0

AUXR 8Eh Auxiliary Register DPU - - LOWVD - - - -

AUXR1 A2h Auxiliary Register 1 - - - - - - - DPS

B F0h B Register

CKCON 8Fh Clock control Register - - - - - - - X2

CKRL 97h Clock Prescaler Register - - - - CKRL3 CKRL2 CKRL1 CKRL0

CKSEL 85h Clock Selection register - - - - - - CKS1 CKS0

DPH 83h Data pointer High Byte

DPL 82h Data pointer Low Byte

FCON D1h Auxiliary Register FPL3 FPL2 FPL1 FPL0 FPS FMOD1 FMOD0 FBUSY

HSB EFh Hardware Security Byte X2 RST_OSC1 RST_OSC0 RST_OCLK - - LB1 LB0

IEN0 A8h Interrupt Enable Register EA EADC EW1 EW0 ET1 EX1 ET0 EX0

IOR A5h Interrupt Option Register - - - - - - ESB1 ESB0

IPH0 B7h Interrupt Priority register - PADCH PW1H PW0H PT1H PX1H PT0H PX0H

IPL0 B8h Interrupt Priority Register - PADC PW1 PW0 PT1 PX1 PT0 PX0

OSCBFA 9Fh Oscillator B Frequency Adjust OSCBFA7 OSCBFA6 OSCBFA5 OSCBFA4 OSCBFA3 OSCBFA2 OSCBFA1 OSCBFA0

OSCCON 86h Clock Control Register - - - OSCBRY LCKEN OSCCEN OSCBEN OSCAEN

P3 B0h Port 3 Register

P3M1 D5h Port 3 Output Configuration P3M1.7 P3M1.6 P3M1.5 P3M1.4 P3M1.3 P3M1.2 P3M1.1 P3M1.0

P3M2 E4h Port 3 Output Configuration P3M2.7 P3M2.6 P3M2.5 P3M2.4 P3M2.3 P3M2.2 P3M2.1 P3M2.0

P4 C0h Port 4 register

P4M1 D6h Port 4 Output Configuration P4M1.7 P4M1.6 P4M1.5 P4M1.4 P4M1.3 P4M1.2 P4M1.1 P4M1.0

PCON 87h Power Modes Control Register SMOD1 SMOD0 - - GF1 GF0 PD IDL

PSW D0h Program Status Word CY AC F0 RS1 RS0 OV F1 P

SP 81h Stack pointer

TCON 88h Timer/Counter Control Register TF1 TR1 TF0 TR0 IE1 IT1 IE0 IT0

TH0 8Ch Timer 0 High Byte Registers TH0.7 TH0.6 TH0.5 TH0.4 TH0.3 TH0.2 TH0.1 TH0.0

TH1 8Dh Timer 1 High Byte Registers TH1.7 TH1.6 TH1.5 TH1.4 TH1.3 TH1.2 TH1.1 TH1.0

TL0 8Ah Timer 0 Low Byte Registers TL0.7 TL0.6 TL0.5 TL0.4 TL0.3 TL0.2 TL0.1 TL0.0

TL1 8Bh Timer 1 Low Byte Registers TL1.7 TL1.6 TL1.5 TL1.4 TL1.3 TL1.2 TL1.1 TL1.0

4311C–8051–02/08

Mnemonic Add Name 7 6 5 4 3 2 1 0

TMOD 89h Timer/Counter Mode Register GATE1 C/T1# M11 M01 GATE0 C/T0# M10 M00

W0CH ECh PWMU0 Counter High Control W0C15 W0C14 W0C13 W0C12 W0C11 W0C10 W0C9 W0C8

W0CL EDh PWMU0 Counter Low Control W0C7 W0C6 W0C5 W0C4 W0C3 W0C2 W0C1 W0C0

W0CON E8h PWMU0 Control Register W0UP W0R - - W0OS W0EN2 W0EN1 W0EN0

W0FH EAh

PWMU0 Frequency High Control

W0F15 W0F14 W0F13 W0F12 W0F11 W0F10 W0F9 W0F8

W0FL EBh

W0IC EEh PWMU0 Interrupt Configuration W0CF W0CF2 W0CF2 W0CF0 W0ECF W0ECF2 W0ECF1 W0ECF0

W0MOD E9h

W0R0H D9h PWMU0 Module 0 High Toggle W0R0H15 W0R0H14 W0R0H13 W0R0H12 W0R0H11 W0R0H10 W0R0H9 W0R0H8

W0R0L DAh PWMU0 Module 0 Low Toggle W0R0H7 W0R0H6 W0R0H5 W0R0H4 W0R0H3 W0R0H2 W0R0H1 W0R0H0

W0R1H DBh PWMU0 Module 1High Toggle W0R1H15 W0R1H14 W0R1H13 W0R1H12 W0R1H11 W0R1H10 W0R1H9 W0R1H8

W0R1L DCh PWMU0 Module1 Low Toggle W0R1H7 W0R1H6 W0R1H5 W0R1H4 W0R1H3 W0R1H2 W0R1H1 W0R1H0

W0R2H DDh PWMU0 Module 2 High Toggle W0R2H15 W0R2H14 W0R2H13 W0R2H12 W0R2H11 W0R2H10 W0R2H9 W0R2H8

W0R2L DEh PWMU0 Module 2 Low Toggle W0R2H7 W0R2H6 W0R2H5 W0R2H4 W0R2H3 W0R2H2 W0R2H1 W0R2H0

W1CH FCh PWMU1 Counter High Control W1C15 W1C14 W1C13 W1C12 W1C11 W1C10 W1C9 W1C8

W1CL FDh PWMU1 Counter Low Control W1C7 W1C6 W1C5 W1C4 W1C3 W1C2 W1C1 W1C0

W1CON F8h PWMU1 Control Register W1UP W1R - W1OCLK W1CPS1 W1CPS0 W1INV0 W1EN0

W1FH FAh

W1FL FBh

W1IC FEh PWMU1 Interrupt Configuration W1CF - - W1CF0 W1ECOF - - W0ECF0

W1R0H C9h PWMU1 Module 0 High Toggle W1R0H15 W1R0H14 W1R0H13 W1R0H12 W1R0H11 W1R0H10 W1R0H9 W1R0H8

W1R0L CAh PWMU1 Module 0 Low Toggle W1R0H7 W1R0H6 W1R0H5 W1R0H4 W1R0H3 W1R0H2 W1R0H1 W1R0H0

PWMU0 Frequency Low Control

PWMU0 Counter Mode Register

PWMU1 Frequency High Control

PWMU1 Frequency Low Control

W0F7 W0F6 W0F5 W0F4 W0F3 W0F2 W0F1 W0F0

W0CPS1 W0CPS0 - - - W0INV2 W0INV1 W0INV0

W1F15 W1F14 W1F13 W1F12 W1F11 W1F10 W1F9 W1F8

W1F7 W1F6 W1F5 W1F4 W1F3 W1F2 W1F1 W1F0

WDTRST A6h

WDTPRG A7h WatchDog Timer Duration Prg - - - - - S2 S1 S0

AT89/83EB5114

Watchdog Timer enable Register

4311C–8051–02/08

AT89/83EB5114

External

Power-Supply

Vcc

Internal RESET

Power Fail Detector

Power up Detector

Power Monitor

Description

Figure 2. Power Monitor Block Diagram

The Power Monitor function supervises the evolution of the voltages feeding the microcontroller, and if needed, suspends its activity when the detected value is out of specification.

It warrants proper startup when AT8xEB5114 is powered up and prevents code execution errors when the power supply becomes lower than the functional threshold.

This chapter describes the functions of the power monitor.

In order to startup and to properly maintain the microcontroller operation, Vcc has to be stabilized in the Vcc operating range and the oscillator has to be stabilized with a nominal amplitude compatible with logic threshold.

In order to be sure the oscillator is stabilized, there is an internal counter which maintains the reset during 1024 clock periods in case the oscillator selected is the OSC A and 64 clock periods in case the oscillator used is OSC B or OSC C.

This control is carried out during three phases: the power-up, normal operation and stop. In accordance with the following requirements:

• it guarantees an operational Reset when the microcontroller is powered-up, and

• a protection if the power supply goes below minimum operating Vcc

Power Monitor diagram

4311C–8051–02/08

The Power Monitor monitors the power-supply in order to detect any voltage drops which are not in the target specification. The power monitor block verifies two kinds of situation that may occur:

• during the power-up condition, when Vcc reaches the product specification,

• during a steady-state condition, when Vcc is at nominal value but disturbed by any undesired voltage drops.

Figure 2 shows some configurations which can be handled by the Power Monitor.

Figure 3. Power-Up and Steady-state Conditions Monitored

Power-up

Steady State Condition

Vcc

Reset

VPFDP

VPFDM

Vcc

The POR/PFD forces the CPU into reset mode when VCC reaches a voltage condition which is out of specification.

The thresholds and their functions are:

• VPFDP: the Vcc has reached a minimum functional value at power-up. The circuit leaves the RESET mode

• VPFDM: the Vcc has reached a low threshold functional value for the microcontroller. An internal RESET is set.

Glitch filtering prevents the system from RESET when short duration glitches are carried on Vcc power-supply (See “Electrical Characteristics” on page 84.).

In case Vcc is below VPFDP, LOWVD bit in AUXR (See Table 12 on page 23) is cleared by hardware. This bit allows the user to know if the voltage is below VPFDP.

Note: For proper reset operation V

and VCC must be considered together (same

CCA

power source). However, to improve the noise immunity, it is better to have two decoupling networks close to power pins (one for V

CCA/VSSA

pair and one for VCC/VSS pair).

AT89/83EB5114

4311C–8051–02/08

Clock System

Xtal2

Xtal1

PwdOsc

CKRL

2 down to 32

Prescaler-Divider

OscOut

Xtal_Osc

RC_Osc

OSCBEN

OSCAEN

CKS

Mux

Filter

OSCA

OSCB

CkIdle

Idle

CPU Clock

Peripherals Clock

Pwd

CkOut

CkAdc

Quiet

A/D Clock

RC_Osc

OSCC

Freq. Adjust

LCKEN

OSCCEN

OSCBRY

AT89/83EB5114

Overview

The AT8xEB5114 oscillator system provides a reliable clocking system with full mastering of speed versus CPU power trade-off. Several clock sources are possible:

• External clock input

• High speed crystal or ceramic oscillator

• Integrated accurate oscillator with external R and C.

• Low power consumption Integrated RC oscillator without external components.

The AT8xEB5114 needs 6 clock periods per machine cycle when the X2 function is set. However, the selected clock source can be divided by 2-32 before clocking the CPU and the peripherals.

By default, the active oscillator after reset is the high speed crystal/ceramic oscillator. Any two bits in a hardware configuration byte programmed by a Flash programmer or by metal mask can activate any other one.

The clock system is controlled by several SFR registers: CKCON, CKSEL, CKRL, OSCON, PCON and HSB which is the hardware security byte.

Blocks Description

The AT8xEB5114 includes three oscillators:

• Crystal oscillator optimized for 24 MHz.

• 1 accurate oscillator with a typical frequency of 12 MHz.

• 1 low power oscillator with a typical frequency of 14 MHz.

Figure 4. Functional Block Diagram

4311C–8051–02/08

Crystal Oscillator: OSCA The crystal oscillator uses two external pins, XTAL1 for input and XTAL2 for output.

OSCAEN in OSCCON register is an enable signal for the crystal oscillator or for the external oscillator input that can be provided on XTAL1.

High Accurate RC Oscillator: OSCB

Low Power Consumption Oscillator: OSCC

The high accuracy RC oscillator needs external R and C components to assure the proper accuracy; its typical frequency is 12 MHz. Frequency accuracy is a function of external R and C accuracy. It is recommended to use 0.5% or better for R and 1% for C components. (Typical values are R = 49.9 K and C = 560 pF)

This oscillator has two modes.

• OSCBEN = 1 and LCKEN = 0: Standard accuracy mode(Typical frequency 12 MHz)

• OSCBEN = 1 and LCKEN = 1: High accuracy mode (Typical frequency 12 MHz). The OSCB oscillator is based on a low frequency RC oscillator and a VCO. When locked, the oscillator frequency is defined by the following formula: F = 3*[OSCBFA+1]/(R.C). with C including parasitic capacitances. Because the oscillator is based on a PLL, it needs several periods to reach its final accuracy. As soon as this accuracy is reached, the OSCBRY bit in OSCCON register is set by hardware. The internal frequency is locked on the external RC time constant. So it is possible to adjust frequency by lower than 1% steps with the OSCBFA register. However the frequency adjustment is limited to +/-15% around 12 MHz. The frequency can be adjusted until 15% around 12 MHz by OSCBFA Register.

OSCBEN and LCKEN are in the OSCCON register.

The low power consumption RC oscillator doesn’t need any external components. Moreover its consumption is very low. Its typical frequency is 14 MHz. Note that this on-chip oscillator has a +/- 40% frequency tolerance and may not be suitable for use in certain applications.

OSCC is set by OSCCEN bit in OSCCON.

Clock Selector CKS1 and CKS0 bits in CKSEL register are used to select the clock source.

OSCCEN bit in OSCCON register is used to enable the low power consumption RC oscillator.

OSCBEN bit in OSCCON register is used to enable the high accurate RC oscillator. OSCAEN bit in OSCCON register is used to enable the crystal oscillator or the external

oscillator input.

X2 Feature The AT8xEB5114 core needs only 6 clock periods per machine cycle. This feature

called ”X2” provides the following advantages:

• Divides frequency crystals by 2 (cheaper crystals) while keeping same CPU power.

• Saves power consumption while keeping same CPU power (oscillator power saving).

• Saves power consumption by dividing dynamically the operating frequency by 2 in operating and idle modes.

• Increases CPU power by 2 while keeping same crystal frequency.

In order to keep the original C51 compatibility, a divider by 2 is inserted between the XTAL1 signal and the main clock input of the core (phase generator). This divider may be enabled or disabled by software.

AT89/83EB5114

4311C–8051–02/08

AT89/83EB5114

XTAL1:2

XTAL1

CPU clock

X2 bit

X2 ModeSTD Mode STD Mode

OSC

Description The clock for the whole circuit and peripherals is first divided by two before being used

by the CPU core and the peripherals. This allows any cyclic ratio to be accepted on XTAL1 input. In X2 mode, as this divider is

bypassed, the signals on XTAL1 must have a cyclic ratio from 40 to 60%. Figure 4 shows the clock generation block diagram. X2 bit is validated on the rising edge

of the XTAL1÷2 to avoid glitches when switching from X2 to standard mode. Figure 5 shows the switching mode waveforms.

Figure 5. Mode Switching Waveforms

The X2 bit in the CKCON register (see Table 7 on page 18) allows to switch from 12 clock periods per instruction to 6 clock periods and vice versa.

Clock Prescaler Before supplying the CPU and the peripherals, the main clock is divided by a factor from

2 to 32, as defined by the CKRL register (see Table 6 on page 18). The CPU needs from 12 to 16*12 clock periods per instruction. This allows:

• to accept any cyclic ratio on XTAL1 input.

• to reduce CPU power consumption.

Note: The number of bits of the prescaler is optimized in order to provide a low power con-

sumption in low speed mode (see Section “Electrical Characteristics”, page 84).

Prescaler Divider on Reset A hardware RESET selects the start oscillator depending on the RST1_OSC and

RST0_OSC bits contained on the Hardware Security Byte register (see Table 2 on page

15). It also selects the prescaler divider as follows:

• CKRL = 8h: internal clock = OscOut / 16 (slow CPU speed at reset, thus lower power consumption)

• X2 = 0,

• SEL_OSC1 and SEL_OSC0 bits selects OSCA, OSCB or OSCC, depending on the value of the RST_OSC1 and RST_OSC0 configuration bits.

• After Reset, any value between Fh down to 0h can be written by software into CKRL sfr in order to divide frequency of the selected oscillator:

– CKRL = 0h: minimum frequency = OscOut / 32 – CKRL = Fh: maximum frequency = OscOut / 2

4311C–8051–02/08

The frequency of the CPU and peripherals clock CkOut is related to the frequency of the main oscillator OscOut by the following formula:

CkOut

= F

/ (32 - 2*CKRL)

OscOut

Some examples can be found in the table below:

OscOut

MHz X2 CKRL

12 0 F 6

12 0 E 3

12 1 x 12

Mhz

CkOut

• A software instruction which set X2 bit disables the prescaler/divider, so the internal clock is either OSCA, OSCB or OSCC depending on SEL_OSC1 and SEL_OSC0 bits.

AT89/83EB5114

4311C–8051–02/08

AT89/83EB5114

Registers

Hardware Security Byte The security byte sets the starting microcontroller options and the security levels.

The default options are X1 mode, Oscillator A and divided by 16 prescaler.

Table 2. Hardware Security Byte (HSB) Power configuration Register - HSB (S:EFh)

7 6 5 4 3 2 1 0

X2 RST_OSC1 RST_OSC0 RST_OCLK CKRLRV - LB1 LB0

Bit

Number

7 X2

6 RST_OSC1 Oscillator bit 1 on reset and Oscillator bit 0 on reset

5 RST_OSC0

4 RST_OCLK

3 CKRLRV

2 - Reserved

1-0 LB1-0

Bit

Mnemonic Description

X2 Mode

Clear to force X2 mode (CkOut = OscOut) Set to use the prescaler mode (CkOut = OscOut / (2*(16-M)))

11: allows OSCA 10: allows OSCB

01: allows OSCC 00: reserved

Output clocking signal after RESET

Clear to start the microcontroller with a low level on P3.5 followed by an output clocking signal on P3.5 as soon as the microcontroller is started. This signal has is a 1/3 high 2/3 low signal. Its frequency is equal to (CKout / 3).

Set to start on normal conditions: No signal on P3.5 which is pulled up.

CKRL Reset Value

If set, the microcontroller starts with the prescaler reset value = XXXX 1000 (OscOut = CkOut/16).

If clear, the microcontroller starts with a prescaler reset value = XXXX 1111 (OscOut = CkOut/2).

User Program Lock Bits

See Table 61 on page 81

4311C–8051–02/08

HSB = 1111 1X11b

Clock Control Register The clock control register is used to define the clock system behavior.

Table 3. OSCON Register

OSCCON - Clock Control Register (86h)

7 6 5 4 3 2 1 0

- - OSCARY OSCBRY LCKEN OSCCEN OSCBEN OSCAEN

Bit

Number

Mnemonic Description

7 -

6 -

5 OSCARY

4 OSCBRY

3 LCKEN

2 OSCCEN

1 OSCBEN

Bit

Reserved

The value read from this bit is indeterminate. Do not set this bit.

Reserved

The value read from this bit is indeterminate. Do not set this bit.

Oscillator A Ready

When set, this bit indicates that Oscillator A is ready to be used.

Oscillator B Ready

When set, this bit indicates that Oscillator B is ready to be used in high accurate mode.

Lock Enable

When set, this bit allows to increase the accuracy of OSCB by locking this oscillator on external RC time constant.

Enable low power consumption RC oscillator

This bit is used to enable the low power consumption oscillator 0: The oscillator is disabled 1: The oscillator is enabled.

Enable high accuracy RC oscillator

This bit is used to enable the high accurate RC oscillator 0: The oscillator is disabled 1: The oscillator is enabled.

Oscillator B Frequency Adjust Register

AT89/83EB5114

Enable crystal oscillator

0 OSCAEN

This bit is used to enable the crystal oscillator 0: The oscillator is disabled 1: The oscillator is enabled.

Reset Value = XXX0 0"RST_OSC1.RST_OSC0""RST_OSC1.RST_OSC0""RST_OSC1.RST_OSC0" b Not bit addressable

Note: Before changing oscillator selection in CKSEL, be sure that the oscillator you select is

started. OSCA is ready as soon as OSCARY is set by hardware, OSCB and OSCC are ready after 4 clock periods. In case you want to use OSCB locked, be sure that OSCB is started before setting LCKEN bit. Then, wait until OSCBRY is set by hardware to be sure that the accurate frequency is reached.

The OSCB Frequency Adjust register is used to adjust the frequency in case of external components inaccuracies. It allows a frequency variation about 15% around 12 MHz with a step of around 1%.

4311C–8051–02/08

AT89/83EB5114

Table 4. OSCBFA Register

OSCBFA- Oscillator B Frequency Adjust Register (9Fh)

7 6 5 4 3 2 1 0

OSCBFA7 OSCBFA6 OSCBFA5 OSCBFA4 OSCBFA3 OSCBFA2 OSCBFA1 OSCBFA0

Bit

Number

7-0

Bit

Mnemonic Description

OSCBFA

7-0

OSCB Frequency adjust

The reset value to have 12 MHz is 0111 0110. It is possible to modify this value in order to increase or decrease the frequency.

Reset Value = 0111 0110b Not bit addressable

Clock Selection Register The clock selection register is used to define the clock system behavior.

Table 5. CKSEL Register

CKSEL - Clock Selection Register (85h)

7 6 5 4 3 2 1 0

- - - - - - CKS1 CKS0

Bit

Number

7 -

6 -

Bit

Mnemonic Description

Reserved

The value read from this bit is indeterminate. Do not set this bit.

Reserved

The value read from this bit is indeterminate. Do not set this bit.

5 -

4 -

3 -

2 -

1 CKS1 Active Clock Selector 1and Active Clock Selector 0

0 CKS0

Reserved

The value read from this bit is indeterminate. Do not set this bit.

Reserved

The value read from this bit is indeterminate. Do not set this bit.

Reserved

The value read from this bit is indeterminate. Do not set this bit.

Reserved

The value read from this bit is indeterminate. Do not set this bit.

These bits are used to select the active oscillator 11: The crystal oscillator is selected 10: The high accuracy RC oscillator is selected 01: The low power consumption RC oscillator is selected 00: Reserved

Reset Value = XXXX XX"RST_OSC1" "RST_OSC0" b Not bit addressable

4311C–8051–02/08

Clock Prescaler Register This register is used to reload the clock prescaler of the CPU and peripheral clock.

Table 6. CKRL Register

CKRL - Clock prescaler Register (97h)

7 6 5 4 3 2 1 0

- - - - M

Bit

Number

7-4 - Reserved

3-0 CKRL

Bit

Mnemonic Description

0000b: Division factor equal 32 1111b: Division factor equal 2 M: Division factor equal 2*(16-M)

Reset Value = XXXX 1000b Not bit addressable

Clock Control Register This register is used to control the X2 mode of the CPU and peripheral clock.

Table 7. CKCON Register

CKCON - Clock Control Register (8Fh)

7 6 5 4 3 2 1 0

- - - - - - - X2

Bit

Number

7-1 - Reserved

0 X2

Bit

Mnemonic Description

X2 Mode

Set to force X2 mode (CkOut = OscOut) Clear to use the prescaler mode (CkOut = OscOut / (2*(16-M)))

Reset Value = 0000 0000b Not bit addressable

AT89/83EB5114

4311C–8051–02/08

Power Modes

AT89/83EB5114

Overview

Operating Modes

As seen in the previous chapter it is possible to modify the AT8xEB5114 clock management in order to have less consumption.

For applications where power consumption is a critical factor, three power modes are provided:

• Normal (running) mode

• Idle mode

• Power-down mode

In order to increase ADC accuracy, a Quiet mode also exits. This mode is a pseudo idle mode in which the CPU and all the peripherals except the AD converter are disabled.

Power modes are controlled by PCON SFR register.

Table 8 summarizes all the power modes and states that AT8xEB5114 can encounter. It shows which parts of AT8xEB5114 are running depending on the operating mode.

Table 8. Operating Modes

Operating Mode Prescaler Oscillator POR CPU Peripherals

Power Down X

Under Reset A, B or C X

Start X A, B or C X X

Running (X) A, B or C X X X

Idle (X) A, B or C X X

Quiet (X) A, B or C X only ADC

Normal Mode In normal mode, the oscillator, the CPU and the peripherals are running. The prescaler

can also be activated.

• The CPU and the peripherals clock depends on the software selection using CKCON, OSCCON, CKSEL and CKRL registers

• CKS bits select either OSCA, OSCB, or OSCC

• CKRL register determines the frequency of the selected clock, unless X2 bit is set. In this case the prescaler/divider is not used, so CPU core needs only 6-clock periods per machine cycle.

It is always possible to switch dynamically by software from one to another oscillator by changing CKS bits, a synchronization cell allows to avoid any spike during transition.

Idle Mode The idle mode allows to reduce consumption by freezing the CPU. All the peripherals

continue running.

Entering Idle Mode An instruction that sets PCON.0 causes that to be the last instruction executed before

going into Idle mode. In Idle mode, the internal clock signal is gated off to the CPU, but not to the interrupt,

and the peripheral functions. The CPU status is entirely preserved: the Stack Pointer, Program Counter, Program Status Word, Accumulator and all other registers maintain

4311C–8051–02/08

their data during Idle. The port pins hold the logical states they had at the time Idle was

INTERRUPT

OSC

Power-down phase Oscillator restart phase

Active phaseActive phase

activated. ALE and PSEN are held at logic high levels. The different operating modes are summarized on Table 10 on page 21.

Exit from Idle Mode There are two ways to terminate idle mode. Activation of any enabled interrupt will

cause PCON.0 to be cleared by hardware, terminating Idle mode. The interrupt will be serviced, and following RETI the next instruction to be executed will be the one following the instruction that put the device into idle. Exit from idle mode will leave the oscillators control bits on OSCON and CKS registers unchanged.

The flag bits GF0 and GF1 can be used to give an indication if an interrupt occurred during normal operation or during an Idle mode. For example, an instruction that activates Idle mode can also set one or both flag bits. When Idle is terminated by an interrupt, the interrupt service routine can examine the flag bits.

The other way of terminating the Idle mode is with a hardware reset. Since the clock oscillator is still running, the hardware reset needs to be held active for only two machine cycles (24 oscillator periods) to complete the reset.

In both cases, PCON.0 is cleared by hardware.

Quiet Mode The quiet mode is a pseudo idle mode in which the CPU and all the peripherals except

the AD converter are down. For more details, See “Analog-to-Digital Converter (ADC)” on page 57.

Power-down Mode To save maximum power, a power-down mode can be invoked by software (refer to

Table 11 on page 22). In power-down mode, the oscillator is stopped and the instruction that invoked power-down mode is the last instruction executed. The internal RAM and SFRs retain their value until the power-down mode is terminated. VCC can be lowered to save further power.

Entering Power-down Mode An instruction that sets PCON.1 causes that to be the last instruction executed before

going into the power-down mode. The ports status under power-down is the previous status before entering this power

mode.

Exit from Power-down Mode Either a hardware reset or an external interrupt (low level) on INT0 or INT1 (if enabled)

can cause an exit from power-down. To properly terminate power-down, the reset or external interrupt should not be executed before VCC is restored to its normal operating level and must be held active long enough for the oscillator to restart and stabilize.

Exit from power-down by external interrupt does not affect the SFRs and the internal RAM content.

Figure 6. Power-down Exit Waveform

By a hardware Reset, the CPU will restart in the mode defined by the RST_OSC1 and RST_OSC0 bits in HSB.

AT89/83EB5114

4311C–8051–02/08

AT89/83EB5114

By INT1 and INT0 interruptions (if enabled), the oscillators control bits on OSCON and CKSEL will be kept, so the selected oscillator before entering in power-down mode will be activated. Only external interrupts INT0 and INT1 are useful to exit from power-down.

Note: Exit from power down mode doesn’t depend on IT0 and IT1 configurations. It is only pos-

sible to exit from power down mode on a low level on these pins.

Holding the pin low restarts the oscillator but bringing the pin high completes the exit as detailed in Figure 6. When both interrupts are enabled, the oscillator restarts as soon as one of the two inputs is held low and power down exit will be completed when the first input is released. In this case the higher priority interrupt service routine is executed.

Table 9 shows the state of ports during idle and power-down modes.

Table 9. Ports State

Mode Program Memory Port3 Port4

Idle Internal Port Data Port Data

Power Down Internal Port Data Port Data

Table 10. Operating Modes

PD IDLE CKS1 CKS0 OSCCEN OSCBEN OSCAEN Selected Mode Comment

0 0 1 1 X X 1 NORMAL MODE A OSCA: XTAL clock

X X 1 1 X X 0 INVALID no active clock

0 0 1 0 X 1 X NORMAL MODE B, OSCB: high accuracy RC clock

X X 1 0 X 0 X INVALID no active clock

0 0 0 1 1 X X NORMAL MODE C, OSCC: low consumption RC clock

X X 0 1 0 X X INVALID no active clock

0 1 1 1 X X 1 IDLE MODE A

0 1 1 0 X 1 X IDLE MODE B

0 1 0 1 1 X X IDLE MODE C

1 X X X X X X POWER DOWN

The CPU is off, OSCA supplies the peripherals

The CPU is off, OSCB supplies the peripherals

The CPU is off, OSCC supplies the peripherals

The CPU is off, OSCA, OSCB and OSCC are stopped

4311C–8051–02/08

Power Modes Control Registers

Table 11. PCON Register

PCON (S:87h) Power configuration Register

7 6 5 4 3 2 1 0

- - - - GF1 GF0 PD IDL

Bit

Number

7 Reserved

6 Reserved

5 Reserved

4 Reserved

3 GF1

2 GF0

1 PD

0 IDL

Bit

Mnemonic Description

General Purpose flag 1

Set and Cleared by user for general purpose usage.

General Purpose flag 0

Set and Cleared by user for general purpose usage.

Power-down Mode bit

Cleared by hardware when an interrupt or reset occurs. Set to activate the Power-down mode. If IDL and PD are both set, PD takes precedence.

Idle Mode bit

Cleared by hardware when an interrupt or reset occurs. Set to activate the Idle mode. If IDL and PD are both set, PD takes precedence.

Reset Value = 00XX XX00b

AT89/83EB5114

4311C–8051–02/08

AT89/83EB5114

AUXR Register

Table 12. AUXR Register

AUXR - Auxiliary Register (8Eh)

7 6 5 4 3 2 1 0

DPU - - LOWVD - - - -

Bit

Number

7 DPU

6 -

5 -

4 LOWVD

3-1 -

0 -

Bit

Mnemonic Description

Disable Pull up

Set to disable each pull up on all ports. Clear to connect all pull-ups on each port.

Reserved

The value read from this bit is indeterminate. Do not set this bit.

Reserved

The value read from this bit is indeterminate. Do not set this bit.

Low Voltage Detection

This bit is clear by hardware when the supply voltage is under Vpfdp value. This bit is set by hardware as soon the supply voltage is greater than Vpfdp value.

Reserved

The value read from this bit is indeterminate. Do not set this bit.

Reserved

The value read from this bit is indeterminate. Do not set this bit.

Reset Value = 0XX0 XXXXb Not bit addressable

4311C–8051–02/08

Timers/Counters

Introduction

Timer/Counter Operations

The AT8xEB5114 implements two general-purpose, 16-bit Timers/Counters. Although they are identified as Timer 0, Timer 1, they can be independently configured each to operate in a variety of modes as a Timer or as an event Counter. When operating as a Timer, a Timer/Counter runs for a programmed length of time, then issues an interrupt request. When operating as a Counter, a Timer/Counter counts negative transitions on an external pin. After a preset number of counts, the Counter issues an interrupt request. The Timer registers and associated control registers are implemented as addressable Special Function Registers (SFRs). Two of the SFRs provide programmable control of the Timers as follows:

• Timer/Counter mode control register (TMOD) and Timer/Counter control register (TCON) control both Timer 0 and Timer 1.

The various operating modes of each Timer/Counter are described below.

A basic operation is Timer registers THx and TLx (x = 0, 1) connected in cascade to form a 16-bit Timer. Setting the run control bit (TRx) in the TCON register (see Figure 15) turns the Timer on by allowing the selected input to increment TLx. When TLx overflows it increments THx and when THx overflows it sets the Timer overflow flag (TFx) in the TCON register. Setting the TRx does not clear the THx and TLx Timer registers. Timer registers can be accessed to obtain the current count or to enter preset values. They can be read at any time but the TRx bit must be cleared to preset their values, otherwise the behavior of the Timer/Counter is unpredictable.

The C/Tx# control bit selects Timer operation or Counter operation by selecting the divided-down system clock or the external pin Tx as the source for the counted signal. The TRx bit must be cleared when changing the operating mode, otherwise the behavior of the Timer/Counter is unpredictable. For Timer operation (C/Tx# = 0), the Timer register counts the divided-down system clock. The Timer register is incremented once every peripheral cycle.

Timer 0

For Counter operation (C/Tx# = 1), the Timer register counts the negative transitions on the external input pin Tx. The external input is sampled during every S5P2 state. The Programmer’s Guide describes the notation for the states in a peripheral cycle. When the sample is high in one cycle and low in the next one, the Counter is incremented. The new count value appears in the register during the next S3P1 state after the transition has been detected. Since it takes 12 states (24 oscillator periods in X1 mode) to recognize a negative transition, the maximum count rate is 1/24 of the oscillator frequency in X1 mode. There are no restrictions on the duty cycle of the external input signal, but to ensure that a given level is sampled at least once before it changes, it should be held for at least one full peripheral cycle.

Timer 0 functions as either a Timer or an event Counter in four operating modes. Figure 7 to Figure 10 show the logic configuration of each mode.

Timer 0 is controlled by the four lower bits of the TMOD register (see Figure 16) and bits 0, 1, 4 and 5 of the TCON register (see Figure 15). The TMOD register selects the method of Timer gating (GATE0), Timer or Counter operation (T/C0#) and the operating mode (M10 and M00). The TCON register provides Timer 0 control functions: overflow flag (TF0), run control bit (TR0), interrupt flag (IE0) and interrupt type control bit (IT0). For normal Timer operation (GATE0= 0), setting TR0 allows TL0 to be incremented by the selected input. Setting GATE0 and TR0 allows external pin INT0# to control Timer

AT89/83EB5114

4311C–8051–02/08

AT89/83EB5114

TRx

TCON reg

TFx

TCON reg

GATEx

TMOD reg

Overflow

Timer x Interrupt Request

C/Tx#

TMOD reg

TLx

(5 bits)

THx

(8 bits)

INTx#

CkIdle

/ 6

TRx

TCON reg

TFx

TCON reg

GATEx

TMOD reg

Overflow

Timer x Interrupt Request

C/Tx#

TMOD reg

TLx

(8 bits)

THx

(8 bits)

INTx#

CkIdle

/ 6

operation. Timer 0 overflow (count rolls over from all 1s to all 0s) sets the TF0 flag and generates an interrupt request. It is important to stop the Timer/Counter before changing modes.

Mode 0 (13-bit Timer) Mode 0 configures Timer 0 as a 13-bit Timer which is set up as an 8-bit Timer (TH0 reg-

ister) with a modulo-32 prescaler implemented with the lower five bits of the TL0 register (see Figure 7). The upper three bits of the TL0 register are indeterminate and should be ignored. Prescaler overflow increments the TH0 register.

Figure 7. Timer/Counter x (x= 0 or 1) in Mode 0

Mode 1 (16-bit Timer) Mode 1 configures Timer 0 as a 16-bit Timer with the TH0 and TL0 registers connected

in a cascade (see Figure 8). The selected input increments the TL0 register.

Figure 8. Timer/Counter x (x = 0 or 1) in Mode 1

Mode 2 (8-bit Timer with AutoReload)

Mode 2 configures Timer 0 as an 8-bit Timer (TL0 register) that automatically reloads from the TH0 register on overflow (see Figure 9). TL0 overflow sets the TF0 flag in the TCON register and reloads TL0 with the contents of TH0, which is preset by the software. When the interrupt request is serviced, the hardware clears TF0. The reload leaves TH0 unchanged. The next reload value may be changed at any time by writing it to the TH0 register.

4311C–8051–02/08

Figure 9. Timer/Counter x (x = 0 or 1) in Mode 2

TRx

TCON reg

TFx

TCON reg

GATEx

TMOD reg

Overflow

Timer x Interrupt Request

C/Tx#

TMOD reg

TLx

(8 bits)

THx

(8 bits)

INTx#

CkIdle

/ 6

TR0

TCON.4

TF0

TCON.5

INT0#

GATE0

TMOD.3

Overflow

Timer 0 Interrupt Request

C/T0#

TMOD.2

TL0

(8 bits)

TR1

TCON.6

TH0

(8 bits)

TF1

TCON.7

Overflow

Timer 1 Interrupt Request

CkIdle

/ 6

Mode 3 (Two 8-bit Timers) Mode 3 configures Timer 0 so that registers TL0 and TH0 operate as 8-bit Timers (see

Figure 10). This mode is provided for applications requiring an additional 8-bit Timer or Counter. TL0 uses the Timer 0 control bits C/T0# and GATE0 in the TMOD register, and TR0 and TF0 in the TCON register in the normal manner. TH0 is locked into a Timer function (counting F

) and takes over use of the Timer 1 interrupt (TF1) and run con-

UART

trol (TR1) bits. Thus, operation of Timer 1 is restricted when Timer 0 is in mode 3.

Figure 10. Timer/Counter 0 in Mode 3: Two 8-bit Counters

Timer 1

Timer 1 is identical to Timer 0 except for Mode 3 which is a hold-count mode. The following comments help to understand the differences:

• Timer 1 functions as either a Timer or an event Counter in the three operating modes. Figure 7 to Figure 9 show the logical configuration for modes 0, 1, and 2. Mode 3 of Timer 1 is a hold-count mode.

• Timer 1 is controlled by the four high-order bits of the TMOD register (see Figure 16) and bits 2, 3, 6 and 7 of the TCON register (see Figure 15). The TMOD register selects the method of Timer gating (GATE1), Timer or Counter operation (C/T1#) and the operating mode (M11 and M01). The TCON register provides Timer 1 control functions: overflow flag (TF1), run control bit (TR1), interrupt flag (IE1) and the interrupt type control bit (IT1).

• Timer 1 can serve as the Baud Rate Generator for the Serial Port. Mode 2 is best suited for this purpose.

AT89/83EB5114

4311C–8051–02/08

AT89/83EB5114

• For normal Timer operation (GATE1= 0), setting TR1 allows TL1 to be incremented by the selected input. Setting GATE1 and TR1 allows external pin INT1# to control Timer operation.

• Timer 1 overflow (count rolls over from all 1s to all 0s) sets the TF1 flag and generates an interrupt request.

• When Timer 0 is in mode 3, it uses Timer 1’s overflow flag (TF1) and run control bit (TR1). For this situation, use Timer 1 only for applications that do not require an interrupt (such as a Baud Rate Generator for the Serial Port) and switch Timer 1 in and out of mode 3 to turn it off and on.

• It is important to stop the Timer/Counter before changing modes.

Mode 0 (13-bit Timer) Mode 0 configures Timer 1 as a 13-bit Timer, which is set up as an 8-bit Timer (TH1 reg-

ister) with a modulo-32 prescaler implemented with the lower 5 bits of the TL1 register (see Figure 7). The upper 3 bits of TL1 register are indeterminate and should be ignored. Prescaler overflow increments the TH1 register.

Mode 1 (16-bit Timer) Mode 1 configures Timer 1 as a 16-bit Timer with TH1 and TL1 registers connected in

cascade (see Figure 8). The selected input increments the TL1 register.

Mode 2 (8-bit Timer with AutoReload)

Mode 3 (Halt) Placing Timer 1 in mode 3 causes it to halt and hold its count. This can be used to halt

Mode 2 configures Timer 1 as an 8-bit Timer (TL1 register) with automatic reload from the TH1 register on overflow (see Figure 9). TL1 overflow sets the TF1 flag in the TCON register and reloads TL1 with the contents of TH1, which is preset by the software. The reload leaves TH1 unchanged.

Timer 1 when the TR1 run control bit is not available i.e. when Timer 0 is in mode 3.

4311C–8051–02/08

Registers

Table 13. TCON (S:88h)

Timer/Counter Control Register

7 6 5 4 3 2 1 0

TF1 TR1 TF0 TR0 IE1 IT1 IE0 IT0

Bit

Number

7 TF1

6 TR1

5 TF0

4 TR0

3 IE1

2 IT1

1 IE0

Bit

Mnemonic Description

Timer 1 Overflow flag

Cleared by the hardware when processor vectors to interrupt routine. Set by the hardware on Timer 1 register overflows.

Timer 1 Run Control bit

Clear to turn off Timer/Counter 1. Set to turn on Timer/Counter 1.

Timer 0 Overflow flag

Cleared by the hardware when processor vectors to interrupt routine. Set by the hardware on Timer 0 register overflows.

Timer 0 Run Control bit

Clear to turn off Timer/Counter 0. Set to turn on Timer/Counter 0.

Interrupt 1 Edge flag

Cleared by the hardware as soon as the interrupt is processed. Set by the hardware when external interrupt is detected on the INT1 pin.

Interrupt 1 Type Control bit

Clear to select low level active for external interrupt 1 (INT1). Set to select sensitive edge trigger for external interrupt 1. The sensitive edge (Rising or Falling) is determined by ESB1 value (Edge Selection Bit 1) in IOR (Interrupt Option Register).

Interrupt 0 Edge flag

Cleared by the hardware as soon as the interrupt is processed. Set by the hardware when external interrupt is detected on INT0 pin.

0 IT0

Reset Value = 0000 0000b

AT89/83EB5114

Interrupt 0 Type Control bit

Clear to select low level active trigger for external interrupt 0 (INT0). Set to select sensitive edge trigger for external interrupt 0. The sensitive edge (Rising or Falling) is determined by ESB0 (Edge Selection Bit 0) in IOR (Interrupt Option Register).

4311C–8051–02/08

AT89/83EB5114

Table 14. IOR (S:A5h)

Interrupt Option Register.

7 6 5 4 3 2 1 0

- - - - - - ESB1 ESB0

Bit

Number

7-2 -

1 ESB1

0 ESB0

Bit

Mnemonic Description

Reserved

The value read from this bit is indeterminate. Do not set this bit.

Edge Selection bit for INT1 Clear to select falling edge sensitive for INT1 pin. Set to select rising edge sensitive for INT1 pin.

Edge Selection bit for INT0

Clear to select falling edge sensitive for INT0 pin. Set to select rising edge sensitive for INT0 pin.

Reset Value = XXXX XX00b

4311C–8051–02/08

Table 15. TMOD Register TMOD (S:89h)

Timer/Counter Mode Control Register.

7 6 5 4 3 2 1 0

GATE1 C/T1# M11 M01 GATE0 C/T0# M10 M00

Bit

Number

7 GATE1

6 C/T1#

5 M11 Timer 1 Mode Select bits

4 M01

3 GATE0

2 C/T0#

1 M10 Timer 0 Mode Select bit

0 M00

Bit

Mnemonic Description

Timer 1 Gating Control bit

Clear to enable Timer counter 1 whenever TR1 bit is set. Set to enable Timer counter 1 only while INT1# pin is high and TR1 bit is set.

Timer 1 Counter/Timer Select bit

Clear for Timer operation: Timer 1 counts the divided-down system clock. Set for Counter operation: Timer 1 counts negative transitions on external pin T1.

M11 M01 Operating mode 0 0 Mode 0: 8-bit Timer/Counter (TH1) with 5-bit prescaler (TL1). 0 1 Mode 1: 16-bit Timer/Counter. 1 0 Mode 2: 8-bit auto-reload Timer/Counter (TL1). Reloaded from

1 1 Mode 3:Timer 1 halted. Retains count.

Timer 0 Gating Control bit

Clear to enable Timer counter 0 whenever TR0 bit is set. Set to enable Timer counter 0 only while INT0# pin is high and TR0 bit is set.

Timer 0 Counter/Timer Select bit

Clear for Timer operation: Timer 0 counts the divided-down system clock. Set for Counter operation: Timer 0 counts negative transitions on external pin T0.

M10 M00 Operating mode 0 0 Mode 0:8-bit Timer/Counter (TH0) with 5-bit prescaler (TL0). 0 1 Mode 1:16-bit Timer/Counter. 1 0 Mode 2:8-bit auto-reload Timer/Counter (TL0).

Reloaded from TH0 at overflow 1 1 Mode 3:TL0 is an 8-bit Timer/Counter TH0 is an 8-bit Timer using Timer 1’s TR0 and TF0 bits.

TH1 at overflow.

Reset Value = 0000 0000b

Table 16. TH0 Register

TH0 (S:8Ch)

Timer 0 High Byte Register.

7 6 5 4 3 2 1 0

Bit

Number

7:0 High Byte of Timer 0.

Reset Value = 0000 0000b

AT89/83EB5114

Bit

Mnemonic Description

4311C–8051–02/08

AT89/83EB5114

Table 17. TL0 Register

TL0 (S:8Ah)

Timer 0 Low Byte Register.

7 6 5 4 3 2 1 0

Bit

Number

7:0 Low Byte of Timer 0.

Bit

Mnemonic Description

Reset Value = 0000 0000b

Table 18. TH1 Register

TH1 (S:8Dh)

Timer 1 High Byte Register.

7 6 5 4 3 2 1 0

Bit

Number

7:0 High Byte of Timer 1.

Bit

Mnemonic Description

Reset Value = 0000 0000b

Table 19. TL1 Register

TL1 (S:8Bh)

Timer 1 Low Byte Register.

4311C–8051–02/08

7 6 5 4 3 2 1 0

Bit

Number

7:0 Low Byte of Timer 1.

Bit

Mnemonic Description

Reset Value = 0000 0000b

Ports

The AT8xEB5114 has 2 I/O ports, port 3, and port 4. All port3 and port4 I/O port pins on the AT8xEB5114 may be software configured to one

of four types on a bit-by-bit basis, as shown below in Table 20. These are: quasi-bidirectional (standard 80C51 port outputs), push-pull, open drain, and input only. Two configuration registers for each port select the output type for each port pin.

Port Types

Quasi-Bidirectional Output Configuration

Table 20. Port Output Configuration setting using PxM1 and PxM2 registers (3

PxM1.(2y+1) bit PxM1.(2y) bit (0<y<3) Port Output Mode

0 0 Quasi bidirectional

0 1 Push-Pull

1 0 Input Only (High Impedance)

1 1 Open Drain

PxM2.(2y-7) bit PxM2.(2y-8) bit (4<y<7) Port Output Mode

0 0 Quasi bidirectional

0 1 Push-Pull

1 0 Input Only (High Impedance)

1 1 Open Drain

< x < 4)

The default port output configuration for standard AT8xEB5114 I/O ports is the quasibidirectional output that is common on the 80C51 and most of its derivatives. This output type can be used as both an input and output without the need of reconfiguring the port. This is possible because when the port outputs a logic high, it is weakly driven, allowing an external device to pull the pin low. When the pin is pulled low, it is driven strongly and able to sink a fairly large current. These features are somewhat similar to an open drain output except that there are three pull-up transistors in the quasi-bidirectional output that serve different purposes. One of these pull-ups, called the "weak" pull-up, is turned on whenever the port latch for the pin contains a logic 1. The weak pull-up sources a very small current that will pull the pin high if it is left floating. A second pull-up, called the "medium" pull-up, is turned on when the port latch for the pin contains a logic 1 and the pin itself is also at a logic 1 level. This pull-up provides the primary source current for a quasi-bidirectional pin that is outputting a 1. If a pin that has a logic 1 on it is pulled low by an external device, the medium pull-up turns off, and only the weak pull-up remains on. In order to pull the pin low under these conditions, the external device has to sink enough current to overpower the medium pull-up and take the voltage on the port pin below its input threshold.

The third pull-up is referred to as the "strong" pull-up. This pull-up is used to speed up low-to-high transitions on a quasi-bidirectional port pin when the port latch changes from a logic 0 to a logic 1. When this occurs, the strong pull-up turns on for a brief time, two CPU clocks, in order to pull the port pin high quickly. Then it turns off again.

The quasi-bidirectional port configuration is shown in Figure 11.

AT89/83EB5114

4311C–8051–02/08

Figure 11. Quasi-Bidirectional Output

2 CPU

Input

Strong

Medium

P P

Weak

CLOCK DELAY

Port Latch

Data

DPU

AUXR.7

Input

Port latch

Data

AT89/83EB5114

Open Drain Output Configuration

Figure 12. Open Drain Output

Push-Pull Output Configuration

The open drain output configuration turns off all pull-ups and only drives the pull-down transistor of the port driver when the port latch contains a logic 0. To be used as a logic output, a port configured in this manner must have an external pull-up, typically a resistor tied to VDD. The pull-down for this mode is the same as the quasi-bidirectional mode. The open drain port configuration is shown in Figure 12.

The push-pull output configuration has the same pull-down structure as both the open drain and the quasi-bidirectional output modes, but provides a continuous strong pull-up when the port latch contains a logic 1. The push-pull mode may be used when more source current is needed from a port output. The push-pull port configuration is shown in Figure 13.

4311C–8051–02/08

Figure 13. Push-Pull Output

Input

Strong

Port latch

Data

Input

Data

Input only Configuration The input only configuration is a pure input with neither pull-up nor pull-down.

The input only configuration is shown in Figure 13.

Figure 14. Input only

Ports Description

Ports P3 and P4 The inputs of each I/O port of the AT8xEB5114 are TTL level Schmitt triggers with

hysteresis.

AT89/83EB5114

4311C–8051–02/08

AT89/83EB5114

Registers

Table 21. P3M1 Register

P3M1 Address (D5h)

7 6 5 4 3 2 1 0

P3M1.7 P3M1.6 P3M1.5 P3M1.4 P3M1.3 P3M1.2 P3M1.1 P3M1.0

Bit

Number

7-6 P3M1.7-6

5-4 P3M1.5-4

3-2 P3M1.3-2

1-0 P3M1.1-0

Bit

Mnemonic Description

Port 3.3 Output configuration bit

See Table 20 for configuration definition

Port 3.2 Output configuration bit

See Table 20 for configuration definition

Port 3.1 Output configuration bit

See Table 20 for configuration definition

Port 3.0 Output configuration bit

SeeTable 20 for configuration definition

Reset value = 0000 0000

Table 22. P3M2 Register P3M2 Address (E4h)

7 6 5 4 3 2 1 0

P3M2.7 P3M2.6 P3M2.5 P3M2.4 P3M2.3 P3M2.2 P3M2.1 P3M2.0

Bit

Number

7-6 P3M2.7-6

5-4 P3M2.5-4

3-2 P3M2.3-2

1-0 P3M2.1-0

Bit

Mnemonic Description

Port 3.7 Output configuration bit

SeeTable 20 for configuration definition

Port 3.6 Output configuration bit

See Table 20 for configuration definition

Port 3.5 Output configuration bit

See Table 20 for configuration definition

Port 3.4 Output configuration bit

See Table 20 for configuration definition

Reset value = 0000 0000

4311C–8051–02/08

Table 23. P4M1 Register

P4M1 Address (D6h)

7 6 5 4 3 2 1 0

P4M1.7 P4M1.6 P4M1.5 P4M1.4 P4M1.3 P4M1.2 P4M1.1 P4M1.0

Bit

Number

7-6 P4M1.7-6

5-4 P4M1.5-4

3-2 P4M1.3-2

1-0 P4M1.1-0

Bit

Mnemonic Description

Reset value = 0000 0000

Port 4.3 Output configuration bit

See Table 20 for configuration definition

Port 4.2 Output configuration bit

See Table 20 for configuration definition

Port 4.1 Output configuration bit

See Table 20 for configuration definition

Port 4.0 Output configuration bit

See Table 20 for configuration definition

AT89/83EB5114

4311C–8051–02/08

AT89/83EB5114

External Data Memory

AUXR1(A2H)

DPS

DPH(83H) DPL(82H)

DPTR0

DPTR1

Dual Data Pointer Register (DDPTR)

Figure 15. Use of Dual Pointer

The additional data pointer can be used to speed up code execution and reduce code size in a number of ways.

The dual DPTR structure is a way by which the chip will specify the address of an external data memory location. There are two 16-bit DPTR registers that address the external memory, and a single bit called DPS = AUXR1/bit0 (See Figure 15) that allows the program code to switch between them.

4311C–8051–02/08

Table 24. AUXR1: Auxiliary Register 1

7 6 5 4 3 2 1 0

- - - - - 0 - DPS

Bit

Number

7 -

6 -

5 -

4 -

3 -

2 0

1 -

0 DPS

Bit

Mnemonic Description

Reserved

The value read from this bit is indeterminate. Do not set this bit.

Reserved

The value read from this bit is indeterminate. Do not set this bit.

Reserved

The value read from this bit is indeterminate. Do not set this bit.

Reserved

The value read from this bit is indeterminate. Do not set this bit.

Reserved

The value read from this bit is indeterminate. Do not set this bit.

Reserved

always stuck at 0

Reserved

The value read from this bit is indeterminate. Do not set this bit.

Data Pointer Selection

Clear to select DPTR0. Set to select DPTR1.

Note: User software should not write 1’s to reserved bits. These bits may be used in future

8051 family products to invoke new feature. In that case, the reset value of the new bit will be 0, and its active value will be 1. The value read from a reserved bit is indeterminate.

AT89/83EB5114

4311C–8051–02/08

AT89/83EB5114

Application

Software can take advantage of the additional data pointers to both increase speed and reduce code size, for example, block operations (copy, compare, search...) are well served by using one data pointer as a ’source’ pointer and the other one as a ‘destination’ pointer.

ASSEMBLY LANGUAGE

; Block move using dual data pointers ; Destroys DPTR0, DPTR1, A and PSW ; note: DPS exits opposite of entry state ; unless an extra INC AUXR1 is added ; 00A2 AUXR1 EQU 0A2H ; 0000 909000MOV DPTR,#SOURCE ; address of SOURCE 0003 05A2 INC AUXR1 ; switch data pointers 0005 90A000 MOV DPTR,#DEST ; address of DEST 0008 LOOP: 0008 05A2 INC AUXR1 ; switch data pointers 000A E0 MOVX A,@DPTR ; get a byte from SOURCE 000B A3 INC DPTR ; increment SOURCE address 000C 05A2 INC AUXR1 ; switch data pointers 000E F0 MOVX @DPTR,A ; write the byte to DEST 000F A3 INC DPTR ; increment DEST address 0010 70F6JNZ LOOP ; check for 0 terminator 0012 05A2 INC AUXR1 ; (optional) restore DPS

INC is a short (2 bytes) and fast (12 clocks) way to manipulate the DPS bit in the AUXR1 SFR. However, note that the INC instruction does not directly force the DPS bit to a particular state, but simply toggles it. In simple routines, such as the block move example, only the fact that DPS is toggled in the proper sequence matters, not its actual value. In other words, the block move routine works the same whether DPS is '0' or '1' on entry. Observe that without the last instruction (INC AUXR1), the routine will exit with DPS in the opposite state.

4311C–8051–02/08

PWM Unit 0 (PWMU0)

The PWM unit 0 allows to generate precise pulse width modulation with variable duty cycle and frequency.

The PWMU0 consists on a dedicated 16 bits auto reload counter/timer which serves as a time base for the generation of 3 independent PWM signals.

Its clock input can be programmed to count any one of the following signals:

• Peripheral clock, CkIdle

• Timer 0 overflow

• External input on W0CI (P4.0) The PWMU0 timer/counter shares several external I/O. These pins are listed below. If a

port is not used for the PWMU0, it can still be used for standard I/O.

PWMU0 Component External I/O Pin

16-bit Counter W0CI (P4.0)

16-bit Module 0 W0M0 (P3.0)

16-bit Module 1 W0M1 (P3.1)

16-bit Module 2 W0M2 (P3.3)

PWMU0 Timer

The PWMU0 timer is a common 16 bits time base for all three modules (See Figure 16). The timer count source is determined from the W0CPS1 and W0CPS0 bits in the W0MOD register (See Table 26) and can be programmed to run at:

• Peripheral clock, CkIdle

• Timer 0 overflow

• External input on W0CI (P1.2) The output frequency depends on the timer source and also on the W0F Registers.

Indeed, the timer/counter counts from zero up to a value loaded via SW0F registers. Each time the counter is higher or equal to the SW0F shadow registers value, W0C registers are automatically reloaded with zero. If the W0UP bit is set, the shadow SW0F registers are reloaded with the contents of W0F registers when the W0C overtakes. This prevents frequency drift (See Figure 16.).

Note: If the PWMU0 is Off (W0R bit in W0CON not set), the contents of W0FH and W0FL are

automatically copied on the shadow registers SW0FH and SW0FL. This allows to charge the correct comparison values in order to have the wanted frequency as soon as the PWM is turned on.

AT89/83EB5114

4311C–8051–02/08

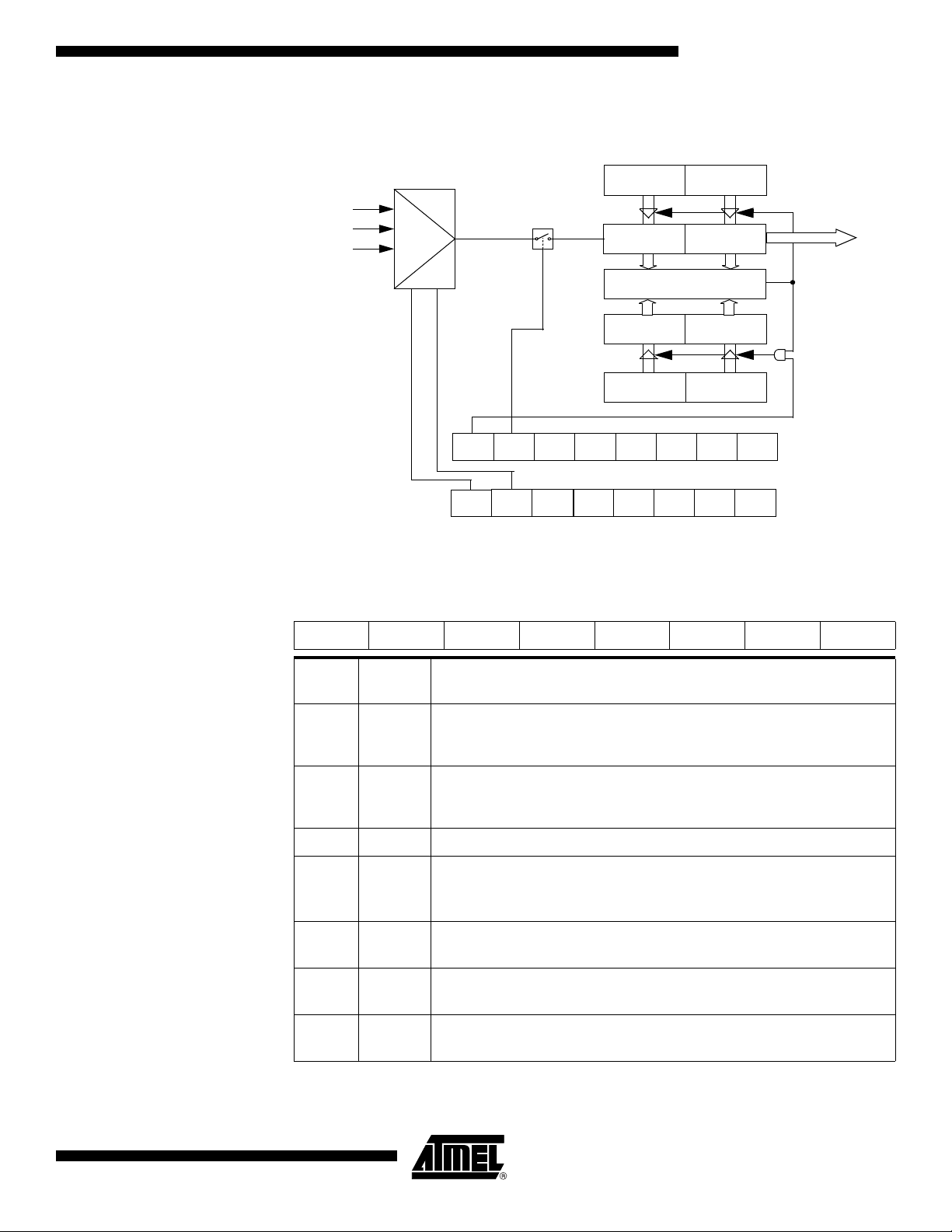

Figure 16. PWMU0 Timer/Counter

W0EN2 W0EN1 W0EN0

W0CH W0CL

To PWMU0 modules

FCkIdle T0 OVF

W0CI

W0CON

SW0FH SW0FL

W0OS1

W0R

W0UP

16 bit up

W0INV2 W0INV1 W0INV0

W0MOD

WOPS0

W0PS1

W0FH W0FL

0000 0000

16 bit comparator

≥

counter

overtaking

AT89/83EB5114

Table 25. W0CON: PWMU0 Control register

W0CON - PWMU0 Control Register (E8h)

7 6 5 4 3 2 1 0

W0UP W0R - - W0OS W0EN2 W0EN1 W0EN0

Bit

Number

7 W0UP

6 W0R

5-4 - Not used

3 W0OS

2 W0EN2

1 W0EN1

Bit

Mnemonic Description

PWMU0 update bit

Set by software to request the load of all shadow registers on the next overtaking of the W0C counter. Reset by hardware after the loading of the shadow registers.

PWMU0 Run control bit

Set by software to turn the PWMU0 counter on. Must be cleared by software to turn the PWMU0 counter off.

Pin W0M1 PWMU0 Output Selection

0 W0M1 is PWM module 1 XOR PWM module2 output 1 W0M1 is PWM module 1 output

PWMU0 Module 2 enable bit

Enable PWMU0 module 2 if set.

PWMU0 Module 1 enable bit

Enable PWMU0 module 1if set.

4311C–8051–02/08

0 W0EN0

Reset Value = 00XX 0000b Bit addressable

PWMU0 Module 0 enable bit

Enable PWMU0 module 0 if set.

Table 26. W0MOD: PWMU0 Counter Mode Register

W0MOD - PWMU0 Counter Mode Register (E9h)

7 6 5 4 3 2 1 0

W0CPS1 W0CPS0 - - - W0INV2 W0INV1 W0INV0

Bit

Number

7 W0CPS1 PWMU0 Count Pulse Select bit1

6 W0CPS0

5-3 - Not used

2 W0INV2

1 W0INV1

0 W0INV0

Bit

Mnemonic Description

PWMU0 Count Pulse Select bit0

CPS1 CPS0 Selected PWMU0 input 00 Internal clock f 01 Reserved 10 Timer 0 Overflow 11 External clock input on W0CI at max rate = f

PWMU0 Module 2 inverter bit

Select the output PWM mode. If set, PWM module 2 output starts with high level.

PWMU0 Module 1 inverter bit

Select the output PWM mode. If set, PWM module 1 output starts with high level.

PWMU0 Module 0 inverter bit

Select the output PWM mode. If set, PWM module 0 output starts with high level.

CkIdle

Reset Value = 00XX X000b Not bit addressable

Because they use the same timer, all three modules have the same frequency determined by the shadow SW0F registers.

Table 27. W0FH: PWMU0 frequency high control register

W0FH - PWMU0 Frequency Control Register (EAh)

7 6 5 4 3 2 1 0

W0F15 W0F14 W0F13 W0F12 W0F11 W0F10 W0F9 W0F8

Bit

Number

7-0 W0F15-8

Reset Value = 1111 1111b Not bit addressable

AT89/83EB5114

Bit

Mnemonic Description

PWMU0 high bits counter control frequency

The PWMU0 counter is counting from zero up to W1F15-0 value.

4311C–8051–02/08

AT89/83EB5114

Table 28. W0FL: PWMU0 frequency low control register

W0FL - PWMU0 Frequency Control Register (EBh)

7 6 5 4 3 2 1 0

W0F7 W0F6 W0F5 W0F4 W0F3 W0F2 W0F1 W0F0

Bit

Number

7-0 W0F7-0

Bit

Mnemonic Description

PWMU0 low bits counter control frequency

The PWMU0 counter is counting from zero up to WOF15-0 value.

Reset Value = 1111 1111b Not bit addressable

Table 29. W0CH: PWMU0 counter high control register W0CH - PWMU0 Counter Control Register (ECh)

7 6 5 4 3 2 1 0

W0C15 W0C14 W0C13 W0C12 W0C11 W0C10 W0C9 W0C8

Bit

Number

7-0 W0C15-8 PWMU0 high bits counter frequency.

Bit

Mnemonic Description

Reset Value = 0000 0000b Not bit addressable

Table 30. W0CL: PWMU0 counter low control register W0CL - PWMU0 Counter Control Register (EDh)

PWMU0 Output Generation

7 6 5 4 3 2 1 0

W0C7 W0C6 W0C5 W0C4 W0C3 W0C2 W0C1 W0C0

Bit

Number

7-0 W0C7-0 PWMU0 low bits counter frequency.

Bit

Mnemonic Description

Reset Value = 0000 0000b Not bit addressable

All the PWMU0 modules have the same frequency determined by the W0F register. But each module has its own duty cycle determined by the W0Rn Register. (n is the module number).

When the W0C content is lower than the value programmed via the W0Rn registers, the output is the W0INVn-bit (low if 0, high if 1). When it is equal or higher, the output is the opposite of this W0INVn-bit (high if 0, low if 1).

When the W0C content is higher than SW0F’s, an overtaking occurs. The counter value (W0C registers) is automatically reloaded with zero (see Figure 16). If the W0UP bit is high, the new comparison value is reloaded on the shadow SW0R0 registers with the

4311C–8051–02/08

content of the W0R0 registers (see Figure 16). This method allows to change frequency

W0CH W0CL

SW0RnH SW0RnL

W0RnH W0RnL

16 bits-comparator

overtaking

Module n output

W0INVn

W0UP

and duty cycle without glitch.

Note: If the PWMU0 is off (W0R bit in W0CON not set), W0RnH and W0RnL contents are auto-

matically copied on the shadow registers SW0RnH and SW0RnLn and the contents of W0FH and W0FL are automatically copied on the shadow registers SW0FH and SW0FL. This allows to charge the correct comparison values for each PWM module as soon as the PWMU0 timer/counter is turned on.

Figure 17. PWMU0 Interrupt System

The W0INVn bits that allow output inversion are on the W0MOD (W0 Counter Mode) register (See Table 26.).

Table 31. W0RnH: PWMU0 module n High Toggle Register W0R0H - PWMU0 Module 0 High Toggle Register (D9h) W0R1H - PWMU0 Module 1 High Toggle Register (DBh) W0R2H - PWMU0 Module 2 High Toggle Register (DDh)

7 6 5 4 3 2 1 0

W0RnH15 W0RnH14 W0RnH13 W0RnH12 W0RnH11 W0RnH10 W0RnH9 W0RnH8

Bit

Number

7-0

Bit

Mnemonic Description

W0RnH

15-8

PWMU0 Module n high toggle register

When the counter exceeds this value, module n output toggles.

Reset Value = 0000 0000b Not bit addressable

AT89/83EB5114

4311C–8051–02/08

AT89/83EB5114

W0M0

module 0 output

W0M1

module 1 output

module 2 output

W0M2

W0EN2 W0EN1

W0EN0

W0CON

W0OS1

W0RW0UP

W0INV2 W0INV1 W0INV0

W0MOD

WOPS0

W0PS1

“1”

Table 32. W0RnL: PWMU0 module n Low Toggle Register W0R0L - PWMU0 Module 0 Low Toggle Register (DAh) W0R1L - PWMU0 Module 1 Low Toggle Register (DCh) W0R2H - PWMU0 Module 2 Low Toggle Register (DEh)

7 6 5 4 3 2 1 0

W0RnL7 W0RnL6 W0RnL5 W0RnL4 W0RnL3 W0RnL2 W0RnL1 W0RnL0

PWMU0 Output Selector

Bit

Number

7-0 W0RnL7-0

Bit

Mnemonic Description

PWMU0 Module n low toggle register

When the counter exceeds this value, module n output toggles.

Reset Value = 0000 0000b Not bit addressable

In order to generate no recovery signal, it is possible to configure the microcontroller with the W0OC register to have PWMU0 module 1 XOR PWMU0 module 2 on the W0M1 pin (see Figure 18).

Figure 18. .PWMU0 Output Selector

PWMU0 Interrupt System

4311C–8051–02/08

W0CON and W0MOD are detailed on Table 25 and Table 26.

Each PWMU0 module can generate an interrupt. The W0IC register enables or disables interrupt and interrupt flags (See Table 33).

Figure 19. PWMU0 Interrupt Configuration

W0 W0

Module 2

Module 1

IE0.4

IE0.7

To Interrupt

priority decoder

EW0

CF1 CF0

ECF1 ECF0

CF2

COF

Module 0

Overtaking

W0 W0

ECOF ECF2

W0IC

Table 33. PWMU0 interrupt control register W0IC - PWMU0 Interrupt Control Register (EEh)

7 6 5 4 3 2 1 0

W0CF W0CF2 W0CF1 W0CF0 W0ECOF W0ECF2 W0ECF1 W0ECF0

Bit

Number

7 W0COF

6 W0CF2

5 W0CF1

4 W0CF0

3 W0ECOF

2 W0ECF2

1 W0ECF1

0 W0ECF0

Bit

Mnemonic Description

PWMU0 Counter Overtaking Flag

Set by hardware when the counter is higher or equal to SW0F’s value. CF flags an interrupt if bit W0ECOF is set. W0COF can be set either by hardware or software but can only be cleared by software.

PWMU0 Module 2 Toggle flag

Set by hardware when a match occurs. Can also be set by software. Must be cleared by software.

PWMU0 Module 1 Toggle flag

Set by hardware when a match occurs. Can also be set by software. Must be cleared by software.

PWMU0 Module 0 Toggle flag

Set by hardware when a match occurs. Can also be set by software. Must be cleared by software.

PWMU0 Counter Overtaking flag

Set to Enable IT on PWMU0 Counter Overtaking Flag.

PWMU0 Module 2 Counter flag

Set to enable IT on PWMU0 Module 2 Toggle flag.

PWMU0 Module 1 Counter flag

Set to enable IT on PWMU0 Module 1Toggle flag.

PWMU0 Module 0 Counter flag

Set to enable IT on PWMU0 Module 0Toggle flag.

Reset Value = 0000 0000b Not bit addressable

AT89/83EB5114

4311C–8051–02/08

AT89/83EB5114

PWM Unit 1 (PWMU1)

PWMU1 Timer

The PWM unit 1 allows to generate precise pulse width modulation with variable duty cycle and frequency.

The PWMU1 consists of a dedicated 16 bits auto reload counter/timer which serves as a time base for the generation of an independent PWM signal.

Its clock input can be programmed to count any one of the following signals:

• Peripheral clock, CkIdle

• Timer 1 overflow

• External input on W1CI (P4.2) The PWMU1 timer/counter shares two external I/O. These pins are listed below. If a port

is not used for the PWMU1, it can still be used for standard I/O.

PWMU1 Component External I/O Pin

16-bit Counter W1CI (P4.2)

16-bit Module 0 W1M0 (P3.5)

The PWMU1 timer is a 16-bit timer (See Figure 20). The timer count source is determined from the W1CPS1 and W1CPS0 bits in the W1CON register (See Table 34) and can be programmed to run at:

• Peripheral clock, CkIdle

• Timer 1 overflow

• External input on W1CI (P4.2) The output frequency depends on the timer source and also on the W1F Registers. The

timer/counter counts from zero up to a value loaded via SW1F registers. Each time the counter is higher or equal to the SW1F shadow registers value, W1C registers are automatically reloaded with zero. If the W1UP bit is set, the shadow SW1F registers is reloaded with the contents of W1F registers when W1C overtakes. This allows to prevent frequency drift (See Figure 20).

Note: If the PWMU1 is Off (W1R bit in W1CON not set), the contents of W1FH and W1FL are

automatically copied on the shadow registers SW1FH and SW1FL. This allows to charge the correct comparison values in order to have the desired frequency as soon as the PWM is turned on.

4311C–8051–02/08

Figure 20. PWMU1 Timer/Counter

W1CPS0 W1INV0

W1R

W1CON

W1OCLKW1CPS1

W1UP

W1EN0

W1CH W1CL

To PWMU1 modules

FCkIdle

T0 OVF

W1CI

SW1FH SW1FL

16 bit up

W1FH W1FL

0000 0000

16 bit comparator

counter

overtaking

AT89/83EB5114

4311C–8051–02/08

AT89/83EB5114

Table 34. W1CON: PWMU1 Control Register

W1CON - PWMU1 Control Register (F8h)

7 6 5 4 3 2 1 0

W1UP W1R - W1OCLK W1CPS1 W1CPS0 W1INV0 W1EN0

Bit

Number

7 W1UP

6 W1R

5 - Not used

4 W1OCLK

3 W1CPS1 PWMU1 Count Pulse Select bit1

2 W1CPS0

1 W1INV0

Bit

Mnemonic Description

PWMU1 update bit

Set by software to request the load of all shadow registers on the next overtaking of the W1C counter. Reset by hardware after the loading of the shadow registers

PWMU1 Run control bit

Set by software to turn the PWMU1 counter on. Must be cleared by software to turn the PWMU1 counter off.

Output Clocking Control bit.

This bit allows to choose between the output clocking signal and the PWM1M0 output.

If set, the external clocking is chosen, if clear, PWM1M0 is chosen.

PWMU Count Pulse Select bit0

CPS1 CPS0 Selected PWMU1 input 00 Internal clock f 01 Reserved 10 Timer 1 Overflow 11 External clock input on W1CI at max rate = f

PWMU1 Module 0 inverter bit

Select the output PWM mode. If set, PWM module 0 output starts with high level.

CkIdle

4311C–8051–02/08

0 W1EN0

PWMU1 Module 0 enable bit

Enable PWMU1 module 0 if set. If clear, P3.5 is an I/O port.

Reset Value = 000’RST_OCLK’ 000’RST_OCLK’b Bit addressable

Table 35. W1FH: PWMU1 frequency high control register W1FH - PWMU1 Frequency Control Register (FAh)

7 6 5 4 3 2 1 0

W1F15 W1F14 W1F13 W1F12 W1F11 W1F10 W1F9 W1F8

Bit

Number

7-0 W1F15-8

Bit

Mnemonic Description

PWMU1 high bits counter control frequency

The PWMU1 counter is counting from zero up to W1F15-0 value.

Reset Value = 1111 1111b Not bit addressable

Table 36. W1FL: PWMU1 frequency low control register

W1FL - PWMU1 Frequency Control Register (FBh)

7 6 5 4 3 2 1 0

W1F7 W1F6 W1F5 W1F4 W1F3 W1F2 W1F1 W1F0

Bit

Number

7-0 W1F7-0

Bit

Mnemonic Description

PWMU1 low bits counter control frequency

The PWMU1 counter is counting from zero up to W1F15-0 value.

Reset Value = 1111 1111b Not bit addressable

Table 37. W1CH: PWMU1 counter high control register W1CH - PWMU1 Counter Control Register (FCh)

7 6 5 4 3 2 1 0

W1C15 W1C14 W1C13 W1C12 W1C11 W1C10 W1C9 W1C8

Bit

Number

7-0 W1C15-8 PWMU1 high bits counter frequency

Bit

Mnemonic Description

Reset Value = 0000 0000b Not bit addressable

Table 38. W1CL: PWMU1 counter low control register W1CL - PWMU1 Counter Control Register (FDh)

PWMU1 Output Generation

7 6 5 4 3 2 1 0

W1C7 W1C6 W1C5 W1C4 W1C3 W1C2 W1C1 W1C0

Bit

Number

7-0 W1F7-0 PWMU1 low bits counter frequency

Bit

Mnemonic Description

Reset Value = 0000 0000b Not bit addressable

All the PWMU1 modules have the same frequency determined by the W1F registers. However, each module has is own duty cycle determined by the W1Rn Registers. (n is the module number).

When the W1C content is lower than the value programmed via W1Rn registers, the output is the W1INVn-bit (low if 0, high if 1). When it is equal or higher, the output is the opposite of this W1INVn-bit (high if 0, low if 1).

When the W1C content is higher than SW1F’s, an overtaking occurs. The counter value (W1C registers) is automatically reloaded with zero (see Figure 21.). If the W1UP bit is high, the new comparison value is reloaded on the shadow SW1R0 registers with the

AT89/83EB5114

4311C–8051–02/08

AT89/83EB5114

W1CH W1CL

SW1R0H SW1R0L

W1R0H W1R0L

16 bits-comparator

overtaking

Module 0 output

W1INV0

W1UP

content of the W1R0 registers (see Figure 21.). This method allows to change frequency and duty cycle without glitch.

Note: If the PWMU1 is Off (W1R bit in W0CON not set), W1RnH and W1RnL contents are

automatically copied on the shadow registers SW1RnH and SW1RnLn and the contents of W1FH and W1FL are automatically copied on the shadow registers SW1FH and SW1FL. This allows to charge the correct comparison values for each PWM module as soon as the PWMU1 timer/counter is turned on.

Figure 21. PWMU1 Interrupt System

The W1INV0 bit that allows output inversion is on the W1CON (W1 Control) register (See Table 34.).

Table 39. W1R0H: PWMU1 module 0 High Toggle Register W1R0H - PWMU1 Module 0 High Toggle Register (C9h)

7 6 5 4 3 2 1 0

W1R0H15 W1R0H14 W1R0H13 W1R0H12 W1R0H11 W1R0H10 W1R0H9 W1R0H8

Bit

Number

7-0

Bit

Mnemonic Description

W1R0H

15-8

PWMU1 Module 0 high toggle register

When the counter exceeds this value, module 0 output toggles.

Reset Value = 0000 0000b Not bit addressable

Table 40. W1R0L: PWMU1 module 0 Low Toggle Register W1R0L - PWMU1 Module 0 Low Toggle Register (CAh)

7 6 5 4 3 2 1 0

W1R0L7 W1R0L6 W1R0L5 W1R0L4 W1R0L3 W1R0L2 W1R0L1 W1R0L0

Bit

Number

Bit

Mnemonic Description

4311C–8051–02/08

7-0 W1R0L7-0

Reset Value = 0000 0000b Not bit addressable

PWMU1 Module 0 low toggle register

When the counter exceeds this value, module 0 output toggles.

PWMU1 Output Selector

module 0 output

OCLK

W1CPS01W1INV0

W1R

W1CON

W1ECLK

W1UP

W1CPS1

W1EN0

W1M0

“1”

- W1

IE0.5

IE0.7

To Interrupt

priority decoder

EW1

CF0

ECF0

-W1

COF

Module 0

Overtaking

W1 -

ECOF

W1IC

As shown on Figure 22., the PWMU1 can configure P3.5 to be used as

• The PWMU1 module 0 output (W1R = 1 and W1EN0 = 1)

• The External Clocking output (W1OCLK = 1 and W1EN0 = 1)

• An I/O port (W1EN0 = 0) This configuration is made via W1CON register (See Table 34.). By default, W1CON

register contains 00h. So P3.5 is configured as an I/O port. The W1INV0 bit allows to start PWMU1 module 0 period with a high (if set) or low level.

Figure 22. PWMU1 Output Selector

PWMU1 Interrupt System

PWMU1 can generate an interrupt. The W1IC register enables or disables interrupt and interrupt flags (See Table 41).

Figure 23. PWMU1 Interrupt Configuration

AT89/83EB5114

4311C–8051–02/08

AT89/83EB5114

Table 41. PWMU1 Interrupt Control Register

W1IC - PWMU1 Interrupt Control Register (FEh)

7 6 5 4 3 2 1 0

W1CF - - W1CF0 W1ECF - - W1ECF0

Bit

Number

7 W1COF

6-5 - Not used

4 W1CF0

3 W1ECOF

2-1 - Not used

0 W1ECF0

Bit

Mnemonic Description

PWMU1 Counter Overtaking Flag

Set by hardware when the counter rolls over. CF flags an interrupt if bit W1ECOF is set. W1COF

can be set either by hardware or software but can only be cleared by software.

PWMU1 Module 0 Toggle fla

Set by hardware when a match occurs. Can also be set by software. Must be cleared by software.

PWMU1 Counter Overtaking Flag

Set to Enable PWMU1 Counter Overtaking Flag.

PWMU1 Module 0 Counter flag

Set to enable PWMU1 Module 0Toggle flag.

Reset Value = 0000 0000b Not bit addressable

4311C–8051–02/08

WatchDog Timer

RESET

Decoder

Control

WDTRST

Enable

14-bit COUNTER

7-bit COUNTER

Outputs

CPU_PERIPH

RESET

WDTPRG

Figure 24. WatchDog Timer

AT8xEB5114 contains a powerful programmable hardware WatchDog Timer (WDT) that automatically resets the chip if its software fails to reset the WDT before the selected time interval has elapsed. It permits large Time-Out ranking from 16 ms to 2s @Fosc = 12 MHz.

This WDT consists of a 14-bit counter plus a 7-bit programmable counter, a WatchDog Timer reset register (WDTRST) and a WatchDog Timer programmation (WDTPRG) register. When exiting reset, the WDT is -by default- disabled. To enable the WDT, the user has to write the sequence 1EH and E1H into WDRST register. When the WatchDog Timer is enabled, it will increment every machine cycle while the oscillator is running and there is no way to disable the WDT except through reset (either hardware reset or WDT overflow reset). When WDT overflows, it will generate an output RESET pulse at the RST pin. The RESET pulse duration is 96xT

, where T

OSC

=1/F

. To make the

OSC

best use of the WDT, it should be serviced in those sections of code that will periodically be executed within the time required to prevent a WDT reset.

The WDT is controlled by two registers (WDTRST and WDTPRG)

AT89/83EB5114

4311C–8051–02/08

AT89/83EB5114

Ti meOut

Fc lkPeriph( )

( )

12 2142

Sv a lu e

×( ) 1–( ) 15 CKRL–( )××

---------------------------------------------------------------------------------------------------------

Figure 25. WDTPRG Register WDTPRG - WatchDog Timer Duration Programming register (A7h).

Bit

Number

7 -

6 -

5 -

4 -

3 -

2 S2

1 S1

0 S0

Bit

Mnemonic Description

Reserved

The value read from this bit is indeterminate. Do not set this bit.

Reserved

The value read from this bit is indeterminate. Do not set this bit.

Reserved

The value read from this bit is indeterminate. Do not set this bit.

Reserved

The value read from this bit is indeterminate. Do not set this bit.

Reserved

The value read from this bit is indeterminate. Do not set this bit.

WatchDog Timer Duration selection bit 2

Work in conjunction with bit 1 and bit 0.

WatchDog Timer Duration selection bit 1

Work in conjunction with bit 2 and bit 0.

WatchDog Timer Duration selection bit 0

Work in conjunction with bit 1 and bit 2.

Reset Value = XXXX X000b

The three lower bits (S0, S1, S2) located into WDTPRG register permit to program the WDT duration.

S2 S1 S0 Machine Cycle Count

0 0 0 214 - 1

0 0 1 215 - 1

0 1 0 2

0 1 1 217 - 1

1 0 0 218 - 1

1 0 1 219 - 1

1 1 0 220 - 1

1 1 1 221 - 1

- 1

To compute WD Time-Out, the following formula is applied:

Note: Note: Value represents the decimal value of (S2 S1 S0) / CKRL represents the Prescaler

4311C–8051–02/08

Find Hereafter computed Time-Out value for Fosc = 12 MHz

Table 42. Time-Out Computation @12 MHz

S2 S1 S0 Time-Out for F

0 0 0 16.38 ms

0 0 1 32.77 ms

0 1 0 65.54 ms

0 1 1 131.07 ms

1 0 0 262.14 ms

1 0 1 524.29 ms

1 1 0 1.05 s

1 1 1 2.10 s

=12 MHz

OSC

Table 43. WDTRST Register

7 6 5 4 3 2 1 0

- - - - - - - -

Reset Value = XXXX XXXXb

WatchDog Timer During Power Down Mode and Idle

The WDTRST register is used to reset/enable the WDT by writing 1EH then E1H in sequence.

In Power Down mode the oscillator stops, which means the WDT also stops. While in Power Down mode the user does not need to service the WDT. There are 2 methods of exiting Power Down mode: by a hardware reset or via a level activated external interrupt which is enabled prior to entering Power Down mode. When Power Down is exited with hardware reset, servicing the WDT should occur as it normally does whenever AT8xEB5114 is reset. Exiting Power Down with an interrupt is significantly different. The interrupt is held low long enough for the oscillator to stabilize. When the interrupt is brought high, the interrupt is serviced. To prevent the WDT from resetting the device while the interrupt pin is held low, the WDT is not started until the interrupt is pulled high. It is suggested that the WDT be reset during the interrupt service for the interrupt used to exit Power Down.

To ensure that the WDT does not overflow within a few states of exiting of power down, it is best to reset the WDT just before entering power down.

In the Idle mode, the oscillator continues to run. To prevent the WDT from resetting while in Idle mode, the user should always set up a timer that will periodically exit Idle, service the WDT, and re-enter Idle mode.

AT89/83EB5114

4311C–8051–02/08

AT89/83EB5114

Analog-to-Digital Converter (ADC)

Features

This section describes the on-chip 10 bit analog-to-digital converter of the AT8xEB5114. Six ADC channels are available for sampling of the external sources AIN0 to AIN5. An analog multiplexer allows the single ADC converter to select one from the 6 ADC channels as ADC input voltage (ADCIN). ADCIN is converted by the 10 bit-cascaded potentiometric ADC.

8 to 10 bits resolution can only be reached while using an external voltage reference. For the precision conversion, set bits PSIDLE and ADSST in ADCON register to start

the conversion. The chip is in a pseudo-idle mode, the CPU doesn’t run but the peripherals are always running. This mode allows digital noise to be lower, to ensure precise conversion.

For accurate conversion, set bits QUIETM and ADSST in ADCON register to start the conversion. The chip is in a quiet mode, the AD is the only peripheral running. This mode allows digital noise to be as low as possible, to ensure high precision conversion.

For these modes it is necessary to work with end of conversion interrupt, which is the only way to wake up the chip.

If another interrupt occurs during the precision conversion, it will be treated only after this conversion is ended.

• 6 channels with multiplexed inputs

• One channel with input signal average extraction and programmable gain amplification.

• 10-bit cascaded potentiometric ADC

• Typical conversion time 20 micro-seconds

• Zero Error (offset) +/- 2 LSB max

• External Positive Reference Voltage Range 2.4 to Vcc

• Internal Positive Reference typical Voltage 2.4 Volt

• ADCIN Range 0 to V

• Integral non-linearity typical 1 LSB

• Differential non-linearity typical 0.5 LSB

• Conversion Complete Flag or Conversion Complete Interrupt

• Selected ADC Clock

Note: (1): See “DC Parameters for A/D Converter” on page 88.

REF

(1)

4311C–8051–02/08

ADC I/O Functions

AIN0/P4.0 AIN1/P4.1 AIN2/P4.2 AIN3/P4.3

000 001 010 011

SCH2

ADCON.2

SCH0

ADCON.0

SCH1

ADCON.1

CONV_CK

ADEN

ADCON.5

ADSST

ADCON.3

ADEOC

ADCON.4

ADC Interrupt Request

EADC

IE1.1

CONTROL

AVSS

Sample and Hold

ADDH

Vref

R/2R DAC

ADDL

SAR

ADCIN

VAGND

SELREF

ADCLK.7

2.4V

ADEN

ADCON.5

* gain

AIN4/P3.3 AIN5/P3.4

100 101

AC3E

ADCA.2

ADEN

ADSST

ADEOC

SETUP

CONV

CONV_CK

Figure 26. ADC Description

AINx are general I/O that are shared with the ADC channels. The channel select bit in ADCF register define which ADC channel pin will be used as ADCIN. The remaining ADC channels pins can be used as general purpose I/O or as the alternate function that is available. Writings to the port registers which aren’t selected by the ADCF will not have any effect.

Figure 27. Timing Diagram

Note: Tsetup = 0 CLK

AT89/83EB5114

Figure 27 shows the timing diagram of a complete conversion. For simplicity, the figure depicts the waveforms in idealized form and do not provide precise timing information. For ADC characteristics and timing parameters refer to theSection “DC Parameters for A/D Converter”, page 88.

4311C–8051–02/08

AT89/83EB5114

AIN3/P4.3

A/D input

Amplification

(programmable gain)

AC3G1

ADCF.7

AC3E

ADCF.5

AC3G0

ADCF.6

Enable

Gain

Average value

extraction

Channel 3 Amplifier and Rectifying Function

If needed, the average value of the rectified signal on channel 3 can be extracted and amplified before A/D conversion as shown on Figure 28.

Figure 28. Channel 3 Amplifier

The main characteristics of this block are the following:

• Input signal level: sine wave centered around Vssa, peak value from 70 to 550 mV depending on gain, Frequency range from 35 to 70KHz. Be sure that the peak value on the amplifier output is lower than voltage supply.

• Gain: x5, x10, x15 and x20, selected using AC3E, AC3G1 and AC3G0 in ADC Amplifier register (See Table 44 and Table 52)

• Max time constant of the average value extraction: 0.5ms. When the gain is changed or when the signal levels changes from the minimum to the maximum value, a new measurement can be done after 10 time constant.

• The amplifier needs 20us to fully load the ADC hold capacitance so the ADC conversion must occurs at least 20us after the amplified channel is sampled.

• Accuracy on amplification and extraction: +/- 5%

Note: The AIN3 direct channel is not equivalent to the other channels. There is a serial resis-

tance of around 100KΩ between the pin and the ADC input. So when the amplifier is bypassed, it is necessary to switch at least 20us the mux on AIN3 input before starting a conversion.

Table 44. ADCF Register

ADCA (S:F7h)

ADC Amplifier Configuration

4311C–8051–02/08

7 6 5 4 3 2 1 0

- - - - - AC3E AC3G1 AC3G0

Bit

Number

7-3 - Not used

2 AC3E

1 AC3G1 Channel 3 amplifier gain

0 AC3G0

Reset Value = 0000 0000b

Bit

Mnemonic Description

Enable Channel 3 amplifier

Set to enable amplifier. Clear for Standby mode

AC3G1 AC3G0 0 0 gain x5 0 1 gain x10 1 0 gain x15 1 1 gain x20

ADC Converter Operation

A start of single A/D conversion is triggered by setting bit ADSST (ADCON.3). The busy flag ADSST(ADCON.3) remains set as long as an A/D conversion is running.

After completion of the A/D conversion, it is cleared by hardware. When a conversion is running, this flag can be read only, a write has no effect.

The end-of-conversion flag ADEOC (ADCON.4) is set when the value of conversion is available in ADDH and ADDL, it is cleared by software. If the bit EADC (IE0.6) is set, an interrupt occur when flag ADEOC is set (see Figure 30). Clear this flag for re-arming the interrupt.

The bits SCH0 to SCH2 in ADCON register are used for the analog input channel selection.

Before starting normal power reduction modes the ADC conversion has to be completed.

Table 45. Selected Analog Input

SCH2 SCH1 SCH0 Selected Analog input

0 0 0 AN0

0 0 1 AN1

0 1 0 AN2

0 1 1 AN3

Voltage Conversion

Clock Selection

1 0 0 AN4

1 0 1 AN5

1 1 0

1 1 1

When the ADCIN is equal to VAREF the ADC converts the signal to 3FFh (full scale). If the input voltage equals VAGND, the ADC converts it to 000h. Input voltage between VAREF and VAGND are a straight-line linear conversion. All other voltages will result in 3FFh if greater than VAREF and 000h if less than VAGND.

Note that ADCIN should not exceed VAREF absolute maximum range.

The maximum clock frequency for ADC (CONV_CK for Conversion Clock) is defined in the Section “AC Parameters”, page 88. A prescaler is featured to generate the CONV_CK clock from the oscillator frequency. The prescaler value PRS[6:0] is defined in the ADCLK register (see Table 49 on page 64)

AT89/83EB5114

4311C–8051–02/08

AT89/83EB5114

Prescaler PRS

A/D

Converter

CONV_CK

CKADC

/ 2

ADEOC

ADCON.4

EADC

IE0.6

ADCI

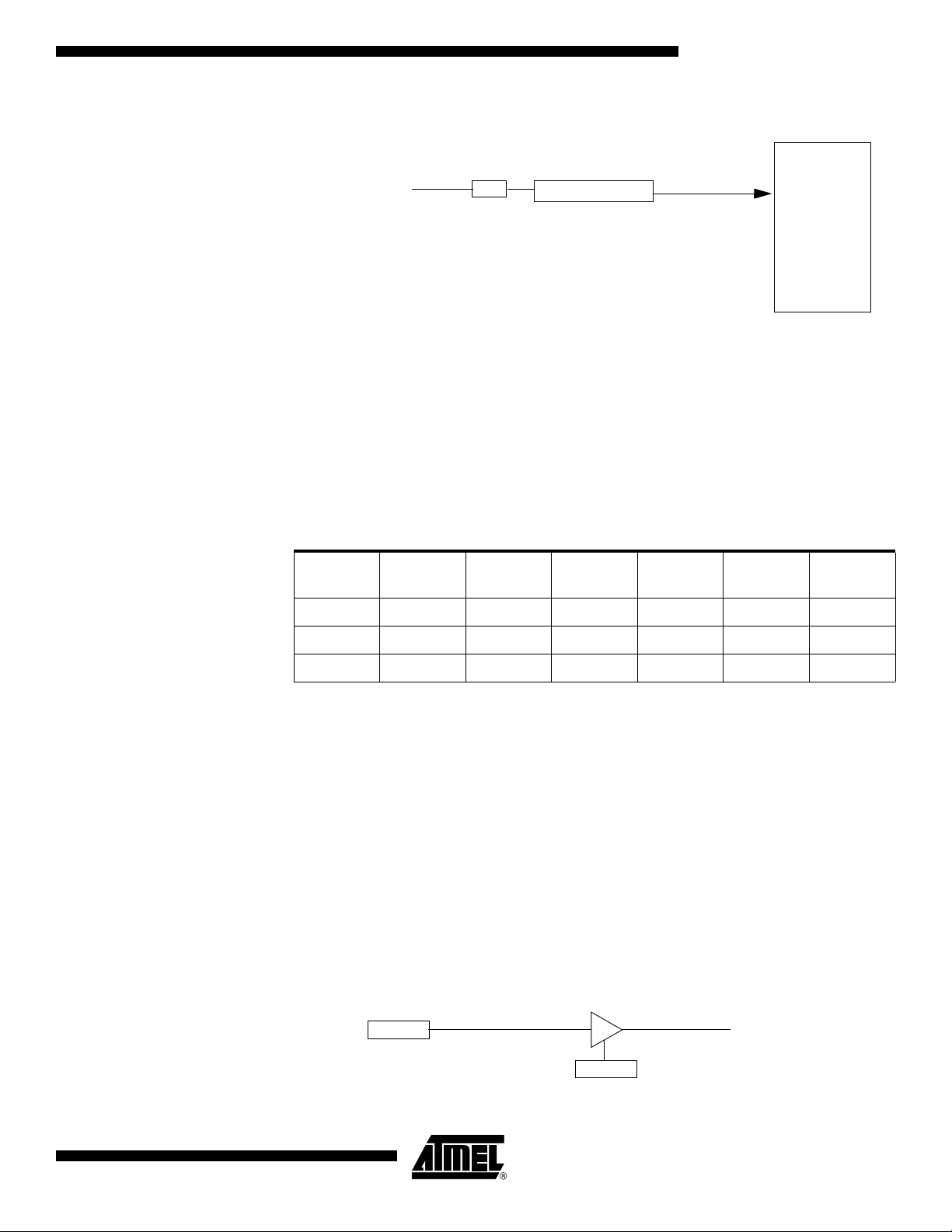

Figure 29. A/D Converter clock

The conversion frequency CONV_CK is derived from the oscillator frequency with the following formulas:

CkAdc

and

= F

/ (32 - 2*CKRL), if X2=0

OscOut

OscOut , if X2=1

ADC Standby Mode

Voltage Reference

CONV_CK

= F = F

/ (2*PRS), if PRS > 0

CkAdc

/ 256, if PRS = 0

CkAdc

Some examples can be found on table below:

OscOut

MHz X2 CKRL

16 0 F 8 12 333 33

16 1 NA 16 32 250 44

CkAdc

Mhz PRSw

CONV_CK

khz

Conversion

time µs

When the ADC is not used, it is possible to set it in standby mode by clearing bit ADEN in ADCON register.

The voltage reference can be either internal or external. As input, the V When the voltage reference is active, the V

pin is used to enter the voltage reference for the A/D conversion.

REF

pin is an output. This voltage can be

REF

used for the A/D and for any other application requiring a voltage independent from the power supply. Voltage typical value is 2.4 volt (See “DC Parameters for A/D Converter” on page 88.)

IT ADC Management

4311C–8051–02/08

An interrupt end-of-conversion will occur when the bit ADEOC is activated and the bit EADC is set. For re-arming the interrupt the bit ADEOC must be cleared by software.

Figure 30. ADC Interrupt Structure

Accuracy improvement on analog to digital conversion using the internal voltage reference

Overview The internal Vref absolute accuracy is around 4%. This variation is mainly due to the

temperature, the process, and the voltage variations. In order to increase the accuracy of the measurements made thanks to the ADC, it is possible to make a software correction of the Vref, in order to calculate the result the ADC should have returned in case the Vref was more accurate.

The idea of this improvement is the following: Because there is an EEPROM stacked on the product, it is possible to store a linear coefficient which allow a correction of the process variations.

Coefficient address The coefficient is stored at the address 0x00 of the serial data EEPROM stacked on the

AT8xEB5114.

Coefficient format In order to ease the calculation, this coefficient has been stored as a floating decimal

number corresponding to Table 46.

Table 46. Calibration coefficient storage format

Bit Value

7 1,

6 1/2

5 1/4

4 1/8

3 1/16

2 1/32

1 1/64

0 1/128

It means that if the value is 0x80, the coefficient is equal to 1. If the coefficient is 0x7e, the coefficient is equal to 0,111 1110 in binary which is 0,983 in decimal.

During the test, the Vref is measured, and the calibration value calculated is stored at the address 0x00 of the stack die in accordance with the Table 46 format value.

The relation between the coefficient stored, and the true Vref measurement are recorded on the Table 47.

Table 47. Relation between True Vref measurement and coefficient stored into the EEPROM

True Vref Value (V)

Min 2.300 2.316 2.334 2.353 2.372 2.391 2.409 2.428 2.447 2.466 2.484 Typ 2.306 2.325 2.345 2.362 2.381 2.400 2.419 2.438 2.456 2.475 2.494

Max 2.316 2.334 2.353 2.372 2.391 2.409 2.428 2.447 2.466 2.484 2.500 Value stored 0x7b 0x7c 0x7d 0x7e 0x7f 0x80 0x81 0x82 0x83 0x84 0x85 decimal value 0.961 0.969 0.977 0.984 0.992 1 1.008 1.016 1.023 1.031 1.039

AT89/83EB5114

4311C–8051–02/08

AT89/83EB5114

How to Take Advantage of the Calibration Value

The coefficient stored on the stacked die allow to determine the conversion result the AT8xEB5114 should have returned in case its Vref was exactly equal to 2.4V. In order to determine it, a multiplication of the result of the conversion with the coefficient stored in the stack, followed by a shift are sufficient.

Example Vref is 2.36V instead of 2.4V, and only 8 bits are necessary.

The value measured during the test 2.36V. So, in accordance with the Table 47, the coefficient which has to be stored on the EEPROM is 0x7e which corresponds to

0.1111110 in binary, which also corresponds to around 2.36/2.4. If, for example, after a conversion, the ADDH register contains 0xf0, to know the result

the ADC should have returned in case the Vref was really at 2.4V, the following operations are necessary:

0xf0 * 0x7e = 1111 0000 * 0111 1110 = 0x7620 = 0111 0110 0010 0000. So because of the point on the coefficient, the result is 1110 110 which is 0xec.

Assembler code example This is an example of assembler code optimized for size and fast recalculation in case 8

bits are sufficient.

start_adjustement : MOV B,coeff ; Coeff

MOV A,ADDH ; ADC result

MUL AB ;

RLC A ; Recover lowest bit

MOV A,B ;

RLC A ; Recover result

JNC end_fix ; Result OK

MOV A,#0ffh ; Overflow

end_adjustement : RET

Registers

The new result is stored on the accumulator. This routine requires 15 bytes + 3 bytes for the long call (LCALL). The execution of the subroutine (including the LCALL) is 18 cycles in normal case and

19 cycles in case of overflow (less than 10us with a 12 MHz oscillator and the X2 mode).

Table 48. ADCON Register

ADCON (S:F3h) ADC Control Register

7 6 5 4 3 2 1 0

QUIETM PSIDLE ADEN ADEOC ADSST SCH2 SCH1 SCH0

Bit

Number

7 QUIETM

6 PSIDLE

Bit

Mnemonic Description

Quiet mode (best precision)

Set to put in quiet mode during conversion. Cleared by hardware after completion of the conversion.

Pseudo Idle mode (good precision)

Set to put in idle mode during conversion. Cleared by hardware after completion of the conversion.

4311C–8051–02/08

Bit

Number

Bit

Mnemonic Description

5 ADEN

4 ADEOC

3 ADSST

2-0 SCH2:0

Enable/Standby Mode

Set to enable ADC. Clear for Standby mode.

End Of Conversion

Set by hardware when ADC result is ready to be read. This flag can generate an interrupt. Must be cleared by software.

Start and Status

Set to start an A/D conversion. Cleared by hardware after completion of the conversion.

Selection of channel to convert

see Table 45 on page 60.

Reset Value = X000 0000b

Table 49. ADCLK Register ADCLK (S:F2h) ADC Clock Prescaler

7 6 5 4 3 2 1 0

SELREF PRS 6 PRS 5 PRS 4 PRS 3 PRS 2 PRS 1 PRS 0

Bit

Number

Mnemonic Description

Bit

Selection and activation of the internal 2.4V voltage reference

7 SELREF

6-0 PRS6:0

Set to enable the internal voltage reference. Clear to disable the internal voltage reference.

Clock Prescaler

= f

CONV_CK

if PRS=0, f

CkADC

CONV_CK

/ (2 * PRS)

= f

CkADC

/ 256

Reset Value = 0000 0000b

Table 50. ADDH Register ADDH (S:F5h Read Only) ADC Data High byte register

7 6 5 4 3 2 1 0

ADAT 9 ADAT 8 ADAT 7 ADAT 6 ADAT 5 ADAT 4 ADAT 3 ADAT 2

Bit

Number

7-0 ADAT9:2

Bit

Mnemonic Description

ADC result

bits 9-2

Read only register Reset Value = 00h

AT89/83EB5114

4311C–8051–02/08

AT89/83EB5114

Table 51. ADDL Register

ADDL (S:F4h Read Only) ADC Data Low byte register

7 6 5 4 3 2 1 0

- - - - - - ADAT 1 ADAT 0

Bit

Number

7-6 -

1-0 ADAT1:0

Bit

Mnemonic Description

Reserved

The value read from these bits are indeterminate. Do not set these bits.

ADC result

bits 1-0

Read only register Reset Value = xxxx xx00b

4311C–8051–02/08

Table 52. ADCF Register ADCF (S:F6h) ADC Configuration

7 6 5 4 3 2 1 0

- - CH5 CH4 CH3 CH2 CH1 CH0

Bit

Number

7-6 - Not used

5 CH5

4 CH4

3-0 CH3-0

Bit

Mnemonic Description

Channel Configuration

Set to use P3.4 as ADC input Clear to use P3.4 as an other function

Channel Configuration

Set to use P3.3 as ADC input Clear to use P3.3 as an other function

Channel Configuration

Set to use P4.x as ADC input Clear to use P4.x as an other function

Reset Value = 0000 0000b

AT89/83EB5114

4311C–8051–02/08

AT89/83EB5114

High priority interrupt

Interrupt polling sequence

Low priority

interrupt

Global

disable

Individual

enable

TF0

INT0

TF1

IPH, IP

IE0

ADC

PWMU0

PWMU1

ESB0

INT1

IE1

ESB1

Interrupt System

The AT8xEB5114 has a total of 8 interrupt vectors: two external interrupts (INT0 and INT1), two timer interrupts (timers 0, 1), serial port interrupt, PWMU0, PWMU1 and A/D. These interrupts are shown in Figure 31.

Figure 31. Interrupt Control System

Each of the interrupt sources can be individually enabled or disabled by setting or clearing a bit in the Interrupt Enable register (See Table 54). This register also contains a global disable bit, which must be cleared to disable all interrupts simultaneously.

Each interrupt source can also be individually programmed to one of four priority levels by setting or clearing a bit in the Interrupt Priority register (See Table 55) and in the Interrupt Priority High register (See Table 56). Table 53 shows the bit values and priority levels associated with each combination.

4311C–8051–02/08

Table 53. Priority Bit Level Values

IPH.x IP.x Interrupt Level Priority

0 0 0 (Lowest)

0 1 1

1 0 2

1 1 3 (Highest)

A low-priority interrupt can be interrupted by a high priority interrupt, but not by another low-priority interrupt. A high-priority interrupt can’t be interrupted by any other interrupt source.

If two interrupt requests of different priority levels are received simultaneously, the request of higher priority level is serviced. If interrupt requests of the same priority level are received simultaneously, an internal polling sequence determines which request is serviced. Thus within each priority level there is a second priority structure determined by the polling sequence.

Interrupt Name Interrupt Address Vector Priority Number

external interrupt (INT0) 0003h 1

Timer0 (TF0) 000Bh 2

external interrupt (INT1) 0013h 3

Timer1 (TF1) 001Bh 4

PWM0 0023h 5

PWM1 002Bh 6

ADC 0033h 7

AT89/83EB5114

4311C–8051–02/08

AT89/83EB5114

Table 54. IEN0 Register

IEN0 - Interrupt Enable Register (A8h)

7 6 5 4 3 2 1 0

EA EADC EW1 EW0 ET1 EX1 ET0 EX0

Bit

Number

7 EA

6 EADC

5 EW1

4 EW0

3 ET1

2 EX1

1 ET0

Bit

Mnemonic Description

Enable All interrupt bit

Clear to disable all interrupts. Set to enable all interrupts. If EA=1, each interrupt source is individually enabled or disabled

by setting or clearing its interrupt enable bit.

ADC Interrupt Enable

Clear to disable the ADC interrupt. Set to enable the ADC interrupt.

PWM1 Enable bit

Clear to disable PWMU interrupt. Set to enable PWMU port interrupt.

PWM0 Enable bit

Clear to disable PWMU interrupt. Set to enable PWMU port interrupt.

Timer 1 overflow interrupt Enable bit

Clear to disable timer 1 overflow interrupt. Set to enable timer 1 overflow interrupt.

External interrupt 1 Enable bit

Clear to disable external interrupt 1. Set to enable external interrupt 1.

Timer 0 overflow interrupt Enable bit

Clear to disable timer 0 overflow interrupt. Set to enable timer 0 overflow interrupt.

4311C–8051–02/08

0 EX0

External interrupt 0 Enable bit

Reset Value = 0000 0000b Bit addressable

Clear to disable external interrupt 0. Set to enable external interrupt 0.

Table 55. IPL0 Register

IPL0 - Interrupt Priority Register (B8h)

7 6 5 4 3 2 1 0

- PADC PW1 PW0 PT1 PX1 PT0 PX0

Bit

Number

7 -

6 PADC

5 PW1

4 PW1

3 PT1

2 PX1

1 PT0

0 PX0

Bit

Mnemonic Description

Reserved

ADC interrupt Priority bit

PWMU1 Priority bit

PWMU0 Priority bit

Timer 1 overflow interrupt Priority bit

External interrupt 1 Priority bit

Timer 0 overflow interrupt Priority bit

External interrupt 0 Priority bit

Reset Value = X000 0000b Bit addressable.

The value read from this bit is indeterminate. Do not set this bit.

Refer to PADCH for priority level

Refer to PW1H for priority level.

Refer to PT1H for priority level.

Refer to PX1H for priority level.

Refer to PT0H for priority level.

Refer to PX0H for priority level.

AT89/83EB5114

4311C–8051–02/08

AT89/83EB5114

Table 56. IPH0 Register

IPH0 - Interrupt Priority High Register (B7h)

7 6 5 4 3 2 1 0

- PADCH PW1H PW0H PT1H PX1H PT0H PX0H

Bit

Number

7 -

6 PADCH

5 PW1H

4 PW1H

3 PT1H

Bit

Mnemonic Description

Reserved

The value read from this bit is indeterminate. Do not set this bit.

ADC Interrupt Priority level most significant bit

PADCH PADC Priority level 0 0 Lowest 0 1 1 0 1 1 Highest

PWMU1 Priority High bit

PW1H PW1 Priority Level 0 0 Lowest 0 1 1 0 1 1 Highest

PWMU0 Priority High bit

PW1H PW1 Priority Level 0 0 Lowest 0 1 1 0 1 1 Highest

Timer 1 overflow interrupt Priority High bit

PT1H PT1 Priority Level 0 0 Lowest 0 1 1 0 1 1 Highest

4311C–8051–02/08

External interrupt 1 Priority High bit

PX1H PX1 Priority Level

2 PX1H

1 PT0H

0 PX0H

0 0 Lowest 0 1 1 0 1 1 Highest

Timer 0 overflow interrupt Priority High bit

PT0H PT0 Priority Level 0 0 Lowest 0 1 1 0 1 1 Highest

External interrupt 0 Priority High bit

PX0H PX0 Priority Level 0 0 Lowest 0 1 1 0 1 1 Highest

Reset Value = X000 0000b Not bit addressable

Flash Memory

0FFFh

4 Kbytes

Flash memory

0000h

Hardware Security (1 byte)

Column Latches (128 bytes)

user space

Extra Row (128 bytes)

As shown Figure 32, the Flash version of AT8xEB5114 implements 4 Kbytes of on-chip program/code memory.

The Flash memory increases EPROM and ROM functionality by in-circuit electrical erasure and programming. Thanks to the internal charge pump, the high voltage needed for programming or erasing Flash cells is generated on-chip using the standard VDD voltage.

Hardware programming mode is available using specific programming tool. AT8xEB5114 features a Flash memory containing 4 Kbytes of program memory (user

space) organized into 128 byte pages, This Flash memory is programmable by parallel programming.

Figure 32. Flash Memory Architecture

FM0 Memory Architecture

User Space This space is composed of a 4 Kbytes Flash memory organized in 32 pages of 128

Extra Row (XRow) This row is a part of flash memory and has a size of 128 bytes. The extra row may con-

Hardware security Byte The Hardware Security Byte space is a part of flash memory and has a size of 1 byte.

Column latches The column latches, also part of flash memory, have a size of full page (128 bytes).

Overview of Flash Memory Operations

The Flash memory is made up of 4 blocks (see Figure 32):

– The memory array (user space) 4 Kbytes – The Extra Row – The Hardware security bits – The column latch registers

bytes. It contains the user’s application code.

tain information for boot loader usage.

The 4 MSB can be read/written by software, the 4 LSB can only be read by software and written by hardware in parallel mode.

The column latches are the entrance buffers of the three previous memory locations (user array, XROW and Hardware security byte).

The CPU interfaces to the Flash memory through the FCON register used to:

– Map the memory spaces in the adressable space

AT89/83EB5114

4311C–8051–02/08

AT89/83EB5114

– Launch the programming of the memory spaces – Get the status of the flash memory (busy/not busy)

Mapping of the Memory Space By default, the user space is accessed by MOVC instruction for read only. The column

latches space is made accessible by setting the FPS bit in FCON register. Writing is possible from 0000h to 0FFFh, address bits 6 to 0 are used to select an address within a page while bits 14 to 7 are used to select the programming address of the page.

The other memory spaces (user, extra row, hardware security) are made accessible in the code segment by programming bits FMOD0 and FMOD1 in FCON register in accordance with Table 57. A MOVC instruction is then used for reading these spaces.

Table 57. .FM0 Blocks Select Bits

FMOD1 FMOD0 FM0 Adressable space

0 0 User (0000h-FFFFh)

0 1 Extra Row(FF80h-FFFFh)

1 0 Hardware Security Byte (0000h)

1 1 reserved

Launching programming FPL3:0 bits in FCON register are used to secure the launch of programming. A specific

sequence must be written in these bits to unlock the write protection and to launch the programming. This sequence is 5xh followed by Axh. Table 33 summarizes the memory spaces to program according to FMOD1:0 bits.

Figure 33. Programming spaces

Write to FCON

OperationFPL3:0 FPS FMOD1 FMOD0

5 X 0 0 No action

User

Extra Row

Hardware

Security

Byte

Reserved

A X 0 0

5 X 0 1 No action

A X 0 1

5 X 1 0 No action

A X 1 0 Write the fuse bits space

5 X 1 1 No action

A X 1 1 No action

Write the column latches in user space

Write the column latches in extra row space

4311C–8051–02/08

Notes: 1. The sequence 5xh and Axh must be executing without instructions between then oth-

erwise the programming is aborted.

2. Interrupts that may occur during programming time must be disable to avoid any spurious exit of the idle mode.

Status of the Flash Memory The bit FBUSY in FCON register is used to indicate the status of programming. FBUSY

Column Latches Loading

Data Load

DPTR= Address

ACC= Data

Exec: MOVX @DPTR, A

Last Byte

to load?

Column Latches Mapping

FPS= 1

Data memory Mapping

FPS= 0

Disable IT

EA= 0

Enable IT

EA= 1

is set when programming is in progress.

Loading the Column Latches Any number of data from 1 byte to 128 bytes can be loaded in the column latches. This

provides the capability to program the whole memory by byte, by page or by any number of bytes in a page. When programming is launched, an automatic erase of the locations loaded in the column latches is first performed, then programming is effectively done. Thus no page or block erase is needed and only the loaded data are programmed in the corresponding page.

The following procedure is used to load the column latches and is summarized in Figure 34:

– Disable interrupt and map the column latch space by setting FPS bit. – Load the DPTR with the address to load. – Load Accumulator register with the data to load. – Execute the MOVX @DPTR, A instruction. – If needed loop the three last instructions until the page is completely loaded. – unmap the column latch and Enable Interrupt

Figure 34. Column Latches Loading Procedure

Note: The last page address used when loading the column latch is the one used to select the

AT89/83EB5114

page programming address.

4311C–8051–02/08

Programming the Flash Spaces User

The following procedure is used to program the User space and is summarized in Figure 35:

Note: 1. The last page address used when loading the column latch is the one used to select

Extra Row The following procedure is used to program the Extra Row space and is summarized in

Figure 35:

AT89/83EB5114

– Load data in the column latches from address 0000h to 0FFFh1. – Disable the interrupts. – Launch the programming by writing the data sequence 50h followed by A0h

in FCON register (only from FM1). The end of the programming indicated by the FBUSY flag cleared.

– Enable the interrupts.

the page programming address.

– Load data in the column latches from address FF80h to FFFFh. – Disable the interrupts. – Launch the programming by writing the data sequence 52h followed by A2h

in FCON register (only from FM1). The end of the programming indicated by the FBUSY flag cleared.

– Enable the interrupts.

4311C–8051–02/08

Figure 35. Flash and Extra row Programming Procedure

Flash Spaces Programming

Disable IT

EA= 0

Launch Programming

FCON= 5xh

FCON= Axh

End Programming

Enable IT

EA= 1

Column Latches Loading

see Figure 34

•

FBusy Cleared?

Erase Mode

FCON = 00h

Hardware Security Byte

The following procedure is used to program the Hardware

Security

Byte space

and is summarized in Figure 36:

– Set FPS and map Hardware byte (FCON = 0x0C) – Disable the interrupts. – Load DPTR at address 0000h. – Load Accumulator register with the data to load. – Execute the MOVX @DPTR, A instruction. – Launch the programming by writing the data sequence 54h followed by A4h

in FCON register (only from FM1). The end of the programming indicated by the FBusy flag cleared.

– Enable the interrupts.

AT89/83EB5114

4311C–8051–02/08

Figure 36. Hardware Programming Procedure

Flash Spaces Programming

Disable IT

EA= 0

Launch Programming

FCON= 54h FCON= A4h

End Programming

Enable IT

EA= 1

FBusy

Cleared?

Erase Mode

FCON = 00h

Data Load

DPTR= 00h ACC= Data

Exec: MOVX @DPTR, A

FCON = 0Ch

AT89/83EB5114

Reading the Flash Spaces User

The following procedure is used to read the User space and is summarized in Figure 37:

Extra Row The following procedure is used to read the Extra Row space and is summarized in

Figure 37:

Hardware Security Byte

– Map the User space by writing 00h in FCON register. – Read one byte in Accumulator by executing MOVC A,@A+DPTR with A= 0

& DPTR= 0000h to FFFFh.

– Map the Extra Row space by writing 02h in FCON register. – Read one byte in Accumulator by executing MOVC A,@A+DPTR with A= 0

& DPTR= FF80h to FFFFh.

– Clear FCON to unmap the Extra Row.

4311C–8051–02/08

The following procedure is used to read the Hardware

Flash Spaces Reading

Flash Spaces Mapping

FCON= 00000xx0b

Data Read

DPTR= Address

ACC= 0

Exec: MOVC A, @A+DPTR

Erase Mode

FCON = 00h

Security

space and is

summarized in Figure 37:

– Map the Hardware Security space by writing 04h in FCON register. – Read the byte in Accumulator by executing MOVC A,@A+DPTR with A= 0 &

DPTR= 0000h.

– Clear FCON to unmap the Hardware Security Byte.

Figure 37. Reading Procedure

Flash Protection from Parallel Programming

The three lock bits in Hardware Security Byte are programmed according to Table 58, will provide different level of protection for the on-chip code and data located in flash memory.

The only way for write this bits are the parallel mode.

Table 58. Program Lock Bit

Program Lock Bits Protection Description

Security

level LB1 LB0

1 U U No program lock feature enabled.

2 U P

3 P U

Writing Flash data from programmer is disabled but still allowed from internal code execution.

Writing and reading Flash data from programmer is disabled but still allowed from internal code execution.

WARNING: Security level 2 and 3 should only be programmed after Flash and Core verification.

AT89/83EB5114

4311C–8051–02/08

Registers

AT89/83EB5114

Table 59. FCON: Flash Control Register

FCON - Flash Control Register (D1h)

7 6 5 4 3 2 1 0

FPL3 FPL2 FPL1 FPL0 FPS FMOD1 FMOD0 FBUSY

Bit

Number

7-4 FPL3:0

3 FPS

2-1 FMOD1:0

0 FBUSY

Bit

Mnemonic Description

Programming Launch Command Bits

Write 5Xh followed by AXh to launch the programming according to FMOD1:0. (see Figure 33.)

Flash Map Program Space

Set to map the column latch space in the data memory space. Clear to re-map the data memory space.

Flash Mode

See Table 57 or Table 33.

Flash Busy

Set by hardware when programming is in progress. Clear by hardware when programming is done. Can not be cleared by software.

Reset Value= 0000 0000b

4311C–8051–02/08

AT8xEB5114 ROM

ROM Structure

The AT8xEB5114 ROM memory is divided in two different arrays:

• the code array: 4 Kbytes.

• the configuration byte:1 byte.

Hardware Configuration Byte The configuration byte sets the starting microcontroller options and the security levels.

The starting default options are X1 mode, Oscillator A.

Table 60. Hardware Security Byte (HSB) HSB (S:EFh) Power configuration Register

7 6 5 4 3 2 1 0

X2 RST_OSC1 RST_OSC0 RST_OCLK - - LB1 LB0

Bit

Number

7 X2

6 RST_OSC1 Oscillator bit 1 on reset

5 RST_OSC0

Bit

Mnemonic Description

X2 Mode

Clear to force X2 mode (CkOut = OscOut) Set to use the prescaler mode (CkOut = OscOut / (2*(16-M)))

Oscillator bit 0 on reset

Oscillator bit on reset 11: allow OSCA

10: allow OSCB 01: allow OSCC 00: reserved

Output clocking signal after RESET

Clear to start the microcontroller with a low level on P3.5 followed by an

4 RST_OCLK

3 CKRLRV

2 - Reserved

1-0 LB1-0

output clocking signal on P3.5 as soon as the microcontroller is started. This signal has is a 1/3 high 2/3 low signal. Its frequency is equal to (CKout / 3).

Set to start on normal conditions: No signal on P3.5 which is pulled up.

CKRL Reset Value

If set, the microcontroller starts with the prescaler reset value = XXXX 1000 (OscOut = CkOut/16).

If clear, the microcontroller starts with a prescaler reset value = XXXX 1111 (OscOut = CkOut/2).

User Program Lock Bits

See Table 61 on page 81

HSB = 1111 XX11b

Note: Whatever the value of RST_OSC, the XTAL1 input is always validated in order to enter in

test modes.

AT89/83EB5114

4311C–8051–02/08

AT89/83EB5114

ROM Lock System

The program Lock system, when programmed, protects the on-chip program against software piracy.

Program ROM lock Bits The lock bits when programmed according to Table 61 will provide different level of pro-

tection for the on-chip code and data.

Table 61. Program Lock bits

Program Lock Bits Protection Description

Security

level LB1 LB0

1 U U No program lock feature enabled.

3 P U Reading ROM data from programmer is disabled.

U: unprogrammed P: programmed

4311C–8051–02/08

AT89/83EB5114

4311C–8051–02/08

Stacked EEPROM

AT89/83EB5114

Overview

Protocol

The AT8xEB5114 features a stacked 2-wire serial data EEPROM. The data EEPROM allows to save up to 256 bytes. The EEPROM is internally connected to P3.6 and P3.7 which are respectively connected to the SDA and the SCL pins.

In order to access this memory, it is necessary to use software subroutines according to the AT24C02 datasheet. Nevertheless, because the internal pull-up resistors of the AT8xEB5114 is quite high (around 100KΩ), the protocol should be slowed in order to be sure that the SDA pin can rise to the high level before reading it.

Another solution to keep the access to the EEPROM in specification is to work with a software pull-up.

Using a software pull-up, consists of forcing a low level at the output pin of the microcontroller before configuring it as an input (high level).

The C51 the ports are “quasi-bidirectional” ports. It means that the ports can be configured as output low or as input high. In case a port is configured as an output low, it can sink a current and all internal pull-ups are disconnected. In case a port is configured as an input high, it is pulled up with a strong pull-up (a few hundreds Ohms resistor) for 2 clock periods. Then, if the port is externally connected to a low level, it is only kept high with a weak pull up (around 100KΩ), and if not, the high level is latched high thanks to a medium pull (around 10kΩ).

Thus, when the port is configured as an input, and when this input has been read at a low level, there is a pull-up of around 100KΩ, which is quite high, to quickly load the SDA capacitance. So in order to help the reading of a high level just after the reading of a low level, it is possible to force a transition of the SDA port from an input state (1), to an output low state (0), followed by a new transition from this output low state to input state; In this case, the high pull-up has been replaced with a low pull-up which warranties a good reading of the data.

4311C–8051–02/08

Electrical Characteristics

Absolute Maximum Ratings

(*)

Ambient Temperature Under Bias:

C = commercial..................................................... 0°C to 70°C

I = industrial ....................................................... -40°C to 85°C

Storage Temperature ................................... -65°C to + 150°C

Voltage on VCC to VSS.....................................-0.5 V to + 4.6 V

Voltage on Any Pin to VSS.......................-0.5 V to VCC + 0.5 V

Power Dissipation.............................................................. 1 W

Electro-static discharge voltage 1500 V

Power Consumption Measurement

Since the introduction of the first C51 devices, every manufacturer made operating Icc measurements under reset, which made sense for the designs where the CPU was running under reset. In our new devices, the CPU is no longer active during reset, so the power consumption is very low and this is not really representative of what will happen in the customer’s system. Thus, while keeping measurements under Reset, we present a new way to measure the operating Icc:

Using an internal test ROM, the following code is executed: Label: SJMP Label (80 FE) Ports 3, 4 are disconnected, RST = Vcc, XTAL2 is not connected and XTAL1 is driven

by the clock.

*NOTICE:

tresses at or above those listed under “Absolute Maximum Ratings” may cause permanent damage to the device. This is a stress rating only and functional operation of the device at these or any other conditions above those indicated in the operational sections of this specification is not implied. Exposure to absolute maximum rating conditions may affect device reliability. Power Dissipation value is based on the maximum allowable die temperature and the thermal resistance of the package.

This is much more representative of the real operating Icc.

DC Parameters for Low Voltage

TA = 0°C to +70°C; VSS = 0 V; VCC = 3 V to 3.6 V; F = 0 to 24 MHz. TA = -40°C to +85°C; VSS = 0 V; VCC = 3 V to 3.6 V; F = 0 to 24 MHz.

Table 1. DC Parameters for Low Voltage

Symbol Parameter Min Typ Max Unit Test Conditions

Input Low Voltage -0.5 0.8 V

Input High Voltage except XTAL1, RST 2 VCC + 0.5 V

Input High Voltage, XTAL1, RST 0.7 V

IH1

Output Low Voltage, ports 3, 4

Output High Voltage, ports 3, 4.

(6)

0.9 V

VCC - 0.7 VCC - 1.4

VCC + 0.5 V

0.3

0.45

1.0

IOL = 100 µA

IOL = 1.6 mA

IOL = 3.2 mA

IOH = -10 µA

IOH =-30 µA

IOH = -50µA

AT89/83EB5114

4311C–8051–02/08

AT89/83EB5114

Table 1. DC Parameters for Low Voltage (Continued)

Symbol Parameter Min Typ Max Unit Test Conditions

0.9V

OH2

Output High Voltage, ports 3, 4.

(6)

mode Push pull

VCC - 0.7 VCC - 1.5

RST

Logical 0 Input Current ports 3 and 4

Input Leakage Current ±10 µA 0.45 V < Vin < V

Logical 1 to 0 Transition Current, ports 3, 4

RST Pull up Resistor 50 90

(7)

(8)

(5)

-50 µA Vin = 0.45 V

-650 µA Vin = 2.0 V

200 kΩ

CIO Capacitance of I/O Buffer 10 pF

OSCB

OSC C

under

RESET

operating

idle

Power Down Current 50 200 µA VCC = 3.0 V to 3.6 V

OSCB unlocked frequency 10.8 12 13.2 MHz With ideal R and C

OSCB locked frequency 11.5 12 12.5 MHz With ideal R and C

OSCC frequency 8.4 14 19.6 MHz

Power Supply Current Maximum values, X1 mode, OSCA oscillator

(9)

0.4*F+3 mA

IOH = -100 µA

IOH = - 1 mA

IOH = - 2 mA

Fc = 1 MHz TA = 25°C

VCC = 3.3 V

OSCA + Prescaler

VCC = 3.3 V F in MHz

mA VCC = 3.3 V

(3)

(1)

(10)

(2)

under

RESET

operating

idle

under

RESET

operating

idle

RET

Power Supply Current Maximum values, X1 mode, OSCB oscillator

Power Supply Current Maximum values, X1 mode, OSCC oscillator

(9)

900

5 mA VCC = 3.3 V

4.8

650

5 mA

4.8

Supply voltage during power down mode 2.7 V

VPFDP Power fail high level threshold 2.6 2.8 2.95 V

VPFDM Power fail low level threshold (default) 2.45 2.55 2.7 V

Power fail hysteresis VPFDP - VPFDM 150 250 350 mV

Glitch maximum time 100 ns Vcc down to 2.5 V

VCC = 3.3 V

OSCB + Prescaler

mA VCC = 3.3 V

VCC = 3.3 V

µA

OSCC + Prescaler

VCC = 3.3 V

mA VCC = 3.3 V

(1)

(10)

(2)

(1)

(10)

(2)

4311C–8051–02/08

Table 1. DC Parameters for Low Voltage (Continued)

(NC) CL O C K SIGNAL

All other pins are disconnected.

RST

XTAL2 XTAL1

(NC)

CL O C K SIGNAL

All other pins are disconnected.

RST

XTAL2 XTAL1

Reset = Vss after a high pulse during at least 24 clock cycles

Symbol Parameter Min Typ Max Unit Test Conditions

Supply rise time 1us 1s

Notes: 1. ICC under reset is measured with all output pins disconnected; XTAL1 driven with T

VSS + 0.5 V, VIH = VCC - 0.5V; XTAL2 N.C.; Vpp = RST = VCC. ICC would be slightly higher if a crystal oscillator used

2. Idle ICC is measured with all output pins disconnected; XTAL1 driven with T

CLCH

, T

0.5 V; XTAL2 N.C; Vpp = RST = VSS (see Figure 40.).

3. Power Down ICC is measured with all output pins disconnected; Vpp = VSS; XTAL2 NC.; RST = Vcc (see Figure 41.).

4. Not Applicable

5. Typical are based on a limited number of samples and are not guaranteed. The values listed are at room temperature and

3.3V.

6. If IOL exceeds the test condition, VOL may exceed the related specification. Pins are not guaranteed to sink current greater than the listed test conditions.

7. For other values, please contact your sales office.

8. When port configuration have weak pull-up activated.

9. When port configuration is quasi-bidirectional.

10. Operating ICC is measured with all output pins disconnected; XTAL1 driven with T VSS + 0.5 V, VIH = VCC - 0.5V; XTAL2 N.C.; RST= VCC;. The internal ROM runs the code 80 FE (label: SJMP label). ICC would be slightly higher if a crystal oscillator is used. Measurements are made with OTP products when possible, which is the worst case.

Figure 38. ICC Test Condition, under reset

, T

CLCH

CHCL

CLCH

= 5 ns (see Figure 42.), VIL =

CHCL

= 5 ns, VIL = VSS + 0.5 V, VIH = V

, T

= 5 ns (see Figure 42.), VIL =

CHCL

AT89/83EB5114

Figure 39. Operating ICC Test Condition

4311C–8051–02/08

Figure 40. ICC Test Condition, Idle Mode

RST

XTAL2 XTAL1 V

(NC)

All other pins are disconnected.

CLOCK SIGNAL

Reset = Vss after a high pulse during at least 24 clock cycles

RST

XTAL2 XTAL1

Reset = Vss after a high pulse during at least 24 clock cycles

All other pins are disconnected.

VCC-0.5V

0.45V

0.7V

0.2VCC-0.1

CLCH

CHCL

CLCH

= T

CHCL

= 5ns.

Figure 41. ICC Test Condition, Power-Down Mode

AT89/83EB5114

4311C–8051–02/08

Figure 42. Clock Signal Waveform for ICC Tests in Active and Idle Modes

DC Parameters for A/D

2 4, Vr ef–( )

2 4,3–×10

-------------------------------

Converter

TA = 0°C to +70°C; VSS = 0 V; VCC = 3V to 3,6 V; F = 0 to 24MHz. TA = -40°C to +85°C; VSS = 0 V; VCC = 3V to 3,6 V; F = 0 to 24MHz.

Table 2. DC Parameters for Low Voltage

Symbol Parameter Min Typ Max Unit Test Conditions

Resolution 10 bit

AVin Analog input voltage Vss - 0.2 Vcc + 0.2 V

AC Parameters

Rref Resistance between Vref and Vss 13 18 24

Vref Value of integrated voltage source 2.30 2.40 2.50 V

Vref

Vref Voltage drift over temperature 150

drift

Lref Load on integrated voltage source 10

Cai Analog input Capacitance 60 pF During sampling

Integral non linearity 1 2 lsb

Differential non linearity 0.5 1 lsb

Offset error -2 2 lsb

Input source impedance 1

KO hm

uV/

°C

KO hm

With ideal external Ref (1)

For 10 bit

resolution at

maximum speed

Note: (1) With lsb = 2.4/1024 = 2.4mV, typical integral linearity is:

Explanation of the AC Symbols

AT89/83EB5114

Each timing symbol has 5 characters. The first character is always a “T” (stands for Time). The other characters, depending on their positions, stand for the name of a signal or the logical status of that signal. The following is a list of all the characters and what they stand for.

Example:T

TA = 0 to +70°C (commercial temperature range); VSS = 0 V; 3 V < V TA = -40°C to +85°C (industrial temperature range); VSS = 0 V; 3 V < V

= Time from clock rising edge to input data valid.

XHDV

3.6 V; -L range.

CC <

3.6 V; -L

CC <

range. Table 3. gives the maximum applicable load capacitance for Port 1, 3 and 4. Timings will

be guaranteed if these capacitances are respected. Higher capacitance values can be used, but timings will then be degraded.

Table 3. Load Capacitance versus speed range, in pF

-L

Port 3 & 4 60

4311C–8051–02/08

External Clock Drive

VCC-0.5 V

0.45 V

0.7VCC

0.2VCC-0.1 V TCHCL

TCLCX

TCLCL

TCLCH

TCHCX

Characteristics (XTAL1)

AT89/83EB5114

Table 4. Max frequency for Derating Formula Regarding the Speed Grade

-L X1 mode -L X2 mode

Freq (MHz) 40

T (ns) 25 50

1. Oscillator speed is limited to 24 Mhz

Symbol Parameter Min Max Units

(1)

External Clock Drive Waveforms

A/D Converter

CLCL

CHCX

CLCX

CLCH

CHCL

CHCX/TCLCX

Oscillator Period 25 ns

High Time 5 ns

Low Time 5 ns

Rise Time 5 ns

Fall Time 5 ns

Cyclic ratio in X2 mode 40 60 %

Figure 43. External Clock Drive Waveforms

Symbol Parameter Min Typ Max Units

Clock periods (1 for

Conversion time 11

sampling, 10 for

conversion)

4311C–8051–02/08

FConv_Ck Clock Conversion frequency 550 (1) kHz

Sampling frequency 10 50

Notes: 1. For 10 bits resolution

kilo samples per

second

PWM Outputs

0.45 V

VCC-0.5 V

0.2VCC+0.9

0.2VCC-0.1

INPUT/OUTPUT

VOL+0.1 V

VOH-0.1 V

FLOAT

VLOAD VLOAD+0.1 V

VLOAD-0.1 V

Symbol Parameter Min Typ Max Units

AC Testing Input/Output Waveforms

Tr Rise time of PWM outputs 60

Tf Fall time of PWM outputs 30

ns (load 300 pF)

Can be slower

ns (300 pF)

Can be slower

Figure 44. AC Testing Input/Output Waveforms

AC inputs during testing are driven at VCC - 0.5 for a logic “1” and 0.45V for a logic “0”. Timing measurement are made at VIH min for a logic “1” and VIL max for a logic “0”.

Float Waveforms Figure 45. Float Waveforms

For timing purposes as port pin is no longer floating when a 100 mV change from load voltage occurs and begins to float when a 100 mV change from the loaded VOH/VOL level occurs. IOL/IOH ≥ ± 20mA.

Clock Waveforms Valid in normal clock mode. In X2 mode XTAL2 signal must be changed to XTAL2

divided by two.

AT89/83EB5114

4311C–8051–02/08

Figure 46. Clock Waveforms

CLOCK

XTAL2

INTERNAL

STATE4 STATE5

STATE6

STATE1 STATE2 STATE3 STATE4

STATE5

SERIAL PORT SHIFT CLOCK

PORT OPERATION

TXD (MODE 0)

RXD SAMPLED RXD SAMPLED

P1, P3, P4 PINS SAMPLED

MOV DEST PORT (P1, P3, P4) (INCLUDES INT0, INT1, TO, T1)

OLD DATA

NEW DATA

P1P2 P1P2

P1P2

P1P2 P1P2 P1P2

P1P2 P1P2

AT89/83EB5114

This diagram indicates when signals are clocked internally. The time it takes the signals to propagate to the pins, however, ranges from 25 to 125 ns. This propagation delay is dependent on variables such as temperature and pin loading. Propagation also varies from output to output and component. Typically though (TA=25°C fully loaded) RD and WR propagation delays are approximately 50 ns. The other signals are typically 85 ns. Propagation delays are incorporated in the AC specifications.

4311C–8051–02/08

Typical Application

Digital I/O

VCC

P3.5/W1M0

P3.4/T0/AIN5

NC PFC control

P3.6

P3.7

VSS

P3.3/W0M2/AIN4

P3.2/INT0

P3.1/W0M1

P3.0/W0M0

Lamp driver high Lamp driver low Over current NC

P4.3/AIN3

P4.2/AIN2

P4.1/AIN1

P4.0/AIN0

PFC measurement

DC voltage

Lamp detection

Lamp current

Analog I/O

RST

XTAL1

XTAL2

VCC

VREF

Vref

Vssa

Vcca

Figure 47. Typical Application Diagram

AT89/83EB5114

4311C–8051–02/08

Ordering Information

Table 5. Possible Order Entries

Part Number

AT83EB5114xxxTGRIL AT89EB5114-TGSIL

AT83EB5114xxxTGRUL

AT89EB5114-TGSUL

Memory

Size

4Kb ROM 3 to 3.6V Industrial &

4Kb Flash 3 to 3.6V Industrial &

Supply

Voltage

Temperature

Range Max Frequency Package Packing

Green

OBSOLETE

AT89/83EB5114

40 MHz S020

40 MHz SO20

Reel

Stick

4311C–8051–02/08

Package Drawings

SO20

Document Revision History

Changes from 4311B to 4311C

AT89/83EB5114

1. Removed non-green part numbers from Ordering Information.

4311C–8051–02/08

ATMEL AT89EB5114 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

Features

Description

Pin Configuration

Pin Description

SFR Mapping

Power Monitor

Description

Power Monitor diagram

Clock System

Overview

Blocks Description

Crystal Oscillator: OSCA The crystal oscillator uses two external pins, XTAL1 for input and XTAL2 for output.

High Accurate RC Oscillator: OSCB

Low Power Consumption Oscillator: OSCC

Clock Selector CKS1 and CKS0 bits in CKSEL register are used to select the clock source.

X2 Feature The AT8xEB5114 core needs only 6 clock periods per machine cycle. This feature

Description The clock for the whole circuit and peripherals is first divided by two before being used

Clock Prescaler Before supplying the CPU and the peripherals, the main clock is divided by a factor from

Prescaler Divider on Reset A hardware RESET selects the start oscillator depending on the RST1_OSC and

Registers

Hardware Security Byte The security byte sets the starting microcontroller options and the security levels.

Clock Control Register The clock control register is used to define the clock system behavior.

Oscillator B Frequency Adjust Register

Clock Selection Register The clock selection register is used to define the clock system behavior.

Clock Prescaler Register This register is used to reload the clock prescaler of the CPU and peripheral clock.

Clock Control Register This register is used to control the X2 mode of the CPU and peripheral clock.

Power Modes

Overview

Operating Modes

• Idle mode

Normal Mode In normal mode, the oscillator, the CPU and the peripherals are running. The prescaler

Entering Idle Mode An instruction that sets PCON.0 causes that to be the last instruction executed before

Exit from Idle Mode There are two ways to terminate idle mode. Activation of any enabled interrupt will

Quiet Mode The quiet mode is a pseudo idle mode in which the CPU and all the peripherals except

Power-down Mode To save maximum power, a power-down mode can be invoked by software (refer to

Entering Power-down Mode An instruction that sets PCON.1 causes that to be the last instruction executed before

Exit from Power-down Mode Either a hardware reset or an external interrupt (low level) on INT0 or INT1 (if enabled)

Power Modes Control Registers

AUXR Register

Timers/Counters

Introduction

Timer/Counter Operations

Timer 0

Mode 0 (13-bit Timer) Mode 0 configures Timer 0 as a 13-bit Timer which is set up as an 8-bit Timer (TH0 reg-

Mode 1 (16-bit Timer) Mode 1 configures Timer 0 as a 16-bit Timer with the TH0 and TL0 registers connected

Mode 3 (Two 8-bit Timers) Mode 3 configures Timer 0 so that registers TL0 and TH0 operate as 8-bit Timers (see

Timer 1

Mode 0 (13-bit Timer) Mode 0 configures Timer 1 as a 13-bit Timer, which is set up as an 8-bit Timer (TH1 reg-

Mode 1 (16-bit Timer) Mode 1 configures Timer 1 as a 16-bit Timer with TH1 and TL1 registers connected in

Mode 3 (Halt) Placing Timer 1 in mode 3 causes it to halt and hold its count. This can be used to halt

Registers

Ports

Port Types

Quasi-Bidirectional Output Configuration

Open Drain Output Configuration

Push-Pull Output Configuration

Input only Configuration The input only configuration is a pure input with neither pull-up nor pull-down.

Ports Description

Ports P3 and P4 The inputs of each I/O port of the AT8xEB5114 are TTL level Schmitt triggers with

Registers

Dual Data Pointer Register (DDPTR)

Application

PWM Unit 0 (PWMU0)

PWMU0 Timer

PWMU0 Output Generation

PWMU0 Output Selector

PWMU0 Interrupt System

PWM Unit 1 (PWMU1)

PWMU1 Timer

PWMU1 Output Generation

PWMU1 Output Selector

PWMU1 Interrupt System

WatchDog Timer

WatchDog Timer During Power Down Mode and Idle

Analog-to-Digital Converter (ADC)

Features
