Features
•
Single Voltage Read/Write Operation: 2.65V to 3.6V
•
Access Time – 70 ns
•
Sector Erase Architecture
– Fifteen 32K Word (64K Bytes) Sectors with Individual Write Lockout
– Eight 4K Word (8K Bytes) Sectors with Individual Write Lockout
•
Fast Byte/Word Program Time – 10 µs
•
Fast Sector Erase Time – 100 ms
•
Suspend/Resume Feature for Erase and Program
– Supports Reading and Programming from Any Sector by Suspending Erase
of a Different Sector
– Supports Reading Any Byte/Word in the Non-suspending Sectors by Suspending
Programming of Any Other Byte/Word
•
Low-power Operation
– 10 mA Active
– 15 µA Standby
•
Data Polling, Toggle Bit, Ready/Busy for End of Program Detection
•
RESET Input for Device Initialization
•
Sector Lockdown Support
•
TSOP and CBGA Package Options
•
Top or Bottom Boot Block Configuration Available
•
128-bit Protection Register
•
Minimum 100,000 Erase Cycles
•
Common Flash Interface (CFI)
•
Green (Pb/Halide-free) Packaging
8-megabit
(512K x 16/
1M x 8)
3-volt Only
Flash Memory
AT49BV802D
AT49BV802DT
1. Description
The AT49BV802D(T) is a 2.7-volt 8-megabit Flash memory organized as 524,288
words of 16 bits each or 1,048,576 bytes of 8 bits each. The x16 data appears on
I/O0 - I/O15; the x8 data appears on I/O0 - I/O7. The memory is divided into 23 sectors for erase operations. The AT49BV802D(T) is offered in a 48-lead TSOP and a
48-ball CBGA package. The device has CE
contention. This device can be read or reprogrammed using a single power supply,
making it ideally suited for in-system programming.
The device powers on in the read mode. Command sequences are used to place the
device in other operation modes such as program and erase. The device has the
capability to protect the data in any sector (see “Sector Lockdown” section).
To increase the flexibility of the device, it contains an Erase Suspend and Program
Suspend feature. This feature will put the erase or program on hold for any amount of
time and let the user read data from or program data to any of the remaining sectors
within the memory. The end of a program or an erase cycle is detected by the
READY/BUSY
pin, Data Polling or by the toggle bit.
and OE control signals to avoid any bus
3626A–FLASH–2/07
A six-byte command (Enter Single Pulse Program Mode) sequence to remove the requirement
of entering the three-byte program sequence is offered to further improve programming time.
After entering the six-byte code, only single pulses on the write control lines are required for writing into the device. This mode (Single Pulse Byte/Word Program) is exited by powering down
the device, or by pulsing the RESET
V
. Erase, Erase Suspend/Resume and Program Suspend/Resume commands will not work
CC
pin low for a minimum of 500 ns and then bringing it back to
while in this mode; if entered they will result in data being programmed into the device. It is not
recommended that the six-byte code reside in the software of the final product but only exist in
external programming code.
The BYTE
tion. If the BYTE
and controlled by CE
If the BYTE
- I/O7 are active and controlled by CE
the I/O15 pin is used as an input for the LSB (A-1) address function.
2. Pin Configurations
Pin Name Function
A0 - A18 Addresses
CE Chip Enable
OE
WE
RESET
RDY/BUSY
I/O0 - I/O14 Data Inputs/Outputs
I/O15 (A-1)
BYTE
pin controls whether the device data I/O pins operate in the byte or word configura-
pin is set at logic “1”, the device is in word configuration, I/O0 - I/O15 are active
and OE.
pin is set at logic “0”, the device is in byte configuration, and only data I/O pins I/O0
and OE. The data I/O pins I/O8 - I/O14 are tri-stated, and
Output Enable
Write Enable
Reset
READY/BUSY Output
I/O15 (Data Input/Output, Word Mode)
A-1 (LSB Address Input, Byte Mode)
Selects Byte or Word Mode
NC No Connect
2
AT49BV802D(T)
3626A–FLASH–2/07
2.1 48-lead TSOP (Type 1) Top View
AT49BV802D(T)
2.2 48-ball CBGA Top View (Ball Down)
A15
A14
A13
A12
A11
A10
A9
A8
NC
NC
WE
RESET
NC
NC
RDY/BUSY
A18
A17
A7
A6
A5
A4
A3
A2
A1
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
23456
1
A16
48
BYTE
47
GND
46
I/O15/A-1
45
I/O7
44
I/O14
43
I/O6
42
I/O13
41
I/O5
40
I/O12
39
I/O4
38
VCC
37
I/O11
36
I/O3
35
I/O10
34
I/O2
33
I/O9
32
I/O1
31
I/O8
30
I/O0
29
OE
28
GND
27
CE
26
A0
25
G
A
A3
A7
RDY/BUSY
WE
A9
A8
A10
A11
I/O7
I/O14
I/O13
I/O6
A13
A12
A14
A15
A16
BYTE
I/015/A-1
VSS
B
A4
A17
NC
A18
NC
I/O2
I/O10
I/O11
I/O3
RST
NC
NC
I/O5
I/O12
VCC
I/O4
C
A2
A1
A0
CE
OE
VSS
A6
A5
I/O0
I/O8
I/O9
I/O1
D
E
F
H
3626A–FLASH–2/07
3
3. Block Diagram
I/O0 - I/O15/A-1
A0 - A18
INPUT
BUFFER
ADDRESS
LATCH
Y-DECODER
X-DECODER
OUTPUT
BUFFER
OUTPUT
MULTIPLEXER
COMPARATOR
MEMORY
IDENTIFIER
REGISTER
STATUS
REGISTER
DATA
Y-GATING
MAIN
INPUT
BUFFER
DATA
REGISTER
COMMAND
REGISTER
WRITE STATE
MACHINE
PROGRAM/ERASE
VOLTAGE SWITCH
CE
WE
OE
RESET
BYTE
RDY/BUSY
VCC
GND
4. Device Operation
4.1 Read
The AT49BV802D(T) is accessed like an EPROM. When CE and OE are low and WE is high,
the data stored at the memory location determined by the address pins are asserted on the outputs. The outputs are put in the high impedance state whenever CE
control gives designers flexibility in preventing bus contention.
4.2 Command Sequences
When the device is first powered on, it will be reset to the read or standby mode, depending
upon the state of the control line inputs. In order to perform other device functions, a series of
command sequences are entered into the device. The command sequences are shown in the
“Command Definition Table” on page 13 (I/O8 - I/O15 are don’t care inputs for the command
codes). The command sequences are written by applying a low pulse on the WE
with CE
or WE, whichever occurs last. The data is latched by the first rising edge of CE or WE. Standard
microprocessor write timings are used. The address locations used in the command sequences
are not affected by entering the command sequences.
4
AT49BV802D(T)
or WE low (respectively) and OE high. The address is latched on the falling edge of CE
or OE is high. This dual-line
or CE input
3626A–FLASH–2/07
4.3 Reset
4.4 Erasure
4.4.1 Chip Erase
AT49BV802D(T)
A RESET input pin is provided to ease some system applications. When RESET is at a logic
high level, the device is in its standard operating mode. A low level on the RESET
present device operation and puts the outputs of the device in a high impedance state. When a
high level is reasserted on the RESET
depending upon the state of the control inputs.
Before a byte/word can be reprogrammed, it must be erased. The erased state of memory bits is
a logical “1”. The entire device can be erased by using the Chip Erase command or individual
sectors can be erased by using the Sector Erase command.
The entire device can be erased at one time by using the six-byte chip erase software code.
After the chip erase has been initiated, the device will internally time the erase operation so that
no external clocks are required. The maximum time to erase the chip is t
If the sector lockdown has been enabled, the chip erase will not erase the data in the sector that
has been locked out; it will erase only the unprotected sectors. After the chip erase, the device
will return to the read or standby mode.
pin, the device returns to the read or standby mode,
EC
input halts the
.
4.4.2 Sector Erase
As an alternative to a full chip erase, the device is organized into 23 sectors (SA0 - SA22) that
can be individually erased. The Sector Erase command is a six-bus cycle operation. The sector
address is latched on the falling WE
latched on the rising edge of WE
cycle. The erase operation is internally controlled; it will automatically time to completion. The
maximum time to erase a sector is t
enabled, the sector will erase (from the same Sector Erase command). An attempt to erase a
sector that has been protected will result in the operation terminating immediately.
4.5 Byte/Word Programming
Once a memory block is erased, it is programmed (to a logical “0”) on a byte-by-byte or on a
word-by-word basis. Programming is accomplished via the internal device command register
and is a four-bus cycle operation. The device will automatically generate the required internal
program pulses.
Any commands written to the chip during the embedded programming cycle will be ignored. If a
hardware reset happens during programming, the data at the location being programmed will be
corrupted. Please note that a data “0” cannot be programmed back to a “1”; only erase operations can convert “0”s to “1”s. Programming is completed after the specified t
Data
Polling feature or the Toggle Bit feature may be used to indicate the end of a program
cycle. If the erase/program status bit is a “1”, the device was not able to verify that the erase or
program operation was performed successfully.
edge of the sixth cycle while the 30H data input command is
. The sector erase starts after the rising edge of WE of the sixth
. When the sector programming lockdown feature is not
SEC
cycle time. The
BP
3626A–FLASH–2/07
5
4.6 Program/Erase Status
The device provides several bits to determine the status of a program or erase operation: I/O2,
I/O5, I/O6 and I/O7. The “Status Bit Table” on page 12 and the following four sections describe
the function of these bits. To provide greater flexibility for system designers, the
AT49BV802D(T) contains a programmable configuration register. The configuration register
allows the user to specify the status bit operation. The configuration register can be set to one of
two different values, “00” or “01”. If the configuration register is set to “00”, the part will automatically return to the read mode after a successful program or erase operation. If the configuration
register is set to a “01”, a Product ID Exit command must be given after a successful program or
erase operation before the part will return to the read mode. It is important to note that whether
the configuration register is set to a “00” or to a “01”, any unsuccessful program or erase operation requires using the Product ID Exit command to return the device to read mode. The default
value (after power-up) for the configuration register is “00”. Using the four-bus cycle Set Configuration Register command as shown in the “Command Definition Table” on page 13, the value
of the configuration register can be changed. Voltages applied to the RESET
value of the configuration register. The value of the configuration register will affect the operation
of the I/O7 status bit as described below.
pin will not alter the
4.6.1 DATA
4.6.2 Toggle Bit
Polling
The AT49BV802D(T) features Data
configuration register is set to a “00”, during a program cycle an attempted read of the last
byte/word loaded will result in the complement of the loaded data on I/O7. Once the program
cycle has been completed, true data is valid on all outputs and the next cycle may begin. During
a chip or sector erase operation, an attempt to read the device will give a “0” on I/O7. Once the
program or erase cycle has completed, true data will be read from the device. Data
begin at any time during the program cycle. Please see “Status Bit Table” on page 12 for more
details.
If the status bit configuration register is set to a “01”, the I/O7 status bit will be low while the
device is actively programming or erasing data. I/O7 will go high when the device has completed
a program or erase operation. Once I/O7 has gone high, status information on the other pins can
be checked.
The Data
bit as shown in the algorithm in Figures 4-1 and 4-2 on page 10.
In addition to Data
of a program or erase cycle. During a program or erase operation, successive attempts to read
data from the memory will result in I/O6 toggling between one and zero. Once the program cycle
has completed, I/O6 will stop toggling and valid data will be read. Examining the toggle bit may
begin at any time during a program cycle. Please see “Status Bit Table” on page 12 for more
details.
Polling status bit must be used in conjunction with the erase/program and VPP status
Polling the AT49BV802D(T) provides another method for determining the end
Polling to indicate the end of a program cycle. If the status
Polling may
The toggle bit status bit should be used in conjunction with the erase/program status bit as
shown in the algorithm in Figures 4-3 and 4-4 on page 11.
6
AT49BV802D(T)
3626A–FLASH–2/07
4.6.3 Erase/Program Status Bit
The device offers a status bit on I/O5, which indicates whether the program or erase operation
has exceeded a specified internal pulse count limit. If the status bit is a “1”, the device is unable
to verify that an erase or a byte/word program operation has been successfully performed. If a
program (Sector Erase) command is issued to a protected sector, the protected sector will not
be programmed (erased). The device will go to a status read mode and the I/O5 status bit will be
set high, indicating the program (erase) operation did not complete as requested. Once the
erase/program status bit has been set to a “1”, the system must write the Product ID Exit command to return to the read mode. The erase/program status bit is a “0” while the erase or
program operation is still in progress. Please see “Status Bit Table” on page 12 for more details.
4.7 Sector Lockdown
Each sector has a programming lockdown feature. This feature prevents programming of data in
the designated sectors once the feature has been enabled. These sectors can contain secure
code that is used to bring up the system. Enabling the lockdown feature will allow the boot code
to stay in the device while data in the rest of the device is updated. This feature does not have to
be activated; any sector’s usage as a write-protected region is optional to the user.
At power-up or reset, all sectors are unlocked. To activate the lockdown for a specific sector, the
six-bus cycle Sector Lockdown command must be issued. Once a sector has been locked down,
the contents of the sector is read-only and cannot be erased or programmed.
AT49BV802D(T)
4.7.1 Sector Lockdown Detection
A software method is available to determine if programming of a sector is locked down. When
the device is in the software product identification mode (see “Software Product Identification
Entry/Exit” sections on page 24), a read from address location 00002H within a sector will show
if programming the sector is locked down. If the data on I/O0 is low, the sector can be programmed; if the data on I/O0 is high, the program lockdown feature has been enabled and the
sector cannot be programmed. The software product identification exit code should be used to
return to standard operation.
4.7.2 Sector Lockdown Override
The only way to unlock a sector that is locked down is through reset or power-up cycles. After
power-up or reset, the content of a sector that is locked down can be erased and reprogrammed.
4.8 Erase Suspend/Erase Resume
The Erase Suspend command allows the system to interrupt a sector or chip erase operation
and then program or read data from a different sector within the memory. After the Erase Suspend command is given, the device requires a maximum time of 15 µs to suspend the erase
operation. After the erase operation has been suspended, the system can then read data or program data to any other sector within the device. An address is not required during the Erase
Suspend command. During a sector erase suspend, another sector cannot be erased. To
resume the sector erase operation, the system must write the Erase Resume command. The
Erase Resume command is a one-bus cycle command. The device also supports an erase suspend during a complete chip erase. While the chip erase is suspended, the user can read from
any sector within the memory that is protected. The command sequence for a chip erase suspend and a sector erase suspend are the same.
3626A–FLASH–2/07
7
4.9 Program Suspend/Program Resume
The Program Suspend command allows the system to interrupt a programming operation and
then read data from a different byte/word within the memory. After the Program Suspend command is given, the device requires a maximum of 20 µs to suspend the programming operation.
After the programming operation has been suspended, the system can then read data from any
other byte/word that is not contained in the sector in which the programming operation was suspended. An address is not required during the program suspend operation. To resume the
programming operation, the system must write the Program Resume command. The program
suspend and resume are one-bus cycle commands. The command sequence for the erase suspend and program suspend are the same, and the command sequence for the erase resume
and program resume are the same.
4.10 Product Identification
The product identification mode identifies the device and manufacturer as Atmel. It may be
accessed by hardware or software operation. The hardware operation mode can be used by an
external programmer to identify the correct programming algorithm for the Atmel product.
For details, see “Operating Modes” on page 17 (for hardware operation) or “Software Product
Identification Entry/Exit” sections on page 24. The manufacturer and device codes are the same
for both modes.
4.11 128-bit Protection Register
The AT49BV802D(T) contains a 128-bit register that can be used for security purposes in system design. The protection register is divided into two 64-bit blocks. The two blocks are
designated as block A and block B. The data in block A is non-changeable and is programmed
at the factory with a unique number. The data in block B is programmed by the user and can be
locked out such that data in the block cannot be reprogrammed. To program block B in the protection register, the four-bus cycle Program Protection Register command must be used as
shown in the “Command Definition Table” on page 13. To lock out block B, the four-bus cycle
Lock Protection Register command must be used as shown in the “Command Definition Table”.
Data bit D1 must be zero during the fourth bus cycle. All other data bits during the fourth bus
cycle are don’t cares. To determine whether block B is locked out, the status of Block B Protection command is given. If data bit D1 is zero, block B is locked. If data bit D1 is one, block B can
be reprogrammed. Please see the “Protection Register Addressing Table” on page 14 for the
address locations in the protection register. To read the protection register, the Product ID Entry
command is given followed by a normal read operation from an address within the protection
register. After determining whether block B is protected or not, or reading the protection register,
the Product ID Exit command must be given prior to performing any other operation.
4.12 RDY/BUSY
8
AT49BV802D(T)
An open-drain READY/BUSY output pin provides another method of detecting the end of a program or erase operation. RDY/BUSY
cycles and is released at the completion of the cycle. The open-drain connection allows for ORtying of several devices to the same RDY/BUSY
for more details.
is actively pulled low during the internal program and erase
line. Please see “Status Bit Table” on page 12
3626A–FLASH–2/07
4.13 Common Flash Interface (CFI)
CFI is a published, standardized data structure that may be read from a flash device. CFI allows
system software to query the installed device to determine the configurations, various electrical
and timing parameters, and functions supported by the device. CFI is used to allow the system
to learn how to interface to the flash device most optimally. The two primary benefits of using
CFI are ease of upgrading and second source availability. The command to enter the CFI Query
mode is a one-bus cycle command which requires writing data 98h to address 55h. The CFI
Query command can be written when the device is ready to read data or can also be written
when the part is in the product ID mode. Once in the CFI Query mode, the system can read CFI
data at the addresses given in Table 31. on page 25. To exit the CFI Query mode, the product ID
exit command must be given.
4.14 Hardware Data Protection
The Hardware Data Protection feature protects against inadvertent programs to the
AT49BV802D(T) in the following ways: (a) V
function is inhibited. (b) V
device will automatically time out 10 ms (typical) before programming. (c) Program inhibit: holding any one of OE
low, CE high or WE high inhibits program cycles.
4.15 Input Levels
While operating with a 2.65V to 3.6V power supply, the address inputs and control inputs (OE,
CE
and WE) may be driven from 0 to 5.5V without adversely affecting the operation of the
device. The I/O lines can only be driven from 0 to V
AT49BV802D(T)
sense: if VCC is below 1.8V (typical), the program
CC
power-on delay: once VCC has reached the VCC sense level, the
CC
+ 0.6V.
CC
3626A–FLASH–2/07
9
Figure 4-1. Data Polling Algorithm
(Configuration Register = 00)
START
Figure 4-2. Data Polling Algorithm
(Configuration Register = 01)
START
Read I/O7 - I/O0
Addr = VA
I/O7 = Data?
NO
I/O5 = 1?
Read I/O7 - I/O0
Addr = VA
I/O7 = Data?
Program/Erase
Operation Not
Successful, Write
Product ID
Exit Command
NO
YES
NO
YES
YES
Program/Erase
Operation
Successful,
Device in
Read Mode
Read I/O7 - I/O0
Read I/O7 - I/O0
Toggle Bit =
NO
I/O5 = 1?
Read I/O7 - I/O0
Toggle Bit =
Program/Erase
Operation Not
Successful, Write
Product ID
Exit Command
Toggle?
YES
YES
Twice
Toggle?
YES
NO
NO
Program/Erase
Operation
Successful,
Write Product
ID Exit Command
Notes: 1. VA = Valid address for programming. During a sector
erase operation, a valid address is any sector
address within the sector being erased. During chip
erase, a valid address is any non-protected sector
address.
2. I/O7 should be rechecked even if I/O5 = “1” because
I/O7 may change simultaneously with I/O5.
10
AT49BV802D(T)
Note: 1. VA = Valid address for programming. During a sector
erase operation, a valid address is any sector
address within the sector being erased. During chip
erase, a valid address is any non-protected sector
address.
3626A–FLASH–2/07
AT49BV802D(T)
Figure 4-3. Toggle Bit Algorithm
(Configuration Register = 00)
START
Read I/O7 - I/O0
Read I/O7 - I/O0
NO
Toggle Bit =
Toggle?
YES
I/O5 = 1?
NO
Figure 4-4. Toggle Bit Algorithm
(Configuration Register = 01)
START
Read I/O7 - I/O0
Read I/O7 - I/O0
Toggle Bit =
NO
Toggle?
YES
NO
I/O5 = 1?
YES
Read I/O7 - I/O0
Twice
Toggle Bit =
Toggle?
YES
Program/Erase
Operation Not
Successful, Write
Product ID
Exit Command
Note: 1. The system should recheck the toggle bit even if
I/O5 = “1” because the toggle bit may stop toggling
as I/O5 changes to “1”.
NO
Program/Erase
Operation
Successful,
Device in
Read Mode
YES
Read I/O7 - I/O0
Twice
Toggle Bit =
NO
Toggle?
YES
Program/Erase
Operation Not
Successful, Write
Product ID
Exit Command
Note: 1. The system should recheck the toggle bit even if
I/O5 = “1” because the toggle bit may stop toggling
as I/O5 changes to “1”.
Program/Erase
Operation
Successful,
Write Product ID
Exit Command
3626A–FLASH–2/07
11
5. Status Bit Table
Status Bit
I/O7 I/O7 I/O6 I/O5
Configuration Register 00 01 00/01 00/01 00/01 00/01
Programming I/O7
Erasing 0 0 TOGGLE 0 TOGGLE 0
Erase Suspended & Read
Erasing Sector
1110TOGGLE1
0 TOGGLE 0 1 0
(1)
I/O2 RDY/BUSY
Erase Suspended & Read
Non-erasing Sector
Erase Suspended & Program
Non-erasing Sector
Erase Suspended & Program
Suspended and Reading from
Non-suspended Sectors
Program Suspended & Read
Programming Sector
Program Suspended & Read
Non-programming Sector
Notes: 1. I/O5 switches to a “1” when a program or an erase operation has exceeded the maximum time limits or when a program or
sector erase operation is performed on a protected sector.
DATA DATA DATA DATA DATA 1
I/O7
DATA DATA DATA DATA DATA 1
I/O7 1 1 0 TOGGLE 1
DATA DATA DATA DATA DATA 1
0 TOGGLE 0 TOGGLE 0
12
AT49BV802D(T)
3626A–FLASH–2/07
6. Command Definition Table
AT49BV802D(T)
1st Bus
Command
Sequence
Bus
Cycles
Read 1 Addr D
Cycle
Addr Data Addr Data Addr Data Addr Data Addr Data Addr Data
OUT
Chip Erase 6 555 AA AAA
2nd Bus
Cycle
(2)
3rd Bus
Cycle
4th Bus
Cycle
5th Bus
Cycle
55 555 80 555 AA AAA 55 555 10
Sector Erase 6 555 AA AAA 55 555 80 555 AA AAA 55 SA
Byte/Word Program 4 555 AA AAA 55 555 A0 Addr D
Enter Single Pulse
Program Mode
Single Pulse
Byte/Word Program
Sector Lockdown 6 555 AA AAA
Erase/Program
Suspend
Erase/Program
Resume
6 555 AA AAA 55 555 80 555 AA AAA 55 555 A0
1 Addr D
IN
(2)
55 555 80 555 AA AAA 55 SA
1 XXX B0
1 XXX 30
IN
Product ID Entry 3 555 AA AAA 55 555 90
Product ID Exit
Product ID Exit
(5)
(5)
Program Protection
Register
Lock Protection
Register – Block B
Status of Block B
Protection
Set Configuration
Register
CFI Query
(10)
3 555 AA AAA 55 555 F0
1 XXX F0
(6)
4 555 AA AAA 55 555 C0 Addr
4 555 AA AAA 55 555 C0 080 X0
4 555 AA AAA 55 555 90 80 D
4 555 AA AAA 55 555 D0 XXX 00/01
1 X55 98
(6)
(7)
D
OUT
IN
(8)
(9)
Notes: 1. The DATA FORMAT shown for each bus cycle is as follows; I/O7 - I/O0 (Hex). In word operation I/O15 - I/O8
are don’t care. The ADDRESS FORMAT shown for each bus cycle is as follows: A11 - A0 (Hex). Address A18 through A11
are don’t care in the word mode. Address A18 through A11 and A-1 are don’t care in the byte mode.
2. Since A11 is a Don’t Care, AAA can be replaced with 2AA.
3. SA = sector address. Any byte/word address within a sector can be used to designate the sector address (see pages 15 - 16
for details).
4. Once a sector is in the lockdown mode, data in the protected sector cannot be changed unless the chip is reset or power
cycled.
5. Either one of the Product ID Exit commands can be used.
6. Bytes of data other than F0 may be used to exit the Product ID mode. However, it is recommended that F0 be used.
7. Any address within the user programmable register region. Address locations are shown on “Protection Register Addressing
Table” on page 14.
8. If data bit D1 is “0”, block B is locked. If data bit D1 is “1”, block B can be reprogrammed.
9. The default state (after power-up) of the configuration register is “00”.
10. When accessing the data in the CFI table, the address format is A15 - A0 (Hex) in the word mode, A14 - A0 (Hex),
and A-1 = 0 in the byte mode.
6th Bus
Cycle
(3)(4)
(3)(4)
30
60
3626A–FLASH–2/07
13
7. Absolute Maximum Ratings*
Temperature under Bias ................................ -55°C to +125°C
Storage Temperature..................................... -65°C to +150°C
All Input Voltages
(including NC Pins)
with Respect to Ground ...................................-0.6V to +6.25V
All Output Voltages
with Respect to Ground .............................-0.6V to V
+ 0.6V
CC
*NOTICE: Stresses beyond those listed under “Absolute
Maximum Ratings” may cause permanent damage to the device. This is a stress rating only and
functional operation of the device at these or any
other conditions beyond those indicated in the
operational sections of this specification is not
implied. Exposure to absolute maximum rating
conditions for extended periods may affect device
reliability.
8. Protection Register Addressing Table
Word Use Block A7 A6 A5 A4 A3 A2 A1 A0
0 Factory A 10000001
1 Factory A 10000010
2 Factory A 10000011
3 Factory A 10000100
4 User B 10000101
5 User B 10000110
6 User B 10000111
7 User B 10001000
Notes: 1. All address lines not specified in the above table must be “0” when accessing the protection register, i.e., A18 - A8 = 0.
2. The addressing shown above should be used when the device is operating in the word (x16) mode.
3. In the byte (x8) mode, A-1 should be used when addressing the protection register:
with A-1 = 0, the LSB of the address location can be accessed; and
with A-1 = 1, the MSB of the address location can be accessed.
14
AT49BV802D(T)
3626A–FLASH–2/07
9. AT49BV802D – Sector Address Table
AT49BV802D(T)
x8
Sector Size (Bytes/Words)
SA0 8K/4K 000000 - 001FFF 00000 - 00FFF
SA1 8K/4K 002000 - 003FFF 01000 - 01FFF
SA2 8K/4K 004000 - 005FFF 02000 - 02FFF
SA3 8K/4K 006000 - 007FFF 03000 - 03FFF
SA4 8K/4K 008000 - 009FFF 04000 - 04FFF
SA5 8K/4K 00A000 - 00BFFF 05000 - 05FFF
SA6 8K/4K 00C000 - 00DFFF 06000 - 06FFF
SA7 8K/4K 00E000 - 00FFFF 07000 - 07FFF
SA8 64K/32K 010000 - 01FFFF 08000 - 0FFFF
SA9 64K/32K 020000 - 02FFFF 10000 - 17FFF
SA10 64K/32K 030000 - 03FFFF 18000 - 1FFFF
SA11 64K/32K 040000 - 04FFFF 20000 - 27FFF
SA12 64K/32K 050000 - 05FFFF 28000 - 2FFFF
SA13 64K/32K 060000 - 06FFFF 30000 - 37FFF
SA14 64K/32K 070000 - 07FFFF 38000 - 3FFFF
SA15 64K/32K 080000 - 08FFFF 40000 - 47FFF
Address Range (A18 - A-1)
Address Range (A18 - A0)
x16
SA16 64K/32K 090000 - 09FFFF 48000 - 4FFFF
SA17 64K/32K 0A0000 - 0AFFFF 50000 - 57FFF
SA18 64K/32K 0B0000 - 0BFFFF 58000 - 5FFFF
SA19 64K/32K 0C0000 - 0CFFFF 60000 - 67FFF
SA20 64K/32K 0D0000 - 0DFFFF 68000 - 6FFFF
SA21 64K/32K 0E0000 - 0EFFFF 70000 - 77FFF
SA22 64K/32K 0F0000 - 0FFFFF 78000 - 7FFFF
3626A–FLASH–2/07
15
10. AT49BV802DT – Sector Address Table
x8
Sector Size (Bytes/Words)
SA0 64K/32K 000000 - 00FFFF 00000 - 07FFF
SA1 64K/32K 010000 - 01FFFF 08000 - 0FFFF
SA2 64K/32K 020000 - 02FFFF 10000 - 17FFF
SA3 64K/32K 030000 - 03FFFF 18000 - 1FFFF
SA4 64K/32K 040000 - 04FFFF 20000 - 27FFF
SA5 64K/32K 050000 - 05FFFF 28000 - 2FFFF
SA6 64K/32K 060000 - 06FFFF 30000 - 37FFF
SA7 64K/32K 070000 - 07FFFF 38000 - 3FFFF
SA8 64K/32K 080000 - 08FFFF 40000 - 47FFF
SA9 64K/32K 090000 - 09FFFF 48000 - 4FFFF
SA10 64K/32K 0A0000 - 0AFFFF 50000 - 57FFF
SA11 64K/32K 0B0000 - 0BFFFF 58000 - 5FFFF
SA12 64K/32K 0C0000 - 0CFFFF 60000 - 67FFF
SA13 64K/32K 0D0000 - 0DFFFF 68000 - 6FFFF
SA14 64K/32K 0E0000 - 0EFFFF 70000 - 77FFF
SA15 8K/4K 0F0000 - 0F1FFF 78000 - 78FFF
Address Range (A18 - A-1)
Address Range (A18 - A0)
x16
SA16 8K/4K F20000 - F3FFFF 79000 - 79FFF
SA17 8K/4K F40000 - F5FFFF 7A000 - 7AFFF
SA18 8K/4K F60000 - F7FFFF 7B000 - 7BFFF
SA19 8K/4K F80000 - F9FFFF 7C000 - 7CFFF
SA20 8K/4K FA0000 - FBFFFF 7D000 - 7DFFF
SA21 8K/4K FC0000 - FDFFFF 7E000 - 7EFFF
SA22 8K/4K FE0000 - FFFFFF 7F000 - 7FFFF
16
AT49BV802D(T)
3626A–FLASH–2/07
AT49BV802D(T)
11. DC and AC Operating Range
AT49BV802D(T)-70
Operating Temperature (Case) Ind. -40°C - 85°C
VCC Power Supply 2.65V to 3.6V
12. Operating Modes
Mode CE OE WE RESET Ai I/O
Read V
Program/Erase
(1)
Standby/Program
Inhibit
X
V
IL
V
IH
(2)
IL
V
IL
V
IH
V
IH
V
IL
XV
V
IH
V
IH
IH
Ai D
Ai D
X High-Z
OUT
IN
Program Inhibit
XXVIHV
XVILXV
Output Disable X V
IH
XV
Reset XXXV
IH
IH
IH
IL
Product Identification
Hardware V
Software
(6)
IL
V
IL
V
IH
V
IH
V
IH
Notes: 1. Refer to AC programming waveforms on page 22.
2. X can be V
or VIH.
IL
3. VH = 12.0V ± 0.5V.
4. Manufacturer Code: 1FH (x8); 001FH (x16), Device Code: C1H (x8) - AT49BV802D; 01C1H (x16) - AT49BV802D;
C3H (x8) - AT49BV802DT; 01C3H (x16) - AT49BV802DT.
5. Additional device code: 01H (x8) - AT49BV802D(T); 0001H (x16) - AT49BV802D(T).
6. See details under “Software Product Identification Entry/Exit” on page 24.
X High-Z
A1 - A18 = VIL, A9 = V
A1 - A18 = VIL, A9 = V
A0 = VIL, A1 - A18 = V
A0 = VIH, A1 - A18 = V
(3)
H
(3)
H
, A0 = V
, A0 = V
IL
IL
Manufacturer Code
IL
IH
Device Code
Manufacturer Code
Device Code
High-Z
(4)
(4)(5)
(4)
(4)(5)
3626A–FLASH–2/07
17
13. DC Characteristics
Symbol Parameter Condition Min Typ Max Units
I
I
I
I
I
V
V
V
V
V
V
LI
LO
SB
CC
CC1
IL
IH
OL1
OL2
OH1
OH2
(1)
Input Load Current VIN = 0V to V
Output Leakage Current V
VCC Standby Current CMOS CE = VCC - 0.3V to V
V
Active Read Current f = 5 MHz; I
CC
VCC Programming Current 25 mA
Input Low Voltage 0.6 V
Input High Voltage 2.0 V
Output Low Voltage IOL = 2.1 mA 0.45 V
Output Low Voltage IOL = 1.0 mA 0.20 V
Output High Voltage IOH = -400 µA 2.4 V
Output High Voltage IOH = -100 µA 2.5 V
Note: 1. In the erase mode, ICC is 25 mA.
= 0V to V
I/O
CC
CC
CC
= 0 mA 10 15 mA
OUT
15 25 µA
2µA
2µA
18
AT49BV802D(T)
3626A–FLASH–2/07
14. AC Read Characteristics
Symbol Parameter
AT49BV802D(T)
AT49BV802D(T)-70
UnitsMin Max
t
t
t
t
t
t
t
RC
ACC
CE
OE
DF
OH
RO
(1)
(2)
(3)(4)
Read Cycle Time 70 ns
Address to Output Delay 70 ns
CE to Output Delay 70 ns
OE to Output Delay 0 20 ns
CE or OE to Output Float 0 25 ns
Output Hold from OE, CE or Address,
whichever occurred first
RESET to Output Delay 100 ns
15. AC Read Waveforms
ADDRESS
CE
OE
(1)(2)(3)(4)
t
RC
ADDRESS VALID
t
CE
t
OE
0ns
t
DF
RESET
OUTPUT
Notes: 1. CE may be delayed up to t
2. OE
may be delayed up to tCE - tOE after the falling edge of CE without impact on tCE or by t
without impact on t
is specified from OE or CE, whichever occurs first (CL = 5 pF).
3. t
DF
ACC
.
4. This parameter is characterized and is not 100% tested.
t
ACC
t
RO
HIGH Z
- tCE after the address transition without impact on t
ACC
OUTPUT
VALID
t
OH
.
ACC
- tOE after an address change
ACC
3626A–FLASH–2/07
19
16. Input Test Waveforms and Measurement Level
tR, tF < 5 ns
17. Output Test Load
18. Pin Capacitance
f = 1 MHz, T = 25°C
Symbol Typ Max Units Conditions
(1)
C
IN
C
OUT
Note: 1. This parameter is characterized and is not 100% tested.
46pFV
812pFV
IN
OUT
= 0V
= 0V
20
AT49BV802D(T)
3626A–FLASH–2/07
AT49BV802D(T)
19. AC Byte/Word Load Characteristics
Symbol Parameter Min Max Units
, t
t
AS
OES
t
AH
t
CS
t
CH
t
WP
t
WPH
t
DS
, t
t
DH
OEH

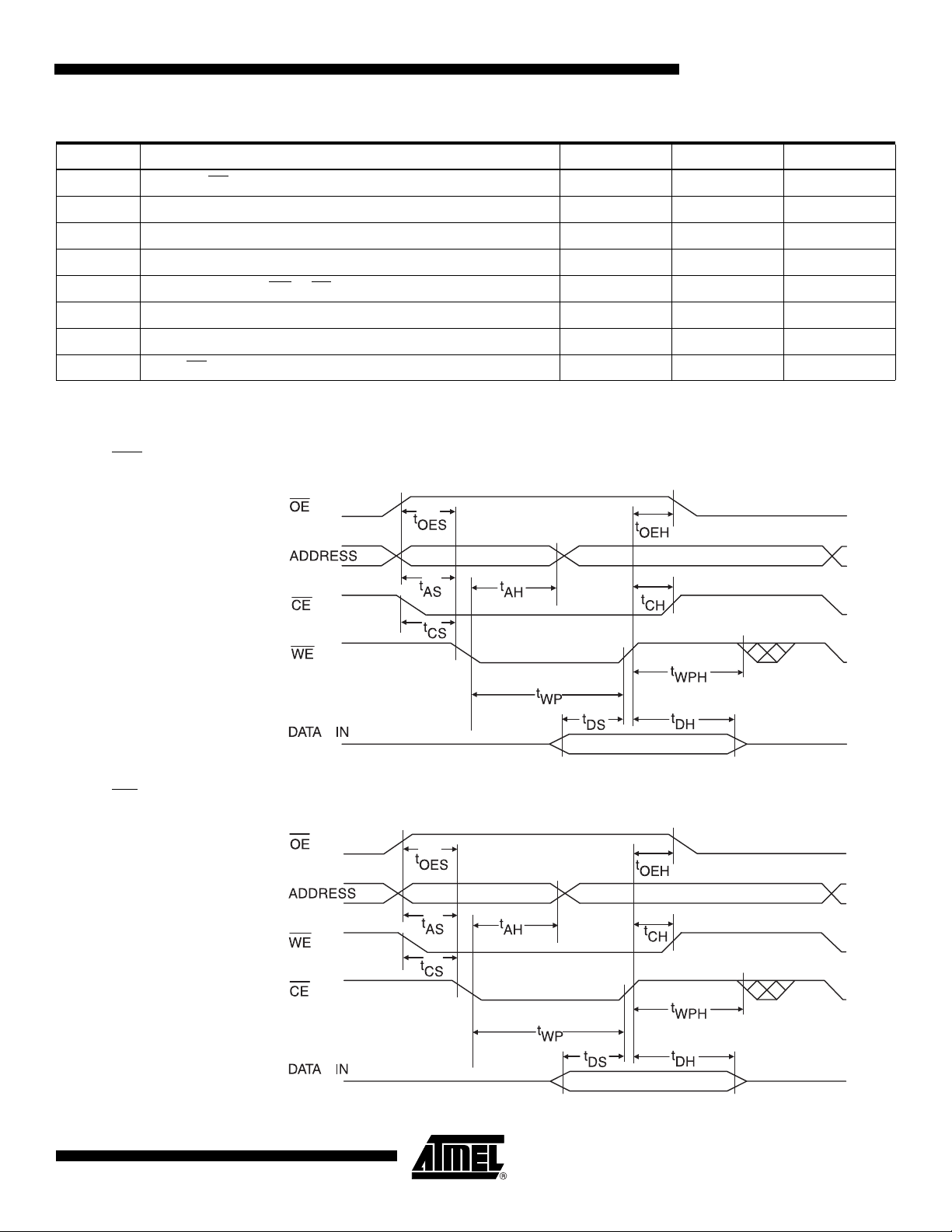

20. AC Byte/Word Load Waveforms
20.1 WE Controlled
Address, OE Setup Time 0 ns
Address Hold Time 25 ns
Chip Select Setup Time 0 ns
Chip Select Hold Time 0 ns
Write Pulse Width (WE or CE)25ns
Write Pulse Width High 15 ns
Data Setup Time 25 ns
Data, OE Hold Time 0 ns
20.2 CE
3626A–FLASH–2/07
Controlled
21
21. Program Cycle Characteristics
Symbol Parameter Min Typ Max Units
t
BP
t
AS
t
AH
t
DS
t
DH
t
WP
t
WPH
t
WC
t
RP
t
EC
t
SEC1
t
SEC2
t
ES
t
PS
t
ERES
Byte/Word Programming Time 10 120 µs
Address Setup Time 0 ns
Address Hold Time 25 ns
Data Setup Time 25 ns
Data Hold Time 0 ns
Write Pulse Width 25 ns
Write Pulse Width High 15 ns
Write Cycle Time 70 ns
Reset Pulse Width 500 ns
Chip Erase Cycle Time 8 seconds
Sector Erase Cycle Time (4K Word Sectors) 0.1 2.0 seconds
Sector Erase Cycle Time (32K Word Sectors) 0.5 6.0 seconds
Erase Suspend Time 15 µs
Program Suspend Time 10 µs
Delay between Erase Resume and Erace Suspend 500 µs
22. Program Cycle Waveforms
PROGRAM CYCLE
OE
CE
WE
A0 - A18
DATA
t
t
AS
AH
555 555
t
WC
t
AA
t
WP
t
DH
AAA
DS
t
WPH
55
23. Sector or Chip Erase Cycle Waveforms
(1)
OE
CE
t
WP
WE
t
t
AS
AH
A0-A18
DATA
555
t
WC
AAA AAA
t
DS
AA
WORD 0
WORD 1 WORD 2
Notes: 1. OE must be high only when WE and CE are both low.
2. For chip erase, the address should be 555. For sector erase, the address depends on what sector is to be erased.
(See note 3 under “Command Definition Table” on page 13.)
3. For chip erase, the data should be 10H, and for sector erase, the data should be 30H.
t
WPH
t
DH
555
55 55
80
t
BP
Note 2
Note 3
WORD 5
555
AA
t
EC
ADDRESS
INPUT
A0
555
AA
WORD 3
DATA
WORD 4
22
AT49BV802D(T)
3626A–FLASH–2/07
AT49BV802D(T)
24. Data Polling Characteristics
(1)
Symbol Parameter Min Typ Max Units
t
t
t
t
DH
OEH
OE
WR
Data Hold Time 10 ns
OE Hold Time 10 ns
OE to Output Delay
(2)
Write Recovery Time 0 ns
Notes: 1. These parameters are characterized and not 100% tested.
2. See tOE spec in “AC Read Characteristics” on page 19.
25. Data Polling Waveforms
WE
CE
t
OE
I/O7
A0-A18
t
DH
OEH
t
t
OE
HIGH Z
An
An
An
An
WR
An
ns
26. Toggle Bit Characteristics
(1)
Symbol Parameter Min Typ Max Units
t
DH
t
OEH
t
OE
t
OEHP
t
WR
Data Hold Time 10 ns
OE Hold Time 10 ns
OE to Output Delay
(2)
OE High Pulse 50 ns
Write Recovery Time 0 ns
Notes: 1. These parameters are characterized and not 100% tested.
2. See t
27. Toggle Bit Waveforms
spec in “AC Read Characteristics” on page 19.
OE
(1)(2)(3)
ns
Notes: 1. Toggling either OE or CE or both OE and CE will operate toggle bit. The t
input(s).
2. Beginning and ending state of I/O6 will vary.
3. Any address location may be used but the address should not vary.
3626A–FLASH–2/07
specification must be met by the toggling
OEHP
23
28. Software Product Identification
Entry
(1)
LOAD DATA AA
TO
ADDRESS 555
30. Sector Lockdown Enable
Algorithm
(1)
LOAD DATA AA
TO
ADDRESS 555
LOAD DATA 55
TO
ADDRESS AAA
LOAD DATA 90
TO
ADDRESS 555
ENTER PRODUCT
IDENTIFICATION
(2)(3)(5)
MODE
29. Software Product Identification
(1)(6)
Exit
OR
LOAD DATA F0
TO
ANY ADDRESS
EXIT PRODUCT
IDENTIFICATION
IH
.
MODE
(4)
Notes: 1.
LOAD DATA AA
TO
ADDRESS 555
LOAD DATA 55
TO
ADDRESS AAA
LOAD DATA F0
TO
ADDRESS 555
EXIT PRODUCT
IDENTIFICATION
MODE
(4)
Data Format: I/O15 - I/O8 (Don’t Care); I/O7 - I/O0 (Hex)
Address Format: A11 - A0 (Hex), A-1, and A11 - A18 (Don’t
Care).
2.
A1 - A18 = VIL. Manufacturer Code is read for A0 = VIL;
Device Code is read for A0 = V
Additional device code is read from address 0003H.
3.
The device does not remain in identification mode if powered down.
4.
The device returns to standard operation mode.
5.
Manufacturer Code: 1FH(x8); 001FH(x16)
Device Code:C1H (x8)- AT49BV802D;
01C1H (x8) - AT49BV802D.
C3H (x8) - AT49BV802DT;
01C3H (x16) - AT49BV802DT
Additional device code: 01H (x8) - AT49BV802D(T);
0001H (x16) - AT49BV802D(T).
6.
Either one of the Product ID Exit commands can be used.
Notes: 1.
LOAD DATA 55
TO
ADDRESS AAA
LOAD DATA 80
TO
ADDRESS 555
LOAD DATA AA
TO
ADDRESS 555
LOAD DATA 55
TO
ADDRESS AAA
LOAD DATA 60
TO
SECTOR ADDRESS
PAUSE 200 µs
(2)
Data Format: I/O15 - I/O8 (Don’t Care); I/O7 - I/O0 (Hex)
Address Format: A11 - A0 (Hex), A-1, and A11 - A18 (Don’t
Care).
2.
Sector Lockdown feature enabled.
24
AT49BV802D(T)
3626A–FLASH–2/07
31. Common Flash Interface Definition Table
Address [x16 Mode] Address [x8 Mode] Data Comments
10h 20h 0051h “Q”
11h 22h 0052h “R”
12h 24h 0059h “Y”
13h 26h 0002h
14h 28h 0000h
15h 2Ah 0041h
16h 2Ch 0000h
17h 2Eh 0000h
18h 30h 0000h
19h 32h 0000h
1Ah 34h 0000h
1Bh 36h 0027h V
1Ch 38h 0036h V
1Dh 3Ah 0000h VPP min voltage – No V
1Eh 3Ch 0000h VPP max voltage – No V
1Fh 3Eh 0004h Typ word write – 10 µs
20h 40h 0000h
21h 42h 0009h Typ sector erase: 500 ms
22h 44h 000Dh Typ chip erase: 8,000 ms
23h 46h 0004h Max word write/typ time
24h 48h 0000h N/A
25h 4Ah 0004h Max sector erase/typ sector erase
26h 4Ch 0004h Max chip erase/typ chip erase
27h 4Eh 0014h Device size
28h 50h 0002h x8/x16 device
29h 52h 0000h x8/x16 device
2Ah 54h 0000h Multiple byte write not supported
2Bh 56h 0000h Multiple byte write not supported
2Ch 58h 0002h 2 regions, X = 2
2Dh 5Ah 0007h 8K bytes, Y = 7
2Eh 5Ch 0000h 8K bytes, Y = 7
2Fh 5Eh 0020h 8K bytes, Z = 32
30h 60h 0000h 8K bytes, Z = 32
31h 62h 000Eh 64K bytes, Y = 14
32h 64h 0000h 64K bytes, Y = 14
33h 66h 0000h 64K bytes, Z = 256
34h 68h 0001h 64K bytes, Z = 256
min write/erase
CC
max write/erase
CC
AT49BV802D(T)
PP
PP
3626A–FLASH–2/07
25
31. Common Flash Interface Definition Table (Continued)
Address [x16 Mode] Address [x8 Mode] Data Comments
Vendor Specific Extended Query
41h 82h 0050h “P”
42h 84h 0052h “R”
43h 86h 0049h “I”
44h 88h 0031h Major version number, ASCII
45h 8Ah 0030h Minor version number, ASCII
Bit 0 – chip erase supported, 0 – no, 1 – yes
Bit 1 – erase suspend supported, 0 – no, 1 – yes
Bit 2 – program suspend supported, 0 – no, 1 – yes
Bit 3 – simultaneous operations supported,
46h 8Ch 0087h
47h 8Eh
48h 90h 0000h
49h 92h 0000h
0000h (top) or
0001h (bottom)
0 – no, 1 – yes
Bit 4 – burst mode read supported, 0 – no, 1 – yes
Bit 5 – page mode read supported, 0 – no, 1 – yes
Bit 6 – queued erase supported, 0 – no, 1 – yes
Bit 7 – protection bits supported, 0 – no, 1 – yes
Bit 8 – top (“0”) or bottom (“1”) boot block device undefined
bits are “0”
Bit 0 – 4-word linear burst with wrap around,
0 – no, 1 – yes
Bit 1 – 8-word linear burst with wrap around,
0 – no, 1 – yes
Bit 2 – continuos burst, 0 – no, 1 – yes
Undefined bits are “0”
Bit 0 – 4-word page, 0 – no, 1 – yes
Bit 1 – 8-word page, 0 – no, 1 – yes
Undefined bits are “0”
26
4Ah 94h 0080h Location of protection register lock byte, the section’s first byte
4Bh 96h 0003h # of bytes in the factory prog section of prot register – 2*n
4Ch 98h 0003h # of bytes in the user prog section of prot register – 2*n
AT49BV802D(T)
3626A–FLASH–2/07
32. Ordering Information
32.1 Green Package (Pb/Halide-free)
I
(mA)
t
ACC
(ns)
70 25 0.025
CC
AT49BV802D-70CU
AT49BV802D-70TU
AT49BV802DT-70CU
AT49BV802DT-70TU
AT49BV802D(T)
Ordering Code Package Operation RangeActive Standby
48C19
48T
48C19
48T
Industrial
(-40° to 85° C)
Industrial
(-40° to 85° C)
Package Type
48C19 48-ball, Plastic Chip-Size Ball Grid Array Package (CBGA)
48T 48-lead, Plastic Thin Small Outline Package (TSOP)
3626A–FLASH–2/07
27
33. Packaging Information
33.1 48C19 – CBGA
A1 Ball ID
1.0 REF
E
D
Top View
A
A1
Side View
E1
A
B
C
D
E
F
G
H
6 54321
Øb
Bottom View
A1 Ball Corner
e
1.20 REF
D1
e
COMMON DIMENSIONS
(Unit of Measure = mm)
SYMBOL
MIN
NOM
MAX
E 5.90 6.00 6.10
E1 4.0 TYP
D 7.90 8.00 8.10
D1 5.6 TYP
A – – 1.0
A1 0.22 – –
e 0.80 BSC
Øb 0.40 TYP
NOTE
28
2325 Orchard Parkway
R
San Jose, CA 95131
48C19, 48-ball (6 x 8 Array), 0.80 mm Pitch,
6.0 x 8.0 x 1.0 mm Chip-scale Ball Grid Array Package (CBGA)
AT49BV802D(T)
TITLE
DRAWING NO.
48C19
3626A–FLASH–2/07
7/2/03
REV.
A
33.2 48T – TSOP
AT49BV802D(T)
PIN 1
Pin 1 Identifier
D1
D
e
E
b
A2
A
SEATING PLANE
A1
Notes: 1. This package conforms to JEDEC reference MO-142, Variation DD.
2. Dimensions D1 and E do not include mold protrusion. Allowable
protrusion on E is 0.15 mm per side and on D1 is 0.25 mm per side.
3. Lead coplanarity is 0.10 mm maximum.
0º ~ 8º
L
COMMON DIMENSIONS
SYMBOL
A – – 1.20
A1 0.05 – 0.15
A2 0.95 1.00 1.05
D 19.80 20.00 20.20
D1 18.30 18.40 18.50 Note 2
E 11.90 12.00 12.10 Note 2
L 0.50 0.60 0.70
L1 0.25 BASIC
b 0.17 0.22 0.27
c 0.10 – 0.21
e 0.50 BASIC
c
L1
GAGE PLANE
(Unit of Measure = mm)
MIN
NOM
MAX
NOTE
2325 Orchard Parkway
R
San Jose, CA 95131
3626A–FLASH–2/07
TITLE
48T, 48-lead (12 x 20 mm Package) Plastic Thin Small Outline
Package, Type I (TSOP)
DRAWING NO.
48T
10/18/01
REV.
B
29
34. Revision History
Revision A – February 2007 • Initial Web Release
30
AT49BV802D(T)
3626A–FLASH–2/07
Loading...
