Features
•
Single Voltage Operation Read/Write: 2.65V - 3.6V
•
2.7V - 3.6V Read/Write
•
Access Time – 70 ns
•
Sector Erase Architecture
– One Hundred Twenty-seven 32K Word Main Sectors with Individual Write Lockout
– Eight 4K Word Sectors with Individual Write Lockout
•
Fast Word Program Time – 10 µs
•
Typical Sector Erase Time: 32K Word Sectors – 500 ms; 4K Word Sectors – 100 ms
•
Suspend/Resume Feature for Erase and Program
– Supports Reading and Programming Data from Any Sector by Suspending Erase
of a Different Sector
– Supports Reading Any Word by Suspending Programming of Any Other Word
•
Low-power Operation
– 10 mA Active
– 15 µA Standby
•
Data Polling and Toggle Bit for End of Program Detection
•
VPP Pin for Write Protection and Accelerated Program Operations
•
RESET Input for Device Initialization
•
Sector Lockdown Support
•
TSOP Package
•
Top or Bottom Boot Block Configuration Available
•
128-bit Protection Register
•
Common Flash Interface (CFI)
•
Green (Pb/Halide-free) Packaging
64-megabit
(4M x 16)
3-volt Only
Flash Memory
AT49BV642D
AT49BV642DT
1. Description
The AT49BV642D(T) is a 2.7-volt 64-megabit Flash memory organized as 4,194,304
words of 16 bits each. The memory is divided into 135 sectors for erase operations.
The device can be read or reprogrammed off a single 2.7V power supply, making it
ideally suited for in-system programming.
To increase the flexibility of the device, it contains an Erase Suspend and Program
Suspend feature. This feature will put the erase or program on hold for any amount of
time and let the user read data from or program data to any of the remaining sectors.
The end of program or erase is detected by Data
The VPP pin provides data protection and faster programming times. When the V
input is below 0.4V, the program and erase functions are inhibited. When VPP is at
1.65V or above, normal program and erase operations can be performed. With V
10.0V, the program (dual-word program command) operation is accelerated.
A six-word command (Enter Single Pulse Program Mode) to remove the requirement
of entering the three-word program sequence is offered to further improve programming time. After entering the six-word code, only single pulses on the write control
lines are required for writing into the device. This mode (Single Pulse Word Program)
is exited by powering down the device, by taking the RESET
to-low transition on the V
pend/Resume and Read Reset commands will not work while in this mode; if entered
they will result in data being programmed into the device. It is not recommended that
the six-word code reside in the software of the final product but only exist in external
programming code.
input. Erase, Erase Suspend/Resume, Program Sus-
PP
Polling or toggle bit.
pin to GND or by a high-
PP
PP
at
3631A–FLASH–04/06
2. Pin Configurations
Pin Name Pin Function
I/O0 - I/O15 Data Inputs/Outputs
A0 - A21 Addresses
CE
OE
WE
RESET
VPP
VCCQ Output Power Supply
2.1 TSOP Top View (Type 1)
A15
A14
A13
A12
A11
A10
A9
A8
A21
A20
WE
RESET
VPP
NC
A19
A18
A17
A7
A6
A5
A4
A3
A2
A1
Chip Enable
Output Enable
Write Enable
Reset
Write Protection and Power Supply for Accelerated Program
Operations
A16
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
48
47
46
45
44
43
42
41
40
39
38
37
36
35
34
33
32
31
30
29
28
27
26
25
VCCQ
GND
I/O15
I/O7
I/O14
I/O6
I/O13
I/O5
I/O12
I/O4
VCC
I/O11
I/O3
I/O10
I/O2
I/O9
I/O1
I/O8
I/O0
OE
GND
CE
A0
2
AT49BV642D(T)
3631A–FLASH–04/06
3. Device Operation
3.1 Command Sequences
The device powers on in the read mode. Command sequences are used to place the device in
other operating modes such as program and erase. After the completion of a program or an
erase cycle, the device enters the read mode. The command sequences are written by applying
a low pulse on the WE
CE
input with WE low and OE high. The address is latched on the falling edge of the WE or CE
pulse whichever occurs first. Valid data is latched on the rising edge of the WE or the CE pulse,
whichever occurs first. The addresses used in the command sequences are not affected by
entering the command sequences.
3.2 Read
The AT49BV642D(T) is accessed like an EPROM. When CE and OE are low and WE is high,
the data stored at the memory location determined by the address pins are asserted on the outputs. The outputs are put in the high impedance state whenever CE
control gives designers flexibility in preventing bus contention.
3.3 Reset
A RESET input pin is provided to ease some system applications. When RESET is at a logic
high level, the device is in its standard operating mode. A low level on the RESET
present device operation and puts the outputs of the device in a high-impedance state. When a
high level is reasserted on the RESET
ing upon the state of the control pins.
AT49BV642D(T)
input with CE low and OE high or by applying a low-going pulse on the
or OE is high. This dual-line
pin halts the
pin, the device returns to read or standby mode, depend-
3.4 Erase
3.4.1 Chip Erase
3.4.2 Sector Erase
Before a word can be reprogrammed it must be erased. The erased state of the memory bits is a
logical “1”. The entire memory can be erased by using the Chip Erase command or individual
sectors can be erased by using the Sector Erase command.
Chip Erase is a six-bus cycle operation. The automatic erase begins on the rising edge of the
last WE
erase the device will return back to the read mode. The hardware reset during Chip Erase will
stop the erase but the data will be of unknown state. Any command during Chip Erase except
Erase Suspend will be ignored.
As an alternative to a full chip erase, the device is organized into multiple sectors that can be
individually erased. The Sector Erase command is a six-bus cycle operation. The sector whose
address is valid at the sixth falling edge of WE
been protected.
pulse. Chip Erase does not alter the data of the protected sectors. After the full chip
will be erased provided the given sector has not
3631A–FLASH–04/06
3
3.5 Word Programming
The device is programmed on a word-by-word basis. Programming is accomplished via the
internal device command register and is a four-bus cycle operation. The programming address
and data are latched in the fourth cycle. The device will automatically generate the required
internal programming pulses. Please note that a “0” cannot be programmed back to a “1”; only
erase operations can convert “0”s to “1”s.
3.6 Sector Lockdown
Each sector has a programming lockdown feature. This feature prevents programming of data in
the designated sectors once the feature has been enabled. These sectors can contain secure
code that is used to bring up the system. Enabling the lockdown feature will allow the boot code
to stay in the device while data in the rest of the device is updated. This feature does not have to
be activated; any sector’s usage as a write-protected region is optional to the user.
At power-up or reset, all sectors are unlocked. To activate the lockdown for a specific sector, the
six-bus cycle Sector Lockdown command must be issued. Once a sector has been locked down,
the contents of the sector is read-only and cannot be erased or programmed.
3.6.1 Sector Lockdown Detection
A software method is available to determine if programming of a sector is locked down. When
the device is in the software product identification mode (see “Software Product Identification
Entry/Exit” sections on page 23), a read from address location 00002H within a sector will show
if programming the sector is locked down. If the data on I/O0 is low, the sector can be programmed; if the data on I/O0 is high, the program lockdown feature has been enabled and the
sector cannot be programmed. The software product identification exit code should be used to
return to standard operation.
3.6.2 Sector Lockdown Override
The only way to unlock a sector that is locked down is through reset or power-up cycles. After
power-up or reset, the content of a sector that is locked down can be erased and reprogrammed.
3.7 Program/Erase Status
The device provides several bits to determine the status of a program or erase operation: I/O2,
I/O3, I/O5, I/O6, and I/O7. All other status bits are don’t care. The “Status Bit Table” on page 10
and the following four sections describe the function of these bits. To provide greater flexibility
for system designers, the AT49BV642D(T) contains a programmable configuration register. The
configuration register allows the user to specify the status bit operation. The configuration register can be set to one of two different values, “00” or “01”. If the configuration register is set to
“00”, the part will automatically return to the read mode after a successful program or erase
operation. If the configuration register is set to a “01”, a Product ID Exit command must be given
after a successful program or erase operation before the part will return to the read mode. It is
important to note that whether the configuration register is set to a “00” or to a “01”, any unsuccessful program or erase operation requires using the Product ID Exit command to return the
device to read mode. The default value (after power-up) for the configuration register is “00”.
Using the four-bus cycle set configuration register command as shown in the “Command Defini-
tion Table” on page 11, the value of the configuration register can be changed. Voltages applied
to the reset pin will not alter the value of the configuration register. The value of the configuration
register will affect the operation of the I/O7 status bit as described below.
4
AT49BV642D(T)
3631A–FLASH–04/06
3.7.1 Data Polling
AT49BV642D(T)
The AT49BV642D(T) features Data
configuration register is set to a “00”, during a program cycle an attempted read of the last word
loaded will result in the complement of the loaded data on I/O7. Once the program cycle has
been completed, true data is valid on all outputs and the next cycle may begin. During a chip or
sector erase operation, an attempt to read the device will give a “0” on I/O7. Once the program
or erase cycle has completed, true data will be read from the device. Data
any time during the program cycle. Please see “Status Bit Table” on page 10 for more details.
If the status bit configuration register is set to a “01”, the I/O7 status bit will be low while the
device is actively programming or erasing data. I/O7 will go high when the device has completed
a program or erase operation. Once I/O7 has gone high, status information on the other pins can
be checked.
Polling to indicate the end of a program cycle. If the status
Polling may begin at
The Data
Polling status bit must be used in conjunction with the erase/program and VPP status
bit as shown in the algorithm in Figures 3-1 and 3-2 on page 8.
3.7.2 Toggle Bit
In addition to Data
end of a program or erase cycle. During a program or erase operation, successive attempts to
read data from the memory will result in I/O6 toggling between one and zero. Once the program
cycle has completed, I/O6 will stop toggling and valid data will be read. Examining the toggle bit
may begin at any time during a program cycle. Please see “Status Bit Table” on page 10 for
more details.
The toggle bit status bit should be used in conjunction with the erase/program and V
as shown in the algorithm in Figures 3-3 and 3-4 on page 9.
3.7.3 Erase/Program Status Bit
The device offers a status bit on I/O5 that indicates whether the program or erase operation has
exceeded a specified internal pulse count limit. If the status bit is a “1”, the device is unable to
verify that an erase or a word program operation has been successfully performed. The device
may also output a “1” on I/O5 if the system tries to program a “1” to a location that was previously programmed to a “0”. Only an erase operation can change a “0” back to a “1”. If a program
(Sector Erase) command is issued to a protected sector, the protected sector will not be programmed (erased). The device will go to a status read mode and the I/O5 status bit will be set
high, indicating the program (erase) operation did not complete as requested. Once the
erase/program status bit has been set to a “1”, the system must write the Product ID Exit command to return to the read mode. The erase/program status bit is a “0” while the erase or
program operation is still in progress. Please see “Status Bit Table” on page 10 for more details.
Polling, the AT49BV642D(T) provides another method for determining the
status bit
PP
3.7.4 VPP Status Bit
3631A–FLASH–04/06
The AT49BV642D(T) provides a status bit on I/O3 that provides information regarding the voltage level of the VPP pin. During a program or erase operation, if the voltage on the VPP pin is
not high enough to perform the desired operation successfully, the I/O3 status bit will be a “1”.
Once the V
status bit has been set to a “1”, the system must write the Product ID Exit com-
PP
mand to return to the read mode. On the other hand, if the voltage level is high enough to
perform a program or erase operation successfully, the V
status bit will output a “0”. Please
PP
see “Status Bit Table” on page 10 for more details.
5
3.8 Erase Suspend/Erase Resume
The Erase Suspend command allows the system to interrupt a sector erase operation and then
program or read data from a different sector within the memory. After the Erase Suspend command is given, the device requires a maximum time of 15 µs to suspend the erase operation.
After the erase operation has been suspended, the system can then read data or program data
to any other sector within the device. An address is not required during the Erase Suspend command. During a sector erase suspend, another sector cannot be erased. To resume the sector
erase operation, the system must write the Erase Resume command. The Erase Resume command is a one-bus cycle command. The device also supports an erase suspend during a
complete chip erase. While the chip erase is suspended, the user can read from any sector
within the memory that is protected. The command sequence for a chip erase suspend and a
sector erase suspend are the same.
3.9 Program Suspend/Program Resume
The Program Suspend command allows the system to interrupt a programming operation and
then read data from a different word within the memory. After the Program Suspend command is
given, the device requires a maximum of 10 µs to suspend the programming operation. After the
programming operation has been suspended, the system can then read from any other word
within the device. An address is not required during the program suspend operation. To resume
the programming operation, the system must write the Program Resume command. The
program suspend and resume are one-bus cycle commands. The command sequence for the
erase suspend and program suspend are the same, and the command sequence for the erase
resume and program resume are the same.
3.10 128-Bit Protection Register
The AT49BV642D(T) contains a 128-bit register that can be used for security purposes in system design. The protection register is divided into two 64-bit blocks. The two blocks are
designated as block A and block B. The data in block A is non-changeable and is programmed
at the factory with a unique number. The data in block B is programmed by the user and can be
locked out such that data in the block cannot be reprogrammed. To program block B in the protection register, the four-bus cycle Program Protection Register command must be used as
shown in the “Command Definition Table” on page 11. To lock out block B, the four-bus cycle
lock protection register command must be used as shown in the Command Definition table. Data
bit D1 must be zero during the fourth bus cycle. All other data bits during the fourth bus cycle are
don’t cares. To determine whether block B is locked out, the status of Block B Protection command is given. If data bit D1 is zero, block B is locked. If data bit D1 is one, block B can be
reprogrammed. Please see the “Protection Register Addressing Table” on page 12 for the
address locations in the protection register. To read the protection register, the Product ID Entry
command is given followed by a normal read operation from an address within the protection
register. After determining whether block B is protected or not or reading the protection register,
the Product ID Exit command must be given prior to performing any other operation.
6
AT49BV642D(T)
3631A–FLASH–04/06
3.11 Common Flash Interface (CFI)
Common Flash Interface (CFI) is a published, standardized data structure that may be read from
a Flash device. CFI allows system software to query the installed device to determine the configurations, various electrical and timing parameters, and functions supported by the device. CFI is
used to allow the system to learn how to interface to the Flash device most optimally. The two
primary benefits of using CFI are ease of upgrading and second source availability. The command to enter the CFI Query mode is a one-bus cycle command which requires writing data 98h
to address 55h. The CFI Query command can be written when the device is ready to read data
or can also be written when the part is in the product ID mode. Once in the CFI Query mode, the
system can read CFI data at the addresses given in the “Common Flash Interface Definition
Table” on page 24. To exit the CFI Query mode, the product ID exit command must be given.
3.12 Hardware Data Protection
Hardware features protect against inadvertent programs to the AT49BV642D(T) in the following
ways: (a) V
power-on delay: once VCC has reached the VCC sense level, the device will automatically timeout 10 ms (typical) before programming. (c) Program inhibit: holding any one of OE
or WE
high inhibits program cycles. (d) VPP is less than V
sense: if VCC is below 1.8V (typical), the program function is inhibited. (b) V
CC
ILPP
AT49BV642D(T)
CC
low, CE high
.
3.13 Input Levels
3.14 Output Levels
While operating with a 2.65V to 3.6V power supply, the address inputs and control inputs (OE,
CE
and WE) may be driven from 0 to 5.5V without adversely affecting the operation of the
device. The I/O lines can be driven from 0 to V
For the AT49BV642D(T), output high levels are equal to V
3.6V output levels, V
must be tied to VCC.
CCQ
CCQ
+ 0.6V.
- 0.1V (not VCC). For 2.65V to
CCQ
3631A–FLASH–04/06
7
Figure 3-1. Data Polling Algorithm
(Configuration Register = 00)
Figure 3-2. Data Polling Algorithm
(Configuration Register = 01)
Read I/O7 - I/O0
I/O7 = Data?
NO
I/O3, I/O5 = 1?
Read I/O7 - I/O0
START
Addr = VA
NO
YES
Addr = VA
I/O7 = Data?
YES
YES
Read I/O7 - I/O0
Addr = VA
NO
I/O7 = 1?
I/O3, I/O5 = 1?
Program/Erase
Operation Not
Successful, Write
Product ID
Exit Command
START
YES
YES
NO
Program/Erase
Operation
Successful,
Write Product ID
Exit Command
NO
Program/Erase
Operation Not
Successful, Write
Product ID
Exit Command
Notes: 1. VA = Valid address for programming. During a sector
erase operation, a valid address is any sector
address within the sector being erased. During chip
erase, a valid address is any non-protected sector
address.
2. I/O7 should be rechecked even if I/O5 = “1” because
I/O7 may change simultaneously with I/O5.
8
AT49BV642D(T)
Program/Erase
Operation
Successful,
Device in
Read Mode
Note: 1. VA = Valid address for programming. During a sector
erase operation, a valid address is any sector
address within the sector being erased. During chip
erase, a valid address is any non-protected sector
address.
3631A–FLASH–04/06
AT49BV642D(T)
Figure 3-3. Toggle Bit Algorithm
(Configuration Register = 00)
START
Read I/O7 - I/O0
Read I/O7 - I/O0
Toggle Bit =
NO
Toggle?
YES
NO
I/O3, I/O5 = 1?
Figure 3-4. Toggle Bit Algorithm
(Configuration Register = 01)
START
Read I/O7 - I/O0
Read I/O7 - I/O0
Toggle Bit =
NO
Toggle?
YES
NO
I/O3, I/O5 = 1?
YES
Read I/O7 - I/O0
Twice
Toggle Bit =
NO
Toggle?
YES
Program/Erase
Operation Not
Successful, Write
Product ID
Exit Command
Note: 1. The system should recheck the toggle bit even if
I/O5 = “1” because the toggle bit may stop toggling
as I/O5 changes to “1”.
Program/Erase
Operation
Successful,
Device in
Read Mode
YES
Read I/O7 - I/O0
Twice
Toggle Bit =
NO
Toggle?
YES
Program/Erase
Operation Not
Successful, Write
Product ID
Exit Command
Note: 1. The system should recheck the toggle bit even if
I/O5 = “1” because the toggle bit may stop toggling
as I/O5 changes to “1”.
Program/Erase
Operation
Successful,
Write Product ID
Exit Command
3631A–FLASH–04/06
9
4. Status Bit Table
Status Bit
I/O7 I/O7 I/O6 I/O5
Configuration Register 00 01 00/01 00/01 00/01 00/01
Programming I/O7 0 TOGGLE 0 0 1
Erasing 0 0 TOGGLE 0 0 TOGGLE
Erase Suspended & Read
Erasing Sector
11100TOGGLE
(1)
I/O3
(2)
I/O2
Erase Suspended & Read
Non-erasing Sector
Erase Suspended & Program
Non-erasing Sector
Erase Suspended & Program
Suspended and Reading from
Non-suspended Sectors
Program Suspended & Read
Programming Sector
Program Suspended & Read
Non-programming Sector
Notes: 1. I/O5 switches to a “1” when a program or an erase operation has exceeded the maximum time limits or when a program or
sector erase operation is performed on a protected sector.
2. I/O3 switches to a “1” when the V
DATA D ATA DATA D ATA DATA D ATA
I/O7
DATA D ATA DATA D ATA DATA D ATA
I/O7 1 1 0 0 TOGGLE
DATA D ATA DATA D ATA DATA D ATA
level is not high enough to successfully perform program and erase operations.
PP
0 TOGGLE 0 0 TOGGLE
10
AT49BV642D(T)
3631A–FLASH–04/06
5. Command Definition Table
AT49BV642D(T)
1st Bus
Command Sequence
Read 1 Addr D
Chip Erase 6 555 AA AAA
Sector Erase 6 555 AA AAA 55 555 80 555 AA AAA 55 SA
Word Program 4 555 AA AAA 55 555 A0 Addr D
Dual-Word Program
Enter Single-pulse P rogram
Mode
Single-pulse Word Program
Mode
Sector Lockdown
Erase/Program Suspend 1 xxx B0
Erase/Program Resume 1 xxx 30
Product ID Entry
Product ID Exit
Product ID Exit
Program Protection
Register – Block B
Lock Protection
Register – Block B
Status of Block B
Protection
Set Configuration Register 4 555 AA AAA 55 555 D0 xxx 00/01
CFI Query 1 X55 98
(4)
(5)
(6)
(7)
(7)
Bus
Cycles
5 555 AA AAA 55 555 E0 Addr0 D
6 555 AA AAA 55 555 80 555 AA AAA 55 555 A0
1 Addr D
6 555 AA AAA 55 555 80 555 AA AAA 55 SA
3 555 AA AAA 55 555 90
3 555 AA AAA 55 555 F0
1xxxF0
4 555 AA AAA 55 555 C0 Addr
4 555 AA AAA 55 555 C0 80 X0
4 555 AA AAA 55 555 90 80 D
Cycle
Addr Data Addr Data Addr Data Addr Data Addr Data Addr Data
OUT
IN
(8)
2nd Bus
Cycle
(2)
55 555 80 555 AA AAA 55 555 10
3rd Bus
Cycle
4th Bus
Cycle
IN
IN0
(8)
(9)
D
OUT
IN
(10)
(11)
5th Bus
Cycle
Addr1 D
IN1
6th Bus
Cycle
(3)
(3)(5)
30
60
Notes: 1. The DATA FORMAT in each bus cycle is as follows: I/O15 - I/O8 (Don’t Care); I/O7 - I/O0 (Hex). The ADDRESS FORMAT in
each bus cycle is as follows: A11 - A0 (Hex), A11 - A21 (Don’t Care).
2. Since A11 is a Don’t Care, AAA can be replaced with 2AA.
3. SA = sector address. Any word address within a sector can be used to designate the sector address (see pages 13 - 16
for details).
4. The fast programming option enables the user to program two words in parallel only when V
and Addr1, of the two words, D
IN0
and D
, must only differ in address A0. This command should be used for manufacturing
IN1
= 10V. The addresses, Addr0
PP
purpose only.
5. Once a sector is in the lockdown mode, the data in the protected sector cannot be changed, unless the chip is reset or power
cycled.
6. During the fourth bus cycle, the manufacturer code is read from address 00000H, the device code is read from address
00001H, and the data in the protection register is read from addresses 000081H - 000088H.
7. Either one of the Product ID Exit commands can be used.
8. Bytes of data other than F0 may be used to exit the product ID mode. However, it is recommended that F0 be used.
9. Any address within the user programmable register region. Please see “Protection Register Addressing Table” on page 12.
10. If data bit D1 is “0”, block B is locked. If data bit D1 is “1”, block B can be reprogrammed.
11. The default state (after power-up) of the configuration register is “00”.
3631A–FLASH–04/06
11
6. Absolute Maximum Ratings*
Temperature under Bias ................................ -55°C to +125°C
Storage Temperature ..................................... -65°C to +150°C
All Input Voltages Except V
(including NC Pins)
with Respect to Ground ...................................-0.6V to +6.25V
V
Input Voltage
PP
with Respect to Ground .........................................0V to 10.0V
All Output Voltages
with Respect to Ground ...........................-0.6V to V
PP
CCQ
+ 0.6V
*NOTICE: Stresses beyond those listed under “Absolute
Maximum Ratings” may cause permanent damage to the device. This is a stress rating only and
functional operation of the device at these or any
other conditions beyond those indicated in the
operational sections of this specification is not
implied. Exposure to absolute maximum rating
conditions for extended periods may affect device
reliability.
7. Protection Register Addressing Table
Word Use Block A7 A6 A5 A4 A3 A2 A1 A0
0FactoryA10000001
1FactoryA10000010
2FactoryA10000011
3FactoryA10000100
4UserB10000101
5UserB10000110
6UserB10000111
7UserB10001000
Note: All address lines not specified in the above table must be “0” when accessing the protection register, i.e. A21 -A8 = 0.
12
AT49BV642D(T)
3631A–FLASH–04/06
8. Memory Organization –
AT49BV642D
x16
Address Range
Sector Size (Words)
SA0 4K 00000 - 00FFF
SA1 4K 01000 - 01FFF
SA2 4K 02000 - 02FFF
SA3 4K 03000 - 03FFF
SA4 4K 04000 - 04FFF
SA5 4K 05000 - 05FFF
SA6 4K 06000 - 06FFF
SA7 4K 07000 - 07FFF
SA8 32K 08000 - 0FFFF
SA9 32K 10000 - 17FFF
SA10 32K 18000 - 1FFFF
SA11 32K 20000 - 27FFF
SA12 32K 28000 - 2FFFF
SA13 32K 30000 - 37FFF
SA14 32K 38000 - 3FFFF
SA15 32K 40000 - 47FFF
SA16 32K 48000 - 4FFFF
SA17 32K 50000 - 57FFF
SA18 32K 58000 - 5FFFF
SA19 32K 60000 - 67FFF
SA20 32K 68000 - 6FFFF
SA21 32K 70000 - 77FFF
SA22 32K 78000 - 7FFFF
SA23 32K 80000 - 87FFF
SA24 32K 88000 - 8FFFF
SA25 32K 90000 - 97FFF
SA26 32K 98000 - 9FFFF
SA27 32K A0000 - A7FFF
SA28 32K A8000 - AFFFF
SA29 32K B0000 - B7FFF
SA30 32K B8000 - BFFFF
SA31 32K C0000 - C7FFF
SA32 32K C8000 - CFFFF
(A21 - A0)
AT49BV642D(T)
8. Memory Organization –
AT49BV642D (Continued)
x16
Address Range
Sector Size (Words)
SA33 32K D0000 - D7FFF
SA34 32K D8000 - DFFFF
SA35 32K E0000 - E7FFF
SA36 32K E8000 - EFFFF
SA37 32K F0000 - F7FFF
SA38 32K F8000 - FFFFF
SA39 32K 100000 - 107FFF
SA40 32K 108000 - 10FFFF
SA41 32K 110000 - 117FFF
SA42 32K 118000 - 11FFFF
SA43 32K 120000 - 127FFF
SA44 32K 128000 - 12FFFF
SA45 32K 130000 - 137FFF
SA46 32K 138000 - 13FFFF
SA47 32K 140000 - 147FFF
SA48 32K 148000 - 14FFFF
SA49 32K 150000 - 157FFF
SA50 32K 158000 - 15FFFF
SA51 32K 160000 - 167FFF
SA52 32K 168000 - 16FFFF
SA53 32K 170000 - 177FFF
SA54 32K 178000 - 17FFFF
SA55 32K 180000 - 187FFF
SA56 32K 188000 - 18FFFF
SA57 32K 190000 - 197FFF
SA58 32K 198000 - 19FFFF
SA59 32K 1A0000 - 1A7FFF
SA60 32K 1A8000 - 1AFFFF
SA61 32K 1B0000 - 1B7FFF
SA62 32K 1B8000 - 1BFFFF
SA63 32K 1C0000 - 1C7FFF
SA64 32K 1C8000 - 1CFFFF
SA65 32K 1D0000 - 1D7FFF
(A21 - A0)
3631A–FLASH–04/06
13
8. Memory Organization –
8. Memory Organization –
AT49BV642D (Continued)
x16
Sector Size (Words)
SA66 32K 1D8000 - 1DFFFF
SA67 32K 1E0000 - 1E7FFF
SA68 32K 1E8000 - 1EFFFF
SA69 32K 1F0000 - 1F7FFF
SA70 32K 1F8000 - 1FFFFF
SA71 32K 200000 - 207FFF
SA72 32K 208000 - 20FFFF
SA73 32K 210000 - 217FFF
SA74 32K 218000 - 21FFFF
SA75 32K 220000 - 227FFF
SA76 32K 228000 - 22FFFF
SA77 32K 230000 - 237FFF
SA78 32K 238000 - 23FFFF
SA79 32K 240000 - 247FFF
SA80 32K 248000 - 24FFFF
SA81 32K 250000 - 257FFF
SA82 32K 258000 - 25FFFF
SA83 32K 260000 - 267FFF
SA84 32K 268000 - 26FFFF
SA85 32K 270000 - 277FFF
SA86 32K 278000 - 27FFFF
SA87 32K 280000 - 287FFF
SA88 32K 288000 - 28FFFF
SA89 32K 290000 - 297FFF
SA90 32K 298000 - 29FFFF
SA91 32K 2A0000 - 2A7FFF
SA92 32K 2A8000 - 2AFFFF
SA93 32K 2B0000 - 2B7FFF
SA94 32K 2B8000 - 2BFFFF
SA95 32K 2C0000 - 2C7FFF
SA96 32K 2C8000 - 2CFFFF
SA97 32K 2D0000 - 2D7FFF
SA98 32K 2D8000 - 2DFFFF
SA99 32K 2E0000 - 2E7FFF
Address Range
(A21 - A0)
AT49BV642D (Continued)
x16
Sector Size (Words)
SA100 32K 2E8000 - 2EFFFF
SA101 32K 2F0000 - 2F7FFF
SA102 32K 2F8000 - 2FFFFF
SA103 32K 300000 - 307FFF
SA104 32K 308000 - 30FFFF
SA105 32K 310000 - 317FFF
SA106 32K 318000 - 31FFFF
SA107 32K 320000 - 327FFF
SA108 32K 328000 - 32FFFF
SA109 32K 330000 - 337FFF
SA110 32K 338000 - 33FFFF
SA111 32K 340000 - 347FFF
SA112 32K 348000 - 34FFFF
SA113 32K 350000 - 357FFF
SA114 32K 358000 - 35FFFF
SA115 32K 360000 - 367FFF
SA116 32K 368000 - 36FFFF
SA117 32K 370000 - 377FFF
SA118 32K 378000 - 37FFFF
SA119 32K 380000 - 387FFF
SA120 32K 388000 - 38FFFF
SA121 32K 390000 - 397FFF
SA122 32K 398000 - 39FFFF
SA123 32K 3A0000 - 3A7FFF
SA124 32K 3A8000 - 3AFFFF
SA125 32K 3B0000 - 3B7FFF
SA126 32K 3B8000 - 3BFFFF
SA127 32K 3C0000 - 3C7FFF
SA128 32K 3C8000 - 3CFFFF
SA129 32K 3D0000 - 3D7FFF
SA130 32K 3D8000 - 3DFFFF
SA131 32K 3E0000 - 3E7FFF
SA132 32K 3E8000 - 3EFFFF
SA133 32K 3F0000 - 3F7FFF
SA134 32K 3F8000 - 3FFFFF
Address Range
(A21 - A0)
14
AT49BV642D(T)
3631A–FLASH–04/06
AT49BV642D(T)
9. Memory Organization –
AT49BV642DT
x16
Sector
SA0 32K 00000 - 07FFF
SA1 32K 08000 - 0FFFF
SA2 32K 10000 - 17FFF
SA3 32K 18000 - 1FFFF
SA4 32K 20000 - 27FFF
SA5 32K 28000 - 2FFFF
SA6 32K 30000 - 37FFF
SA7 32K 38000 - 3FFFF
SA8 32K 40000 - 47FFF
SA9 32K 48000 - 4FFFF
SA10 32K 50000 - 57FFF
SA11 32K 58000 - 5FFFF
SA12 32K 60000 - 67FFF
SA13 32K 68000 - 6FFFF
SA14 32K 70000 - 77FFF
SA15 32K 78000 - 7FFFF
SA16 32K 80000 - 87FFF
SA17 32K 88000 - 8FFFF
SA18 32K 90000 - 97FFF
SA19 32K 98000 - 9FFFF
SA20 32K A0000 - A7FFF
SA21 32K A8000 - AFFFF
SA22 32K B0000 - B7FFF
SA23 32K B8000 - BFFFF
SA24 32K C0000 - C7FFF
SA25 32K C8000 - CFFFF
SA26 32K D0000 - D7FFF
SA27 32K D8000 - DFFFF
SA28 32K E0000 - E7FFF
SA29 32K E8000 - EFFFF
SA30 32K F0000 - F7FFF
SA31 32K F8000 - FFFFF
SA32 32K 100000 - 107FFF
SA33 32K 108000 - 10FFFF
SA34 32K 110000 - 117FFF
SA35 32K 118000 - 11FFFF
Size
(Words)
Address Range
(A21 - A0)
9. Memory Organization –
AT49BV642DT (Continued)
x16
Sector
SA36 32K 120000 - 127FFF
SA37 32K 128000 - 12FFFF
SA38 32K 130000 - 137FFF
SA39 32K 138000 - 13FFFF
SA40 32K 140000 - 147FFF
SA41 32K 148000 - 14FFFF
SA42 32K 150000 - 157FFF
SA43 32K 158000 - 15FFFF
SA44 32K 160000 - 167FFF
SA45 32K 168000 - 16FFFF
SA46 32K 170000 - 177FFF
SA47 32K 178000 - 17FFFF
SA48 32K 180000 - 187FFF
SA49 32K 188000 - 18FFFF
SA50 32K 190000 - 197FFF
SA51 32K 198000 - 19FFFF
SA52 32K 1A0000 - 1A7FFF
SA53 32K 1A8000 - 1AFFFF
SA54 32K 1B0000 - 1B7FFF
SA55 32K 1B8000 - 1BFFFF
SA56 32K 1C0000 - 1C7FFF
SA57 32K 1C8000 - 1CFFFF
SA58 32K 1D0000 - 1D7FFF
SA59 32K 1D8000 - 1DFFFF
SA60 32K 1E0000 - 1E7FFF
SA61 32K 1E8000 - 1EFFFF
SA62 32K 1F0000 - 1F7FFF
SA63 32K 1F8000 - 1FFFFF
SA64 32K 200000 - 207FFF
SA65 32K 208000 - 20FFFF
SA66 32K 210000 - 217FFF
SA67 32K 218000 - 21FFFF
SA68 32K 220000 - 227FFF
SA69 32K 228000 - 22FFFF
SA70 32K 230000 - 237FFF
SA71 32K 238000 - 23FFFF
Size
(Words)
Address Range
(A21 - A0)
3631A–FLASH–04/06
15
9. Memory Organization –
9. Memory Organization –
AT49BV642DT (Continued)
x16
Sector
SA72 32K 240000 - 247FFF
SA73 32K 248000 - 24FFFF
SA74 32K 250000 - 257FFF
SA75 32K 258000 - 25FFFF
SA76 32K 260000 - 267FFF
SA77 32K 268000 - 26FFFF
SA78 32K 270000 - 277FFF
SA79 32K 278000 - 27FFFF
SA80 32K 280000 - 287FFF
SA81 32K 288000 - 28FFFF
SA82 32K 290000 - 297FFF
SA83 32K 298000 -29FFFF
SA84 32K 2A0000 - 2A7FFF
SA85 32K 2A8000 - 2AFFFF
SA86 32K 2B0000 - 2B7FFF
SA87 32K 2B8000 - 2BFFFF
SA88 32K 2C0000 - 2C7FFF
SA89 32K 2C8000 - 2CFFFF
SA90 32K 2D0000 - 2D7FFF
SA91 32K 2D8000 - 2DFFFF
SA92 32K 2E0000 - 2E7FFF
SA93 32K 2E8000 - 2EFFFF
SA94 32K 2F0000 - 2F7FFF
SA95 32K 2F8000 - 2FFFFF
SA96 32K 300000 - 307FFF
SA97 32K 308000 - 30FFFF
SA98 32K 310000 - 317FFF
SA99 32K 318000 - 31FFFF
SA100 32K 320000 - 327FFF
SA101 32K 328000 - 32FFFF
SA102 32K 330000 - 337FFF
SA103 32K 338000 - 33FFFF
Size
(Words)
Address Range
(A21 - A0)
AT49BV642DT (Continued)
x16
Sector
SA104 32K 340000 - 347FFF
SA105 32K 348000 - 34FFFF
SA106 32K 350000 - 357FFF
SA107 32K 358000 - 35FFFF
SA108 32K 360000 - 367FFF
SA109 32K 368000 - 36FFFF
SA110 32K 370000 - 377FFF
SA111 32K 378000 - 37FFFF
SA112 32K 380000 - 387FFF
SA113 32K 388000 - 38FFFF
SA114 32K 390000 - 397FFF
SA115 32K 398000 - 39FFFF
SA116 32K 3A0000 - 3A7FFF
SA117 32K 3A8000 - 3AFFFF
SA118 32K 3B0000 - 3B7FFF
SA119 32K 3B8000 - 3BFFFF
SA120 32K 3C0000 - 3C7FFF
SA121 32K 3C8000 - 3CFFFF
SA122 32K 3D0000 - 3D7FFF
SA123 32K 3D8000 - 3DFFFF
SA124 32K 3E0000 - 3E7FFF
SA125 32K 3E8000 - 3EFFFF
SA126 32K 3F0000 - 3F7FFF
SA127 4K 3F8000 - 3F8FFF
SA128 4K 3F9000 - 3F9FFF
SA129 4K 3FA000 - 3FAFFF
SA130 4K 3FB000 - 3FBFFF
SA131 4K 3FC000 - 3FCFFF
SA132 4K 3FD000 - 3FDFFF
SA133 4K 3FE000 - 3FEFFF
SA134 4K 3FF000 - 3FFFFF
Size
(Words)
Address Range
(A21 - A0)
16
AT49BV642D(T)
3631A–FLASH–04/06
AT49BV642D(T)
10. DC and AC Operating Range
AT49BV642D(T) - 70
Operating Temperature (Case) Industrial -40°C - 85°C
VCC Power Supply 2.7V - 3.6V
11. Operating Modes
V
PP
X
IHPP
(1)
(2)
(4)
Ai I/O
Ai D
Ai D
X
(5)
ILPP
XX High Z
A0 = VIL, A1 - A21 = V
A0 = VIH, A1 - A21 = V
IL
IL
Mode CE OE WE RESET V
Read V
Program/Erase
(3)
Standby/Program Inhibit V
Program Inhibit
X
V
IL
V
IH
(2)
IL
V
IL
IH
XXV
XV
IL
V
IH
V
IL
V
IH
V
IH
XVIHXX High Z
IH
V
IH
XVIHX
XXXXV
Output Disable X V
IH
Reset XXXV
Software Product
Identification
XVIHX High Z
IL
V
IH
Notes: 1. The VPP pin can be tied to VCC. For faster program operations, VPP can be set to 9.5V ± 0.5V.
2. X can be V
or VIH.
IL
3. Refer to program cycle waveforms on page 21.
4. V
5. V
(min) = 1.65V.
IHPP
(max) = 0.4V.
ILPP
6. Manufacturer Code: 001FH; Device Code: 01D6H - AT49BV642D; 01D2H - AT49BV642DT.
OUT
IN
Manufacturer Code
Device Code
(6)
(6)
3631A–FLASH–04/06
17
12. DC Characteristics
Symbol Parameter Condition Min Typ Max Units
I
I
I
I
I
V
V
V
V
LI
LO
SB
CC
CC1
IL
IH
OL
OH
Input Load Current VIN = 0V to V
Output Leakage Current V
= 0V to V
I/O
VCC Standby Current CMOS CE = V
(1)
V
Active Read Current f = 5 MHz; I
CC
V
Programming Current 25 mA
CC
- 0.3V to V
CCQ
OUT
CC
CC
CC
15 25 µA
= 0 mA 10 15 mA
Input Low Voltage 0.6 V
Input High Voltage V
- 0.6 V
CCQ
Output Low Voltage IOL = 2.1 mA 0.45 V
Output High Voltage IOH = -100 µA V
- 0.1 V
CCQ
2µA
2µA
Note: 1. In the erase mode, ICC is 25 mA.
13. Input Test Waveforms and Measurement Level
2.0V
AC
DRIVING
LEVELS
1.5V
0.6V
AC
MEASUREMENT
LEVEL
tR, tF < 5 ns
14. Output Test Load
V
CCQ
1.8K
OUTPUT
PIN
1.3K
15. Pin Capacitance
f = 1 MHz, T = 25°C
C
IN
C
OUT
Note: 1. This parameter is characterized and is not 100% tested.
(1)
Typ Max Units Conditions
46pFV
812pFV
30 pF
IN
OUT
= 0V
= 0V
18
AT49BV642D(T)
3631A–FLASH–04/06
AT49BV642D(T)

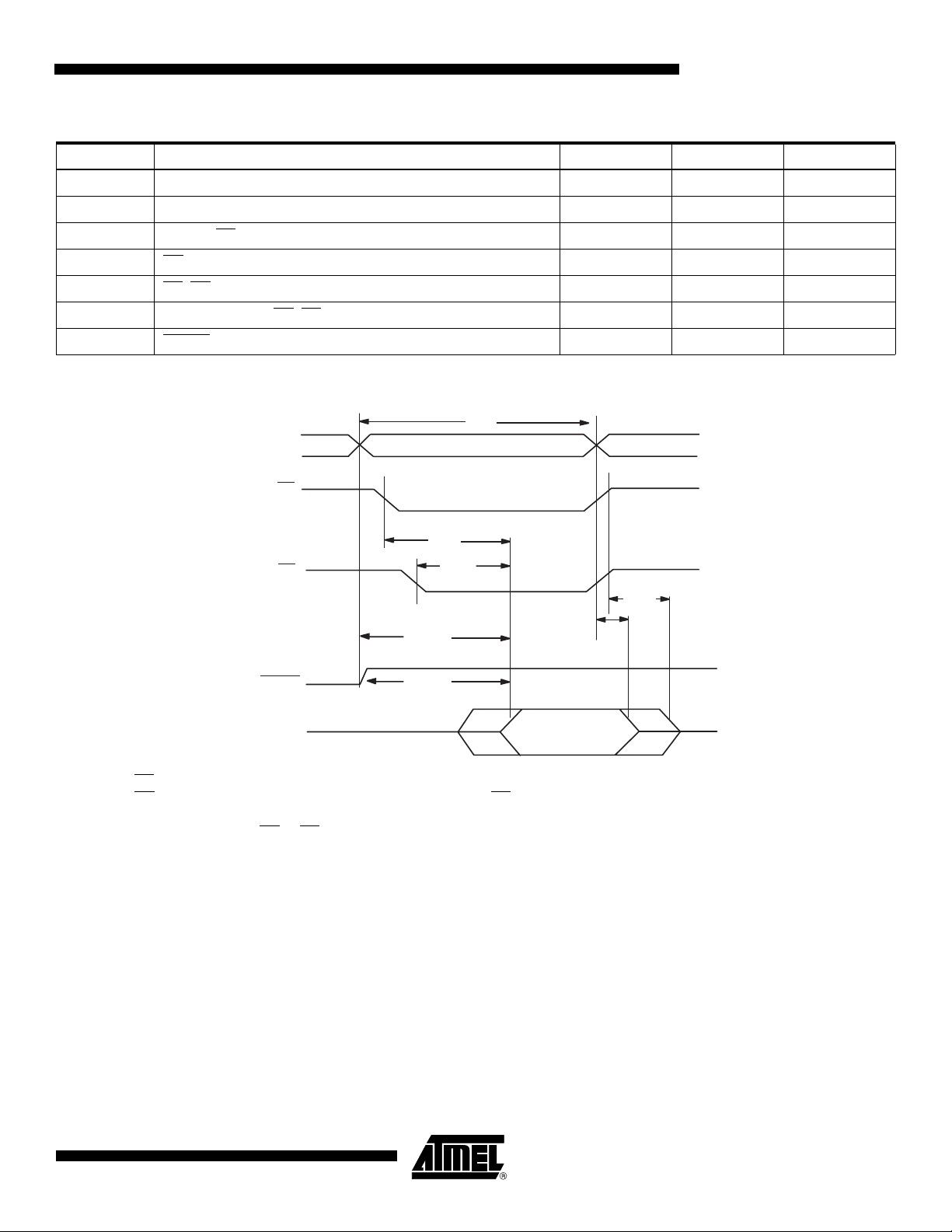

16. AC Read Characteristics
Symbol Parameter Min Max Units
t
t
t
t
t
t
t
RC
ACC
CE
OE
DF
OH
RO
Read Cycle Time 70 ns
Access, Address to Data Valid 70 ns
Access, CE to Data Valid 70 ns
OE to Data Valid 20 ns
CE, OE High to Data Float 25 ns
Output Hold from OE, CE or Address, whichever Occurs First 0 ns
RESET to Output Delay 100 ns
17. Asynchronous Read Cycle Waveform
A0 - A21
CE
OE
RESET
I/O0 - I/O15
Notes: 1. CE may be delayed up to t
may be delayed up to tCE - tOE after the falling edge of CE without impact on tCE or by t
2. OE
without impact on t
ACC
.
3. tDF is specified from OE or CE, whichever occurs first (CL = 5 pF).
HIGH Z
- tCE after the address transition without impact on t
ACC
ADDRESS VALID
t
CE
t
OE
t
ACC
t
RO
(1)(2)(3)
t
RC
OUTPUT
VALID
t
DF
t
OH
.
ACC
- tOE after an address change
ACC
3631A–FLASH–04/06
19

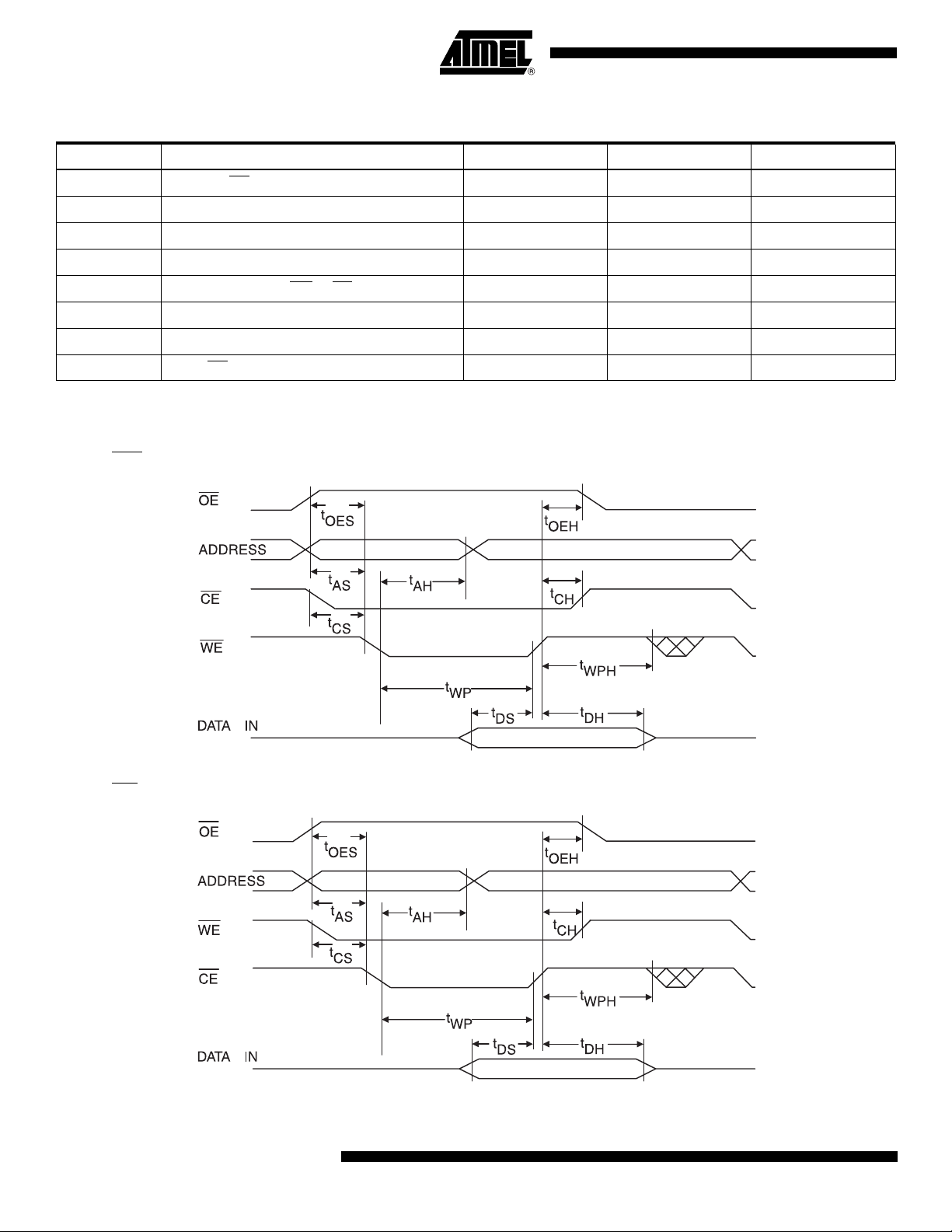

18. AC Word Load Characteristics
Symbol Parameter Min Max Units
t
AS
t
AH
t
CS
t
CH
t
WP
t
WPH
t
DS
t
DH
, t
OES
, t
OEH
Address, OE Setup Time 0 ns
Address Hold Time 25 ns
Chip Select Setup Time 0 ns
Chip Select Hold Time 0 ns
Write Pulse Width (WE or CE)25 ns
Write Pulse Width High 15 ns
Data Setup Time 25 ns
Data, OE Hold Time 0 ns
19. AC Word Load Waveforms
19.1 WE Controlled
19.2 CE Controlled
20
AT49BV642D(T)
3631A–FLASH–04/06
AT49BV642D(T)

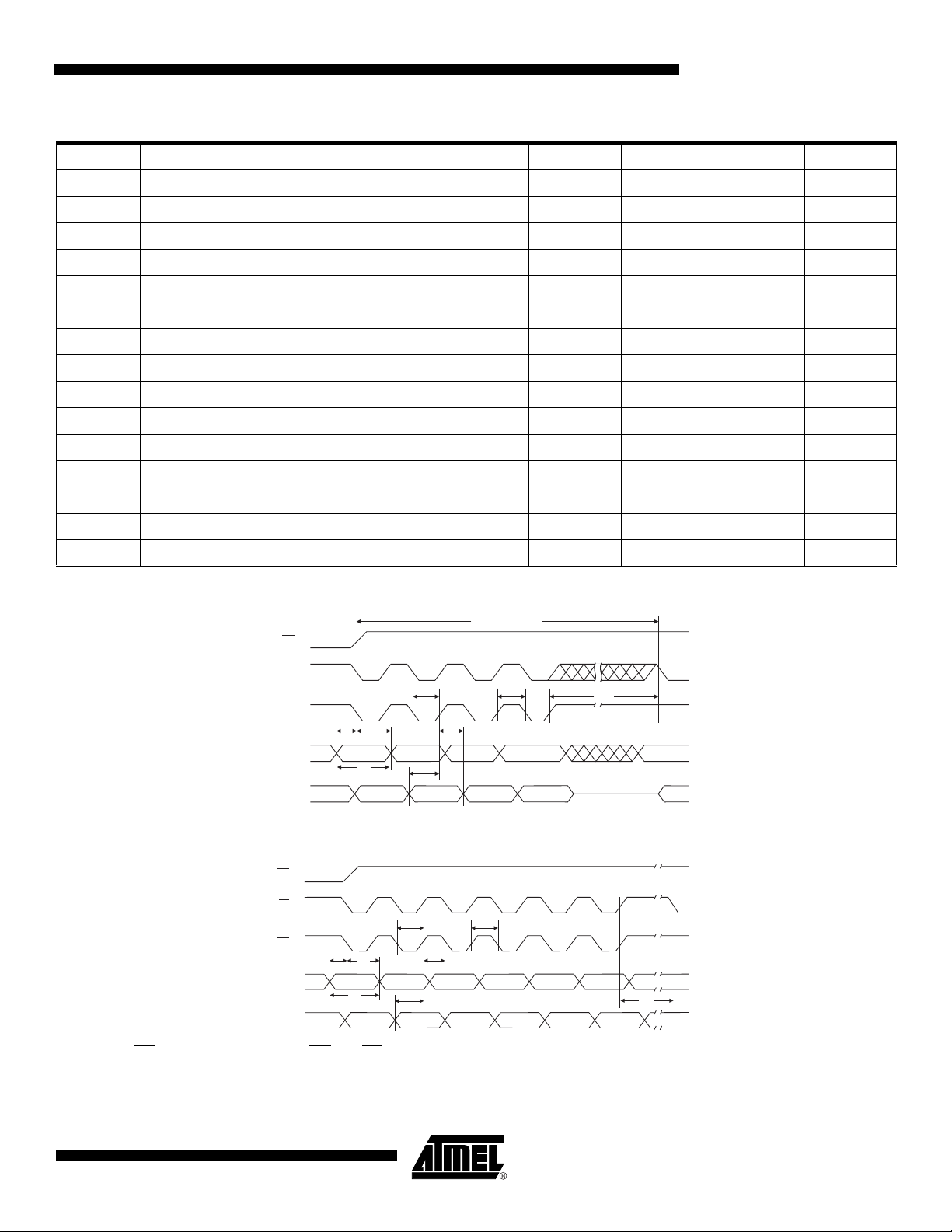

20. Program Cycle Characteristics
Symbol Parameter Min Typ Max Units
t
BP
t
BPD
t
AS
t
AH
t
DS
t
DH
t
WP
t
WPH
t
WC
t
RP
t
EC
t
SEC1
t
SEC2
t
ES
t
PS
Word Programming Time 10 120 µs
Word Programming Time in Dual Programming Mode 5 60 µs
Address Setup Time 0 ns
Address Hold Time 25 ns
Data Setup Time 25 ns
Data Hold Time 0 ns
Write Pulse Width 25 ns
Write Pulse Width High 15 ns
Write Cycle Time 70 ns
Reset Pulse Width 500 ns
Chip Erase Cycle Time 64 seconds
Sector Erase Cycle Time (4K Word Sectors) 0.1 2.0 seconds
Sector Erase Cycle Time (32K Word Sectors) 0.5 6.0 seconds
Erase Suspend Time 15 µs
Program Suspend Time 10 µs
21. Program Cycle Waveforms
PROGRAM CYCLE
OE
CE
WE
A0 - A21
DATA
t
t
t
AS
AH
555 555
t
WC
t
DS
AA
WP
t
DH
AAA
t
WPH
55
22. Sector or Chip Erase Cycle Waveforms
(1)
OE
CE
t
A0-A21
DATA
WE
t
AS
555
t
WC
WP
t
AH
AAA AAA
t
DS
AA
WORD 0
Notes: 1. OE must be high only when WE and CE are both low.
2. For chip erase, the address should be 555. For sector erase, the address depends on what sector is to be erased.
(See note 3 under “Command Definition Table” on page 11.)
3. For chip erase, the data should be 10H, and for sector erase, the data should be 30H.
t
WPH
t
DH
555
55 55
WORD 1 WORD 2
80
t
BP
Note 3
555
AA
t
EC
ADDRESS
555
AA
WORD 3
INPUT
DATA
WORD 4
Note 2
WORD 5
A0
3631A–FLASH–04/06
21
23. Data Polling Characteristics
Symbol Parameter Min Typ Max Units
t
t
t
t
DH
OEH
OE
WR
Data Hold Time 10 ns
OE Hold Time 10 ns
OE to Output Delay
(2)
Write Recovery Time 0 ns
Notes: 1. These parameters are characterized and not 100% tested.
2. See tOE spec on page 19.
24. Data Polling Waveforms
WE
CE
OE
I/O7
A0-A21
ns
25. Toggle Bit Characteristics
(1)
Symbol Parameter Min Typ Max Units
t
DH
t
OEH
t
OE
t
OEHP
t
WR
Data Hold Time 10 ns
OE Hold Time 10 ns
OE to Output Delay
(2)
OE High Pulse 50 ns
Write Recovery Time 0 ns
Notes: 1. These parameters are characterized and not 100% tested.
2. See tOE spec on page 19.
26. Toggle Bit Waveforms
(1)(2)(3)
ns
Notes: 1. Toggling either OE or CE or both OE and CE will operate toggle bit.
The t
specification must be met by the toggling input(s).
OEHP
2. Beginning and ending state of I/O6 will vary.
3. Any address location may be used but the address should not vary.
22
AT49BV642D(T)
3631A–FLASH–04/06
AT49BV642D(T)
27. Software Product Identification Entry
LOAD DATA AA
ADDRESS 555
LOAD DATA 55
ADDRESS AAA
LOAD DATA 90
ADDRESS 555
ENTER PRODUCT
IDENTIFICATION
MODE
28. Software Product Identification Exit
LOAD DATA AA
TO
ADDRESS 555
LOAD DATA 55
TO
ADDRESS AAA
(1)(6)
TO
TO
TO
OR
(1)
(2)(3)(5)
LOAD DATA F0
TO
ANY ADDRESS
EXIT PRODUCT
IDENTIFICATION
(4)
MODE
Notes: 1.
LOAD DATA F0
TO
ADDRESS 555
EXIT PRODUCT
IDENTIFICATION
(4)
MODE
Data Format: I/O15 - I/O8 (Don’t Care); I/O7 - I/O0 (Hex) Address Format: A11 - A0 (Hex), and A11 - A21 (Don’t Care).
2.
A1 - A21 = VIL. Manufacturer Code is read for A0 = VIL; Device Code is read for A0 = VIH.
3.
The device does not remain in identification mode if powered down.
4.
The device returns to standard operation mode.
5.
Manufacturer Code: 001FH(x16)
Device Code: 01D6H – AT49BV642D;
01D2H – AT49BV642DT.
6.
Either one of the Product ID Exit commands can be used.
3631A–FLASH–04/06
23
29. Common Flash Interface Definition Table
Address Data Comments
10h 0051h “Q”
11h 0052h “R”
12h 0059h “Y”
13h 0002h
14h 0000h
15h 0041h
16h 0000h
17h 0000h
18h 0000h
19h 0000h
1Ah 0000h
1Bh 0027h VCC min write/erase
1Ch 0036h VCC max write/erase
1Dh 0090h VPP min voltage
1Eh 00A0h VPP max voltage
1Fh 0004h Typ word write – 10 µs
20h 0002h Typ dual-word program time – 5 µs
21h 0009h Typ sector erase – 500 ms
22h 0010h Typ chip erase – 64,300 ms
23h 0004h Max word write/typ time
24h 0004h Max dual-word program time/typ time
25h 0004h Max sector erase/typ sector erase
26h 0004h Max chip erase/ typ chip erase
27h 0017h Device size
28h 0001h x16 device
29h 0000h x16 device
2Ah 0002h Max number of bytes in multiple byte write = 4
2Bh 0000h Max number of bytes in multiple byte write = 4
2Ch 0002h 2 regions, x = 2
2Dh 0007h 8K bytes, Y = 7
2Eh 0000h 8K bytes, Y = 7
2Fh 0020h 8K bytes, Z = 32
30h 0000h 8K bytes, Z = 32
31h 007Eh 64K bytes, Y = 126
32h 0000h 64K bytes, Y = 126
33h 0000h 64K bytes, Z = 256
34h 0001h 64K bytes, Z = 256
24
AT49BV642D(T)
3631A–FLASH–04/06
29. Common Flash Interface Definition Table (Continued)
Address Data Comments
VENDOR SPECIFIC EXTENDED QUERY
41h 0050h “P”
42h 0052h “R”
43h 0049h “I”
44h 0031h Major version number, ASCII
45h 0030h Minor version number, ASCII
Bit 0 – chip erase supported, 0 – no, 1 – yes
Bit 1 – erase suspend supported, 0 – no, 1 – yes
Bit 2 – program suspend supported, 0 – no, 1 – yes
46h 0087h
47h
48h 0000h
49h 0000h
4Ah 0080h Location of protection register lock byte, the section's first byte
4Bh 0003h # of bytes in the factory prog section of prot register – 2*n
0000h AT49BV642DT or
0001h AT49BV642D
Bit 3 – simultaneous operations supported, 0 – no, 1 – yes
Bit 4 – burst mode read supported, 0 – no, 1 – yes
Bit 5 – page mode read supported, 0 – no, 1 – yes
Bit 6 – queued erase supported, 0 – no, 1 – yes
Bit 7 – protection bits supported, 0 – no, 1 – yes
Bit 0 – top (“0”) or bottom (“1”) boot block device
Undefined bits are “0”
Bit 0 – 4 word linear burst with wrap around, 0 – no, 1 – yes
Bit 1 – 8 word linear burst with wrap around, 0 – no, 1 – yes
Bit 2 – continuos burst, 0 – no, 1 – yes
Undefined bits are “0”
Bit 0 – 4 word page, 0 – no, 1 – yes
Bit 1 – 8 word page, 0 – no, 1 – yes
Undefined bits are “0”
AT49BV642D(T)
4Ch 0003h # of bytes in the user prog section of prot register – 2*n
3631A–FLASH–04/06
25
30. Ordering Information
30.1 Green Package (Pb/Halide-free/RoHS Compliant)
I
(mA)
t
ACC
(ns)
70 15 0.025
CC
Ordering Code Package Operation RangeActive Standby
AT49BV642D-70TU
AT49BV642DT-70TU
48T
Industrial
(-40° to 85° C)
Package Type
48T 48-lead, Plastic Thin Small Outline Package (TSOP)
26
AT49BV642D(T)
3631A–FLASH–04/06
31. Packaging Information
31.1 48T – TSOP
AT49BV642D(T)
PIN 1
Pin 1 Identifier
D1
D
e
E
b
A2
A
SEATING PLANE
A1
Notes: 1. This package conforms to JEDEC reference MO-142, Variation DD.
2. Dimensions D1 and E do not include mold protrusion. Allowable
protrusion on E is 0.15 mm per side and on D1 is 0.25 mm per side.
3. Lead coplanarity is 0.10 mm maximum.
0º ~ 8º
L
COMMON DIMENSIONS
SYMBOL
A – – 1.20
A1 0.05 – 0.15
A2 0.95 1.00 1.05
D 19.80 20.00 20.20
D1 18.30 18.40 18.50 Note 2
E 11.90 12.00 12.10 Note 2
L 0.50 0.60 0.70
L1 0.25 BASIC
b 0.17 0.22 0.27
c 0.10 – 0.21
e 0.50 BASIC
MIN
c
L1
GAGE PLANE
(Unit of Measure = mm)
NOM
MAX
NOTE
2325 Orchard Parkway
R
San Jose, CA 95131
3631A–FLASH–04/06
TITLE
48T, 48-lead (12 x 20 mm Package) Plastic Thin Small Outline
Package, Type I (TSOP)
DRAWING NO.
48T
10/18/01
REV.
B
27
32. Revision History
Revision No. History
Revision A – April 2006 • Initial Release
28
AT49BV642D(T)
3631A–FLASH–04/06
Atmel Corporation Atmel Operations
2325 Orchard Parkway
San Jose, CA 95131, USA
Tel: 1(408) 441-0311
Fax: 1(408) 487-2600
Regional Headquarters
Europe
Atmel Sarl
Route des Arsenaux 41
Case Postale 80
CH-1705 Fribourg
Switzerland
Tel: (41) 26-426-5555
Fax: (41) 26-426-5500
Asia
Room 1219
Chinachem Golden Plaza
77 Mody Road Tsimshatsui
East Kowloon
Hong Kong
Tel: (852) 2721-9778
Fax: (852) 2722-1369
Japan
9F, Tonetsu Shinkawa Bldg.
1-24-8 Shinkawa
Chuo-ku, Tokyo 104-0033
Japan
Tel: (81) 3-3523-3551
Fax: (81) 3-3523-7581
Memory
2325 Orchard Parkway
San Jose, CA 95131, USA
Tel: 1(408) 441-0311
Fax: 1(408) 436-4314
Microcontrollers
2325 Orchard Parkway
San Jose, CA 95131, USA
Tel: 1(408) 441-0311
Fax: 1(408) 436-4314
La Chantrerie
BP 70602
44306 Nantes Cedex 3, France
Tel: (33) 2-40-18-18-18
Fax: (33) 2-40-18-19-60
ASIC/ASSP/Smart Cards
Zone Industrielle
13106 Rousset Cedex, France
Tel: (33) 4-42-53-60-00
Fax: (33) 4-42-53-60-01
1150 East Cheyenne Mtn. Blvd.
Colorado Springs, CO 80906, USA
Tel: 1(719) 576-3300
Fax: 1(719) 540-1759
Scottish Enterprise Technology Park
Maxwell Building
East Kilbride G75 0QR, Scotland
Tel: (44) 1355-803-000
Fax: (44) 1355-242-743
RF/Automotive
Theresienstrasse 2
Postfach 3535
74025 Heilbronn, Germany
Tel: (49) 71-31-67-0
Fax: (49) 71-31-67-2340
1150 East Cheyenne Mtn. Blvd.
Colorado Springs, CO 80906, USA
Tel: 1(719) 576-3300
Fax: 1(719) 540-1759
Biometrics/Imaging/Hi-Rel MPU/
High Speed Converters/RF Datacom
Avenue de Rochepleine
BP 123
38521 Saint-Egreve Cedex, France
Tel: (33) 4-76-58-30-00
Fax: (33) 4-76-58-34-80
Literature Requests
www.atmel.com/literature
Disclaimer: The information in this document is provided in connection with Atmel products. No license, express or implied, by estoppel or otherwise, to any
intellectual property right is granted by this document or in connection with the sale of Atmel products. EXCEPT AS SET FORTH IN ATMEL’S TERMS AND CONDI-
TIONS OF SALE LOCATED ON ATMEL’S WEB SITE, ATMEL ASSUMES NO LIABILITY WHATSOEVER AND DISCLAIMS ANY EXPRESS, IMPLIED OR STATUTORY
WARRANTY RELATING TO ITS PRODUCTS INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTY OF MERCHANTABILITY, FITNESS FOR A PARTICULAR
PURPOSE, OR NON-INFRINGEMENT. IN NO EVENT SHALL ATMEL BE LIABLE FOR ANY DIRECT, INDIRECT, CONSEQUENTIAL, PUNITIVE, SPECIAL OR INCIDENTAL DAMAGES (INCLUDING, WITHOUT LIMITATION, DAMAGES FOR LOSS OF PROFITS, BUSINESS INTERRUPTION, OR LOSS OF INFORMATION) ARISING OUT
OF THE USE OR INABILITY TO USE THIS DOCUMENT, EVEN IF ATMEL HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. Atmel makes no
representations or warranties with respect to the accuracy or completeness of the contents of this document and reserves the right to make changes to specifications
and product descriptions at any time without notice. Atmel does not make any commitment to update the information contained herein. Unless specifically provided
otherwise, Atmel products are not suitable for, and shall not be used in, automotive applications. Atmel’s products are not intended, authorized, or warranted for use
as components in applications intended to support or sustain life.
© Atmel Corporation 2006. All rights reserved. Atmel®, logo and combinations thereof, Everywhere You Are® and others, are
registered trademarks of Atmel Corporation or its subsidiaries. Other terms and product names may be trademarks of others.
Printed on recycled paper.
3631A–FLASH–04/06
xM
Loading...
