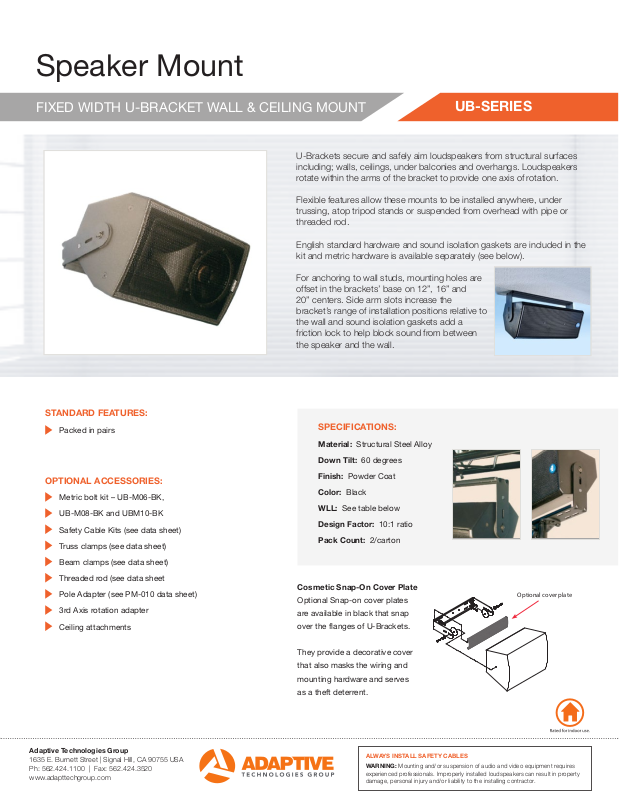

ATM UB-0750 Datasheet

Speaker Mount

U-Brackets secure and safely aim loudspeakers from structural surfaces
including; walls, ceilings, under balconies and overhangs. Loudspeakers
rotate within the arms of the bracket to provide one axis of rotation.

Flexible features allow these mounts to be installed anywhere, under
trussing, atop tripod stands or suspended from overhead with pipe or
threaded rod.

English standard hardware and sound isolation gaskets are included in
the kit and metric hardware is available separately (see below).

For anchoring to wall studs, mounting
holes are offset in the brackets’ base on
12”, 16” and 20” centers. Side arm slots
increase the bracket’s range of installation
positions relative to the wall and sound
isolation gaskets add a friction lock to help
block sound from between the speaker
and the wall.

UB-SERIES

UB-SERIES

UB-SERIES

UB-SERIES

FIXED WIDTH U-BRACKET WALL & CEILING MOUNT

U-Brackets secure and safely aim loudspeakers from structural surfaces
including; walls, ceilings, under balconies and overhangs. Loudspeakers
rotate within the arms of the bracket to provide one axis of rotation.

Flexible features allow these mounts to be installed anywhere, under
trussing, atop tripod stands or suspended from overhead with pipe or
threaded rod.

English standard hardware and sound isolation gaskets are included in the
kit and metric hardware is available separately (see below).

For anchoring to wall studs, mounting holes are
offset in the brackets’ base on 12”, 16” and
20” centers. Side arm slots increase the
bracket’s range of installation positions relative to
the wall and sound isolation gaskets add a
friction lock to help block sound from between
the speaker and the wall.

UB-SERIES

STANDARD FEATURES:

Packed in pairs

OPTIONAL ACCESSORIES:

Metric bolt kit – UB-M06-BK,

UB-M08-BK and UBM10-BK

Safety Cable Kits (see data sheet)

Truss clamps (see data sheet)

Beam clamps (see data sheet)

Threaded rod (see data sheet

Pole Adapter (see PM-010 data sheet)

3rd Axis rotation adapter

Ceiling attachments

SPECIFICATIONS:

Material: Structural Steel Alloy

Down Tilt: 60 degrees

Finish: Powder Coat

Color: Black

WLL: See table below

Design Factor: 10:1 ratio

Pack Count: 2/carton

Cosmetic Snap-On Cover Plate

Optional Snap-on cover plates

are available in black that snap

over the flanges of U-Brackets.

They provide a decorative cover

that also masks the wiring and

mounting hardware and serves

as a theft deterrent.

Optional cover plate

Adaptive Technologies Group

1635 E. Burnett Street | Signal Hill, CA 90755 USA
Ph: 562.424.1100 | Fax: [phone]
www.adapttechgroup.com

ALWAYS INSTALL SAFETY CABLES

WARNING: Mounting and/or suspension of audio and video equipment requires

experienced professionals. Improperly installed loudspeakers can result in property
damage, personal injury and/or liability to the installing contractor.

Speaker Mount

Speaker Mount

DIMENSIONS: INCHES/METRIC

UB-SERIES

FIXED WIDTH U-BRACKET WALL & CEILING MOUNT

FIXED WIDTH U-BRACKET WALL & CEILING MOUNT

G

(Ø .402X1.50” SLOT
OR .313 DIA. HOLES)

Top View

U-Bracket

Product

UB-0650 12.25/311 9.0/229 7.5/190 5.5/140 3.0/76 Holes 7lb. 60lb.

UB-0750 * † CP-0750 15.0/381 11.5/292 10.0/254 8.0/203 3.5/89 .50/13 Holes 9lb. 60lb.

UB-0800 † 15.75/400 11.1/292 9.6/244 7.6/190 3/76 .1/2.5 Holes 7lb. 40lb.

UB-0850 † 16.25/413 10.5/267 9/229 7.0/178 3.0/76 Holes 9lb. 40lb.

UB-0880 * † 16.5/419 16.9/429 15.38/391 13.9/340 4.3/108 .50/13 Slots 18lb. 60lb.

UB-0900 * † CP-0900 17.0/432 8.48/215 6.98/177 4.98/126 3.5/89 .50/13 Slots 9lb. 60lb.

UB-0950 * † CP-0950 17.75/451 13.0/330 11.5/292 9.5/241 3.5/89 .50/13 Holes 13lb. 60lb.

UB-0980 * † CP-0980 18.5/470 9.5/241 8.0/203 6.0/152 3.5/89 .50/13 Holes 13lb. 60lb.

UB-1000 * † CP-1000 19.25/489 9.0/229 7.5/190 5.5/140 3.5/89 .50/13 Slots 14lb. 60lb.

UB-1050 * † CP-1050 20.25/514 8.5/216 7.0/178 5.0/127 3.5/89 .50/13 Holes 10lb. 60lb.

UB-123-9 12.25/311 9/228 7.5/190 5.5/139 3/76 Holes 7lb. 60lb.

UB-1200 * † CP-1200 30.64/778 11.75/298 10.25/260 8.25/210 3.5/89 .50/13 Slots 18 lb. 60lb.

UB-1250 30.25/762 13.2/335 10.7/272 N/A 8.5/203 .75/13 Slots 45lb. 150lb.

UB-1260 31.00/787 17.2/437 14.7/373 N/A 8.5/204 .75/19 Slots 45lb. 150lb.

UB-1320 * † CP-1320 26.5/673 6.5/165 5.0/127 3.0/76 3.5/89 .50/13 Holes 11lb. 60lb.

UB-148-9 † 14.8/375 9/228 7.5/190 5.5/139 3.5/89 .500/13 Slots 8lb. 60lb.

UB-7215 † 31.38/797 15.50/393 14.00/355 9.00/228 3.52/894 1.50/39 Slots 11lb. 60lb.

UB-225-9 † 22.00/558 9.12/231 7.62/193 5.62/142 3.5/89 .75/19 Slots 7lb. 60lb.

UB-263-12 † 26.25/666 12.14/308 10.64/270 8.64/219 3.5/89 1.25/32 Slots 20lb. 80lb.

UB-325-13 † 32.50/825 13.14/333 11.64/295 9.64/244 3.5/89 1.50/39 Slots 23lb. 100lb.

UB-MT-500NPT 9.5/241 1.81/459 1.63/414 7.50/190 5.00/127 2.50/64 Slots 4.5lb. 150lb.

Cover Plate

Model #

A B C D E F G

Front View
U-Bracket

UB-SERIES

Ø .41X1.40 SLOT

Side View

Front View

Shipping

Weight/Pair

Working

Load Limit

* PoleStar Mountable † Accepts UB-3RDX-60
