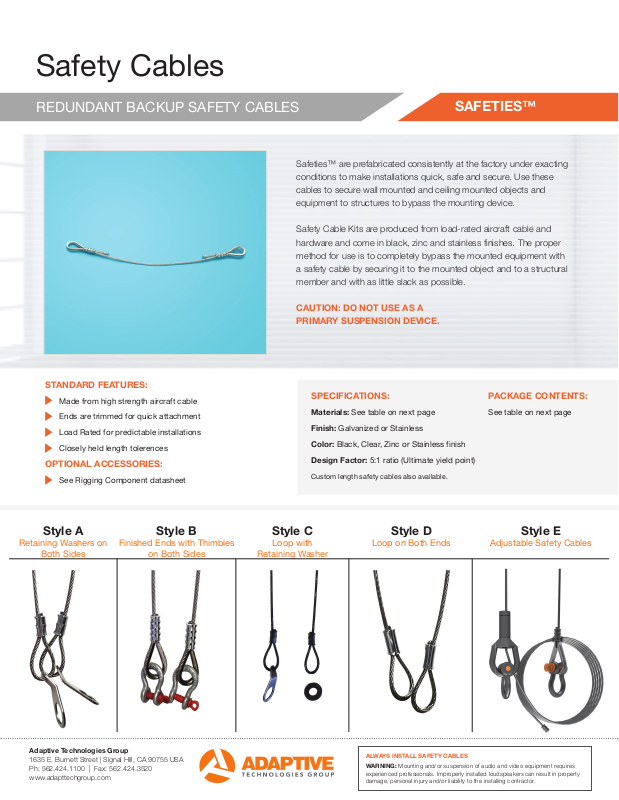

Safety Cables
Safe-Tee’s are prefabricated at the factory under exacting conditions to
make installations quick, safe and secure. Use these cables to secure
wall mounted and ceiling mounted loudspeakers and other installed
equipment to structures as a redundant safety backup.
Safety Cable Kits are produced from load-rated aircraft cable and hard-
ware and come in black, zinc and stainless nishes. The proper method
for use is to completely bypass the mounted equipment with a safety ca-
ble by securing it between the mounted object and a structural member
and with as little slack as possible.
CAUTION: DO NOT USE AS A
PRIMARY SUSPENSION DEVICE.
SAFETY CABLES
REDUNDANT BACKUP SAFETY CABLES
STANDARD FEATURES:
Made from high strength aircraft cable
Ends are trimmed for quick attachment
Load Rated for predictable installations
Closely held length tolerences
OPTIONAL ACCESSORIES:
See Rigging Component datasheet
SAFETIES™
Safeties™ are prefabricated consistently at the factory under exacting
conditions to make installations quick, safe and secure. Use these
cables to secure wall mounted and ceiling mounted objects and
equipment to structures to bypass the mounting device.
Safety Cable Kits are produced from load-rated aircraft cable and
hardware and come in black, zinc and stainless finishes. The proper
method for use is to completely bypass the mounted equipment with
a safety cable by securing it to the mounted object and to a structural
member and with as little slack as possible.
CAUTION: DO NOT USE AS A
PRIMARY SUSPENSION DEVICE.
SPECIFICATIONS:
Materials: See table on next page
Finish: Galvanized or Stainless
Color: Black, Clear, Zinc or Stainless finish
Design Factor: 5:1 ratio (Ultimate yield point)
Custom length safety cables also available.
PACKAGE CONTENTS:
See table on next page
Style A
Retaining Washers on
Both Sides
Adaptive Technologies Group
1635 E. Burnett Street | Signal Hill, CA 90755 USA
Ph: 562.424.1100 | Fax: 562.424.3520
www.adapttechgroup.com
Finished Ends with Thimbles
on Both Sides
Style B
Style C
Loop with
Retaining Washer
Style D
Loop on Both Ends
ALWAYS INSTALL SAFETY CABLES
WARNING: Mounting and/or suspension of audio and video equipment requires
experienced professionals. Improperly installed loudspeakers can result in property
damage, personal injury and/or liability to the installing contractor.
Adjustable Safety Cables
Style E
Safety Cables
REDUNDANT BACKUP SAFETY CABLES
Model #
CC-096
CC-096
SC-009
SC-012
Length
(Loop to
Loop) Inch-
es/mm
8/99
8/99
9/229
12/305
In-
door
3
3
3
Outdoor
3
Description
QTY &
Contents
(1) 8 foot stainless wire
rope
(2) pcs Tie wrap 4” long
(2) 1/4” Shackle
(1) Clutch lock mechanism
(1) Eye nut 3/8”
(1) 8 foot stainless wire
rope
(2) pcs Tie wrap 4” long
(2) 1/4” Shackle
(1) Clutch lock mechanism
(1) Eye nut 3/8”
(1) 1/6” 7X7
(1) 3/32” 7X7
(2) retaining washer
Material Light
Duty
Stainless
Steel Black
Stainless Steel
Galvanized
Steel
Galvanized
Steel
SAFETIES™
Med
Duty
3
3
3
3
Static
WLL
(lbs/kg)
220/99.8 E
220/99.8 E
60/27 D
100/45 A
Style
SC-012-B
SC-016
SC-016-B
SC-025
SC-025-B
SC-040
SC-080
SC-154
12/305
16/406
16/406
25/635
25/635
40/1016
80/2032
154/3912
3
3
3
3
3
3
3
3
(1) 3/32” 7X7
(2) retaining washer
(1) 3/32” 7X7
(2) retaining washer
(1) 3/32” 7X7
(2) retaining washer
(1) 3/32” 7X7
(2) retaining washer
(1) 3/32” 7X7
(2) retaining washer
(1) 3/32” 7X7
(2) retaining washer
(1) 3/32” 7X7
(1) 1/4” quick link
(2) retaining Washers
(1) 3/32” 7X7
(1) 1/4” quick link
* CUSTOM LENGTHS ARE ALSO AVAILABLE
Stainless
Steel Black
Galvanized
Steel
Stainless
Steel Black
Galvanized
Steel
Stainless
Steel Black
Galvanized
Steel
Galvanized
Steel
Galvanized
Steel
3
3
3
3
3
3
3
3
100/45 A
100/45 A
100/45 A
100/45 A
100/45 A
100/45 A
100/45 A
100/45 D
Continued 6
Adaptive Technologies Group
1635 E. Burnett Street | Signal Hill, CA 90755 USA
Ph: 562.424.1100 | Fax: 562.424.3520
www.adapttechgroup.com
ALWAYS INSTALL SAFETY CABLES
WARNING: Mounting and/or suspension of audio and video equipment requires
experienced professionals. Improperly installed loudspeakers can result in property
damage, personal injury and/or liability to the installing contractor.
