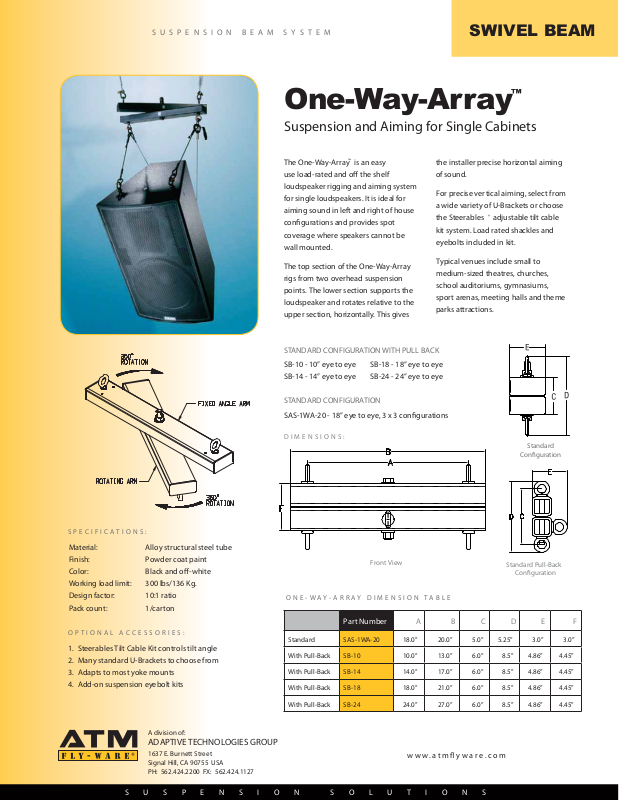

ATM SB-10 User Manual
SUSPENSION BEAM SYSTEM
One-Way-Array
Suspension and Aiming for Single Cabinets
SWIVEL BEAM
™
The One-Way-Array™ is an easy
use load-rated and o the shelf
loudspeaker rigging and aiming system
for single loudspeakers. It is ideal for
aiming sound in left and right of house
configurations and provides spot
coverage where speakers cannot be
wall mounted.
The top section of the One-Way-Array
rigs from two overhead suspension
points. The lower section supports the
loudspeaker and rotates relative to the
upper section, horizontally. This gives
STANDARD CONFIGURATION WITH PULL BACK
SB-10 - 10” eye to eye SB-18 - 18” eye to eye
SB-14 - 14” eye to eye SB-24 - 24” eye to eye
STANDARD CONFIGURATION
SAS-1WA-20 - 18” eye to eye, 3 x 3 configurations
DIMENSIONS:
the installer precise horizontal aiming
of sound.
For precise vertical aiming, select from
a wide variety of U-Brackets or choose
the Steerables® adjustable tilt cable
kit system. Load rated shackles and
eyebolts included in kit.
Typical venues include small to
medium-sized theatres, churches,
school auditoriums, gymnasiums,
sport arenas, meeting halls and theme
parks attractions.
Standard
Configuration
SPECIFICA TIONS:
Material:
Finish:
Color:
Working load limit:
Design factor:
Pack count:
OPTIONAL ACCESSORIES:
1. Steerables Tilt Cable Kit controls tilt angle
2. Many standard U-Brackets to choose from
3. Adapts to most yoke mounts
4. Add-on suspension eyebolt kits
Alloy structural steel tube
Powder coat paint
Black and o-white
300 lbs/136 Kg.
10:1 ratio
1/carton
A division of:
ADAPTIVE TECHNOLOGIES GROUP
1637 E. Burnett Street
Signal Hill, CA 90755 USA
PH: 562.424.2200 FX: 562.424.1127
SUSPENSION SOLUTIONS
Front View
ONE-W A Y-ARRA Y DIMENSION T ABLE
Part Number A B C D E F
Standard SAS-1WA-20 18.0” 20.0” 5.0” 5.25” 3.0” 3.0”
With Pull-Back SB-10 10.0” 13.0” 6.0” 8.5” 4.86” 4.45”
With Pull-Back SB-14 14.0” 17.0” 6.0” 8.5” 4.86” 4.45”
With Pull-Back SB-18 18.0” 21.0” 6.0” 8.5” 4.86” 4.45”
With Pull-Back SB-24 24.0” 27.0” 6.0” 8.5” 4.86” 4.45”
www. a tmy w a r e . com
Standard Pull-Back
Configuration
SWIVEL BEAM
One-Way-Array
Suspension and Aiming for Single Cabinets
S U S P E N S I O N B E A M S Y S T E M
™
10/14/06 Version 27
O N E - W A Y - A R R A Y
W I T H P U L L B A C K
The SwivelBeam version of the One-Way-
Array offers permanent eye fittings and
a rear extended eye fitting for use as a
pull back. The top of loudspeakers are
primarily suspended under the lower eye
fittings with two wire rope assemblies
and a third wire rope is attached between
a back point of the loudspeaker and
the extended eye fitting, tilting the
loudspeaker downward.
A division of:
ADAPTIVE TECHNOLOGIES GROUP
1637 E. Burnett Street
Signal Hill, CA 90755 USA
PH: 562.424.2200 FX: 562.424.1127
S U S P E N S I O N S O L U T I O N S
O N E - W A Y - A R R A Y
W I T H T I L T C A B L E K I T
One-Way-Array’s standard
configuration comes with eyebolts
that secure to the upper and
lower rotating arms. The entire
assembly suspends from the upper
eyebolts and the Steerables Tilt
Cable Kit attaches to the lower
eyebolts. Cable kits come in five
different lengths to accommodate
different down angles. The selected
loudspeaker suspends from the
cable kit and can be adjusted into
any down angle.
w w w . a t m f l y w a r e . c o m
O N E - W A Y - A R R A Y
W I T H U - B R A C K E T
One-Way-Array’s standard
configuration comes with pre set
holes in the lower rotating arm to
accommodate standard Allen U-
Bracket mounts. To install, simply
remove the center bolt, attach the
selected U-Bracket using included
hardware then reassemble the
center bolt. Attach the loudspeaker
in between the U-Bracket and tilt
into position.
WARNING: Mounting and/or suspension loudspeakers
requires experienced professionals. Improperly installed
loudspeakers can result in property damage, personal
injury and/or liability to the installing contractor.
ALWAYS USE SAFETY CABLES.MADE IN THE USA
