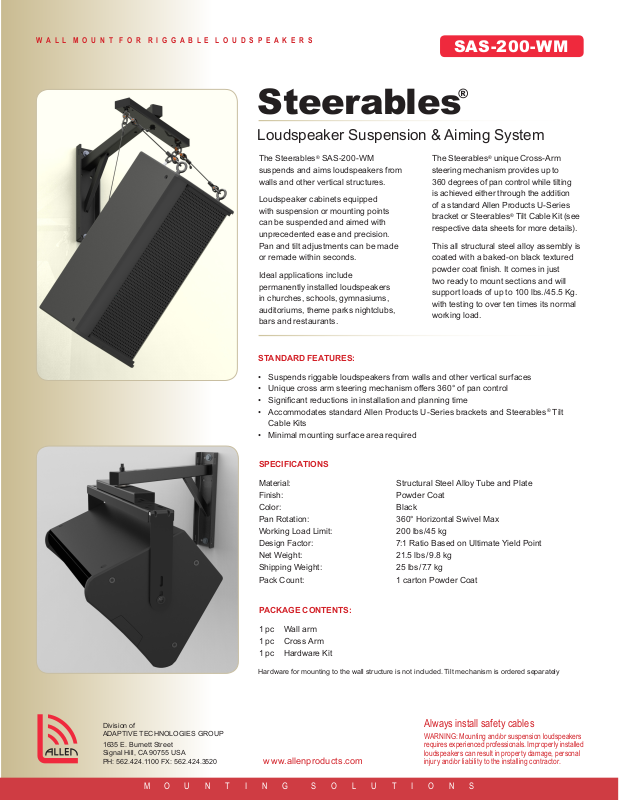

ATM SAS-200-WM Data Sheet
W A L L M O U N T F O R R I G G A B L E L O U D S P E A K E R S
Steerables
Loudspeaker Suspension & Aiming System
SAS-200-WM
®
The Steerables® SAS-200-WM
suspends and aims loudspeakers from
walls and other vertical structures.
Loudspeaker cabinets equipped
with suspension or mounting points
can be suspended and aimed with
unprecedented ease and precision.
Pan and tilt adjustments can be made
or remade within seconds.
Ideal applications include
permanently installed loudspeakers
in churches, schools, gymnasiums,
auditoriums, theme parks nightclubs,
bars and restaurants.
STANDARD FEATURES:
• Suspends riggable loudspeakers from walls and other vertical surfaces
• Unique cross arm steering mechanism offers 360° of pan control
• Signicant reductions in installation and planning time
• Accommodates standard Allen Products U-Series brackets and Steerables® Tilt
Cable Kits
• Minimal mounting surface area required
The Steerables® unique Cross-Arm
steering mechanism provides up to
360 degrees of pan control while tilting
is achieved either through the addition
of a standard Allen Products U-Series
bracket or Steerables® Tilt Cable Kit (see
respective data sheets for more details).
This all structural steel alloy assembly is
coated with a baked-on black textured
powder coat nish. It comes in just
two ready to mount sections and will
support loads of up to 100 lbs./45.5 Kg.
with testing to over ten times its normal
working load.
Division of
ADAPTIVE TECHNOLOGIES GROUP
1635 E. Burnett Street
Signal Hill, CA 90755 USA
PH: 562.424.1100 FX: 562.424.3520
SP E CIFI C ATIONS
Material: Structural Steel Alloy Tube and Plate
Finish: Powder Coat
Color: Black
Pan Rotation: 360° Horizontal Swivel Max
Working Load Limit: 200 lbs /45 kg
Design Factor: 7:1 Ratio Based on Ultimate Yield Point
Net Weight: 21.5 lbs/ 9.8 kg
Shipping Weight: 25 lbs/7.7 kg
Pack Count: 1 carton Powder Coat
PACKAGE CONTENTS:
1 pc Wall arm
1 pc Cross Arm
1 pc Hardware Kit
Hardware for mounting to the wall structure is not included. Tilt mechanism is ordered separately
Always install safety cables
WARNING: Mounting and/or suspension loudspeakers
requires experienced professionals. Improperly installed
loudspeakers can result in property damage, personal
www.allenproducts.com
injury and/or liability to the installing contractor.
M O U N T I N G S O L U T I O N S
18.00
17.25
2.00
4.00
20.00
16.00
.56
8X
26.23
8.3816.0
15.00
18.38
21.38
24.38
.56
THRU HOLE, 3X
360°
18.38
21.38
24.38
.56
THRU HOLE, 3X
360°
26.23
8.3816.0
15.00
18.38
21.38
24.38
.56
THRU HOLE, 3X
W A L L M O U N T F O R R I G G A B L E L O U D S P E A K E R S
®
Steerables
Loudspeaker Suspension & Aiming System
Wall Mount with U-Bracket
Wall Mount with Cross Bar
and Eyebolt
SAS-200-WM
VERTICAL TILT CONTROL
STEERABLES® CABLE KIT SYSTEMS:
While the SAS-200 -WM wall-mounting arm
provides 360° horizontal control, the Steerables®
Tilt Cable Kit provides a secure and innite locking
tilt mechanism. The Tilt Cable Kit is available in ve
(5) standard sizes, as shown below, and custom
sizes can be made to order.
TCK-008 8.25”/209 mm Fixed Cable length
TCK-010 10.0”/254 mm Fixed Cable length
TCK-014 14.0”/356 mm Fixed Cable length
TCK-018 18.0”/457 mm Fixed Cable length
TCK-022 22.0”/559 mm Fixed Cable length
See Steerables® Tilt Cable Kit data
sheet for more detailed information
VERTICAL TILT CONTROL USING
ALLEN U- SERIES MOUNT:
D I M E N S I O N S :
Many ALLEN U-Series brackets mount directly to the
SAS-200-WM cross arm. Ideal for cabinets that offer
mounting points and where both pan and tilt rotations
are required.
U-Series models for SAS-200-WM:
2-0900 2-0980 2-1050 2-1100 2-1200 2-1300 2-1350
2-0950 2-1000 2-1060 2-1150 2-1230 2-1320
Front View Top View Side View
Division of
ADAPTIVE TECHNOLOGIES GROUP
1635 E. Burnett Street
Signal Hill, CA 90755 USA
PH: 562.424.1100 FX: 562.424.3520
www.allenproducts.com
M O U N T I N G S O L U T I O N S
Always install safety cables
WARNING: Mounting and/or suspension loudspeakers
requires experienced professionals. Improperly installed
loudspeakers can result in property damage, personal
injury and/or liability to the installing contractor.
