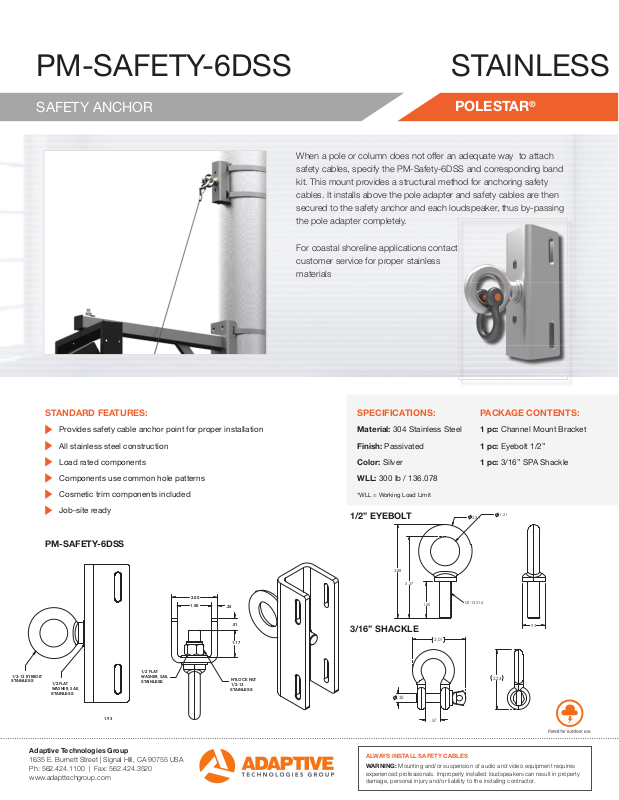

ATM PM-SAFETY-6DSS Data Sheet
PM-SAFETY-6DSS STAINLESS
BILL OF MATERIAL REVISIONS
ZONE REV. DESCRIPTION DATE APPROVED
D
C
B
7
6
5
4
3
2
1
D
C
B
7
6
5
4
3
2
1
MFG. NEXT OPERATION
SAFETY ANCHOR
POLESTAR
®
When a pole or column does not offer an adequate way to attach
safety cables, specify the PM-Safety-6DSS and corresponding band
kit. This mount provides a structural method for anchoring safety
cables. It installs above the pole adapter and safety cables are then
secured to the safety anchor and each loudspeaker, thus by-passing
the pole adapter completely.
For coastal shoreline applications contact
customer service for proper stainless
materials
1/2-13 EYEBOLT
STAINLESS
ZINC PLATED
STANDARD FEATURES:
Provides safety cable anchor point for proper installation
All stainless steel construction
Load rated components
Components use common hole patterns
Cosmetic trim components included
Job-site ready
PM-SAFETY-6DSS
1/2 FLAT
WASHER, SAE,
316 SS
STAINLESS
2.00
1.50
.25
.51
1.17
NYLOCK NUT
1/2-13
STAINLESS
316 SS
1/2 FLAT
WASHER, SAE,
316 SS
STAINLESS
1.93
SPECIFICATIONS:
Material: 304 Stainless Steel
Finish: Passivated
Color: Silver
PACKAGE CONTENTS:
1 pc: Channel Mount Bracket
1 pc: Eyebolt 1/2”
1 pc: 3/16” SPA Shackle
WLL: 300 lb / 136.078
*WLL = Working Load Limit
1.21
1/2” EYEBOLT
3.88
3.37
3/16” SHACKLE
1.50
2.01
.32
.57
2.21
1/2-13X1.5
.93
2.24
Adaptive Technologies Group
1635 E. Burnett Street | Signal Hill, CA 90755 USA
Ph: 562.424.1100 | Fax: 562.424.3520
www.adapttechgroup.com
ALWAYS INSTALL SAFETY CABLES
WARNING: Mounting and/or suspension of audio and video equipment requires
experienced professionals. Improperly installed loudspeakers can result in property
damage, personal injury and/or liability to the installing contractor.
PM-SAFETY-6DSS
®
STAINLESS
SAFETY ANCHOR
POLESTAR
®
PM-BAND-20S PM-BAND-30 PM-BAND-90
BAND STRAP KITS:
Four different length permanent band kits are available for the PM-Mount- 6UP and - 6DOWN. Standard stock lengths include 20”, 30” and 90”. Choose from
the PM-Band-20, PM-Band-30, PM-Band-60 and PM-Band-90. Each kit contains 2 assemblies. These kits, when used per instructions will sup -port the stated
working load of the selected pole adapter.
Model Length Width Thickness Max Dia WLL Weight
PM-Band-20S 20”/50.8cm .50/13mm
PM-Band-30 30”/76.2cm .75/19mm .03 / 0.762 6”/152mm 300 / 136kg 1.5 lb. /0.7 kg
.02 / 0.508mm
6”/152mm 150 / 68kg .7 lb. /.32 kg
PM-Band-90 90”/228.6mm .75/19mm .03 / 0.762 25”/635mm 300 / 136kg 2.5 lb. /1.1 kg
PM-Band-Custom SPECIFY .75/19MM .03 / 0.762 SPECIFY 300 / 136KG TBD
SAFETY CABLES:
Model # Length
(Loop to Loop) Inches/mm
SC-188-18-SS
SC-188-24-SS
SC-188-30-SS
SC-188-48-SS
SC-188-72-SS
SC-188-96-SS
18”/450
24”/610
30”/762
48”/1220
72”/1830
96”/2438
Description QTY & Contents MATL Static WLL
(lbs/kg)
3/16” Wire Rope 7X19
(2) 1/4” Shackle
3/16” Wire Rope 7X19
(2) 1/4” Shackle
3/16” Wire Rope 7X19
(2) 1/4” Shackle
3/16” Wire Rope 7X19
(2) 1/4” Shackle
3/16” Wire Rope 7X19
(2) 1/4” Shackle
3/16” Wire Rope 7X19
(2) 1/4” Shackle
SS 750/ 340 B
SS 750/ 340 B
SS 750/ 340 B
SS 750/ 340 B
SS 750/ 340 B
SS 750/ 340 B
Style
