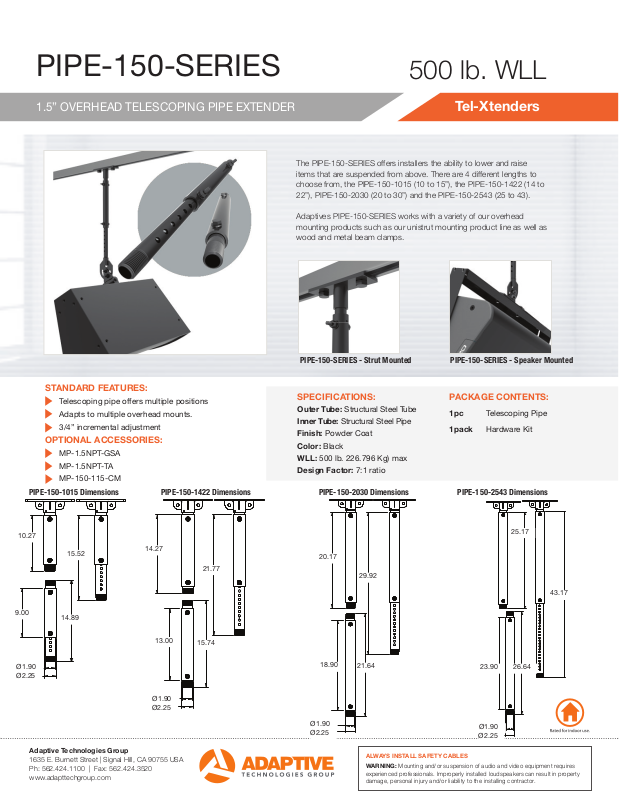

ATM PIPE-150-2543 Data Sheet

PIPE-150-SERIES

UPPER PIPE 150NPS

OUTER TUBE

LOWER PIPE 150NPS

(2X) 3/8"-16x3.25" LONG HEX BOLT

(4X) 3/8" FLAT WASHER

(4X) 3/8" LOCK WASHER

(4X) 3/8" HEX NUT

500 lb. WLL

1.5” OVERHEAD TELESCOPING PIPE EXTENDER

Tel-Xtenders

The PIPE-150-SERIES offers installers the ability to lower and raise
items that are suspended from above. There are 4 different lengths to
choose from, the PIPE-150-1015 (10 to 15”), the PIPE-150-1422 (14 to
22”), PIPE-150-2030 (20 to 30”) and the PIPE-150-2543 (25 to 43).

Adaptives PIPE-150-SERIES works with a variety of our overhead
mounting products such as our unistrut mounting product line as well as
wood and metal beam clamps.

PIPE-150-SERIES - Strut Mounted PIPE-150-SERIES - Speaker Mounted

STANDARD FEATURES:

Telescoping pipe offers multiple positions

Adapts to multiple overhead mounts.

3/4” incremental adjustment

OPTIONAL ACCESSORIES:

MP-1.5NPT-GSA

MP-1.5NPT-TA

MP-150-115-CM

PIPE-150-1015 Dimensions PIPE-150-1422 Dimensions PIPE-150-2030 Dimensions PIPE-150-2543 Dimensions

SPECIFICATIONS:

Outer Tube: Structural Steel Tube

Inner Tube: Structural Steel Pipe

Finish: Powder Coat

Color: Black

WLL: 500 lb. 226.796 Kg) max

Design Factor: 7:1 ratio

PACKAGE CONTENTS:

1pc Telescoping Pipe

1pack Hardware Kit

10.27

10.27

14.27

9.00

9.00

Ø1.90
Ø2.25

1.90

2.25

15.52

14.89

14.89

15.52

Adaptive Technologies Group

1635 E. Burnett Street | Signal Hill, CA 90755 USA
Ph: 562.424.1100 | Fax: [phone]
www.adapttechgroup.com

14.27

13.00

Ø1.90
Ø2.25

13.00

1.90

2.25

25.17

25.17

20.17

20.17

21.77

21.77

15.74

15.74

18.90

Ø1.90
Ø2.25

1.90

2.25

18.90

29.92

29.92

21.64

21.64

26.6423.90

23.90 26.64

Ø1.90

1.90

2.25

Ø2.25

ALWAYS INSTALL SAFETY CABLES

WARNING: Mounting and/or suspension of audio and video equipment requires

experienced professionals. Improperly installed loudspeakers can result in property
damage, personal injury and/or liability to the installing contractor.

43.17

43.17
