Adaptive Technologies Group
ALWAYS INSTALL SAFETY CABLES

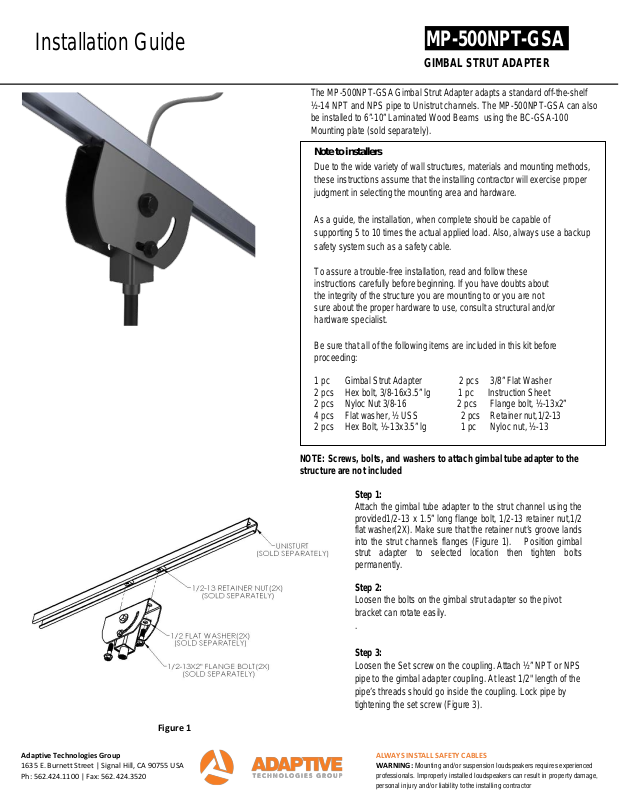

The MP-500NPT-GSA Gimbal Strut Adapter adapts a standard off-the-shelf
Mounting plate (sold separately).
Note to installers
MP-500NPT-GSA
Installation Guide
SAS-200-24-SS
GIMBAL STRUT ADAPTER
½-14 NPT and NPS pipe to Unistrut channels. The MP-500NPT-GSA can also
be installed to 6”-10” Laminated Wood Beams using the BC-GSA-100
Due to the wide variety of wall structures, materials and mounting methods,
these instructions assume that the installing contractor will exercise proper
judgment in selecting the mounting area and hardware.
As a guide, the installation, when complete should be capable of
supporting 5 to 10 times the actual applied load. Also, always use a backup
safety system such as a safety cable.
To assure a trouble-free installation, read and follow these
instructions carefully before beginning. If you have doubts about
the integrity of the structure you are mounting to or you are not
sure about the proper hardware to use, consult a structural and/or
hardware specialist.
Be sure that all of the following items are included in this kit before
proceeding:
1 pc Gimbal Strut Adapter 2 pcs 3/8” Flat Washer
2 pcs Hex bolt, 3/8-16x3.5” lg 1 pc Instruction Sheet
2 pcs Nyloc Nut 3/8-16 2 pcs Flange bolt, ½-13x2”
4 pcs Flat washer, ½ USS 2 pcs Retainer nut,1/2-13
2 pcs Hex Bolt, ½-13x3.5” lg 1 pc Nyloc nut, ½-13
NOTE: Screws, bolts, and washers to attach gimbal tube adapter to the
structure are not included
Step 1:
Attach the gimbal tube adapter to the strut channel using the
provided1/2-13 x 1.5” long flange bolt, 1/2-13 retainer nut,1/2
flat washer(2X). Make sure that the retainer nut’s groove lands
into the strut channels flanges (Figure 1). Position gimbal
strut adapter to selected location then tighten bolts
permanently.
Step 2:
Loosen the bolts on the gimbal strut adapter so the pivot
bracket can rotate easily.
.
Step 3:
Loosen the Set screw on the coupling. Attach ½” NPT or NPS
pipe to the gimbal adapter coupling. At least 1/2" length of the
pipe’s threads should go inside the coupling. Lock pipe by
tightening the set screw (Figure 3).
Figure 1
1635 E. Burnett Street | Signal Hill, CA 90755 USA
Ph: 562.424.1100 | Fax: 562.424.3520
WARNING: Mounting and/or suspension loudspeakers requires experienced
professionals. Improperly installed loudspeakers can result in property damage,
personal injury and/or liability tothe installing contractor
Adaptive Technologies Group
ALWAYS INSTALL SAFETY CABLES
“ NPT
Figure 3
MP-500NPT-GsA
Installation Guide
Step 4:
Loosen bolts on the MP-500NPT-GSA just enough for the
pivot to rotate. Set the angle of the pivot and pipe assembly
then tighten bolts permanently (Figure 3).
Step 5: Recommendation- Install Safety Cable
Attach bracket to the ½” npt pipe. Refer to Speaker brackets
installation guide.
Step 6: Recommendation- Install Safety Cable
Install safety cable to the structure and then attach the other
end of the safety cables to the speakers to bypass the
mounting system. Attachment to structure must be able to
support 5 times the weight of the speaker and speaker
mounts.
Figure 2
SAS-200-24-SS
GIMBAL STRUT ADAPTER
Figure 4
1635 E. Burnett Street | Signal Hill, CA 90755 USA
Ph: 562.424.1100 | Fax: 562.424.3520
WARNING: Mounting and/or suspension loudspeakers requires experienced
professionals. Improperly installed loudspeakers can result in property damage,
personal injury and/or liability tothe installing contractor
