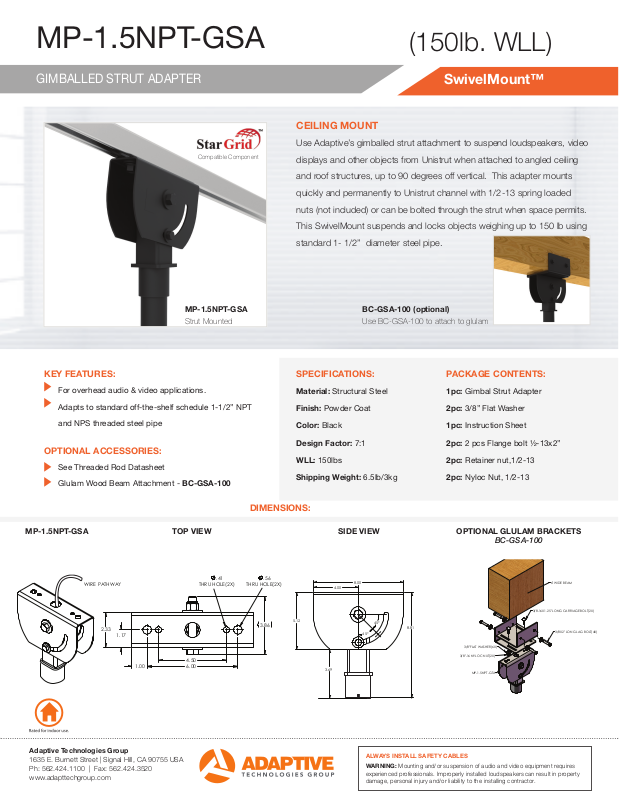

ATM MP-1.5NPT-GSA Data Sheet
MP-1.5NPT-GSA
8.00
5.12
4.00
8.81
45°
45°
1.00
6.00
4.50
1.17
2.33
3.86
.56
THRU HOLE(2X)
.41
THRU HOLE(2X)WIRE PATHWAY
3.69
D
C
B
6
5
4
3
2
1
(150lb. WLL)
GIMBALLED STRUT ADAPTER
Compatible Component
MP-1.5NPT-GSA
Strut Mounted
SwivelMount™
CEILING MOUNT
Use Adaptive’s gimballed strut attachment to suspend loudspeakers, video
displays and other objects from Unistrut when attached to angled ceiling
and roof structures, up to 90 degrees off vertical. This adapter mounts
quickly and permanently to Unistrut channel with 1/2-13 spring loaded
nuts (not included) or can be bolted through the strut when space permits.
This SwivelMount suspends and locks objects weighing up to 150 lb using
standard 1- 1/2” diameter steel pipe.
BC-GSA-100 (optional)
Use BC-GSA-100 to attach to glulam
KEY FEATURES:
For overhead audio & video applications.
Adapts to standard off-the-shelf schedule 1-1/2” NPT
and NPS threaded steel pipe
SPECIFICATIONS:
Material: Structural Steel
Finish: Powder Coat
Color: Black
Design Factor: 7:1
PACKAGE CONTENTS:
1pc: Gimbal Strut Adapter
2pc: 3/8” Flat Washer
1pc: Instruction Sheet
2pc: 2 pcs Flange bolt ½-13x2”
OPTIONAL ACCESSORIES:
See Threaded Rod Datasheet
Glulam Wood Beam Attachment - BC-GSA-100
WLL: 150lbs
Shipping Weight: 6.5lb/3kg
2pc: Retainer nut,1/2-13
2pc: Nyloc Nut, 1/2-13
DIMENSIONS:
MP-1.5NPT-GSA TOP VIEW SIDE VIEW OPTIONAL GLULAM BRACKETS
3/8"FLAT WASHER(6X)
3/8"-16 NYLOC NUT(2X)
BC-GSA-100
6" WIDE BEAM
3/8-16X1.25" LONG CARRIAGE BOLT(2X)
3/8X2" LONG LAG BOLT(4X)
MP-1.5NPT-GTA
Adaptive Technologies Group
1635 E. Burnett Street | Signal Hill, CA 90755 USA
Ph: 562.424.1100 | Fax: 562.424.3520
www.adapttechgroup.com
ALWAYS INSTALL SAFETY CABLES
WARNING: Mounting and/or suspension of audio and video equipment requires
experienced professionals. Improperly installed loudspeakers can result in property
damage, personal injury and/or liability to the installing contractor.
