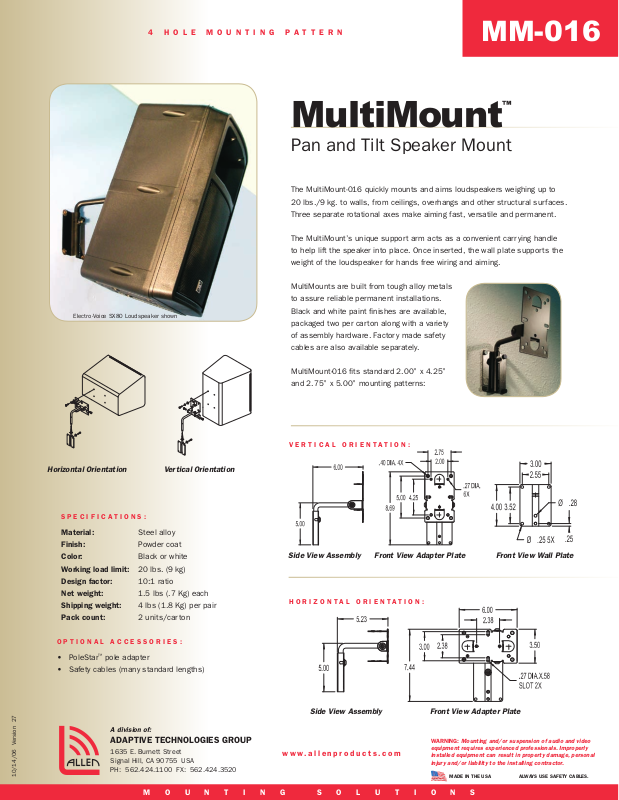

ATM MM-016-BT Datasheet
4 H O L E M O U N T I N G P A T T E R N
Electro-Voice SX80 Loudspeaker shown
MM-016
™
MultiMount
Pan and Tilt Speaker Mount
The MultiMount-016 quickly mounts and aims loudspeakers weighing up to
20 lbs./9 kg. to walls, from ceilings, overhangs and other structural sur faces.
Three separate rotational axes make aiming fast, versatile and permanent.
The MultiMount’s unique support arm acts as a convenient carr ying handle
to help lift the speaker into place. Once inserted, the wall plate supports the
weight of the loudspeaker for hands free wiring and aiming.
MultiMounts are built from tough alloy metals
to assure reliable permanent installations.
Black and white paint finishes are available,
packaged two per carton along with a variety
of assembly hardware. Factor y made safety
cables are also available separately.
Horizontal Orientation Vertical Orientation
S P E C I F I C A T I O N S :
Material:
Finish:
Color:
Working load limit:
Design factor:
Net weight:
Shipping weight:
Pack count:
O P T I O N A L A C C E S S O R I E S :
• PoleStar™ pole adapter
• Safety cables (many standard lengths)
Steel alloy
Powder coat
Black or white
20 lbs. (9 kg)
10:1 ratio
1.5 lbs (.7 Kg) each
4 lbs (1.8 Kg) per pair
2 units/carton
MultiMount-016 fits standard 2.00” x 4.25”
and 2.75” x 5.00” mounting patterns:
V E R T I C A L O R I E N T A T I O N :
Front View Adapter PlateSide View Assembly
H O R I Z O N T A L O R I E N T A T I O N :
Front View Wall Plate
10/14/06 Version 27
A division of:
ADAPTIVE TECHNOLOGIES GROUP
1635 E. Burnett Street
Signal Hill, CA 90755 USA
PH: 562.424.1100 FX: 562.424.3520
M O U N T I N G S O L U T I O N S
w w w . a l l e n p r o d u c t s . c o m
Front View Adapter PlateSide View Assembly
WARNING: Mounting and/or suspension of audio and video
equipment requires experienced professionals. Improperly
installed equipment can result in property damage, personal
injury and/or liability to the installing contractor.
MADE IN THE USA ALWAYS USE SAFETY CABLES.
