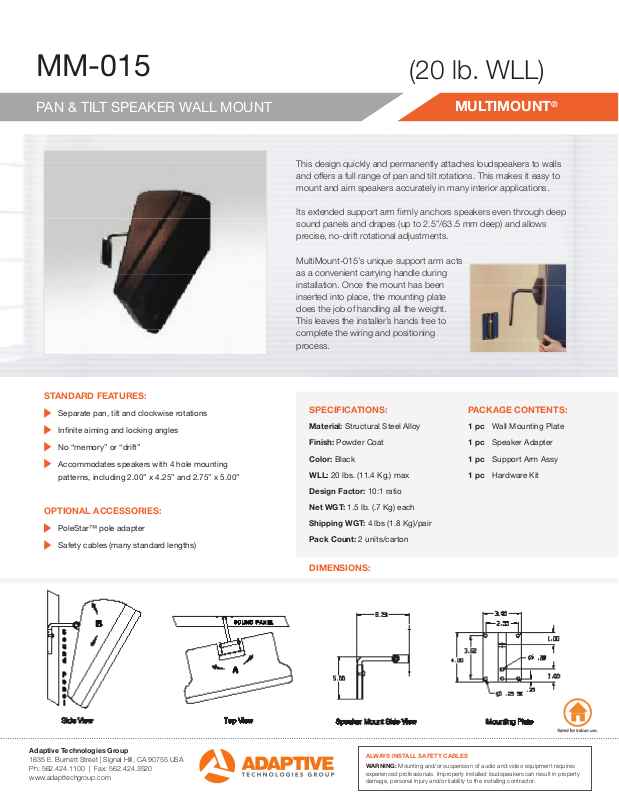

ATM MM-015 Datasheet

MM-015

(20 lb. WLL)

PAN & TILT SPEAKER WALL MOUNT

STANDARD FEATURES:

Separate pan, tilt and clockwise rotations

Infinite aiming and locking angles

No “memory” or “drift”

Accommodates speakers with 4 hole mounting

patterns, including 2.00” x 4.25” and 2.75” x 5.00”

OPTIONAL ACCESSORIES:

PoleStar™ pole adapter

Safety cables (many standard lengths)

MULTIMOUNT

This design quickly and permanently attaches loudspeakers to walls
and offers a full range of pan and tilt rotations. This makes it easy to
mount and aim speakers accurately in many interior applications.

Its extended support arm firmly anchors speakers even through deep
sound panels and drapes (up to 2.5”/63.5 mm deep) and allows
precise, no-drift rotational adjustments.

MultiMount-015’s unique support arm acts
as a convenient carrying handle during
installation. Once the mount has been
inserted into place, the mounting plate
does the job of handling all the weight.
This leaves the installer’s hands free to
complete the wiring and positioning
process.

SPECIFICATIONS:

Material: Structural Steel Alloy

Finish: Powder Coat

Color: Black

WLL: 20 lbs. (11.4 Kg.) max

Design Factor: 10:1 ratio

Net WGT: 1.5 lb. (.7 Kg) each

Shipping WGT: 4 lbs (1.8 Kg)/pair

Pack Count: 2 units/carton

PACKAGE CONTENTS:

1 pc Wall Mounting Plate

1 pc Speaker Adapter

1 pc Support Arm Assy

1 pc Hardware Kit

®

Adaptive Technologies Group

1635 E. Burnett Street | Signal Hill, CA 90755 USA
Ph: 562.424.1100 | Fax: [phone]
www.adapttechgroup.com

DIMENSIONS:

ALWAYS INSTALL SAFETY CABLES

WARNING: Mounting and/or suspension of audio and video equipment requires

experienced professionals. Improperly installed loudspeakers can result in property
damage, personal injury and/or liability to the installing contractor.
