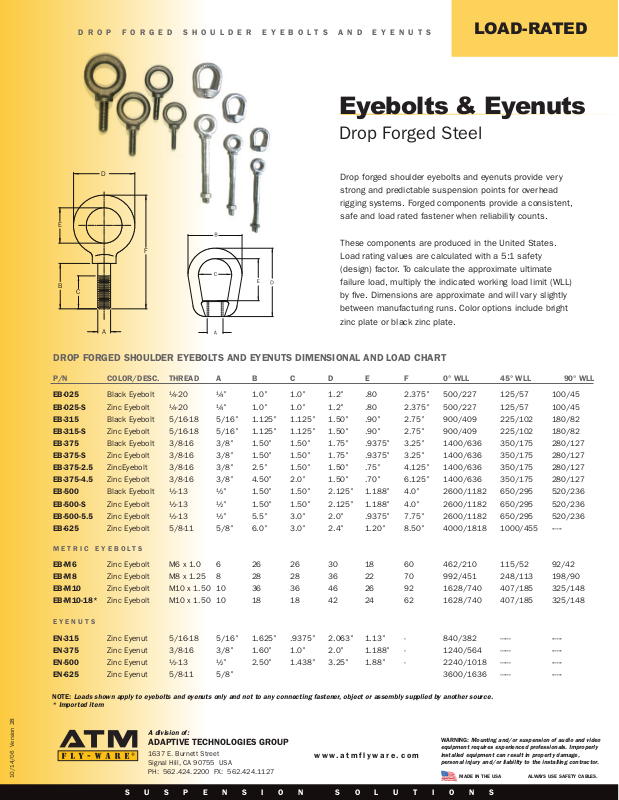

D R O P F O R G E D S H O U L D E R E Y E B O L T S A N D E Y E N U T S













Eyebolts & Eyenuts

Drop Forged Steel

Drop forged shoulder eyebolts and eyenuts provide ver y

strong and predictable suspension points for overhead

rigging systems. Forged components provide a consistent,

safe and load rated fastener when reliability counts.

These components are produced in the United States.

Load rating values are calculated with a 5:1 safety

(design) factor. To calculate the approximate ultimate

failure load, multiply the indicated working load limit (WLL)

by five. Dimensions are approximate and will var y slightly

between manufacturing runs. Color options include bright

zinc plate or black zinc plate.

LOAD-RATED

DROP FORGED SHOULDER EYEBOLTS AND EYENUTS DIMENSIONAL AND LOAD CHART

P/N COLOR/DESC. THREAD A B C D E F

EB-025 Black Eyebolt ¼-20 ¼” 1.0” 1.0” 1.2” .80 2.375” 500/227 125/57 100/45

EB-025-S Zinc Eyebolt ¼-20 ¼” 1.0” 1.0” 1.2” .80 2.375” 500/227 125/57 100/45

EB-315 Black Eyebolt 5/16-18 5/16” 1.125” 1.125” 1.50” .90” 2.75” 900/409 225/102 180/82

EB-315-S Zinc Eyebolt 5/16-18 5/16” 1.125” 1.125” 1.50” .90” 2.75” 900/409 225/102 180/82

EB-375 Black Eyebolt 3/8-16 3/8” 1.50” 1.50” 1.75” .9375” 3.25” 1400/636 350/175 280/127

EB-375-S Zinc Eyebolt 3/8-16 3/8” 1.50” 1.50” 1.75” .9375” 3.25” 1400/636 350/175 280/127

EB-375-2.5 ZincEyebolt 3/8-16 3/8” 2.5” 1.50” 1.50” .75” 4.125” 1400/636 350/175 280/127

EB-375-4.5 Zinc Eyebolt 3/8-16 3/8” 4.50” 2.0” 1.50” .70” 6.125” 1400/636 350/175 280/127

EB-500 Black Eyebolt ½-13 ½” 1.50” 1.50” 2.125” 1.188” 4.0” 2600/1182 650/295 520/236

EB-500-S Zinc Eyebolt ½-13 ½” 1.50” 1.50” 2.125” 1.188” 4.0” 2600/1182 650/295 520/236

EB-500-5.5 Zinc Eyebolt ½-13 ½” 5.5” 3.0” 2.0” .9375” 7.75” 2600/1182 650/295 520/236

EB-625 Zinc Eyebolt 5/8-11 5/8” 6.0” 3.0” 2.4” 1.20” 8.50” 4000/1818 1000/455 ------

M E T R I C E Y E B O L T S

EB-M6 Zinc Eyebolt M6 x 1.0 6 26 26 30 18 60 462/210 115/52 92/42

EB-M8 Zinc Eyebolt M8 x 1.25 8 28 28 36 22 70 992/451 248/113 198/90

EB-M10 Zinc Eyebolt M10 x 1.50 10 36 36 46 26 92 1628/740 407/185 325/148

EB-M10-18* Zinc Eyebolt M10 x 1.50 10 18 18 42 24 62 1628/740 407/185 325/148

E Y E N U T S

EN-315 Zinc Eyenut 5/16-18 5/16” 1.625” .9375” 2.063” 1.13” - 840/382 ------ ------

EN-375 Zinc Eyenut 3/8-16 3/8” 1.60” 1.0” 2.0” 1.188” - 1240/564 ------ ------

EN-500 Zinc Eyenut ½-13 ½” 2.50” 1.438” 3.25” 1.88” - 2240/1018 ------ ------

EN-625 Zinc Eyenut 5/8-11 5/8” 3600/1636 ------ ------

NOTE: Loads shown apply to eyebolts and eyenuts only and not to any connecting fastener, object or assembly supplied by another source.

* Imported item

0° WLL 45° WLL 90° WLL
