ATM BC12-17 User Manual

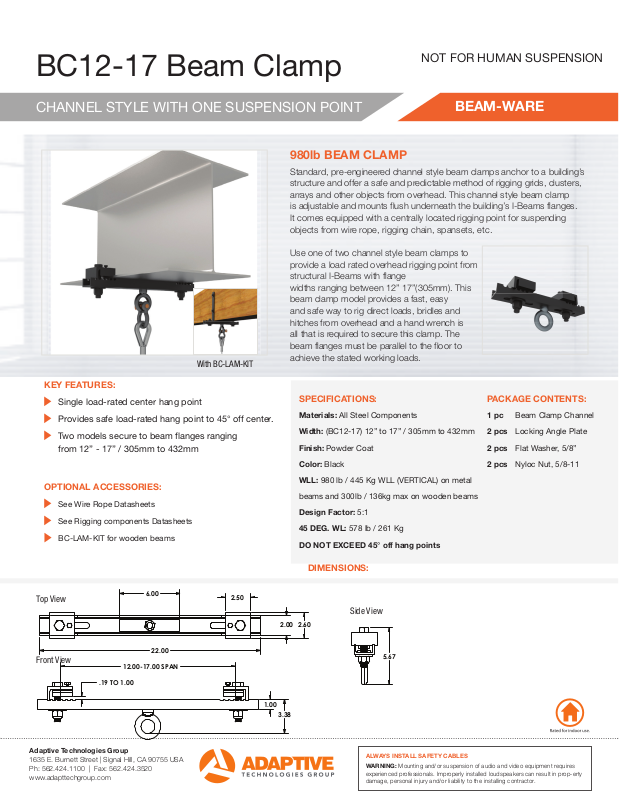

BC12-17 Beam Clamp
2.00 2.60
22.00
6.00
2.50
5.67
NOT FOR HUMAN SUSPENSION
CHANNEL STYLE WITH ONE SUSPENSION POINT
980lb BEAM CLAMP
Standard, pre-engineered channel style beam clamps anchor to a building’s
structure and offer a safe and predictable method of rigging grids, clusters,
arrays and other objects from overhead. This channel style beam clamp
is adjustable and mounts flush underneath the building’s I-Beams flanges.
It comes equipped with a centrally located rigging point for suspending
objects from wire rope, rigging chain, spansets, etc.
Use one of two channel style beam clamps to
provide a load rated overhead rigging point from
structural I-Beams with flange
widths ranging between 12” 17”(305mm). This
beam clamp model provides a fast, easy
and safe way to rig direct loads, bridles and
hitches from overhead and a hand wrench is
all that is required to secure this clamp. The
beam flanges must be parallel to the floor to
With BC-LAM-KIT
KEY FEATURES:
Single load-rated center hang point
Provides safe load-rated hang point to 45° off center.
Two models secure to beam flanges ranging
from 12” - 17” / 305mm to 432mm
OPTIONAL ACCESSORIES:
See Wire Rope Datasheets
See Rigging components Datasheets
BC-LAM-KIT for wooden beams
achieve the stated working loads.
SPECIFICATIONS:
Materials: All Steel Components
Width: (BC12-17) 12” to 17” / 305mm to 432mm
Finish: Powder Coat
Color: Black
WLL: 980 lb / 445 Kg WLL (VERTICAL) on metal
beams and 300lb / 136kg max on wooden beams
Design Factor: 5:1
45 DEG. WL: 578 lb / 261 Kg
DO NOT EXCEED 45° off hang points
BEAM-WARE
PACKAGE CONTENTS:
1 pc Beam Clamp Channel
2 pcs Locking Angle Plate
2 pcs Flat Washer, 5/8”
2 pcs Nyloc Nut, 5/8-11
Top View
Front View
.19 TO 1.00
Adaptive Technologies Group
1635 E. Burnett Street | Signal Hill, CA 90755 USA
Ph: 562.424.1100 | Fax: 562.424.3520
www.adapttechgroup.com
6.00
22.00
12.00-17.00 SPAN
DIMENSIONS:
2.50
2.00 2.60
1.00
3.38
Side View
5.67
ALWAYS INSTALL SAFETY CABLES
WARNING: Mounting and/or suspension of audio and video equipment requires
experienced professionals. Improperly installed loudspeakers can result in prop-erty
damage, personal injury and/or liability to the installing contractor.
