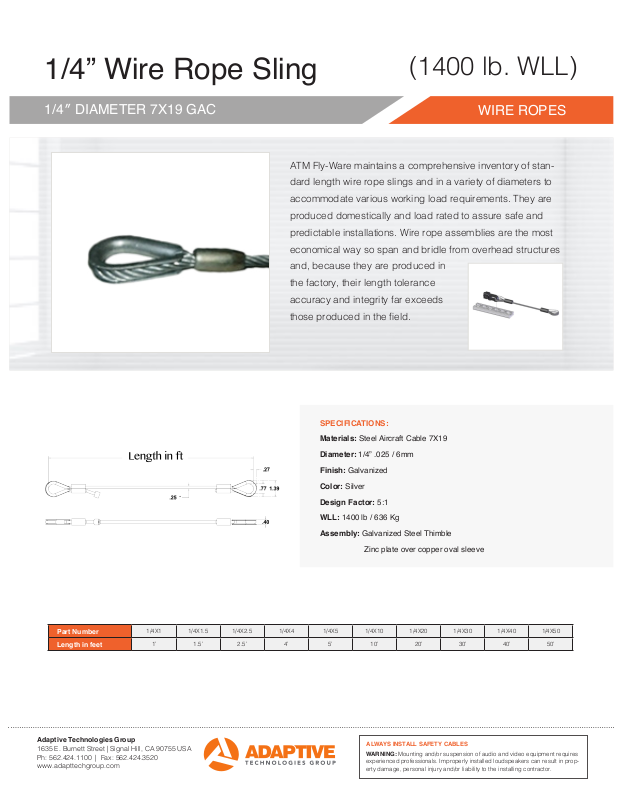

ATM 1/4X4 Data Sheet

1/4” Wire Rope Sling

.25

.27

.77

1.39

.40

Length in ft

(1400 lb. WLL)

1/4″ DIAMETER 7X19 GAC

WIRE ROPES

ATM Fly-Ware maintains a comprehensive inventory of stan-

dard length wire rope slings and in a variety of diameters to

accommodate various working load requirements. They are

produced domestically and load rated to assure safe and

predictable installations. Wire rope assemblies are the most

economical way so span and bridle from overhead structures

and, because they are produced in

the factory, their length tolerance

accuracy and integrity far exceeds

those produced in the eld.

Part Number

Length in feet

SPECIFICATIONS:

Materials: Steel Aircraft Cable 7X19

Diameter: 1/4” .025 / 6mm

Finish: Galvanized

Color: Silver

Design Factor: 5:1

WLL: 1400 lb / 636 Kg

Assembly: Galvanized Steel Thimble

Zinc plate over copper oval sleeve

1/4X1 1/4X1.5 1/4X2.5 1/4X4 1/4X5 1/4X10 1/4X20 1/4X30 1/4X40 1/4X50

1’ 1.5’ 2.5’ 4’ 5’ 10’ 20’ 30’ 40’ 50’

Adaptive Technologies Group

1635 E. Burnett Street | Signal Hill, CA 90755 USA
Ph: 562.424.1100 | Fax: [phone]
www.adapttechgroup.com

ALWAYS INSTALL SAFETY CABLES

WARNING: Mounting and/or suspension of audio and video equipment requires

experienced professionals. Improperly installed loudspeakers can result in prop­erty damage, personal injury and/or liability to the installing contractor.
