Atlona Technologies AT-UHD-EX-70C-RX Users Manual
4K/UHD HDMI Over HDBaseT
TX/RX with Control and PoE
AT-UHD-EX-70C-KIT & AT-UHD-EX-70C-RX
Please check http://www.atlona.
com/UHD-EX-70C-KIT.html or http://
www.atlona.com/UHD-EX-70C-RX
for the most recent firmware
update or manual.
Toll free: 1-877-536-3976
atlona.com
Local: 1-408-962-0515
Table of Contents
1. Introduction ................................................................................... 3
2. Package Contents ................................................................................... 3
3. Features ................................................................................... 3
4. Before You Start ................................................................................... 3
5. Category Cable ................................................................................... 4
6. Panel Descriptions
a. Front Panel ................................................................................... 5
b. Rear Panel ................................................................................... 6

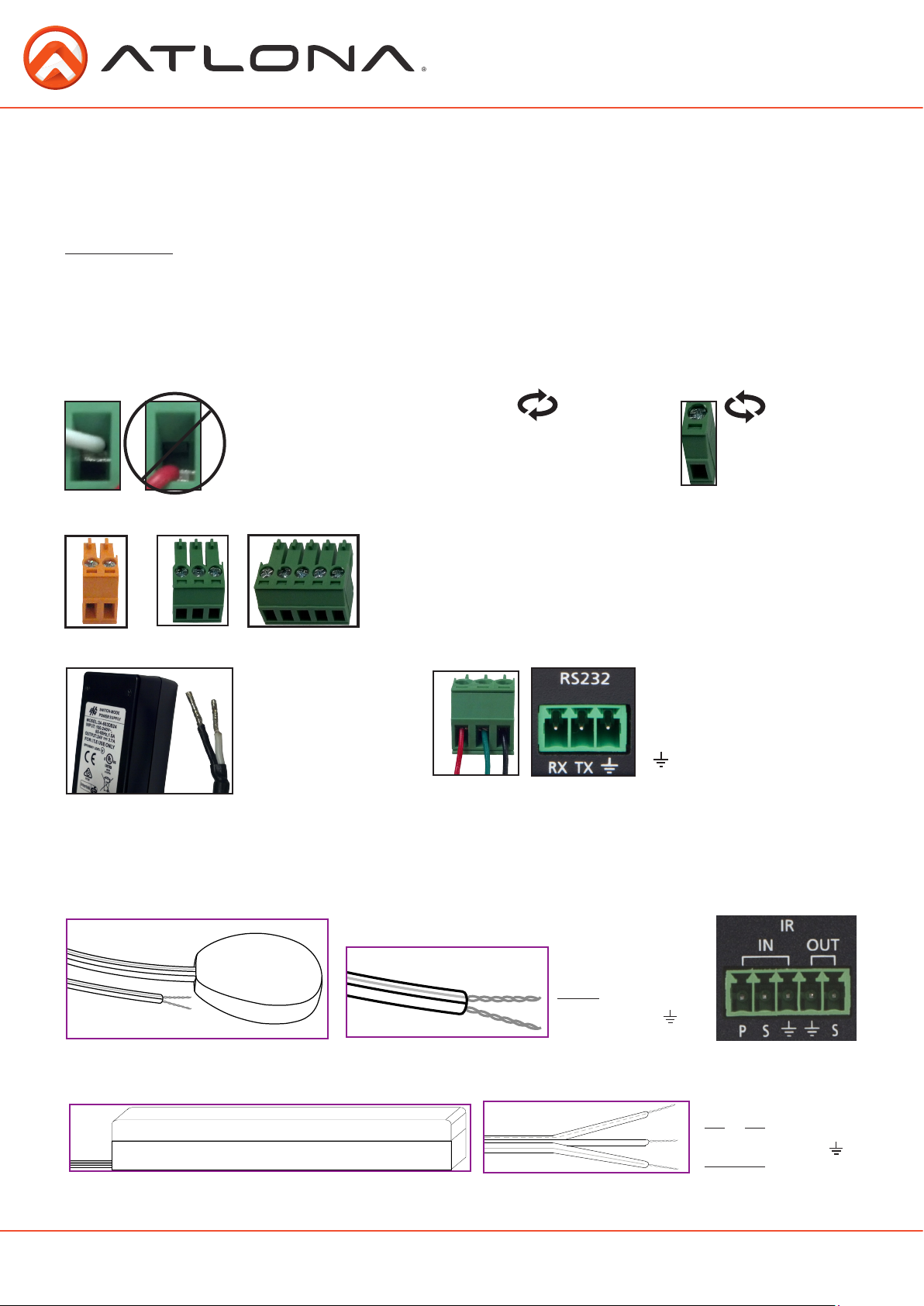

7. Captive Screw Connectors ................................................................................... 7
8. Connection Diagram ................................................................................... 8-9
9. Specifications ................................................................................... 10
10. Safety Information ................................................................................... 11
11. Warranty ................................................................................... 12-13
12. Atlona Product Registration ................................................................................... 13
atlona.com
2
Toll free: 1-877-536-3976
Local: 1-408-962-0515
Introduction
Pass through support of 4K (UHD), 2560x2048, IR, RS-232, and lossy/lossless audio signals up to
230ft (70m). The 70C extenders provide an affordable, high quality, solution for your audio and
video needs.
Package Contents
Kit
• 1 x AT-UHD-EX-70C-TX
• 1 x AT-UHD-EX-70C-RX
• 1 x 48V DC desk top power supply
• 1 x IEC C13 power cable
• 5 x Female captive screw connector (2 pin (x1): power, 3 pin (x2): RS-232, and 5 pin (x2): IR)
• 2 x Pair of wall/table mount ears
• 1 x IR emitter (AT-IR-CS-TX)
• 1 x User manual
RX
• 1 x AT-UHD-EX-70C-RX
• 2 x Female captive screw connector (3 pin: RS-232 and 5 pin: IR)
• 2 x Pair of wall/table mount ears
• 1 x IR emitter (AT-IR-CS-TX)
• 1 x User manual
Features
• Extends IR, RS-232, and audio/visual content up to 328ft over a single category cable
• Supports resolutions up to 4K (UHD) 60Hz @ chroma sub-sampling 4:2:0 8-bit
• IR ports for use with IR remote controls and 3rd party IR controllers
• Provides PoE (Power over Ethernet) from transmitter to receiver
• Multichannel audio pass through up to Dolby TrueHD, DTS-HD Master Audio, and Dolby Atmos
• Full 3D pass through
• HDCP 2.2 compliant
• Field updatable firmware
Before You Start
• When installing the extenders DO NOT:
Cover the vents
Install into a sealed wall
Install into an area without adequate air ventilation
Connect the screws to these
four holes when mounting to
a wall.
*Remove the side screws from the case and use for bracket installation
atlona.com
Do not
cover
venting!
Connect the screws to these
four holes when mounting to a
table.
Toll free: 1-877-536-3976
3
Local: 1-408-962-0515
Category Cable
For the category cables used in the installation of these products, please be sure to use a 568B
termination as pictured below:
1. White - Orange
2. Orange
3. White - Green
4. Blue
5. White - Blue
6. Green
7. White - Brown
8. Brown
Use the table below to verify the best category cable for the installation.
Performance Rating Type of LAN cable
Wiring Shielding CAT5e/6 CAT6a/7
Solid
Stranded - Patch
cable
(Not recommended)
Termination Please use EIA/TIA-568-B termination
Shielded (STP/FTP)
UnShielded (UTP) ** N/A
Unshielded (UTP) * N/A
Shielded (STP/FTP)
*** ****
* N/A
Important! 4K (UHD) signals are sensitive to cable quality and installation technique. It is recommended to
use CAT6a/7 solid core cables for best results.
Note: For cable distances see the specifications on page 10
Connector
Connector type and size is very important to ensure extenders work correctly. Please use the
matching cable type with the correct RJ45 connector.
CAT5e and CAT 6 cables should use only CAT5e RJ45 connectors
CAT6a cables should use only CAT6a connectors
CAT7 cables should use only CAT7 connectors
Using the wrong size of connectors may result in interference causing loss of signal.
Important! “EZ RJ45 connectors” are not recommended with HDBaseT extenders. Doing so may result in stray EMI/RFI
signals to be picked up and interfere with audio and video transmission.
atlona.com
4
Toll free: 1-877-536-3976
Local: 1-408-962-0515
Panel Description
TX
1
AT-UHD-EX-70C-TX
POWER
2
LINK
FW
+
-
TX
RX
S
S
DC 48V
RS-232
IR IN
IR OUT
HDBaseT OUT
HDMI IN
76543
1. Firmware - Use a Mini-B USB to USB A cable to connect to a Windows computers for updating
2. Yellow Link LED: Signal indicator for the HDBaseT OUT port
Solid - Good signal from the HDBaseT port
Blinking - HDBaseT port is disconnected or not transmitting signals
No Light - No signal is being received from the HDBaseT port
Green Power LED: Power indicator
Solid - Plugged in and receiving power
Blinking - Power is intermittent or there is a problem with the cable
No Light - No power is passing from the wall outlet to the transmitter (check the cable or outlet)
3. DC 48V - Connect included captive screw power adapter here
4. RS-232 - Bidirectional RS-232, send signal to or from a control system, PC, source, or display
5. IR - Connect IR emitter (included) or 3rd party control box to this port
6. HDBaseT OUT - Connect a category cable from here to an AT-UHD-EX-70C-RX (included in KIT)
7. HDMI IN - Connect HDMI or DVI (with adapter) source here
Ex. Blu-ray player, cable box, HDDA series, H2H series, etc
atlona.com
5
Toll free: 1-877-536-3976
Local: 1-408-962-0515
