Atlona Technologies AT-UHD-EX-70-2PS Specifications

4K/UHD HDMI Over HDBaseT
TX/RX Kit
AT-UHD-EX-70-2PS

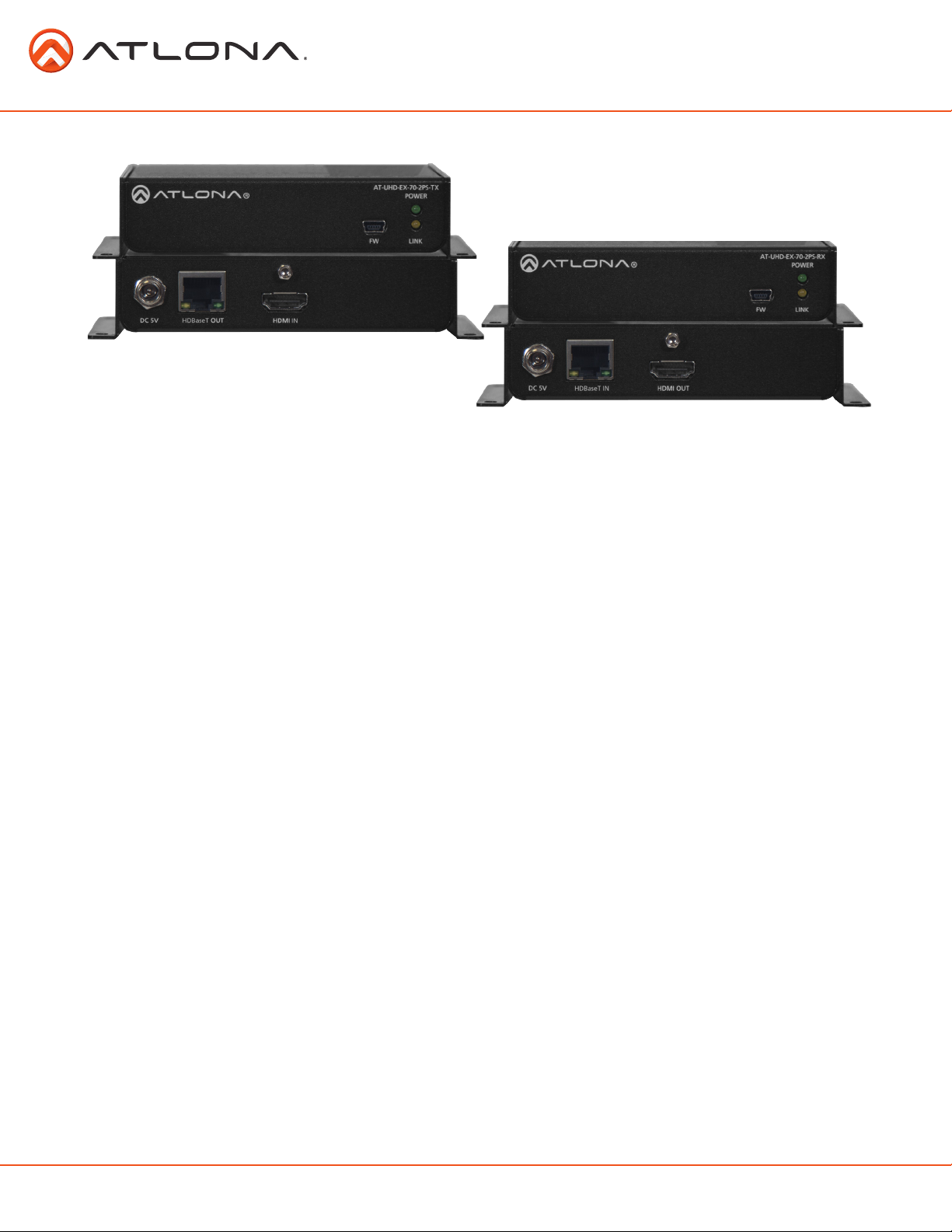

The Atlona AT-UHD-EX-70-2PS is an HDBaseT™ transmitter/receiver kit for HDMI transmission up to 230 feet (70 meters) over category cable using locally-powered endpoints. The kit provides an economical means of transmitting video signals up to 4K/UHD @ 60Hz with embedded multi-channel audio. The kit is HDCP 2.2 compliant and supports EDID communication. Both transmitter and receiver feature quarter rack width metal enclosures for easy rack mounting with rear panel I/O ports for uncluttered wire management.
This product was designed with the latest extender technology including long distance HDBaseT signal transmission, 4K/UHD capability, configuration-free set-up, and field-updateable firmware while maintaining an affordable price point. The AT-UHD EX-70-2PS offers these capabilities and more with the latest content protection for guaranteed pass-through of encrypted high definition content.
The AT-UHD-EX-70-2PS is ideal for use in residential or commercial point to point applications that require HDBaseT signal transmission over greater distances than HDMI can support. The kit can be used with the H2H matrix switcher series or HDDA distribution amplifier series for economical, long distance AV signal extension without PoE capability or control signal extension requirements.
Long distance HDMI extension -
• Transmits HDMI signals up to 230 feet (70 meters) @ 1080P and 130 feet (40 meters) @ 4K/UHD using CAT6a/7 cable
• Uses easy-to-integrate category cable for low-cost, reliable system installation
4K/UHD capability -
• Compatible with Ultra High Definition sources and displays
• Future proofs AV systems in preparation for technology improvements, 4K/UHD streaming services and playback devices Field updatable firmware -
• Front panel USB port provides an easy means for kit upgrades
• Ensures long term system return on investment
HDCP 2.2 compliant -
• Adheres to latest specification for High-bandwidth Content Protection
• Allows protected content stream to pass between devices
Rear panel I/O connectors -
• Placement of ports on rear panel simplifies wire management
• Saves installation time and eliminates clutter
Low-profile, 1 inch (2.5 cm) high quarter rack-width enclosure -
• Easy installation into racks and confined spaces behind displays
• Keeps devices out-of-sight when placed in public spaces
70 Daggett Road San Jose, CA 95134, tel: 408-962-0515, toll free: 1-877-536-3976, fax: 408-743-5622 ©Atlona 2003-2014
atlona.com
4K/UHD HDMI Over HDBaseT
TX/RX Kit
AT-UHD-EX-70-2PS
Specifications
Video Resolutions
Video 4096x2160@24/25/30Hz*, 3840x2160@24/25/30Hz* (UHD), 2048x1080p, 1080p@23.98/24/25/29.97/30/50/59.94/60Hz, 1080i@50/59.94/60Hz, 720p@50/59.94/60Hz, 576p, 576i, 480p, 480i
VESA 2560x2048, 2560x1600, 2048x1536, 1920x1200, 1680x1050, 1600x1200, 1600x900, 1440x900, 1400x1050, 1366x768, 1360x768, 1280x1024, 1280x800, 1280x768, 1152x864, 1024x768, 800x600, 640x480
Colorspace YCbCr, RGB Chroma Subsampling 4:4:4, 4:2:2, 4:2:0 Color depth 8-bit, 10-bit, 12-bit
Audio
Formats PCM 2Ch, LPCM 5.1, LPCM 7.1, Dolby Digital, DTS 5.1, Dolby Digital Plus, Dolby TrueHD, DTS-HD Master Audio Sample Rate 32kHz, 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz Bit rate up to 24-bit
Distance
CAT5e/6 @ 4K up to 35 meters up to 115 feet CAT6a/7 @ 4K up to 40 meters up to 130 feet CAT5e/6 @ 1080p up to 60 meters up to 197 feet CAT6a/7 @ 1080p up to 70 meters up to 230 feet HDMI @ 4K up to 5 meters up to 15 feet HDMI IN/OUT @ 1080p up to 10 meters up to 30 feet
Signal
Bandwidth 10.2 Gbps CEC Yes HDCP supports up to 2.2
Temperature
Operating 0°C to 50°C 32°F to 122°F Storage -20°C to 60°C -4°F to 140°F Humidity 20 to 90% non-condensing
Power
Consumption 1.55W Idle Consumption 0.58W Supply Input: AC100~240V 50/60Hz Output: DC 5V 1.2A
Dimension
H x W x D 25 x 109 x 76 (mm) 1 x 4.3 x 3 (inch) w/ears 27 x 129 x 76 (mm) 1.06 x 5.08 x 3 (inch)
Weight
TX Unit 0.22 kg 0.49 lbs RX Unit 0.24 kg 0.53 lbs Shipping 0.8 kg 1.76 lbs
Certification
Power Supply CE, FCC, cULus, RoHS, CCC, RCM Product CE, FCC
**4096x2160@50/60Hz & 3840x2160@50/60Hz supported @ chroma subsampling 4:2:0 8-bit
Video
HDBaseT
DC 5V
HDBaseT OUT
