4K/UHD 6 Input Multi-Format Switcher with Mirrored
HDMI and HDBaseT Outputs, PoE, and Auto Switching
AT-UHD-CLSO-601
The Atlona AT-UHD-CLSO-601 is an advanced six-input, multi-format switcher with built-in 4K scaling
and mirrored HDBaseT™ and HDMI outputs. It simplifies classroom and small office system integration
by providing four HDMI and two multi-function analog inputs, to enable the use of both new and legacy
sources with HDMI displays. Professional audio features such as a microphone input with 48 volt phantom
power and ducking are also included, allowing the switcher to address a wide array of AV switching and
processing needs often encountered in classrooms, conference rooms, boardrooms, training rooms and
other presentation settings.
The AT-UHD-CLSO-601 joins the CLSO product line and offers a simpler set of inputs for applications
when all sources are near the switcher. The new switcher is designed to work with the Atlona AT-UHD-EX100CE-RX extender receiver and offers HDBaseT signal extension up to 328 feet (100 meters) with Ethernet
and PoE for remote powering the receiver.
Four HDMI inputs -
• Digital inputs to support up to four DVI, HDMI and
DisplayPort Sources
• Works with PCs, Blu-ray players, document cameras,
teleconference systems, wireless solutions with
industry standard digital audio/video outputs
Two multi-function analog inputs on 15-pin HD
connectors -
• Accepts RGBHV, component, S-video, or composite
signals using common adaptors and break out
cables
• Provides input options for legacy analog sources
Mirrored, dual outputs on HDBaseT and HDMI -
• Supports dual display applications with both local
and extended distance displays up to 328 feet (100
meters)
• Eliminates cost associated with extra extension
components; simplifies installation. HDMI output
allows additional HDBaseT transmitter for dual long
distance applications
4K/UHD @ 30Hz capability -
• Compatible with Ultra High Definition sources and
displays
• Supports high resolution applications such as CAD,
desktop publishing, and detailed financial reporting
Built-in 4K scaler -
• Scales to and from most resolutions up to 4K to
optimize content from any source to any monitor or
projector up to 4K
• Eliminates the need for external scaling components
AV, Ethernet, and control over HDBaseT -
• Delivers 4K/UHD video, audio, 100BaseT Ethernet,
and control through a single cable
• Eliminates multiple cable runs between source,
control system router and display
Power over Ethernet for remote-powered HDBaseT
receiver -
• Industry standard IEEE 802.3af PoE supplied by the
switcher over HDBaseT
• No local AC outlet required saves time and
integration costs
Auto-switching -
• Selects last connected HDMI or VGA source
• Reduces complexity or eliminates control system
completely
70 Daggett Road, San Jose, CA 95134
tel: 408-962-0515, toll free: 1-877-536-3976, fax: 408-743-5622
©Atlona 2003-2015
atlona.com
4K/UHD 6 Input Multi-Format Switcher with Mirrored
AT-UHD-CLSO-601
INPUT FUNCTION
5
6
<
<
<
>
41
2
3
MENU ENTER
VOLUME
MUTEPOWER
FW
LINK
POWER
AT-UHD-EX-100CE-RX
ETHERNET
HDMI and HDBaseT Outputs, PoE, and Auto Switching
AT-UHD-CLSO-601
Specifications
Video Resolutions
Video 4096x2160@24/25/30Hz, 3840x2160@24/25/30Hz (UHD), 2048x1080p,
1080p@23.98/24/25/29.97/30/50/59.94/60Hz, 1080i@50/59.94/60Hz, 720p@50/59.94/60Hz, 576p, 576i,
480p, 480i
VESA 2560x2048, 2560x1600, 2048x1536, 1920x1200, 1680x1050, 1600x1200, 1600x900, 1440x900,
1400x1050, 1366x768, 1360x768, 1280x1024, 1280x800, 1280x768, 1152x864, 1024x768, 800x600,
640x480
Colorspace YUV, RGB
Chroma Subsampling 4:4:4, 4:2:2, 4:2:0
Color depth 8-bit, 10-bit, 12-bit
Audio
Analog Output PCM 2Ch (de-embedded)
HDMI/HDBaseT Output PCM 2Ch, supports DTS and Dolby pass through
Sample Rate 32kHz, 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz
Bit rate up to 24-bit
Distance
CAT5e/6 @ 4K up to 70M up to 230 ft
CAT5e/6 @ 1080p up to 100M up to 328 ft
CAT6a/7 @ 4K up to 100M up to 328 ft
HDMI @ 4K up to 5 meters up to 15 feet
HDMI IN/OUT @ 1080p up to 10 meters up to 30 feet
Signal
Bandwidth 10.2 Gbps
HDCP Switchable - Complaint / Non compliant
Temperature
Operating 0°C to 50°C 32°F to 122°F
Storage -20°C to 60°C -4°F to 140°F
Humidity 20 to 90% non-condensing
Power
Consumption 33W
Idle Consumption 3.1W
Supply Input: AC100~240V 50/60Hz
Output: DC 48V 3.125A
Dimension
H x W x D 44 x 433.8 x 255 (mm) 1.73 x 17.08 x 10.04 (inch)
w/feet 55.15 x 433.8 x 255 (mm) 2.17 x 17.08 x 10.04 (inch)
Rack Unit 1U
Weight
Device 3.12 kg 6.9 lbs
Certification
Power Supply CE, FCC, cULus, RoHS, CCC, RCM
Product CE, FCC
Specifications and availability subject to change without notice. Actual products, product images, and online product images may vary from images shown
70 Daggett Road, San Jose, CA 95134
tel: 408-962-0515, toll free: 1-877-536-3976, fax: 408-743-5622
©Atlona 2003-2015
here. Not responsible for typographical errors.

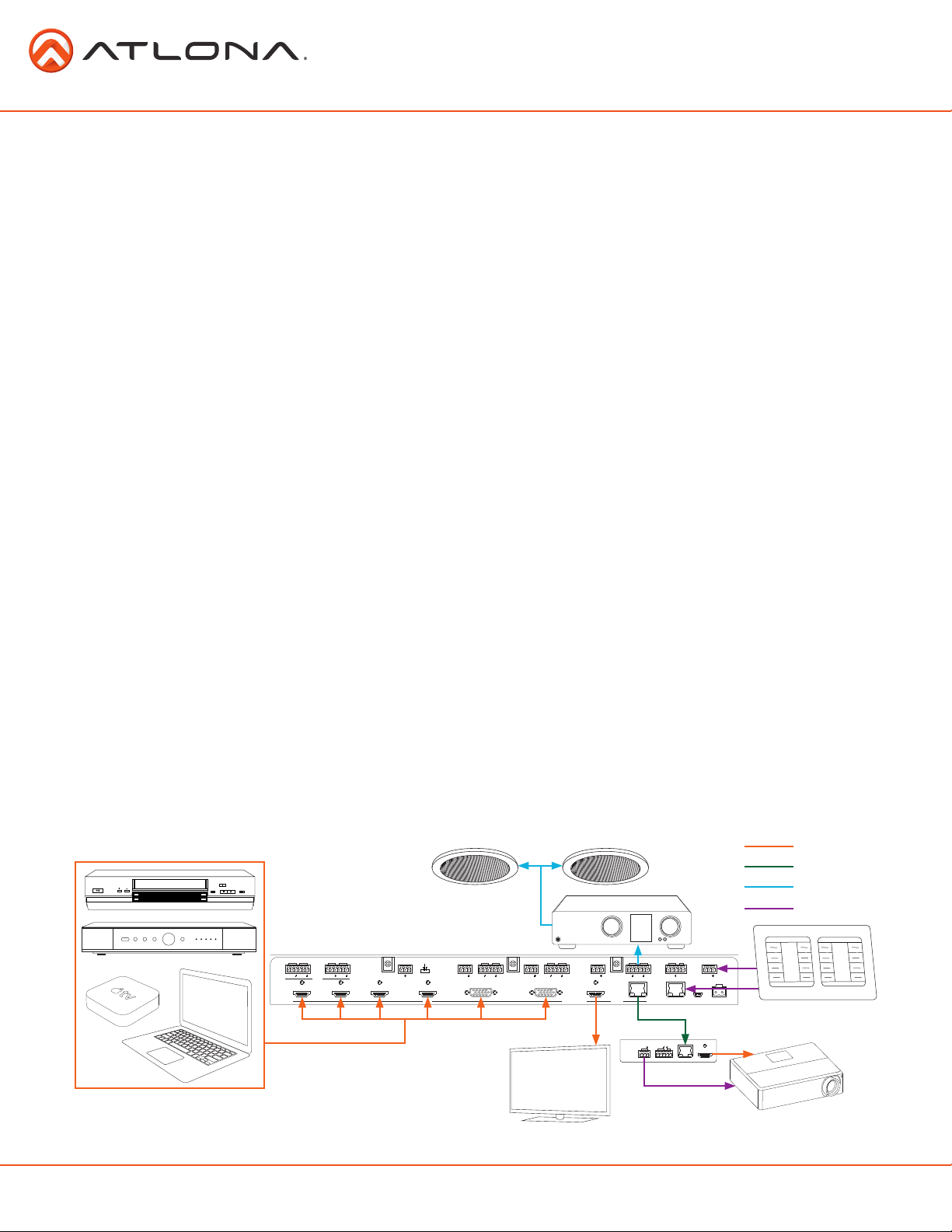

1
2
4
3
RX
TX RXTX RXTX RX TX
RS-232 MIC/LINE IN
2 3
1
Video
HDBaseT
Audio
Control
MUTE OFF
5 L
48V
MIC
LINE
+
-
4
INPUT
+
-
RXTX
AUDIO IN 5 AUDIO IN 6
RS-232
5
R
+
-
L
6 7
R
+ - + -
RXTX
RS-232
6
L R
+
RXTX
RS-232
OUTPUT
OUTIN
+ +
- -
PWRIR
LAN
TX
S
P
RX
S
HDBaseT IN
RS-232
IR OUT
IR IN
AT-UHD-EX-100CE-RX
MASTER
RXTX
RS-232IRAUDIO OUT
+
-
FW
DC 48V
HDMI OUT
VCR DVD
CAM PC1
PC2 PC3
Control System
+ -
A B
C D
1 2
