4K/UHD 4-Output HDMI to HDBaseT
Distribution Amplifier
AT-UHD-CAT-4
User Manual
Please check http://www.atlona.
com/product/AT-UHD-CAT-4
for the most recent firmware
atlona.com
update or manual
Toll free: 1-877-536-3976
Local: 1-408-962-0515
Table of Contents
1. Introduction .......................................................................................... 3
2. Package Contents .......................................................................................... 3
3. Features .......................................................................................... 3
4. Wall/Rack mounts .......................................................................................... 3
5. Panel Descriptions
a. Front Panel .......................................................................................... 4
b. Back Panel .......................................................................................... 4
6. Category cable .......................................................................................... 5
7. TCP/IP and GUI .......................................................................................... 6-10
8. RS-232
a. Connection .......................................................................................... 11
b. Set Up .......................................................................................... 11
c. Commands .......................................................................................... 12-13
9. IR .......................................................................................... 13
10. Connection Diagram .......................................................................................... 14
11. Control Drivers .......................................................................................... 14
12. Updating .......................................................................................... 14
13. Specifications .......................................................................................... 15
14. Safety .......................................................................................... 16
15. Warranty .......................................................................................... 17-18
16. Registration .......................................................................................... 18
atlona.com
2
Toll free: 1-877-536-3976
Local: 1-408-962-0515
Introduction
The Atlona AT-UHD-CAT-4 is a 4K/UHD HDMI to HDBaseT™ distribution amplifier featuring
pass-through HDMI input connections, four HDBaseT outputs and display control capability.Each
output transmits AV and control signals up to 230 ft. (70 m) @ 1080p and 130 ft. (40 m) @ 4K/
UHD. Features include 4K/UHD @ 60 Hz with 4:2:0 color subsampling, HDCP 2.2 compliance, EDID
management, and PoE for powering remote receivers. A wide variety of consumer and commercial
displays may be controlled by the AT-UHD-CAT-4 using CEC.Designed for commercial distribution
applications, the AT-UHD-CAT-4 is control system-friendly and integrates with any TCP/IP, RS-232,
or IR control system and features a 1U, half-rack width enclosure with external, international power
supply.
Package Contents
• 1 x AT-UHD-CAT-4
• 5 x Female captive screw connectors (RS-232 and IR)
• 1 x Short rack ear
• 1 x Long rack ear
• 2 x Mounting plates
• 1 x Rubber feet
• 1 x 48V/3.125A DC power supply adaptor
• 1 x User manual
Features
• Supports 4K pass through @ 60Hz 4:2:0 chroma sub-sampling
• Send a single source to multiple displays or UHD-CATs
• Local HDMI output for in room display, AVR, or cascading to another UHD-CAT device
• Provides PoE (Power over Ethernet) to compatible receivers
• Full 3D pass through
• Lossy and lossless audio formats pass through (up to Dolby TrueHD
• HDCP management
• EDID management for better compatibility
• Firmware upgrade via USB or webGUI for easy field service
• Half-rack size
• Comes with rack mount ears and mounting plates
®
and DTS-HD Master Audio™)
The UHD-CAT can be mounted in three ways: as a single unit in a rack, with a second unit in a
rack, or against a wall/table using the mounting plates.
Single unit mounting will use the long rack ear and short rack ear to affix the unit to the rack.
Two unit mounting will use two short rack ears (the second will be in the box with the second unit) and two
mountings plates to affix the two units together inside the rack.
Wall/table mounting will use both mounting plates to affix the unit to a table or wall.
atlona.com
Larger oval
hole will be
attached to
the wall/table.
Mounting Plate x 2
Oval holes on
the rack ears will
always be attached
to the rack.
Rack Ear x 1
Circular holes
will always be
attached to
the unit.
Rack Ear x 1
Toll free: 1-877-536-3976
3
Local: 1-408-962-0515
41 2 3
EDID
LEARN
INT
POWER
AT-UHD-CAT-4
IN
HDMI
OUT
HDBaseT LOCK
Panel Description
Front Panel
1
2
3
INT
LEARN
EDID
5
AT-UHD-CAT-4
HDMI
IN
OUT
HDBaseT
LOCK
41 2 3
POWER
4
1. HDMI LED - Illuminates when receiving/transmitting signals
2. HDBaseT LEDs - Illuminates when connected to a compatible PoE receiver
3. LOCK LED - Illuminates when buttons are locked
4. Power button - Switch the unit on/off or , when selected within the webGUI or RS-232, the unit
and display
5. EDID
LEDs - Lights up to indicate what EDID mode the unit is in
Button - Switches between internal and learned EDID modes
Back Panel
1
LAN
2
MASTER
RS-232 IR
RX RXTX TX
RS-232
RX RXTX RX TX RX TX RX TXTX
3
1
RS-232
2
IR
RXTX
3 4
IR
RS-232
RXTX
RS-232IR
4
FW
IR
RXTX
HDMI
1OUTIN 2
HDBaseT OUT
3 4
DC 48V
5 6 7
1. LAN port - Connect to network router for control
2. Master control - Connect to PC or control system for unit control
3. RS-232 / IR control ports - Connect to PC or control system for zone control
4. FW port - Connect to a PC for firmware updating
5. HDMI ports - Connect HDMI source and display to these ports
6. HDBaseT OUT ports - Connect HDBaseT PoE receivers to this port (e.g. AT-UHD-EX-70C-RX, etc)
Note: Compatible PoE receivers do not need power
7. DC 48V port - Connect included 48V power supply to this port
atlona.com
Toll free: 1-877-536-3976
4
Local: 1-408-962-0515
Category Cable
For the category cables used in the installation of these products, please be sure to use a 568B
termination as pictured below:
1. White - Orange
2. Orange
3. White - Green
4. Blue
5. White - Blue
6. Green
7. White - Brown
8. Brown
Use the table below to verify the best category cable for the installation.
Performance Rating Type of LAN cable
Wiring Shielding CAT5e/6 CAT6a/7
Solid
Stranded - Patch
cable
(Not recommended)
Termination Please use EIA/TIA-568-B termination
Shielded (STP/FTP)
Unshielded (UTP) ** N/A
Unshielded (UTP) * N/A
Shielded (STP/FTP)
*** ****
* N/A
Important! 4K (UHD) signals are sensitive to cable quality and installation technique. It is recommended to
use CAT6a/7 solid core cables for best results.
Note: For cable distances see the specifications on page 15
Connector
Connector type and size is very important to ensure extenders work correctly. Please use the
matching cable type with the correct RJ45 connector.
CAT5e cables should use only CAT5e RJ45 connectors
CAT6 cables should use only CAT6 connectors
CAT6a cables should use only CAT6a connectors
CAT7 cables should use only CAT7 connectors
Using the wrong size connectors may result in interference causing loss of signal.
Important! “EZ RJ45 connectors” are not recommended with HDBaseT extenders. Doing so may result in interference
with audio and video transmission.
atlona.com
5
Toll free: 1-877-536-3976
Local: 1-408-962-0515
TCP/IP
For convenience, the UHD-CAT comes with DHCP on. This enables the switcher to be connected to
a network without concern for overlapping IP addresses with other devices on the network. If your
network does not support DHCP, this feature may be turned off and the IP address set using RS232 commands or the webGUI.
Note: If your system is controlled using IP, it is strongly recommended that you disable DHCP and select a unused IP
address so that your system controller doesn’t lose contact with the switcher.
TCP/IP WebGUI
Atlona has created an easy to use webGUI for initial setup and later changes to the configuration
of the UHD-CAT.
To begin, connect the LAN port of the UHD-CAT to your network. Type the IP address of the UHDCAT into the web browser of a PC connected to the same network (as seen below).
To find the switcher IP: Select “Network Status” within the OSD menu or use RS-232 command “IPCFG”.
Important: If any stability issues are experienced, disable any anti-virus or firewall that may interfere with
network communication to the switcher. Once set up is done and the switcher GUI is no
longer being used, the firewall and anti-virus can be re-enabled.
A login screen will appear (this is the same log in for admin and general users). For the first log in (and future
admin changes) the username is “root” and password is “Atlona”.
Note: Only the admin password can be changed (see page 8). The username will always remain “root”.
atlona.com
6
Toll free: 1-877-536-3976
Local: 1-408-962-0515
The home screen tab will display the general system information.
RS-232 Parameter Setting
Zone Adjust the RS-232 parameters of the HDBaseT output of the CAT-4
Console Adjust the RS-232 parameters of the CAT-4 to make it compatible with control systems.
Save Once the RS-232 parameters are changed, press the save button to make it live on the unit.
atlona.com
7
Toll free: 1-877-536-3976
Local: 1-408-962-0515
The EDID page enables EDIDs to be selected, copied, and locked.
EDID lock - While locked, EDIDs cannot be switched
EDID mode - Switch between INT and Learn mode
INT EDID settings - Select from drop down INT EDIDs *will grey out when in ‘Learn’ mode*
EDID copy - Use when in EDID mode ‘learn’, to copy the EDID of HDBaseT output 1
The Configuration Page allows non-admin users to be added or the admin password to be
changed.
Only 3 non-admin users can be added. Press the add button. A pop up screen will appear (see
below). Fill in the username and password than press save changes. Users will not have the ability to
access this page.
Admin password can also be changed. Be sure to write this information down as admin is the only
profile allowed to add/remove users.
Note: Default username= “root” and password= “Atlona”
atlona.com
8
Toll free: 1-877-536-3976
Local: 1-408-962-0515
Network: IP address, netmask, gateway, and telnet port can be set to any settings compatible
with your network. The Netmask and Gateway must match your existing network
settings
IP Mode Static: Set a fixed IP address
Note: For a stable connection when using a control system, it is best to set up a static IP. As you select
an IP address, make certain no other devices on your network are using that IP address
DHCP: Dynamic Host Configuration Protocol will automatically select an IP address
on the network that is not already in use
Telnet Login Mode - Turn on/off - requires a password to adjust settings
Telnet Timeout - Set the auto log-off time between 1 and 3600 seconds
Broadcast - Turn on and off the feedback through all control ports
Power - Turns the unit on/off
Lock - Locks or unlocks the front panel buttons
Power button mode - Set the power button to turn the device, display (via CEC), or both on/off
Reset to Default - Reset the device to factory settings
Firmware Update - Use this feature to find and load the MCU firmware to the switcher
Note: Firmware can be found and downloaded from http://www.atlona.com/product/AT-CAT-4/
page under the firmware tab
Valens Update - Use this feature to find and load the Valens firmware to the Valens chips
atlona.com
9
Toll free: 1-877-536-3976
Local: 1-408-962-0515
CEC
Power On: Sends a command over HDBaseT to the HDMI output of the connected receiver to turn
the connected display on
Off: Sends a command over HDBaseT to the HDMI output of the connected receiver to turn
the connected display off
Note: Consumer Electronics Control (CEC): Atlona does not guarantee the function of CEC with all televisions. We can
confirm proper operation with many current Samsung, Panasonic, and Sony TVs. Many manufacturers do not
support the CEC “Off” command when sent from a source and older TVs use proprietary commands. Atlona only
supports those TVs that follow CEC command structure from HDMI 1.2a and support the “off” command when
issued by a source. We encourage any dealer to get evaluation product from Atlona prior to designing a system
around this control technology or be prepared to use other methods to control their displays if Atlona CEC is not
compatible with the installed displays.
Note: Together, CEC and HDBaseT output audio control provide a simple solution for complete audio and
video control, without the need for IP, RS-232, or spending extra programming time.
atlona.com
10
Toll free: 1-877-536-3976
Local: 1-408-962-0515
RS-232
Connection
Wire color will
differ by cable
manufacturer.
1
RS-232 pin out will be determined by the RS232 cable and will connect as Rx (receiver), Tx
(transmitter), and (ground). (See picture 1)
RS-232
RX
TX
1
5
4 3 2
RS-232 is often connected through a DB 9-pin to captive screw
connector. The pins will have functions associated with them,
some will be unassigned.
Note: Typical DB9 connectors use pin 2 for TX, pin 3 for RX, and pin
5 for ground. On some devices functions of pins 2 and 3 are
reversed.
9 8 7 6
Set Up
To set up the RS-232 hyperterminal (if not using 3rd party software) use the following steps:
1. Connect the CAT-4 to a PC using a 3 pin to USB cable
2. Go to the Device Manager folder (see picture A)
3. Find the CAT-4 COM port and right click with a mouse and select properties (see picture B)
Note: If unsure which COM port is the CAT-4, unplug the cable and plug it back in. It will disappear and
reappear on the COM port list.
4. Under the properties menu select the port settings tab and update the menu to the CAT-4
default settings of: Bits Per Second: 115200, Data Bits: 8, Parity: None, Stop Bits: 1 and Flow
Control: None. (see picture C)
Set up is done and any hyperterminal program may be used to control the CAT-4 now.
A
B
C
atlona.com
11
Toll free: 1-877-536-3976
Local: 1-408-962-0515
Commands
The command codes are case sensitive, do not change capitalization, spacing, or lettering.
Command Feedback Description
PWON PWON Power ON
PWOFF PWOFF Stand-by
PWSTA PWON/PWOFF Get system power status
Type AT-UHD-CAT-4 Brings up the model information
Version Y
e.g. Version boot
Mreset Mreset Reset device to manufacture default
CSpara[Y]
e.g. CSpara[38400,8,0,1]
EDIDSW X
e.g. EDIDSW learn
EDIDCopy
EDIDMSet X EDIDMSet X Set the Internal EDID X= 0-16, sta
HDCPSet X HDCPSet X Switch the EDID reporting between Compliant (on) and non-
Blink Blink Will blink an LED on the front of the unit
FWUpdate
BCPW X BCPW X
TrigCECall X TrigCECall X
TrigCECX Y
e.g. TrigCEC2 off
Lock Lock Locks the front panel
Unlock Unlock Unlocks the front panel
Version Y
e.g. Version boot
CSpara[Y]
e.g. CSpara[38400,8,0,1]
EDIDSW X
e.g. EDIDSW learn
EDIDCopy
FWUpdate
TrigCECX Y
e.g. TrigCEC2 off
Brings up the software versions
firmware [mcu]
boot [boot]
vtxY [vtxY]
rvrxY [rvrxY]
Set RS232 parameter [Y] is the parameters
e.g. CSpara[38400,8,0,1]
Set the EDID mode of the unit
Copies the EDID of HDBaseT output 1 to memory
compliant (off)
Sets the unit into firmware mode
Set the power button control. X= local (unit), cec (display), both, sta
Sends the CEC command to all displays X= on, off
Send the CEC command to a specific output X= 1-5 (5 is HDMI) Y= on, off
e.g. Sends the CEC command to turn HDBaseT output 2 off
Preferred Timings -
0 STD (sink) 1 1080P 2CH 2 1080P Multi CH 3 1080P DD 4 1080P 3D CH
5 1080P 3D Multi CH 6 1080P 3D DD 7 720P 2CH 8 720P DD 9 1280x800 RGB 2CH
10 1366x768 RGB 2CH 11 1080P DVI 12 1280x800 RGB DVI 13 2160P 2CH 14 2160P Multi CH
15 4K420 2CH 16 4K420 Multi CH sta
atlona.com
12
Toll free: 1-877-536-3976
Local: 1-408-962-0515
IP Commands
Command Feedback Description
IPCFG IP Addr : x.x.x.x
Netmask : x.x.x.x
Gateway : x.x.x.x
IP Port : x
IPQuit IPQuit Telnet Logout
IPAddUser X Y IPAddUser X Y IPAddUser [name] [password]. Add user of telnet.
IPDelUser Y IPDelUser Y IPDelUser [name]. Del user of telnet
IPDHCP Y IPDHCP Y IPDHCP [on/off/sta]. Set DHCP mode status and auto reset telnet.
IPStatic X Y Z IPStatic X Y Z IPStatic [Address] [Netmask] [Gateway]. Set static IP address and
IPPort Y IPPort Y IPPort [port]. Set telnet port and auto reset telnet
IPLogin Y IPLogin Y IPLogin [on/off/sta]. Set telnet login status.
Broadcast Y Broadcast Y Broadcast [on/off/sta]. Broadcast switch.
IPTimeout Y IPTimeout Y IPTimeout [Sec]. Set telnet idle timeout time. Default is 2 minute.
Displays IP address configure
If only command write “IPAddUser”, it will display all user list.
=> IPAddUser
e.g. Set DHCP mode is on => IPDHCP on
auto reset telnet.
e.g. Set static IP address is 192.168.1.1 255.255.255.0 192.168.1.254
=> IPStatic 192.168.1.1 255.255.255.0 192.168.1.254
e.g. Set telnet port 80 => IPPort 80
e.g. Set telnet login is on => IPLogin on
e.g. Set broadcast mode is on => Broadcast on
e.g. Set telnet idle timeout 10 minutes => IPTimeout 600
Each command is terminated with a carriage return.
Feedback is terminated with a carriage return and line feed.
Note: If the command fails or is incorrect the feedback should be “Command FAILED”
IR
System IR is typically used to connect to control system processors. This input is used to control the
UHD-CAT.
Note: The IR receiver is optional for the UHD-CAT. The compatible IR receiver (AT-IR-CS-RX) can be purchased
through atlona.com.
The wires of the emitter (TX) and receiver (RX) have been marked to differenciate the pin outs.
Signal (TX)
Ground ( )
The included IR emitter has two wires: TX and ground. Signal (TX) will have a solid line and ground
will be blank.
atlona.com
13
Toll free: 1-877-536-3976
Local: 1-408-962-0515

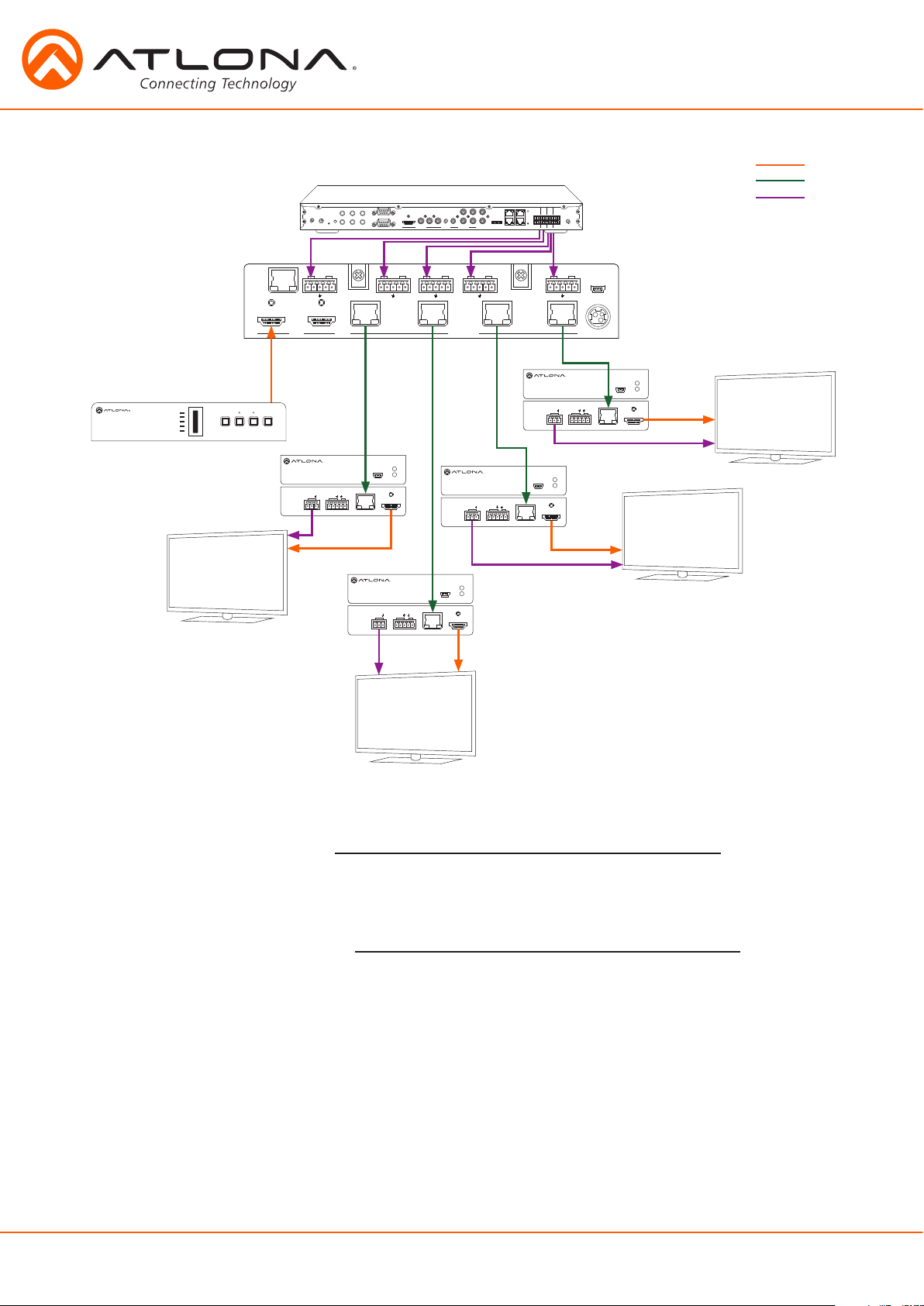

Connection Diagram
MASTER
41 2 3
EDID
LEARN
INT
POWER
AT-UHD-CAT-4
IN
HDMI
OUT
HDBaseT LOCK
1
2
3 4
FW
Control System
345
1
IDFACTORY
ZIGBEE 12V DC
RESTORE
2
IR OUT
Video
HDBaseT
1 2 3 4
COM
COM
COM
6
VIDEO OUT
SERIAL 2
COMPONENT
WIFI 1
HDMI
SERIAL 1
eSATADIGITAL
COAX OUT
L
R
AUDIO IN
AUDIO OUT
COM
NO
NO
NO
NO
NC
NC
NC
NC
RELAYS
WIFI 2
SIG
SIG
SIG
+12V
+12V
SIG
+12V
+12V
GND
GND
GND
GND
ETHERNET
CONTACTS
Control
AT-UHD-SW-52
AT-UHD-SW-52
HDMI 1
HDMI 2
HDMI 3
HDMI 4
HDMI 5
VOLUME
Display 1
RS-232 IR
RX RXTX TX
LAN
HDMI
INPUT
POWER
AT-UHD-EX-70C-RX
TX
P
RX
RS-232
IR IN
RS-232
RX RXTX RX TX RX TX RX TXTX
1OUTIN 2
AT-UHD-EX-70C-RX
POWER
LINK
FW
S
S
HDMI OUT
HDBaseT IN
IR OUT
AT-UHD-EX-70C-RX
TX
P
RX
S
IR OUT
RS-232
IR IN
IR
RS-232
RXTX
HDBaseT OUT
AT-UHD-EX-70C-RX
AT-UHD-EX-70C-RX
POWER
FW
S
HDMI OUT
HDBaseT IN
RS-232
TX
RX
RS-232
LINK
IR
RXTX
3 4
S
P
S
HDBaseT IN
IR OUT
IR IN
IR
RS-232IR
RXTX
AT-UHD-CAT-4
TX
P
RX
S
IR OUT
RS-232
IR IN
AT-UHD-EX-70C-RX
AT-UHD-EX-70C-RX
POWER
LINK
FW
HDMI OUT
DC 48V
AT-UHD-EX-70C-RX
POWER
LINK
FW
S
HDMI OUT
HDBaseT IN
Display 4
Display 3
Control Drivers
Visit the Control Drivers tab at http://www.atlona.com/product/AT-UHD-CAT-4/ to download the
control drivers for the CAT-4.
CAT-4 Updating
Visit the Firmware Update tab at http://www.atlona.com/product/AT-UHD-CAT-4/ to download
the current updates and instructions for the CAT-4 Firmware.
Note: Atlona is constantly improving and updating features and stability. It is recommended that you check to make
sure you are on the most current firmware before installation, especially when using a control system.
Display 2
atlona.com
14
Toll free: 1-877-536-3976
Local: 1-408-962-0515
Specifications
Video Resolutions
Video 4096x2160@24/25/30/50*/60Hz*, 3840x2160@24/25/30/50*/60Hz* (UHD),
2048x1080p, 1080p@23.98/24/25/29.97/30/50/59.94/60Hz, 1080i@50/59.94/60Hz,
720p@50/59.94/60Hz, 576p, 576i, 480p, 480i
VESA 2560x2048, 2560x1600, 2048x1536, 1920x1200, 1680x1050, 1600x1200, 1600x900,
1440x900, 1400x1050, 1366x768, 1360x768, 1280x1024, 1280x800, 1280x768,
1152x768, 1024x768, 800x600, 640x480
Color Space YUV, RGB
Chroma Subsampling 4:4:4, 4:2:2, 4:2:0
Color Depth 8-bit, 10-bit, 12-bit
Audio
HDMI PCM 2Ch, LPCM 5.1, LPCM 7.1, Dolby Digital, DTS 5.1, Dolby Digital Plus,
Dolby TrueHD, DTS-HD Master Audio, Dolby Atmos, DTS:X
Sample Rate 32kHz, 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz
Bit Rate up to 24-bit
Distance
CAT5e/6 @ 4K up to 35 meters up to 115 feet
CAT6a/7 @ 4K up to 40 meters up to 130 feet
CAT5e/6 @ 1080p up to 60 meters up to 197 feet
CAT6a/7 @ 1080p up to 70 meters up to 230 feet
HDMI IN/OUT @ 4K up to 5 meters up to 15 feet
HDMI IN/OUT @ 1080p up to 10 meters up to 30 feet
Signal
Bandwidth 10.2 Gbps
CEC Compliant
HDCP Compliant 2.2
Temperature
Operating 0°C to 50°C 32°F to 122°F
Storage -20°C to 60°C -4°F to 140°F
Humidity 20 to 90% non-condensing
Power
Consumption 52.8W
Idle Consumption 12.54W
Supply Input: AC100-240V ~ 50/60Hz
Output: DC 48V/3.125A
Dimension
H x W x D 44 x 222.25 x 261 (mm) 1.73 x 8.75 x 10.28 (inch)
Rack Unit 1/2 rack, 1RU
Weight
Device 1.66 kg 3.70 lbs
Certification
Unit CE, FCC
Power Supply CE, FCC, Level VI, RoHS, cULus, RCM, CCC
*4096x2160@50/60Hz & 3840x2160@50/60Hz supported @ chroma subsampling 4:2:0 8-bit only
atlona.com
15
Toll free: 1-877-536-3976
Local: 1-408-962-0515
Safety Information
Safeguards
To reduce the risk of electric shock, do not
expose this product to rain or moisture
If the wall plug does not fit into your local
power socket, hire an electrician to replace
your obsolete socket.
Do not modify the wall plug. Doing so will
void the warranty and safety features.
This equipment should be installed near
the socket outlet and the device should
be easily accessible in the case it requires
disconnection.
Precautions
FCC regulations state that any unauthorized changes or modifications to this equipment, not
expressly approved by the manufacturer, could void the user’s authority to operate this equipment.
Operate this product using only the included external power supply. Use of other power supplies
could impair performance, damage the product, or cause fires.
In the event of an electrostatic discharge this device may automatically turn off. If this occurs,
unplug the device and plug it back in.
Protect and route power cords so they will not be stepped on or pinched by anything placed on or
against them. Be especially careful of plug-ins or cord exit points from this product.
Avoid excessive humidity, sudden temperature changes or temperature extremes.
Keep this product away from wet locations such as bathtubs, sinks, laundries, wet basements, fish
tanks, and swimming pools.
Use only accessories recommended by Atlona to avoid fire, shock, or other hazards.
Unplug the product before cleaning. Use a damp cloth for cleaning and not cleaning fluid or
aerosols. Such products could enter the unit and cause damage, fire, or electric shock. Some
substances may also mar the finish of the product.
Never open, remove unit panels, or make any adjustments not described in this manual.
Attempting to do so could expose you to dangerous electrical shock or other hazards. It may also
cause damage to your product. Opening the product will void the warranty.
Do not attempt to service the unit. Disconnect the product and contact your authorized Atlona
reseller or contact Atlona directly.
atlona.com
16
Toll free: 1-877-536-3976
Local: 1-408-962-0515
Atlona, Inc. (“Atlona”) Limited Product Warranty Policy
Coverage
Atlona warrants its products will substantially perform to their published specifications and will be free from defects in
materials and workmanship under normal use, conditions and service.
Under its Limited Product Warranty, Atlona, at its sole discretion, will either:
A) repair or facilitate the repair of defective products within a reasonable period of time, restore products to their
proper operating condition and return defective products free of any charge for necessary parts, labor and shipping
OR
B) replace and return, free of charge, any defective products with direct replacement or with similar products deemed
by Atlona to perform substantially the same function as the original products
OR
C) refund the pro-rated value based on the remaining term of the warranty period, not to exceed MSRP, in cases
where products are beyond repair and/or no direct or substantially similar replacement products exist.
Repair, replacement or refund of Atlona’s products is the purchaser’s exclusive remedy and Atlona’s liability does not
extend to any other damages, incidental, consequential or otherwise.
This Limited Product Warranty extends to the original end-user purchaser of Atlona’s products and is non-transferrable to
any subsequent purchaser(s) or owner(s) of these products.
Coverage Periods
Atlona’s Limited Product Warranty Period begins on the date of purchase by the end-purchaser. The date contained on
the end-purchaser ‘s sales or delivery receipt is the proof purchase date.
Limited Product Warranty Terms – New Products
• 10 years from proof of purchase date for hardware/electronics products purchased on or after June 1, 2013
• 3 years from proof of purchase date for hardware/electronics products purchased before June 1, 2013
• Lifetime Limited Product Warranty for all cable products
Limited Product Warranty Terms – Refurbished (B-Stock) Products
• 3 years from proof of purchase date for all Refurbished (B-Stock) hardware and electronic products purchased on or
after June 1, 2013
Remedy
Atlona recommends that end-purchasers contact their authorized Atlona dealer or reseller from whom they purchased
their products. Atlona can also be contacted directly. Visit www.atlona.com for Atlona’s contact information and hours
of operation. Atlona requires that a dated sales or delivery receipt from an authorized dealer, reseller or end-purchaser is
provided before Atlona extends its warranty services. Additionally, a return merchandise authorization (RMA) and/or case
number, is required to be obtained from Atlona in advance of returns.
Atlona requires that products returned are properly packed, preferably in the original carton, for shipping. Cartons not
bearing a return authorization or case number will be refused. Atlona, at its sole discretion, reserves the right to reject
any products received without advanced authorization. Authorizations can be requested by calling 1-877-536-3976 (US
toll free) or 1-408- 962-0515 (US/international) or via Atlona’s website at www.atlona.com.
Exclusions
This Limited Product Warranty excludes:
• Damage, deterioration or malfunction caused by any alteration, modification, improper use, neglect, improper
packing or shipping (such claims must be presented to the carrier), lightning, power surges, or other acts of nature.
• Damage, deterioration or malfunction resulting from the installation or removal of this product from any installation,
any unauthorized tampering with this product, any repairs attempted by anyone unauthorized by Atlona to make
such repairs, or any other cause which does not relate directly to a defect in materials and/or workmanship of this
product.
• Equipment enclosures, cables, power supplies, batteries, LCD displays, and any accessories used in conjunction with
the product(s).
• Products purchased from unauthorized distributors, dealers, resellers, auction websites and similar unauthorized
channels of distribution.
atlona.com
17
Toll free: 1-877-536-3976
Local: 1-408-962-0515
Disclaimers
This Limited Product Warranty does not imply that the electronic components contained within Atlona’s products will
not become obsolete nor does it imply Atlona products or their electronic components will remain compatible with any
other current product, technology or any future products or technologies in which Atlona’s products may be used in
conjunction with. Atlona, at its sole discretion, reserves the right not to extend its warranty offering in instances arising
outside its normal course of business including, but not limited to, damage inflicted to its products from acts of god.
Limitation on Liability
The maximum liability of Atlona under this limited product warranty shall not exceed the original Atlona MSRP for
its products. To the maximum extent permitted by law, Atlona is not responsible for the direct, special, incidental or
consequential damages resulting from any breach of warranty or condition, or under any other legal theory. Some
countries, districts or states do not allow the exclusion or limitation of relief, special, incidental, consequential or indirect
damages, or the limitation of liability to specified amounts, so the above limitations or exclusions may not apply to you.
Exclusive Remedy
To the maximum extent permitted by law, this limited product warranty and the remedies set forth above are exclusive
and in lieu of all other warranties, remedies and conditions, whether oral or written, express or implied. To the maximum
extent permitted by law, Atlona specifically disclaims all implied warranties, including, without limitation, warranties of
merchantability and fitness for a particular purpose. If Atlona cannot lawfully disclaim or exclude implied warranties
under applicable law, then all implied warranties covering its products including warranties of merchantability and fitness
for a particular purpose, shall provide to its products under applicable law. If any product to which this limited warranty
applies is a “Consumer Product” under the Magnuson-Moss Warranty Act (15 U.S.C.A. §2301, ET SEQ.) or other
applicable law, the foregoing disclaimer of implied warranties shall not apply, and all implied warranties on its products,
including warranties of merchantability and fitness for the particular purpose, shall apply as provided under applicable
law.
Other Conditions
Atlona’s Limited Product Warranty offering gives legal rights, and other rights may apply and vary from country to
country or state to state. This limited warranty is void if (i) the label bearing the serial number of products have been
removed or defaced, (ii) products are not purchased from an authorized Atlona dealer or reseller. A comprehensive list of
Atlona’s authorized distributors, dealers and resellers can be found at www.atlona.com .
Atlona, Inc Product Registration
Thank you for purchasing this Atlona product. - We hope you enjoy it and will take an extra few
moments to register your new purchase.
Registration creates an ownership record if your product is lost or stolen and helps ensure you’ll
receive notification of performance issues and firmware updates.
At Atlona we respect and protect your privacy, assuring you that your registration information is
completely secure. Atlona product registration is completely voluntary and failure to register will not
diminish your limited warranty rights.
To register go to: http://www.atlona.com/registration
atlona.com
18
Toll free: 1-877-536-3976
Local: 1-408-962-0515
Loading...
