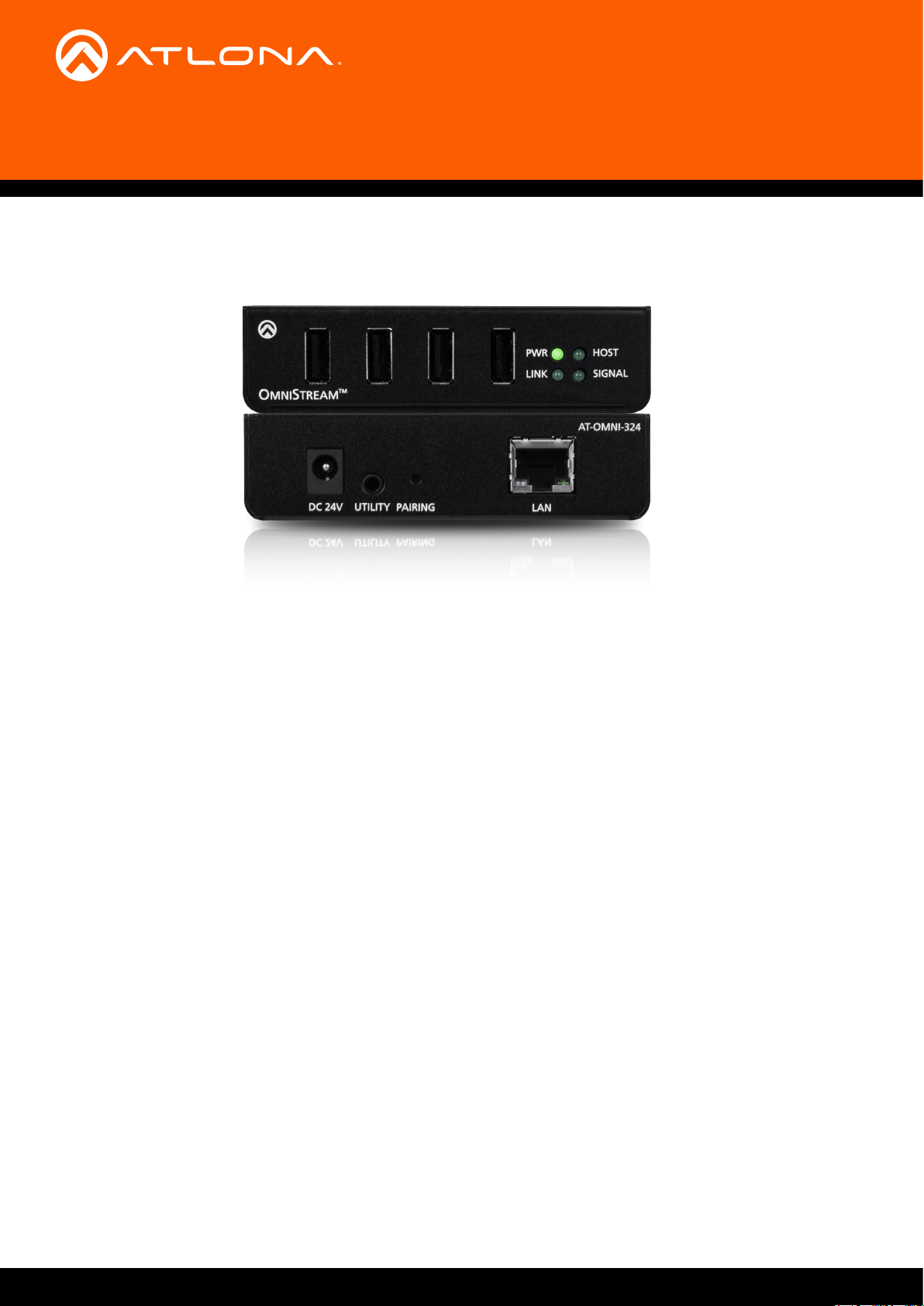

USB to IP
Adapter for Peripheral Devices
Introduction
The Atlona OmniStream™ 324 (AT-OMNI-324) works in tandem with the OmniStream 311 (AT-OMNI-311) for
extending USB from peripheral devices to a PC over Gigabit Ethernet. The OmniStream 324 features a four-port
USB hub for peripherals, while the OmniStream 311 interfaces with a PC or other host device. The OmniStream
USB over IP system is compatible with USB 2.0 data rates of up to 480 Mbps. It can be used with high-bandwidth
devices including cameras, speakerphones, microphones, and DSPs, plus standard USB HID-class devices such
as a keyboard, mouse, or touch display. Up to seven OmniStream 324 units can be simultaneously paired to an
OmniStream 311. Additionally, USB routing over the network can be managed using Atlona Management System
(AMS) 2.0.
OmniStream USB products can be used in a wide variety of system design scenarios for soft codec conferencing
and remote keyboard / mouse control. They are ideal for integrating USB audio and video devices as part of a fully
IP-based meeting room system, in conjunction with OmniStream AV over IP devices and the Velocity Control System.
Applications
• Huddle rooms
OmniStream USB products provide a streamlined videoconferencing solution that interfaces a PC with a PTZ
camera (such as the AT-HDVS-CAM), as well as USB audio peripherals.
• Meeting rooms
OmniStream USB products are ideal for interfacing a wall-mounted touch display with a laptop at the meeting
table.
AT-OMNI-324
1
USB to IP
Adapter for Peripheral Devices
Key Features
• Extend USB over Gigabit Ethernetusing CAT5e/6 cable.
• Four-port USB hub.
• Supports high bandwidthdevices such as webcams and speakers, as well as standard HID-class peripherals.
• Compatible with USB 2.0 data rates up to 480 Mbps.
• Ideal for meeting room applications to extend USB from touch displays, cameras, speakerphones, DSPs, and
more.
• Design exible and scalable AV systems in combination with OmniStream AV encoders and decoders.
• Up to seven OmniStream 324 units can be paired with an OmniStream 311 over a network.
• USB signal routing congured and managed by AMS (Atlona Management System) 2.0.
• Ready for integration with Atlona Velocity™ Control System to manage USB signal routing.
• Front panel LED indicators for power, network and USB host connectivity, and USB signal presence over IP.
• Low-prole, 1 inch (25 mm) high enclosure.
• Includes installation guide, surface-mounting brackets, and external universal power supply.
Connection Diagram
USB
Laptop
TM
TREAM
S
MNI
O
AT-OMNI-311
HOST
SIGNAL
PWR
LINK
Ethernet
Network
Switch
Network
Switch
Ethernet
LAN
Ethernet
Ethernet
TM
TREAM
S
MNI
O
AT-OMNI-324
HOST
SIGNAL
PWR
LINK
Microphone
Web-cam
Mouse
Keyboard
AT-OMNI-324
2
USB to IP
Adapter for Peripheral Devices
Specications
Connectors, Controls, and Indicators
USB 4 - Type A, 4-pin female
LAN 1 - RJ45, sheilded
UTILITY 1 - 3.5 mm mini-stereo
DC 24V 1 - 2.1 x 5.5 mm DC power connector
PAIRING 1 - Push button, tact-type, recessed
PWR indicator 1 - LED, green
LINK indicator 1 - LED, green
HOST indicator 1 - LED, green
SIGNAL indicator 1 - LED, green
Distance Feet Meters
Per hop of Ethernet cable 330 100
USB
Signal 2.0
Maximum Data Rate 480 Mbps
Temperature Fahrenheit Celsius
Operating 32 to 122 0 to 50
Storage -20 to 70 -4 to 158
Humidity
Operating (RH) 20% to 80% (non-condensing)
Storage (RH) 10% to 90% (non-condensing)
Power
Supply 24 V DC, 0.75 A
Dimensions Inches Millimeters
H x W x D 1.04 x 3.92 x 3.01 26.40 x 99.50 x 76.45
Weight Pounds Kilograms
Device 0.50 0.23
Certications
Device CE, FCC, RoHS
© 2018 Atlona Inc. All rights reserved. “Atlona” and the Atlona logo are registered trademarks of Atlona Inc. All other brand names and trademarks or registered trademarks are the property of their respective owners. Pricing, specications and availability
subject to change without notice. Actual products, product images, and online product images may vary from images shown here.
atlona.com • 408.962.0515 • 877.536.3976
3
