Atlona HDVS Family
Atlona Data Sheet
Extenders
Atlona HDVS Family
AT-HDVS-RX AT-HDVS-TX-WP
Smooth the Transition from Analog to Digital
Atlona’s HDVS family functions as complete input selection and control in a simple system. It was designed to smooth
the transition from analog to digital displays in schools and businesses. While some use HDMI computers, Blu-ray players,
or document cameras, there are numerous legacy VGA computers still in use, and this family supports both.
As part of larger and more complex applications these components enable HDMI and VGA/analog audio input to larger
switchers. The transmitters enable HDBaseT distances on both inputs. The receiver enables scaling and de-embeds audio.
Atlona Advantages
HDMI AND VGA/ANALOG AUDIO over a single category cable, and on
one wall plate
INPUT SELECT OPTIONS Inputs can be selected automatically (based on
last input used), user button or by RS-232 control
DISPLAY ON/OFF Control your display from transmitter using RS-232
commands
IMAGE CONTROL Full range of complete image controls including a
variety of output resolutions up to 1080p /1920x1200 to match your display
POWER OVER CATEGORY CABLE (PoCc) An easily-installed, single
category cable transmits signals up to 230 ft (70 m) via HDBaseT. PoCc
requires power only at the receiver
AUDIO is de-embedded at the RX from the signal and made available as a
balanced output. The HDMI signal going to the display also supports audio
USER-FRIENDLY SOFTWARE Use a PC with RS-232 out or with a USB-toserial converter to program RS-232 commands
WORLDWIDE USE AT-HDVS-TX-WP ships with both US- and UKcompatible wall plates for global use
ORDER SEPARATELY AT-HDVS-TX-WP and AT-HDVS-RX are ordered
separately. Not compatible with other current Atlona extender solutions
HDBaseT performs at 230ft@ 1080p over CAT6a/7; and 197ft@1080p
over CAT5e/6.
Atlona Dual HDMI and VGA/Audio to
HDBaseT Switcher
AT-HDVS-TX AT-HDVS-TX-WP (UK Version)
Atlona HDMI to HDBaseT
Transmitter Wall Plate
Family Comparison Chart
VGA / audio
AT-HDVS-TX-WP 1 1 0 0 1 PoCc PD Wall Plate
HDMI
IN
HDMI
out
HDBaseT
In
HDBaseT
Out
Power Form
AT-HDVS-RX 0 0 1 1 0
AT-HDVS-TX 1 2 0 0 1
AT-HDTX-WP 0 1 0 0 1
PoCc PSE
or Ext
PoCc PD,
PSE, or Ext
PoCc PD,
PSE, or Ext
Box
Box
Wall Plate
Specifications
BANDWIDTH 6.75 Gbps
AT-HDVS-TX-WP AT-HDVS-RX AT-HDVS-TX AT-HDTX-WP
PORTS
Video input HDMI, VGA HDBaseT HDMI (x2) HDMI
Video output HDBaseT HDMI HDBaseT HDBaseT
Audio output HDBaseT Captive Screw HDBaseT HDBaseT
IR input None None None Captive Screw
IR output None None None Captive Screw
Firmware update USB USB USB USB
RS-232 None 3.5mm None Captive Screw
POWER CONSUMPTION From HDVS-RX 17.2 watts 10 watts 10 watts
INPUT Up to 1920x1200 or 1080p
OUTPUT Up to 1920x1200 or 1080p
AUDIO 20-20k Hz balanced, line-level, on captive screw connector None
DISTANCE
DIMENSIONS (H X W X D) 2 gang
WEIGHT 0.73 lbs (0.33 kg) 0.67 lbs (0.31 kg) 0.67 lbs (0.31 kg) 0.5 lbs (0.23 kg)
TEMPERATURE
CERTIFICATIONS CE, FCC, RoHs
230 ft (70 m) over Cat6a/7
197 ft (60 m) over Cat5e/6
1.18 x 4.8 x 4.92 in
30 x 122 x 125 mm
Operating: 32°F to 104°F (0°C to 40°C)
Storage: -4°F to 140° (-20°C to 60°C)
1.18 x 4.8 x 4.92 in
30 x 122 x 125 mm
2 gang

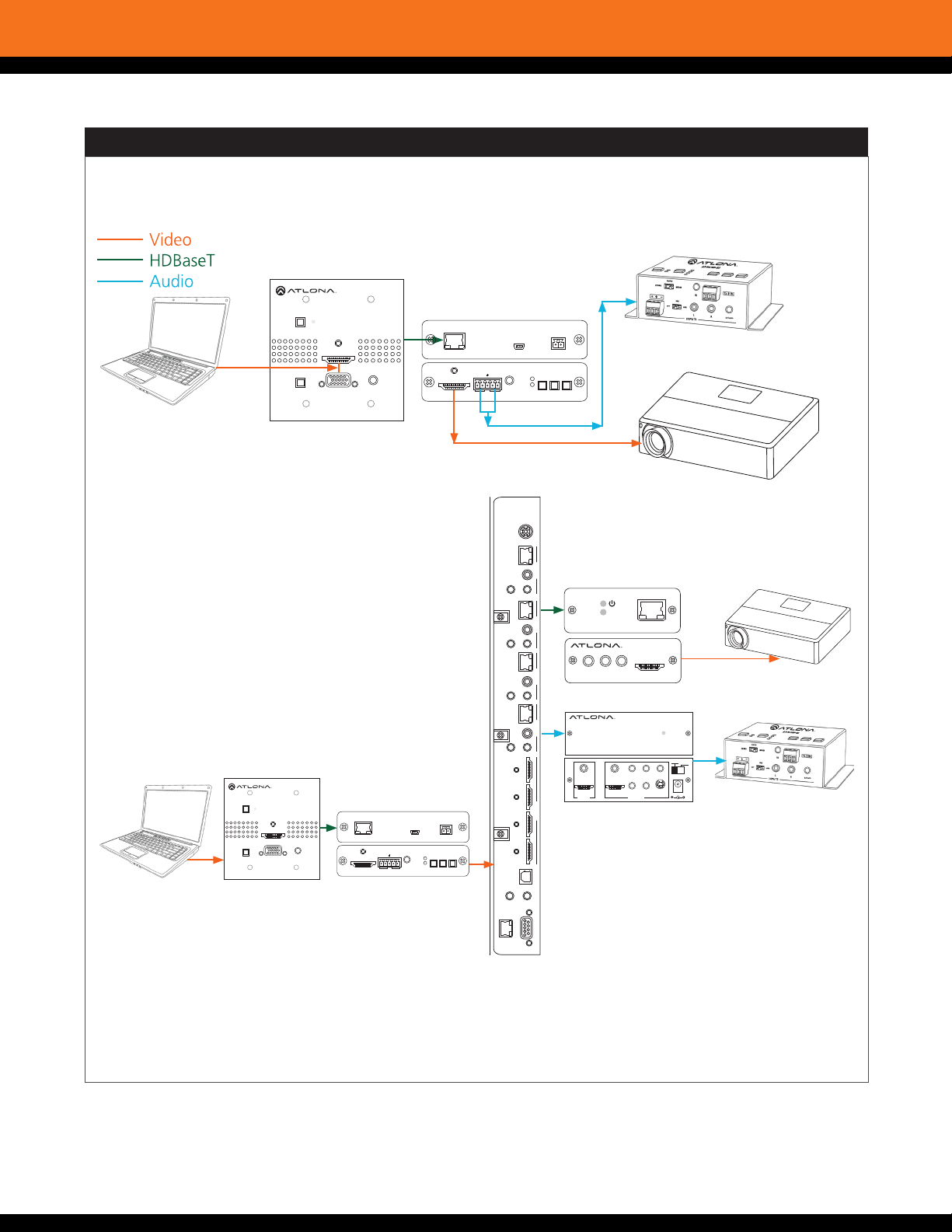

System Connection Diagram
DISPLAY
ON/OFF
INPUT
SELECT
LINK
DISPLAY
ON/OFF
HDMI IN
VGA IN
INPUT
SELECT
AUDIO IN
AT-HDVS-TX-WP
LINK
HDMI IN
VGA IN
AUDIO IN
CAT5e/6/7 IN FIRMWARE DC 24V
HDMI OUT
AT-HDVS-TX-WP
-+-
L
AUDIO OUT
+
-
CAT5e/6/7 IN FIRMWARE DC 24V
+
-+-
POWER
LINK
R
HDMI OUT
L
AUDIO OUT
RS232
AT-PRO3HD44M
MENU
DC 24VZONE 4ZONE 3
+
-
CAT5e/6/7
OUT
COAX
IR IN
IR OUT
CAT5e/6/7
OUT
COAX
IR IN
IR OUT
CAT5e/6/7
ZONE 2
OUT
COAX
IR IN
IR OUT
ZONE 1
HDMI/DVI to Composite
and S-Video Down-Converter
CAT5e/6/7
OUT
COAX
IR IN
IR OUT
4
3
+
-
+
POWER
LINK
R
RS232
+
-
MENU
HDMI IN
1 2
CAT5/6
LINK
RS232 OUT
IR OUT
IR IN
COAXIAL
COAXIAL
HDMI
HDMI
INPUT OUTPUT
IN
HDMI OUT
POWER
AT-HD530
NTSC
R
R
PAL
VIDEO
L
DC 5V IN
S-VIDEO
L
MATRIX IN
LAN
MATRIX OUTRS-232
Related Products
HDVS family products transmit and scale VGA sources as needed to guarantee compatibility with HDMI displays, and
Atlona HDBaseT matrix switchers complete such HDVS systems. Atlona matrix switchers route audio and video, and can
be used to route control signals. The PRO3HD66M has both HDBaseT and HDMI outputs for both far and near displays.
The receiver can be used with any Atlona HDBaseT transmitter, distribution amplier, or matrix switcher if a scaler is
required on a specic output.
Atlona 4 x 4 HDMI to HDBaseT Matrix Switcher
AT-PRO3HD44M
Atlona 6 x 6 HDMI to HDBaseT Matrix Switcher
AT-PRO3HD66M
Atlona HDBaseT RX HDMI Box
w/IR and RS-232
AT-PRO3HDREC
Atlona Stereo/Mono
Audio Amplier
AT-PA100-G2
atlona.com 408.962.0515 877.536.3976
© 2013 Atlona Inc. All rights reserved. “Atlona” and the Atlona logo are registered trademarks of Atlona Inc. All other brand names and trademarks or registered trademarks are the property of their respective owners. Pricing, specifications and availability subject to change
without notice. Actual products, product images, and online product images may vary from images shown here. Not responsible for typographical errors. Printed in the USA.
AT-NPIB-2013-1
