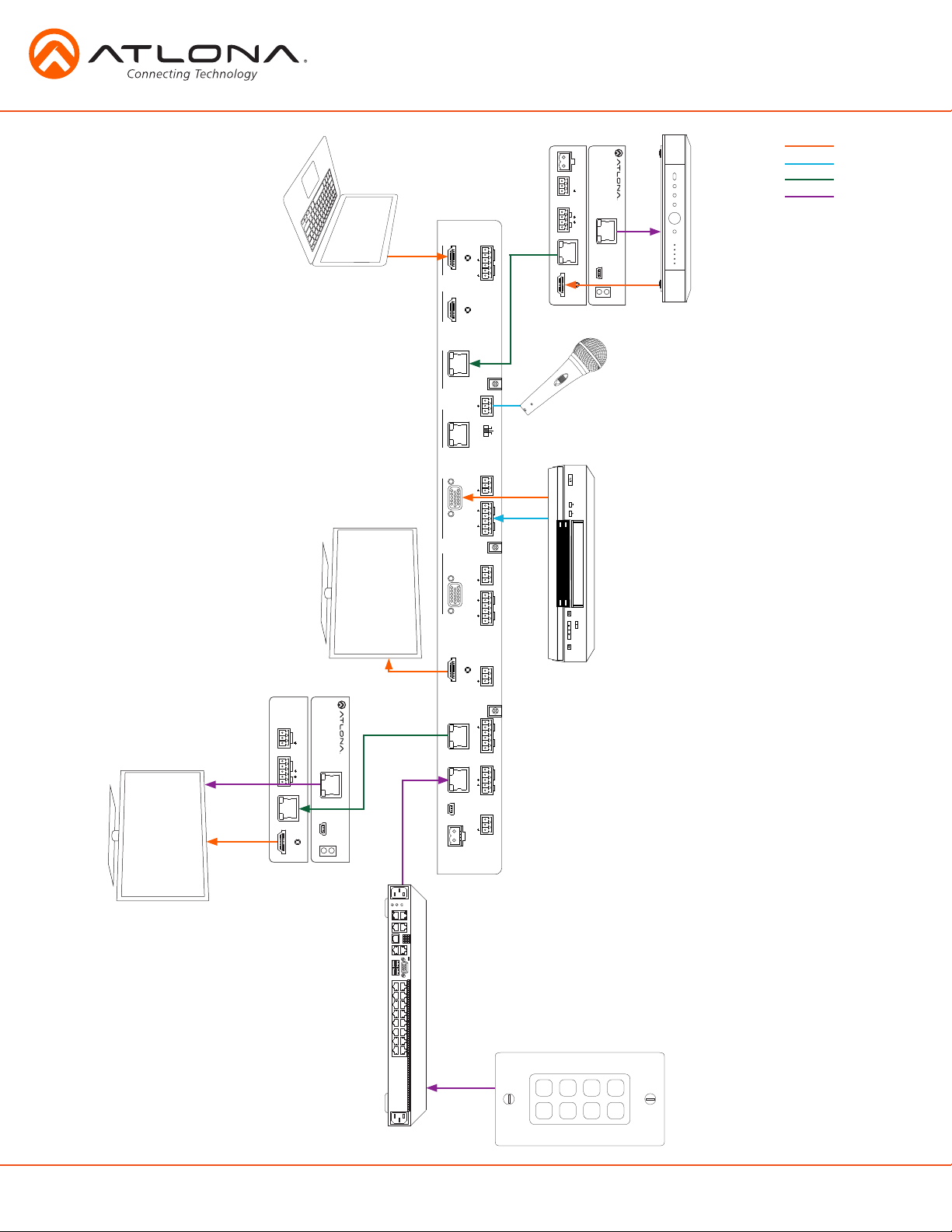

8-Button Network Control Panel
AT-ANC-108D
The Atlona AT-ANC-108D is an 8-button network control panel for Atlona IP-based switchers. It is
designed for easy configuration using the free Atlona Management System (AMS) software resource.
The AT-ANC-108D only requires a single category cable, from a PoE-equipped network switch, to carry
both control signals and power, and provide fast, hassle-free installation. Configuration is also fast. Simply
download a configuration file from within AMS for Atlona single output switchers such as the HDVS Series,
SW-5 Series, AT-UHD-CLSO-601, or AT-UHD-CLSO-612ED.
Combined with Atlona IP-controllable switching products for huddle spaces, classrooms and conference
rooms, the network control panel acts as a remote control to send IP commands to the switcher. The
switcher in turns acts on those commands or translates the IP commands into RS-232 commands to control
external devices such as displays to create a seamless AV system. The AT-ANC-108D fits into a US 1-gang
junction box and is compatible with Decora-style wall plates.
The AT-ANC-108D backlit panel provides a user-friendly means of controlling the AV in a meeting room or
classroom.
Remote control panel for Atlona IP-based products -
• Works with Atlona single output channel switchers
such as the HDVS Series, SW-5 Series,
AT-UHD-CLSO-601, or AT-UHD-CLSO-612ED
• Works with AASC to provide an additional point of
control in a meeting space to simplify system control
Fast installing, single cable integration -
• Hassle-free installation of control and power using
standard category cable and RJ-45 connectors
• Speeds installation and reduces labor costs
AMS-configurable using downloadable templates -
• Easy-to-configure using Atlona’s network-based
management and configuration software
• Reduces cost of AV systems by eliminating complex
control system programing
Eight, soft-touch, back-lit buttons -
• Consistent, well-illuminated panel provides an
instantly-familiar point of control for AV systems
• Easy for end users to operate
Remotely-powered via PoE (Power over Ethernet) -
• PoE allows the AT-ANC-108D to be conveniently
powered over the network from a PoE-equipped
network switch.
• Optional external power supply available for local
powering.
Installer-customizable, pre-cut label sheets -
• Allows system designers and installers to easily place
printed labels on the controller under a protective
cover
• Clear, tamper-resistant labeling provides durable
function identification on the controller
Fits US 1-gang junction box with Decora wall plate -
• Compact, shallow-depth control is easy to place in
walls or specially-design access enclosures in tables
and cabinetry
• Aesthetic form-factor is at home in many locations
and environments
70 Daggett Road, San Jose, CA 95134
US Toll-free: +1.408.962.0515, International: +41.43.508.4321
©Atlona 2003-2016
atlona.com
8-Button Network Control Panel
