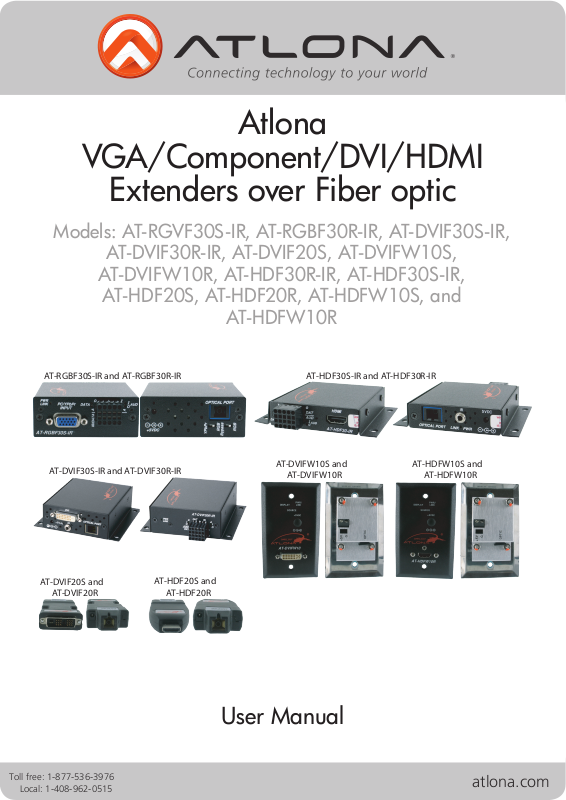

Atlona Fiber User Manual

Atlona

VGA/Component/DVI/HDMI

Extenders over Fiber optic

Models: AT-RGVF30S-IR, AT-RGBF30R-IR, AT-DVIF30S-IR,

AT-DVIF30R-IR, AT-DVIF20S, AT-DVIFW10S,

AT-DVIFW10R, AT-HDF30R-IR, AT-HDF30S-IR,

AT-HDF20S, AT-HDF20R, AT-HDFW10S, and

AT-HDFW10R

AT-RGBF30S-IR and AT-RGBF30R-IR AT-HDF30S-IR and AT-HDF30R-IR

AT-DVIF30S-IR and AT-DVIF30R-IR

AT-DVIF20S and

AT-DVIF20R

AT-HDF20S and

AT-HDF20R

AT-DVIFW10S and

AT-DVIFW10R

User Manual

AT-HDFW10S and

AT-HDFW10R

Toll free: 1-877-536-3976
Local: 1-408-962-0515

atlona.com

Table of Contents

1. Introduction .................................................. 3

2. Package Contents .................................................. 3

3. Features .................................................. 4

4. Connection and Operation .................................................. 6

.................................................. 7

6. Troubleshooting .................................................. 8

7. Terminal Block Pin-Out .................................................. 9

8. Audio .................................................. 9

9. RGB-IR Pinouts .................................................. 10

10. Serial Data and IR Data Interface .................................................. 11

11. Atlona Product Registration .................................................. 11

12. Safety Information .................................................. 12

13. Warranty .................................................. 13

Toll free: 1-877-536-3976
Local: 1-408-962-0515

atlona.com

INTRODUCTION

are all very similar and many of them can work together. All the extenders featured in this manual can

which results an ability of extremely high resolutions, lossless video and audio transition, and error free
data.

All the extenders are capable of transmitting resolutions up to 1920x1200 or 1080p at the distance of
1300ft without any signal degradation. Some models below can also transmit bi-directional RS232, Bi­directional Audio and IR Signal as well.

• AT-RGBF30S-IR – VGA or Component Video + bi-directional RS232 + Stereo Audio + IR Transmit-
ter Unit.

• AT-RGBF30R-IR - VGA or Component Video + bi-directional RS232 + Stereo Audio + IR Receiver
Unit.

• AT-DVIF30S-IR - DVI + bi-directional RS232 + Stereo Audio + IR Transmitter Unit.

• AT-DVIF30R-IR - DVI + bi-directional RS232 + Stereo Audio + IR Receiver Unit.

• AT-DVIF20S – DVI Transmitter Unit

• AT-DVIF20R – DVI Receiver Unit

• AT-DVIFW10S – DVI Wall Plate Style Transmitter Unit

• AT-DVIFW10R – DVI Wall Plate Style Receiver Unit

• AT-HDF20S – HDMI Transmitter Unit

• AT-HDF20R – HDMI Receiver Unit

• AT-HDFW10S – HDMI Wall Plate Style Transmitter Unit

• AT-HDFW10R - HDMI Wall Plate Style Receiver Unit

• AT-HDF30S-IR - HDMI + bi-directional RS232 + Separate Stereo Audio + IR Transmitter Unit.

• AT-HDF30R-IR - HDMI + bi-directional RS232 + Separate Stereo Audio + IR Receiver Unit

Some models can work together, the groups are listed below:

(Models which support RS232/IR and Bi-Directional Audio can work together as well as mini modules
and Wall plate models can work together)

• AT-RGBF30S-IR AT-DVIF30R-IR or AT-HDF30R-IR

• AT-DVIF30S-IR AT-DVIF30R-IR or AT-HDF30R-IR

• AT-HDF30S-IR AT-HDF30R-IR or AT-DVIF30R-IR

• AT-DVIF20S AT-DVIF20R or AT-DVIFW10R or AT-HDF20R or AT-HDFW10R

• AT-DVIFW10S AT-DVIF20R or AT-DVIFW10R or AT-HDF20R or AT-HDFW10R

• AT-HDF20S AT-HDF20R or AT-HDFW10R or AT-DVIF20R or AT-DVIFW10R

• AT-HDFW10S AT-HDF20R or AT-HDFW10R or AT-DVIF20R or AT-DVIFW10R

PACKAGE CONTENTS

Depends on the model purchased

• 1 x transmitter or receiver (depending on the model purchased)

• 1 x 5v Power supplies (Universal 110/240V) -- Wall plates are 12V

• 1 x Set of Wall Mounting Ears

• 4 x screws

• 1 x Instructions manual

Note: IR Cable will be includes with models which have IR support

Toll free: 1-877-536-3976
Local: 1-408-962-0515

3

atlona.com

FEATURES

For AT-RGBF30S-IR and AT-RGBF30R-IR:

• Transmits VGA or YPrPb (Component) with Stereo Audio, bi-directional RS232 and IR up to 1300ft
away on a single Multi-Mode Fiber Cable

• Supports Full HD Video with resolutions up to 1920x1200

• Supports high resolution Video VESA: 640x480, 800x600, 1024x768, 1280x800, 1280x768,

1280x1024, 1680x1050, 1600x1200, 1920x1080, 1920x1200

• Bi-Directional RS232 support, perfect for sending serial commands from control system to the dis-
play or another equipment at the display end and transmit the feedback commands back to the con­ trol system

• Bi-Directional Audio support allows user to send audio to the display or set of speakers as well as
send Audio signals back.

• IR support, allows user to control sources from the display location with IR

• DDC Support

resolutions and video settings accordingly.

• Format Conversion function, allows the source to be component video and the display to be VGA,
the format conversion is done within the transmitter module

• The AT-RGBF30S-IR is compatible with AT-RGBF30R-IR, AT-DVIF30R-IR and AT-HDF30R-IR,
which means that the receiver module could either be VGA, DVI or even HDMI.

• Supports all VESA formats, perfect when used with specialized projectors or commercial LCD panels.

• Wall Mountable

For AT-DVIF30S-IR and AT-DVIF30R-IR:

• Transmits DVI-D (digital only) with Stereo Audio, bi-directional RS232 and IR up to 1300ft away on a
single Multi-Mode Fiber Cable

• Supports Full HD Video with resolutions up to 1920x1200

• Supports high resolution Video VESA: 640x480, 800x600, 1024x768, 1280x800, 1280x768,

1280x1024, 1680x1050, 1600x1200, 1920x1080, 1920x1200

• Supports HDCP 2.0

• Supports EDID

• Bi-Directional RS232 support, perfect for sending serial commands from control system to the display

or another equipment at the display end and transmit the feedback commands back to the control
system

• Bi-Directional Audio support allows user to send audio to the display or set of speakers as well as send
Audio signals back.

• IR support, allows user to control sources from the display location with IR

• The AT-DVIF30S-IR is compatible with AT-DVIF30R-IR and AT-HDF30R-IR, which means that the

receiver module could either be DVI or even HDMI.

• Supports all VESA formats, perfect when used with specialized projectors or commercial LCD panels.

• Wall Mountable

For AT-HDF30S-IR and AT-HDF30R-IR:

• Transmits HDMI (Digital Video with Digital Audio) + Stereo Audio, bi-directional RS232 and IR up to
1300ft away on a single Multi-Mode Fiber Cable

• Supports Full HD Video with resolutions up to 1920x1200 or 1080p

Toll free: 1-877-536-3976
Local: 1-408-962-0515

4

atlona.com

• Supports high resolution Video VESA: 640x480, 800x600, 1024x768, 1280x800, 1280x768, 1280x1024,
1680x1050, 1600x1200, 1920x1080, 1920x1200, 480i/p, 720p, 1080i, 1080p (24, 30, 50, 60Hz)

• Supports HDCP 2.0

• Supports EDID

• Supports Digital Audio: up to Dolby True HD or DTS Master

• Supports 3D, all 7 formats are supported

• Bi-Directional RS232 support, perfect for sending serial commands from control system to the dis­ play or another equipment at the display end and transmit the feedback commands back to the
control system

• Bi-Directional Audio support allows user to send audio to the display or set of speakers as well as
send Audio signals back.

• IR support, allows user to control sources from the display location with IR

• The AT-HDF30S-IR is compatible with AT-HDF30R-IR and AT-DVIF30R-IR, which means that the
receiver module could either be HDMI or even DVI.

• Supports all VESA formats, perfect when used with specialized projectors or commercial LCD panels.

• Wall Mountable

For AT-DVIF20S/AT-DVIF20R:

• Transmits DVI-D (digital only) up to 1300ft away on a single Multi-Mode Fiber Cable

• Supports Full HD Video with resolutions up to 1920x1200

• Supports high resolution Video VESA: 640x480, 800x600, 1024x768, 1280x800, 1280x768, 1280x1024,

1680x1050, 1600x1200, 1920x1080, 1920x1200

• Supports HDCP 2.0

• Supports EDID

• Small size allows to directly connect the transmitter or and receiver to the DVI port on the source/
display

• The AT-DVIF20S is compatible with AT-DVIF20R, AT-DVIFW10R, AT-HDF20R and AT-HDFW10R,

which means that the receiver module could either be DVI or even HDMI as well as a wall plate style
DVI/HDMI receiver could be used. The AT-DVIF20R (Receiver) could also be used with wall plate or

mini DVI/HDMI transmitters.

• Supports all VESA formats, perfect when used with specialized projectors or commercial LCD panels.

For AT-DVIFW10S / AT-DVIFW10R:

• Transmits DVI-D (digital only) up to 1300ft away on a single Multi-Mode Fiber Cable

• Supports Full HD

• Supports high resolution Video VESA: 640x480, 800x600, 1024x768, 1280x800, 1280x768, 1280x1024,

1680x1050, 1600x1200, 1920x1080, 1920x1200

• Supports HDCP 2.0

• Supports EDID

• Wall plate style

• The AT-DVIFW10S is compatible with AT-DVIFW10R, AT-DVIF20R, AT-HDF20R and AT-HDFW10R,

which means that the receiver module could either be DVI or even HDMI as well as a wall plate style
DVI/HDMI or miniature receivers could be used. The AT-DVIFW10R (Receiver) could also be used

with wall plate or mini DVI/HDMI transmitters.

• Supports all VESA formats, perfect when used with specialized projectors or commercial LCD panels.

Toll free: 1-877-536-3976
Local: 1-408-962-0515

Video with resolutions up to 1920x1200

5

atlona.com

For AT-HDF20S/AT-HDF20R:

• Transmits HDMI (Digital Video with Digital Audio) up to 1300ft away on a single Multi-Mode Fiber
Cable

• Supports Full HD Video with resolutions up to 1920x1200 or 1080p

• Supports high resolution Video VESA: 640x480, 800x600, 1024x768, 1280x800, 1280x768, 1280x1024,

1680x1050, 1600x1200, 1920x1080, 1920x1200, 480i/p, 720p, 1080i, 1080p (24, 30, 50, 60Hz)

• Supports HDCP 2.0

• Supports EDID

• Supports Digital Audio: up to Dolby True HD or DTS Master

• Supports 3D, all 7 formats are supported

• Small size allows to directly connect the transmitter or and receiver to the HDMI port on the source/

display

• The AT-HDF20S is compatible with AT-HDF20R, AT-HDFW10R, AT-DVIF20R and AT-DVIFW10R,
which means that the receiver module could either be HDMI or even HDMI as well as a wall plate
style DVI/HDMI receiver could be used. The AT-HDF20R (Receiver) could also be used with wall plate
or mini DVI/HDMI transmitters.

• Supports all VESA formats, perfect when used with specialized projectors or commercial LCD panels.

For AT-HDFW10S/AT-HDFW10R:

• Transmits HDMI (Digital Video with Digital Audio) up to 1300ft away on a single Multi-Mode Fiber
Cable

• Supports Full HD Video with resolutions up to 1920x1200 or 1080p

• Supports high resolution Video VESA: 640x480, 800x600, 1024x768, 1280x800, 1280x768, 1280x1024,

1680x1050, 1600x1200, 1920x1080, 1920x1200, 480i/p, 720p, 1080i, 1080p (24, 30, 50, 60Hz)

• Supports HDCP 2.0

• Supports EDID

• Supports Digital Audio: up to Dolby True HD or DTS Master

• Supports 3D, all 7 formats are supported

• Wall plate style

• The AT-HDFW10S is compatible with AT-HDFW10R, AT-HDF20R, AT-DVIF20R and AT-DVIFW10R,

which means that the receiver module could either be HDMI

or even HDMI as well as a wall plate style
DVI/HDMI receiver could be used. The AT-HDFW10R (Receiver) could also be used with wall plate or
mini DVI/HDMI transmitters.

• Supports all VESA formats, perfect when used with specialized projectors or commercial LCD panels.

CONNECTION AND OPERATION

1. Connect the transmitter unit to the source

3. Connect the receiver module to the display

4. Connect both modules with supplied power supplies

6. You should receive an image on the display

Toll free: 1-877-536-3976
Local: 1-408-962-0515

6

atlona.com

SPECIFICATIONS

AT-RGBF30S-IR

Model

Supported Resolutions up to 1920x1200 or 1080p

Terminal Block Yes

Supported Audio 2 channels stereo bi-direc-

tional via terminal block

In/Out Impedance 10k/50 Ohms (Stereo Audio)

Max. Input/Output Level 5 dBu/4Vpp (Stereo Audio)

Magnitude Freq. Response 20Hz to 20kHz @ -3dB /THD+N>70dB @ 1k Hz

Serial direction 2-way

Data Rate Up to 57.6Kbaud

Freq. Range up to 38kHz

Fiber Type Multimode

Number of Fibers 1

Fiber Connector SC

Power Level (max.) +5VDC @ 1.2A

Operating Temperature 0 to +50

Humidity 0 to 95% RH, non-condensing

Dimension (H x W x D) –
each unit

Weight (lb) – each unit 0.4 0.3 0.1

and

AT-RGBF30R-IR

1.2” x 3.0” x 3.6” 1.2” x 3.0” x 3.6” 0.70” x 1.58” x 3.31

AT-DVIF30S-IR

and

AT-DVIF30R-IR

2 channels stereo bi-direc-

tional via terminal block

o

C

AT-HDF30S

and

AT-HDF30R

2 channels stereo bi-direc­tional via terminal block and
up to Dolby Tue HD or DTS

Master on the HDMI

AT-DVIF20S

Model

Supported Resolutions up to 1920x1200 or 1080p

Terminal Block No

Supported Audio no Audio no Audio up to Dolby True HD

Fiber Type Multimode

Number of Fibers 1

Fiber Connector SC

Power Level (max.)

Operating Temperature 0 to +50

Humidity 0 to 95% RH, non-condensing

Dimension (H x W x D) –
each unit

Weight (lb) – each unit 0.1 0.2 0.1 0.2

0.59” x 1.54’’ x 2.3 4.50” x 2.75” x 1.2” 0.70” x 1.58” x 3.31 4.50” x 2.75” x 1.2”

and

AT-DVIF20R

AT-DVIFW10S

and

AT-DVIFW10R

+5VDC @ 1.2A -- 12V for Wall plates

AT-HDF20S

and

AT-HDF20R

or DTS Master

o

C

AT-HDFW10S

and

AT-HDFW10R

up to Dolby True HD

or DTS Master

Toll free: 1-877-536-3976
Local: 1-408-962-0515

7

atlona.com

Switch Switch Mode Description

1 RGB For RGBHV video

YPbPr For YPbPr video

2 Bypass Bypass as YPbPr when input is YPbPr video

RGB Convert to RGB when input is YPbPr video

Connect it with 12V positive wires

TROUBLESHOOTING

• Please make sure that the wire is working properly. Most of the issues do come up from the incor-
rect termination. Please refer to the link below for connection termination:

• It is very important to keep the connections clean as greasy spots or dust can bring the transmission

down.

• We recommend to use Multimode 62.5, 125 Micron or 50 Micron Fiber. The 50 Micron is considered
better for the distance.

• If the POWER indicator is OFF, check for the following:
a. The line cord is plugged into the unit and your outlet has power.

• If the POWER indicator is ON, but the Optical Link indicator is OFF, check for the following:

s receiver (RX).

• If the POWER indicator and Optical Link indicator are ON, but the audio/video channels are not
operating, then:
a. Check to see that the attached user equipment is turned on.

Toll free: 1-877-536-3976
Local: 1-408-962-0515

8

atlona.com

b. Both ends of the link are connected to the corresponding equipment and to the same correspond­ ing channel port.
c. Cable connections at both the video/audio channels are securely fastened to each connector.
Turn the power off, then back on to reset the link.

TERMINAL BLOCK PIN-OUT

AUDIO

one stereo channel is transmitted in each direction.

To send audio signals, label and connect two cables to the “AUDIO OUTPUT” connectors of the line
level audio source. Connect the other end of the cables to the front panel terminal block connectors
labeled “AUDIO IN”. For stereo channels, be sure to match the cables at both ends (L to L, R to R).

To receive audio signals, at the far-end location, label and connect two twisted shielded pair cables to
the “AUDIO INPUT” connectors of the line level audio receiver. Connect the other end of the cables to
the front panel terminal block connectors labeled “AUDIO OUT”. If using stereo channels, be sure to
match the cables at both ends. (L to L, R to R).

Toll free: 1-877-536-3976
Local: 1-408-962-0515

9

atlona.com

RGB-IR PINOUTS

Transmitter

Data

Data

Emitter

Receiver

Detector

Toll free: 1-877-536-3976
Local: 1-408-962-0515

10

atlona.com

SERIAL DATA AND IR DATA INTERFACE

The transmitter transmits two channels of unbalanced data signals. Follow the procedures for install­ing data terminal devices.

1. Label and connect one RS232 cable to the user’s RS-232 device.

2. Connect the other end of this cable to the front panel data terminal block connector (as displayed
on the picture above)

The transmitter transmits one (1) channel of IR data signal. Use the following steps for IR connection.

1. For the source side, (transmitter unit) connect IR Emitter cable to the IR connection.

2. For the monitor side (receiver unit), connect IR pick-up cable to the IR connection.

ATLONA PRODUCT REGISTRATION

Thank you for purchasing this Atlona product — we hope you’ll enjoy it.

We also hope that you’ll take a few moments to register your new purchase. Registration creates an ownership

updates.

At Atlona, we respect and protect your privacy and assure you that your registration information is completely

secure. Of course, Atlona product registration is totally voluntary and failure to register will not diminish your limited war-

ranty rights.

To register go to www.atlona.com/registration

Toll free: 1-877-536-3976
Local: 1-408-962-0515

11

atlona.com

Safety Information

Safeguards

To reduce the risk of electric shock,
do not expose this product to rain or
moisture

local power socket, hire an electrician
to replace your obsolete socket.

Precautions

expressly approved by the manufacturer, could void the user’s authority to operate this equipment.

Operate this product using only the included external power supply. Use of other power supplies

In the event of an electrostatic discharge this device may automatically turn off. If this occurs,
unplug the device and plug it back in.

Do not modify the wall plug. Doing
so will void the warranty and safety
features.

This equipment should be installed
near the socket outlet and the device
should be easily accessible in the case
it requires disconnection.

Protect and route power cords so they will not be stepped on or pinched by anything placed on or
against them. Be especially careful of plug-ins or cord exit points from this product.

Avoid excessive humidity, sudden temperature changes or temperature extremes.

tanks, and swimming pools.

Never open, remove unit panels, or make any adjustments not described in this manual.
Attempting to do so could expose you to dangerous electrical shock or other hazards. It may also

cause damage to your Atlona Fiber Optic Extender. Opening the product will void the warranty.

Do not attempt to service the unit. Disconnect the product and contact your authorized Atlona
reseller or contact Atlona directly.

Toll free: 1-877-536-3976
Local: 1-408-962-0515

12

atlona.com

Warranty

Li mi te d W arra nt y

substantially in accordance with the accompanying written materials for a period of 3 years from
the date of receipt and (b) that the product will be free from defects in materials and workmanship

under normal use and service for a period of 3 years. In the event applicable law imposes any
implied warranties, the implied warranty period is limited to 3 years from the date of receipt. Some
jurisdictions do not allow such limitations on duration of an implied warranty, so the above limitation

may not apply to customers that fall within those areas.

Atlona Technologies warrants that (a) its products (Atlona Fiber Optic Extender) will perform

Cus tomer Remedie s

shall be, at Atlona Technologies’ decision, either return of the price paid for the product, repair,
or replacement of the product that does not meet this Limited Warranty and which is returned to
Atlona Technologies with a copy of the Customer’s receipt. This Limited Warranty is void if failure
of the product has resulted from accident, abuse, misapplication, or natural occurrence. In example
but not limited to: power surges (electrical storms, local power outage), dropping the product (or

replacement product will be warranted for the remainder of the original warranty period.

Atlona Technologies’ and its suppliers’ entire liability and Customer’s exclusive remedy

Any

No o th er w ar ra nt ie s

To the maximum extent permitted by applicable law, Atlona Technologies and its suppliers
disclaim all other warranties, either expressed or implied, including, but not limited to, implied

Customers may have other rights depending on the jurisdiction.

No liability for damages

its suppliers be liable for any damages arising out of the use of or inability to use this product, even
if Atlona Technologies has been advised of the possibility of such damages. Such damages include
but are not limited to: special, incidental, consequential, or indirect damages for personal injury,

loss. Atlona Technologies’ and its suppliers’ entire liability under any provision of this agreement
shall be limited to the amount actually paid by you for the product. Some Jurisdictions do not allow
the exclusion or limitation of liability for consequential or incidental damage. The above limitations
may not apply to you in such jurisdictional cases.

To the maximum extent permitted by applicable law, in no event shall Atlona Technologies or

Toll free: 1-877-536-3976
Local: 1-408-962-0515

13

atlona.com
