Page 1
USER MANUAL
WIRELESS HDMI TRANSMITTER
AND RECEIVER BOX AT-WHD200
Toll free: 1-877-536-3976
Local: 1-408-962-0515
www.atlona.com
Page 2
TABLE OF CONTENTS
1. Introduction .................................................. 3
2. Application .................................................. 3
3. Contents .................................................. 3
4. System Require .................................................. 3
5. Features .................................................. 3
6. Operation Controls and Functions .................................................. 4
6.1 Wireless HDMI Transmitter Front Panel .................................................. 4
6.2 Wireless HDMI Transmitter Rear Panel .................................................. 5
6.3 Wireless HDMI Receiver Front Panel .................................................. 5
6.4 Wireless HDMI Receiver Rear Panel .................................................. 6
7. Connection and Installation .................................................. 6
8. Specifications .................................................. 7
9. Safety Information .................................................. 8
10. Warranty .................................................. 9
11. Product Registration .................................................. 10
Toll free: 1-877-536-3976
Local: 1-408-962-0515
2
www.atlona.com
Page 3
INTRODUCTION
The wireless HDMI transmitter and receiver box are using UWB(Ultra-wideband) technology with breakthrough Wireless for HDMI (High-Definition Multimedia interface) offering its designed to enable wireless
video and audio connections.
APPLICATION
Input source can be HDMI, Component and analog audio with all types of products – HDTVs, video projectors, DVD players, set-top boxes, game systems and other home entertainment products. The output to
HDTV is industry-standard HDMI, and analog audio.
CONTENTS
• Wireless HDMI Transmitter x 1
• Wireless HDMI Receiver x 1
• 5V 2.6A Power adaptor x 2
• Operational Manual x 1
SYSTEM REQUIRE
Input sources with HDMI and or component cable and output display LCD monitor or HD TV with HDMI
cable.
FEATURES
• HD audio/video wireless transmission at wire-equivalent quality.
• Supports most video resolution including 480i/p, 576i/p, 720p, 1080i and 1080p 24/30
(1080p 50/60 excluded).
• 10 meters open field, no line of sight required.
• Strong 128-bit AEC based encryption.
• Ultra-wideband (WiMedia Alliance Certified) with TZero’s patented
• UltraMIMO™ signal processing technology for extended range and reliability.
• Minimal system overhead.
Toll free: 1-877-536-3976
Local: 1-408-962-0515
3
www.atlona.com
Page 4
OPERATION CONTROLS AND FUNCTIONS

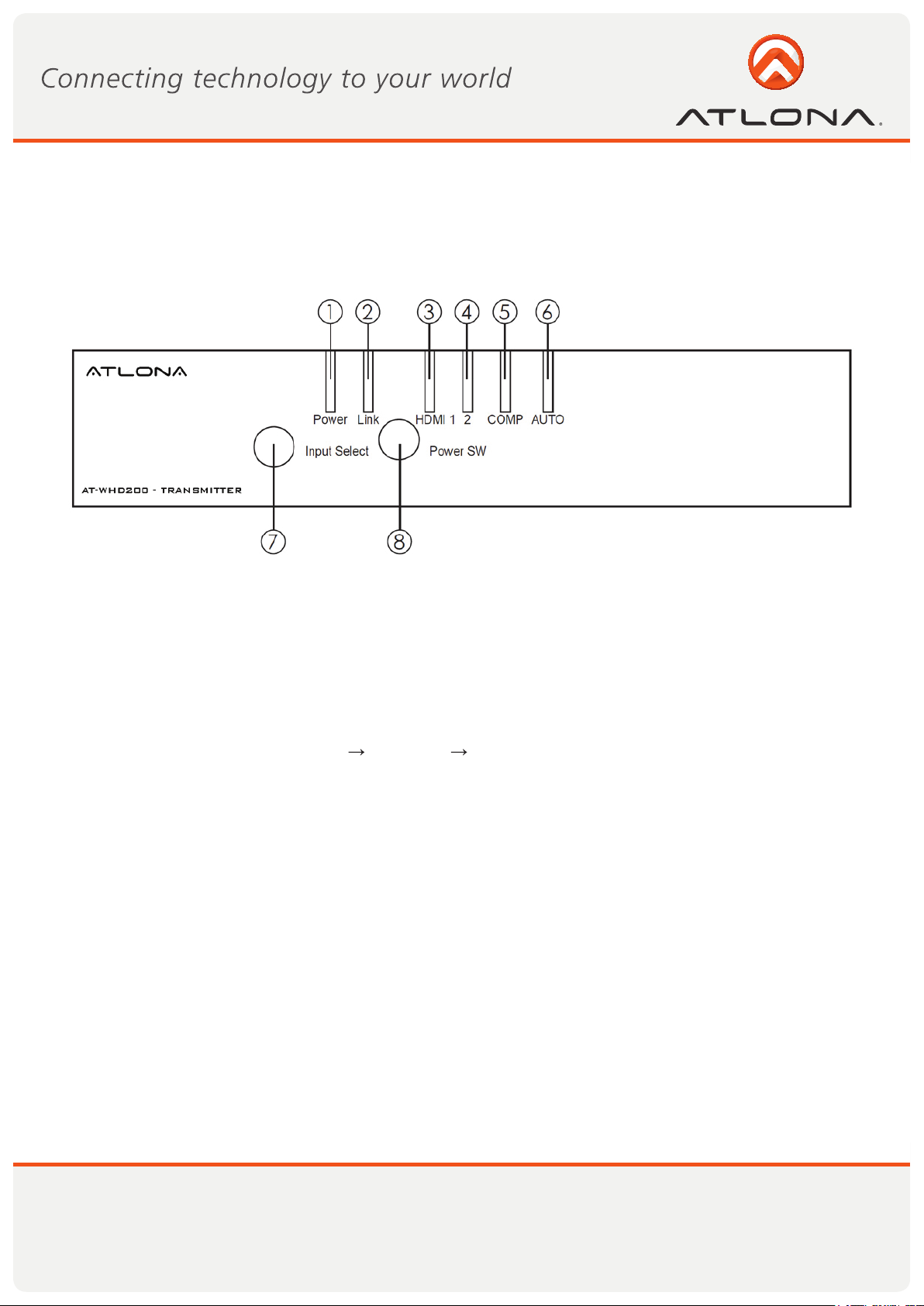

6.1. Wireless HDMI Transmitter Front Panel
1. Power LED – Blue LED illuminate when the power is on.
2. Link LED – Red LED illuminate when HDMI transmitter link up with Wireless HDMI receiver.
3. HDMI 1 LED – Green LED illuminate when input source select HDMI 1.
4. HDMI 2 LED – Green LED illuminate when input source select HDMI 2.
5. COMP LED – Green LED illuminate when input source select Component.
6. AUTO LED – Green LED illuminate when input source select in Auto Mode.
6.1 Auto Mode detection: 1. HDMI 1 2 HDMI 2 3 Component
7. Input Selection button – Select input source of HDMI 1, HDMI 2, Component and Auto mode.
8. Power SW button – Power switch to power on or switch off the device.
Toll free: 1-877-536-3976
Local: 1-408-962-0515
4
www.atlona.com
Page 5

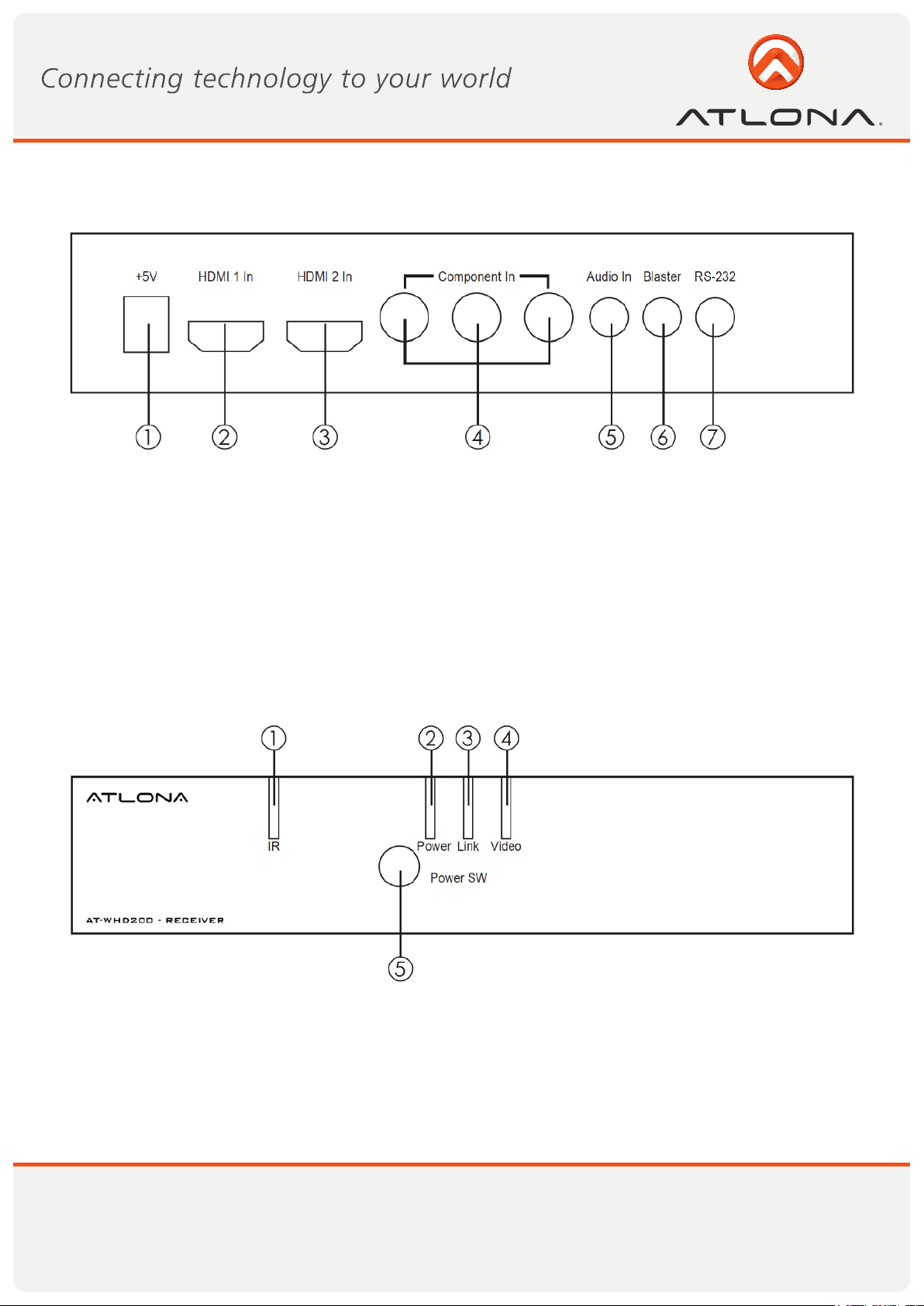

6.2 Wireless HDMI Transmitter Rear Panel
1. +5V – Power jack for plugging the adaptor from the power source.
2. HDMI 1 In – Plug with HDMI cable from the input source device.
3. HDMI 2 In – Plug with HDMI cable from the input source device.
4. Component In – Plug with component video cable from the input source device.
5. Audio In – Plug with 3.5mm phone jack audio cable from the input source device.
6. Blaster – Plug with IR Blaster cable for remote control the source devices with existing controller.
(Optional, excluded in this model)
7. RS-232 – This function is for manufacturing use only.
6.3 Wireless HDMI Receiver Front Panel
1. IR – IR receiver for remote signal to control the input source equipment.
2. Power LED – Blue LED illuminate when the device is power on.
3. Link LED –Red LED illuminate when HDMI receiver link up with Wireless HDMI transmitter.
4. Video – Green LED illuminate when input source signal is received and send to display.
5. Power SW – Power switch for power on the device and power off.
Toll free: 1-877-536-3976
Local: 1-408-962-0515
5
www.atlona.com
Page 6
6.4 Wireless HDMI Receiver Rear Panel
1. +5V – Power jack for plugging the adaptor from the power source.
2. HDMI Out – Plug with HDMI cable to the output display device.
3. Audio Out – Plug with 3.5mm phone jack audio cable to the output display device.
4. Extender – Plug with IR Extender cable to extend the IR receiver function from the device and remote control the source devices with existing controller. (Optional, excluded in this model)
5. RS-232 - This function is for manufacturing use only.
CONNECTION AND INSTALLATION
DVD/Video Player
PS3
Blue Ray
Wireless HDMI
Transmitter
Wireless
Wireless HDMI
Receiver
LCD/TV Monitor
Toll free: 1-877-536-3976
Local: 1-408-962-0515
6
www.atlona.com
Page 7
SPECIFICATIONS
StandardW ireless HDMI UWB (Ultra-wideband)
Video resolutions support 480i, 480p, 576i, 576p, 720p, 1080i and
1080p(24fps/30fps)
Frequencies Supported3 .1 ~ 4.8GHz
HDMI HDMI v1.2a
Audio encoding 2-Channel
Surround, Analog 33kHz, 44.1kHz, 48kHz
IR Support 38kHz
Hardware encryption 128 bit AEC
Wireless Range 10M in room straight line
Power Supply5 V/2.6A DC (US/EU standards, CE/FCC/UL
Dimensions (mm) 162.6(W) x 164.5(D) x 33.5(H)
Weight(g)S ender: 348
Receiver: 316
Chassis Material Plastic
Silk Skin ColorB lack
Operating TemperatureO perating from 0°C ~ 40°C
Power ConsumptionS ender: 8W, Receiver: 8W
Toll free: 1-877-536-3976
Local: 1-408-962-0515
7
www.atlona.com
Page 8
SAFETY INFORMATION
Safeguards
To reduce the risk of electric shock, do not
expose this product to rain or moisture
If the wall plug does not fit into your local
power socket, hire an electrician to replace
your obsolete socket.
Do not modify the wall plug. Doing so will
void the warranty and safety features.
This equipment should be installed near
the socket outlet and the device should
be easily accessible in the case it requires
disconnection.
Precautions
FCC regulations state that any unauthorized changes or modifications to this equipment, not expressly
approved by the manufacturer, could void the user’s authority to operate this equipment.
Operate this product using only the included external power supply. Use of other power supplies could impair
performance, damage the product, or cause fires.
In the event of an electrostatic discharge this device may automatically turn off. If this occurs, unplug the device
and plug it back in.
Protect and route power cords so they will not be stepped on or pinched by anything placed on or against
them. Be especially careful of plug-ins or cord exit points from this product.
Avoid excessive humidity, sudden temperature changes or temperature extremes.
Keep this product away from wet locations such as bathtubs, sinks, laundries, wet basements, fish tanks, and
swimming pools.
Use only accessories recommended by Atlona to avoid fire, shock, or other hazards.
Unplug the product before cleaning. Use a damp cloth for cleaning and not cleaning fluid or aerosols.
Such products could enter the unit and cause damage, fire, or electric shock. Some substances may also
mar the finish of the product.
Never open, remove unit panels, or make any adjustments not described in this manual. Attempting to
do so could expose you to dangerous electrical shock or other hazards. It may also cause damage to your
AT-WHD200. Opening the product will void the warranty.
Do not attempt to service the unit. Disconnect the product and contact your authorized Atlona reseller or
contact Atlona directly.
Toll free: 1-877-536-3976
Local: 1-408-962-0515
8
www.atlona.com
Page 9
WARRANTY
Limited Warranty
Atlona Technologies warrants that (a) its products (the AT-WHD200) will perform
substantially in accordance with the accompanying written materials for a period of 3 years from
the date of receipt and (b) that the product will be free from defects in materials and workmanship
under normal use and service for a period of 3 years. In the event applicable law imposes any
implied warranties, the implied warranty period is limited to 3 years from the date of receipt. Some
jurisdictions do not allow such limitations on duration of an implied warranty, so the above limitation
may not apply to customers that fall within those areas.
Customer Remedies
Atlona Technologies’ and its suppliers’ entire liability and Customer’s exclusive remedy shall
be, at Atlona Technologies’ decision, either return of the price paid for the product, repair, or
replacement of the product that does not meet this Limited Warranty and which is returned to Atlona
Technologies with a copy of the Customer’s receipt. This Limited Warranty is void if failure of the
product has resulted from accident, abuse, misapplication, or natural occurrence. In example but not
limited to: power surges (electrical storms, local power outage), dropping the product (or items on
the product), contact with fluids, and physical misconduct (i.e. kicking or punching). Any replacement
product will be warranted for the remainder of the original warranty period.
No other warranties
To the maximum extent permitted by applicable law, Atlona Technologies and its suppliers
disclaim all other warranties, either expressed or implied, including, but not limited to, implied
warranties of merchantability and fitness for a particular purpose, with regard to the product and any
related written materials. This Limited Warranty gives customer specific legal rights. Customers may
have other rights depending on the jurisdiction.
No liability for damages
To the maximum extent permitted by applicable law, in no event shall Atlona Technologies or
its suppliers be liable for any damages arising out of the use of or inability to use this product, even
if Atlona Technologies has been advised of the possibility of such damages. Such damages include
but are not limited to: special, incidental, consequential, or indirect damages for personal injury, loss
of business profits, business interruption, loss of business information, or any other pecuniary loss.
Atlona Technologies’ and its suppliers’ entire liability under any provision of this agreement shall
be limited to the amount actually paid by you for the product. Some Jurisdictions do not allow the
exclusion or limitation of liability for consequential or incidental damage. The above limitations may
not apply to you in such jurisdictional cases.
Toll free: 1-877-536-3976
Local: 1-408-962-0515
9
www.atlona.com
Page 10
ATLONA PRODUCT REGISTRATION
Thank you for purchasing this Atlona product. - We hope you enjoy it and will take an extra few
moments to register your new purchase.
Registration creates an ownership record if your product is lost or stolen and helps ensure you’ll
receive notification of performance issues and firmware updates.
At Atlona, we respect and protect your privacy, assuring you that your registration information
is completely secure. Atlona product registration is completely voluntary and failure to register will not
diminish your limited warranty rights.
To register go to: http://www.atlona.com/registration
Toll free: 1-877-536-3976
Local: 1-408-962-0515
10
www.atlona.com
