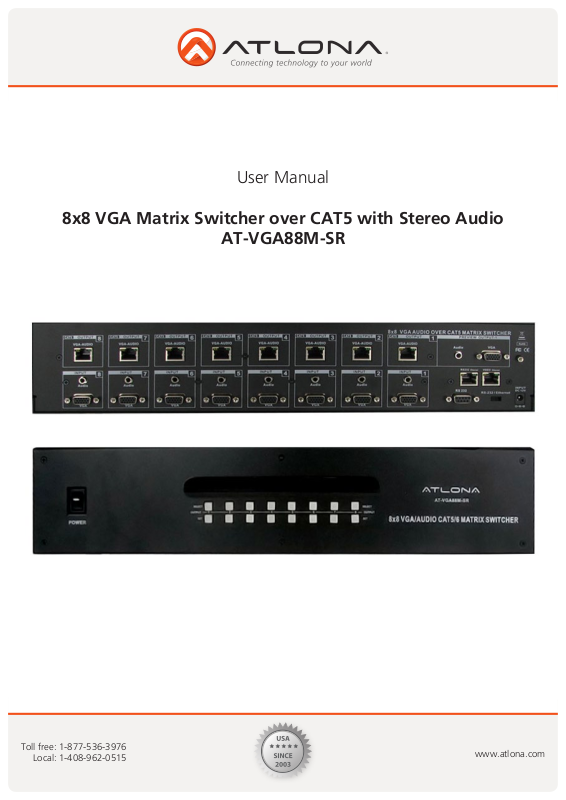

Page 1
User Manual
8x8 VGA Matrix Switcher over CAT5 with Stereo Audio
AT-VGA88M-SR
Toll free: 1-877-536-3976
Local: 1-408-962-0515
www.atlona.com
Page 2
TABLE OF CONTENTS
1. Introduction .................................................. 2
2. Package Contents .................................................. 2
3. Features .................................................. 2
4. Specification .................................................. 3
5. Panel Descriptions .................................................. 4
6. Remote Control .................................................. 6
7. RS-232 Protocol Commands .................................................. 7
8. Connection Diagram .................................................. 9
9. Safety Information .................................................. 10
10. Warranty .................................................. 11
11. Atlona Product Registration .................................................. 12
Toll free: 1-877-536-3976
Local: 1-408-962-0515
1
www.atlona.com
Page 3
INTRODUCTION
Atlona Technologies’ AT-VGA88M-SR is one of the most innovative VGA Matrix Switchers with Stereo Audio on the market. The AT-VGA88M-SR has 8 individual VGA (RGBHV) inputs with Stereo Audio and 8 individual CAT5 outputs. The matrix switch can route any input to any output. This unit is ideal forconnecting sources such as computer, Set Top Boxes, and Satellite Receivers to desired displays over CAT5 cable such as HDTV, LCDs, Plasma Monitors, and Video Projectors. Selection of inputs can be achieved manually throuth the front panel, through infrared remote control, or RS232 control. 8 receiverunits are included to distribute the VGA signal up to 1000ft over CAT5 cable.
PACKAGE CONTENTS
• AT-VGA88M-SR unit
• Operating Instructions
• IR Remote Controller
• 19 inch rack mounts brackets
• RS232 package
• 8 CAT5 Receiver modules
• Power Supply 12V DC, Universal Type 50/60Hz, 100~230 VAC
FEATURES
• Supports 8 x inputs VGA and Stereo Audio to 8 x CAT5 outputs Matrix Switcher
• Output Signals: supported via CAT5-CAT6 cable to VGA Monitor displays
• Supported HDTV Resolutions 480p/720p/1080i/1080p
• Supported VESA Resolution: VGA(640 X 480)/SVGA (800 X 600)/XGA(1024 X768)/SXGA(1280 X 1024 )/
UXGA(1600 X1200) / 1920x1200 (WUXGA)
• RS232 serial interface
• Compatible with all VGA Video Monitors, Plasma displays and Projectors
• Control Options:
RS-232 Manual controlled by front panel button IR remote control
• Support desktop with ear mount and 19 inch rack
• Receiver modules extend A/V signal up to 300m (1000ft)
Toll free: 1-877-536-3976
Local: 1-408-962-0515
2
www.atlona.com
Page 4
SPECIFICATIONS
RECEIVER UNIT SPECIFICATIONS
Toll free: 1-877-536-3976
Local: 1-408-962-0515
3
www.atlona.com
Page 5
PANEL DESCRIPTION
1. Front Panel
1. POWER SWITCH: The power switch turns the unit ON and OFF. The LED illuminates red when the switch­er is powerd ON
2. INPUT LED DISPLAY: Input channel readout matches numbered outputs marked directly below.
3. INPUT SELECT BUTTONS:Input selection buttons are provided for each output.
4. SET BUTTONS: Sets selected source.
5. IR SENSOR: The IR sensor recieves IR commands from the remote control.
6. 19 INCH RACK MOUNT BRACKETS: 19 inch 2U
2. Rear Panel
1.DC POWER INPUT.
Power Jack: DC Jack - inner OD O 2.1mm (+ ) Outside OD O 5.5mm (GND) Power input - 12V DC, 3A
Toll free: 1-877-536-3976
Local: 1-408-962-0515
4
www.atlona.com
Page 6
2. PREVIEW OUTPUT #1
4. RS232 Connection.
5. RS 232 Over Ethernet.
VGA (RGBHV) Via 1x HD-15p connectors Preview Output #1 VGA & Audio local monitoring. Stereo Audio thru 1x 3.5mm port.
DB-9pin Female connector RS 232 control port to allow for interfacing to a PC, Such as a computer or touch panel control, to the switcher via this DB-9pin Female connector for serial RS-232 control.
Connect RS232 serial interface via Ethernet control RS232 Ethernet
6. INPUTS 1-8 VGA-RGBHV-AUDIO.
VGA (RGBHV) 1x HD-15p connector Stereo Audio 1x 3.5mm ear phone jack connector Connect VGA(RGBHV) & Stereo Audio to 8x CAT5 outputs of the matrix switcher. VGA & Stereo Audio inputs :
- VGA (RGBHV), 1x HD-15p Connectors
- Stereo Audio, 1x 3.5mm ear phone jack
7. CAT5 OUTPUTS (VGA+AUDIO)
Extend VGA (RGBHV) signal thru CAT5 cable to VGA displays including audio. Output 1~8 CAT5 port signals:
- CAT5 VGA (RGBHV) + Audio
Toll free: 1-877-536-3976
Local: 1-408-962-0515
5
www.atlona.com
Page 7
REMOTE CONTROL
IR CODES :
POWER ON : 00FF 04FB POWER OFF : 00FF 05FA
INPUT#1 / OUTPUT#1 : 01FE 31CE INPUT#1 / OUTPUT#2 : 01FE 32CD INPUT#1 / OUTPUT#3 : 01FE 33CC INPUT#1 / OUTPUT#4 : 01FE 34CB INPUT#1 / OUTPUT#5 : 01FE 35CA INPUT#1 / OUTPUT#6 : 01FE 36C9 INPUT#1 / OUTPUT#7 : 01FE 37C8 INPUT#1 / OUTPUT#8 : 01FE 38C7 INPUT#2 / OUTPUT#1 : 02FD 31CE INPUT#2 / OUTPUT#2 : 02FD 32CD INPUT#2 / OUTPUT#3 : 02FD 33CC INPUT#2 / OUTPUT#4 : 02FD 34CB INPUT#2 / OUTPUT#5 : 02FD 35CA INPUT#2 / OUTPUT#6 : 02FD 36C9 INPUT#2 / OUTPUT#7 : 02FD 37C8 INPUT#2 / OUTPUT#8 : 02FD 38C7 INPUT#4 / OUTPUT#1 : 04FB 31CE INPUT#4 / OUTPUT#2 : 04FB 32CD INPUT#4 / OUTPUT#3 : 04FB 33CC INPUT#4 / OUTPUT#4 : 04FB 34CB INPUT#4 / OUTPUT#5 : 04FB 35CA INPUT#4 / OUTPUT#6 : 04FB 36C9 INPUT#4 / OUTPUT#7 : 04FB 37C8 INPUT#4 / OUTPUT#8 : 04FB 38C7 INPUT#3 / OUTPUT#1 : 03FC 31CE INPUT#3 / OUTPUT#2 : 03FC 32CD INPUT#3 / OUTPUT#3 : 03FC 33CC INPUT#3 / OUTPUT#4 : 03FC 34CB INPUT#3 / OUTPUT#5 : 03FC 35CA INPUT#3 / OUTPUT#6 : 03FC 36C9 INPUT#3 / OUTPUT#7 : 03FC 37C8 INPUT#3 / OUTPUT#8 : 03FC 38C7
Toll free: 1-877-536-3976
Local: 1-408-962-0515
6
www.atlona.com
Page 8
1.2. SWITCH POWER ON or OFF.
Controller with a separate power ON and OFF
3. INPUTS 1-8 : VGA DISPLAYS INPUT SELECTION
Input - 1 : CAT5 connect to VGA+Audio Display / Monitor Input - 2 : CAT5 connect to VGA+Audio Display / Monitor Input - 3 : CAT5 connect to VGA+Audio Display / Monitor Input - 4 : CAT5 connect to VGA+Audio Display / Monitor Input - 5 : CAT5 connect to VGA+Audio Display / Monitor Input - 6 : CAT5 connect to VGA+Audio Display / Monitor Input - 7 : CAT5 connect to VGA+Audio Display / Monitor Input - 8 : CAT5 connect to VGA+Audio Display / Monitor
4. OUTPUTS 1-8 : VGA SOURCES OUTPUT
Output -1 : VGA-1 VGA+Audio Signal from source device Output -2 : VGA-2 VGA+Audio Signal from source device Output -3 : VGA-3 VGA+Audio Signal from source device Output -4 : VGA-4 VGA+Audio Signal from source device Output -5 : VGA-5 VGA+Audio Signal from source device Output -6 : VGA-6 VGA+Audio Signal from source device Output -7 : VGA-7 VGA+Audio Signal from source device Output -8 : VGA-8 VGA+Audio Signal from source device
Toll free: 1-877-536-3976
Local: 1-408-962-0515
7
www.atlona.com
Page 9
RS-232 PROTOCOL COMMANDS
Baud Rate : 9600 bps, Data Bit :8 bits, Parity : None, Stop Bit :1 bit
•EachcommandisterminatedwithaCarriageReturn
•EachfeedbackisterminatedwithaCarriageReturn
•CodeentryisCASESENSITIVE.
•Donotinsertspacesbetweenletter/numbercodeentries.
Note1: Feedback for a command repeats the original command.
Example, if x1$ is a command, the feedback is the same and if the command is x2$, the feedback would also be x2$.
Note2: If command fails, the feedback should be “Command FAILED”.
Toll free: 1-877-536-3976
Local: 1-408-962-0515
8
www.atlona.com
Page 10
CONNECTION DIAGRAM
Monitor 8
Monitor 3
Monitor 1
receiver #3receiver #8r eceiver #1
PC 8
PC RS232 Control
PC 6 PC 4 PC 2
PC 7 PC 5 PC 1PC 3
Toll free: 1-877-536-3976
Local: 1-408-962-0515
9
www.atlona.com
Page 11
SAFETY INFORMATION
Safeguards
To reduce the risk of electric shock, do not expose this product to rain or moisture
If the wall plug does not fit into your local power socket, hire an electrician to replace your obsolete socket.
Do not modify the wall plug. Doing so will void the warranty and safety features.
This equipment should be installed near the socket outlet and the device should be easily accessible in the case it requires disconnection.
Precautions
FCC regulations state that any unauthorized changes or modifications to this equipment, not expressly approved by the manufacturer, could void the user’s authority to operate this equipment.
Operate this product using only the included external power supply. Use of other power supplies could impair performance, damage the product, or cause fires.
In the event of an electrostatic discharge this device may automatically turn off. If this occurs, unplug the device and plug it back in.
Protect and route power cords so they will not be stepped on or pinched by anything placed on or against them. Be especially careful of plug-ins or cord exit points from this product.
Avoid excessive humidity, sudden temperature changes or temperature extremes.
Keep this product away from wet locations such as bathtubs, sinks, laundries, wet basements, fish tanks, and swimming pools.
Use only accessories recommended by Atlona to avoid fire, shock, or other hazards.
Unplug the product before cleaning. Use a damp cloth for cleaning and not cleaning fluid or aerosols. Such products could enter the unit and cause damage, fire, or electric shock. Some substances may also mar the finish of the product.
Never open, remove unit panels, or make any adjustments not described in this manual. Attempting to do so could expose you to dangerous electrical shock or other hazards. It may also cause damage to your AT-VGA88M-SR. Opening the product will void the warranty.
Do not attempt to service the unit. Disconnect the product and contact your authorized Atlona reseller or contact Atlona directly.
Toll free: 1-877-536-3976
Local: 1-408-962-0515
10
www.atlona.com
Page 12
WARRANTY
Limited Warranty
Atlona Technologies warrants that (a) its products (the AT-VGA88M-SR) will perform substantially in accordance with the accompanying written materials for a period of 3 years from the date of receipt and (b) that the product will be free from defects in materials and workmanship under normal use and service for a period of 3 years. In the event applicable law imposes any implied warranties, the implied warranty period is limited to 3 years from the date of receipt. Some jurisdictions do not allow such limitations on duration of an implied warranty, so the above limitation may not apply to customers that fall within those areas.
Customer Remedies
Atlona Technologies’ and its suppliers’ entire liability and Customer’s exclusive remedy shall be, at Atlona Technologies’ decision, either return of the price paid for the product, repair, or replacement of the product that does not meet this Limited Warranty and which is returned to Atlona Technologies with a copy of the Customer’s receipt. This Limited Warranty is void if failure of the product has resulted from accident, abuse, misapplication, or natural occurrence. In example but not limited to: power surges (electrical storms, local power outage), dropping the product (or items on the product), contact with fluids, and physical misconduct (i.e. kicking or punching). Any replacement product will be warranted for the remainder of the original warranty period.
No other warranties
To the maximum extent permitted by applicable law, Atlona Technologies and its suppliers disclaim all other warranties, either expressed or implied, including, but not limited to, implied warranties of merchantability and fitness for a particular purpose, with regard to the product and any related written materials. This Limited Warranty gives customer specific legal rights. Customers may have other rights depending on the jurisdiction.
No liability for damages
To the maximum extent permitted by applicable law, in no event shall Atlona Technologies or its suppliers be liable for any damages arising out of the use of or inability to use this product, even if Atlona Technologies has been advised of the possibility of such damages. Such damages include but are not limited to: special, incidental, consequential, or indirect damages for personal injury, loss of business profits, business interruption, loss of business information, or any other pecuniary loss. Atlona Technologies’ and its suppliers’ entire liability under any provision of this agreement shall be limited to the amount actually paid by you for the product. Some Jurisdictions do not allow the exclusion or limitation of liability for consequential or incidental damage. The above limitations may not apply to you in such jurisdictional cases.
Toll free: 1-877-536-3976
Local: 1-408-962-0515
11
www.atlona.com
Page 13
ATLONA PRODUCT REGISTRATION
Thank you for purchasing this Atlona product. - We hope you enjoy it and will take an extra few moments to register your new purchase.
Registration creates an ownership record if your product is lost or stolen and helps ensure you’ll receive notification of performance issues and firmware updates.
At Atlona, we respect and protect your privacy, assuring you that your registration information is completely secure. Atlona product registration is completely voluntary and failure to register will not diminish your limited warranty rights.
To register go to: http://www.atlona.com/registration
Toll free: 1-877-536-3976
Local: 1-408-962-0515
12
www.atlona.com
