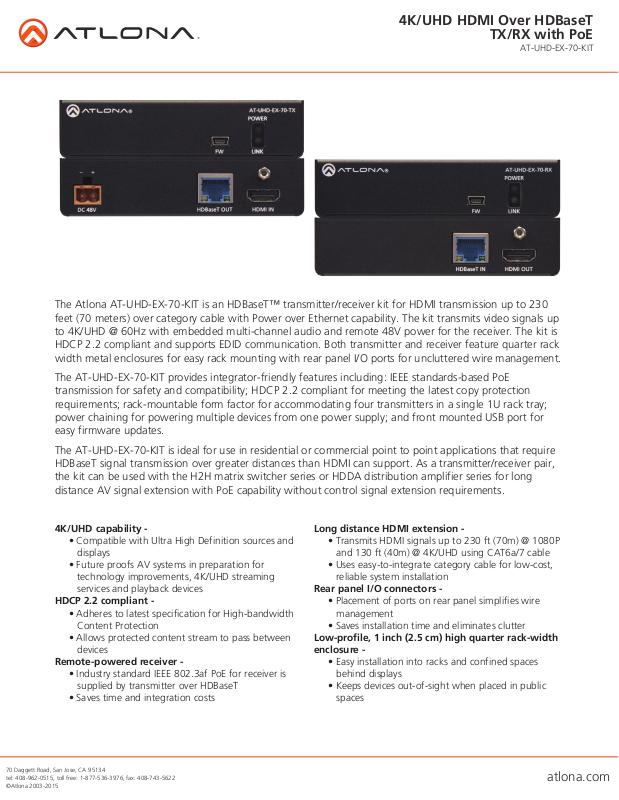

Atlona AT-UHD-EX-70-KIT Datasheet
4K/UHD HDMI Over HDBaseT
TX/RX with PoE
AT-UHD-EX-70-KIT
The Atlona AT-UHD-EX-70-KIT is an HDBaseT™ transmitter/receiver kit for HDMI transmission up to 230
feet (70 meters) over category cable with Power over Ethernet capability. The kit transmits video signals up
to 4K/UHD @ 60Hz with embedded multi-channel audio and remote 48V power for the receiver. The kit is
HDCP 2.2 compliant and supports EDID communication. Both transmitter and receiver feature quarter rack
width metal enclosures for easy rack mounting with rear panel I/O ports for uncluttered wire management.
The AT-UHD-EX-70-KIT provides integrator-friendly features including: IEEE standards-based PoE
transmission for safety and compatibility; HDCP 2.2 compliant for meeting the latest copy protection
requirements; rack-mountable form factor for accommodating four transmitters in a single 1U rack tray;
power chaining for powering multiple devices from one power supply; and front mounted USB port for
easy firmware updates.
The AT-UHD-EX-70-KIT is ideal for use in residential or commercial point to point applications that require
HDBaseT signal transmission over greater distances than HDMI can support. As a transmitter/receiver pair,
the kit can be used with the H2H matrix switcher series or HDDA distribution amplifier series for long
distance AV signal extension with PoE capability without control signal extension requirements.
4K/UHD capability -
• Compatible with Ultra High Definition sources and
displays
• Future proofs AV systems in preparation for
technology improvements, 4K/UHD streaming
services and playback devices
HDCP 2.2 compliant -
• Adheres to latest specification for High-bandwidth
Content Protection
• Allows protected content stream to pass between
devices
Remote-powered receiver -
• Industry standard IEEE 802.3af PoE for receiver is
supplied by transmitter over HDBaseT
• Saves time and integration costs
Long distance HDMI extension -
• Transmits HDMI signals up to 230 ft (70m) @ 1080P
and 130 ft (40m) @ 4K/UHD using CAT6a/7 cable
• Uses easy-to-integrate category cable for low-cost,
reliable system installation
Rear panel I/O connectors -
• Placement of ports on rear panel simplifies wire
management
• Saves installation time and eliminates clutter
Low-profile, 1 inch (2.5 cm) high quarter rack-width
enclosure -
• Easy installation into racks and confined spaces
behind displays
• Keeps devices out-of-sight when placed in public
spaces
70 Daggett Road, San Jose, CA 95134
tel: 408-962-0515, toll free: 1-877-536-3976, fax: 408-743-5622
©Atlona 2003-2015
atlona.com
4K/UHD HDMI Over HDBaseT
HDMI IN
RS-232
AT-H2H-44M
ENTER
POWER
EDIDMEMORY
ALL
DEFAULT
CANCEL
FUNCTION
1
2
3 4
TX/RX with PoE
AT-UHD-EX-70-KIT
Specifications
Video Resolutions
Video 4096x2160@24/25/30/50*/60Hz*, 3840x2160@24/25/30/50*/60Hz* (UHD), 2048x1080p,
1080p@23.98/24/25/29.97/30/50/59.94/60Hz, 1080i@50/59.94/60Hz, 720p@50/59.94/60Hz,
576p, 576i, 480p, 480i
VESA 2560x2048, 2560x1600, 2048x1536, 1920x1200, 1680x1050, 1600x1200, 1600x900,
1440x900, 1400x1050, 1366x768, 1360x768, 1280x1024, 1280x800, 1280x768, 1152x768,
1024x768, 800x600, 640x480
Colorspace YCbCr, RGB
Chroma Subsampling 4:4:4, 4:2:2, 4:2:0
Color depth 8-bit, 10-bit, 12-bit
Audio
Formats PCM 2Ch, LPCM 5.1, LPCM 7.1, Dolby Digital, DTS 5.1, Dolby Digital Plus, Dolby TrueHD,
DTS-HD Master Audio, Dolby Atmos
Sample Rate 32kHz, 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz
Bit rate up to 24-bit
Distance
CAT5e/6 @ 4K up to 35 meters up to 115 feet
CAT6a/7 @ 4K up to 40 meters up to 130 feet
CAT5e/6 @ 1080p up to 60 meters up to 197 feet
CAT6a/7 @ 1080p up to 70 meters up to 230 feet
HDMI IN/OUT@ 4K up to 5 meters up to 15 feet
HDMI IN/OUT @ 1080p up to 10 meters up to 30 feet
Signal
Bandwidth 10.2 Gbps
CEC Yes
HDCP supports up to 2.2
Temperature
Operating 0°C to 50°C 32°F to 122°F
Storage -20°C to 60°C -4°F to 140°F
Humidity 20 to 90% non-condensing
Power
Consumption 10.8W
Supply Input: AC100~240V 50/60Hz
Output: DC48V 0.83A
Dimension
H x W x D 25 x 109 x 89 (mm) 0.98 x 4.29 x 3.50 (inch)
w/ears 27 x 119 x 89 (mm) 1.06 x 4.69 x 3.50 (inch)
Weight
TX Unit 0.29 kg 0.64 lbs
RX Unit 0.27 kg 0.59 lbs
Certification
Power Supply CE, FCC, cULus, RoHS, CCC, RCM
Product CE, FCC
**4096x2160@50/60Hz & 3840x2160@50/60Hz supported @ chroma subsampling 4:2:0 8-bit only
Set top box
ETHERNET
-
DC 48V
FIRMWARE
IR IN
+
Specifications and availability subject to change without notice. Actual products, product images, and online product
images may vary from images shown here. Not responsible for typographical errors.
70 Daggett Road, San Jose, CA 95134
tel: 408-962-0515, toll free: 1-877-536-3976, fax: 408-743-5622
©Atlona 2003-2015
1 2
4
3
HDMI OUT
HDMI OUT
COAX
OUT
ZONE 1
AT-UHD-EX-70-TX
FW
HDBaseT OUT HDMI IN
ZONE 2
POWER
LINK
Video
HDBaseT
HDMI OUT
COAX
OUT
ZONE 4ZONE 3
AT-H2H-44M
DC 24V
AT-H2H-44M
HDBaseT IN
AT-UHD-EX-70-RX
POWER
FW
HDMI OUT
LINK
HDMI OUT
COAX
COAX
OUT
OUT
atlona.com
