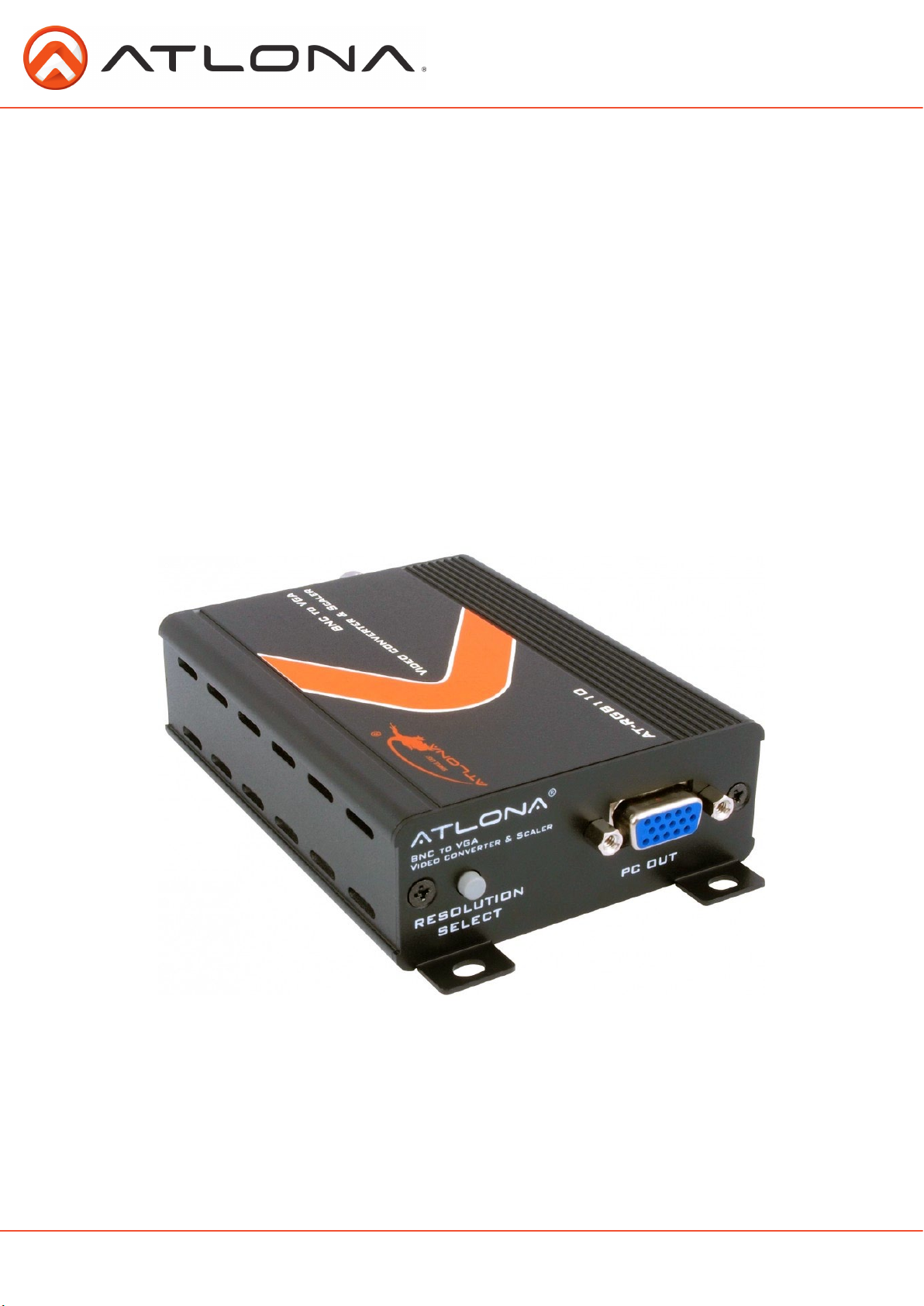

User Manual
COMPOSITE VIDEO (BNC) TO VGA VIDEO FORMAT
CONVERTER AND SCALER
AT-RGB110
atlona.com
Toll free: 1-877-536-3976
Local: 1-408-962-0515
TABLE OF CONTENTS
1
1. Introduction .................................................. 2
2. Package Contents .................................................. 2
3. Features .................................................. 2
4. Specification .................................................. 2
5. Panel Description .................................................. 3
5.1. Front Panel .................................................. 3
5.2. Rear Panel .................................................. 3
6. Connection and Operation .................................................. 4
7. Safety Information .................................................. 5
8. Warranty .................................................. 6
9. Atlona Product Registration .................................................. 7
atlona.com
Toll free: 1-877-536-3976
Local: 1-408-962-0515
INTRODUCTION
2
The Atlona AT-RGB110 easily converts and scales a composite BNC video signal from a security camera,
DVD or camcorder to a VGA display. It supports resolutions up to 1440 X 900 (WXGA+). The RGB110 features a unique flip image option that electronically inverts the image of a ceiling mounted security camera to
correct the orientation on your monitor.
PACKAGE CONTENTS
• 1x Atlona AT-RGB110 (composite video BNC to VGA video converter)
• 1x 5V power supply
• 1x instruction manual
• 1x BNC to RCA adaptor
FEATURES
• Converts composite video (BNC) signal from sources such as a security camera, VCR or DVD to a VGA
computer monitor.
• Computer monitor resolutions supported up through 1440 X 900 (WXGA+).
• Compatible with NTSC or PAL video systems.
• Ability to flip the image vertically. Perfect for cameras used in security applications.
• Plug and Play, no software required.
• Locking BNC input for a more reliable connection.
SPECIFICATIONS
Inputs 1 x Composite Video (BNC)
Outputs 1 x VGA (HD15 Female)
Resolution Output 640 x 480 (VGA),800 x 600 (SVGA),1024 x 768 (XGA),1440 x 900 (WXGA+)
Power Supply 5V DC (universal 110/220V)
Dimensions (W x D x H) 3.09” x 5.16” x 1.18” (78.5 x 131 x 30mm)
Weight 0.44LB (200g)
Operating Temperature 32ºF to 104ºF (0ºC to +40ºC)
