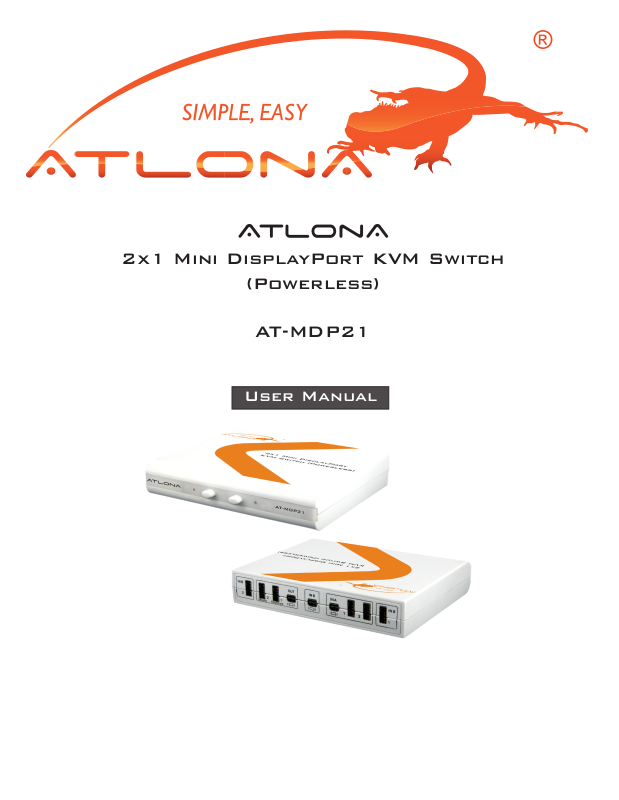

Atlona AT-MDP21 User Manual
AtlonA
2x1 Mini DisplayPort KVM Switch
(Powerless)
AT-MDP21
User Manual
TABLE OF CONTENTS
1. Introduction .................................................. 1
2. Package Contents .................................................. 1
3. Features .................................................. 1
4. Specication .................................................. 1
5. Panel Descriptions .................................................. 2
5.1. Front Panel .................................................. 2
5.2. Rear Panel .................................................. 2
6. Connection Diagram .................................................. 3
7. Operation .................................................. 3
8. Safety Information .................................................. 4
9. Atlona Product Registration .................................................. 4
10. Warranty .................................................. 5
INTRODUCTION
Atlona Technologies’ AT-MDP21 is one of the most innovative Mini DisplayPort devices on the market
today. This mini display port switcher will allow users to connect up to two Mini DisplayPort computers
to a single display. The AT-MDP21 has 2 individual Mini DisplayPort and 4 USB inputs and an individual
Mini DisplayPort output as well as 2 USB outputs for keyboard and a mouse. This unit also boasts 4
USB inputs for the use of the 2 desired computer’s mouse and keyboard. Supporting digital video resolutions up to 2560x1440, the AT-MDP21 is perfect for users looking to use a single Mini DisplayPort Monitor,
such as the Apple 24/27-inch and iMac 27-inch, Cinema Displays with multiple Mini DisplayPort computers.
PACKAGE CONTENTS:
• 1 x AT-MDP21 2x1 Mini DisplayPort KVM Switch
• 1 x Instruction Manual
• 2 x 3ft Mini DisplayPort cables
• 4 x 3ft USB cables
FEATURES:
• 2 mini display port inputs and 1mini display port output.
• 4 USB inputs and 2 USB outputs.
• 2 input select buttons on front panel to select the input sources.
• Supports digital video resolutions up to 2560x1440
• Supports high-speed uncompressed digital video.
SPECIFICATIONS:
Type of Switcher 2 inputs to 1 output, (Powerless) Mini DisplayPort KVM Switch
Video Resolutions Digital Video Resolutions 2560x1440
Controls Select buttons on the front panel
Support High-speed Uncompressed digital video and audio
Safety Approvals RoHS (2002/95/EC)
Dimensions (LWH) 6.25”x 5” x 1.23”(160mm x 134.8mm x 32mm)
Shipping Weight 0.3 Kgs / 0.65 lbs
