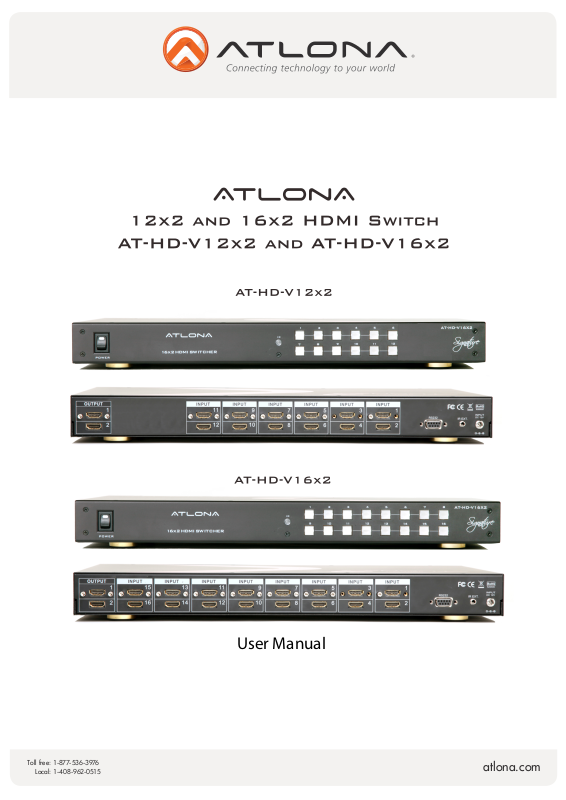

User Manual
Toll free: 1-877-536-3976
Local: 1-408-962-0515
atlona.com
Table of Contents
1. Introduction .................................................. 3
2. Applications .................................................. 3
3. Package Contents .................................................. 3
4. Features .................................................. 4
.................................................. 4
6. Connection and Operation .................................................. 5
7. IR Control ................................................. 5
8. IR Extender .................................................. 6
8.1. IR Extender Connection .................................................. 6
8.2. IR Extender Package .................................................. 6
9. RS232 Control .................................................. 7
10. Safety Information .................................................. 8
11. Warranty .................................................. 9
12. Atlona Product Registration .................................................. 10
Toll free: 1-877-536-3976
Local: 1-408-962-0515
atlona.com
INTRODUCTION
Atlona AT-HD-V12x2 and AT-HD-V16x2 are High Performance HDMI switchers. The Atlona 12x2 and
16x2 switchers are equipped with HDMI re-clocking technology which allows user to use long distance
HDMI cables on the inputs and output.
The 12x2 and 16x2 HDMI switchers are based on the latest HDMI IC and therefore capable of fully displaying uncompressed digital video with resolutions up to 1920x1200 or 1080p along with High Resolution Audio up to Dolby True HD and DTS master and full 3D.
The Atlona 12 by 2 and 16 by 2 HDMI switchers are featured with a dual HDMI output (non-matrix). Both
outputs are active and will only output the same exact content at all the time (second output is duplicat-
for Residential applications.
Both Switchers are controllable though front panel, IR remote or RS232 interface.
APPLICATIONS
Conference/Board-room: As HDMI interface becoming more and more popular, most computers, DVD
players, media servers, cables boxes, etc… are now equipped with HDMI interfaces. It is very common
that a good size board-room or a conference room will need 12 or even 16 hdmi inputs to be able to
connect all of the sources needed. The switchers are equipped with a dual HDMI (non-matrix) outputs
which will allow user to connect both a TV and a Projector at the same time. Both models are featured
.stupni neewteb hctiws ot metsys lortnoc ytrap dr3 a fo esu a swolla hcihw ,slortnoc RI dna 232SR htiw
QA: DVD player, Computer, Media Server companies would certainly need at least 12 or 16 hdmi input
switchers to be able to test their equipment either before product shipment or during RMA procedures.
The Atlona HD-V12x2 or 16x2 are perfect for such an application as they are fully capable of passing
highest resolutions up to 1920x1200 or 1080p, latest audio formats up to Dolby True HD and DTSMaster and even all 3D formats.
PACKAGE CONTENTS
• 1 x AT-HD-V12x2 or AT-HD-V16x2
• Set of Rack Ears
• 1 x 12v Power supply (Universal 110/240V)
• RS232 Cable
• IR Cable
• IR Remote
• 1 x Instructions manual
Toll free: 1-877-536-3976
Local: 1-408-962-0515
3
atlona.com
FEATURES
• Supports Extremely high resolutions up to 1920x1200 or 1080p
• Dual HDMI Output (non-matrix), allows user to connect 2 displays at the same time or a display and
AVR
• Supports Latest Digital Audio Formats up to Dolby True HD and DTS master
• Full 3D Support, supports all 7 available formats
• HDCP and EDID compliant
• IR Controllable
• RS232 Controllable, perfect for users who are utilizing 3rd party control system
• Re-Clocking Technology for both inputs and output
• CEC pass-though
• Plug and Play
• Supports 30/36/48 bit color depth display.
• Rack Mountable (1U)
Note: Both switchers could be used with DVI sources and displays, the DVI to HDMI adapter will be required.
SPECIFICATIONS
AT-HD-V12x2 AT-HD-V16x2
Inputs 12 x HDMI (Type A female) 16 x HDMI (Type A female)
Outputs 2 x HDMI (Type A female) 2 x HDMI (Type A female)
Frequency bandwidth 6.75Gbps
Resolutions up to 1080p or 1920x1200
3D Supports all 7 x 3D formats
Color depth up to 48bit
HDCP Compliant HDCP 2.0
IR IR input (1/8-inch) or IR Eye on the front panel
RS232 DB9 female
Power supply 12v/2A (universal 110/220v)
Dimensions (U) 1U
Dimensions (L x W x H) 17.4 x 8.03 x 1.77(inch) / 442 x 204 x 45(mm)
Weight(LB) 6.0 7.0
Operation temperature -5 to +50°C
Storage temperature -20 to +60°C
Operating humidity 0 to 90 % RH (no condensation)
Toll free: 1-877-536-3976
Local: 1-408-962-0515
4
atlona.com

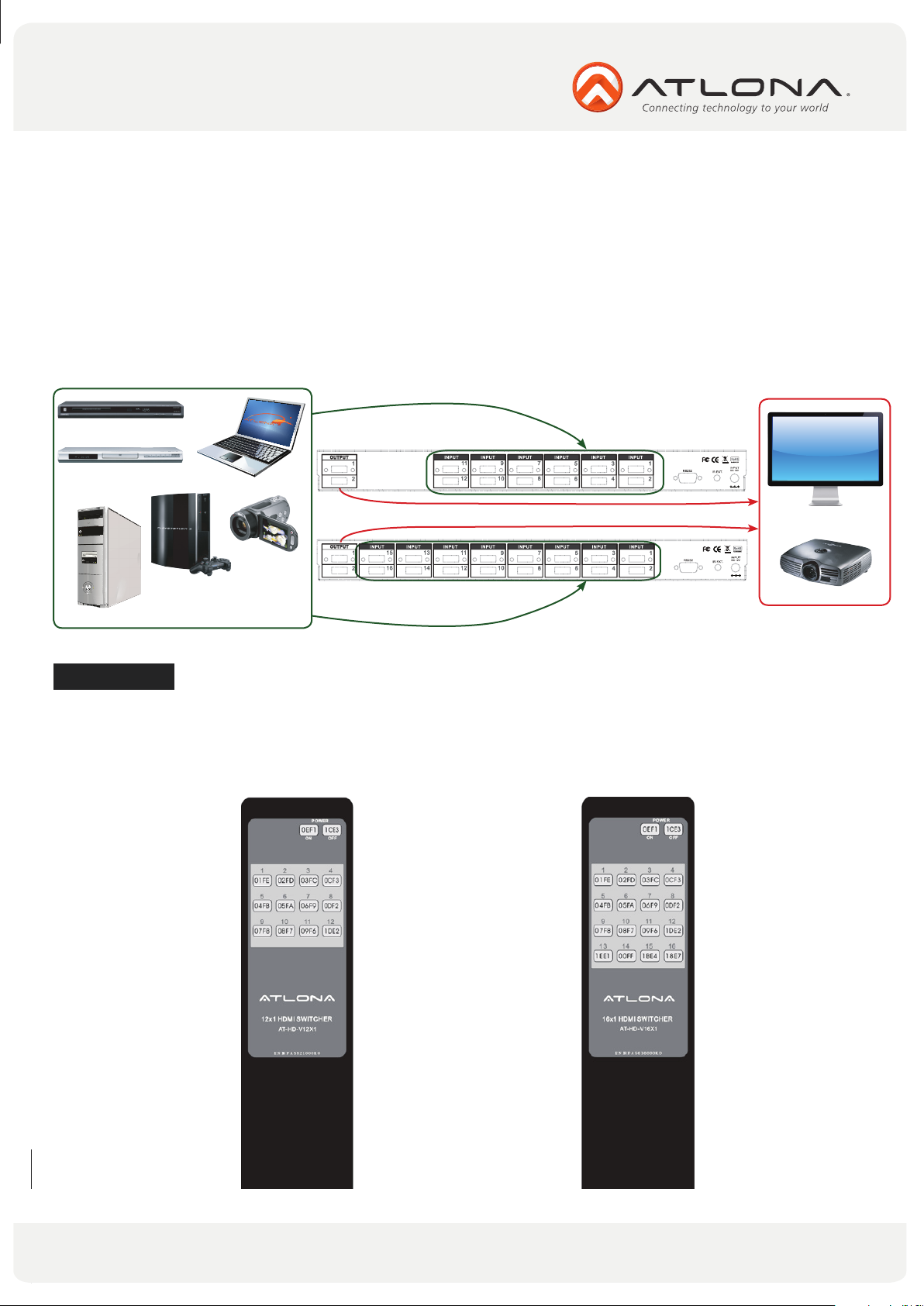

CONNECTION AND OPERATION
1. Connect an HDMI source such as DVD player, Cable Box, Computer to one of the hdmi inputs on
the switch.
2. Connect HDMI output of the switch to the HDMI display (TV or Projector)
3. Connect 12V supplied power supply to the switch.
4. Turn ON the power switch and select an appropriate hdmi input where an active hdmi source is con nected.
Blu-Ray player
AT-HD-V12x2
DVD player
PC
IR CONTROL
Laptop
PS 3
Camera
or
AT-HD-V16x2
TV
Projector
User can choose to point the remote control to the switch if located within 25ft of the switch or extend
the IR Eye further away from the switch which will allow user to still control the switch from up to 1000ft
away.
IR Remote for 12x2 IR Remote for 16x2
Toll free: 1-877-536-3976
Local: 1-408-962-0515
5
atlona.com
IR EXTENDER
1. IR Extender Connection
2. IR Extender Package
Toll free: 1-877-536-3976
Local: 1-408-962-0515
6
atlona.com

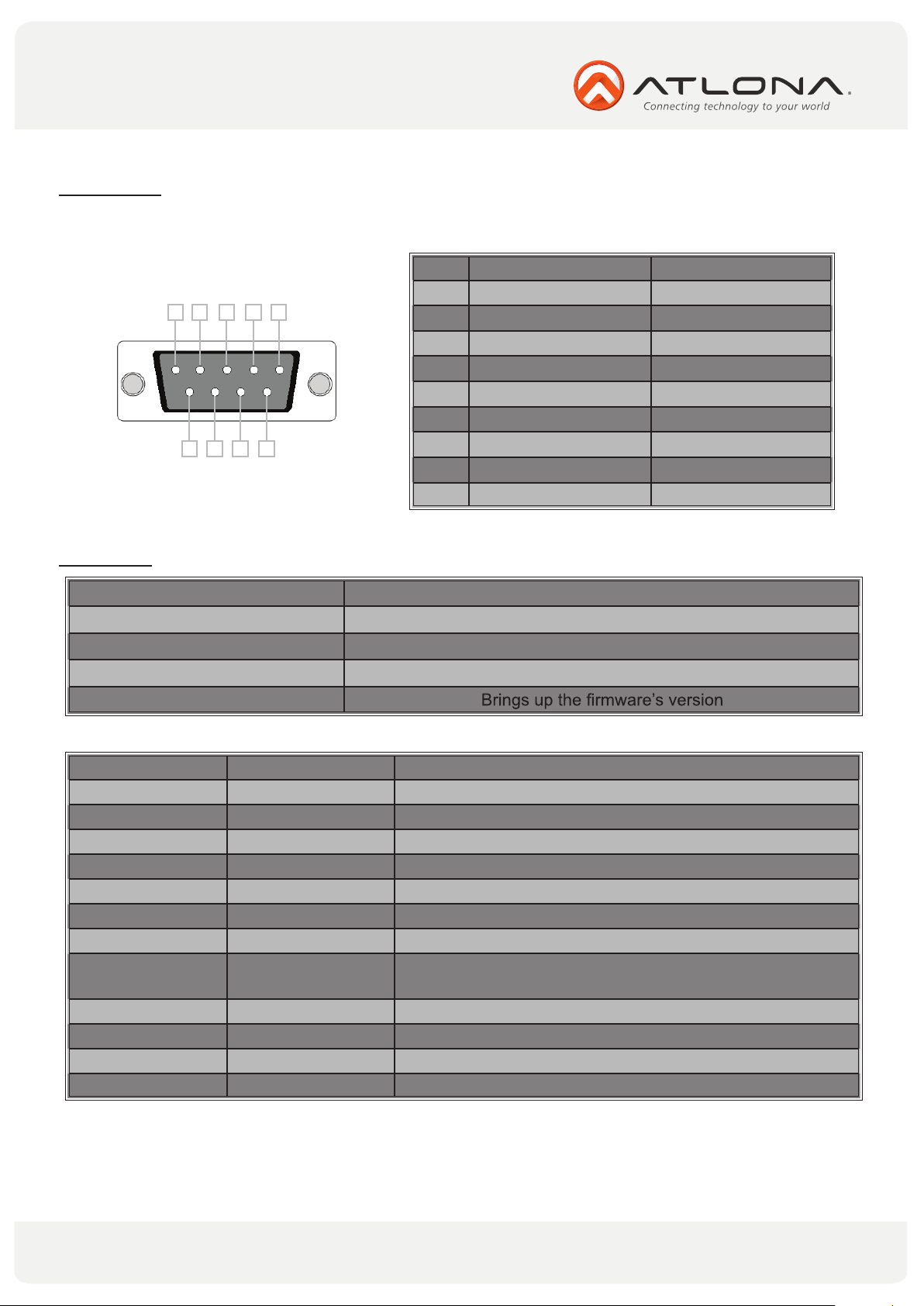

RS-232
Connection
RS-232 is connected through a 9-pin female D connector. The pins will have functions associated with them, some will be unassigned.
No. Pin Function
1 ---- Not used
9 8 7
12345
6
2 Tx Transmit
3 Rx Receive
4 ---- Not used
5 Gnd Ground
6 ---- Not used
7 ---- Not used
8 ---- Not used
9 ---- Not used
Baud Rate: 9600bps Data Bit: 8bits Parity: None Stop Bit: 1bit
Command
System Command Codes Functions
/*Type; Brings up the model information
/%Lock; Locks the front panel of the Matrix switcher
/%Unlock; Unlocks the front panel of the Matrix switcher
/^Version;
The command codes are very sensitive, do not change capitalization, spacing, or lettering.
Command Feedback Description
PWON PWON Power on
PWOFF PWOFF Power off
All# All# Resets all inputs to corresponding outputs (in3 to out3)
x1$ x1$ Turns off output channel (to turn off output 3 = x3$)
x1AVx2 x1AVx2 Switch input to output (input 3 to output 5 = x3AVx5)
x1AVx2,x3,x4 x1AVx2,x3,x4 Switch input to multiple outputs (input 3 = x3AVx1,x2)
Statusx1 x7AVx1 Shows what input is connected to selected output
Status x1AVx1, x2AVx2,
x3AVx4, ....
Save[Y] Save2 Saves settings for future use, saves vary from 0 to 9
Recall[Y] Recall2 Pulls up saved settings for the number you selected
Clear[Y] Clear2 Erases the save for the number you selected
Mreset Mreset Sets matrix back to the default settings
Displays which inputs are currently connected to which
outputs
Each command or feedback is terminated with a carriage return.
Note: If the command fails or is incorrect the feedback should be “Command FAILED”
Toll free: 1-877-536-3976
Local: 1-408-962-0515
7
atlona.com

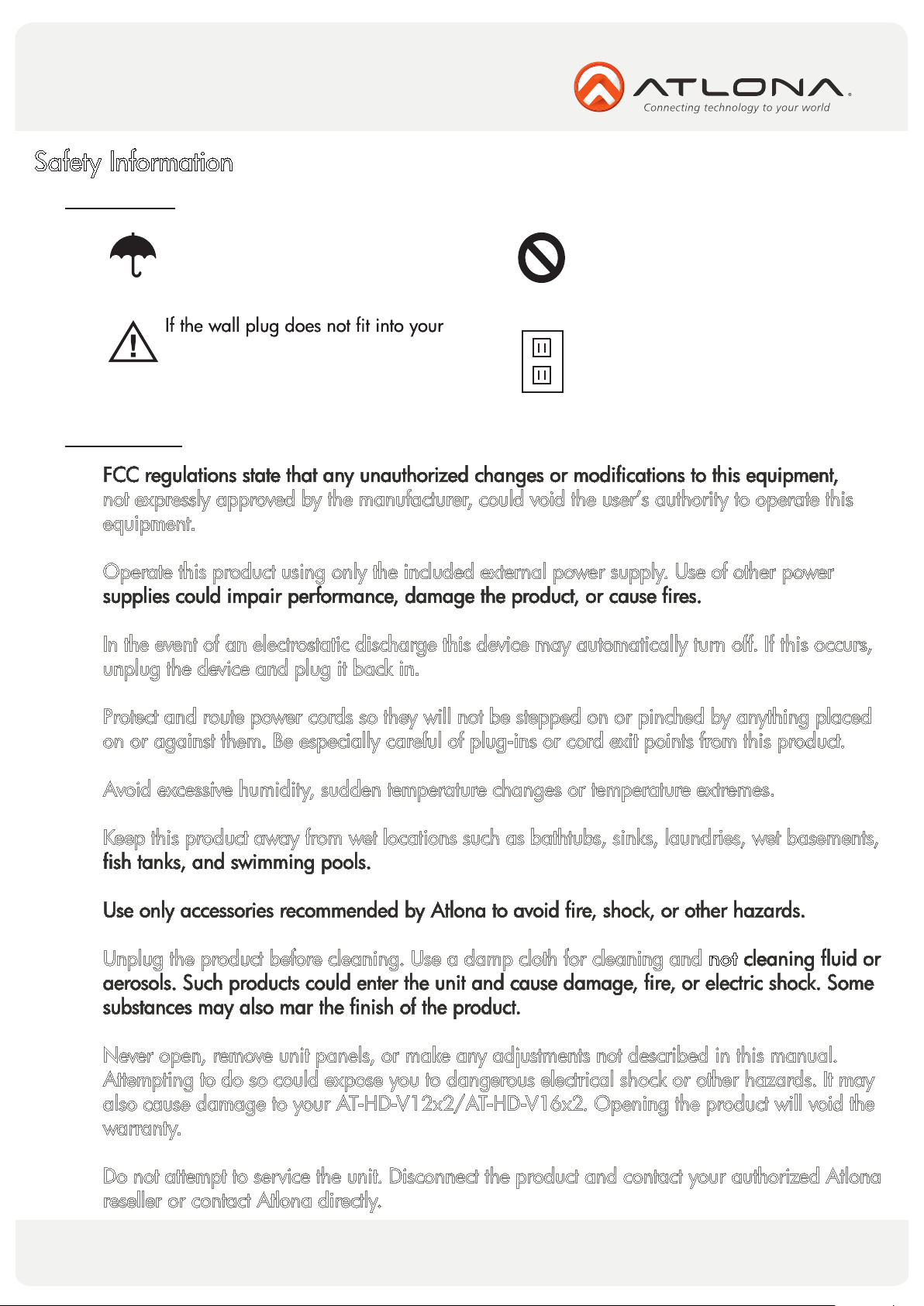

Safety Information
Safeguards
To reduce the risk of electric shock,
do not expose this product to rain or
moisture
local power socket, hire an electrician to
replace your obsolete socket.
Do not modify the wall plug. Doing so
will void the warranty and safety features.
This equipment should be installed
near the socket outlet and the device
should be easily accessible in the case it
requires disconnection.
Precautions
not expressly approved by the manufacturer, could void the user’s authority to operate this
equipment.
Operate this product using only the included external power supply. Use of other power
In the event of an electrostatic discharge this device may automatically turn off. If this occurs,
unplug the device and plug it back in.
Protect and route power cords so they will not be stepped on or pinched by anything placed
on or against them. Be especially careful of plug-ins or cord exit points from this product.
Avoid excessive humidity, sudden temperature changes or temperature extremes.
Keep this product away from wet locations such as bathtubs, sinks, laundries, wet basements,
Unplug the product before cleaning. Use a damp cloth for cleaning and not
Never open, remove unit panels, or make any adjustments not described in this manual.
Attempting to do so could expose you to dangerous electrical shock or other hazards. It may
also cause damage to your AT-HD-V12x2/AT-HD-V16x2. Opening the product will void the
warranty.
Do not attempt to service the unit. Disconnect the product and contact your authorized Atlona
reseller or contact Atlona directly.
Toll free: 1-877-536-3976
Local: 1-408-962-0515
8
atlona.com

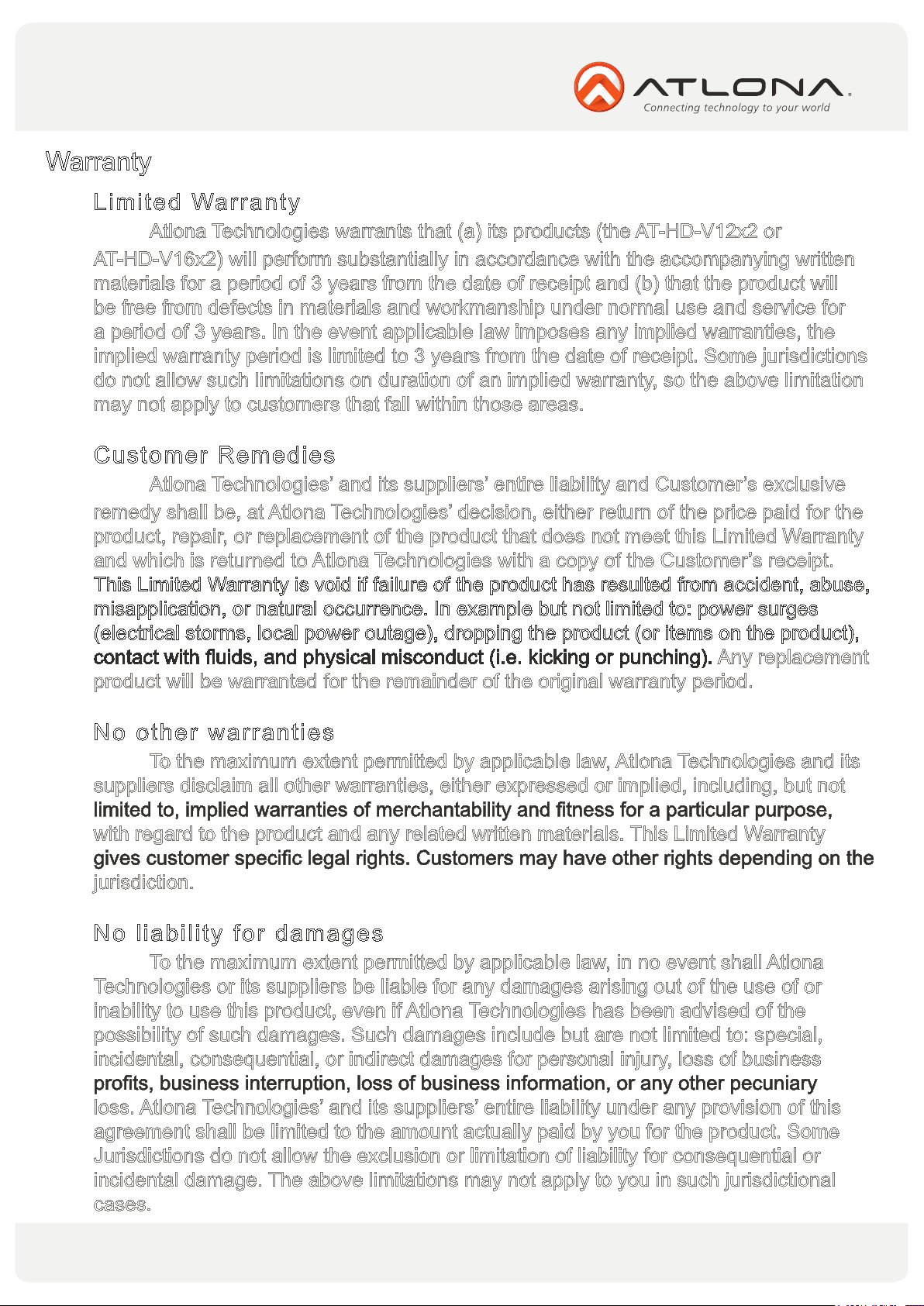

Warranty
Limited Warranty
Atlona Technologies warrants that (a) its products (the AT-HD-V12x2 or
AT-HD-V16x2) will perform substantially in accordance with the accompanying written
materials for a period of 3 years from the date of receipt and (b) that the product will
be free from defects in materials and workmanship under normal use and service for
a period of 3 years. In the event applicable law imposes any implied warranties, the
implied warranty period is limited to 3 years from the date of receipt. Some jurisdictions
do not allow such limitations on duration of an implied warranty, so the above limitation
may not apply to customers that fall within those areas.
Customer Remedies
Atlona Technologies’ and its suppliers’ entire liability and Customer’s exclusive
remedy shall be, at Atlona Technologies’ decision, either return of the price paid for the
product, repair, or replacement of the product that does not meet this Limited Warranty
and which is returned to Atlona Technologies with a copy of the Customer’s receipt.
This Limited Warranty is void if failure of the product has resulted from accident, abuse,
misapplication, or natural occurrence. In example but not limited to: power surges
(electrical storms, local power outage), dropping the product (or items on the product),
product will be warranted for the remainder of the original warranty period.
Any replacement
No other warranties
To the maximum extent permitted by applicable law, Atlona Technologies and its
suppliers disclaim all other warranties, either expressed or implied, including, but not
with regard to the product and any related written materials. This Limited Warranty
jurisdiction.
No liability for damages
To the maximum extent permitted by applicable law, in no event shall Atlona
Technologies or its suppliers be liable for any damages arising out of the use of or
inability to use this product, even if Atlona Technologies has been advised of the
possibility of such damages. Such damages include but are not limited to: special,
incidental, consequential, or indirect damages for personal injury, loss of business
loss. Atlona Technologies’ and its suppliers’ entire liability under any provision of this
agreement shall be limited to the amount actually paid by you for the product. Some
Jurisdictions do not allow the exclusion or limitation of liability for consequential or
incidental damage. The above limitations may not apply to you in such jurisdictional
cases.
Toll free: 1-877-536-3976
Local: 1-408-962-0515
9
atlona.com

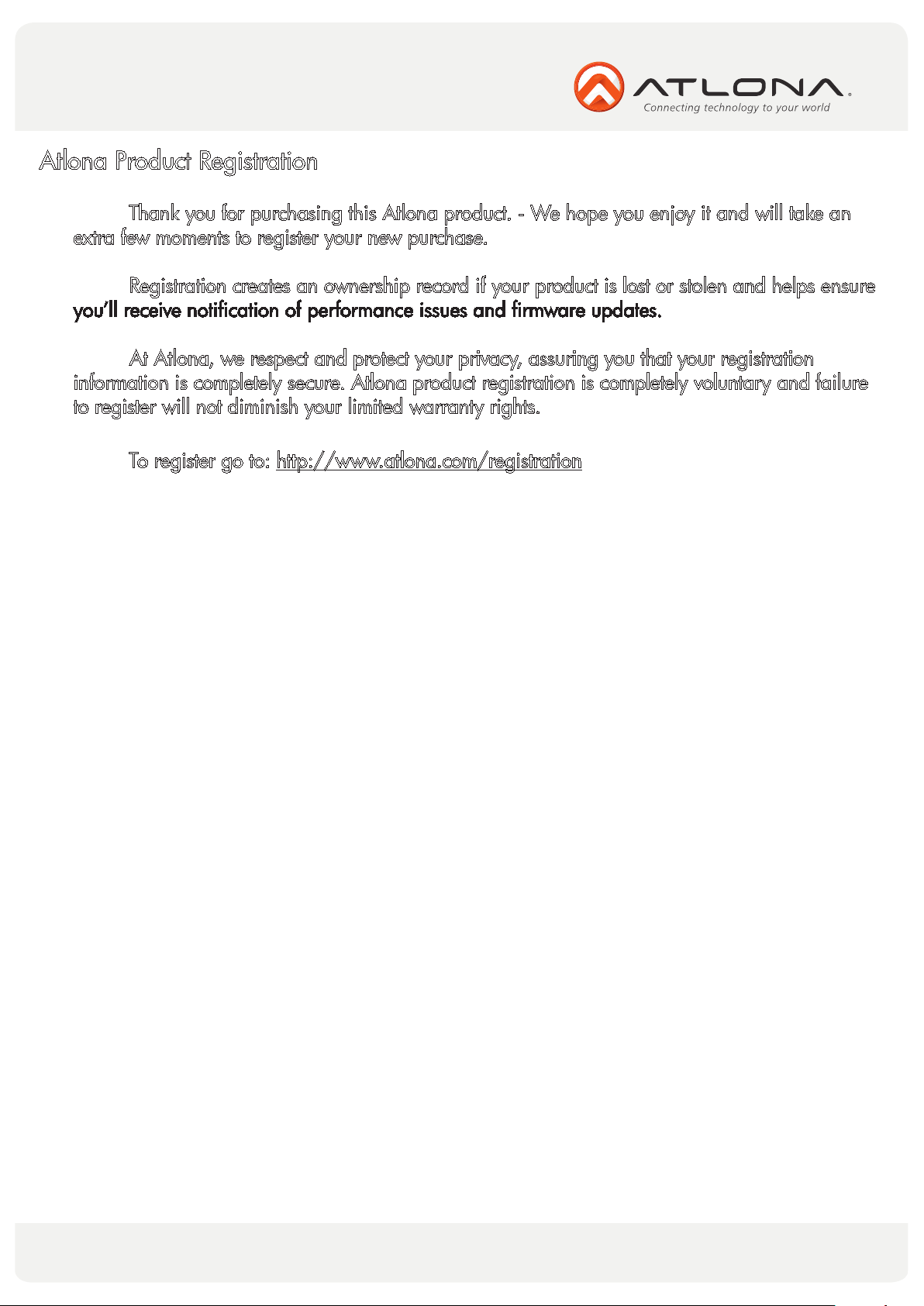

Atlona Product Registration
Thank you for purchasing this Atlona product. - We hope you enjoy it and will take an
extra few moments to register your new purchase.
Registration creates an ownership record if your product is lost or stolen and helps ensure
At Atlona, we respect and protect your privacy, assuring you that your registration
information is completely secure. Atlona product registration is completely voluntary and failure
to register will not diminish your limited warranty rights.
To register go to: http://www.atlona.com/registration
Toll free: 1-877-536-3976
Local: 1-408-962-0515
10
atlona.com
