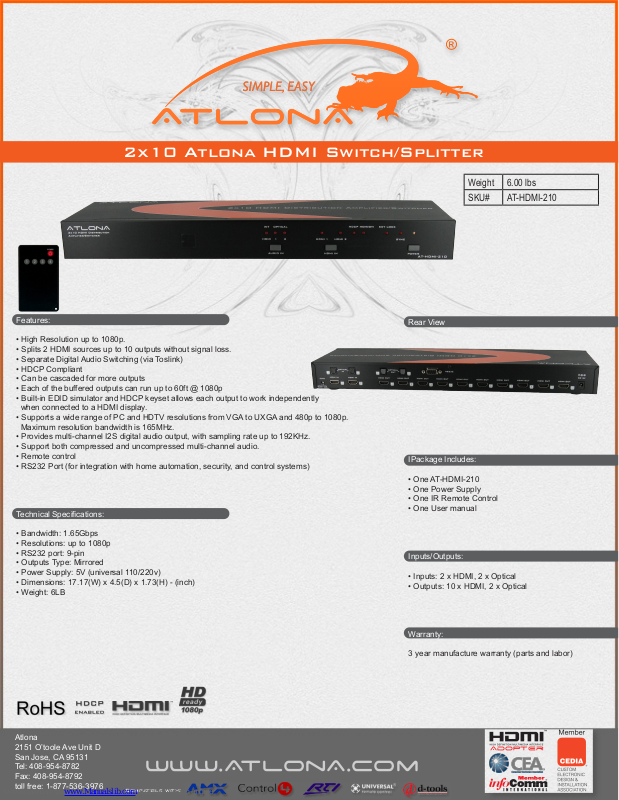

Atlona AT-HDMI-210 Specifications

2x10 Atlona HDMI Switch/Splitter

Weight 6.00 lbs

SKU# AT-HDMI-210

Features:

• High Resolution up to 1080p.

• Splits 2 HDMI sources up to 10 outputs without signal loss.

• Separate Digital Audio Switching (via Toslink)

• HDCP Compliant

• Can be cascaded for more outputs

• Each of the buffered outputs can run up to 60ft @ 1080p

• Built-in EDID simulator and HDCP keyset allows each output to work independently
when connected to a HDMI display.

• Supports a wide range of PC and HDTV resolutions from VGA to UXGA and 480p to 1080p.
Maximum resolution bandwidth is 165MHz.

• Provides multi-channel I2S digital audio output, with sampling rate up to 192KHz.

• Support both compressed and uncompressed multi-channel audio.

• Remote control

• RS232 Port (for integration with home automation, security, and control systems)

Technical Specications:

• Bandwidth: 1.65Gbps

• Resolutions: up to 1080p

• RS232 port: 9-pin

• Outputs Type: Mirrored

• Power Supply: 5V (universal 110/220v)

• Dimensions: 17.17(W) x 4.5(D) x 1.73(H) - (inch)

• Weight: 6LB

Rear View

IPackage Includes:

• One AT-HDMI-210

• One Power Supply

• One IR Remote Control

• One User manual

Inputs/Outputs:

• Inputs: 2 x HDMI, 2 x Optical

• Outputs: 10 x HDMI, 2 x Optical

Atlona
2151 O’toole Ave Unit D
San Jose, CA 95131
Tel: [phone]
Fax: [phone]
toll free: 1-877-536-3976

www.AtlonA.com

Compatible with:

Warranty:

3 year manufacture warranty (parts and labor)

AdoPtEr

Connection Diagram

SOURCE 1

AT-HDMI-210

SOURCE 2

DISPLAY 1

DISPLAY 3 DISPLAY 5 DISPLAY 7 DISPLAY 9

DISPLAY 2 DISPLAY 4 DISPLAY 6 DISPLAY 8 DISPLAY 10
