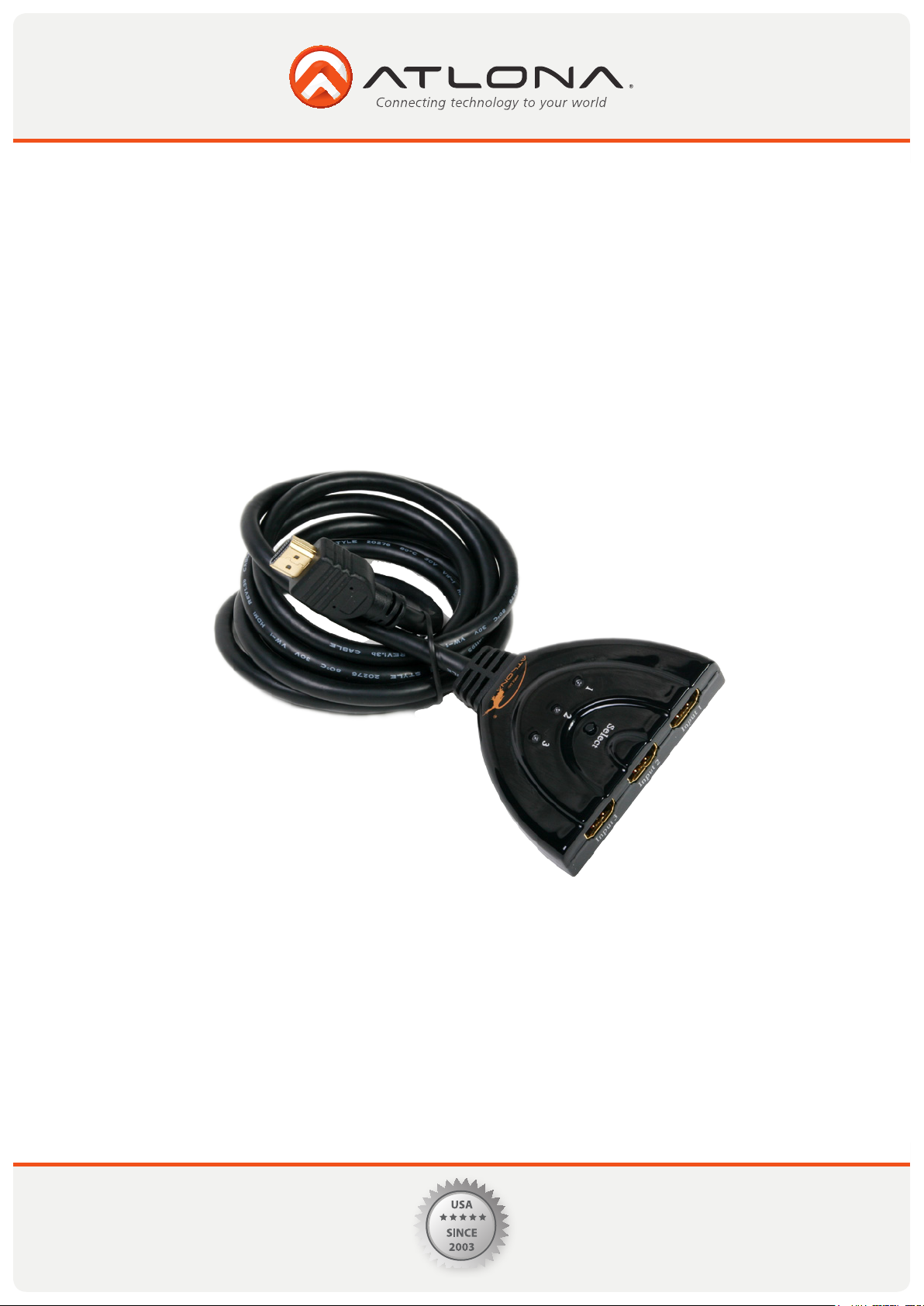

3x1 HDMI Auto Switch with 6ft HDMI
Cable Pigtail
AT-HAD-V31
Toll free: 1-877-536-3976
Local: 1-408-962-0515
User Manual
www.atlona.com
TABLE OF CONTENTS
1. Introduction 2
2. Features 2
3. Package Contents 3
4. Specifications 3
5. Panel View 3
6. Connection and Installation 4
7. Safety Information 5
8. Warranty 6
9. Atlona Product Registration 7
Toll free: 1-877-536-3976
Local: 1-408-962-0515
1
www.atlona.com
INTRODUCTION
Atlona’s AT-HAD-V13 is a high performance HDMI Switcher. It can easily switch between three sources to one
display up to 6ft. It not only has the key-press-switching function, but also has an intelligent function. With one
fixed 6ft HDMI cable (pigtail) this converter not only reduces cost but also saves time for consumers.
This kind of HDMI Switcher routes high definition video (in multiple resolutions up to 1080p) and digital audio
from any one of the three sources to display units. All inputs accommodate the connections of the high definition video sources simultaneously; compatible with HD-DVD,SKY-STB, PS3, Xbox36etc. The output sends the
high definition audio/video signals to a high definition display.
Intelligent Function:
1) Once the source device is turned on or plugged in (should stay on “power-on” mode), the switcher will
automatically select this source.
2) Once the source device is turned off or unplugged, the switcher will select the next power-on source automatically, depending on the sequence.
Note: When the source devises are on stand-by mode, power supply should be turned off, otherwise this
switcher will not meet intelligent function.
FEATURES
Atlona’s 3X1 HDMI Switcher has many features that enable it to perform in a superior manner. Among those
features:
• Support with HDMI1.3b
• Support 12-bit Deep Color.
• 24K gold plated connector
• 6ft Length HDMI Length
• High performance up to 2.5Gbps
• Multifunctional on switching : intelligent or mechanical
• Maintains high resolution video, beautifully sharp HDTV resolutions up to 1080p, 2k, and computer resolu-
tions up to 1920 x 1200 are easily achieved
• Support uncompressed audio such as LPCM
• Support compressed audio such as DTS Digital, Dolby Digital (including DTS-HD and Dolby True HD)
• HDMI pass-through
• HDCP pass-through
