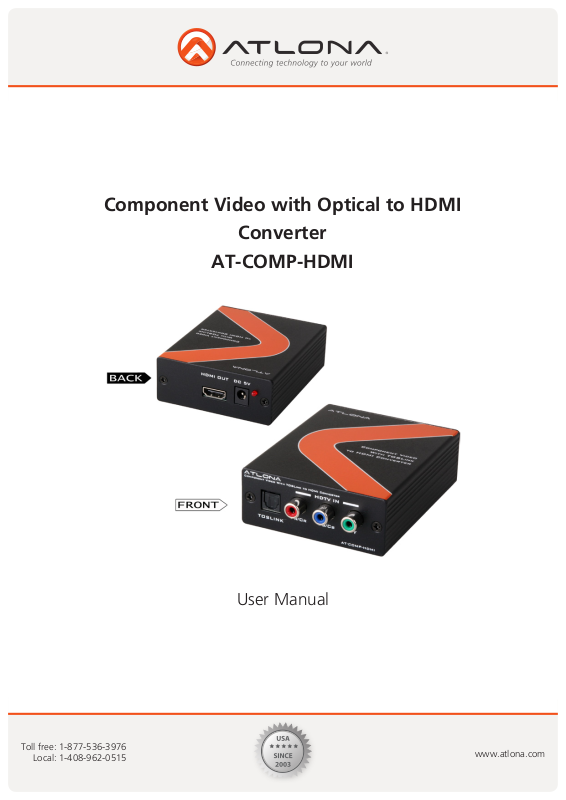

Component Video with Optical to HDMI
Converter
AT-COMP-HDMI
Toll free: 1-877-536-3976
Local: 1-408-962-0515
User Manual
www.atlona.com
TABLE OF CONTENTS
1. Introduction 2
2. Features 2
3. Package Contents 2
4. Specifications 2
5. Panel View 3
5.1. Front Panel 3
5.2. Rear Panel 3
6. Connection and Installation 3
7. Safety Information 4
8. Warranty 5
9. Atlona Product Registration 6
Toll free: 1-877-536-3976
Local: 1-408-962-0515
1
www.atlona.com
INTRODUCTION
Atlona component with digital audio to HDMI converter, converts analog YPrPb or YCrCb and audio to digital
HDMI format. It allows you to connect the component output from DVD or Set-Top-Box to digital HDMI input
of HD ready plasmas, LCD’s or DLP TV’s. Supports high resolution up to 1080p.
FEATURES
• It enables you to connect Set-Top-Boxes or DVDs with YPbPr/YCbCr and Toslink output to HDMI input of
HD ready plasma, LCD or DLP TV.
• The input format is YCbCr or YPbPr and digital Toslink audio
• Supports up to 1920x1080p@60Hz or 1080p
• Compact size and easy to install
PACKAGE CONTENT
• 1 x AT-COMP-HDMI
• 1 x Power Supply (Universal 110/220v)
• 1 x 3ft Component Video Cable
• 1 x User Manual
SPECIFICATIONS
Video Input 3 x RCA Component Video ( YPrPB/YCrCb)
Audio Input Digital Audio (Toslink)
Output HDMI (Digital)
Bandwidth 1.65Gbps
Input/Output Resolutions 480i, 576i, 480p, 576p, 720p, 1080i, 1080p
Frequency 60/50Hz
Power Supply 5V@1A ( 110/220v)
Dimensions( inch ) 2.99(W) x 1.1(H) x 4.13(D)
Weight 2LB
Toll free: 1-877-536-3976
Local: 1-408-962-0515
2
www.atlona.com
PANEL VIEW
1. Front Panel
2. Rear Panel
CONNECTION AND INSTALLATION
Step 1. Connect Component Video (Red, Green, Blue) cables to your Source and to AT-COMP-HDMI.
Step 2. Connect TOSLink Audio (Fiber Optic) cables to your Source and to AT-COMP-HDMI.
Step 3. Connect HDMI cable to your Display and to AT-COMP-HDMI.
Step 4. Connect Power cable to your Display and to AT-COMP-HDMI.
When the converter is plugged in, the LED in the top right corner will light up, notifying you that the converter
is active.
DVD
AT-COMP-HDMI
Display
Toll free: 1-877-536-3976
Local: 1-408-962-0515
3
www.atlona.com
SAFETY INFORMATION
Safeguards
To reduce the risk of electric shock, do not Do not modify the wall plug. Doing so will
expose this product to rain or moisture void the warranty and safety features.
If the wall plug does not fit into your local This equipment should be installed near
power socket, hire an electrician to replace the socket outlet and the device should
your obsolete socket. be easily accessible in the case it requires
disconnection.
Precautions
FCC regulations state that any unauthorized changes or modifications to this equipment, not expressly approved by the manufacturer, could void the user’s authority to operate this equipment.
Operate this product using only the included external power supply. Use of other power supplies could impair
performance, damage the product, or cause fires.
In the event of an electrostatic discharge this device may automatically turn off. If this occurs, unplug the device
and plug it back in.
Protect and route power cords so they will not be stepped on or pinched by anything placed on or against
them. Be especially careful of plug-ins or cord exit points from this product.
Avoid excessive humidity, sudden temperature changes or temperature extremes.
Keep this product away from wet locations such as bathtubs, sinks, laundries, wet basements, fish tanks, and
swimming pools.
Use only accessories recommended by Atlona to avoid fire, shock, or other hazards.
Unplug the product before cleaning. Use a damp cloth for cleaning and not cleaning fluid or aerosols.
Such products could enter the unit and cause damage, fire, or electric shock. Some substances may also mar
the finish of the product.
Never open, remove unit panels, or make any adjustments not described in this manual. Attempting to do so
could expose you to dangerous electrical shock or other hazards. It may also cause damage to your AT-COMPHDMI. Opening the product will void the warranty.
Do not attempt to service the unit. Disconnect the product and contact your authorized Atlona reseller or contact Atlona directly.
Toll free: 1-877-536-3976
Local: 1-408-962-0515
4
www.atlona.com
WARRANTY
Limited Warranty
Atlona Technologies warrants that (a) its products (the AT-COMP-HDMI) will perform substantially in accordance with the accompanying written materials for a period of 3 years from the date of receipt and (b) that
the product will be free from defects in materials and workmanship under normal use and service for a period
of 3 years. In the event applicable law imposes any implied warranties, the implied warranty period is limited
to 3 years from the date of receipt. Some jurisdictions do not allow such limitations on duration of an implied
warranty, so the above limitation may not apply to customers that fall within those areas.
Customer Remedies
Atlona Technologies’ and its suppliers’ entire liability and Customer’s exclusive remedy shall be, at Atlona Technologies’ decision, either return of the price paid for the product, repair, or replacement of the product that
does not meet this Limited Warranty and which is returned to Atlona Technologies with a copy of the Customer’s receipt. This Limited Warranty is void if failure of the product has resulted from accident, abuse, misapplication, or natural occurrence. In example but not limited to: power surges (electrical storms, local power out-
age), dropping the product (or items on the product), contact with fluids, and physical misconduct (i.e. kicking
or punching). Any replacement product will be warranted for the remainder of the original warranty period.
No other warranties
To the maximum extent permitted by applicable law, Atlona Technologies and its suppliers disclaim all other
warranties, either expressed or implied, including, but not limited to, implied warranties of merchantability
and fitness for a particular purpose, with regard to the product and any related written materials. This Limited
Warranty gives customer specific legal rights. Customers may have other rights depending on the jurisdiction.
No liability for damages
To the maximum extent permitted by applicable law, in no event shall Atlona Technologies or its suppliers be
liable for any damages arising out of the use of or inability to use this product, even if Atlona Technologies has
been advised of the possibility of such damages. Such damages include but are not limited to: special, incidental, consequential, or indirect damages for personal injury, loss of business profits, business interruption, loss
of business information, or any other pecuniary loss.
Atlona Technologies’ and its suppliers’ entire liability under any provision of this agreement shall be limited to
the amount actually paid by you for the product. Some Jurisdictions do not allow the exclusion or limitation
of liability for consequential or incidental damage. The above limitations may not apply to you in such jurisdictional cases.
Toll free: 1-877-536-3976
Local: 1-408-962-0515
5
www.atlona.com
ATLONA PRODUCT REGISTRATION
Thank you for purchasing this Atlona product. - We hope you enjoy it and will take an extra few
moments to register your new purchase.
Registration creates an ownership record if your product is lost or stolen and helps ensure you’ll
receive notification of performance issues and firmware updates.
At Atlona, we respect and protect your privacy, assuring you that your registration information
is completely secure. Atlona product registration is completely voluntary and failure to register will not
diminish your limited warranty rights.
To register go to: http://www.atlona.com/registration
Toll free: 1-877-536-3976
Local: 1-408-962-0515
6
www.atlona.com
