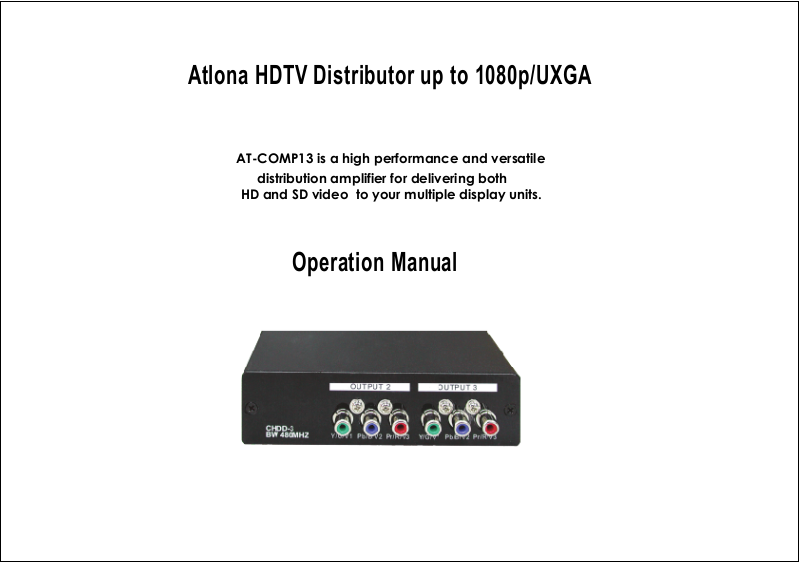

Atlona HDTV Distributor up to 1080p/UXGA
AT-COMP13 is a high performance and versatile
distribution amplifier for delivering both
HD and SD video to your multiple display units.
Operation Manual
Application
The AT-COMP13 is capable of distributing video in 3 different formats
and is ideal for use in analog video entertainment distribution
system.
Connection and Installation
1. Works as a 1-in 3-out distribution amplifier for HD component source(YPbPr).
OUTPUT 2 OUTPUT 3
OUTPUT 1 INPUT
DC 5V 1A
Features
- Component/ composite or RGB distribution amplifier.
- Supports SD (composite, YCbCr) and HDTV (YPbPr, RGsB)
input signal.
- Accepts one component input and splits the input to
3 identical and buffered outputs via 3x3 RCA connectors.
- When input is composite video, it can connect up to 3 different
video sources and output three identical and buffered signal
for each video input.
- It can be used for presentation and home theater application.
- High bandwidth performance - 480MHz bandwidth at -3dB
- Worldwide power supply
This package includes
- One CHDD-3 unit.
- One set of power supply
- One user manual
- One set of 3BNC male to 3BNC male cable
Specifications
* Input: YPbPr x 1 or RGsB x 1 (or RGBHV),
or composite x 3 1 Vp-p@ 75 ohm
* Output: YPbPr x 3, or RGsB(or RGBHV) x 3, or composite 3 x 3
* Horizontal/Vertical sync 5Vp-p max and H frequency
10KHz~100KHz, V frequency 20Hz~200Hz.
* Bandwidth: 480MHz (-3dB)
* Differential gain: 0.05%
* Differential phase: 0.05 degree
* Power: 5V 2A~1A
* Dimension:141(W) x 38(D) x 105(H)mm
* Weight: 550gs
Also available: AT-COMP13A with audio.
Y/G/V1 Pb/B/V2 Pr/R/V3
Plasma Monitor 2 Plasma Monitor 3 Plasma Monitor 1
Y/G/V1 Pb/B/V2 Pr/R/V3
Y/G/V1 Pb/B/V2 Pr/R/V3
Y/G/V1 Pb/B/V2 Pr/R/V3
DVDDVD
component
component
out
out
2. Works as a 1-in 3-out distribution amplifier for HD RGsB (Sync on Green)
video source.
OUTPUT 2 OUTPUT 3
Y/G/V1 Pb/B/V2 Pr/R/V3
Y/G/V1 Pb/B/V2 Pr/R/V3
OUTPUT 1 INPUT
Y/G/V1 Pb/B/V2 Pr/R/V3
DC 5V 1A
Y/G/V1 Pb/B/V2 Pr/R/V3
RGsB
out
DVD
3. Works as a three 1-in 3-out distribution amplifier for composite
video source.
OUTPUT 1 INPUT
Y/G/V1 Pb/B/V2 Pr/R/V3
CV3 in CV2 in CV1 in
DC 5V 1A
Y/G/V1 Pb/B/V2 Pr/R/V3
CV3 out
OUTPUT 2 OUTPUT 3
Y/G/V1 Pb/B/V2 Pr/R/V3
CV2 out
CV1 out
CV3 out CV2 out CV1 out
Y/G/V1 Pb/B/V2 Pr/R/V3
CV3 out CV2 out CV1 out
