Atlas Sound SM42T-B, SM42T-W User Manual
STRATEGY SERIES® SURFACE MOUNT LOUDSPEAKERS
SM42T-B
SM42T-W
SM42T-B
SM42T-W
SM42T-W Back
SM42T-W Back Open
FEATURES
• Compact, Two-Way Loudspeaker Systems for Exceptional Performance in Sound
Reinforcement Systems
• Weather-Resistant Construction For Year-round Indoor or Outdoor Use: UV-resistant
Talc Impregnated Polypropylene, Injection Molded, Weatherproof Enclosure Powder Coated
Aluminum Grilles and all Brass Hardware Inserts
• 100HR Salt Spray Test Per ASTM B117
• Color Matched Heavy-duty Zinc Chromate Plated & Powder Coated "C" Bracket (Included)
• Highly Efficient 4" Polypropylene Woofer
• 1" Ferrofluid™ Cooled Dome Tweeter
• Atlas Sound TRX WAVEGUIDE™– A Constant Directivity Style High Frequency Wave Guide
System Provides Accurate, Even High Frequency Coverage
• Atlas Sound POLYGUARD™ High Frequency Circuit Diverts Damaging Transient Signals to
Protect the Tweeter
• Screwdriver Adjustable 16-Watt 70.7V/100V Transformer for Distributed Sound Applications
(may be bypassed for 8-ohm operation via tap selector switch)
• All 1⁄4"-20 Hardware Inserts Allow Easy Integration of "Off The Shelf" Security Hardware
• OMNIMOUNT™ 10 Series Compatible
• Available in Black or White
• Five-Year Warranty
APPLICATIONS
Use surface-mount Atlas Sound SM42T Series loudspeaker systems for commercial,
professional and residential applications or where high-fidelity sound and weather-resistance
is desired. Full-range frequency response makes these systems ideal for indoor and outdoor
installation, in monaural and stereo foreground or background music systems, and for
applications in boutiques/shops, restaurants/cafes, corporate AV applications and houses of
worship. Multi-position, C-shaped mounting bracket and rugged construction provide optimum
installation flexibility and assurance of long-term service.
GENERAL DESCRIPTION
Environment-resistant SM Series loudspeaker systems offer quality sound reproduction and
contemporary styling in a compact enclosure. System components consist of a highly efficient
woofer section and Ferrofluid™ cooled mylar film high frequency device. Vocal and musical
clarity is optimized by the mathematically conceived, advanced design of the Atlas Sound
TRX Control WaveGuide™ high frequency director. This design provides smooth, even sound
coverage (90°H x 90°V). The high frequency section is symmetrical, for equal coverage in
both vertical and horizontal cabinet mounting positions. High frequency component protection
is provided by the Atlas Sound Poly Guard™ protection circuit. Both drivers feature low-fluxleakage designs enabling the speaker to be used in close proximity to video monitors. For
critical video monitoring applications, a minimum distance of 18 inches from the edge of the
loudspeaker to the edge of the CRT is recommended. The SM42T includes an internally
mounted, 16 Watt 70.7V/100V line matching transformer with screwdriver adjustable external
tap selection for use in distributed sound applications.
To with stand the harshest environments, the new Strategy Series SM42T surface mount
loudspeakers are constructed of weather resistant materials: UV-resistant, talc impregnated,
polypropylene injection molded cabinets; Polypropylene woofer cones; powder coated
aluminum grilles and all brass hardware. The Strategy Series speaker systems include a
versatile yet simple C-bracket designed to provide easy vertical or horizontal installation on
just about any surface. Care should be taken to ensure that the chosen mounting surface is
strong enough to support the SM42T. Care should also be taken to ensure that the SM42T is
not exposed to direct precipitation. A 5/8"-27 threaded hole is provided on the C-bracket to
allow the SM series speaker to be mounted on any Atlas Sound microphone stand for nearfield live sound applications. 2-3/8" OC brass inserts are also provided on the rear of the
One
PEFORMANCE SPECIFICATIONS
POWER RATING
SM42T
30 Watts RMS
(50 Watts Peak)
© 2005 Atlas Sound Printed in U.S.A. 000105 ATS001935 RevA 01/05 SL1-2050
IMPEDANCE FREQ. RESP (±5DB) SENSITIVITY (1W/1M) (LF) MAGNET WT. HF DRIVER 70.7V TAPS (WATTS)
8 Ohms
(Xfmr Bypassed)
1601 JACK MCKAY BLVD. / ENNIS, TEXAS 75119 U.S.A.
1601 JACK MCKAY BLVD. / ENNIS, TEXAS 75119 U.S.A.
TELEPHONE: (800) 876-3333 / FAX (800) 765-3435
TELEPHONE: (800) 876-3333 / FAX (800) 765-3435
115Hz to 16kHz 88dB 10 oz.
Specifications subject to change without notice
Specifications subject to change without notice
1" (25mm)
Dome Tweeter
2, 4, 8, 16
AtlasSound.com
AtlasSound.com
DIMENSIONS LESS
BRACKET
7" (17.78cm) H
5" (12.7cm) W
5" 15/16 (15.03cm) D
WEIGHT LESS
BRACKET
1.5 lbs. (.68kg)
2.69
SM42T to accommodate the Atlas Sound SMBALLMOUNT bracket
or OMNIMOUNT™ 10 series brackets. All inserts for mounting knobs
are standard 1⁄4"-20 to allow easy substitution of standard "off the
shelf" vandal proof torx head or "one-way" hardware. Input connectors
include a sealed 2-pole terminal strip capable of accepting up to (2)
#14AWG wires. 2, 4, 8, and 16 watt taps are screwdriver selectable
ARCHITECT AND ENGINEER SPECIFICATIONS
via a sealed switch located near the input section on the rear of
the cabinet. Internal transformer may also be bypassed for 8-ohm
operation via tap selector switch. A flush cover with wire exit hole
is provided to insure input connections and tap selector switch are
protected. Systems are available in Black or White finishes and can be
painted to accommodate any architectural considerations.
The indoor/outdoor mini-loudspeaker system shall be Atlas Sound
Model __________ (SM42T-B or SM42T-W) or approved equal.
Assemblies shall consist of two-way woofer and tweeter within
environment-resistant housings. Enclosure shall be constructed of
paintable UV-resistant, talc impregnated, polypropylene injection
molded plastic finished in black (SM42T-B) or white (SM42T-W).
Each unit shall include a stamped powder coated aluminum grille and
removable C-shaped mounting bracket. All hardware inserts shall be
brass and threaded 1⁄4"-20. The 16-watt RMS system shall have a 4"
(102mm) woofer, constructed of reinforced polypropylene, and a 1"
(25mm) Ferro fluid tweeter. The dividing network crossover frequency
shall be 4000 Hz. The dividing network shall include protection circuits
for the high-frequency component. Each unit shall include an internally
mounted 16 watt 70.7V/100V line matching transformer for use in
SM42T Frequency Response
(Transformer Bypassed)
distributed sound applications. Wattage taps shall be screwdriver
selectable via a sealed switch located near the input section. Wattage
taps shall be 2W, 4W, 8W, 16W @ 70.7V. The loudspeaker system
shall meet the following performance criteria: Power handling, 30
watts RMS. Frequency response, +/- 5 dB from 115 Hz to 16 kHz.
Sensitivity shall be 88dB SPL at one watt, 85 Hz to 16 kHz measured
at a distance of one meter on axis. Impedance shall be 8 ohms
nominal. Input connectors shall include a two-pole barrier strip capable
of accepting up to (2) #14AWG cable. A cover with wire exit hole shall
be provided to protect the input connectors. The loudspeaker system
shall exhibit no performance or cosmetic degradation after a 100 hour salt spray test per ASTM B117 The unit shall be 7"(178mm) high,
5" (127mm) wide, 5-15/16" (151mm) deep and weigh 1.5lbs (.68kg).

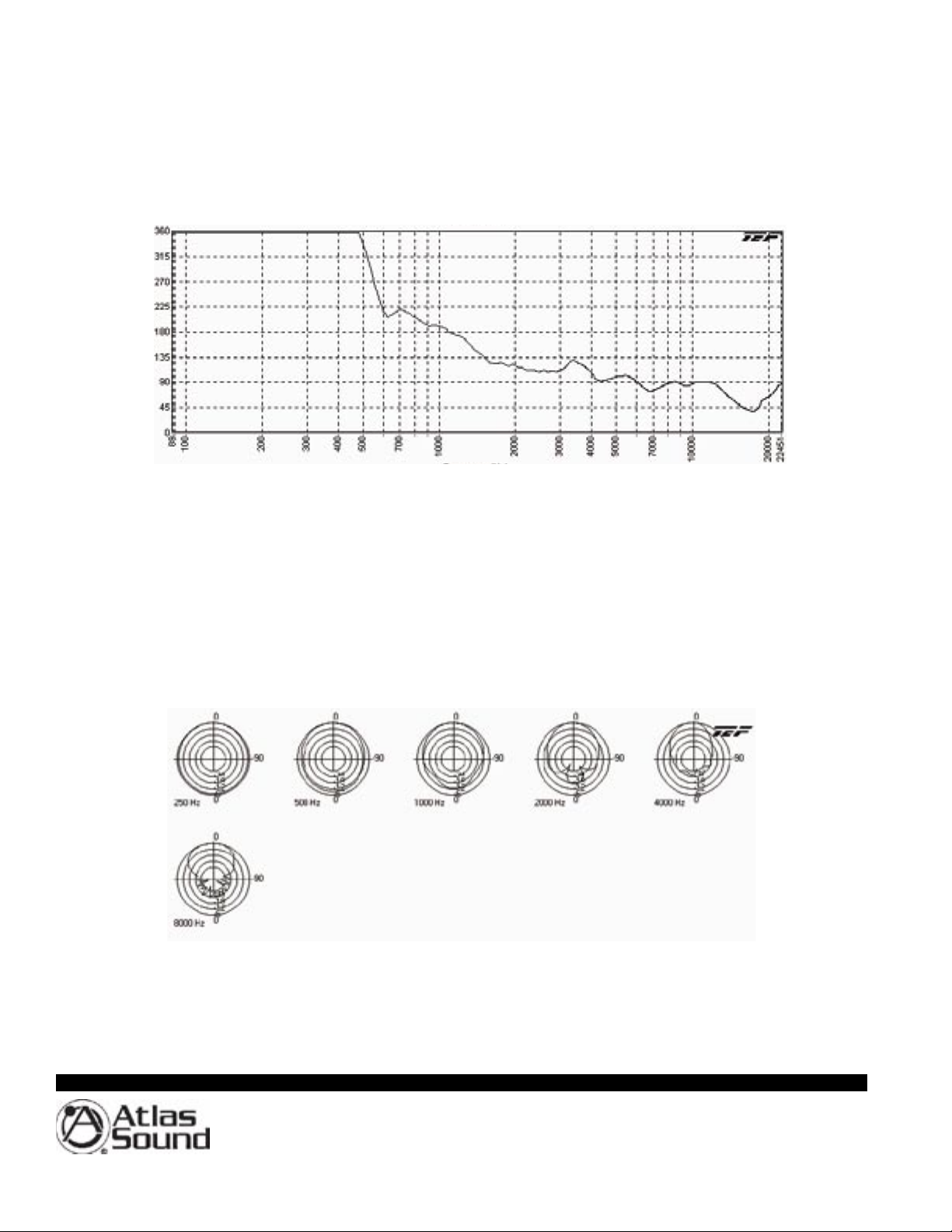

dB
Frequency (Hz)
Specifications subject to change without notice
1601 JACK MCKAY BLVD. / ENNIS, TEXAS 75119 U.S.A.
TELEPHONE: (800) 876-3333 / FAX (800) 765-3435
© 2005 Atlas Sound Printed in U.S.A. 000105 ATS001935 RevA 01/05 SL1-2050
AtlasSound.com
