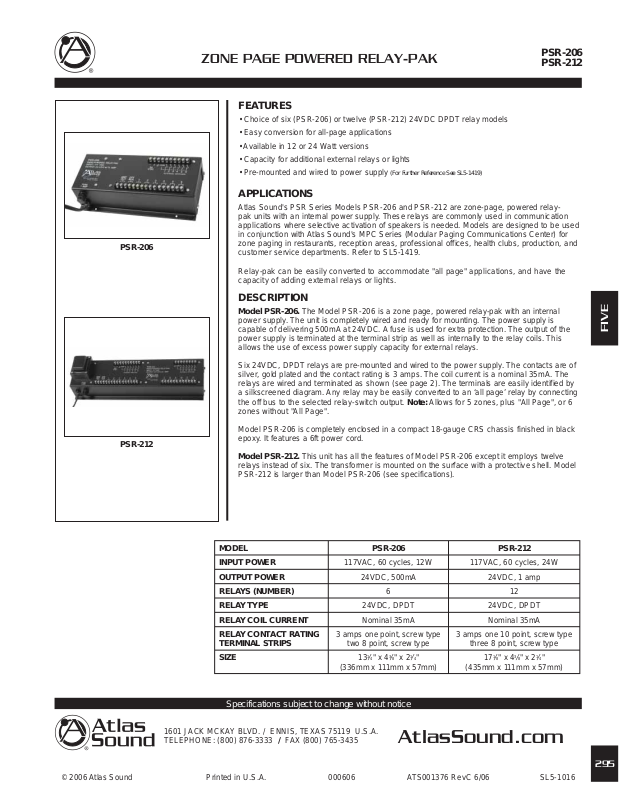

Atlas Sound PSR-206, PSR-212 User Manual
PSR-206
ZONE PAGE POWERED RELAY-PAK
FEATURES
• Choice of six (PSR-206) or twelve (PSR-212) 24VDC DPDT relay models
• Easy conversion for all-page applications
• Available in 12 or 24 Watt versions
• Capacity for additional external relays or lights
• Pre-mounted and wired to power supply (For Further Reference See SL5-1419)
APPLICATIONS
Atlas Sound's PSR Series Models PSR-206 and PSR-212 are zone-page, powered relaypak units with an internal power supply. These relays are commonly used in communication
applications where selective activation of speakers is needed. Models are designed to be used
in conjunction with Atlas Sound's MPC Series (Modular Paging Communications Center) for
zone paging in restaurants, reception areas, professional offices, health clubs, production, and
customer service departments. Refer to SL5-1419.
Relay-pak can be easily converted to accommodate "all page" applications, and have the
capacity of adding external relays or lights.
DESCRIPTION
Model PSR-206. The Model PSR-206 is a zone page, powered relay-pak with an internal
power supply. The unit is completely wired and ready for mounting. The power supply is
capable of delivering 500mA at 24VDC. A fuse is used for extra protection. The output of the
power supply is terminated at the terminal strip as well as internally to the relay coils. This
allows the use of excess power supply capacity for external relays.
PSR-206
PSR-212
FIVE
PSR-212
Six 24VDC, DPDT relays are pre-mounted and wired to the power supply. The contacts are of
silver, gold plated and the contact rating is 3 amps. The coil current is a nominal 35mA. The
relays are wired and terminated as shown (see page 2). The terminals are easily identified by
a silkscreened diagram. Any relay may be easily converted to an ‘all page’ relay by connecting
the off bus to the selected relay-switch output. Note: Allows for 5 zones, plus "All Page", or 6
zones without "All Page".
Model PSR-206 is completely enclosed in a compact 18-gauge CRS chassis finished in black
epoxy. It features a 6ft power cord.
Model PSR-212. This unit has all the features of Model PSR-206 except it employs twelve
relays instead of six. The transformer is mounted on the surface with a protective shell. Model
PSR-212 is larger than Model PSR-206 (see specifications).
MODEL PSR-206 PSR-212
INPUT POWER
OUTPUT POWER
RELAYS (NUMBER)
RELAY TYPE
RELAY COIL CURRENT
RELAY CONTACT RATING
TERMINAL STRIPS
SIZE
117VAC, 60 cycles, 12W 117VAC, 60 cycles, 24W
24VDC, 500mA 24VDC, 1 amp
612
24VDC, DPDT 24VDC, DPDT
Nominal 35mA Nominal 35mA
3 amps one point, screw type
two 8 point, screw type
1
⁄4" x 43⁄8" x 21⁄4"
13
(336mm x 111mm x 57mm)
3 amps one 10 point, screw type
three 8 point, screw type
171⁄8" x 43⁄8" x 21⁄4"
(435mm x 111mm x 57mm)
Specifications subject to change without notice
1601 JACK MCKAY BLVD. / ENNIS, TEXAS 75119 U.S.A.
TELEPHONE: (800) 876-3333 / FAX (800) 765-3435
© 2006 Atlas Sound Printed in U.S.A. 000606 ATS001376 RevC 6/06 SL5-1016
AtlasSound.com
295
ARCHITECT AND ENGINEER SPECIFICATIONS
The zone page powered relay pak shall be Atlas Sound Model _______
_____ (PSR-206, PSR-212) or approved equal. It shall include a power
supply. Unit shall be wired and ready for mounting. The power supply
shall be capable of delivering ____________ (500mA at 24VDC, Model
PSR-206; 1 amp at 24VDC, Model PSR-212. The relay pak shall utilize
_________ 6 or 12 relays and shall have external provisions to wire
one relay as an ‘all page’ application.
PSR
WIRING DIAGRAM
Each relay shall be a DPDT with a 24VDC power supply. The unit
output shall be terminated at screw terminals for easy access. The
chassis shall be constructed of 18 gauge CRS. Models shall include
silkscreened terminal diagram and a 6 ft power cord.
EXTERNAL
SWITCHES
(NOT
INCLUDED)
AMP OUT
A
1
B
A
B
A
B
1A
1B
2A
2B
2
3
OUTPUT TO
SPEAKER CIRCUITS
3A
3B
4A
4B
OFF BUS
A
4
B
A
5
B
A
6
B
5A
5B
DOTTED LINES INDICATE
LEADS REQUIRED TO
UTILIZE #6 RELAY AS AN
"ALL PAGE" RELAY
(JUMPERS BY OTHERS)
6A
6B
-
1
2
3
4
5
6
1
2
3
4
5
6
+
24 VDC
-
117 VAC
ZONE PAGE POWERED RELAY PAK
+24 VDC
PSR-212 DIAGRAM SAME AS PSR-206 EXCEPT IT HAS ADDITIONAL X6 RELAYS
