Atlas Sound AA35 User Manual

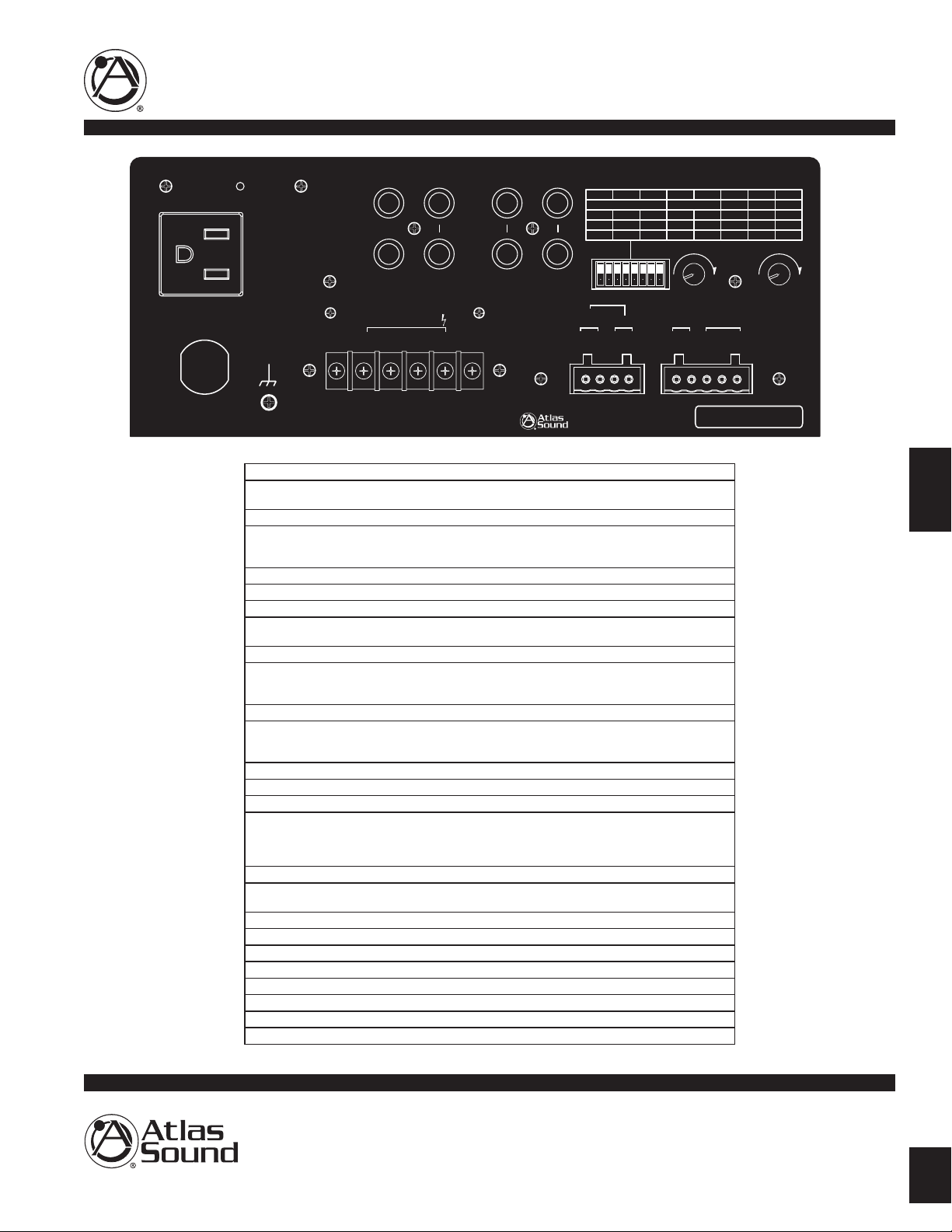

STRATEGY SERIES AMPLIFIER

MODEL AA35

FEATURES

• 1 Mic In w/ Phantom Power

• 2 Stereo Line In

• Dual Line Out

• Pre Out/Power In Patch

• Remote and VOX Activated Mute

• Route any source combination or entire mix bus to Zone 2 (MOH Out)

• Special Low Cut Filter is 6dBu/octave at 400Hz and also bypasses front panel bass
control to allow use with paging horns like the Atlas Sound APX40TN and AP-15T

AA35

AA35

AA35 (Back View)

GENERAL DESCRIPTION

The Atlas Sound AA35 is a 3 input channel mixer amplifier designed for distributed
business paging and background music (BGM) systems, small to medium speech privacy
systems, and in applications where music on hold (MOH) plus paging is required.

With (1) microphone input and (2) stereo line inputs, the AA35 will accommodate a variety
of input sources including paging microphones, CD players, and digital music receivers. A
dip switch selectable matrix allows the creation of a Zone 2 mix from any or all of the input
sources for music or messaging on hold applications. 25V, 70.7V, and 8 Ohm outputs are
provided.

The output power of 35 Watts will match nicely with Atlas Sound FAP, SM, SD, and GD
series loudspeakers. In fact, in an 11’ ceiling application, the AA35 will provide power for
up to 117 SD72W loudspeakers tapped at .25 Watts each while providing upwards of 84dB
in the direct sound field at ear height!

SPECIFICATIONS

Power Rating:

35W RMS @ 70.7V (Maximum average power @ 50Hz to 20kHz with .5% THD)

Inputs:

Input #1 Mic/Line/Tel (optional transformer available)

Inputs 2-3 unbalanced RCA summing line level

Outputs:

Main: 35W RMS 8 Ohm, 25V and 70.7V

Zone 2: 8 Ohms at 1.5 Watts & 600 Ohm line level at 1.5V

Power Consumption:

90 Watts

Dimensions:

8.27" x 3.66" x10.87" (210mm x 94mm x 276mm)

Weight:

10.2 lbs (4.64kg)

Five

Specifications subject to change without notice

1601 JACK MCKAY BLVD. / ENNIS, TEXAS 75119 U.S.A.
TELEPHONE: [phone] / FAX [phone]

© 2006 Atlas Sound Printed in U.S.A. ATS002452 RevA 11/06 SL5-2090

AtlasSound.com

307

ARCHITECT AND ENGINEER SPECIFICATIONS

The mixer/amplifier shall control and mix up to three input signals
and deliver an audio output of 35W into 8 Ohm, 25V, and 70V.
The amplifier output shall be transformer isolated with a frequency
response 50Hz to 20kHz (-3dB) with less than 0.5% THD at rated
output. The output regulation shall be less than 2dB, no load to full
load. It shall be capable of operation from a 110/120 VAC 50/60Hz
line. The mixer/amplifier shall be convection cooled. The amplifier
shall have thermal and short circuit protection.

The mixer/amplifier shall have a switch- selectable MIC/TEL balanced
input to accept either low impedance microphone or Tel/Line Level
signals with -60/-10dBv sensitivity. The MIC/TEL input shall include a
Phoenix (Euro Block) type connector. The MIC/TEL input impedance
shall be 600 Ohms. The MIC/TEL input shall include an auto mute
(VOX Mute) sensitivity control for Input 1. The MUTE SENSE control
will allow threshold adjustment of mute activation. The mixer/amplifier
shall include two stereo summing auxiliary inputs, unbalanced,

-10dBv, with dual-RCA jacks. The Auxiliary input impedance shall
each be 10k Ohms. The mixer/amplifier shall include two Zone
2 outputs, a 1W at 8 Ohms output and transformer isolated 600
Ohm output with a maximum level of 1.5VRMS. The mixer/amplifier
Zone 2 output shall be assignable from any of the 3 inputs via the
rear panel dipswitch. The Zone 2 output shall have one rear panel
mounted rotary level control for both outputs. The mixer/amplifier
shall incorporate rear panel terminals via Phoenix connector for the
REMOTE MUTE function, controlled by an external switch closure. A
rear panel dipswitch shall allow assignment of Input 2 and/or Input 3
to respond to the mute function activation. The Mute assignment shall
not affect the Zone 2 output.

The mixer/amplifier shall have a Pre-Out RCA unbalanced output.
The Pre Out shall be POST Tone and the Low Cut Filter. The mixer/
amplifier shall have a Power Amp input for use with an external
signal processor. The mixer/amplifier shall have a Line A and B RCA
unbalanced output. The Line outputs are POST tone controls, Low

Cut Filter and Power Amp In. Both the Line and Pre Outputs shall be
calibrated to 0dBv and equals 1 VRMS out. The mixer/amplifier shall
have a 400Hz 6dB per octave low cut filter. The filter can be defeated
via the dipswitch located on the rear panel. When engaged the Bass
Tone control is bypassed.

The AA35 front panel shall include Inputs 1, 2, and 3 volume controls.
System Signal, Peak and Power LEDs shall also be incorporated. The
mixer/amplifier front panel shall also include Bass and Treble tone
controls (100Hz and 10kHz, ±10dB). The tone controls shall not affect
the Zone 2 output. The mixer/amplifier front panel shall include an AC
Mains power switch.

A rear panel AC receptacle (un-switched) shall be included for
connection of external equipment.

Dimensions (W x H x D) shall be 8.27” x 3.66” x 10.87” (210mm x
276mm x 93mm) with feet or 3.48” (88.4mm) H without feet. Net
weight shall be 10.2lbs. (4.64kg). Front panel finish and material
shall be black ABS resin and case finish (and material) shall be black
powder coated sheet steel.

The mixer/amplifier shall be Atlas Sound Model AA35.

The optional rack-mount bracket kit shall be an Atlas Sound
AARMK2-5.

The optional input transformer shall be an Atlas Sound AAIT-600.

The optional level control security covers shall be an Atlas Sound
AAVCC-5.

Specifications subject to change without notice

1601 JACK MCKAY BLVD. / ENNIS, TEXAS 75119 U.S.A.
TELEPHONE: [phone] / FAX [phone]

© 2006 Atlas Sound Printed in U.S.A. ATS002452 RevA 11/06 SL5-2090

AtlasSound.com

STRATEGY SERIES AMPLIFIER

MODEL AA35

AA35

Unswitched Outlet

120V AC 60Hz

Max 500W

120V AC 60Hz 100W

Outlet Breaker

125V AC 4A
Push Reset

POWER OUTPUT

Max. Average Power @ 50Hz-20kHz with .5% THD (10-80kHz fi lter)
8Ω, 1kHz, 0.5% THD 35W RMS

TRANSFORMER OUTPUTS

25V 35W RMS

70.7V 35W RMS
8Ω 35W RMS

FREQUENCY RESPONSE

50Hz-20kHz

THD+N

.5% or less, at 1kHz, rated output
.1% or less, at 1kHz, 5W output

SENSITIVITY

Input 1 Mic .316 ~ 3.16mV (-50 ~ -30dBV)
Input 1 Telephone/Line 316mV (-10dBV) 10kΩ (optional 600Ω transformer available)
Input 2/3 316mV (10dBV) 10kΩ

OUTPUTS

Main: Transformer coupled, balanced, 8Ω, 25V, and 70.7V
Zone 2- 8Ω Unbalanced 1W
Zone 2- 600Ω Balanced 1.5V

OUTPUT REGULATION

Less than 2dB, no load to full load

SIGNAL TO NOISE RATIO

Mic >55dB
Line >55dB
Telephone >55dB
Input 2/3 >75dB

TONE CONTROLS

Bass ±10dB @ 100Hz
Treble ±10dB @ 10kHz

INDICATORS

Power, signal, peak

POWER CONSUMPTION

90W

DIMENSIONS

8.27" x 3.66" x 10.87" (210mm x 94mm x 276mm)

WEIGHT

10.2 lbs (4.64kg)

Pre Out

Line Out A

Line Out B

Amp In

Speaker Output 35W

25V

8

COM

¡

CLASS 2 WIRING

70V

Input 3 Input 2

L

R

77)+

7jbWiIekdZ77I[h_[iC_n[h7cfb_\_[h

21

L

Zone 2 Assign

Input 3 Input 2 Input 1

Off

Off
On

On

R

Zone 2 Out

1W

600

8

¡

¡

-+-+

£Ид£К>VКV>ЮКЫ`°]КГ]К/8КЗx££К
nдд®КnЗИООООКМ>Г-Х`°V

Off
On

43

Mute Rcv

Input 3

Off
On

Zone2

Level

Remote

Mute

5

6

Phantom

Input 2

Off

Off

On

On

100

Input 1

G-+

Input1

Line/Tel

Mic

7

Mute

Sens

Low cut

Off
On

8

100

Five

Specifications subject to change without notice

1601 JACK MCKAY BLVD. / ENNIS, TEXAS 75119 U.S.A.
TELEPHONE: [phone] / FAX [phone]

© 2006 Atlas Sound Printed in U.S.A. ATS002452 RevA 11/06 SL5-2090

AtlasSound.com

309
