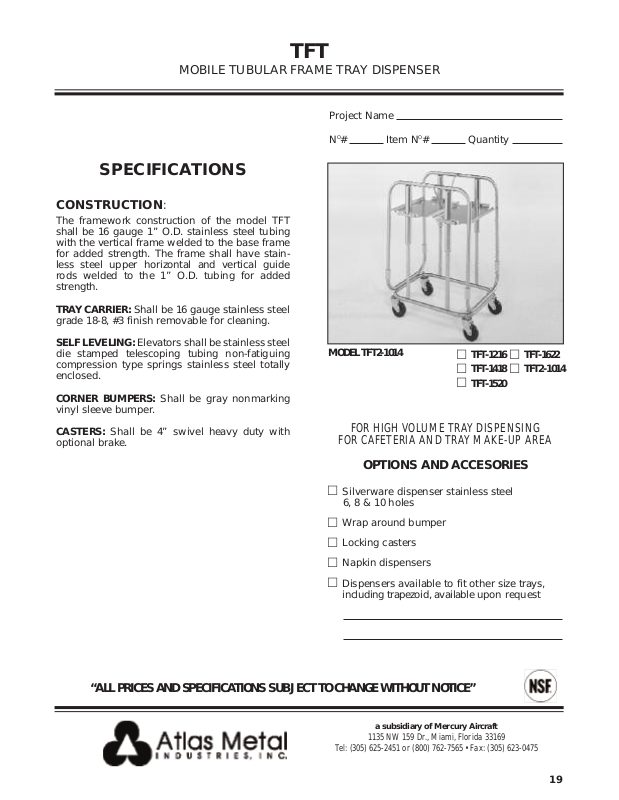

Atlas Metal TFT-1216 Specifications
MOBILE TUBULAR FRAME TRAY DISPENSER
SPECIFICATIONS
CONSTRUCTION:
The framework construction of the model TFT
shall be 16 gauge 1” O.D. stainless steel tubing
with the vertical frame welded to the base frame
for added strength. The frame shall have stainless steel upper horizontal and vertical guide
rods welded to the 1” O.D. tubing for added
strength.
TRAY CARRIER: Shall be 16 gauge stainless steel
grade 18-8, #3 finish removable for cleaning.
TFT
Project Name
NO# Item NO# Quantity
SELF LEVELING: Elevators shall be stainless steel
die stamped telescoping tubing non-fatiguing
compression type springs stainless steel totally
enclosed.
CORNER BUMPERS: Shall be gray nonmarking
vinyl sleeve bumper.
CASTERS: Shall be 4” swivel heavy duty with
optional brake.
MODEL TFT2-1014
TFT-1216
TFT-1418
TFT-1520
TFT-1622
TFT2-1014
FOR HIGH VOLUME TRAYDISPENSING
FOR CAFETERIA AND TRAYMAKE-UP AREA
OPTIONS AND ACCESORIES
Silverware dispenser stainless steel
6, 8 & 10 holes
Wrap around bumper
Locking casters
Napkin dispensers
Dispensers available to fit other size trays,
including trapezoid,available upon request
“ALL PRICES AND SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE”
a subsidiary of Mercury Aircraft
1135 NW 159Dr.,Miami, Florida 33169
Tel: (305) 625-2451 or (800) 762-7565 • Fax: (305) 623-0475
19
TFT
MOBILE TUBULAR FRAME TRAY DISPENSER
SPECIFICATIONS:
TRAY CAPACITY APPROX 100 TO 150 TRAYS
PER STACK
TRAY CAPACITIES VARY WITH THE TYPE OF
TRAYS USED
*MODEL TFT2-1014 DISPENSES TWO
SEPARATE STACKS OF TRAYS
BUMPERS ADD 1-3/4” TO L & W
SELF-LEVELING
TRAY DISPENSER
20
TFT: MOBILE TUBULAR FRAME TRAY/DISPENSER
MODEL MAXIMUM TRAYSIZE LENGTH • WIDTH SHIPPING WEIGHT
TFT-1216 12-5/8” x 16-3/8” 19” x 17-5/8” 72 LBS.
TFT-1418 14-5/8” x 18-3/8” 21” x 19-5/8” 75 LBS.
TFT-1520 15-5/8” x 20-3/8” 23” x 20-5/8” 84 LBS.
TFT-1622 16-5/8” x 22-3/8” 23” x 21-5/8” 100 LBS.
*TFT2-1014 10-7/8” x 15” 25” x 20” 100 LBS.
a subsidiary of Mercury Aircraft
1135 NW 159 Dr.,Miami, Florida 33169
Tel: (305) 625-2451 or (800) 762-7565 • Fax: (305) 623-0475
10/07-SC
