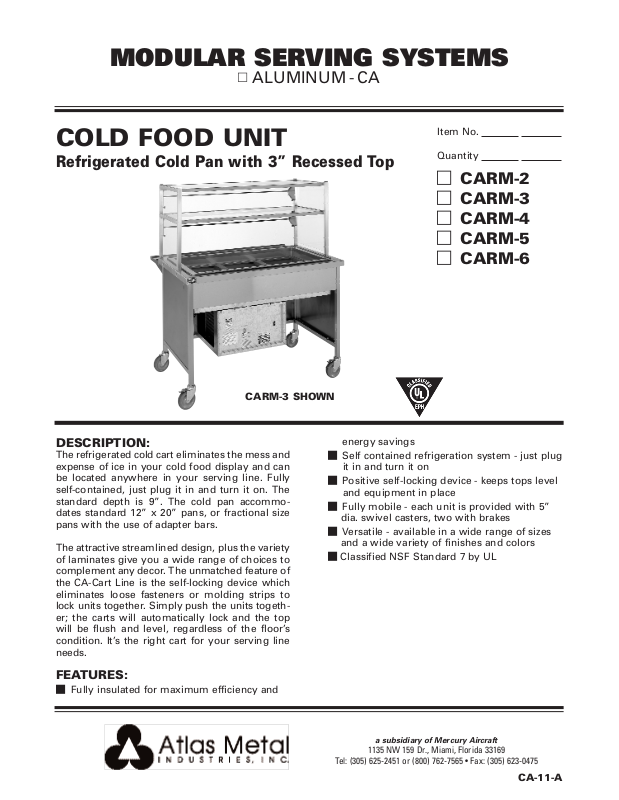

Atlas Metal CARM-3 Specifications

MODULAR SERVING SYSTEMS

c

ALUMINUM - CA

COLD FOOD UNIT

Refrigerated Cold Pan with 3” Recessed Top

Item No.

Quantity

c

CARM-2

c

CARM-3

c

CARM-4

c

CARM-5

c

CARM-6

CARM-3 SHOWN

DESCRIPTION:

The refrigerated cold cart eliminates the mess and
expense of ice in your cold food display and can
be located anywhere in your serving line. Fully
self-contained, just plug it in and turn it on. The
standard depth is 9”. The cold pan accommo­dates standard 12” x 20” pans, or fractional size
pans with the use of adapter bars.

The attractive streamlined design, plus the variety
of laminates give you a wide range of choices to
complement any decor. The unmatched feature of
the CA-Cart Line is the self-locking device which
eliminates loose fasteners or molding strips to
lock units together. Simply push the units togeth­er; the carts will automatically lock and the top
will be flush and level, regardless of the floor’s
condition. It’s the right cart for your serving line
needs.

FEATURES:

g

Fully insulated for maximum efficiency and

energy savings

g

Self contained refrigeration system - just plug
it in and turn it on

g

Positive self-locking device - keeps tops level
and equipment in place

g

Fully mobile - each unit is provided with 5”

dia. swivel casters, two with brakes

g

Versatile - available in a wide range of sizes

and a wide variety of finishes and colors

g

Classified NSF Standard 7 by UL

a subsidiary of Mercury Aircraft

1135 NW 159 Dr., Miami, Florida 33169

Tel: [phone] or [phone] • Fax: [phone]

CA-11-A

COLD FOOD UNIT

Refrigerated Cold Pan

MODEL “A”

c

CARM-2 36-1/4” 2 19-7/8” X 25-5/8” X 9” 6.0 amps. - 120 V - 1/4 HP 275

CARM-3 50” 3 19-7/8” X 39-3/8” X 9” 6.0 amps. - 120 V - 1/4 HP 325

c
c

CARM-4 63-3/4” 4 19-7/8” X 53-1/8” X 9” 7.8 amps. - 120 V - 1/3 HP 385

CARM-5 77-1/2” 5 19-7/8” X 66-7/8” X 9” 10.7 amps. - 120 V - 1/2 HP 435

c
c

CARM-6 91-1/4” 6 19-7/8” X 80-5/8” X 9” 10.7 amps. - 120 V - 1/2 HP 520

30 1/2”

PAN

OPENINGS

A

Plan View

PAN SIZE*

35”

ELECTRICAL

CHARACTERISTICS

Rear Elevation

SPECIFICATIONS:

TOP: Constructed of 16 gauge, type 304 stainless steel, die-formed, welded,
ground and polished, lop is provided with an opening to receive the appropriate
sized drop-in cold serving unit. An integral locking device shall be provided to
align and retain cart positioning when two or more carts are joined.
BODY: Frame construction shall be of hi-tensile aluminum square tubing, 1-1/4” x
1-1/4”. Frame sections are welded construction, ground and polished to a uniform
finish. Body is complete with front panel of plastic laminate on .050 aluminum.
Owner to specify finish.
REFRIGERATED COLD PAN: The cart is complete and includes a WCM series
drop-in refrigerated cold pan installed in the top. Constructed of 18 gauge, type
304 stainless steel, with raised perimeter bead and solid vinyl gasket. The pan is
fully insulated with high density polystyrene, 1” thick on all sides, 1-1/2” thick on
the bottom and enclosed by a 22 gauge galvanized steel outer liner.

The interior liner is fabricated with 1/4” radius coved corners. The liner has cop­per tubing firmly soldered to the top 3” of all sides. A 3/4” dia. drain with strainer,
4” PVC nipple, and valve is provided.
REFRIGERATION SYSTEM: The compressor housing shall be fabricated from
formed angles and bolted to the base of the unit. A fully self-contained condens­ing unit is provided, with hermetically sealed compressor and a thermostat con­trol. The system is fully charged with CFC free refrigerant and ready to operate.
ELECTRICAL: The unit will be wired for 15 amps., 120 volt, single phase operation
with an on/off thermostat switch and pilot light. A 6’ long, 3-wire cord and plug
(NEMA 5-15P) will be provided.
CASTERS: The casters shall be 5” diameter, non-marking rubber tired, swivel type
with ball bearings, in both swivel and axle raceways, and provided with grease fit­tings. Both casters on operator’s side have toe activated brakes.

c

SLF - Tray Slide, 11-1/4” wide, plastic laminate with S/S
runners, fold down

c

SH - Work Shelf, 8” wide, stainless steel, fold down

c

CB - Work Shelf, 8” wide, hardwood maple, fold down

c

CR - Work Shelf, 8” wide, Richlite, fold down

c

S - Stainless steel front panel

c

EP - End panel, cplastic laminate/

c

stainless steel

c

RPS - Rear sliding doors

c

US - Stainless steel undershelf, removable

c

BSF -Front skirt with recessed casters

c

BSE -End skirt

c

BSR -Rear skirt

c

Stainless steel adapter bars

c

Stainless steel perforated false bottom

c

5-year compressor warranty

c

Remote compressor

c

Condensate evaporator

c

Remote switch

c

*

For Additional Accessories see current price guide

SHIP WT.

(lbs.)

8 1/2”

End View

Specifications subject to change without notice.

ACCESSORIES:

c

SL - Tray Slide, 11-1/4” wide, stainless steel, 2-rail, fold down

c

SLT - Tray Slide, 11-1/4” wide, stainless steel, 3-rail, fold down

c

SLS - Tray Slide, 11-1/4” wide, stainless steel, solid, ribbed, fold down

CA-12-A

a subsidiary of Mercury Aircraft

1135 NW 159 Dr., Miami, Florida 33169

Tel: [phone] or [phone] • Fax: [phone]

01/10-SC
