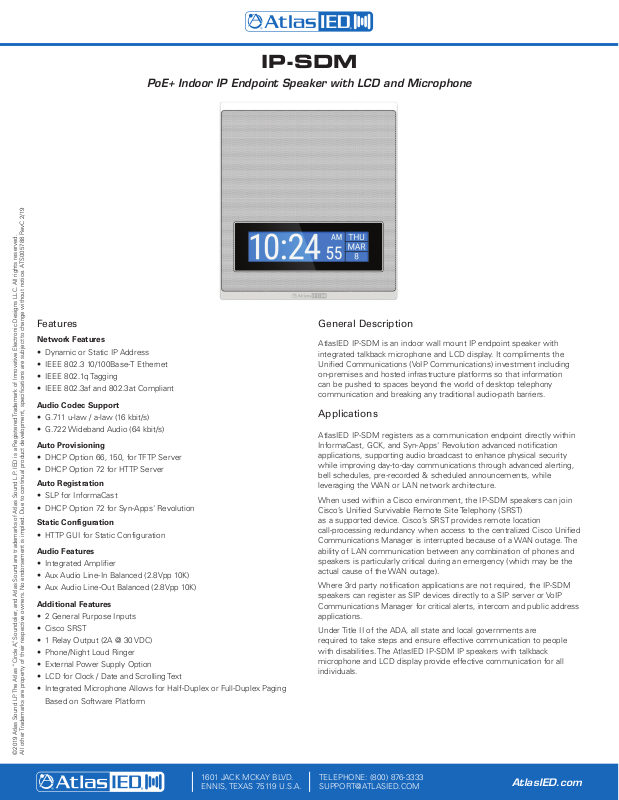

Atlas IED IP-SDM Datasheet

IP-SDM

PoE+ Indoor IP Endpoint Speaker with LCD and Microphone

Features

Network Features

• Dynamic or Static IP Address

• IEEE 802.3 10/100Base-T Ethernet

• IEEE 802.1q Tagging

• IEEE 802.3af and 802.3at Compliant

Audio Codec Support

• G.711 u-law / a-law (16 kbit/s)

• G.722 Wideband Audio (64 kbit/s)

Auto Provisioning

• DHCP Option 66, 150, for TFTP Server

• DHCP Option 72 for HTTP Server

Auto Registration

• SLP for InformaCast

• DHCP Option 72 for Syn-Apps' Revolution

Static Configuration

• HTTP GUI for Static Configuration

Audio Features

• Integrated Amplifier

• Aux Audio Line-In Balanced (2.8Vpp 10K)

• Aux Audio Line-Out Balanced (2.8Vpp 10K)

Additional Features

• 2 General Purpose Inputs

• Cisco SRST

• 1 Relay Output (2A @ 30 VDC)

• Phone/Night Loud Ringer

• External Power Supply Option

• LCD for Clock / Date and Scrolling Text

• Integrated Microphone Allows for Half-Duplex or Full-Duplex Paging

Based on Software Platform

General Description

AtlasIED IP-SDM is an indoor wall mount IP endpoint speaker with integrated talkback microphone and LCD display. It compliments the Unified Communications (VoIP Communications) investment including on-premises and hosted infrastructure platforms so that information can be pushed to spaces beyond the world of desktop telephony communication and breaking any traditional audio-path barriers.

Applications

AtlasIED IP-SDM registers as a communication endpoint directly within InformaCast, GCK, and Syn-Apps' Revolution advanced notification applications, supporting audio broadcast to enhance physical security while improving day-to-day communications through advanced alerting, bell schedules, pre-recorded & scheduled announcements, while leveraging the WAN or LAN network architecture.

When used within a Cisco environment, the IP-SDM speakers can join Cisco’s Unified Survivable Remote Site Telephony (SRST) as a supported device. Cisco’s SRST provides remote location call-processing redundancy when access to the centralized Cisco Unified Communications Manager is interrupted because of a WAN outage. The ability of LAN communication between any combination of phones and speakers is particularly critical during an emergency (which may be the actual cause of the WAN outage).

Where 3rd party notification applications are not required, the IP-SDM speakers can register as SIP devices directly to a SIP server or VoIP Communications Manager for critical alerts, intercom and public address applications.

Under Title II of the ADA, all state and local governments are required to take steps and ensure effective communication to people with disabilities. The AtlasIED IP-SDM IP speakers with talkback microphone and LCD display provide effective communication for all individuals.

All other Trademarks are property of their respective owners. No endorsement is implied. Due to continual product development, specifications are subject to change without notice. ATS005788 RevC 2/19

1601 JACK MCKAY BLVD. ENNIS, TEXAS 75119 U.S.A.

TELEPHONE: (800) 876-3333 [email protected]

AtlasIED.com

System

Type PoE+ Indoor IP Speaker System with LCD Display and Microphone

Indicators Network Status (On Back)

Frequency Response (+/- 5dB) 86Hz - 15.5kHz

Vertical Coverage 105° (2kHz Octave Band, -6dB Points)

Horizontal Coverage 105° (2kHz Octave Band, -6dB Points)

Directivity Factor (Q) 17 @ 2 kHz

Max SPL at 1m (Passive) 110dB SPL Continuous

General Purpose Interface Two Trigger Inputs / One Relay Output (2A @ 30 VDC)

Transducers

LF Transducer Qty and Size (1) 8" (203mm)

HF Transducer Qty and Size (1) 3" (76mm)

HF Crossover Frequency 2,800Hz, First Order

Voice Coil Size 1" (25mm)

Cone Material Curvelinear, Treated Industrial Paper

Sensitivity 98dB SPL Average

Amplication

Type Single-Channel Class D Topology with Primary and Secondary Outputs

AC Power Input PoE or PoE+ and External 24VDC

Power Rating (RMS) 12 Watts Max (802.3AF) / 25 Watts Max (802.3AT)

THD <0.2%

Cooling Passive / Convection

Driver Protection Built-In Limiter

Microphone

Sensitivity Minus 35 (±4dB) / (0db = 1V/pa, 1kHz)

Impedance Less than 2.2kΩ

Directivity Omnidirectional

Frequency Range 20Hz – 20kHz

Standard Operation Voltage 2V

Max. Operation Voltage 10V

Current Consumption Max. 0.5 mA

Sensitivity Reduction Within Minus 3dB @ 1.5V

S/N Ratio More than 62dB

Audio Inputs and Outputs

Input: Analog Audio Type(s) One Balanced Line Level

Input: Analog Connectivity Secured Screw Terminal Block

Input: Network Audio Type(s) G.711 U-Law / A-Law and G.722 Capable

Input: Network Connectivity RJ-45 female

Output: Analog Audio Type(s) One Balanced Line Level

Output: Analog Connectivity Secured Screw Terminal Block

Output: Digital Audio Type(s) G.711 U-Law / A-Law and G.722 Capable (Multicast)

Output: Digital Connectivity N/A

Output: Speaker Level 8Ω, 12W (802.3AF), 25W (802.3AT)

Output: Speaker Connectivity Primary and Slave Secured Screw Terminal Block

All other Trademarks are property of their respective owners. No endorsement is implied. Due to continual product development, specifications are subject to change without notice. ATS005788 RevC 2/19

1601 JACK MCKAY BLVD. ENNIS, TEXAS 75119 U.S.A.

TELEPHONE: (800) 876-3333 [email protected]

AtlasIED.com

Display

Display Type High Resolution Back-Lit Color LCD Display

Display Color Range Backlit Display - Red, Blue, Green - (With GCK)

Surface Lumens 1900 cd/m^2 Minimum, All White Pixels

Character Max Height 480 Pixels

Viewable Dimensions (HxW) 8.66" (220.88mm) x 2.23" (56.72mm)

Control Time via NTP - Text Controlled via Software

Software

GCK Compatible Version 3.0+

InformaCast Advanced Compatible Version 8.0+

InformaCast Fusion Compatible Version 3.0+

SA-Announce Compatible Versions 9.0.18+

Network

Ethernet IEEE 802.3 10/100Base-T

PoE IEEE 802.3 AF/AT Compliant

VLAN IEEE 802.1q Tagging

Protocols

IP Addressing DHCP / Static

Auto-Provisioning HTTP / TFTP

Auto-Registration HTTP / Service Location Protocol / IEDNet

Time NTP or Host Server

Telephony SIP

Enclosure

Color White

Grille Material Powder Coated Steel

Baffle Material Plastic

Mounting / Rigging Provisions 4 x Screws

Safety Agency Ratings ETL Listed to Comply with 62368-1, CSA C22.2 #62368-1, IEC 62368-1 CB Scheme and FCC

Ingress Protection N/A

Logo One Color Print

Product Dimensions (HxWxD) 14.37" x 12.87" x 3.42" (365mm x 327mm x 87mm)

Shipping Dimensions (HxWxD) 15.5" x 13.9" x 5.5" (394mm x 353mm x140mm)

Net Weight - lbs 4.25lb (1.92kg)

Shipping Weight - lbs 6.56lb (2.98kg)

Warranty Coverage

Warranty Period 1 Year

Standard - Blue Text White

NOTES:

1. Sensitivity: Half space pink noise measurement at 6 ft (1.8 m) at 20% power; extrapolated to 1 meter and an input of 2.83 volts RMS.

2. Watts: All wattage figures are calculated using the rated nominal impedance.

3. Frequency response and sensitivity are half-space measurements.

All other Trademarks are property of their respective owners. No endorsement is implied. Due to continual product development, specifications are subject to change without notice. ATS005788 RevC 2/19

1601 JACK MCKAY BLVD. ENNIS, TEXAS 75119 U.S.A.

TELEPHONE: (800) 876-3333 [email protected]

AtlasIED.com

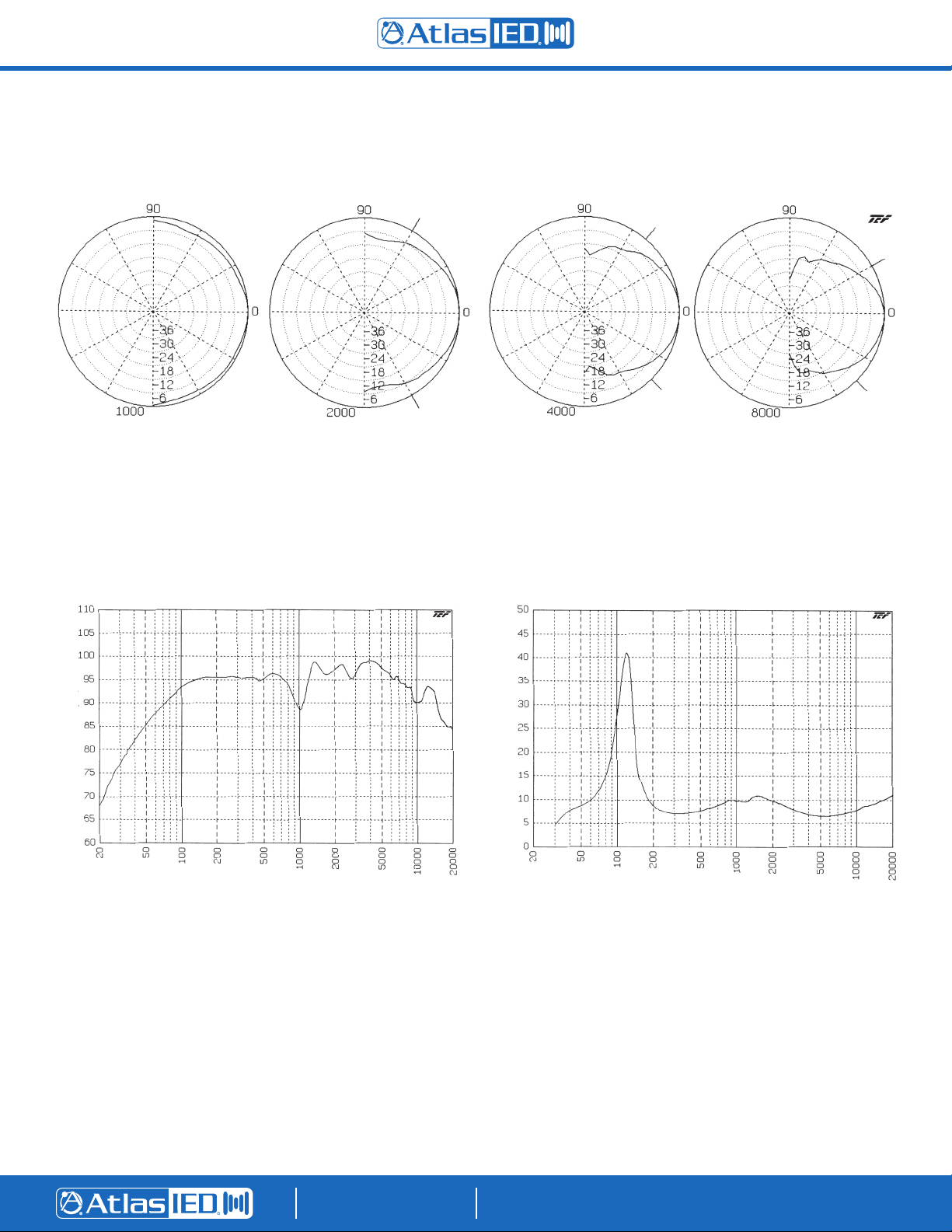

C803A Impedance

C803A Frequency Response

C803A Polars (Normalized to Zero on Axis) (-6dB)

Polars Are Normalized To Zero On Axis (-6dB)

Frequency Response

SPL in dB

Frequency (Hz)

Impedance

Ohms

Frequency (Hz) Octave Smoothing = 30.0%

All other Trademarks are property of their respective owners. No endorsement is implied. Due to continual product development, specifications are subject to change without notice. ATS005788 RevC 2/19

1601 JACK MCKAY BLVD. ENNIS, TEXAS 75119 U.S.A.

TELEPHONE: (800) 876-3333 [email protected]

AtlasIED.com

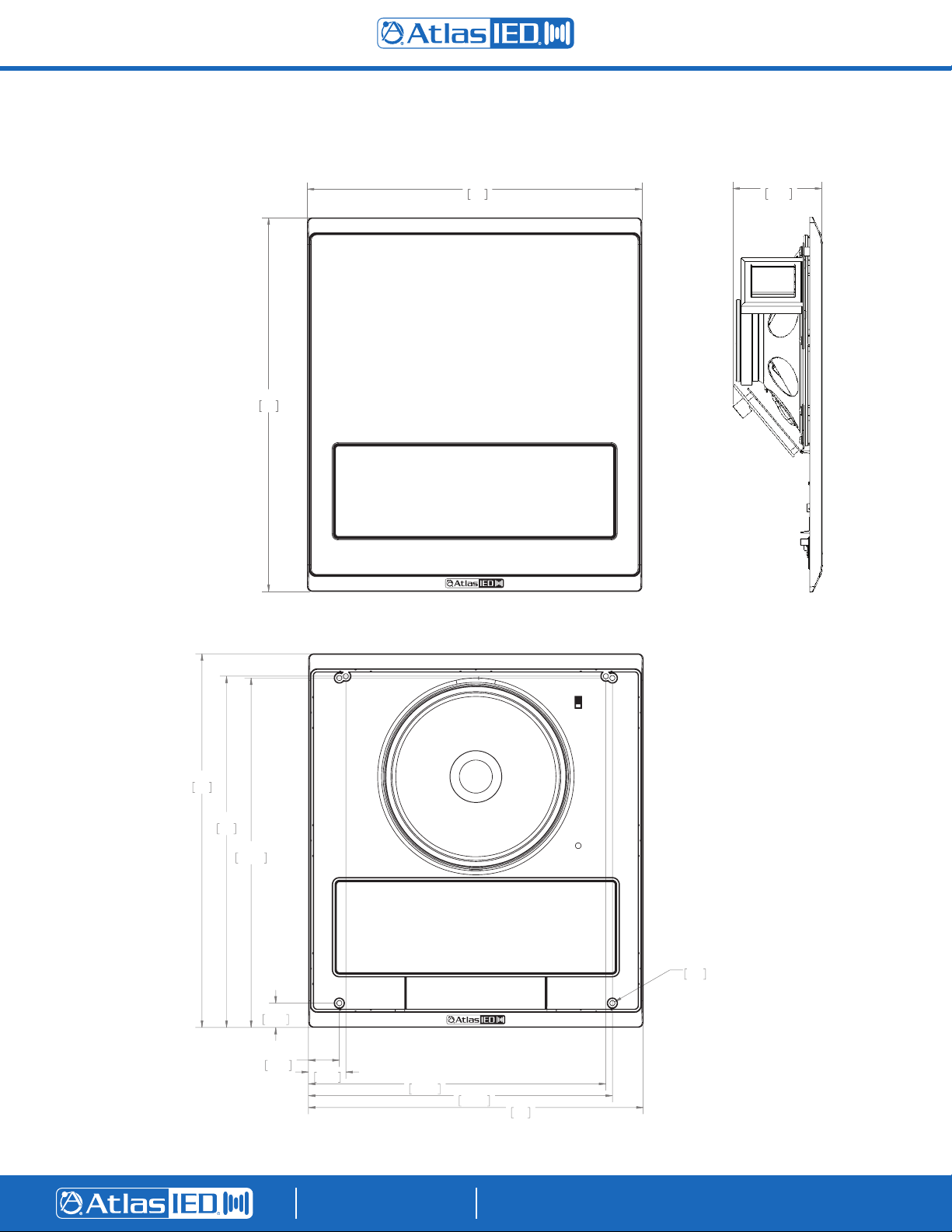

Dimensional Drawings

.94

23.75

13.44

341.25

13.50 343

14.37 365

12.87 327

14.37 365

.94

23.75

13.44

341.25

13.50 343

14.37 365

327

14.37 365

12.87 327

3.42

86.99

14.37 365

13.50 343

13.44

341.25

All other Trademarks are property of their respective owners. No endorsement is implied. Due to continual product development, specifications are subject to change without notice. ATS005788 RevC 2/19

23.75

.94

1.19

30.15

1.44

36.50

1601 JACK MCKAY BLVD. ENNIS, TEXAS 75119 U.S.A.

11.44

290.50

11.69

296.85

12.87

TELEPHONE: (800) 876-3333 [email protected]

R.10

2.50

AtlasIED.com

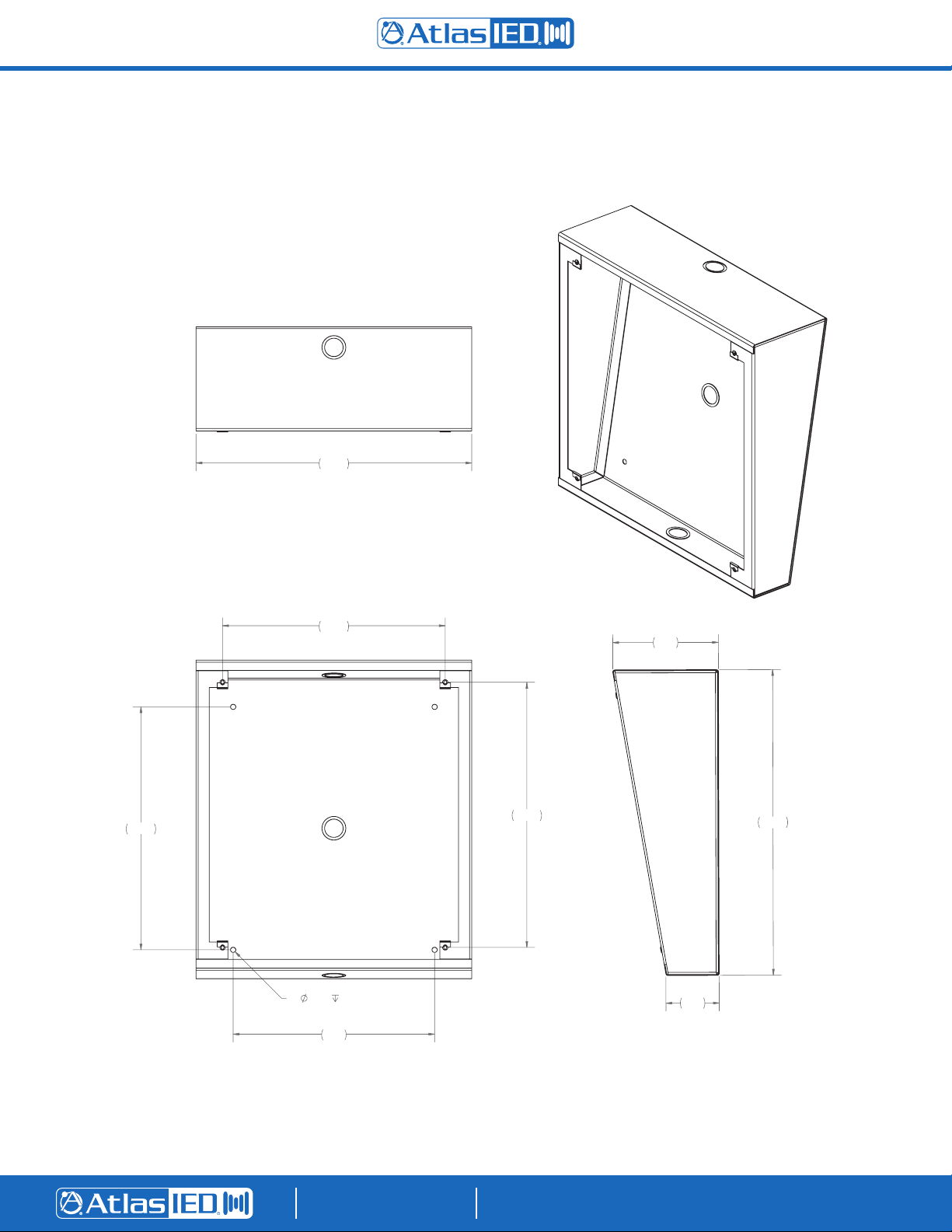

Accessories

IP-SEA-SD

13.00

11.63

4X

.250

10.50

9.50

.034

12.50

4.98

14.41

2.51

All other Trademarks are property of their respective owners. No endorsement is implied. Due to continual product development, specifications are subject to change without notice. ATS005788 RevC 2/19

1601 JACK MCKAY BLVD. ENNIS, TEXAS 75119 U.S.A.

TELEPHONE: (800) 876-3333 [email protected]

AtlasIED.com

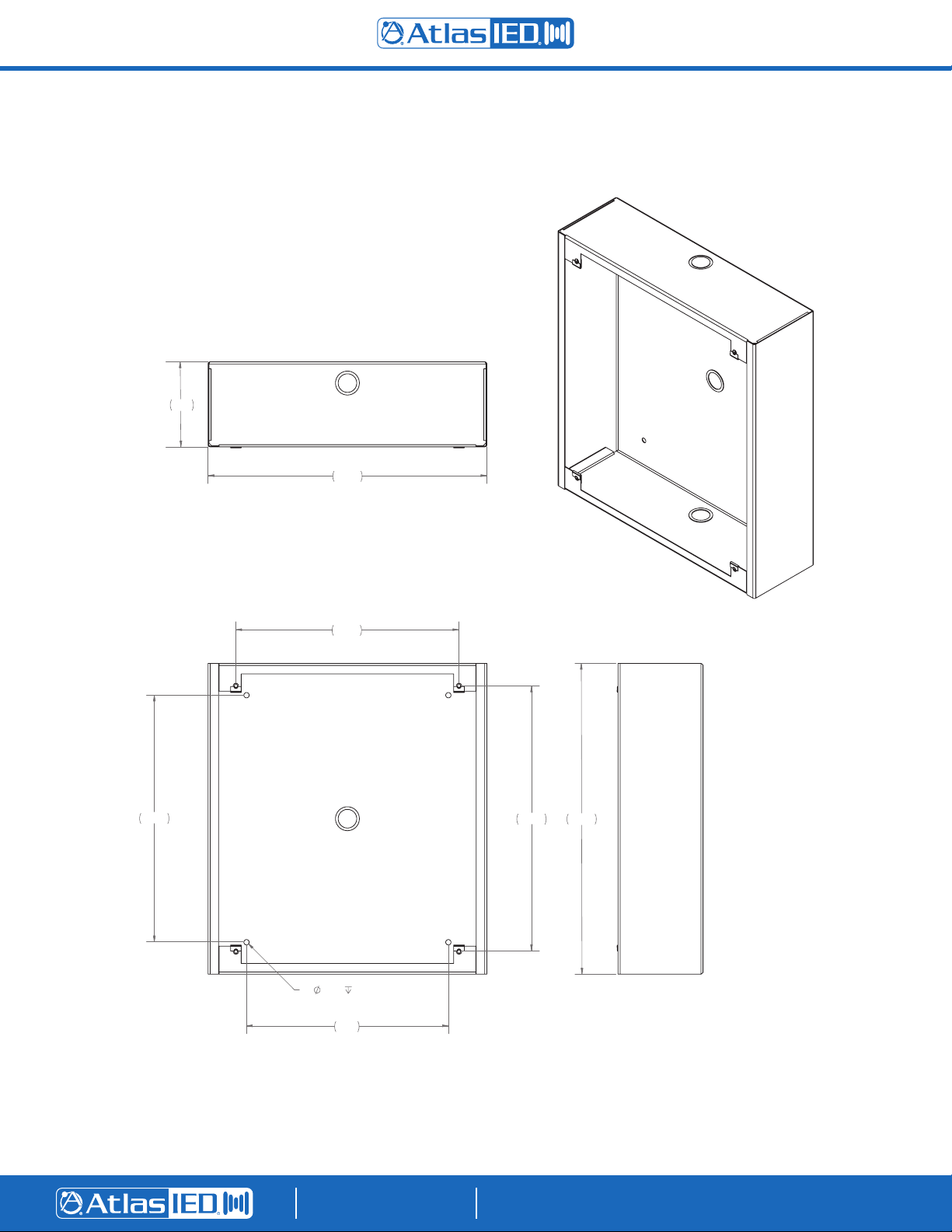

Accessories

IP-SEST-SD

4.00

13.13

11.63

4X

.250

10.50

9.50

.034

12.50

14.63

All other Trademarks are property of their respective owners. No endorsement is implied. Due to continual product development, specifications are subject to change without notice. ATS005788 RevC 2/19

1601 JACK MCKAY BLVD. ENNIS, TEXAS 75119 U.S.A.

TELEPHONE: (800) 876-3333 [email protected]

AtlasIED.com

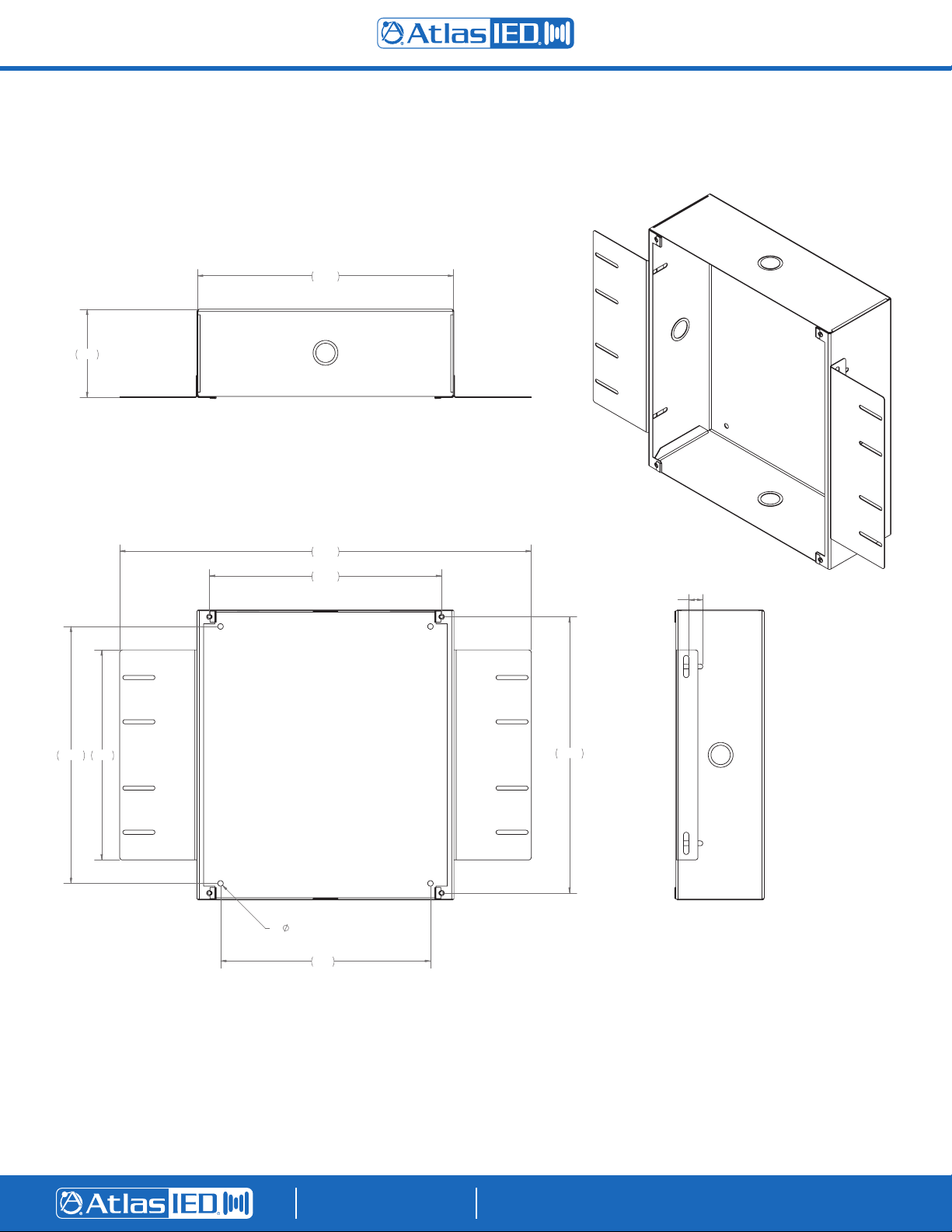

Accessories

IP-FEST-SD

4.00

11.63

18.63

10.50

.625

All other Trademarks are property of their respective owners. No endorsement is implied. Due to continual product development, specifications are subject to change without notice. ATS005788 RevC 2/19

11.63 9.50

.250 THRU

4X

9.50

1601 JACK MCKAY BLVD. ENNIS, TEXAS 75119 U.S.A.

12.50

TELEPHONE: (800) 876-3333 [email protected]

AtlasIED.com

Architect and Engineer Specications

The unit shall be AtlasIED model IP-SDM. The PoE+ Indoor IP Endpoint Speaker System shall include factory assembled speaker, IP addressable PCB amplifier / control, multicolor LCD display, plastic baffle, and integrated microphone.

The speaker shall be an 8" Coaxial driver with low-frequency reproducer cone shall be a full 8" (203mm) in diameter and the high frequency reproducer cone shall be 3" (76mm) in diameter. The woofer shall have a 10oz. (260g) ceramic magnet; the tweeter shall have a 2.35oz. (67g) ceramic magnet. The two reproducer sections shall be coupled through a built-in crossover network.

The crossover frequency shall be at 2800Hz. The speaker dispersion shall be 105° and frequency response range shall be 86Hz – 15.5kHz, (±5dB). Sensitivity shall be 98dB at 1 Watt / 1 meter. Voice coil impedance shall be 8Ω. Low frequency voice coil diameter shall be 1" (25mm) and operate in a magnet field of at least 10,600 gauss. The maximum depth of the loudspeaker shall not exceed 2

7

/8" (73mm).

The amplifier / control board shall receive announcements and messages using dynamically routed data on a standard Ethernet Network. It shall include a Single-Channel Class D Topology amplifier with Primary and Secondary Outputs capable of producing 25-watts RMS when using an IEEE 802.3at compatible PoE+ switch or 24VDC local power supply and 12-watts RMS when used with an IEEE 802.3af compliant PoE switch. Interconnect shall be via female RJ-45 connector mounted to the PCB.

The amplifier / control board shall include (2) logic inputs, (1) relay output, (1) Auxiliary Balanced line level audio input and (1) Balanced line level audio output. The Auxiliary Line Level input shall include an auto mute function that is activated when a broadcast is sensed from the control application.

The amplifier / control board shall include a Graphical User Interface (GUI) for SIP configuration. The SIP implementation shall support standards G.711, G.722 and RTP protocols. The Graphical User Interface (GUI) shall configure and manage logic inputs, relay outputs, and Auxiliary audio input.

The unit shall incorporate an integrated microphone to allow full duplex talkback communication functionality based upon chosen software platform.

The unit shall incorporate a High-Resolution Back-Lit color LCD display with viewable dimensions of 8.66" (221mm) wide x 2.23" (57mm) high. It shall receive visual notifications by AtlasIED’s GCK, Syn-Apps' Revolution, Singlewire’s InformaCast software platforms. It shall display time and date when in standby mode from AtlasIED’s GCK, Syn-Apps' Revolution, Singlewire’s InformaCast software platforms or by NTP. The display shall produce 1900 cd/m^2 lux brightness and display text and / or time.

All control functionality shall be determined via software. It shall be compatible with AtlasIED’s GCK, Syn-Apps' Revolution, Singlewire’s InformaCast software platforms and SIP standalone operation. The PoE+ Indoor IP Endpoint Speaker System overall dimensions shall be 14.38" (365mm) x 12.88" (327mm) x 3.42" (87mm). Finish shall be neutral white electrostatic powder coat micro perforated grille with plastic trim ring.

Optional enclosures shall include:

IP-SEA-SD Surface mount angled enclosure for IP-SDM

neutral white finish

IP-SEST-SD Surface mount straight enclosure for IP-SDM

neutral white finish

IP-FEST-SD Flush mount straight enclosure for IP-SDM

reclaimed powder coat finish
