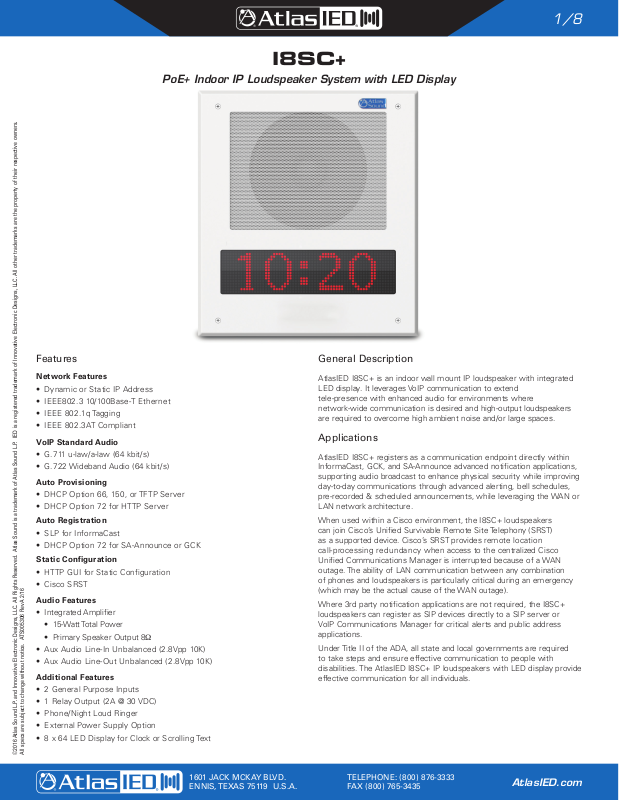

Atlas IED I8SC+ Specifications

I8SC+

PoE+ Indoor IP Loudspeaker System with LED Display

1/8

Features

Network Features

• Dynamic or Static IP Address

• IEEE802.3 10/100Base-T Ethernet

• IEEE 802.1q Tagging

• IEEE 802.3AT Compliant

VoIP Standard Audio

• G.711 u-law/a-law (64 kbit/s)

• G.722 Wideband Audio (64 kbit/s)

Auto Provisioning

• DHCP Option 66, 150, or TFTP Server

• DHCP Option 72 for HTTP Server

Auto Registration

• SLP for InformaCast

• DHCP Option 72 for SA-Announce or GCK

Static Configuration

• HTTP GUI for Static Configuration

• Cisco SRST

Audio Features

• Integrated Amplifier

• 15-Watt Tot al Power

• Primary Speaker Output 8Ω

• Aux Audio Line-In Unbalanced (2.8Vpp 10K)

• Aux Audio Line-Out Unbalanced (2.8Vpp 10K)

Additional Features

• 2 General Purpose Inputs

• 1 Relay Output (2A @ 30 VDC)

• Phone/Night Loud Ringer

• External Power Supply Option

• 8 x 64 LED Display for Clock or Scrolling Text

©2016 Atlas Sound L.P. and Innovative Electronic Designs, LLC. All Rights Reserved. Atlas Sound is a trademark of Atlas Sound L.P. IED is a registered trademark of Innovative Electronic Designs, LLC. All other trademarks are the property of their respective owners.

All specs are subject to change without notice. ATS005306 RevA 2/16

General Description

AtlasIED I8SC+ is an indoor wall mount IP loudspeaker with integrated LED display. It leverages VoIP communication to extend tele-presence with enhanced audio for environments where network-wide communication is desired and high-output loudspeakers are required to overcome high ambient noise and/or large spaces.

Applications

AtlasIED I8SC+ registers as a communication endpoint directly within InformaCast, GCK, and SA-Announce advanced notification applications, supporting audio broadcast to enhance physical security while improving day-to-day communications through advanced alerting, bell schedules, pre-recorded & scheduled announcements, while leveraging the WAN or LAN network architecture.

When used within a Cisco environment, the I8SC+ loudspeakers can join Cisco’s Unified Survivable Remote Site Telephony (SRST) as a supported device. Cisco’s SRST provides remote location call-processing redun dancy when access to the centralized Cisco Unified Communications Manager is interrupted because of a WAN outage. The ability of LAN communication between any combination of phones and loudspeakers is particularly critical during an emergency (which may be the actual cause of the WAN outage).

Where 3rd party notification applications are not required, the I8SC+ loudspeakers can register as SIP devices directly to a SIP server or VoIP Communications Manager for critical alerts and public address applications.

Under Title II of the ADA, all state and local governments are required to take steps and ensure effective communication to people with disabilities. The AtlasIED I8SC+ IP loudspeakers with LED display provide effective communication for all individuals.

1601 JACK MCKAY BLVD. ENNIS, TEXAS 75119 U.S.A.

TELEPHONE: (800) 876-3333 FAX (800) 765-3435

AtlasIED.com

System

Type PoE+ Indoor IP Loudspeaker System with LED Display

Operation Mode Self Powered

Indicators Network Status (On Back)

Operating Range (-10db) 70Hz - 15.5kHz

Frequency Response (+/- 5dB) 86Hz - 15.5kHz

Vertical Coverage 105° 800Hz - 4kHz

Horizontal Coverage 105° 800Hz - 4kHz

Directivity Factor (Q) 4.7 @ 2 kHz

Max SPL at 1 m (passive) 106 dB SPL Continuous / 109 dB SPL Peak

Recommended Signal Processing Built-In Processing

General Purpose Interface Two Trigger Inputs / One Relay Output (2A @ 30 VDC)

Transducers

Transducer Qty and Size 8"

Voice Coil Size 1"

Cone Material Curvelinear, Treated Industrial Paper

Driver Protection Built-In Limiter

Amplication

Type Single-Channel Class D Topology

AC Power Input PoE or PoE+ and External 24VDC

Power Rating (RMS) 15 Watts Max (802.3AT)

THD <.02%

Cooling Passive/Convection

Audio Inputs and Outputs

Input: Analog Audio Type(s) One Unbalanced Analog

Input: Analog Connectivity Secured Screw Terminal Block

Input: Network Audio Type(s) G.711 U-Law/A-Law and G.722 Capable

Input: Network Connectivity RJ-45 Female

Output: Analog Audio Type(s) One Unbalance Line Level

Output: Analog Connectivity Secured Screw Terminal Block

Output: Digital Audio Type(s) N/A

Output: Digital Connectivity N/A

Output: Loudspeaker Level 8Ω, 9W (802.3AF), 15W (802.3AT)

Output: Loudspeaker Connectivity Two x Secured Screw Terminal Block

Display

Display Type LED Display

Display Color Range Red Only

Display Lumens 162lux

LED's Per Character 16 X 64

Character Max Height 2.125" (54mm)

Viewable Dimensions (HxW) 10.125" (257mm) x 2.5625" (65mm)

Control Time via NTP - Text Controlled via Software

Software

SA-Announce Compatible Versions 9.0.18+

InformaCast Compatible Version 8.0+

GCK Compatible Version 3.0+

Network

Ethernet IEEE802.3 10/100Base-T

PoE IEEE802.3AF/AT Compliant

VLAN IEEE802.1q Tagging

2/8

©2016 Atlas Sound L.P. and Innovative Electronic Designs, LLC. All Rights Reserved. Atlas Sound is a trademark of Atlas Sound L.P. IED is a registered trademark of Innovative Electronic Designs, LLC. All other trademarks are the property of their respective owners.

All specs are subject to change without notice. ATS005306 RevA 2/16

1601 JACK MCKAY BLVD. ENNIS, TEXAS 75119 U.S.A.

TELEPHONE: (800) 876-3333 FAX (800) 765-3435

AtlasIED.com

Protocols

C10A Polars (Normalized to Zero on Axis) (-6dB)

C10A Impedance

C10A Frequency Response

IP Addressing DHCP/Static

Auto-Provisioning HTTP/TFTP

Auto-Registration HTTP/Service Location Protocol/IEDNet

Time NTP

Telephony SIP

Enclosure

Color White (RAL 9010)

Grille Material Powder Coated Steel, White Finish, Paintable

Baffle Material 18-gauge Corrosion-Resistant Zinc Plated Steel

Mounting/Rigging Provisions Mounting Enclosure is Not Included (See Optional Enclosure)

Safety Agency Ratings ETL Listed to Comply with UL-60950-1, and CAN/CSA-C22.2 No. 60950-1

Ingress Protection IP-30

Logo Blue and Removable

Product Dimensions (HxWxD) 14.38" (365mm) x 12.88" (327mm) x 2.77" (70.36mm)

Shipping Dimensions (HxWxD) 14.56" (369mm) 13.19" (335mm) x 4.5" (114mm)

Net Weight - lbs 4.82 lbs (2.2kg)

Shipping Weight - lbs 6 lbs (2.7kg)

Warranty Coverage

Warranty Period 1 year

NOTES:

1. Sensitivity: Half space pink noise measurement at 6 ft (1.8 m) at 20% power; extrapolated to 1 meter and an input of 2.83 volts RMS.

2. Watts: All wattage figures are calculated using the rated nominal impedance.

3. Frequency response and sensitivity are half-space measurements.

3/8

©2016 Atlas Sound L.P. and Innovative Electronic Designs, LLC. All Rights Reserved. Atlas Sound is a trademark of Atlas Sound L.P. IED is a registered trademark of Innovative Electronic Designs, LLC. All other trademarks are the property of their respective owners.

All specs are subject to change without notice. ATS005306 RevA 2/16

SPL in dB

Frequency (Hz)

1601 JACK MCKAY BLVD. ENNIS, TEXAS 75119 U.S.A.

Ohms

Frequency (Hz) Octave Smoothing = 30.0%

TELEPHONE: (800) 876-3333 FAX (800) 765-3435

AtlasIED.com

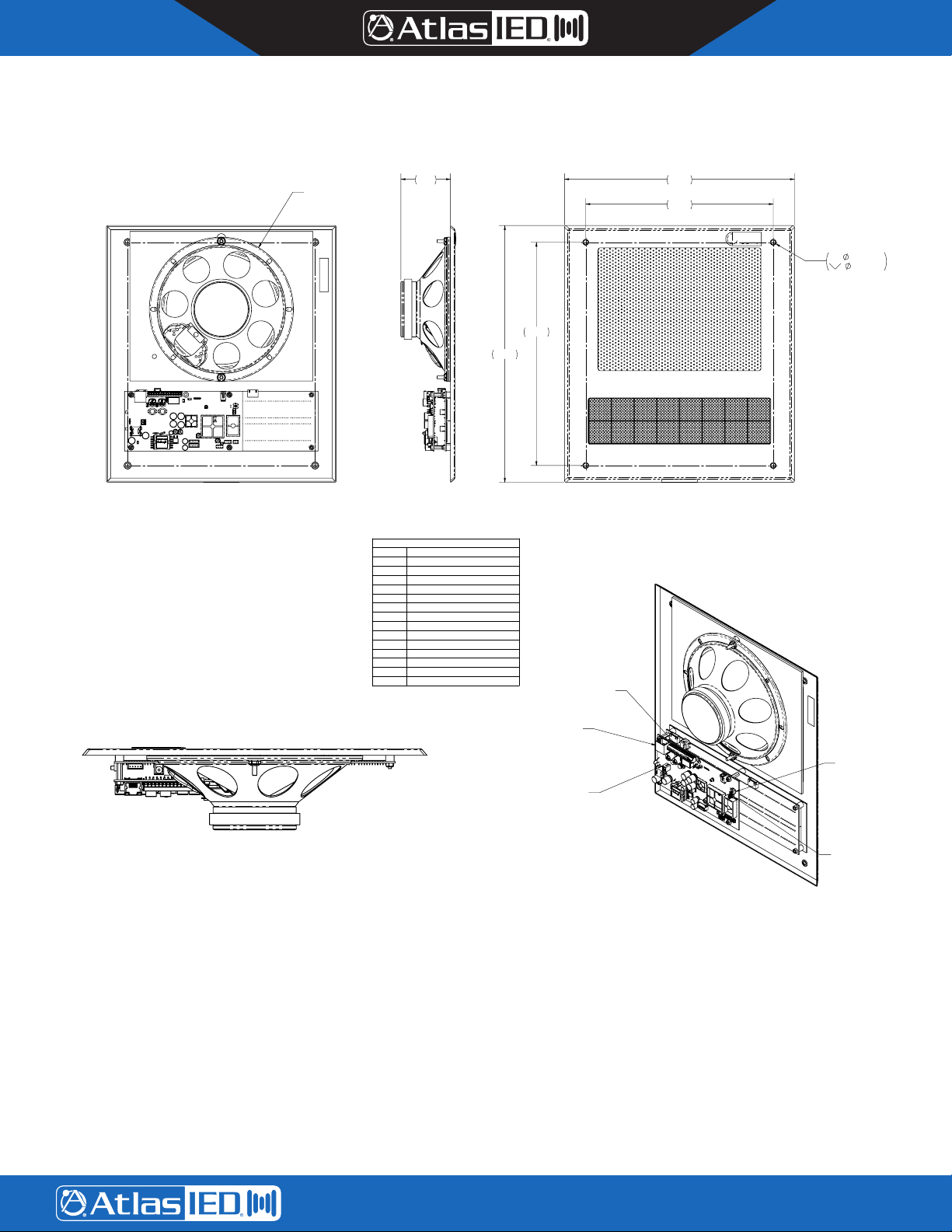

Dimensional Drawings

IP SPEAKER CONNECTOR BLOCK (PIN1)

SERVICE SWITCH

FORCE DISCOVERY JUMPERS A,B,C

AUX POWER 24VDC @ 1A

RJ45 NETWORK

(+) (-)

IP SPEAKER CONNECTOR BLOCK

FUNCTION

1

REMOTE BUTTON / GPI 2 (+)

2

REMOTE BUTTON / GPI 2 (-)

3

REMOTE BUTTON / GPI 1 (+)

4

REMOTE BUTTON / GPI 1 (-)

5

RELAY (-)

6

RELAY - NORMALLY OPEN (+)

7

LINE-IN (-)

8

LINE-IN (+)

9

LINE-OUT (-)

10

LINE-OUT (+)

11

PRIMARY SPEAKER (-)

12

PRIMARY SPEAKER (+)

13

SECONDARY SPEAKER (-)

14

SECONDARY SPEAKER (+)

IP SPEAKER CONNECTOR BLOCK (PIN1)

AUX POWER 24VDC @ 1A

RJ45 NETWORK

(+) (-)

IP SPEAKER CONNECTOR BLOCK

FUNCTION

1

REMOTE BUTTON / GPI 2 (+)

2

REMOTE BUTTON / GPI 2 (-)

3

REMOTE BUTTON / GPI 1 (+)

4

REMOTE BUTTON / GPI 1 (-)

5

RELAY (-)

6

RELAY - NORMALLY OPEN (+)

7

LINE-IN (-)

8

LINE-IN (+)

9

LINE-OUT (-)

10

LINE-OUT (+)

11

PRIMARY SPEAKER (-)

12

PRIMARY SPEAKER (+)

13

SECONDARY SPEAKER (-)

14

SECONDARY SPEAKER (+)

4/8

8" SPEAKER

C10A

2.77

IP SPEAKER CONNECTOR BLOCK

1 2 3 4 5 6 7 8

9 10 11 12 13 14

FUNCTION

REMOTE BUTTON / GPI 2 (+) REMOTE BUTTON / GPI 2 (-) REMOTE BUTTON / GPI 1 (+) REMOTE BUTTON / GPI 1 (-)

RELAY (-)

RELAY - NORMALLY OPEN (+)

LINE-IN (-)

LINE-IN (+) LINE-OUT (-) LINE-OUT (+)

PRIMARY SPEAKER (-)

PRIMARY SPEAKER (+) SECONDARY SPEAKER (-) SECONDARY SPEAKER (+)

12.50

14.38

IP SPEAKER CONNECTOR BLOCK (PIN1)

RJ45 NETWORK

AUX POWER 24VDC @ 1A

12.88

10.50

.25 THRU

4X

.33 X 82°

(+) (-)

SERVICE SWITCH

FORCE DISCOVERY JUMPERS A,B,C

©2016 Atlas Sound L.P. and Innovative Electronic Designs, LLC. All Rights Reserved. Atlas Sound is a trademark of Atlas Sound L.P. IED is a registered trademark of Innovative Electronic Designs, LLC. All other trademarks are the property of their respective owners.

All specs are subject to change without notice. ATS005306 RevA 2/16

1601 JACK MCKAY BLVD. ENNIS, TEXAS 75119 U.S.A.

TELEPHONE: (800) 876-3333 FAX (800) 765-3435

AtlasIED.com

Optional Accessories

4.98

2.51

14.41

8

7

6

5

4

3

2

PKG. WT 4.7 IB

D

C

B

3

2

1

E

F

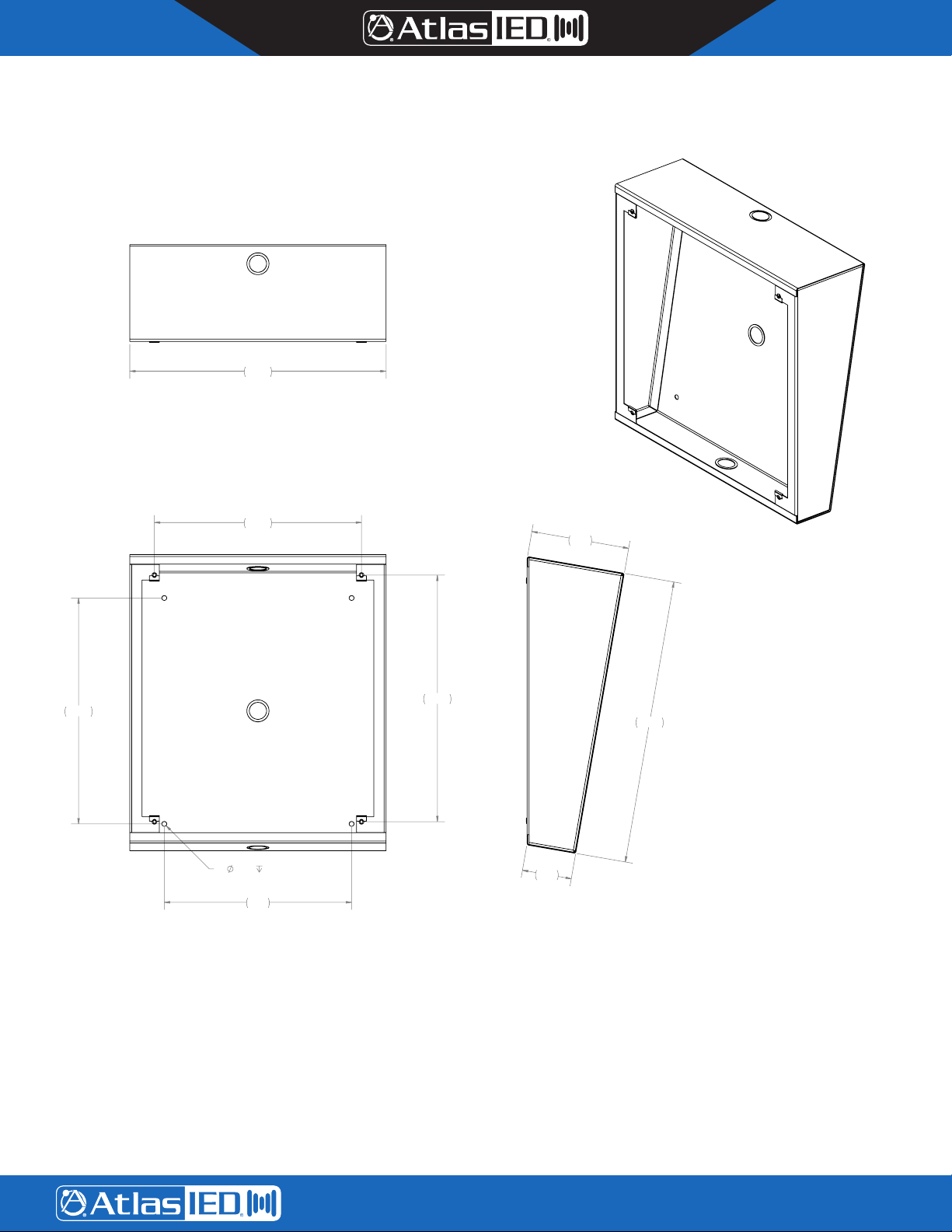

SEA-I8SC

5/8

11.63

13.00

10.50

4.98

12.50

14.41

©2016 Atlas Sound L.P. and Innovative Electronic Designs, LLC. All Rights Reserved. Atlas Sound is a trademark of Atlas Sound L.P. IED is a registered trademark of Innovative Electronic Designs, LLC. All other trademarks are the property of their respective owners.

.250

4X

All specs are subject to change without notice. ATS005306 RevA 2/16

.034

9.50

1601 JACK MCKAY BLVD. ENNIS, TEXAS 75119 U.S.A.

2.51

TELEPHONE: (800) 876-3333 FAX (800) 765-3435

AtlasIED.com

Optional Accessories

14.63

PKG. WT 4.7 IB

D

C

B

A

8

7

6

5

4

3

2

1

E

F

MODEL

SIZE

SCALE

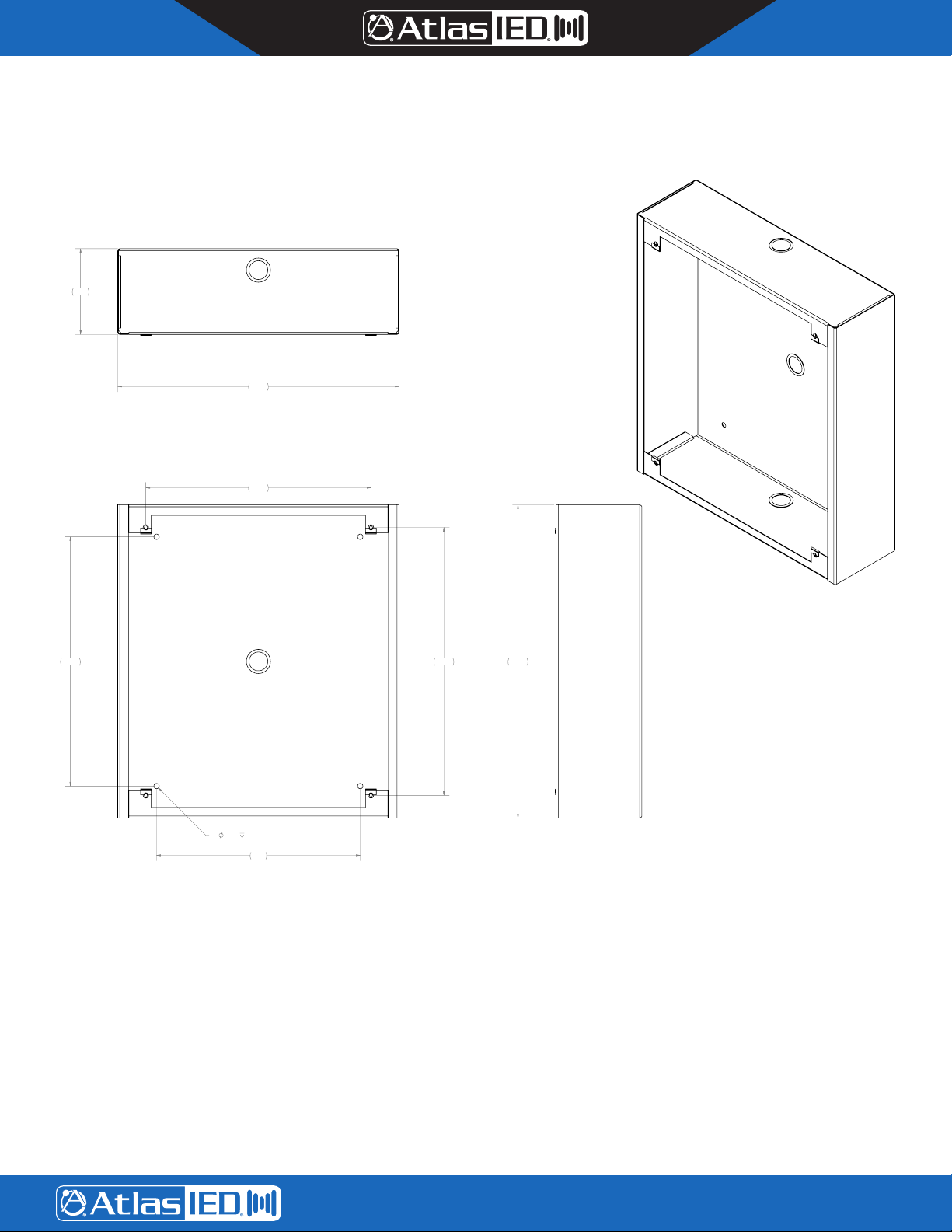

SEST-I8SC

1:2

ATLAS SOUND

A MITEK COMPANY

1601 JACK McKAY BLVD.

PH:972-875-8413 FAX:972-875-8416

REV.

C

PROPRIETARY AND CONFIDENTIAL

THE INFORMATION CONTAINED IN THIS

DRAWING IS THE SOLE PROPERTY OF

MITEKCORP. ANY

REPRODUCTION IN PART OR AS A WHOLE

WITHOUT THE WRITTEN PERMISSION OF

MITEKCORP IS PROHIBITED.

D

C

B

A

4

3

2

1

E

F

SIZE

SCALE

SEST-I8SC

1:2

C

SEST-I8SC

4.00

6/8

13.13

10.50

12.50

14.63

PKG. WT 4.7 IB

ATLAS SOUND

A MITEK COMPANY

1601 JACK McKAY BLVD.

PH:972-875-8413 FAX:972-875-8416

PROPRIETARY AND CONFIDENTIAL

THE INFORMATION CONTAINED IN THIS

DRAWING IS THE SOLE PROPERTY OF

MITEKCORP. ANY

REPRODUCTION IN PART OR AS A WHOLE

WITHOUT THE WRITTEN PERMISSION OF

MITEKCORP IS PROHIBITED.

MODEL

REV.

11.63

.250

.034

4X

9.50

©2016 Atlas Sound L.P. and Innovative Electronic Designs, LLC. All Rights Reserved. Atlas Sound is a trademark of Atlas Sound L.P. IED is a registered trademark of Innovative Electronic Designs, LLC. All other trademarks are the property of their respective owners.

All specs are subject to change without notice. ATS005306 RevA 2/16

1601 JACK MCKAY BLVD. ENNIS, TEXAS 75119 U.S.A.

TELEPHONE: (800) 876-3333 FAX (800) 765-3435

AtlasIED.com

D

C

B

A

8

7

6

5

4

3

2

1

E

F

MITEKCORP. ANY

Optional Accessories

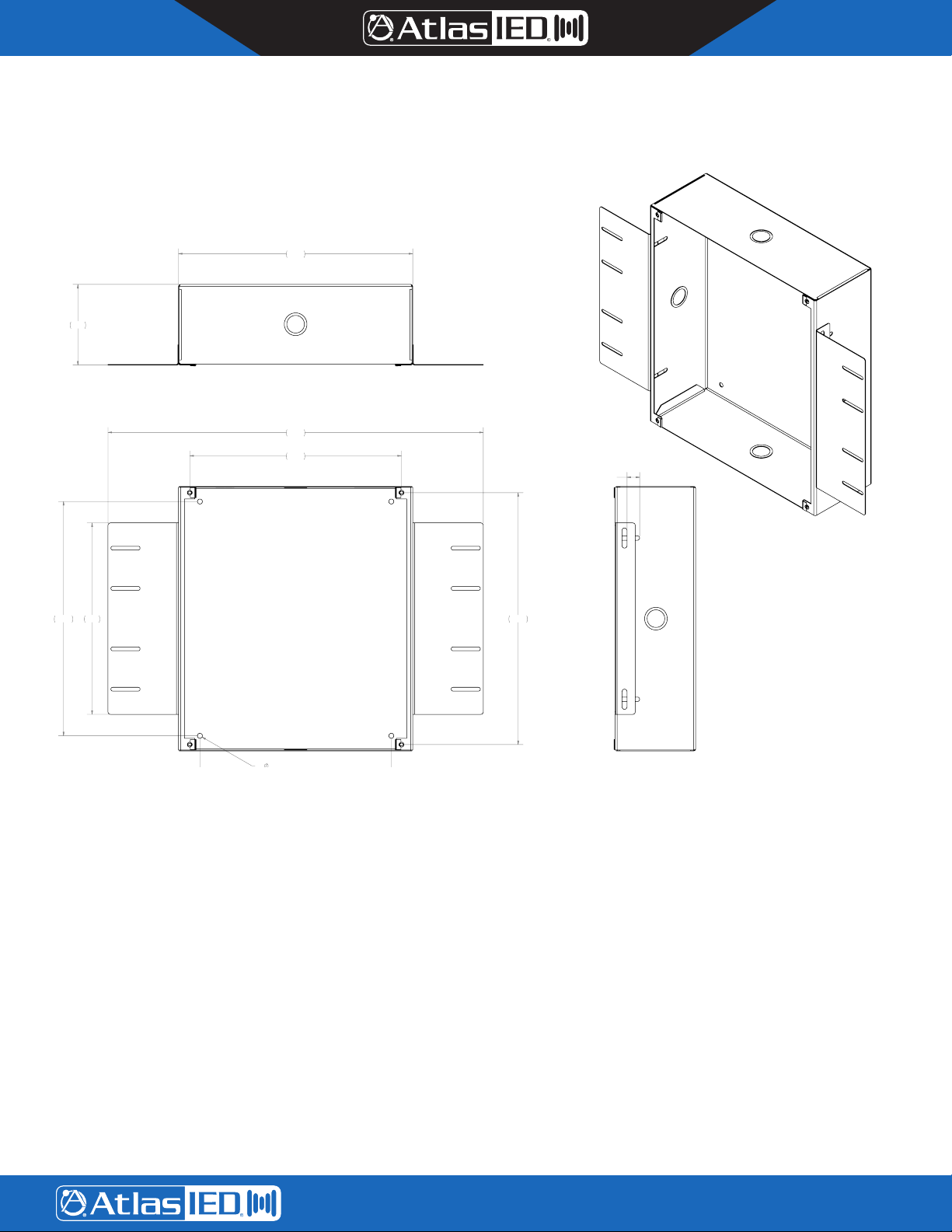

FEST-I8SC

4.00

7/8

11.63

18.63

10.50

.625

11.63

9.50

12.50

PKG. WT. 5.8 LB

ATLAS SOUND

A MITEK COMPANY

1601 JACK McKAY BLVD.

PH:972-875-8413 FAX:972-875-8416

PROPRIETARY AND CONFIDENTIAL

THE INFORMATION CONTAINED IN THIS

DRAWING IS THE SOLE PROPERTY OF

©2016 Atlas Sound L.P. and Innovative Electronic Designs, LLC. All Rights Reserved. Atlas Sound is a trademark of Atlas Sound L.P. IED is a registered trademark of Innovative Electronic Designs, LLC. All other trademarks are the property of their respective owners.

All specs are subject to change without notice. ATS005306 RevA 2/16

1601 JACK MCKAY BLVD. ENNIS, TEXAS 75119 U.S.A.

TELEPHONE: (800) 876-3333 FAX (800) 765-3435

AtlasIED.com

Architect and Engineer Specications

The unit shall be AtlasIED model I8SC+. The loudspeaker system shall include factory assembled loudspeaker, IP addressable PCB amplifier/ control, metal baffle, and LED display. The loudspeaker shall be an 8" driver with a 10oz (260g) ceramic magnet and seamless cone. The impedance shall be 8 ohm and a voice coil diameter of 1" (25mm). The loudspeaker dispersion shall be 105° (800Hz - 4kHz) and frequency response of 86Hz – 15.5kHz (±5dB). The max peak output at 1W/1m shall be 98dB SPL.

The amplifier/control board shall be capable of producing 15-watts RMS when using an IEEE 802.3at compatible PoE+ switch or 24VDC local power supply and 9-watts RMS when used with an IEEE 802.3af compliant PoE switch. Interconnect shall be via female RJ-45 connector mounted to the PCB.

The unit shall incorporate a LED display with viewable dimensions of

10.125" (2577mm) wide x 2.56" (65mm) high. The LEDs per character shall be 16 high x 64 wide and character max height of 2.125" (54mm). It shall produce the color red and be controlled by Time via NTP. The display shall produce 162 lux brightness and display text and/or time.

All control functionality shall be determined via software. The metal loudspeaker baffle overall dimensions shall be 14.38" (365mm) x

12.88" (327mm) x 2.77" (70.36mm) HxWxD. Finish shall be neutral white electrostatic powder coat.

Optional enclosures shall include:

SEA-I8SC surface mount angled enclosure for I8SC+

neutral white finish

SEST-I8SC surface mount straight enclosure for I8SC+

neutral white finish

FEST-I8SC flush mount straight enclosure for I8SC+

reclaimed powder coat finish

8/8

©2016 Atlas Sound L.P. and Innovative Electronic Designs, LLC. All Rights Reserved. Atlas Sound is a trademark of Atlas Sound L.P. IED is a registered trademark of Innovative Electronic Designs, LLC. All other trademarks are the property of their respective owners.

All specs are subject to change without notice. ATS005306 RevA 2/16

1601 JACK MCKAY BLVD. ENNIS, TEXAS 75119 U.S.A.

TELEPHONE: (800) 876-3333 FAX (800) 765-3435

AtlasIED.com
