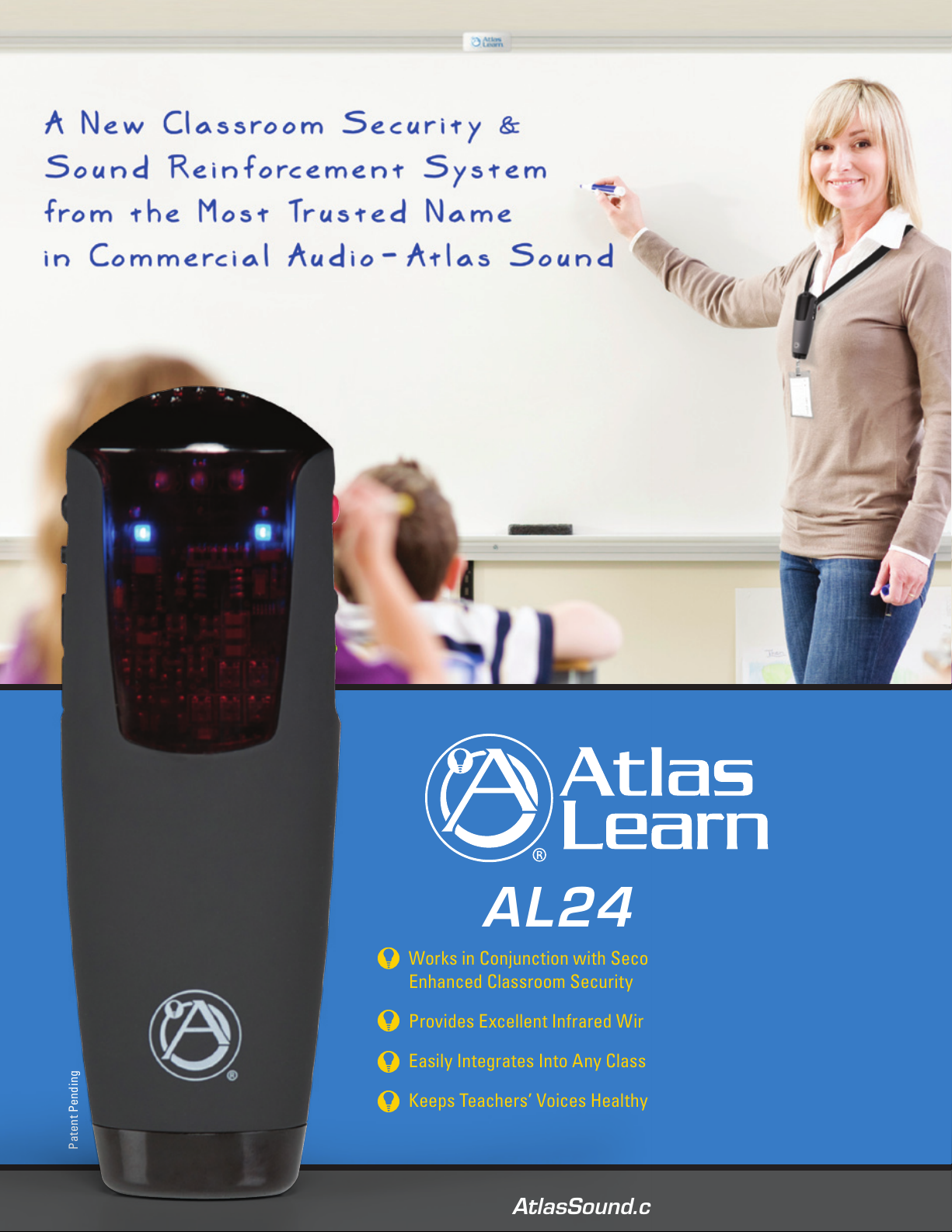

AL243 0
Works in Conjunction with Secondary Systems to Provide
Enhanced Classroom Security
Provides Excellent Infrared Wireless Sound Reinforcement
Easily Integrates Into Any Classroom
Keeps Teachers’ Voices Healthy and Sustainable
Patent Pending
AtlasSound.com
5.4"
(137mm)
AL2430 Pendant IR Transmitter
The versatile and ergonomic AL 2430 pendant / handheld microphone transmitter
allows both teachers and students freedom of movement without bulky electronics or
cumbersome wires. The dual mode transmit ter allows teachers to control microphone
volume, overall system volume and mute settings via side mounted soft touch controls.
In addition, when “PANIC” and “MODE” controls are pressed simultaneously for 3
seconds a contact closure is triggered on the AL 2430 receiver. This contact closure
may be integrated with most any intercom or IP based notification system to signal an
emergency condition in the classroom. When transmitter is configured for “student”
mode operation, all controls are bypassed restricting the device’s functionality for use
as a wireless microphone only.
Actual Size
AL-PH
Infrared Pendant Handheld Transmitter
Two AL-PH transmit ters are included with each
AL-2430 system. For most classroom applications,
one transmitter is configured for teacher’s voice
reinforcement with the second transmitter
dedicated for student’s use.
Panic Button – Held down for 3
seconds along with MODE button
causes panic signal to be sent.*
Power Indicator LED
Green = On, Red = Low Battery
Auxiliary Mic Input – For use with
optional Headset Mic Model AL-HSM
Handheld
Separate LED clusters
l o cated on top and
bottom of unit guarantee
optimum line of sight
operation when the unit
is hand held
Mode But ton – With transmitter
configured for teacher use, “mode”
function allows volume control
selection for microphone only or the
overall system level. *
ON / OFF Switch
Volume Control*
Lanyard
Secure connection
f e a tures a safet y
breakaway function
for easy release in an
emergency and includes
an innovative ID badge
clip system
Body Pack
Allows hands free use
with optional Atlas Sound
AL-HSM headset mic
* Mode , volume and p anic funct ions are by passed wh en transm itter i s configur ed for stu dent use.
For more information about Atlas Learn, or to arrange a demo:
email AtlasLearn@AtlasSound.com or call 877.626.9005
1
3
2
2
2
12
12
12
4
4
4 5
6
6
6
The compact, ergonomically designed AL2430 receiver/amplifier provides intuitive control of all system
components, visual indication of system status and interface for “panic” condition feedback to secondary
securit y systems. With inputs included to accommodate most any multimedia source, dedicated AV
systems are no longer needed saving valuable space in the classroom.
1
1
1
Mute LED
Displays system mute status (controlled
by teacher’s pendant transmitter)
IR Activity LED
2
2
2
Indicates signal transmission from
wireless transmit ters
Auxiliary Input
3
3
3
3.5mm front panel “AUX” input
bypasses rear panel RCA “AUX” input
for convenient system interface of iPod
or other MP3 players
4
4
4
IR Dome Sensor Input
Professional grade “F” style connectors
ensure secure connection
5
5
5
Microphone EQ
Allows precision adjustment to
eliminate microphone feedback
Audio Output
6
6
6
5
5
10
10
9
9
9
7
7
7
8
8
8
10
AL2430 Integrated Receiver / Amplifier
10
10
7
7
7
Power Supply Input
System includes 120V / 240V, UL Listed /
RoHS rated global power supply
Panic Output
8
8
8
Normally open / normally closed contact
closure is triggered when “panic” mode
is engaged on pendant transmitter.
Connect to external notification systems
such as Atlas Sound’s ControlKom
9
Priority Page Input
Ensures pages and bell tones are heard
when the AL24 30 system is in use.
A parallel line is connected from an
existing paging/intercom loudspeaker to
the AL2430 priority page input. Priority
page source will then duck all amplified
program material (microphone and/
or multimedia inputs) and play back
over all loudspeakers connected to the
AL24 30. Controls are provided for gain
and sensitivity adjustment.
™
10
11
12
11
11
11
Line Output
Allows integration of additional external
amplification, recording devices or
hearing assistance systems.
Multimedia Inputs
Summing RCA connectors
accommodate four unbalanced sources
Pole Mount Chassis
Atlas Sound’s patent pending pole
mount design allows unit to be mounted
above the classroom projector system
30-Watt output via 4-pole, phoenix style
connector (8Ω , 25V, and 70.7V)
Proj ector No t Included
Microphone Charging Station
Infrared Dome Sensors
Rack Mount Kit
AL24 30 charging station includes a
dock section to charge two pendant
transmitters and four additional AA
rechargeable batteries simultaneously.
Unit may be wall mounted via integral
key hole slots or shelf mounted for easy
Up to three infrared dome sensors may be
utilized with the AL 2430 receiver/amplifier.
Two are included with the system along
with two 10 meter sections of UL listed
RG59 coaxial cable terminated with
professional “F” connectors.
Optional rack ears (PA702-RMK) may
be used for rack mounting the receiver /
amplifier.
accessibility.
Bring all your students to the head of the class…
The Atlas Learn AL 2430 system is an in-classroom sound reinforcement solution designed for use in K-12 and higher education
facilities or where a room constrained public address system is required. This complete audio enrichment package consists of
amplifier / receiver, wireless microphones, and docking station designed to allow the teacher and students to walk freely around the
room with the infrared microphones/system control units and project their voices through installed speakers.
Classrooms equipped with sound reinforcement benefit teachers, students, and the education system as a whole. With even sound
distribution, lessons are easily heard no matter where students are seated. Attention and concentration are raised, especially
in the back of the room, through this added involvement. Teachers no longer strain their voice and they can easily integrate with
multimedia teaching tools such as computers and DVD players by controlling audio from a single source. And with priorit y paging
and emergency notification to inform another location of the need for outside assistance, Atlas Learn fulfills the needs of any
education facility.
Available System Configurations
AL2430-2PH-SD4
Includes: two Pendant / Handheld Transmitters, Charging Station, Receiver/Amplifier, two IR Receiver Domes with Cables,
Rechargeable Batteries, Power Supplies, four Atlas Sound SD72W Loudspeakers, four 81-8 Tile Bridges, four CS95-8 Enclosures
and 100’ of plenum rated 18/2 speaker cable. Loudspeaker system is UL Listed for use in air handling (plenum) spaces per UL2043
standard.
AL2430-2PH
Includes: two Pendant / Handheld Transmitters, Charging Station, Receiver/Amplifier, two IR Receiver Domes with Cables,
Rechargeable Batteries, and Power Supplies.
AL2430 Receiver / Amplifier Specifications
Multimedia Input
Sensitivity
Priority Page Input
Sensitivity
Computer Input
Impedance
Multimedia Input
Impedance
Multimedia Input
Connector Type
AUX Front Input
Connector Type
Line Outpu t Impedance
Line Outpu t Voltage
©2 009 At las Sound L .P. All righ ts reser ved. At las Sound , Atlas Lea rn, and Am plified L earning ar e trademar ks of Atl as Sound L .P.
All o ther trad emarks ar e the proper ty of t heir respe ctive ow ners. AT S00 336 0 RevB 6/ 09 48 4127
-10d B
14dB
56K
22K
Dual RC A
3.5mm
1K
1.3V
Line Outpu t
Connector Type
Mic EQ (10 0Hz, 3kHz,
& 10kHz) Adjustment
IR Input Impedance /
Connector Type
Panic Output
Cont act Rating
Speaker Output
In Line PSU Type
Dimensions
Weight
Dual RC A
±10dB
75Ω F Connector
5A@ 36 V
30W RMS @
8Ω, 2 5V or 70.7V
10 0V –240 V In,
24V DC / 2.5A Out
1¾" (45 mm) H
8½" ( 216 mm) W
13½" (3 43mm) D
5.7 5lbs (2.6kg)
Specifications are subject to change without notice.
AL-PH Pendant Handheld
Transmitter Specifications
IR LEDs
Aux Input
External Controls
Internal Controls
Indicator L EDs
Dimensions
Weight
(with Bat teries)
Weight
(less Batteries)
AtlasSound.com
6 Total in 2 Groups
3.5mm, 2k Ω
Power, Mode,
Volume, Panic Mute
Channel A /B,
Student “Lock Out ”
Mode (2 Blue), Lockou t
(1 Red), PW R / BATT
(1 Green / Red)
5.18 7" (131.7mm) H
1.8" (45.7mm) W
1.31" (3 3.4mm) D
4.23 oz (120g)
2.1oz (6 0g)
AL-Dock Charging Station
AL-PH Por ts
Charge Indicator
LEDs
PSU Type
Dimensions
2
4 (Red – Charging,
Green – C harged)
120 V Inpu t, 9VDC,
1A Out put
7.44" (18 9mm) W
2.7 5" (70mm) D
4.17 " (106mm) H
IR Receiver Dome
Receiver LEDs
Mounting
Cable
6
Screw Type
32.8' (10m) U L
Lis ted, "F " Style
Termina tion,
RG5 9 Type
