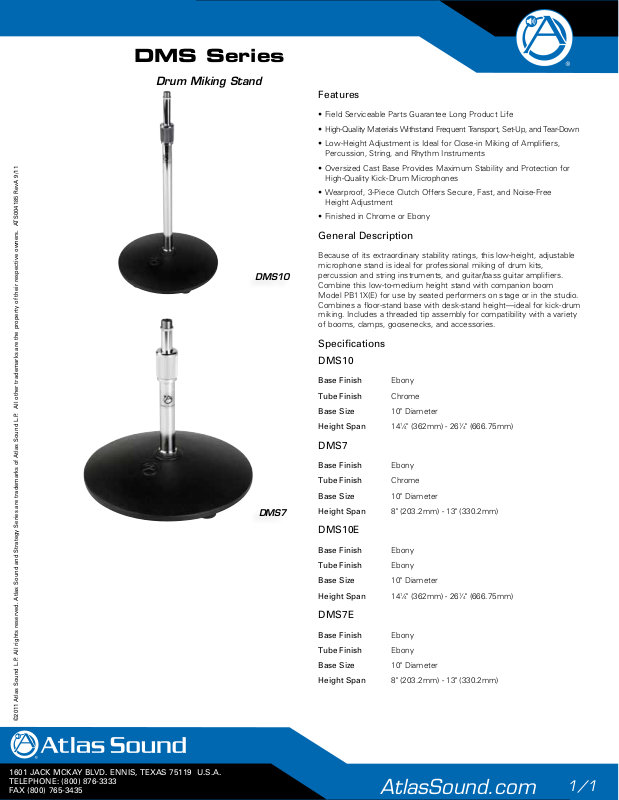

Atlas IED DMS10E Data Sheet

DMS Series

Drum Miking Stand

DMS10

Features

• Field Serviceable Parts Guarantee Long Product Life

• High-Quality Materials Withstand Frequent Transport, Set-Up, and Tear-Down

• Low-Height Adjustment is Ideal for Close-in Miking of Amplifiers,
Percussion, String, and Rhythm Instruments

• Oversized Cast Base Provides Maximum Stability and Protection for
High-Quality Kick-Drum Microphones

• Wearproof, 3-Piece Clutch Offers Secure, Fast, and Noise-Free
Height Adjustment

• Finished in Chrome or Ebony

General Description

Because of its extraordinary stability ratings, this low-height, adjustable
microphone stand is ideal for professional miking of drum kits,
percussion and string instruments, and guitar/bass guitar amplifiers.
Combine this low-to-medium height stand with companion boom
Model PB11X(E) for use by seated performers on stage or in the studio.
Combines a floor-stand base with desk-stand height—ideal for kick-drum
miking. Includes a threaded tip assembly for compatibility with a variety
of booms, clamps, goosenecks, and accessories.

Specifications

DMS10

DMS7

Base Finish Ebony

Tube Finish Chrome

Base Size 10" Diameter

Height Span 141⁄4" (362mm) - 261⁄4" (666.75mm)

DMS7

Base Finish Ebony

Tube Finish Chrome

Base Size 10" Diameter

Height Span 8" (203.2mm) - 13" (330.2mm)

DMS10E

Base Finish Ebony

Tube Finish Ebony

Base Size 10" Diameter

Height Span 141⁄4" (362mm) - 261⁄4" (666.75mm)

DMS7E

Base Finish Ebony

Tube Finish Ebony

Base Size 10" Diameter

Height Span 8" (203.2mm) - 13" (330.2mm)
