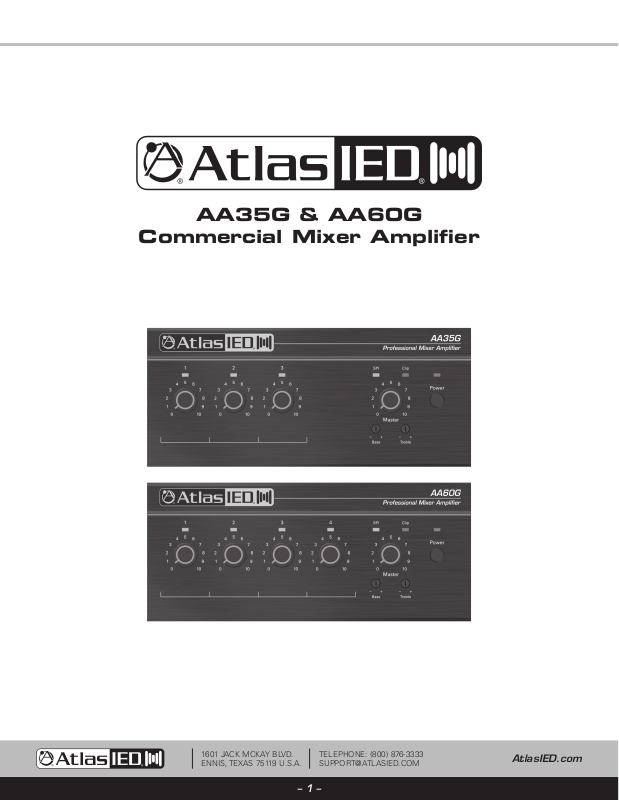

AA35G & AA60G
Commercial Mixer Amplifier
1601 JACK MCKAY BLVD.
ENNIS, TEXAS 75119 U.S.A.
TELEPHONE: (800) 876-3333
SUPPORT@ATLASIED.COM
– 1 –
AtlasIED.com
AA35G / AA60G
Owner’s Manual
Table of Contents
Important Safety Instructions ................................................................................................................................................................................. 3
Introduction ........................................................................................................................................................................................................... 5
Key Features .......................................................................................................................................................................................................... 5
Applications ........................................................................................................................................................................................................... 5
Front Panel Description .......................................................................................................................................................................................... 6
Rear Panel Description ........................................................................................................................................................................................... 7
Installation .............................................................................................................................................................................................................. 8
Rack Mounting ....................................................................................................................................................................................................... 8
Input Wire and Connections ................................................................................................................................................................................... 9
Output Wire Connections ......................................................................................................................................................................................10
Zone 2 Output Connections ..................................................................................................................................................................................10
Wiring the System .................................................................................................................................................................................................11
Phantom Power ....................................................................................................................................................................................................11
Operation .............................................................................................................................................................................................................. 12
Troubleshooting .................................................................................................................................................................................................... 13
Specifications ....................................................................................................................................................................................................... 14
Warranty ............................................................................................................................................................................................................... 16
1601 JACK MCKAY BLVD.
ENNIS, TEXAS 75119 U.S.A.
TELEPHONE: (800) 876-3333
SUPPORT@ATLASIED.COM
– 2 –
AtlasIED.com
AA35G / AA60G
Owner’s Manual
Important Safety Instructions
The lightning flash with arrowhead symbol within an
equilateral triangle, is intended to alert the user to the
presence of uninsulated “dangerous voltage “ within the
product’s enclosure that may be of sufficient magnitude
to constitute a risk of electric shock to persons.
The exclamation point within an equilateral triangle is
intended to alert the user to the presence of important
operating and maintenance (servicing) instructions in the
literature accompanying the product.
1. Read these instructions.
2. Keep these instructions.
3. Pay close attention to all warnings.
4. Follow all instructions.
5. Do not use this device near liquids.
6. Clean only with a dry cloth.
7. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.
8. Do not install near any heat sources such as radiators, heat registers, stoves, or other device (including amplifiers) that produce heat.
9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A
grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided
plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.
10. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from
the device.
11. Only use attachments/accessories specified by the manufacturer.
12. Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the device. When a cart is used, use caution
when moving the cart/device combination to avoid injury from tip-over.
13. Unplug this device during lightning storms or when unused for long periods of time.
14. Refer all servicing to qualified service personnel. Servicing is required when the device has been damaged in any way, such as power-supply cord
or plug is damaged, liquid has been spilled, or objects have fallen into the device, the device has been exposed to rain or moisture, does not
operate normally, or has been dropped.
15. WARNING: To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture.
16. The apparatus shall not be exposed to dripping or splashing and no objects filled with liquids, such as vases, shall be placed on apparatus.
17. The mains plug is used as a disconnect device. The mains plug of the apparatus should not be obstructed OR should be easily accessed during
intended use. To completely disconnect the power input, the mains plug of apparatus shall be disconnected from the mains.
18. This product shall be connected to a mains socket outlet with a protective earthing connection.
1601 JACK MCKAY BLVD.
ENNIS, TEXAS 75119 U.S.A.
TELEPHONE: (800) 876-3333
SUPPORT@ATLASIED.COM
– 3 –
AtlasIED.com
AA35G / AA60G
Owner’s Manual
WARNING - When The Device Is In Use
• WARNING: For the terminals marked with symbol of may be of sufficient magnitude to constitute a risk of electric shock. The external wiring
connected to the terminals requires installation by an instructed person or the used of ready-made leads or cords.
• WARNING: The apparatus shall not be exposed to dripping or splashing and that objects filled with liquids, such as vases, shall not be placed on
apparatus.
• WARNING: The mains plug is used as disconnect device, the disconnect device shall remain readily operable.
• To prevent electric shock, do not remove the product cover as there are high voltage components inside. Refer all servicing to
AtlasIED.
• Should any of the following irregularities occur during use, immediately switch off the power, disconnect the power cord from the AC outlet and
contact AtlasIED. Do not to attempt to continue operation with the product as this may cause fire or electric shock:
• Smoke or strange smell coming from the unit.
• If the product falls or the case is damaged.
• If water or any metallic objects falls into the product.
• If the power supply cord is damaged in any way.
• If the unit is malfunctioning.
• Do not insert or drop metallic objects or flammable materials into the ventilation holes of the product's cover, as this may result in electric shock or
fire.
• Do not place any containers with liquid or metallic objects on the top of the product. If any liquid spills into the unit, fire or electric shock may result.
• Never operate this product or touch the power supply cord during an electrical storm, electric shock may result.
• Never exceed the power rating on the product when connecting equipment. Fire and/or property damage may result.
• Operate the product only with the voltage specified on the unit. Fire and/or electric shock may result if a higher voltage is used.
• Do not modify, kink, or cut the power cord. Do not place the power cord in close proximity to heaters and do not place heavy objects on the power
cord, including the product itself, doing so may result in fire or electrical shock.
• Ensure that the safety ground terminal is connected to a proper ground. Never connect the ground to a gas pipe as a catastrophic disaster may
result.
• Be sure the installation of the product is stable, avoid slanted surfaces as the product may fall and cause injury or property damage.
CAUTION - When Installing The Product
• Plugging in or unplugging the power cord with wet hands may result in electric shock.
• Never move the unit with the power cord plugged into the wall, as damage to the power cord may result.
• When unplugging the cord from the wall, grasp the plug, NOT the cord.
• Never install this product in humid or dusty locations, nor in direct sunlight, near sources of heat, or in areas where sooty smoke or steam are
present. Fire and electric shock may result.
• Keep all sides of the unit at least 31/2" away from objects that may obstruct air flow to prevent the unit's internal temperature rise.
CAUTION - When The Product Is In Use
• Never place heavy objects on the product, causing it to fall and/or break, resulting in personal injury and property damage. In addition, the product
itself may fall and cause injury and property damage.
• Contact AtlasIED for instructions on cleaning the inside of the unit. Large accumulations of dust inside the unit may result in heat buildup and fire.
• Ensure that the power supply plug is securely plugged into the wall outlet. Never allow dust to accumulate on the power plug or inside the wall
outlet.
• When cleaning the unit or the unit is not to be operated for an extended period, unplug the power cord from the wall.
1601 JACK MCKAY BLVD.
ENNIS, TEXAS 75119 U.S.A.
TELEPHONE: (800) 876-3333
SUPPORT@ATLASIED.COM
– 4 –
AtlasIED.com
AA35G / AA60G
Owner’s Manual
Introduction
Congratulations and thank you for purchasing the AtlasIED AA35G / AA60G mixer amplifier. Small, compact, and engineered for reliability, the AtlasIED
AA35G / AA60G will provide years of service and flexibility in background music and paging applications.
Key Features
• AA35G - Three Inputs (Each with a Front Panel Volume Control) and a Single Output Channel
• AA60G - Four Inputs (Each with a Front Panel Volume Control) and a Single Output Channel
• Ideal for Paging, Background Music, and Music-On-Hold Applications
• Balanced Mic / Line / Telco Input, Zone 2, and Dual RCA Stereo Music Inputs
• Priority Muting by VOX or External Switch
• Bass and Treble Controls on Master Output
• Secondary Zone 2 Output 1W & 600Ω / MOH
• Universal AC Power Supply for Use in Any 120V to 240V Country
• 70V, 100V, or 8Ω Amplifier Output
• Signal Presence LED Indicators
Applications
The AtlasIED AA35G / AA60G are the perfect choice for distributed business paging and background music (BGM) systems, small to medium speech
privacy systems, and in applications where music on hold (MOH) plus paging is required.
1601 JACK MCKAY BLVD.
ENNIS, TEXAS 75119 U.S.A.
TELEPHONE: (800) 876-3333
SUPPORT@ATLASIED.COM
– 5 –
AtlasIED.com

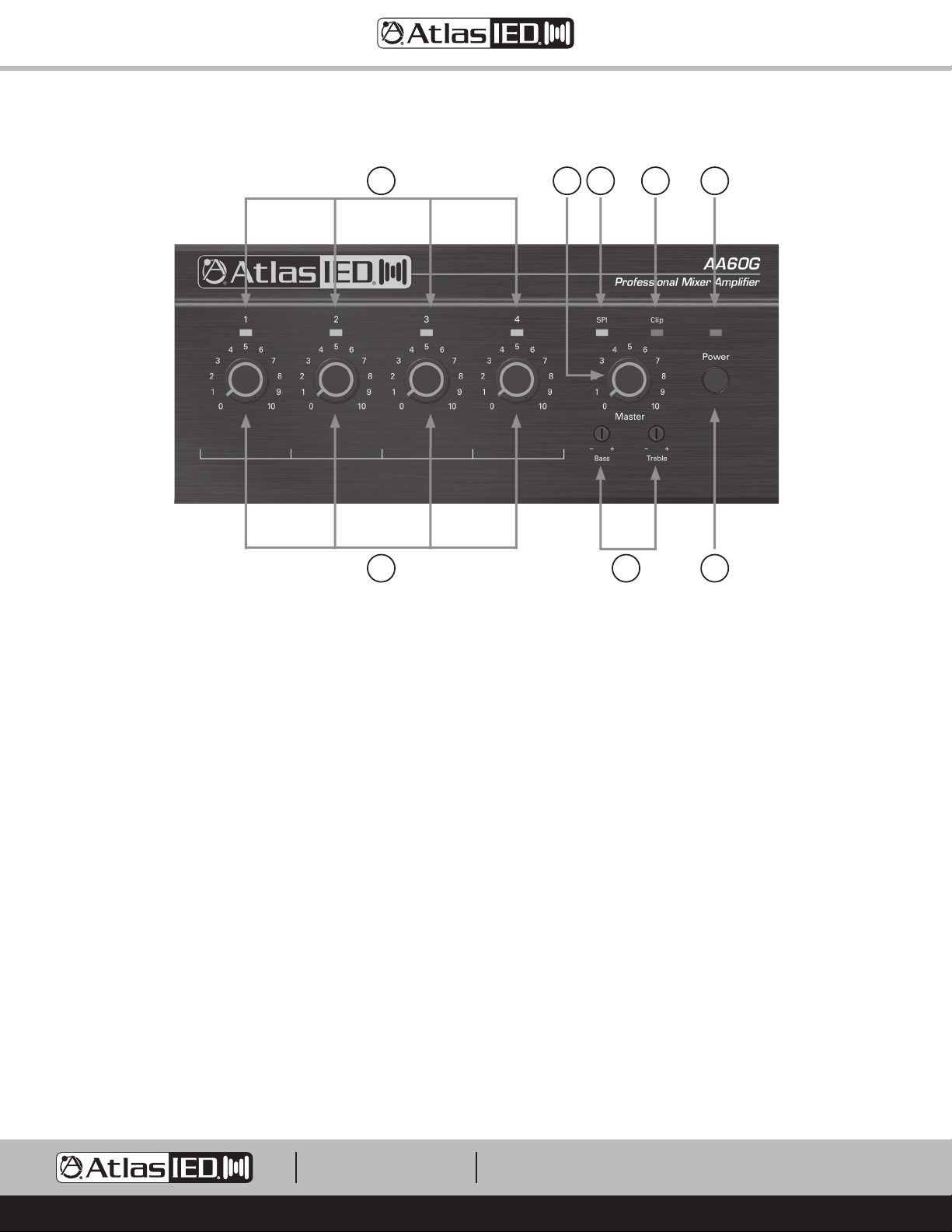

Front Panel
AA35G / AA60G
Owner’s Manual
3 4
1
2
5
6
1. Input Signal Presence/Clip Indicators
Green LED, one above each channel’s volume control, illuminates when input signal exceeds –40 dBu, and flashes brightly at threshold of audible
distortion.
2. Master Level Control
The Master Level control will raise or lower all the input channels together. A good starting point for setting gain structure is to set the
Master Level control at the 12:00 position, and then adjust the individual channels one at a time.
3. Output Signal Indicator
Green LED above master level control illuminates when any input signal exceeds –40 dBu.
4. Output Signal Clip Indicator
Red LED above master output volume control flashes brightly at threshold of audible distortion.
5. Power Indicator
This LED illuminates Blue when the power switch is turned On.
6. Input Level Controls
The rotary control varies the amplitude of the signal fed to the amplifier input. Turn clockwise to increase and counter-clockwise to decrease the signal
level. Four controls in AA60G; three controls in AA35G.
7. Tone Controls
Bass and Treble nondetented recessed potentiometers under master level control.
Bass ±10 dB at 100 Hz, Treble ±10 dB at 10 kHz.
8. Power Switch
This push switch (On/Off) supplies power to the mixer amplifier.
7 8
1601 JACK MCKAY BLVD.
ENNIS, TEXAS 75119 U.S.A.
TELEPHONE: (800) 876-3333
SUPPORT@ATLASIED.COM
– 6 –
AtlasIED.com
Rear Panel
AA35G / AA60G
Owner’s Manual
1 92
1. AC Power Inlet
Detachable IEC accepts US or Euro style power cords.
5 6
3
4
87
2. Amplifier Outputs
For loudspeaker connections, connect as follows or proceed to the setup section for typical wiring schemes.
• COM - Loudspeaker common or negative connection
• 8Ω - Connect to positive terminal on direct coupled loudspeakers
• 70V - Connect to positive terminal on transformer coupled loudspeakers
• 100V - Connect to positive terminal on transformer coupled loudspeakers
3. Amp Configuration DIP Switch
Understanding the functionality of the DIP switches is key to maximizing the versatility of the AA35G/AA60G. When a switch is in the up position, the
function is “ON”and when a switch is in the down position, the function is “OFF”.
1. On: Sets CH1 to Mic Input. Off: Sets CH1 to Line Input.
2. On: Sets CH1 to Normal mode (no priority).
3. On: CH1 priority contact closure mutes other channels.
4. On: CH1 VOX mutes other channels by sensing signal through Input 1.
5. On: Routes CH1 to Zone 2 output.
6. On: Routes CH2 to Zone 2 output.
7. On: Routes CH3 to Zone 2 output.
8. On: 15V phantom power.
4. Input Connectors 2-3 (AA35G) or 2-4 (AA60G)
Unbalanced line-level RCA-type connectors, summed to mono.
1601 JACK MCKAY BLVD.
ENNIS, TEXAS 75119 U.S.A.
TELEPHONE: (800) 876-3333
SUPPORT@ATLASIED.COM
– 7 –
AtlasIED.com
AA35G / AA60G
Owner’s Manual
5. Line Output Connector
3-Pin Balanced Euroblock connector. Line level output is Pre Master Level control. Use this output to connect signal to a secondary amplifier.
6. Zone 2 Level Control
Potentiometer adjusts level for both Zone 2 outputs.
7. Zone 2 Output Terminals
4-terminal Euroblock connector (2 terminals for 1W output to 8Ω loudspeaker, 2 terminals for 600Ω output to PBX MOH, music-on-hold, port or an
additional amplifier).
8. VOX Threshold
Potentiometer controls how loud the voice on CH1 must be before muting other channels. Can be set for no muting. VOX is also known as Voice
Activation Mute. This potentiometer controls the threshold of the mute bus. The mute threshold is determined by the adjustment of this control and
the level at which the person is talking into the microphone. The higher the setting the less voice level it requires to trigger the mute bus.
9. Input 1 Connector
Five terminal Euroblock connector. Three terminals for balanced signal and two terminals for priority contact closure, which mutes other channels when
DIP switch 3 is on. This input accepts balanced Mic, Line, and Telco line level outputs. Note: For Telco unbalanced signals the (-) negative pin and (G)
ground pin need to be tied together. In some rare situations if a hum is present, a 600Ω isolation transformer may be required. This for older type Telco
systems.
Installation
CAUTION: Ensure the mixer amplifier is disconnected from the power source, with power switch in the “Off” position and all level controls turned
completely counterclockwise before beginning installation.
Use a standard 19" (483mm) equipment rack with an optional rack-mount kit. See below for dimensions.
You may also stack mixer amplifiers without using a cabinet or you may place a single mixer amplifier on a surface with 12" of air space around the unit
for convection cooling.
NOTE: When transporting in a rack, mixer amplifiers should be supported at the front and back.
When using an equipment rack, do not mount units directly on top of each other. Allow 2 rack units (3.5") between units for convection cooling. The
side walls of the rack should be a minimum of 2" (51mm) away from the mixer amplifier sides and the back of the rack should be a minimum of 4"
(102mm) from the mixer amplifier back panel.
How to Attach the Unit to a Rack
1. Remove the two screws from each side of the chassis near the front.
2. Place a rack ear flush with the right front of the chassis.
3. Insert a screw that you removed into the bottom hole of the rack ear and chassis. Screw it in.
4. Insert a screw that you removed into the center hole of the rack ear and chassis. Screw it in.
5. Insert one of the supplied screws into the top hole of the rack ear and chassis. Screw it in.
6. Repeat steps 3 - 6 for the left side of the chassis.
3.5" (89mm)
9.5" (241mm)
1601 JACK MCKAY BLVD.
ENNIS, TEXAS 75119 U.S.A.
TELEPHONE: (800) 876-3333
SUPPORT@ATLASIED.COM
How to Connect Rack Ears
Figure 2.2
AtlasIED.com
– 8 –
AA35G / AA60G
Owner’s Manual
Choose Input Wire and Connectors
AtlasIED recommends using balanced line (two-conductor plus shield), 22-24 gauge cables and connectors. Unbalanced line may also be used but may
result in noise over long cable runs.
The AA35G and AA60G have two types of input connectors: Euroblock and RCA.
• Mic / Line Connector (CH1): 5-pin Euroblock, balanced, pins 3, 4 and 5 (Figure 2.3).
• Dual RCA Input Connector (other channels): For stereo music signals, unbalanced, summed together, two connectors per input (Figure 2.4).
To Mic or
Line-Level
Source
To Stereo
Line-Level
Source
Figure 2.4
Dual RCA Input Connector
Figure 2.3
Mic / Line Connector
1601 JACK MCKAY BLVD.
ENNIS, TEXAS 75119 U.S.A.
TELEPHONE: (800) 876-3333
SUPPORT@ATLASIED.COM
– 9 –
AtlasIED.com
AA35G / AA60G
Owner’s Manual
Choose Output Wire and Connectors
Amplifier Output Connections: Slip the cable lugs under the output screw terminals and tighten (Figure 2.5). Slide the supplied non-touch cover
over the output connections from top to bottom to cover them. AtlasIED recommends using high-quality, two-conductor, heavy gauge speaker wire
and connectors. Crimp-on spade lugs may be used for the output connectors. To prevent the possibility of short-circuits, wrap or otherwise insulate
exposed loudspeaker cable connectors. Cover the output connections with the supplied clear non-touch cover by sliding the cover on. Using the
guidelines below, select the appropriate size of wire based on the distance from amplifier to loudspeaker. The wire sizes apply to the 8Ω tap.
Distance Wire Size
up to 25 ft. 16 AWG
26-40 ft. 14 AWG
41ft. + 12 AWG
NOTE: Custom wiring should only be performed by qualified personnel. Class 2 wiring is required.
CAUTION: Never use shielded cable for output power wiring.
Use 2-conductor shielded cable and a 3-pin Euroblock connector for Preamp Line Output (Figure 2.6).
Zone 2 Connections
If an external music source is connected to the AA35G or AA60G, its music can play over a phone line while the caller is on hold. Use the connection
shown in Figure 2.7 (either 8Ω or 600Ω) to connect the mixer amplifier to the Music-On-Hold input on the telephone system interface / PBX.
Figure 2.5
Amplifier Output
Connections
Connections to the Preamp
Output Connector
1601 JACK MCKAY BLVD.
ENNIS, TEXAS 75119 U.S.A.
Figure 2.6
TELEPHONE: (800) 876-3333
SUPPORT@ATLASIED.COM
– 10 –
Connections to the Telephone
Figure 2.7
(MOH or Amplifier Input)
Connector
AtlasIED.com
AA35G / AA60G
Owner’s Manual
Wire the System
Typical input and output wiring is shown in Figure 2.8.
INPUTS: For Input 1, connect a microphone or balanced line-level signal to the Input 1 balanced input. Set the Mic / Line switch (DIP switch #1)
accordingly. For the other inputs, connect unbalanced line-level signals to the RCA input connectors.
OUTPUTS: Maintain proper polarity (+/–) on amplifier output connectors. Connect the Amplifier Output screw terminals to the loudspeaker loads. Use
terminals marked COM and 70V or 100V for constant voltage loudspeaker loads. Use terminals marked COM and 8Ω for an 8Ω loudspeaker. Connect
the COM terminal to loudspeaker negative (–) lead; connect one of the other terminals to loudspeaker positive (+) lead. Cover the output connections
with the supplied clear non-touch cover by sliding the cover on.
Phantom Power
Condenser microphones require phantom power to operate. If you are using a condenser microphone on Input 1, turn on DIP switch #8 on the back of
the mixer-amp. The microphone must be able to work on 15V phantom power, which the mixer amplifier’s mic input connector provides.
Figure 2.8
Input-Output Wiring
Loudspeakers with 70V Transformers
CD Player
Satellite Receiver
5-Terminal Removable
Barrier Block (Euroblock)
In-Ceiling
Loudspeaker
1601 JACK MCKAY BLVD.
ENNIS, TEXAS 75119 U.S.A.
IN
Telephone System
Interface / PBX
TELEPHONE: (800) 876-3333
SUPPORT@ATLASIED.COM
– 11 –
To Mic
To Switch In Mic.
Switch Mutes Other Channels
Paging Mic
AtlasIED.com
AA35G / AA60G
Owner’s Manual
Operation
Powering Up
1. Turn Off any equipment connected to the Preamp Output connector.
2. Plug the amplifier’s power cord into a 3-wire grounded AC outlet.
3. Turn down the input volume controls.
4. Turn down the master volume control.
5. Turn on the Power switch. The Power indicator should glow.
6. Turn the input volume controls in use about
7. Turn up the master volume control(s) until the desired loudness or power level is achieved.
8. Touch up the input levels as needed for music and voice.
9. Turn on any equipment connected to the Preamp Output connector.
Disconnect the power cord before making any wiring or installation changes.
Priority Muting
Follow this procedure to allow the microphone’s push-to-talk switch to mute the background music or other input signals.
On the back of the AA35G or AA60G:
1. Turn DIP switch 2 “Off” Turn DIP switch 3 “On”.
2. Connect a push-to-talk mic contact to the Priority Connector (Figure 3.1). Input 1 is the priority input for the amplified output, so Input 1 mutes the
other inputs.
3
/4 up.
Figure 3.1
Priority Muting Controls
and Connectors
Mic Push-to-Talk Switch
Voice-Activated (VOX) Muting
Follow this procedure to allow a voice to mute the background music or other input signals.
On the back of the AA35G or AA60G:
1. Turn DIP switch 4 “On” Turn DIP switches 2 and 3 “Off”.
2. Talk into the microphone. Adjust the VOX threshold potentiometer on the back of the unit to set how loud the voice must be before muting occurs.
It can be set for no muting.
Zone 2 Output
On the back of the unit, adjust Zone 2 Level Control to obtain the desired noise level.
1601 JACK MCKAY BLVD.
ENNIS, TEXAS 75119 U.S.A.
TELEPHONE: (800) 876-3333
SUPPORT@ATLASIED.COM
– 12 –
AtlasIED.com
AA35G / AA60G
Owner’s Manual
Troubleshooting
CONDITION: No power to the mixer amplifier.
POSSIBLE REASON:
• The mixer amplifier’s power switch is Off.
• The mixer amplifier is not plugged into the AC power receptacle.
• The mixer amplifier’s high-voltage power supply circuit breaker has tripped.
Verify that the AC mains voltage is correct.
CONDITION: Distorted sound.
POSSIBLE REASON:
• Input signal level is too high. Turn down the input level controls.
Note: The mixer-amplifier should never be operated at a level which causes the Clip LEDs to illuminate
constantly.
3
• Master volume level is too high. Turn it down to about
CONDITION: No sound.
POSSIBLE REASON:
• The amplifier is in “fault” mode. A Fault status can be triggered when one of the amplifier’s
protection circuits is activated. First disconnect your loudspeakers from the affected channel(s) one by
one to determine if one of the loads is shorted. If an amplifier channel has a thermal fault, there will
be no indication on the front panel, but the amp will recover after cooling. If operation does not return
to normal after restarting the amplifier, contact AtlasIED at 1-800-876-3333.
/4 of maximum level.
POSSIBLE REASON:
• No input signal.
• Input signal level is very low.
1601 JACK MCKAY BLVD.
ENNIS, TEXAS 75119 U.S.A.
TELEPHONE: (800) 876-3333
SUPPORT@ATLASIED.COM
– 13 –
AtlasIED.com
AA35G / AA60G
Owner’s Manual
System AA35G AA60G
Type 35-Watt Mixer Amplifier 60-Watt Mixer Amplifier
Power Supply Type Global Switch Mode Global Switch Mode
Amp Topology Class AB Class AB
Number of Fixed Inputs 3 4
Accessory Inputs N/A N/A
DSP Internal N/A N/A
Network N/A N/A
Optional Accessory Card Slot N/A N/A
Output Power (Note 1)
100 V 35-Watts 60-Watts
70V 35-Watts 60-Watts
8Ω 35-Watts 60-Watts
Front Panel
Power Switch Push Type Push Type
Indicators Output Signal, Clip, Power Signal, Clip, Power
Indicators Input Signal Signal
Output Limiter N/A N/A
PHD Test Circuit N/A N/A
Level Controls Master, Inputs 1-3 Master, Inputs 1-4
EQ Output Bass Yes Ye s
EQ Output Treble Ye s Ye s
Mic / Line / AUX Inputs
Input Quantity 3 4
Mic / Line / Telco
(Balanced, 3 Position PHX Type, 3.5mm Pitch)
Aux RCA (Unbalanced RCA L & R Sum) 2 3
Aux 3.5mm (Unbalanced 3.5mm L & R Sum) N/A N/A
Speciality Inputs
Line Input Balacnced
(Balanced, 3 Position PHX Type, 3.5mm Pitch)
Line Input Unbalacnced (RCA) N/A N/A
Room Combine - Bridge Buss In / Out (Line Level
Balanced 5 Position PHX Type, 3.5mm Pitch)
Amp In
(Balanced, 3 Position PHX Type, 3.5mm Pitch)
Input Mute
VOX (Input 1 Activated)
(Assignable Inputs, VOX Threshold Senstivity)
Priority / Remote Mute: Assignable Inputs,
Contact Closure (2 Position PHX)
Remote Level
Type (External Varible Resistance 10kΩ - 0Ω) N/A N/A
Connector (2 Position PHX Type, 3.5mm Pitch) N/A N/A
Assignment
(Input 6 or Master, Dip Switch Selection)
1 1
N/A N/A
N/A N/A
N/A N/A
Fixed Assignment Fixed Assignment
Fixed Assignment Fixed Assignment
N/A N/A
1601 JACK MCKAY BLVD.
ENNIS, TEXAS 75119 U.S.A.
TELEPHONE: (800) 876-3333
SUPPORT@ATLASIED.COM
– 14 –
AtlasIED.com
AA35G / AA60G
Owner’s Manual
Outputs
Main (Class 2 Wire Rated)
Transformer Coupled Taps
Main Output Termination
(Barrier Strip Screw Terminal)
Zone 2 1W 8Ω with Level Control
(2 Position PHX Type, 5.08mm Pitch)
Zone 2 Balanced / MOH with Level Control
(600Ω, Max 1.0V Out, 2 Position PHX Type,
5.08mm Pitch)
Pre Out
(Balanced, 2V Max, Pre Master Level Control)
Control Switch Functions
Zone 2 (Assignable) Ye s Ye s
Mute Receive (Assignable) Ye s Ye s
Phantom Power (24V) Ye s Ye s
Mic/Line Select (Inputs 1, 2, 3, 4) Input 1 Input 1
Remote Level Assignment
(Input 6 or Master Level)
Lo Cut Filter
(400Hz Hi-Pass Filter, By-passes Bass EQ)
Technical Data
Frequency Response (LF +/- 3db, HF +/- 1dB) Ye s Yes
THD+N (0.5% or Less, at 1kHz, Rated Output) Ye s Ye s
Input Impedance (Mic / Line / Telco
Balanced 1200Ω, Unbalanced 10kΩ)
Mic Mode
Line Mode
3.5mm L & R Unbalanced Summed
RCA Unbalanced L & R Summed
Signal To Noise Ratio
Balanced Line
3.5mm L & R Unbalanced Summed
RCA Unbalanced L & R Summed
Phantom Power (Mic Mode) 24V 24V
EQ
Output Bass
Output Treble
Power Requirements
AC Mains Operating Range (100V - 240v 50 / 60 Hz) Yes Ye s
AC Cord (IEC to NEMA 5-20P, 2M, 18-Gauge) Ye s Ye s
Idle Power (Amps, Watts, BTU) 0.18A, 11W, 37 BTU 0.27A, 16W, 54 BTU
Average Power - Note 3 (Amps, Watts, BTU) 0.75A, 54W, 184 BTU 1.09A, 81W, 276 BTU
Max Power - Note 1 (Amps, Watts, BTU) 1.15A, 90W, 307 BTU 1.67A, 131W, 446 BTU
8Ω, 70.7V, 100V 8Ω, 70.7V, 100V
Ye s Ye s
Ye s Ye s
Ye s Ye s
Ye s Ye s
N/A N/A
N/A N/A
3mV
800mV
NA
400mV
Mic
55dB
55dB
75dB
75dB
±6dB @ 100Hz
±6dB @ 10kHz
DSP
NA
3mV
800mV
NA
400mV
55dB
55dB
75dB
75dB
±6dB @ 100Hz
±6dB @ 10kHz
NA
1601 JACK MCKAY BLVD.
ENNIS, TEXAS 75119 U.S.A.
TELEPHONE: (800) 876-3333
SUPPORT@ATLASIED.COM
– 15 –
AtlasIED.com
AA35G / AA60G
Owner’s Manual
Cooling
APD Standby, Active Idle Convection Cooled Convection Cooled
In Use Convection Cooled Convection Cooled
Cooling Air Flow Direction N/A N/A
Mechanical
Chassis Steel Steel
Finish Black Paint Black Paint
Agency Approvals
RoHS Compliant Ye s Ye s
Safety Listings Yes Ye s
CB Ye s Ye s
FCC N/A N/A
Dimensions and Weight
Rack Mount Requirements AAGRMK2 Rack Mount Kit (2RU) AAGRMK2 Rack Mount Kit (2RU)
Dimensions - Unit 8.25" W x 3.5" H x 12.25" D (210mm x 90mm x 311mm) 8.25" W x 3.5" H x 12.25" D (210mm x 90mm x 311mm)
Dimensions - Shipping 15.3" W x 6.8" H x 10.8" D (389mm x 173mm x 275mm) 15.3" W x 6.8" H x 10.8" D (389mm x 173mm x 275mm)
Weight - Unit 8.2 lbs (3.7 kg) 9.7 lbs (4.3 kg)
Weight - Shipping 10.55 lbs (4.78 kg) 12.11 lbs (5.49 kg)
NOTES:
1. Power level measurment is define as follows: 1Hz Sine wave signal 1 second at 1% THD+N
2. If the amplifier specifies 8 ohm load, a 4 ohm load can be applied but will deliver the the power rating of 8 ohm. If driven past this power rating the amplifier will go into
protect.
3. Average Power is defined as Pink Noise input signal applied to achieve 1/3 of the 4 Ohm or 70.7V power rating.
4. Max Power is defined as 1 KHz input signal applied to achieve the maxium power output before clipping into a 4 Ohm or 70.7V load.
5. BTU is calcualed by the AC Mains Power consumed minus the total power output measured at the specified load and condition, multiplied by 3.412.
Example: 785 Watts from the AC Source - 600 Watts Total Output power = 185 x 3.412 = 631 BTU
1601 JACK MCKAY BLVD.
ENNIS, TEXAS 75119 U.S.A.
TELEPHONE: (800) 876-3333
SUPPORT@ATLASIED.COM
– 16 –
AtlasIED.com
Notes:
AA35G / AA60G
Owner’s Manual
1601 JACK MCKAY BLVD.
ENNIS, TEXAS 75119 U.S.A.
TELEPHONE: (800) 876-3333
SUPPORT@ATLASIED.COM
– 17 –
AtlasIED.com
Notes:
AA35G / AA60G
Owner’s Manual
1601 JACK MCKAY BLVD.
ENNIS, TEXAS 75119 U.S.A.
TELEPHONE: (800) 876-3333
SUPPORT@ATLASIED.COM
– 18 –
AtlasIED.com
Notes:
AA35G / AA60G
Owner’s Manual
1601 JACK MCKAY BLVD.
ENNIS, TEXAS 75119 U.S.A.
TELEPHONE: (800) 876-3333
SUPPORT@ATLASIED.COM
– 19 –
AtlasIED.com
Limited Warranty
All products manufactured by AtlasIED are warranted to the original dealer/installer, industrial or commercial purchaser to be free from defects in
material and workmanship and to be in compliance with our published specifications, if any. This warranty shall extend from the date of purchase for
a period of three years on all AtlasIED products, including SOUNDOLIER brand, and ATLAS SOUND brand products except as follows: one year on
electronics and control systems; one year on replacement parts; and one year on Musician Series stands and related accessories. Additionally, fuses
and lamps carry no warranty. AtlasIED will solely at its discretion, replace at no charge or repair free of charge defective parts or products when the
product has been applied and used in accordance with our published operation and installation instructions. We will not be responsible for defects
caused by improper storage, misuse (including failure to provide reasonable and necessary maintenance), accident, abnormal atmospheres, water
immersion, lightning discharge, or malfunctions when products have been modified or operated in excess of rated power, altered, serviced or installed
in other than a workman like manner. The original sales invoice should be retained as evidence of purchase under the terms of this warranty. All
warranty returns must comply with our returns policy set forth below. When products returned to AtlasIED do not qualify for repair or replacement
under our warranty, repairs may be performed at prevailing costs for material and labor unless there is included with the returned product(s) a written
request for an estimate of repair costs before any nonwarranty work is performed. In the event of replacement or upon completion of repairs, return
shipment will be made with the transportation charges collect.
EXCEPT TO THE EXTENT THAT APPLICABLE LAW PREVENTS THE LIMITATION OF CONSEQUENTIAL DAMAGES FOR PERSONAL INJURY, ATLASIED
SHALL NOT BE LIABLE IN TORT OR CONTRACT FOR ANY DIRECT, CONSEQUENTIAL OR INCIDENTAL LOSS OR DAMAGE ARISING OUT OF THE
INSTALLATION, USE OR INABILITY TO USE THE PRODUCTS. THE ABOVE WARRANTY IS IN LIEU OF ALL OTHER WARRANTIES INCLUDING BUT
NOT LIMITED TO WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE.
AtlasIED does not assume, or does it authorize any other person to assume or extend on its behalf, any other warranty, obligation, or liability. This
warranty gives you specific legal rights and you may have other rights which vary from state to state.
Service
Should your amplifier require service, please contact the AtlasIED warranty department at
1-800-876-3333 or atlaswarranty@atlasied.com to obtain an RA number.
AtlasIED Tech Support can be reached at 1-800-876-3333 or www.atlasied.com/support
Visit our website at www.AtlasIED.com to see other AtlasIED products.
©2019 Atlas Sound L.P. The Atlas “Circle A”, Soundolier, and Atlas Sound are trademarks of Atlas Sound L.P. IED is a registered trademark of Innovative Electronic Designs LLC. All Rights Reserved.
All other trademarks are the property of their respective owners. All specs are subject to change without notice. ATS005530 RevG 8/19
1601 JACK MCKAY BLVD.
ENNIS, TEXAS 75119 U.S.A.
TELEPHONE: (800) 876-3333
SUPPORT@ATLASIED.COM
AtlasIED.com
– 20 –
Loading...
