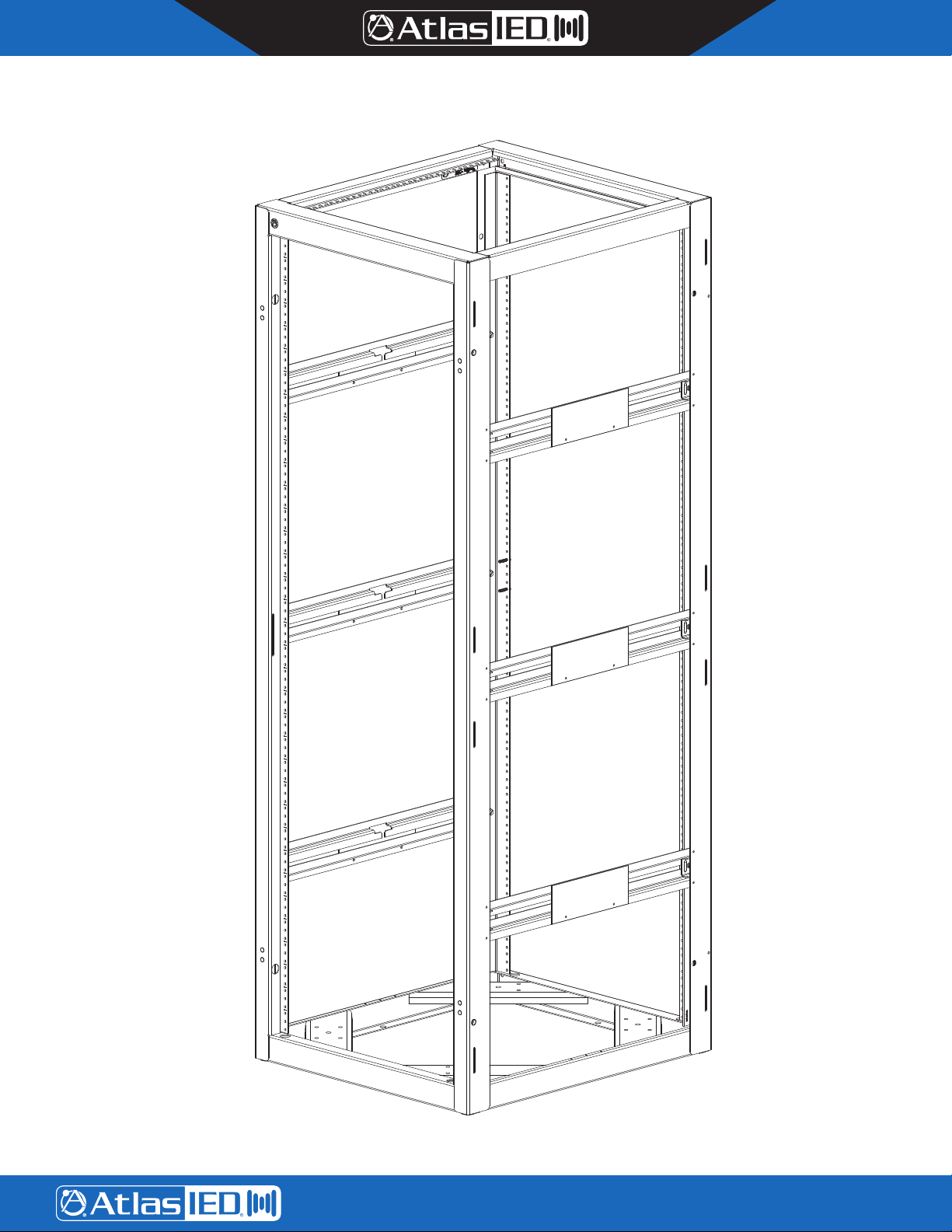

700 Series Racks
19" Wide Opening Stand-Alone/Gangable Deep Floor Cabinet with Adjustable Rails, UL Listed
Features
• UL 2416 Listed
• Optional Seismic Bracing Kit
• Three Model Heights
• Optional Rear Door Offers Right or Left-Hand Hinging Capability
• For 251/2" Deep Models: Up to 12RU (or Combinations to 12RU) Top
Panel Opening Offers Wiring Convenience or for Fan Panel Cooling
with Optional EFT/EFP Series Fan Kits
• For 30" Deep Models: Up to 14RU (or Combinations to 14RU) Top
Panel Opening Offers Wiring Convenience or Fan Panel Cooling with
Optional EFT/EFP Series Fan Kits
• For 36" Deep Model: Up to 18RU (or Combinations to 18RU) Top
Panel Opening Offers Wiring Convenience or for Fan Panel Cooling
with Optional EFT/EFP Series Fan Kits
• Increased Opening Base Facilitates Wiring Conduit or to Access
Below Floor Raceways
• Two Functional 3RU Blank Panel (51/4") Provided
• Manufactured to E.I.A. Standards
• Pre-Drilled to Accept M-1A Cabinet Mount IR Repeater
• Gangable Cabinet with Pre-Installed 1/4-20 Thread Inserts to Gang
Cabinets
In The Box
• Base Panel
• 14-gauge Frame, Cold Rolled Steel (CRS) Construction
• Includes 2 Sets of “Fully Adjustable” Rack Rails Made from 12-gauge
CRS with Hash Marks to Denote RU Increments
• Rack Rails Utilize “Drop-In” Feature for Mounting In Cabinet
Options
• Solid, Perforated, or Plexiglas Front Door
• FRD Series Flush Rear Door
• SPS Series Side Panels
• Top Panel
• RR Series Rack Rails
• Drawers, Shelves, Fans, and Accessories
• Caster Kits
• Seismic Bracket Kit Zone – Zone 4 Telcordoa Certified
Applications
The Atlas 700 Series Cabinets, designed for a high strength-to-weight
ratio solution, are ideal for single and multi-bay applications where easy
accessibility to wiring in and between racks is desirable. These cabinets
are commonly used to house Data Center Equipment, Communications
equipment, Audio Video equipment, Computer equipment, Broadcast
equipment, Security systems, CCTV equipment, IT equipment, Industrial
systems and Building Management Systems. These cabinets are built to
Standard #EIA-310-C that meets most OEM, Commercial and Military
application requirements.
©2015 Atlas Sound L.P. and Innovative Electronic Designs, LLC. All Rights Reserved. Atlas Sound is a trademark of Atlas Sound L.P. IED is a registered trademark of Innovative Electronic Designs, LLC. All other trademarks are the property of their respective owners.
744-25
All specs are subject to change without notice. ATS002848 RevG 9/15
1601 JACK MCKAY BLVD.
ENNIS, TEXAS 75119 U.S.A.
TELEPHONE: (800) 876-3333
FAX (800) 765-3435
AtlasIED.com
Page 2
2/4
General Description
These general purpose cabinets are 251/2", 30", & 36" deep, 225/16"wide,
and available in three different RU heights. (Refer to chart on next page
for exact dimensions and model numbers.) The 700 Series racks are
completely welded 14-gauge CRS and assembled for immediate use.
Optional rear doors can be hung with pre-installed quick-release spring
hinges which allow them to be rotated 180° for right- or left-hand
opening. See chart on back for appropriate front door, rear door, &
side panel model numbers (ordered separately). Front doors are keyed
differently than the rear door for security.
The 700 Series cabinet line includes an opening in the cabinet top which
can left open for free wire access/ventilation or closed using standard
panels 12RU (for 251/2" deep models), 14RU (for 30" deep models), or
18RU (for 36" deep models). Top opening is also perfect for installing
EFT/EFP Series fans.
Cabinets include two pairs of front-to-rear adjustable mounting rails
tapped 10-32. Rails are standard E.I.A. 5/8"-5/8"-1/2" spacing.
Cabinet surface is phosphate pre-treated for proper paint adhesion.
Standard finish is textured black epoxy.
Architect and Engineer Specications
Floor cabinet shall be Atlas Sound Model ___________(700 Series).
Depth shall be_____ (251/2", 30", or 36"). Height shall be _____. It shall be
UL Listed 1678 constructed of 14-gauge CRS. CRS adjustable mounting
rails tapped 10–32. Finish shall be textured black epoxy.
Optional rear door shall be supported by spring hinges and be positioned
for (right or left-hand) hinging. Door shall be equipped with a flush door
pull and cylinder lock.
Specication Friendly Text
1. Stand Alone/Gangable Floor Cabinet – Stand Alone/Gangable Floor
cabinet shall be a metal cabinet with adjustable rack rails used to
secure rack mount equipment. Cabinet shall be capable of being
mounted to the floor. Cabinet shall:
a. Be (35RU, 40RU or 44RU) High opening for equipment mounting.
b. Be (251/2", 30", or 36") deep with 19" wide E.I.A. Adjustable front
12-gauge rack rails for mounting equipment.
c. Include optional rear locking door with left or right hand hinging,
FRD series.
d. Be 14-gauge welded metal Cold Roll Steel (CRS) frame.
e. Include Optional Solid, Plexiglas or Perforated Front locking door
capable of right or left hand mounting.
f. Include optional side panels as required, SPS series.
g. Include optional top panel opening for accessories 12RU
(for 251/2" deep models), 14RU (for 30" deep models), or 18RU
(for 36" deep models).
h. Manufacturer Atlas Sound (735-25, 740-25, 744-25, 744-30, 7
44-36) with Optional (SFD, MPFD or PFD) Series Front Door,
FRD Series Rear Door and SPS Series side panels.
©2015 Atlas Sound L.P. and Innovative Electronic Designs, LLC. All Rights Reserved. Atlas Sound is a trademark of Atlas Sound L.P. IED is a registered trademark of Innovative Electronic Designs, LLC. All other trademarks are the property of their respective owners.
All specs are subject to change without notice. ATS002848 RevG 9/15
1601 JACK MCKAY BLVD.
ENNIS, TEXAS 75119 U.S.A.
TELEPHONE: (800) 876-3333
FAX (800) 765-3435
AtlasIED.com
Page 3
700 Series
Model 735-25 740-25 744-25 744-30 744-36
Rack Units 35RU 40RU 44RU 44RU 44RU
3/4
Height
Width
Depth
Outside Dimensions
Usable Depth
Panel Space
651/2"
(1664mm)
225/16"
(567mm)
251/2"
(648mm)
23.53"
(597mm)
611/4"
(1556mm)
741/4"
(1886mm)
225/16"
(567mm)
251/2"
(648mm)
23.53"
(597mm)
701/8"
(1781mm)
811/4"
(2064mm)
225/16"
(567mm)
251/2"
(648mm)
23.53"
(597mm)
771/8"
(1959mm)
811/4"
(2064mm)
225/16"
(567mm)
30"
(762mm)
28.03"
(712mm)
771/8"
(1959mm)
811/4"
(2064mm)
225/16"
(567mm)
36"
(914mm)
34.03"
(864mm)
771/8"
(1959mm)
Top Opening 14RU 14RU 14RU 16RU 18RU
Plexiglass PFD35 PFD40 PFD44 PFD44 PFD44
“Micro-Perf"
Front Door
MPFD35 MPFD40 MPFD44 MPFD44 MPFD44
1" Deep
“Micro-Perf"
Front Door
Front Doors
MPFD35-3 N/A N/A N/A N/A
3" Deep
Solid
Front Door
SFD35 SFD40 SFD44 SFD44 SFD44
©2015 Atlas Sound L.P. and Innovative Electronic Designs, LLC. All Rights Reserved. Atlas Sound is a trademark of Atlas Sound L.P. IED is a registered trademark of Innovative Electronic Designs, LLC. All other trademarks are the property of their respective owners.
Side Panels SPS35-25 SPS40-25 SPS44-25 SPS44-30 SPS44-36
Rear Doors FRD35 FRD40 FRD44 FRD44 FRD44
Extra Rear Rack
Rails
RR35 RR40 RR44 RR44 RR44
Caster Kit RCK-700 RCK-700 RCK-700 RCK-700 RCK-700
LRS √ √ √ √ √
Lacing Bars
LR4 √ √ √ √ √
Bus Bars BBG35 BBG40 BBG44 BBG44 BBG44
