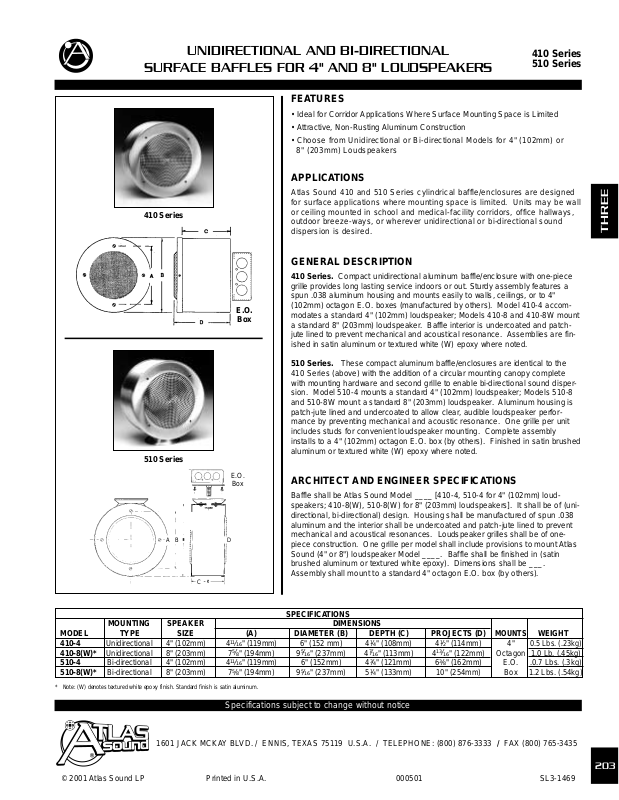

UNIDIRECTIONAL AND BI-DIRECTIONAL
SURFACE BAFFLES FOR 4" AND 8" LOUDSPEAKERS
410 Series
510 Series
FEATURES
• Ideal for Corridor Applications Where Surface Mounting Space is Limited
• Attractive, Non-Rusting Aluminum Construction
• Choose from Unidirectional or Bi-directional Models for 4" (102mm) or
8" (203mm) Loudspeakers
APPLICATIONS
Atlas Sound 410 and 510 Series cylindrical baffle/enclosures are designed
for surface applications where mounting space is limited. Units may be wall
or ceiling mounted in school and medical-facility corridors, office hallways,
outdoor breeze-ways, or wherever unidirectional or bi-directional sound
dispersion is desired.
GENERAL DESCRIPTION
410 Series. Compact unidirectional aluminum baffle/enclosure with one-piece
grille provides long lasting service indoors or out. Sturdy assembly features a
spun .038 aluminum housing and mounts easily to walls, ceilings, or to 4"
(102mm) octagon E.O. boxes (manufactured by others). Model 410-4 accommodates a standard 4" (102mm) loudspeaker; Models 410-8 and 410-8W mount
a standard 8" (203mm) loudspeaker. Baffle interior is undercoated and patchjute lined to prevent mechanical and acoustical resonance. Assemblies are finished in satin aluminum or textured white (W) epoxy where noted.
510 Series. These compact aluminum baffle/enclosures are identical to the
410 Series (above) with the addition of a circular mounting canopy complete
with mounting hardware and second grille to enable bi-directional sound dispersion. Model 510-4 mounts a standard 4" (102mm) loudspeaker; Models 510-8
and 510-8W mount a standard 8" (203mm) loudspeaker. Aluminum housing is
patch-jute lined and undercoated to allow clear, audible loudspeaker performance by preventing mechanical and acoustic resonance. One grille per unit
includes studs for convenient loudspeaker mounting. Complete assembly
installs to a 4" (102mm) octagon E.O. box (by others). Finished in satin brushed
aluminum or textured white (W) epoxy where noted.
ARCHITECT AND ENGINEER SPECIFICATIONS
Baffle shall be Atlas Sound Model ____ [410-4, 510-4 for 4" (102mm) loudspeakers; 410-8(W), 510-8(W) for 8" (203mm) loudspeakers]. It shall be of (unidirectional, bi-directional) design. Housing shall be manufactured of spun .038
aluminum and the interior shall be undercoated and patch-jute lined to prevent
mechanical and acoustical resonances. Loudspeaker grilles shall be of onepiece construction. One grille per model shall include provisions to mount Atlas
Sound (4" or 8") loudspeaker Model ____. Baffle shall be finished in (satin
brushed aluminum or textured white epoxy). Dimensions shall be ___.
Assembly shall mount to a standard 4" octagon E.O. box (by others).
SPECIFICA TIONS
MOUNTING SPEAKER DIMENSIONS
MODEL TYPE SIZE (A) DIAMETER (B) DEPTH (C) PROJECTS (D)
MOUNTS
WEIGHT
410-4 Unidirectional 4" (102mm) 4
11
⁄
16
" (119mm) 6" (152 mm) 4
1
⁄
4
" (108mm) 4
1
⁄
2
" (114mm) 4"
0.5 Lbs. (.23kg)
410-8(W)* Unidirectional 8" (203mm) 7
5
⁄
8
" (194mm) 9
5
⁄
16
" (237mm) 4
7
⁄
16
" (113mm) 4
13
⁄
16
" (122mm) Octagon 1.0 Lb. (.45kg)
510-4 Bi-directional 4" (102mm) 4
11
⁄
16
" (119mm) 6" (152mm) 4
3
⁄
4
" (121mm) 6
3
⁄
8
" (162mm) E.O. .0.7 Lbs. (.3kg)
510-8(W)* Bi-directional 8" (203mm) 7
5
⁄
8
" (194mm) 9
5
⁄
16
" (237mm) 5
1
⁄
4
" (133mm) 10" (254mm) Box 1.2 Lbs. (.54kg)
* Note: (W) denotes textured white epoxy finish. Standard finish is satin aluminum.
A
B
C
D
E.O.
Box
E.O.
Box
410 Series
510 Series
