Atlas Y1878 User Manual
Y1878 Fiberoptic Illuminator
1 GENERAL SYSTEM DESCRIPTION
1.1 System Features
The Y1878 300-Watt Xenon light source described herein is specifically designed for use as an illumination source for
fiber optic illumination applications. As a result, the system shall have the following general features:
1.1.1 4 port flush mount design turret for fiber optic light cable connection to fit ACMI, Storz, Wolf, Olympus industry
standard fibers
1.1.2 Simple lamp module replacement with no tools required
1.1.3 Simple power “ON” switch separate from the lamp ignition switch
1.1.4 Standard lamp safety features
1.1.5 Low noise generation
1.1.6 Very high brightness light output.
1.1.7 Even output beam profile
1.1.8 Compact footprint
1.1.9 Quick re-strike in the event that the device shuts down from overheating
1.1.10 Single world-wide universal power supply
2 INTENDED USAGE
2.1 General
This 300 W Xenon light source shall be used as an illumination source to provide light to fiber optic cables or light guides.
Atlas Specialty Lighting assumes no responsibility for suitability for any particular application of the lightsource
or any consequential damages associated with the use of
the lightsource.
2.2 Personnel
2.2.1 Any trained personnel that has familiarized themselves with the product by reading the operation manual provided
2.3 Sterilization/Disinfection
2.3.1 The light source may be wiped-down with hospital approved disinfectants (e.g. 10% clorox/90% water solution)
applied with a damp cloth.
3 ASSOCIATED EQUIPMENT
3.1 Fiber optic light guides (cables) not provided by Atlas Specialty Lighting
Issue x 2
17 January 2006
Y
1878
CERMAX 300Watt Xenon Fiber Optic Illumiator for Atlas Specialty Lighting
abo
Specification
Comments
1 Electrical Input
1.1
1.2
1.3
Input Voltage 100 - 240 VAC, 50/60Hz universal, 6.0A input
AC Power Connector Located on rear panel, dual fuses
Line cord IEC320, 6', US and Europe options
2 Performance, Features & Warranty
2.1
2.2
2.3
2.4
Overtemperature Prorection Automatic shut down in the event of overheating Fans operate when AC power is on and are independent of lamp status.
Over Heat Recovery / Auto Cool Unit to become fully operational within approximately 3 minutes after thermal shut down
Fiber Optic Connection Safety Feature Fans will remain on in the absence of a fiber optic cable inserted into
Lamp Power Supply PS300 type
2.5
2.6

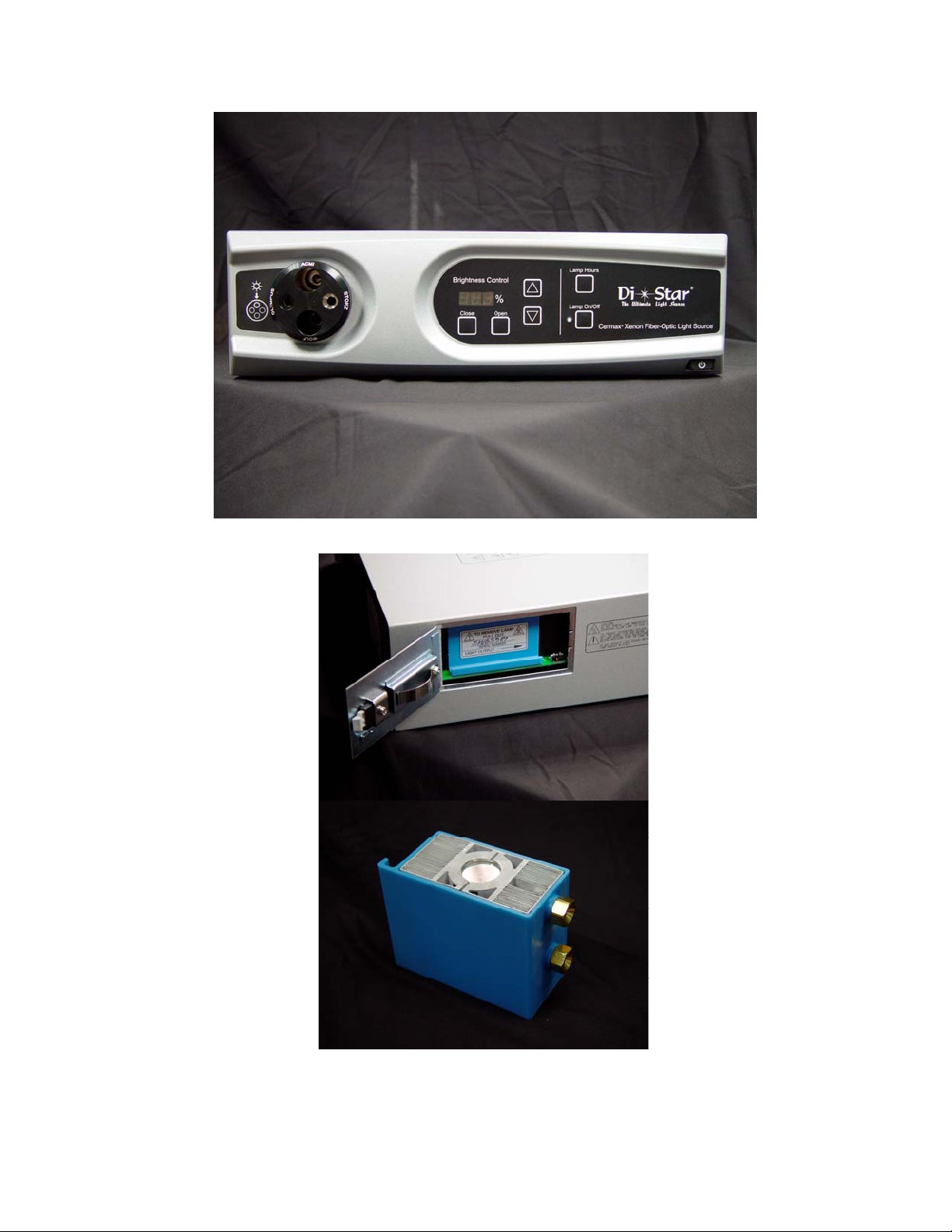

Lamp Module Replacement By easy access to lamp module via latched hinged door. No tools required. Lamp replacement door "interlocked" for safety. Lamp power will be cut
2.7
2.8
System Warranty 12 months exlcuding lamp
Light Output
Lamp Module Y1879 "low profile" CERMAX 300 Watt lamp module, incorporating proprietary type
- 2000 Lumens nominal initial output through 6mm glass rod at full rated power
- Spectral output 380 - 750nm nominal
- <
8% instability p-p through 6mm glass rod @ 0-100Hz
- Beam profile to have "smooth" distribution with no shadows or sharp peaks
& all obstructions to air flow removed at environmental temperature of < 22C (72F)
- Lamp will not ignite unless a fiber optic cable is fully inserted into the active port on the
turret
- Lamp power is cut or blocked if fiber optic cable is removed from active port to prevent
accidental light leakage
lamp
- 500 hours to 50% of initial output specification measured through 6mm glass rod
Lamp Life
- > 1000 hours typical measured through 6mm glass rod
All light output specifications refer to "system only" performance. Light
output via optical fibers or other optical components may vary.
Fans will remain on in the event of thermal shut down when power is ON.
Lamp must be switched on by using lamp ON / OFF switch located on
front panel
active port when power is ON
Lamp specifications may vary slightly from standard PE300C-10F
when door is open
3 User Interface / Control
3.1
3.2
3.3
3.4
3.5
3.6
User Instructions Operation manual to be included with every lightsource
Standby Switch Located on front panel, illuminated when ON Lamp ignition not automatic with standby switch ON
Lamp ON / OFF Switch Located on front panel. Lamp ON status indicated by LED on front panel. Illuminated
Fiber Optic Adapter - 4 port turret with WOLF, STORZ, ACMI, OLYMPUS ports Turret rotated to select one fiber port for illumination at a time. Turret
Light Attenuation Shutter
Lamp Hour Counter Lamp hour counter also records number of time the lamp hours have
when lamp is ON.
- Controlled by membrane buttons on front panel.
- 2 Buttons for relative intensity increments (up and down)
- 1 button for shutter fully closed
- 1 button for shutter fully open
- Relative level of illumination indicated by a digital numeric display (blue numerals)
- Lamp hour mode is selected while "Lamp Hours" button located on front panel is
depressed.
- While lamp hour mode is selcted the number of elapsed lamp hours will be displayed
on the relative brightness display.
- Elapsed lamp hours will be displayed up to 999 hours.
- Elapsed lamp hours displayed can be reset by end user
When lamp ON button is depressed to turn lamp on, the "lamp on LED"
flashes until such time as the lamp ignites. If the lamp fails to ignite in
approximately 4 seconds (possible fault condition) the system will time out
and the lamp ON button will need to be depressed again to initiate lamp
ignition.
rotation will be resitant enough to prevent non-deliberate rotation by
pulling fiber cables
been reset. This number is displayed when lamp hours are re-set.
4 Mechanical & Environmental
Dimensions Height 5.0" x Width 16.9" x Depth 13.8" (nominal) Designed for modular expansion
Weight 20lbs (9kg) nominal
Exterior finish Atlas Specialty Lighting art work and colors
Touch Temperature Per UL2601-1
Sterilization The light source may be wiped-down with hospital approved disinfectants (e.g. 10%
Operating Temperature 6C to 40C
Storage Temperature -20C to + 85C
Operating Pressure 1 Atmosphere nominal
Audible Noise < 45dB
clorox/90% water solution) applied with a damp cloth (must not be wet)
Cooling Vents to direct airflow toward the back of the unit
4.11
4.12
4.13
4.1
4.2
4.3
4.4
4.5
4.6
4.7
4.8
Operating & Storage Humidity 10 - 85% relative humidity, non-condensing
4.9
Shipping, Shock & Vibration per ISTA 1A
5 Regulatory Approvals
5.1
5.2
Compliance to standards -IEC 60601-1:1998+A1:1991+A2:1995+A1.3:1997
-UL 60601-1:2003
-EN 60601-1:1990+A1:1993+A2:1995+A13:1997
-EN 60601-1-2:2001
-CAN / CSA C22.2 No. 601.1/M90(R1997),B/98,S1-94
Regulatory Markings - UL mark
- CUL mark
- CE mark
6
Atlas Specialty Lighting assumes no responsibility for the suitability of this lightsource for any particular application or any consequential damages associated with the use of this lightsource
